Model Kenmore 790.36683500 RANGE – Common Parts & Diagrams

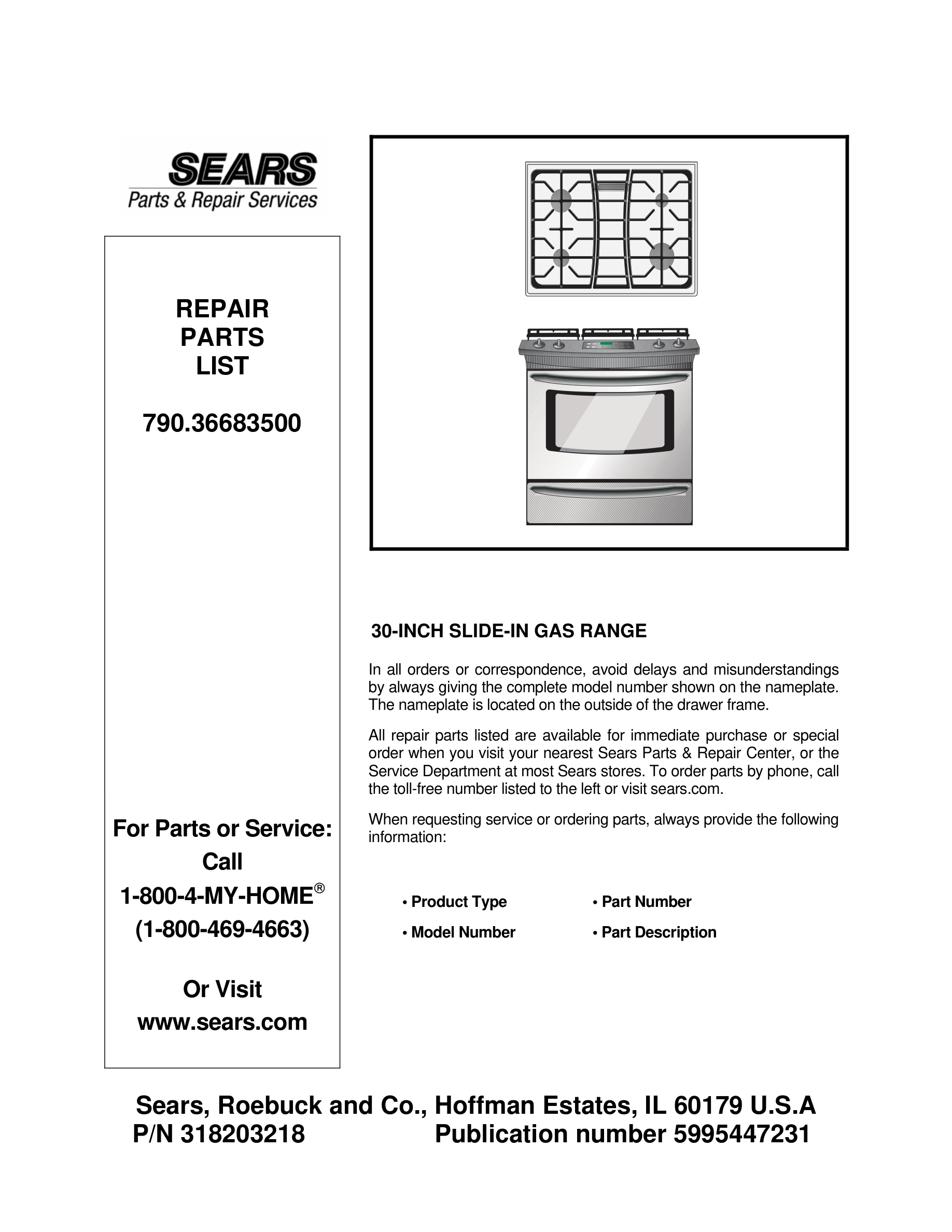

01 - COVER

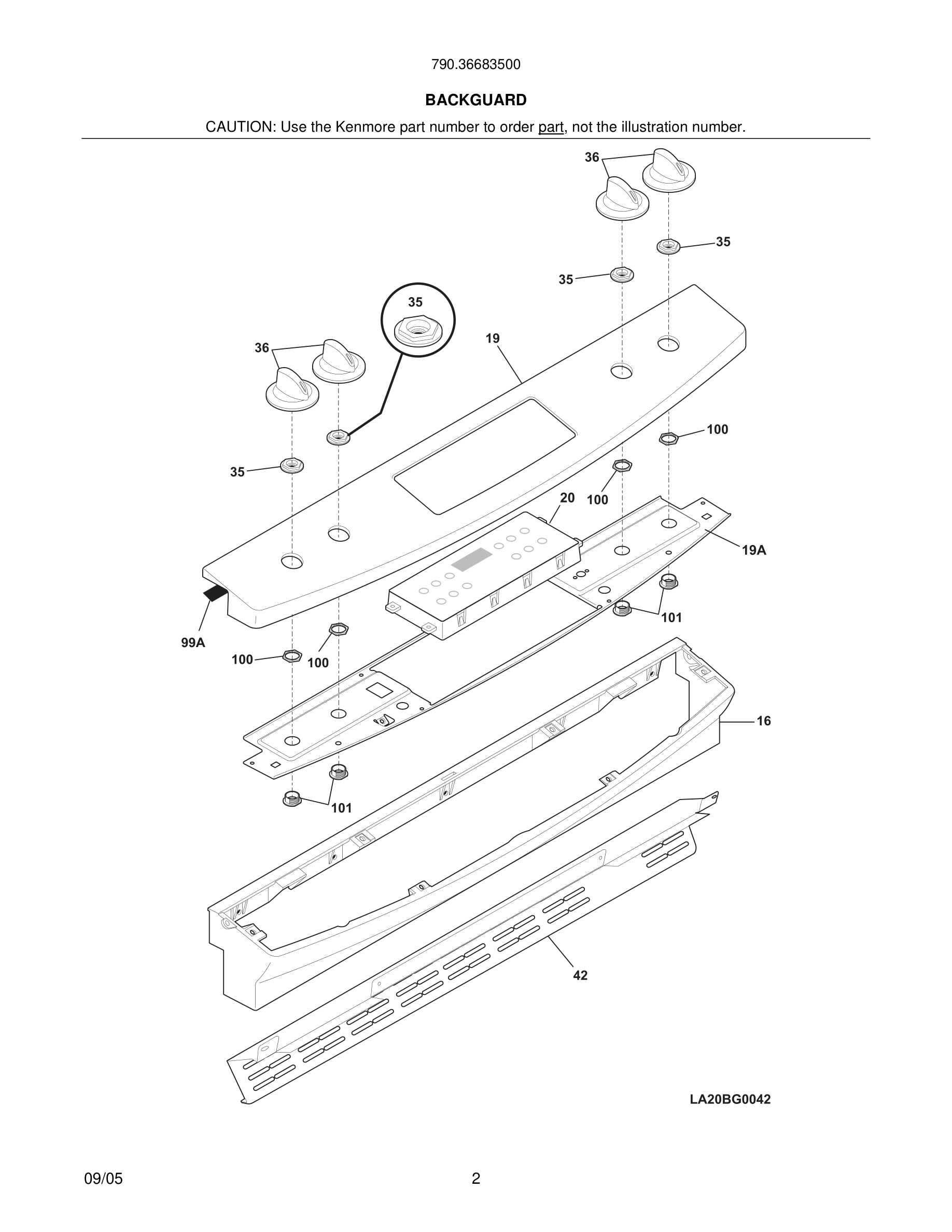

03 - BACKGUARD

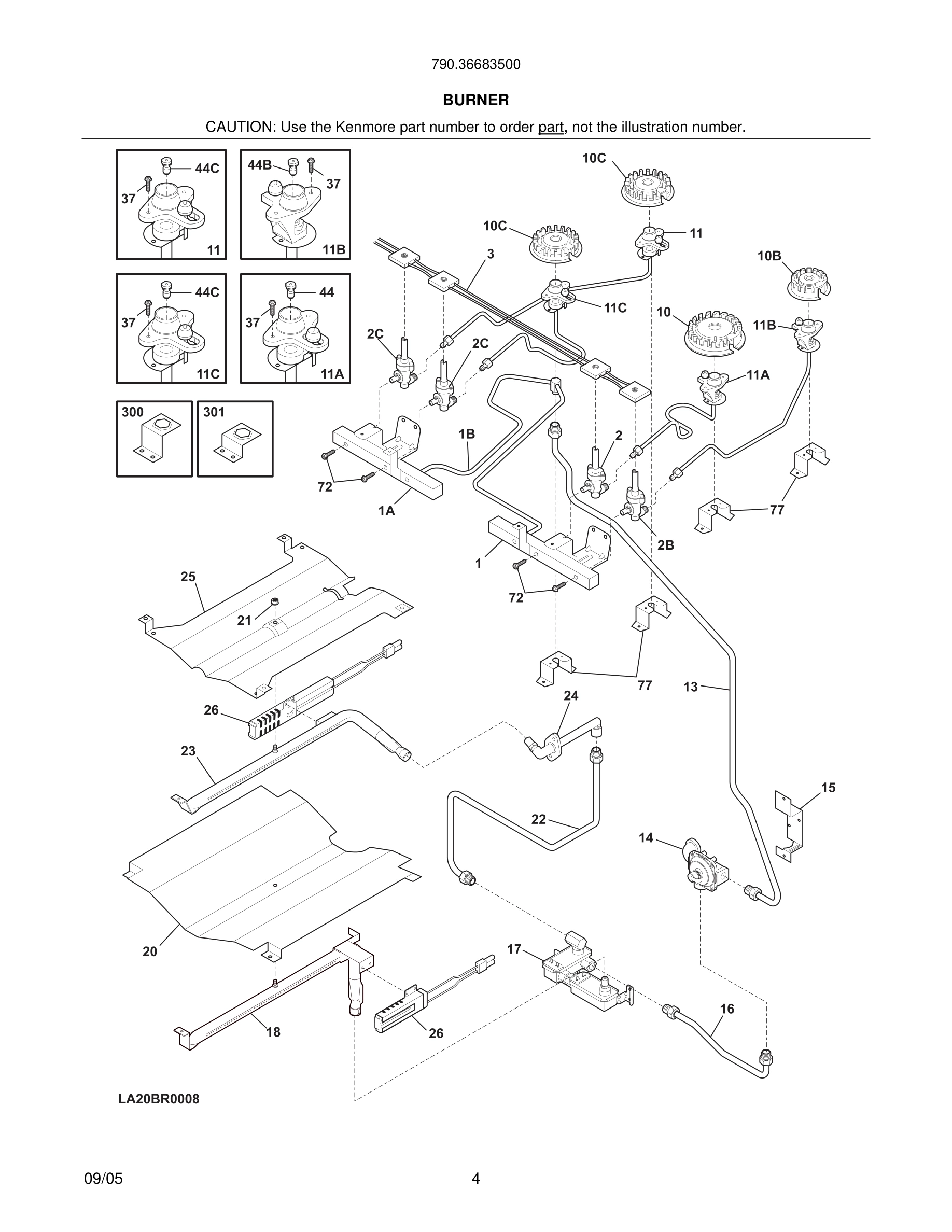

05 - BURNER

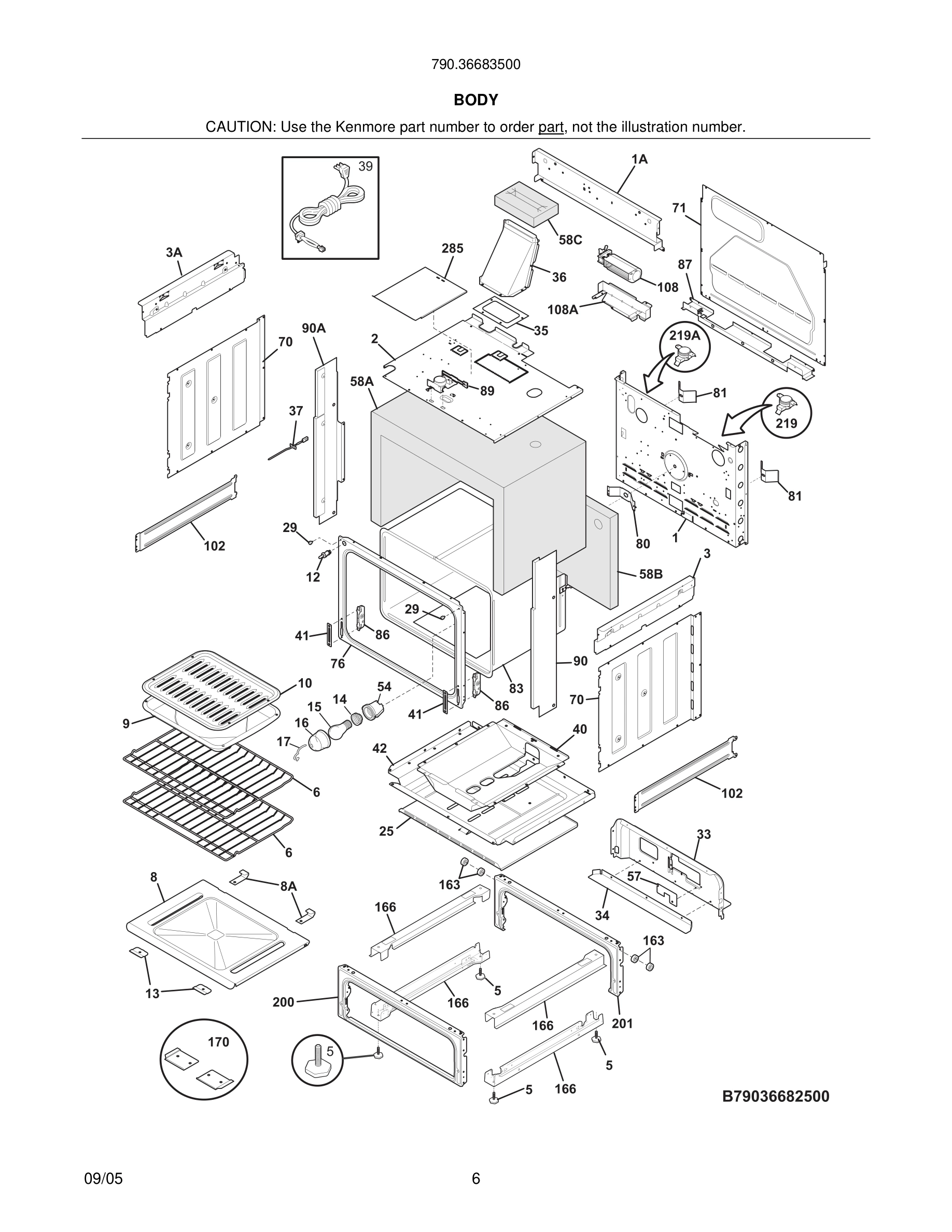

07 - BODY

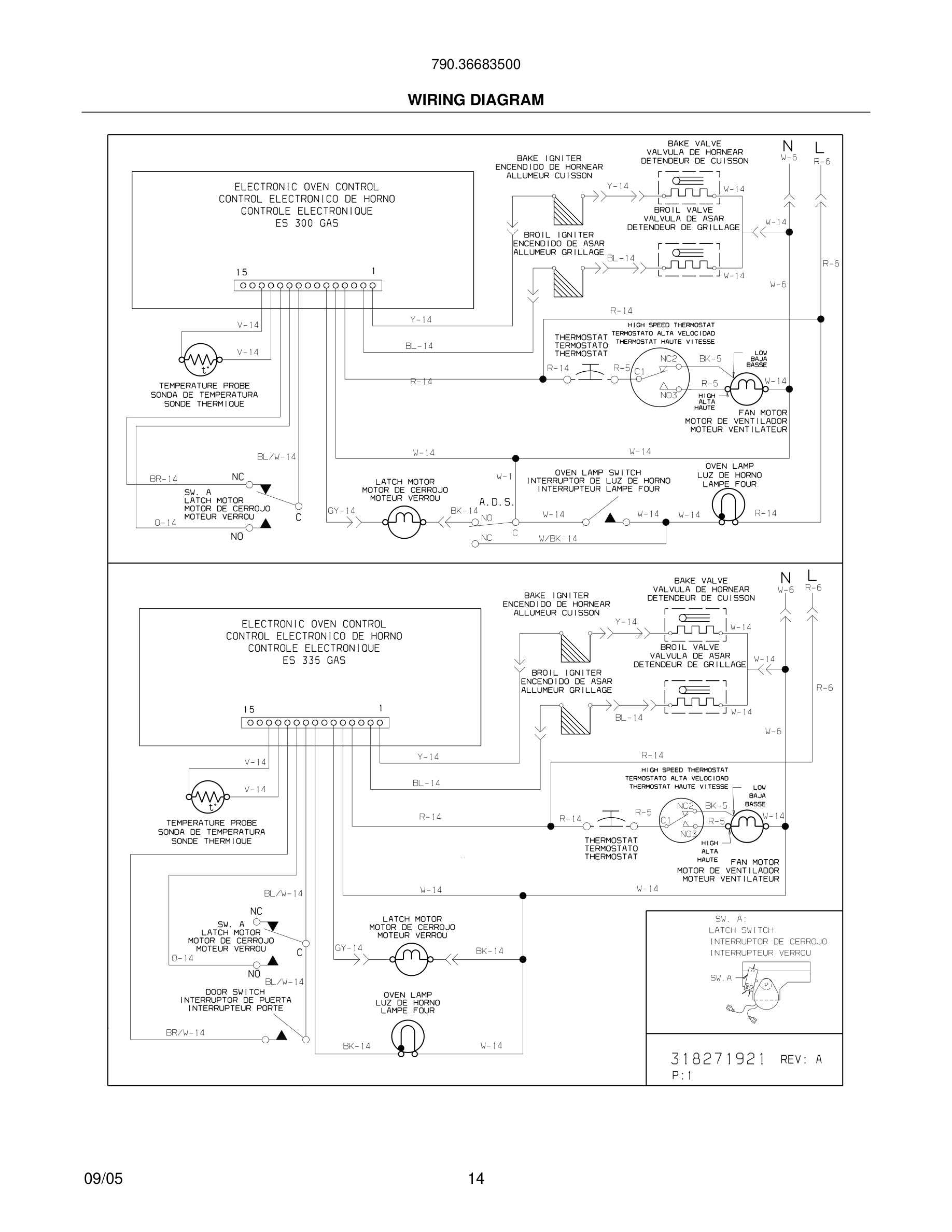

14 - WIRING DIAGRAM

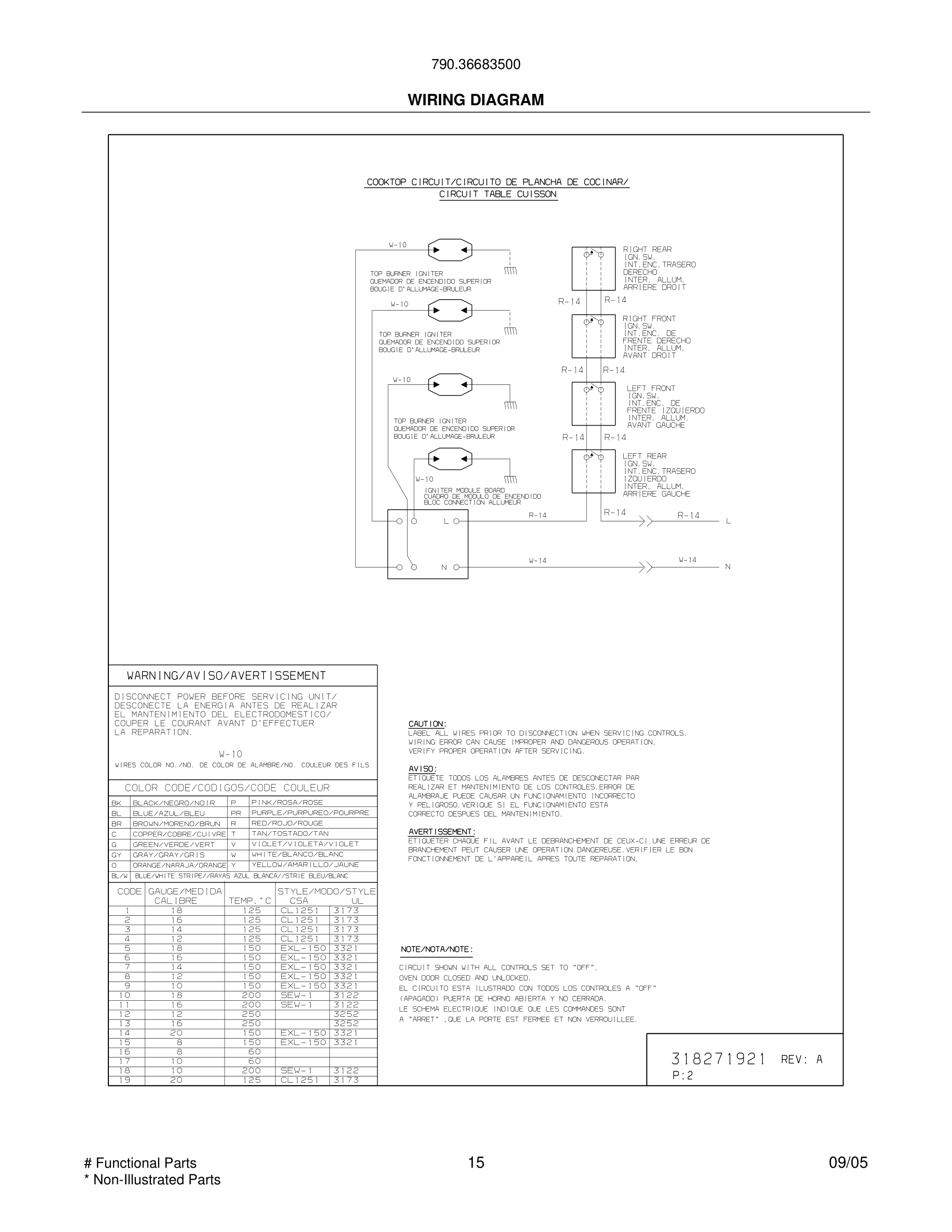

15 - WIRING DIAGRAM
Common parts from model Kenmore 790.36683500 RANGE
*
LP Conversion Kit WCI 318186908 Contact Us For Availability
2#
Valve, top burner, 11000 btu WCI 318233920 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
11
Ignitor Assembly, 9.5K, left rear, w/tube & h WCI 318306207 Contact Us For Availability
11A
Ignitor Assembly, 12K, right front, w/tube & WCI 318306208 Contact Us For Availability
11C
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306206 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19
Panel, control, black WCI 318297517 Contact Us For Availability
19A
Panel, control mtg. WCI 318289702 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
36
Knob, control, black WCI 316442413 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
42
Bracket, body, middle WCI 318288700 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
57
Cover, burner opening WCI 318268300 Contact Us For Availability
58A
Insulation, oven wrapper WCI 318285084 Contact Us For Availability
58B
Insulation, oven back WCI 318285085 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260007 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
83
Liner, oven WCI 318327001 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260604 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
102
Panel, reinforcement WCI 318327500 Contact Us For Availability
× ![]()
