Model Kenmore 790.36682503 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

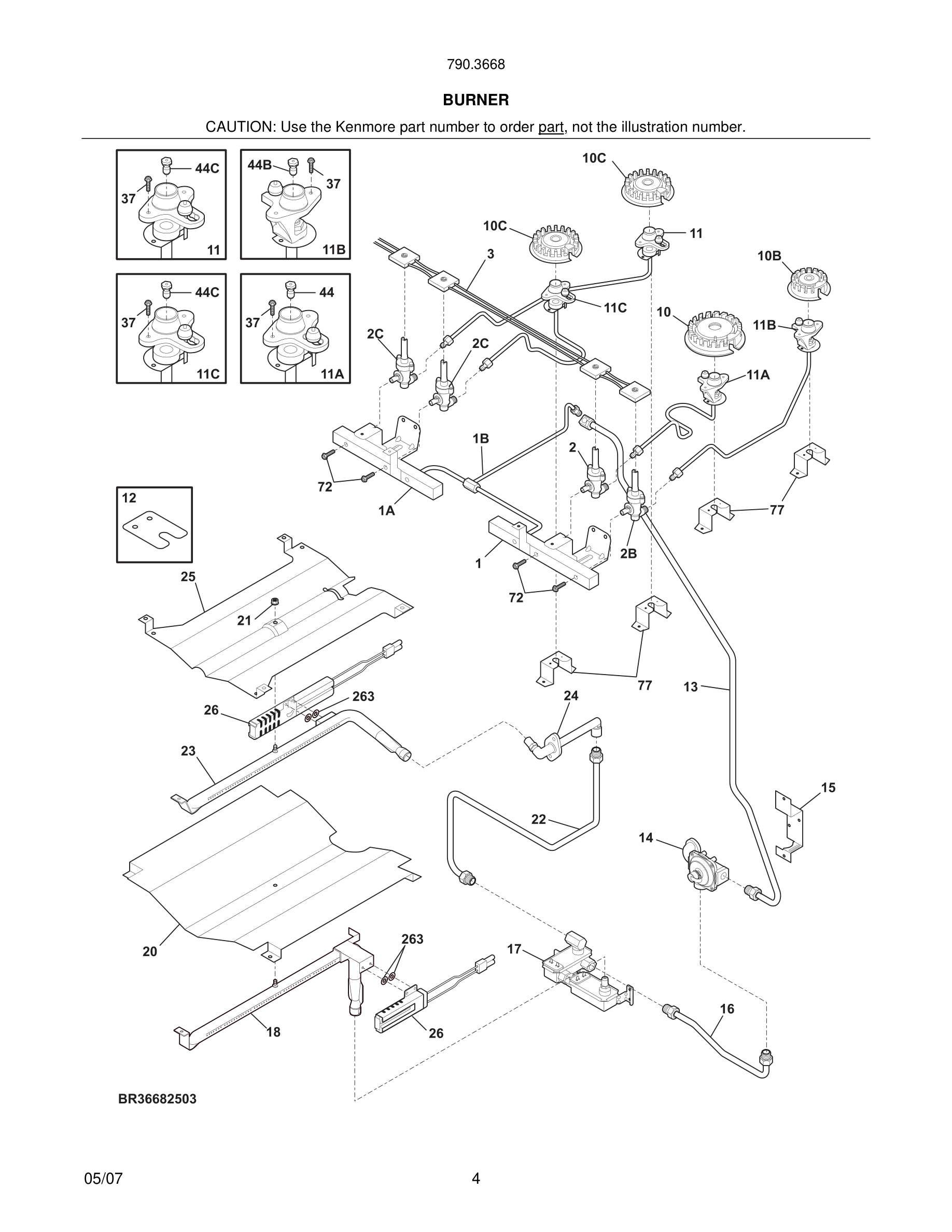

05 - BURNER
07 - BODY

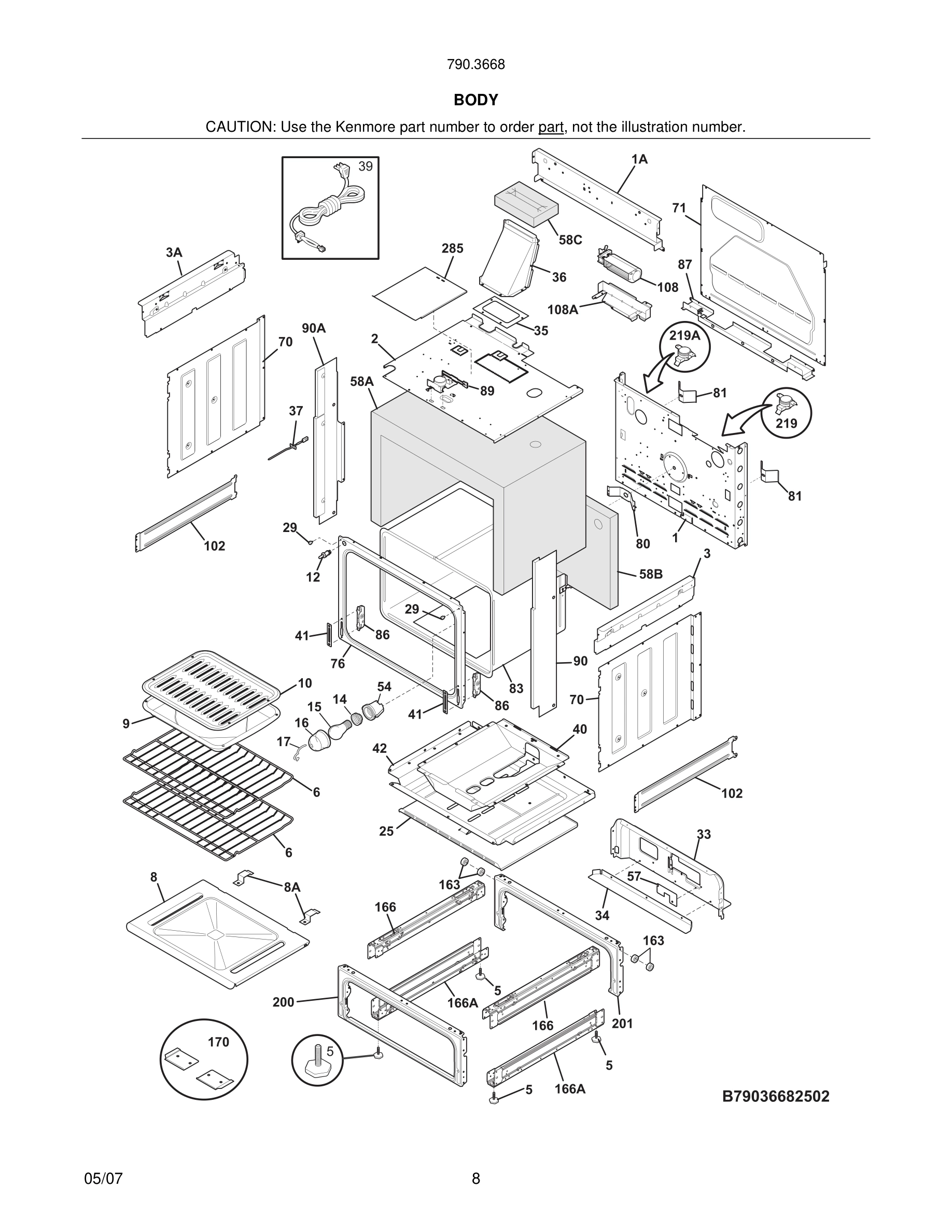

09 - BODY

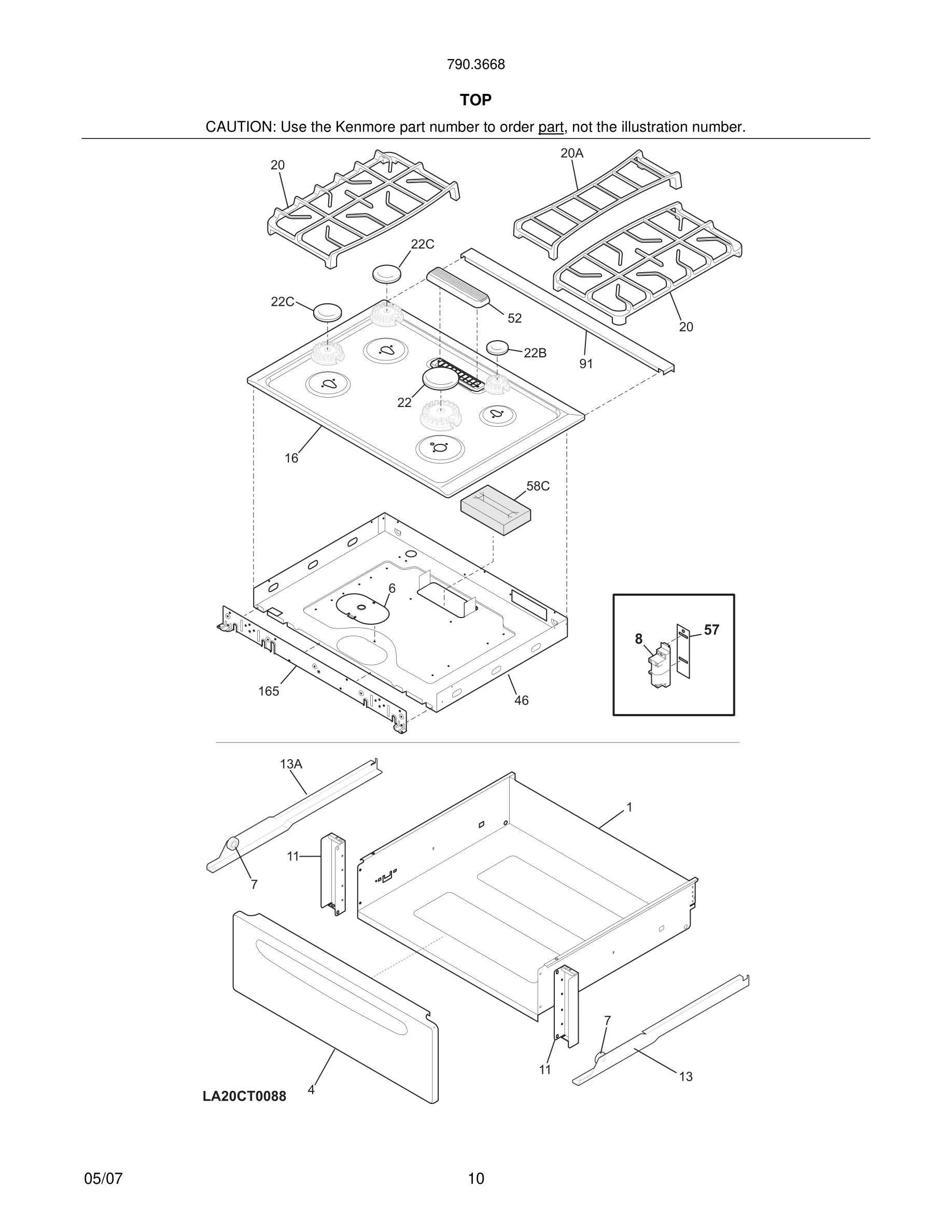

11 - TOP

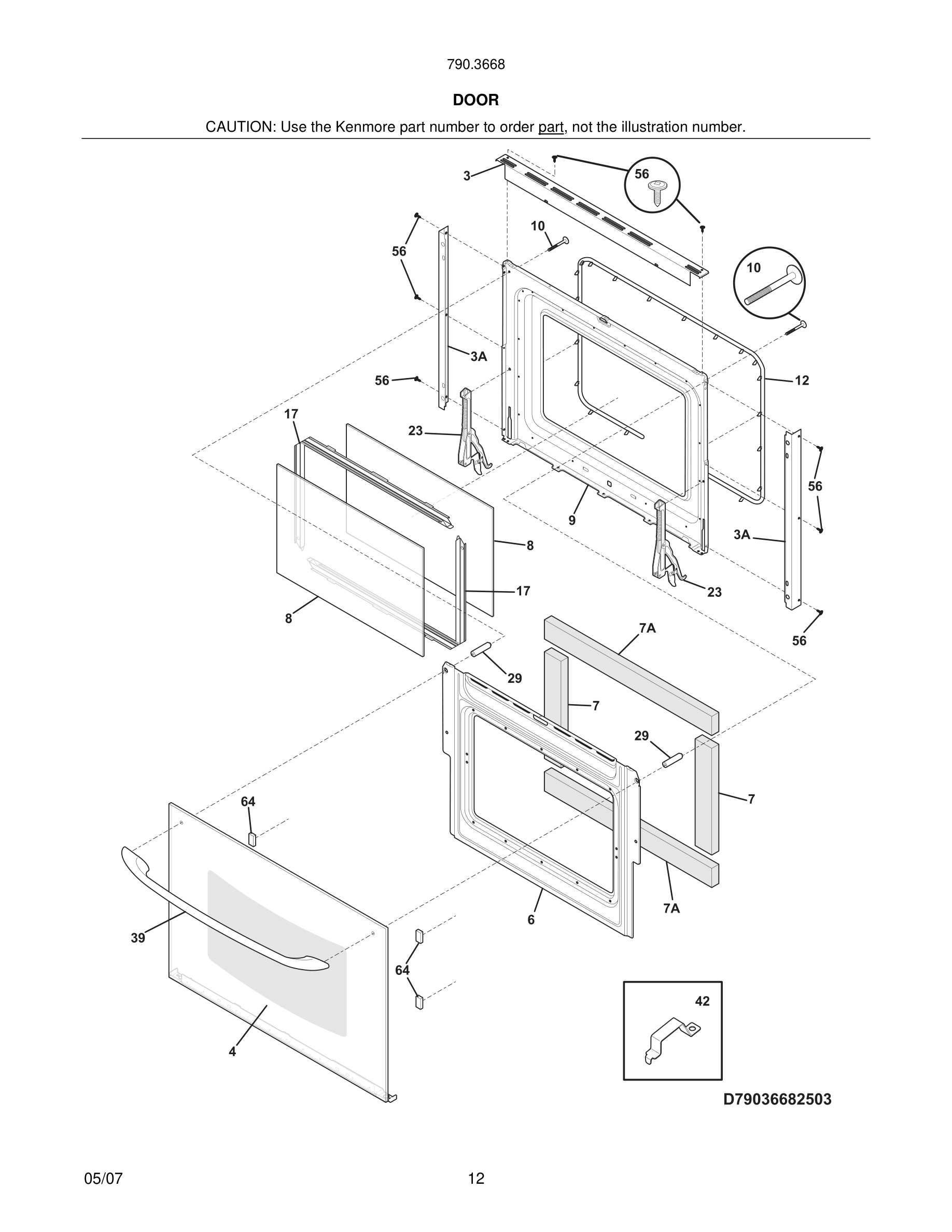

13 - DOOR

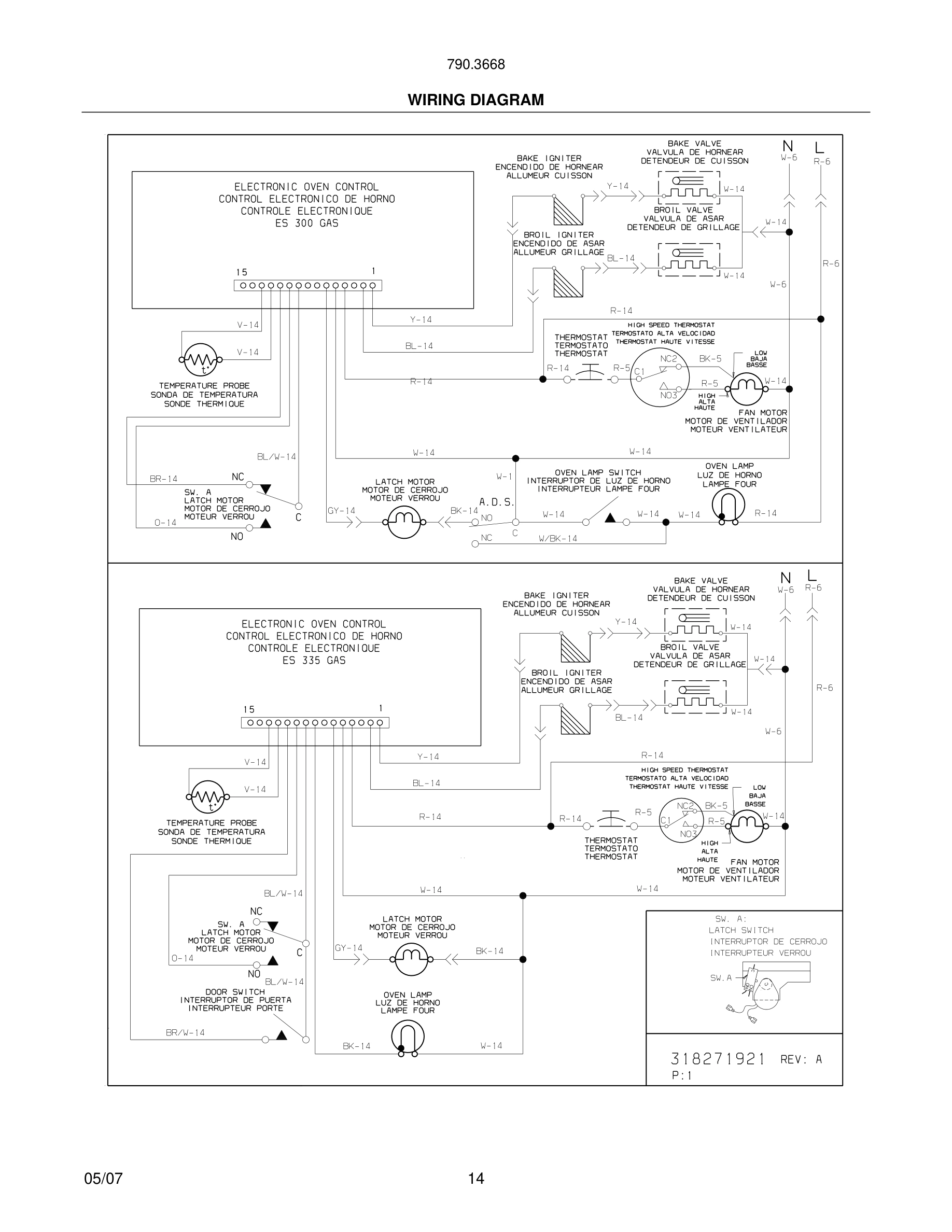

14 - WIRING DIAGRAM

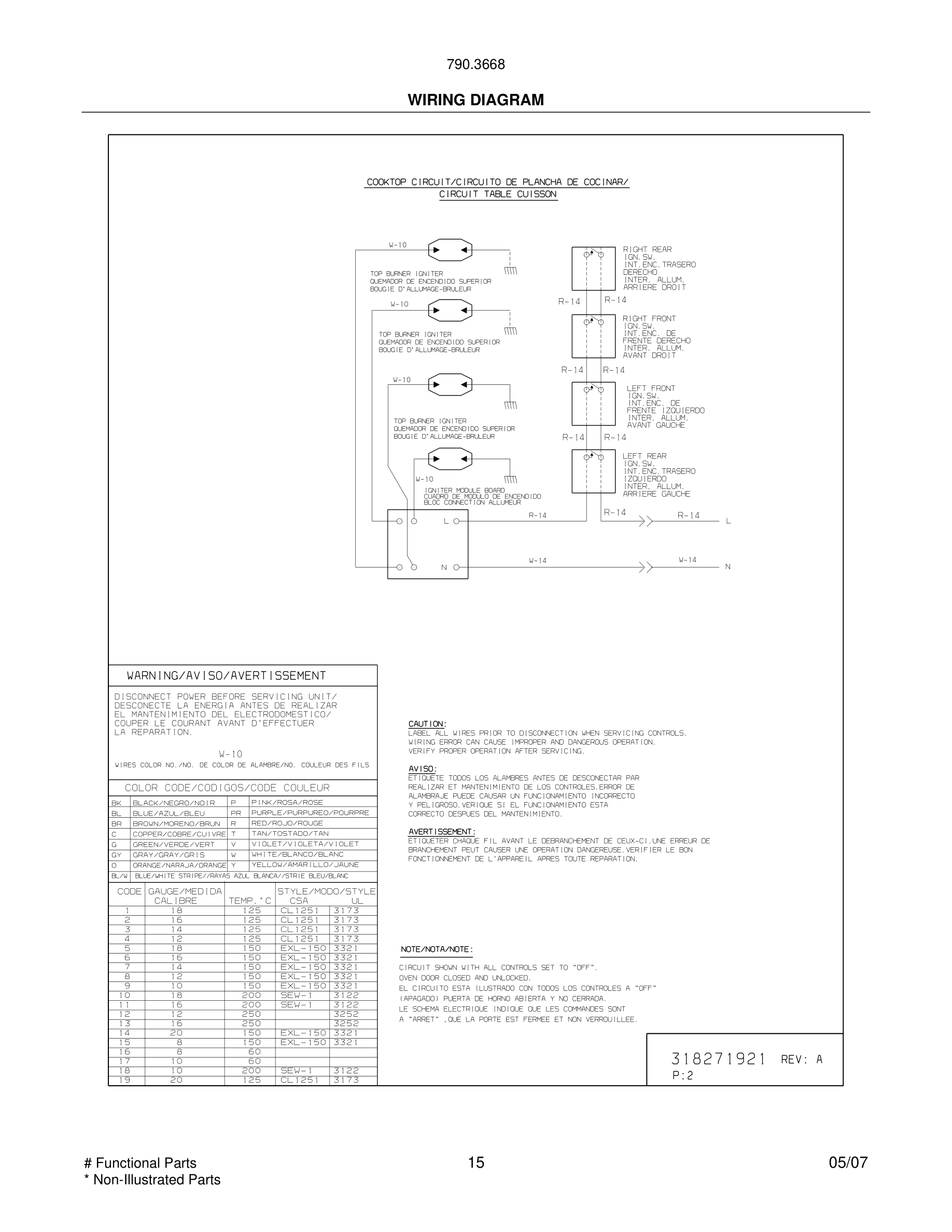

15 - WIRING DIAGRAM
Common parts from model Kenmore 790.36682503 RANGE
*
LP Conversion Kit WCI 318186908 Contact Us For Availability
2#
Valve, top burner, 12000 BTU WCI 318233920 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 318232618 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability
6
Rack, oven WCI 318262504 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, oven door, upper WCI 318259601 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
11
Ignitor Assembly, 9.5K, left rear, w/tube & h WCI 318306207 Contact Us For Availability
11A
Ignitor Assembly, 12K, right front, w/tube & WCI 318306208 Contact Us For Availability
11C
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306206 Contact Us For Availability
13
Channel, drawer, RH WCI 318018100 Contact Us For Availability
13A
Channel, drawer, LH WCI 318018101 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
16
Console, assy., white WCI 318296600 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19
Panel, control, black WCI 318297517 Contact Us For Availability
19A
Panel, control mtg. WCI 318289702 Contact Us For Availability
20
Grate, black, (2) WCI 318221658 Contact Us For Availability
20*
Overlay, clock, bisque, ES335 WCI 316419308 Contact Us For Availability
22
Cap, 11K burner, black WCI 316242800 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206500 Contact Us For Availability
22C
Cap, 9.5K burner, black WCI 316242900 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, door, upper, (2) WCI 318024722 Contact Us For Availability
24#
Mixer Elbow, broiler WCI 318267801 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
35
Retainer, control panel, white WCI 318233721 Contact Us For Availability
36
Knob, control, black WCI 316442413 Contact Us For Availability
36
Knob, control, white WCI 316442412 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
52
Cover, flue, white, outer WCI 318291200 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
77
Bracket, burner mtg, (4) WCI 318192606 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
86
Receptacle, hinge WCI 318342400 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
99A
Gasket, grey WCI 318313200 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
170
Anti-tip & accessories WCI 318335500 Contact Us For Availability
200
Frame & Wheel Assembly, black WCI 318335600 Contact Us For Availability
201
Frame, drawer WCI 318298210 Contact Us For Availability
× ![]()
