Model Kenmore 790.36673401 RANGE – Common Parts & Diagrams

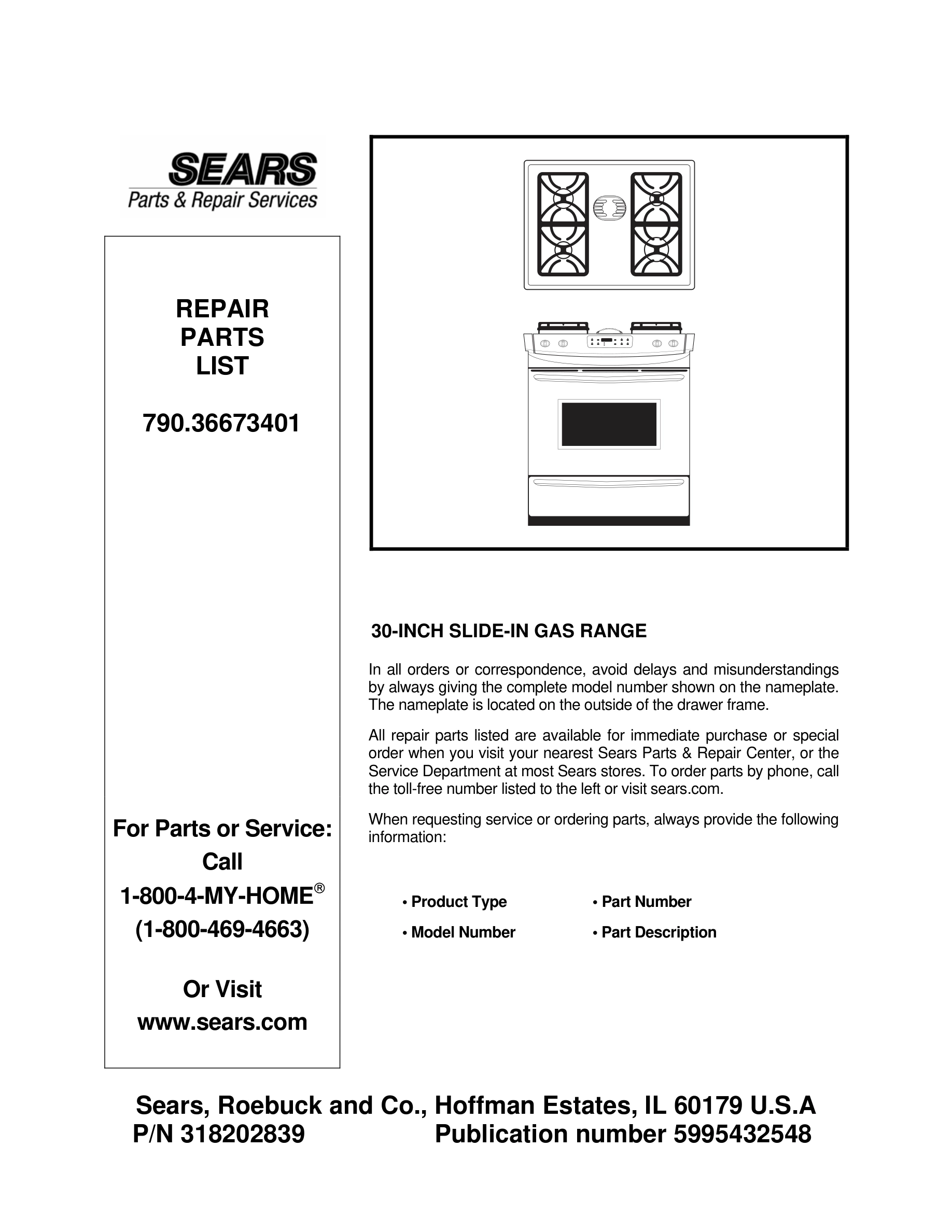

01 - COVER

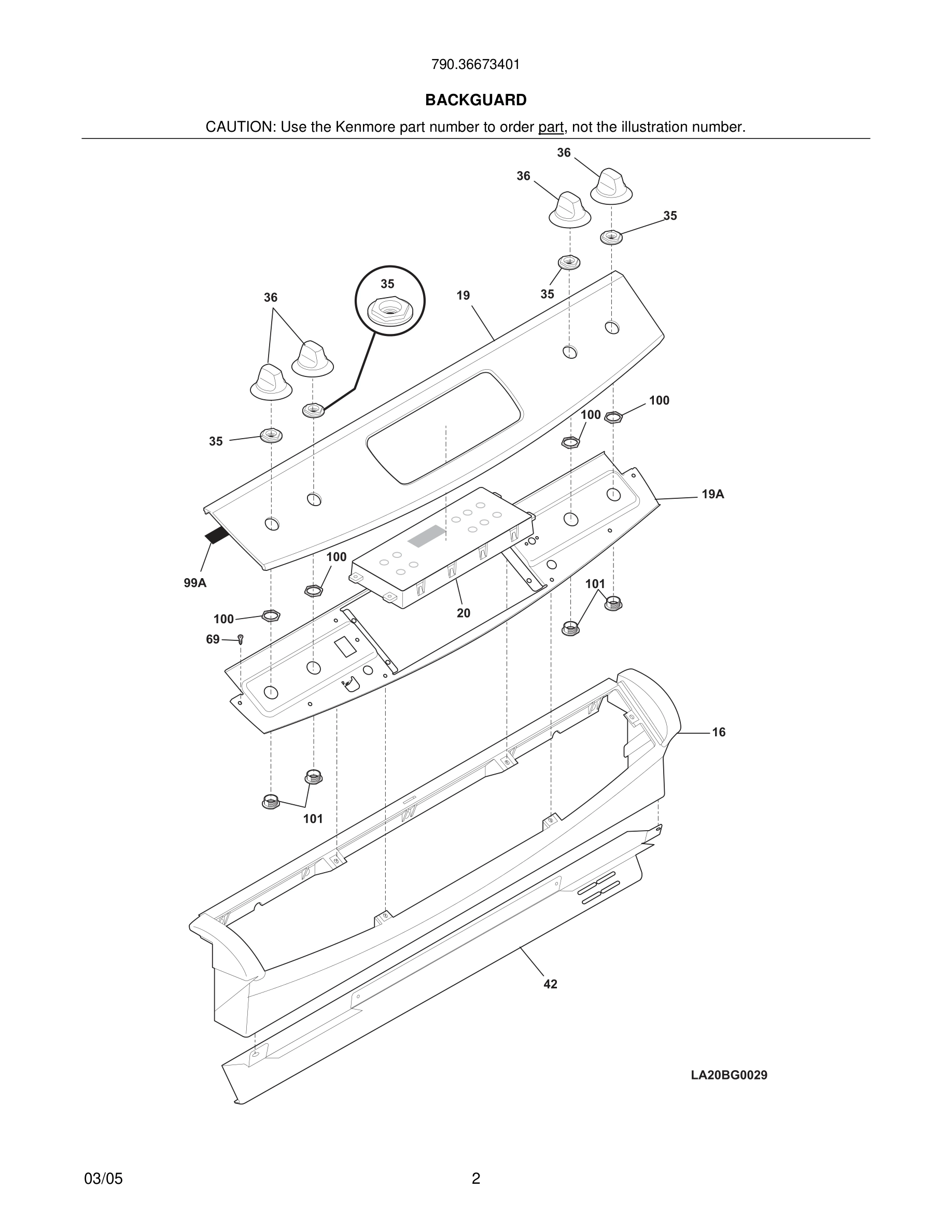

03 - BACKGUARD
05 - BURNER
07 - BODY
09 - TOP/DRAWER
11 - DOOR
12 - WIRING DIAGRAM
13 - WIRING DIAGRAM
Common parts from model Kenmore 790.36673401 RANGE
*
LP Conversion Kit WCI 318186908 Contact Us For Availability
*
Cleaner, grate WCI 316119700 Contact Us For Availability
*
Washer, plastic WCI 5303325171 Contact Us For Availability
*
Cap, plug WCI 5303325173 Contact Us For Availability
*
Nut, Keps, 1/4-20 WCI 5304441056 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
1
Body, drawer WCI 318267500 Contact Us For Availability
2#
Valve, top burner, 11000 btu WCI 318233920 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
4
Panel, drawer, stainless WCI 318107913 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
6
Cover, wiring WCI 318229900 Contact Us For Availability
6
Shield, insulation WCI 318056802 Contact Us For Availability
7
Bracket, insulation, box WCI 318268400 Contact Us For Availability
7
Insulation, oven door WCI 318133781 Contact Us For Availability
9
Pan, broiler WCI 5303317977 Contact Us For Availability
9
Liner, door WCI 318157011 Contact Us For Availability
10
Insert, broiler pan WCI 5303317976 Contact Us For Availability
10#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
11
Bracket, drawer, (2) WCI 318263100 Contact Us For Availability
13
Channel, drawer, RH WCI 5303311129 Contact Us For Availability
13
Stainless Panel, oven door, w/glass WCI 318187963 Contact Us For Availability
13A
Channel, drawer, LH WCI 5303311130 Contact Us For Availability
16
Panel, glass, inner oven door WCI 318041603 Contact Us For Availability
16
Main Top Assembly, black WCI 318266302 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass WCI 318042102 Contact Us For Availability
18
Seal, window WCI 318053001 Contact Us For Availability
19A
Panel, control mtg. WCI 318224402 Contact Us For Availability
20
Grate, black, (2) WCI 318231300 Contact Us For Availability
20#
Clock/Timer, electronic, black, w/overlay, ES WCI 318185490 Contact Us For Availability
22
Cap, 11K burner, black WCI 316242800 Contact Us For Availability
22
Bar, glass retainer WCI 5303310511 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206500 Contact Us For Availability
22C
Cap, 9.5K burner, black WCI 316242900 Contact Us For Availability
23
Hinge, oven door, (2) WCI 5303310828 Contact Us For Availability
29
Bumper, base WCI 318147410 Contact Us For Availability
31
Latch, oven door WCI 5303310536 Contact Us For Availability
33
Panel, valve mtg. WCI 318265400 Contact Us For Availability
36
Knob, control, black WCI 316208119 Contact Us For Availability
36
Flue WCI 318266400 Contact Us For Availability
39
Handle, black WCI 318231200 Contact Us For Availability
40
Box, bake burner WCI 318265000 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
42
Shield, insulation, lower WCI 318265200 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
46
Box, burner WCI 318225403 Contact Us For Availability
52
Cap, flue, black, inner WCI 318269100 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56
Trim, oven, black WCI 318225902 Contact Us For Availability
57
Cover, burner opening WCI 318268300 Contact Us For Availability
57
Stiffener, glass WCI 318172902 Contact Us For Availability
58A
Insulation, oven wrapper WCI 318268000 Contact Us For Availability
58B
Insulation, oven back WCI 318268100 Contact Us For Availability
58D
Insulation, oven vent, (3) WCI 318268200 Contact Us For Availability
60
Cover, flue, black, outer WCI 318269200 Contact Us For Availability
70
Shield, insulation WCI 318194401 Contact Us For Availability
71
Panel, wiring cover, rear WCI 5303310515 Contact Us For Availability
72
Support & Roller Assy., (2) WCI 318281700 Contact Us For Availability
76
Front, oven WCI 318225303 Contact Us For Availability
80
Plate, oven mtg WCI 318283800 Contact Us For Availability
80
Label, anti-tip WCI 316221000 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Panel, insulation, & support WCI 318272600 Contact Us For Availability
83
Liner, oven assy WCI 318262401 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Shield, electric conn. WCI 318264100 Contact Us For Availability
88
Rod, latch, w/bushing WCI 318250210 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
90
Panel, filler, 1", black, rear WCI 318187403 Contact Us For Availability
90A
Panel, filler, 1.5" wide, black, rear, larger WCI 318187409 Contact Us For Availability
90B
Panel, filler, 2" wide, black, rear, larger o WCI 318187415 Contact Us For Availability
102
Support, oven front WCI 5303311142 Contact Us For Availability
127
Adaptor assy, flue, black WCI 318269400 Contact Us For Availability
165
Plate, mounting WCI 318227501 Contact Us For Availability
170
Anti-tip & accessories WCI 5304405244 Contact Us For Availability
177
Gasket, vent WCI 318266700 Contact Us For Availability
191
Bracket, angle, corner WCI 5303304030 Contact Us For Availability
219#
Thermostat, safety WCI 318003606 Contact Us For Availability
× ![]()
