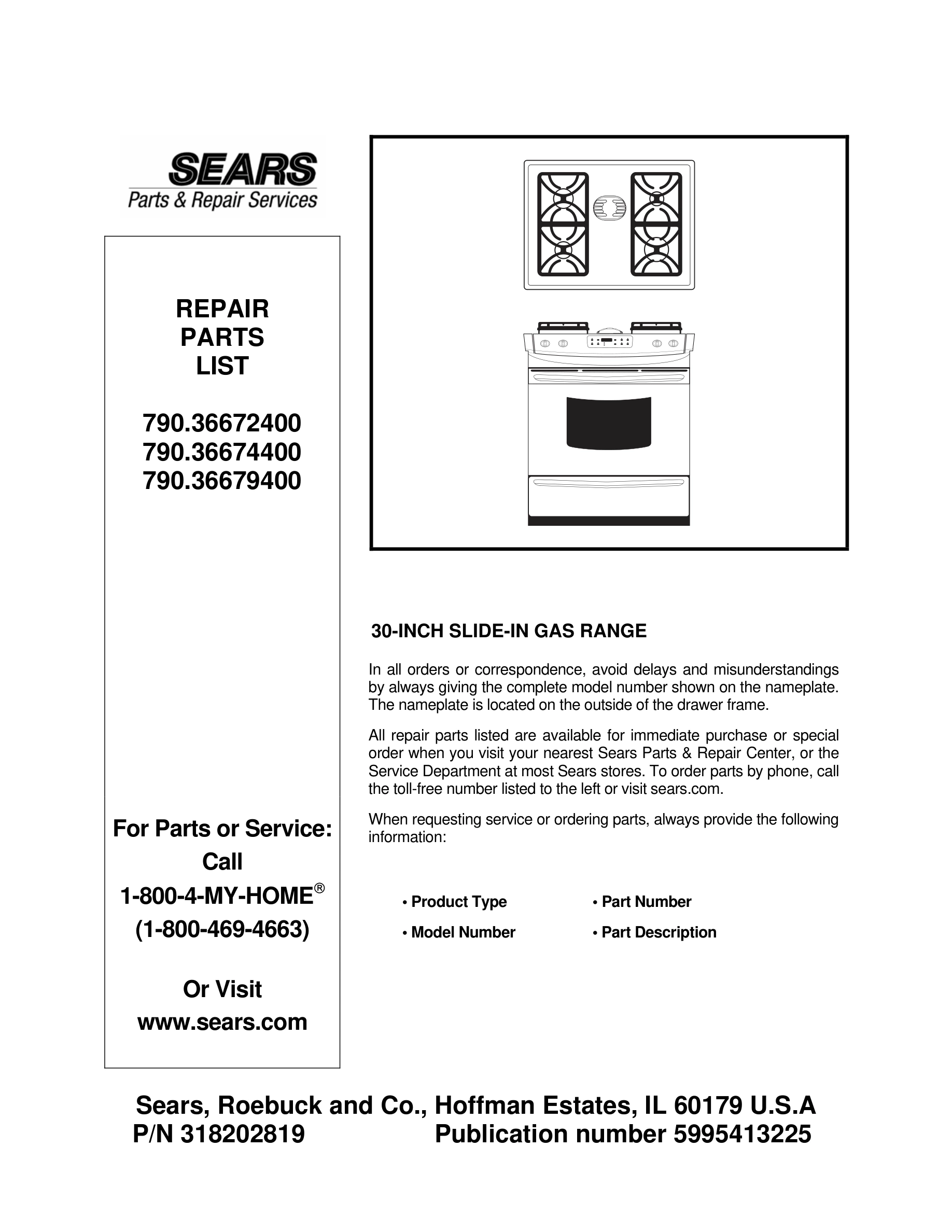

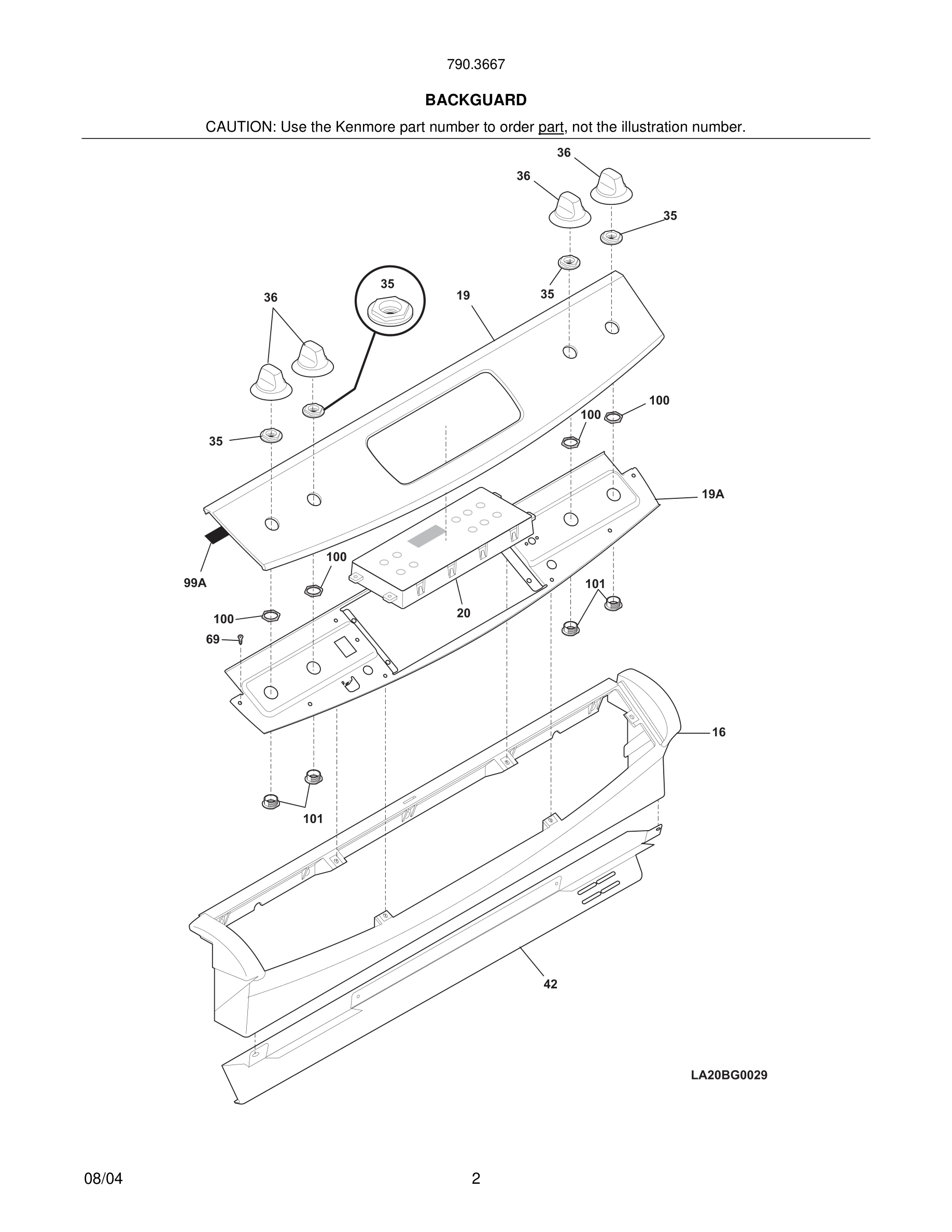

Model Kenmore 790.36672400 RANGE – Common Parts &amp; Diagrams

*

3201861 Frigidaire Screw Backorder WCI 3201861 $0.46

*

5303211311 Frigidaire Refrigerator Screw Backorder WCI 5303211311 $9.06

*

5303297477 Frigidaire Oven Screw Backorder WCI 5303297477 $9.04

*

5303307980 Frigidaire Oven Screw Backorder WCI 5303307980 $9.06

*

5303311174 Frigidaire Oven Screw Backorder WCI 5303311174 $9.50

*

5303323129 Frigidaire Oven Screw Backorder WCI 5303323129 $9.06

*

5303323277 Frigidaire Oven Screw Backorder WCI 5303323277 $6.34

*

5304415832 Frigidaire Oven Screw Backorder WCI 5304415832 $8.60

*

Screw, 8 x 5/8 WCI 3131048 Contact Us For Availability

*

retainer wire WCI 5304400192 Contact Us For Availability

*

Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability

*

Washer, plastic WCI 5303325171 Contact Us For Availability

*

Nut, Keps, 1/4-20 WCI 5304441056 Contact Us For Availability

*

Cleaner, grate WCI 316119700 Contact Us For Availability

*

Cap, plug WCI 5303325173 Contact Us For Availability

*

Screw, 10-16 x 3/4 WCI 5304440988 Contact Us For Availability

*#

Wiring Harness, main WCI 318268800 Contact Us For Availability

1

Body, drawer WCI 318267500 Contact Us For Availability

1

Bracket, trim mtg WCI 318180310 Contact Us For Availability

2

Bracket, upper trim mtg WCI 318180312 Contact Us For Availability

2#

Valve, top burner, 11000 btu WCI 318233920 Contact Us For Availability

2B#

318233900 Frigidaire Oven Valve Backorder WCI 318233900 $92.90

2C#

Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability

3

Trim, door, white, RH side WCI 318187810 Contact Us For Availability

3

Trim, door, bisque, RH side WCI 318187812 Contact Us For Availability

3

Trim, door, black, RH side WCI 318187814 Contact Us For Availability

3A

Trim, door, white, LH side WCI 318187811 Contact Us For Availability

3A

Trim, door, bisque, LH side WCI 318187813 Contact Us For Availability

3A

Trim, door, black, LH side WCI 318187815 Contact Us For Availability

3B

Trim, door, white, top WCI 318176646 Contact Us For Availability

3B

Trim, door, bisque, top WCI 318176648 Contact Us For Availability

3B

Trim, door, black, top WCI 318176647 Contact Us For Availability

4

Panel, drawer, white, front WCI 318134015 Contact Us For Availability

4

Panel, drawer, bisque, front WCI 318134016 Contact Us For Availability

4

Panel, drawer, black, front WCI 318134017 Contact Us For Availability

4

Panel, door front assy, glass, white, with lo WCI 318187721 Contact Us For Availability

4

Panel, door front assy, glass, bisque, with l WCI 318187722 Contact Us For Availability

4

Panel, door front assy, glass, black, with lo WCI 318187723 Contact Us For Availability

5

Screw, leveling WCI 318175503 Contact Us For Availability

6

Cover, wiring WCI 318229900 Contact Us For Availability

6

Deflector, door WCI 318056814 Contact Us For Availability

7

Bracket, insulation, box WCI 318268400 Contact Us For Availability

7

Insulation, oven door WCI 318133781 Contact Us For Availability

8

Panel, oven bottom WCI 318121402 Contact Us For Availability

9

Pan, broiler WCI 5303317977 Contact Us For Availability

9

Liner, inner door assy WCI 318157041 Contact Us For Availability

10

Insert, broiler pan WCI 5303317976 Contact Us For Availability

10#

Burner, sealed, 12K WCI 316212300 Contact Us For Availability

10C#

316212400 Frigidaire Oven Primary Burner Asse In Stock WCI 316212400 $19.49

11

Bracket, drawer, (2) WCI 318263100 Contact Us For Availability

12

318053103 Frigidaire Oven Door Seal Gasket Backorder WCI 318053103 $83.75

12#

318089916 Frigidaire P-1 Light Switch Backorder WCI 318089916 $43.01

13

Channel, drawer, RH WCI 5303311129 Contact Us For Availability

13A

Channel, drawer, LH WCI 5303311130 Contact Us For Availability

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.87

Panel, glass, inner oven door WCI 318041603 Contact Us For Availability

Main Top Assembly, white WCI 318266301 Contact Us For Availability

Main Top Assembly, bisque WCI 318266303 Contact Us For Availability

Main Top Assembly, black WCI 318266302 Contact Us For Availability

17

Retainer, light cover WCI 5304400195 Contact Us For Availability

17

Spacer, glass WCI 318042102 Contact Us For Availability

18

Seal, window WCI 318053001 Contact Us For Availability

19A

Panel, control mtg. WCI 318224402 Contact Us For Availability

20

Grate, gray, (2) WCI 318231301 Contact Us For Availability

20

Grate, brown, (2) WCI 318231302 Contact Us For Availability

20

Grate, black, (2) WCI 318231300 Contact Us For Availability

20#

Clock/Timer, electronic, black, w/overlay, ES WCI 318185490 Contact Us For Availability

20#

Clock/Timer, electronic, white, w/overlay, ES WCI 318185488 Contact Us For Availability

20*

139091300 Frigidaire Oven Overlay In Stock WCI 139091300 $33.50

20*

316419353 Frigidaire Oven Overlay In Stock WCI 316419353 $22.19

20*

• Overlay, clock, bisque, ES335 WCI 316419308 Contact Us For Availability

21

134716700 Frigidaire Washer Backorder WCI 134716700 $1.35

22

Cap, 11K burner, black WCI 316242800 Contact Us For Availability

22

Cap, 11K burner, gray WCI 316242804 Contact Us For Availability

22

Cap, 11K burner, brown WCI 316242805 Contact Us For Availability

22B

Cap, 5K burner, black WCI 316206500 Contact Us For Availability

22B

Cap, 5K burner, gray WCI 316206503 Contact Us For Availability

22B

Cap, 5K burner, brown WCI 316206504 Contact Us For Availability

22C

Cap, 9.5K burner, black WCI 316242900 Contact Us For Availability

22C

Cap, 9.5K burner, gray WCI 316242904 Contact Us For Availability

22C

Cap, 9.5K burner, brown WCI 316242905 Contact Us For Availability

23

Hinge, oven door WCI 318024700 Contact Us For Availability

31

Latch, oven door WCI 5303310536 Contact Us For Availability

33

Panel, valve mtg. WCI 318265400 Contact Us For Availability

36

Knob, control, black WCI 316208119 Contact Us For Availability

36

Flue WCI 318266400 Contact Us For Availability

37

316240600 Frigidaire Igniter Mounting Screw In Stock WCI 316240600 $7.23

37#

316217002 Frigidaire Oven Temperature Probe In Stock WCI 316217002 $43.36

5304519505 Frigidaire White Handle Kit Backorder WCI 5304519505 $69.03

5304534377 Frigidaire Cord Backorder WCI 5304534377 $16.03

Handle, door, bisque WCI 316209702 Contact Us For Availability

Handle, door, black WCI 316209701 Contact Us For Availability

40

Box, bake burner WCI 318265000 Contact Us For Availability

41

Cover, hinge cutout WCI 5303310526 Contact Us For Availability

42

Shield, insulation, lower WCI 318265200 Contact Us For Availability

44

316237901 Frigidaire Oven Orifice In Stock WCI 316237901 $38.09

44

318337000 Frigidaire Wheel Backorder WCI 318337000 $5.88

44B

Orifice, top burner, 5K WCI 316237903 Contact Us For Availability

44C

316237902 Frigidaire Orifice Top Burner In Stock WCI 316237902 $38.53

46

Box, burner WCI 318225403 Contact Us For Availability

52

Cap, flue, white, inner WCI 318269101 Contact Us For Availability

52

Cap, flue, bisque, inner WCI 318269102 Contact Us For Availability

52

Cap, flue, black, inner WCI 318269100 Contact Us For Availability

54

Housing, oven light WCI 318222400 Contact Us For Availability

5303300265 Frigidaire Oven Screw Backorder WCI 5303300265 $9.04

Trim, oven, white WCI 318225901 Contact Us For Availability

Trim, oven, bisque WCI 318225903 Contact Us For Availability

Trim, oven, black WCI 318225902 Contact Us For Availability

57

Cover, burner opening WCI 318268300 Contact Us For Availability

58A

Insulation, oven wrapper WCI 318268000 Contact Us For Availability

58B

Insulation, oven back WCI 318268100 Contact Us For Availability

58D

Insulation, oven vent, (3) WCI 318268200 Contact Us For Availability

60

Cover, flue, white, outer WCI 318269201 Contact Us For Availability

60

Cover, flue, bisque, outer WCI 318269202 Contact Us For Availability

60

Cover, flue, black, outer WCI 318269200 Contact Us For Availability

64

Tape, 0.762 m, Neoprene WCI 5304417120 Contact Us For Availability

69

5303288565 Frigidaire Screw In Stock WCI 5303288565 $1.87

70

Shield, insulation WCI 318194400 Contact Us For Availability

71

Panel, wiring cover, rear WCI 5303310515 Contact Us For Availability

72

316215600 Frigidaire Oven Screw In Stock WCI 316215600 $9.04

72

Support & Roller Assy., (2) WCI 318281700 Contact Us For Availability

76

Front, oven WCI 318225303 Contact Us For Availability

77

Bracket, trim, handle, (2) WCI 318043100 Contact Us For Availability

80

Plate, oven mtg WCI 318283800 Contact Us For Availability

80

Label, anti-tip WCI 316221000 Contact Us For Availability

81

Spring, oven WCI 318192400 Contact Us For Availability

82

Panel, insualtion, & support WCI 318272600 Contact Us For Availability

83

Liner, oven assy WCI 318262401 Contact Us For Availability

86

Receptacle, hinge WCI 5303310524 Contact Us For Availability

87

Shield, electric conn. WCI 318264100 Contact Us For Availability

88

Rod, latch, w/bushing WCI 318250210 Contact Us For Availability

88*

318167300 Frigidaire Clip Assembly Backorder WCI 318167300 $1.81

88*

5304436864 Frigidaire Washer Backorder WCI 5304436864 $1.79

89#

318095957 Frigidaire Oven Motor Backorder WCI 318095957 $85.37

89*

Switch WCI 318120711 Contact Us For Availability

90

Panel, filler, 1", white, rear WCI 318187401 Contact Us For Availability

90

Panel, filler, 1", bisque, rear WCI 318187404 Contact Us For Availability

90

Panel, filler, 1", black, rear WCI 318187403 Contact Us For Availability

90A

Panel, filler, 1.5" wide, white, rear, larger WCI 318187407 Contact Us For Availability

90A

Panel, filler, 1.5" wide, bisque, rear, large WCI 318187410 Contact Us For Availability

90A

Panel, filler, 1.5" wide, black, rear, larger WCI 318187409 Contact Us For Availability

90B

Panel, filler, 2" wide, white, rear, larger o WCI 318187413 Contact Us For Availability

90B

Panel, filler, 2" wide, bisque, rear, larger WCI 318187416 Contact Us For Availability

90B

Panel, filler, 2" wide, black, rear, larger o WCI 318187415 Contact Us For Availability

99A

318223900 Frigidaire Oven Gasket Backorder WCI 318223900 $47.53

102

Support, oven front WCI 5303311142 Contact Us For Availability

108#

318073028 Frigidaire Oven Motor Backorder WCI 318073028 $161.94

127

Adaptor assy, flue, black WCI 318269400 Contact Us For Availability

129

5303311164 Frigidaire Oven Spring Backorder WCI 5303311164 $11.32

163

318531702 Frigidaire Oven Spacer Backorder WCI 318531702 $6.32

165

Plate, mounting WCI 318227501 Contact Us For Availability

170

Anti-tip & accessories WCI 5304405244 Contact Us For Availability

177

Gasket, vent WCI 318266700 Contact Us For Availability

191

Bracket, angle, corner WCI 5303304030 Contact Us For Availability

219#

Thermostat, safety WCI 318003606 Contact Us For Availability

285

Shield, hidden wires WCI 318236200 Contact Us For Availability
