Model Kenmore 790.33222400 COOKTOP – Common Parts & Diagrams
01 - COVER
03 - COOKTOP

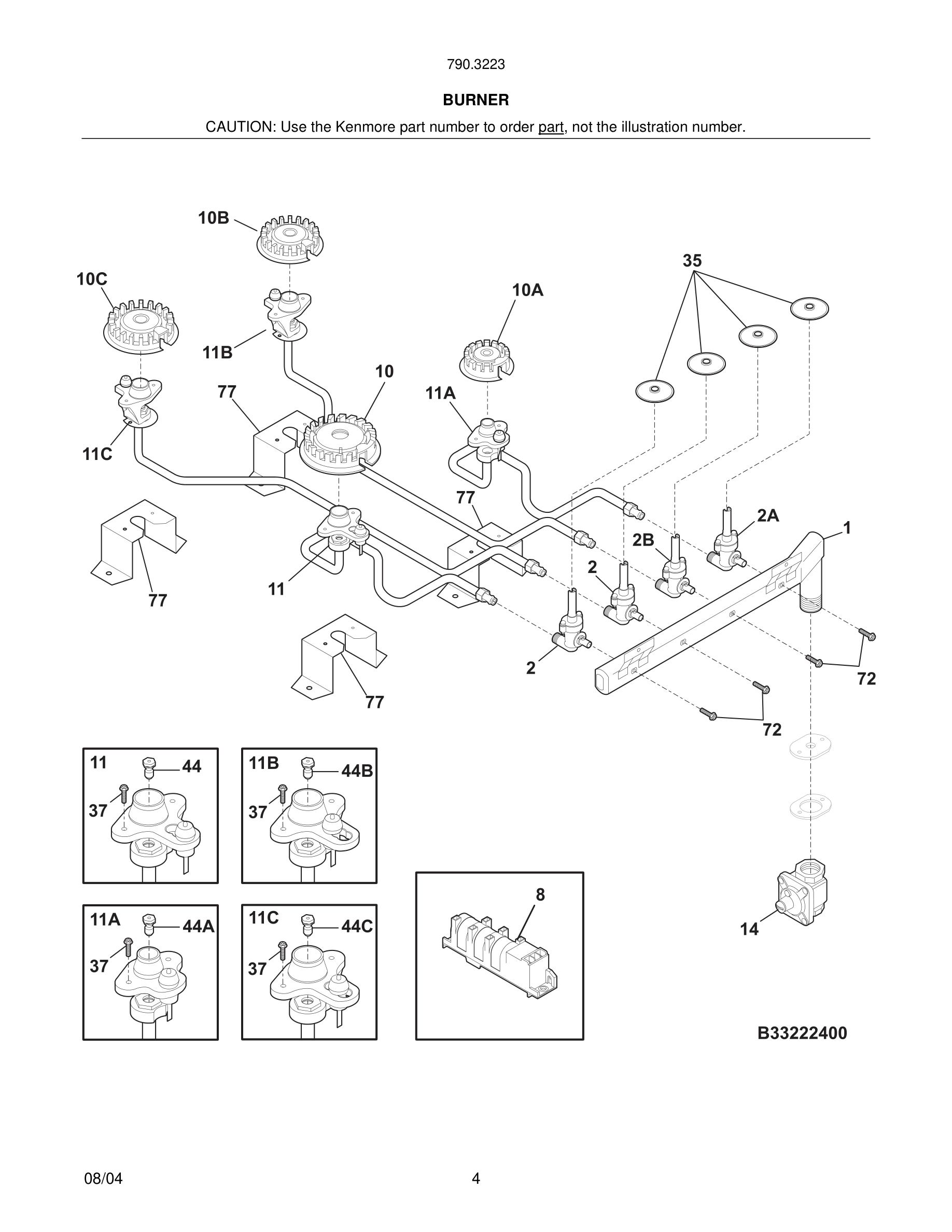

05 - BURNER
06 - WIRING DIAGRAM
Common parts from model Kenmore 790.33222400 COOKTOP
*#
LP Conversion Kit WCI 318127420 Contact Us For Availability
2#
Valve, burner, 14K WCI 318087315 Contact Us For Availability
2A#
Valve, burner, 5K WCI 318087313 Contact Us For Availability
2B#
Valve, burner, 9.5K WCI 318087314 Contact Us For Availability
10#
Burner, sealed, 17K WCI 316223300 Contact Us For Availability
10C#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
11#
Ignitor/orifice assy., top burner, right fron WCI 318221337 Contact Us For Availability
11A#
Ignitor/orifice assy., top burner, right rear WCI 318221332 Contact Us For Availability
11B#
Ignitor/orifice assy., top burner, left rear, WCI 318221334 Contact Us For Availability
11C#
Ignitor/orifice assy., top burner, left front WCI 318221336 Contact Us For Availability
21
Skirt, 17K burner, black WCI 316264803 Contact Us For Availability
21A
Skirt, 5K burner, black WCI 316241904 Contact Us For Availability
21A
Skirt, 5K burner, black WCI 316241901 Contact Us For Availability
21B
Skirt, 9.5K burner, black WCI 316241804 Contact Us For Availability
21B
Skirt, 9.5K burner, black WCI 316241801 Contact Us For Availability
21C
Skirt, 12K burner, black WCI 316241704 Contact Us For Availability
21C
Skirt, 12K burner, black WCI 316241701 Contact Us For Availability
22A
Cap, 5K burner, black WCI 316206604 Contact Us For Availability
22B
Cap, 9.5K burner, black WCI 316213505 Contact Us For Availability
22C
Cap, 12K burner, black WCI 316213605 Contact Us For Availability
35
Bushing WCI 318146300 Contact Us For Availability
43
Knob, top valve, black WCI 316121804 Contact Us For Availability
44A
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
77
Bracket, burner mtg WCI 318192600 Contact Us For Availability
× ![]()
