Model Kenmore 790.33079400 COOKTOP – Common Parts & Diagrams

*
LP Conversion Kit
LP Conversion Kit WCI 318186904 Contact Us For Availability
View on Model
1#

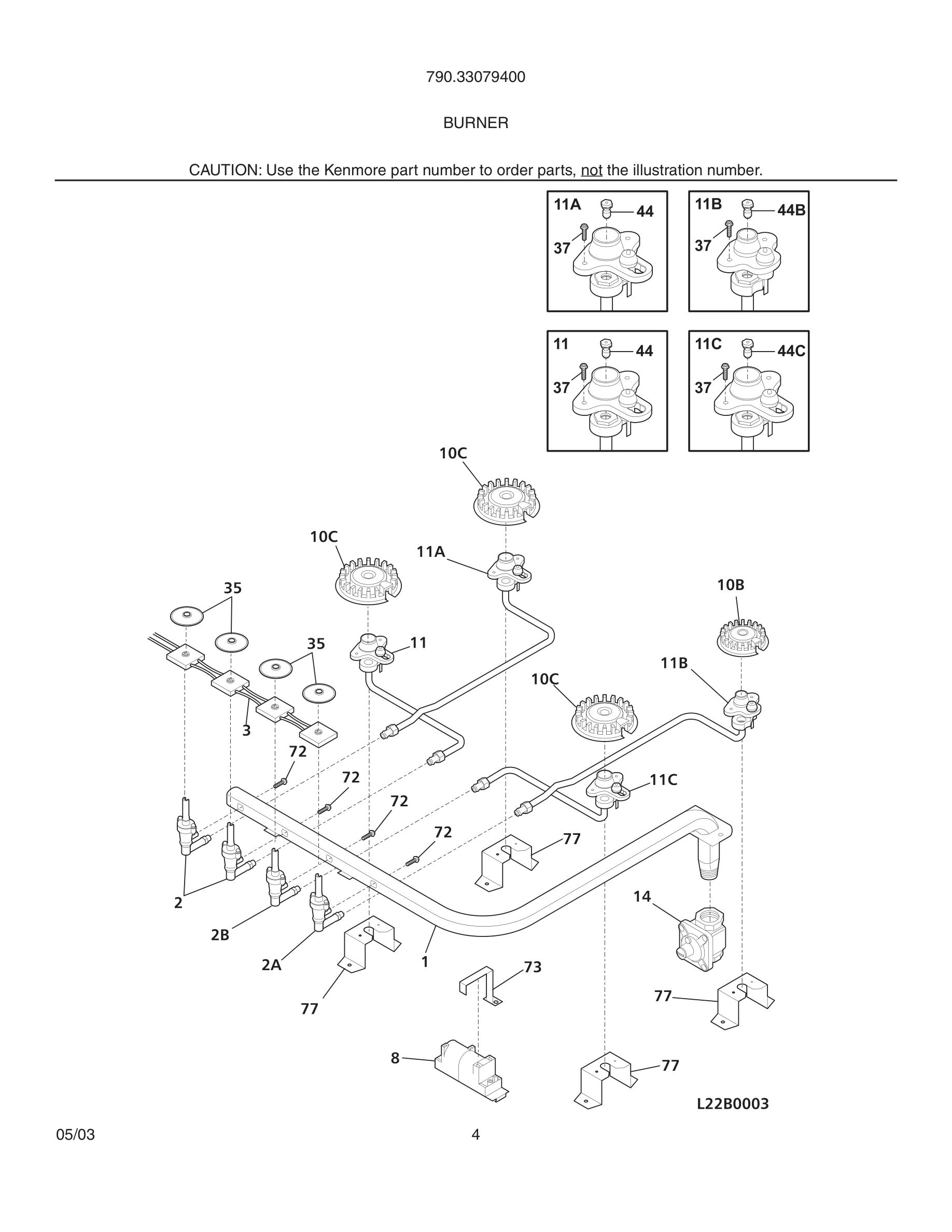

Manifold Pipe
Manifold Pipe WCI 318233600 Contact Us For Availability
View on Model
2#
Valve,top burner ,9K
Valve,top burner ,9K WCI 318234010 Contact Us For Availability
View on Model
2A#
Valve,top burner ,5K
Valve,top burner ,5K WCI 318234020 Contact Us For Availability
View on Model
2B#
Valve,top burner ,10K
Valve,top burner ,10K WCI 318234000 Contact Us For Availability
View on Model
3#
Wiring Harness,w/igntr switch
Wiring Harness,w/igntr switch WCI 318232601 Contact Us For Availability
View on Model
10B#
Burner,sealed ,5K
Burner,sealed ,5K WCI 316206400 Contact Us For Availability
View on Model
11#
Ignitor/orifice assy.,top burner ,
Ignitor/orifice assy.,top burner , WCI 318221323 Contact Us For Availability
View on Model
11A#
Ignitor/orifice assy.,top burner ,
Ignitor/orifice assy.,top burner , WCI 318221322 Contact Us For Availability
View on Model
11B#
Ignitor/orifice assy.,top burner ,
Ignitor/orifice assy.,top burner , WCI 318221320 Contact Us For Availability
View on Model
11C#
Ignitor/orifice assy.,top burner ,
Ignitor/orifice assy.,top burner , WCI 318221321 Contact Us For Availability
View on Model
21B

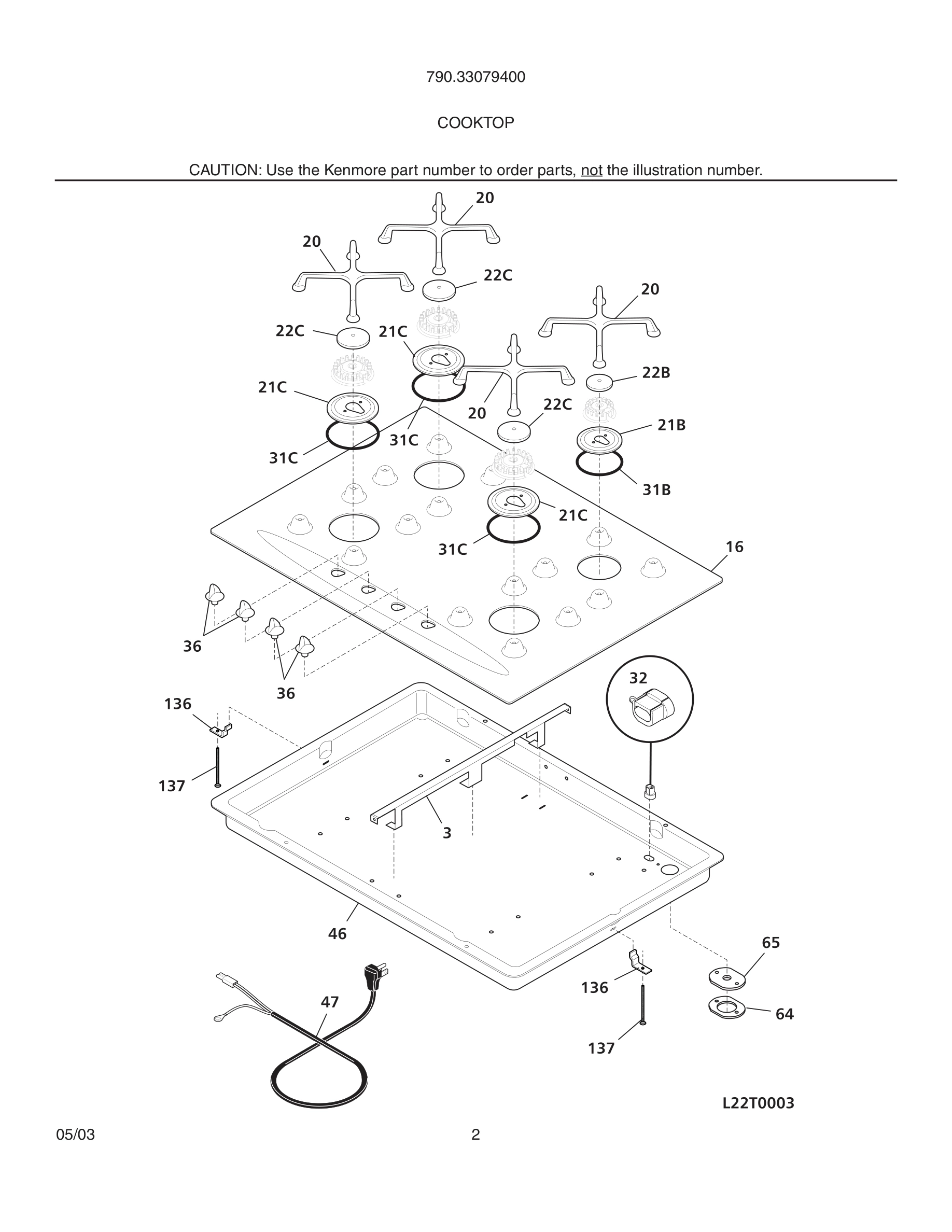

Skirt,5K burner ,black
Skirt,5K burner ,black WCI 316241904 Contact Us For Availability
View on Model
21C
Skirt,9.5K burner ,black
Skirt,9.5K burner ,black WCI 316241804 Contact Us For Availability
View on Model
22B
Cap,5K burner ,black
Cap,5K burner ,black WCI 316206604 Contact Us For Availability
View on Model
22C
Cap,9.5K burner ,black
Cap,9.5K burner ,black WCI 316213505 Contact Us For Availability
View on Model
35
Bushing
Bushing WCI 318146300 Contact Us For Availability
View on Model
44
Orifice,top burner ,9K
Orifice,top burner ,9K WCI 316237911 Contact Us For Availability
View on Model
44B
Orifice,top burner ,5K
Orifice,top burner ,5K WCI 316237903 Contact Us For Availability
View on Model
44C
Orifice,top burner ,10K
Orifice,top burner ,10K WCI 316237908 Contact Us For Availability
View on Model
73
Bracket,spark module
Bracket,spark module WCI 318024201 Contact Us For Availability
View on Model
77
Bracket,burner mtg
Bracket,burner mtg WCI 318192600 Contact Us For Availability
View on Model
137
Screw,lock bracket ,10-24 x 2.00
Screw,lock bracket ,10-24 x 2.00 WCI 5303285443 Contact Us For Availability
View on Model
