Model Electrolux 790.33019990 Gas Cooktop (Kenmore 79033019990) – Common Parts & Diagrams
All Parts

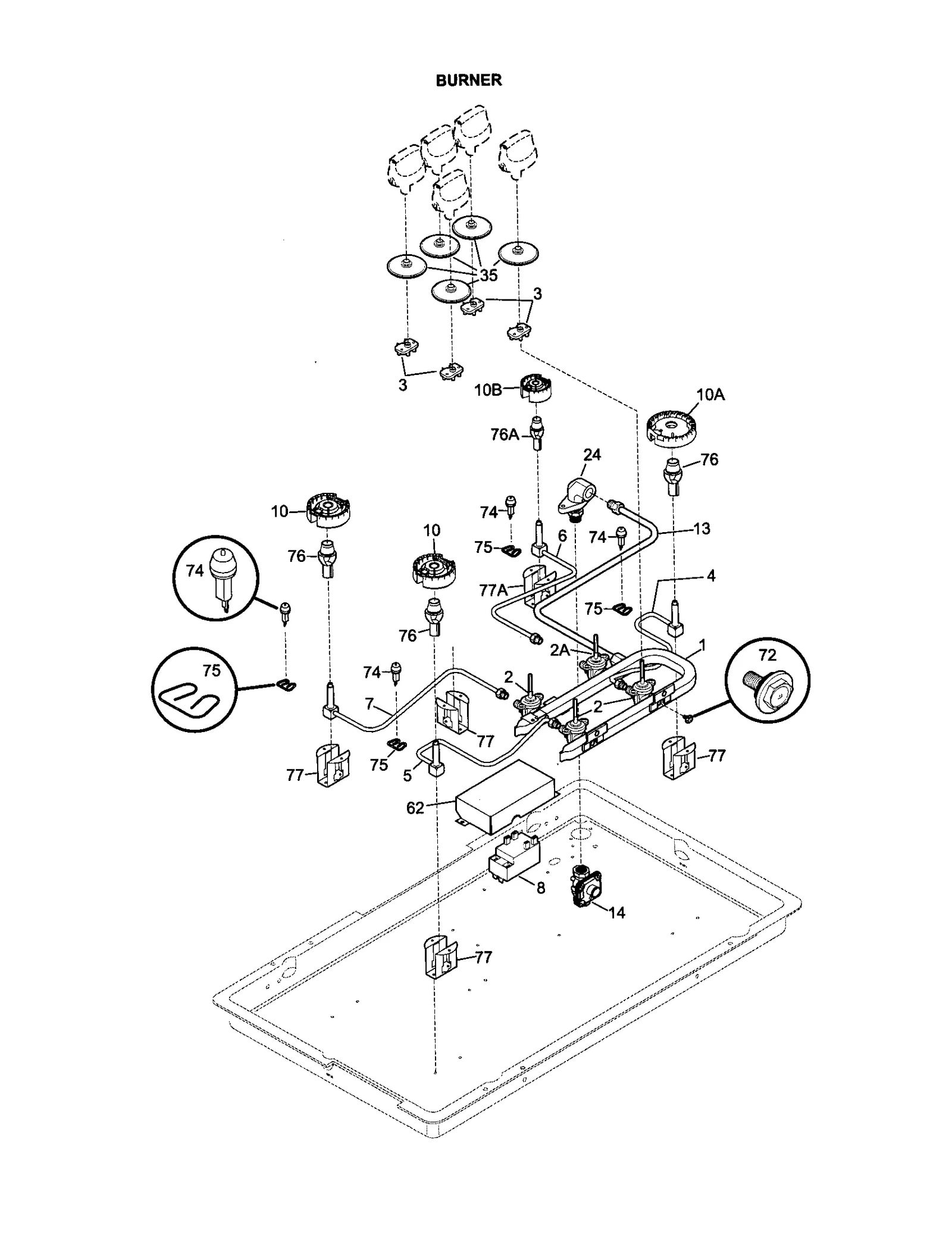

BURNER
COOKTOP
Common parts from model Electrolux 790.33019990 Gas Cooktop (Kenmore 79033019990)
6
Cooktop Burner Supply Tube WCI 318167706 Contact Us For Availability
10
Cooktop Burner WCI 318148001 Contact Us For Availability
10A
Cooktop Burner Head WCI 318148002 Contact Us For Availability
10B
Cooktop Burner WCI 318148000 Contact Us For Availability
14
Range Pressure Regulator WCI 5308007974 Contact Us For Availability
16
Main Top Gla WCI 318180001 Contact Us For Availability
16A
Main Top Gla WCI 318180000 Contact Us For Availability
16B
Main Top Gla WCI 318180002 Contact Us For Availability
19
Range Drip Pan WCI 318168116 Contact Us For Availability
19A
Range Drip Pan WCI 318168126 Contact Us For Availability
19AA
Range Drip Pan WCI 318168124 Contact Us For Availability
19AB
Lge Drip Pan WCI 318168127 Contact Us For Availability
19B
Range Burner Drip Pan WCI 318168106 Contact Us For Availability
19BA
Range Drip Pan WCI 318168104 Contact Us For Availability
19BB
Drip Pan Small WCI 318168107 Contact Us For Availability
19D
Pan-burner M WCI 318168117 Contact Us For Availability
20
Gray Grate WCI 316119200 Contact Us For Availability
20A
Cooktop Burner Grate WCI 316119201 Contact Us For Availability
20B
Cooktop Burner Grate WCI 316119202 Contact Us For Availability
22
Burner Cap WCI 318076411 Contact Us For Availability
22A
Lge Brnr Cap WCI 318076421 Contact Us For Availability
22AA
Lge Brnr Cap WCI 318076420 Contact Us For Availability
22AB
Lge Brnr Cap WCI 318076423 Contact Us For Availability
22B
Sim Brnr Cap WCI 318076401 Contact Us For Availability
22BA
Sim Brnr Cap WCI 318076400 Contact Us For Availability
22BB
Sim Brnr Cap WCI 318076403 Contact Us For Availability
22D
Burner Cap WCI 318076413 Contact Us For Availability
33
Switch Bracket WCI 318172801 Contact Us For Availability
36
Knob (White) WCI 316121806 Contact Us For Availability
36AA
Control Knob WCI 316121813 Contact Us For Availability
36AB
Knob Biscuit WCI 316121819 Contact Us For Availability
36B
Cooktop Control Knob WCI 316121807 Contact Us For Availability
36C
Cooktop Burner Knob WCI 316121817 Contact Us For Availability
46
Burner Box WCI 318077001 Contact Us For Availability
47
Cord WCI 5303303991 Contact Us For Availability
51
Pilot Light WCI 318044821 Contact Us For Availability
53
Bracket WCI 318172802 Contact Us For Availability
76A
Cooktop Burner Air Mixing Tube WCI 318167800 Contact Us For Availability
77
Cooktop Burner Mounting Bracket, Medium and L WCI 318112010 Contact Us For Availability
126
Glass Bracket WCI 318088610 Contact Us For Availability
130
Insulation Shield WCI 318160303 Contact Us For Availability
136
Cooktop Installation Bracket Kit WCI 5303935029 Contact Us For Availability
137
Cooktop Screw WCI 5303323138 Contact Us For Availability
164
Wok WCI 316121900 Contact Us For Availability
× ![]()
