Model Electrolux 790.33014991 Gas Cooktop (Kenmore 79033014991) – Common Parts & Diagrams

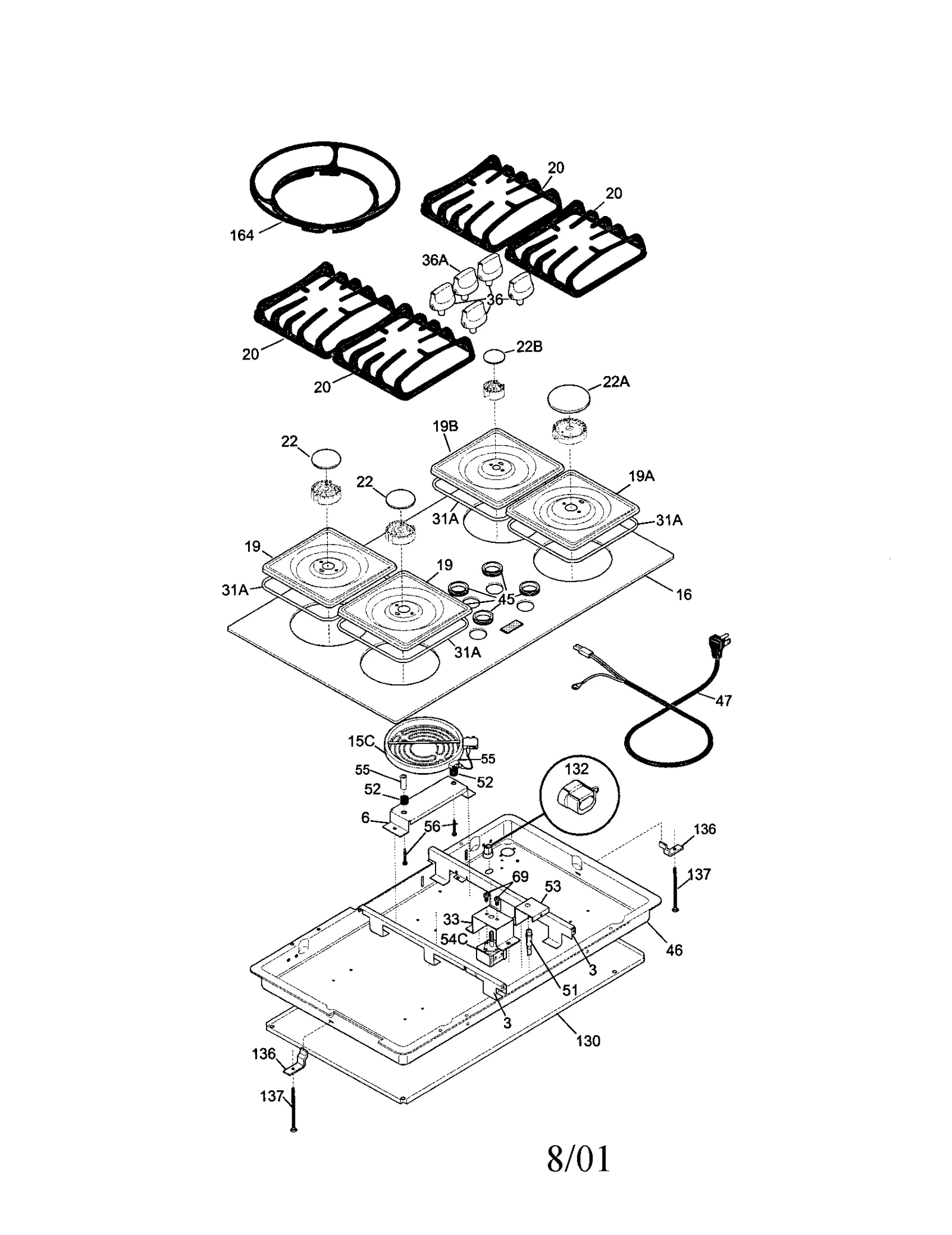

COOKTOP

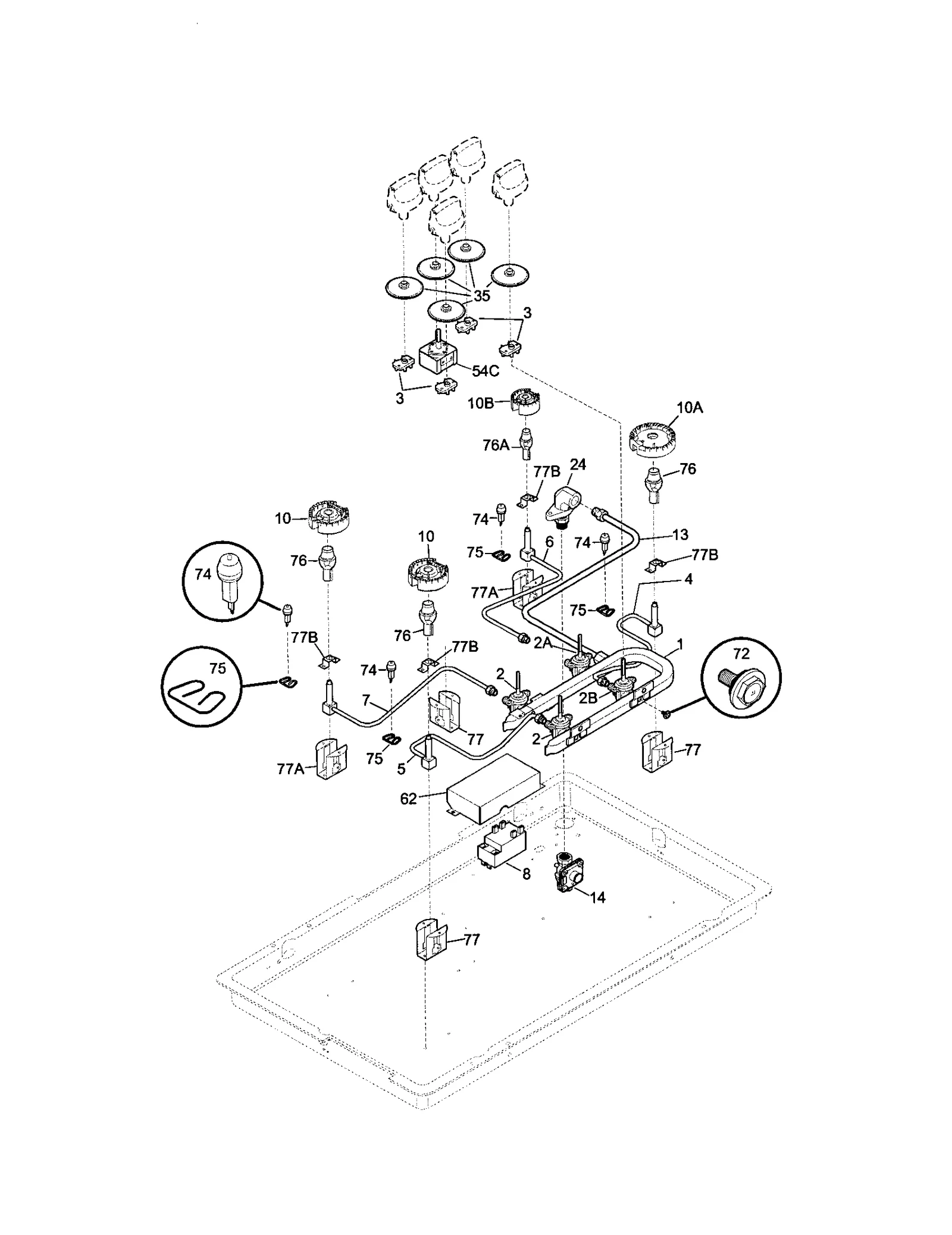

BURNER
All Parts
Common parts from model Electrolux 790.33014991 Gas Cooktop (Kenmore 79033014991)
1
Manifold WCI 318177204 Contact Us For Availability
2
Valve WCI 318087304 Contact Us For Availability
2A
Valve WCI 318087303 Contact Us For Availability
2B
Valve WCI 318087305 Contact Us For Availability
4
Burner Tube WCI 318167705 Contact Us For Availability
5
Burner Tube WCI 318167704 Contact Us For Availability
6
Cooktop Burner Supply Tube WCI 318167706 Contact Us For Availability
7
Burner Tube WCI 318167707 Contact Us For Availability
10
Cooktop Burner WCI 318148001 Contact Us For Availability
10A
Cooktop Burner Head WCI 318148002 Contact Us For Availability
10B
Cooktop Burner WCI 318148000 Contact Us For Availability
13
Cooktop Manifold Supply Tube WCI 318054505 Contact Us For Availability
14
Range Pressure Regulator WCI 5308007974 Contact Us For Availability
19
Range Drip Pan WCI 318168116 Contact Us For Availability
19A
Range Drip Pan WCI 318168126 Contact Us For Availability
19AA
Range Drip Pan WCI 318168124 Contact Us For Availability
19BA
Range Drip Pan WCI 318168104 Contact Us For Availability
24
Elbow WCI 318054000 Contact Us For Availability
35
Insulation Bushing WCI 5303307978 Contact Us For Availability
36
Knob (White) WCI 316121806 Contact Us For Availability
36A
Knob WCI 316121812 Contact Us For Availability
36AA
Control Knob WCI 316121813 Contact Us For Availability
36AB
Knob Biscuit WCI 316121819 Contact Us For Availability
36AC
Cooktop Warming Drawer Knob WCI 316121824 Contact Us For Availability
36B
Cooktop Control Knob WCI 316121807 Contact Us For Availability
36C
Cooktop Burner Knob WCI 316121817 Contact Us For Availability
45
Glass Bushing WCI 318146220 Contact Us For Availability
46
Burner Box WCI 318077001 Contact Us For Availability
47
Cord WCI 5303303991 Contact Us For Availability
53
Bracket WCI 318172802 Contact Us For Availability
55
Cooking Appliance Element Spacer WCI 5303317178 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
62
Cover WCI 318160201 Contact Us For Availability
75
Cooktop Burner Igniter Spring Clip WCI 318148800 Contact Us For Availability
76A
Cooktop Burner Air Mixing Tube WCI 318167800 Contact Us For Availability
77
Cooktop Burner Mounting Bracket, Medium and L WCI 318112010 Contact Us For Availability
77A
Cooktop Burner Mounting Bracket, Small WCI 318112000 Contact Us For Availability
77B
Cooktop Burner Supply Tube Bracket WCI 318180900 Contact Us For Availability
130
Insulation Shield WCI 318160303 Contact Us For Availability
136
Cooktop Installation Bracket Kit WCI 5303935029 Contact Us For Availability
137
Cooktop Screw WCI 5303323138 Contact Us For Availability
164
Wok WCI 316121900 Contact Us For Availability
NI
Wiring Diagram WCI 318047106 Contact Us For Availability
NI
Wire Harness WCI 318052124 Contact Us For Availability
NI
L.p. Kit WCI 318127407 Contact Us For Availability
NI
Cooktop Nameplate WCI 318181000 Contact Us For Availability
NI
Range Screw WCI 318195000 Contact Us For Availability
NI
Literature WCI 318200653 Contact Us For Availability
NI
Instructions WCI 318201405 Contact Us For Availability
× ![]()
