Model Electrolux 790.33002991 Gas Cooktop (Kenmore 79033002991) – Common Parts & Diagrams

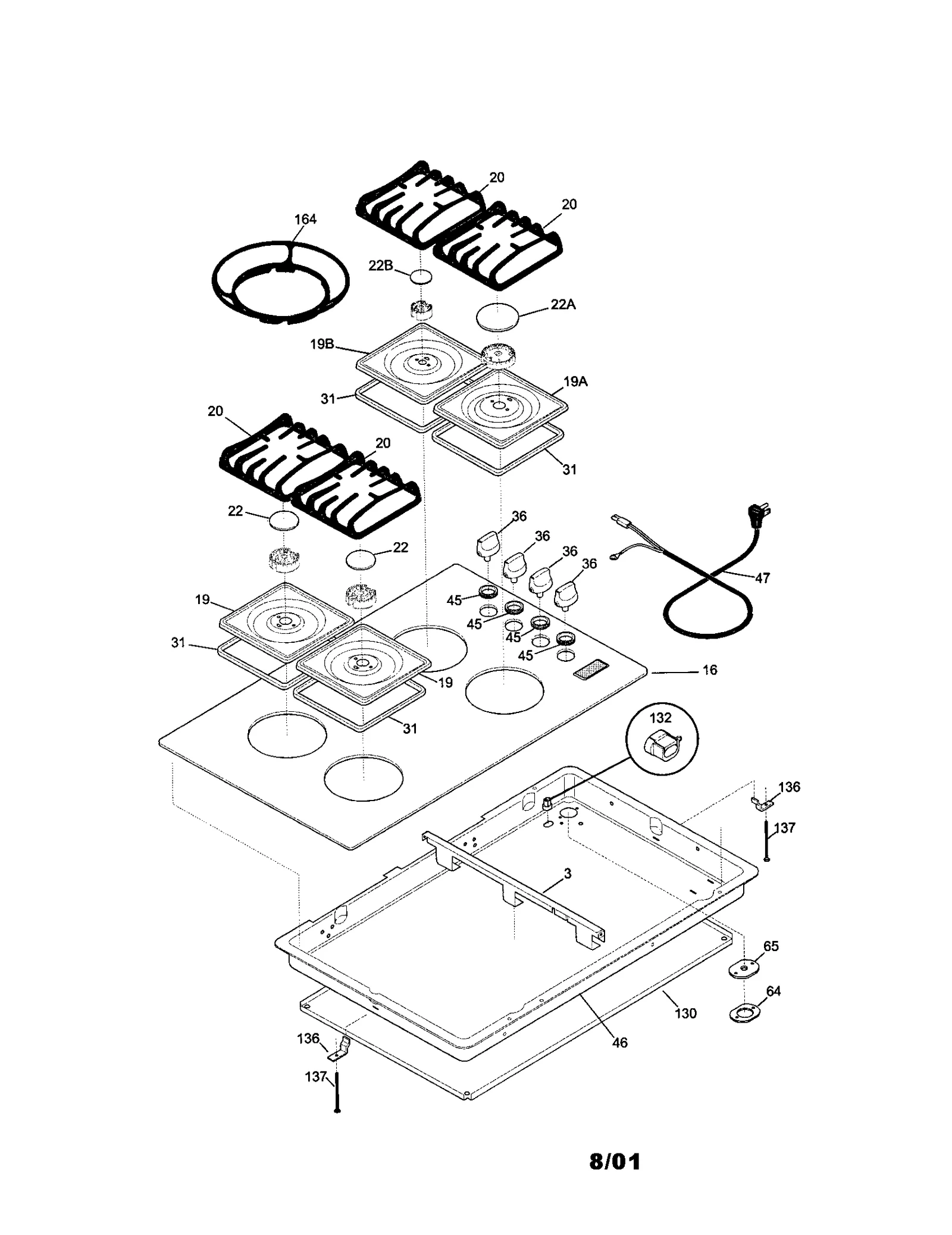

COOKTOP

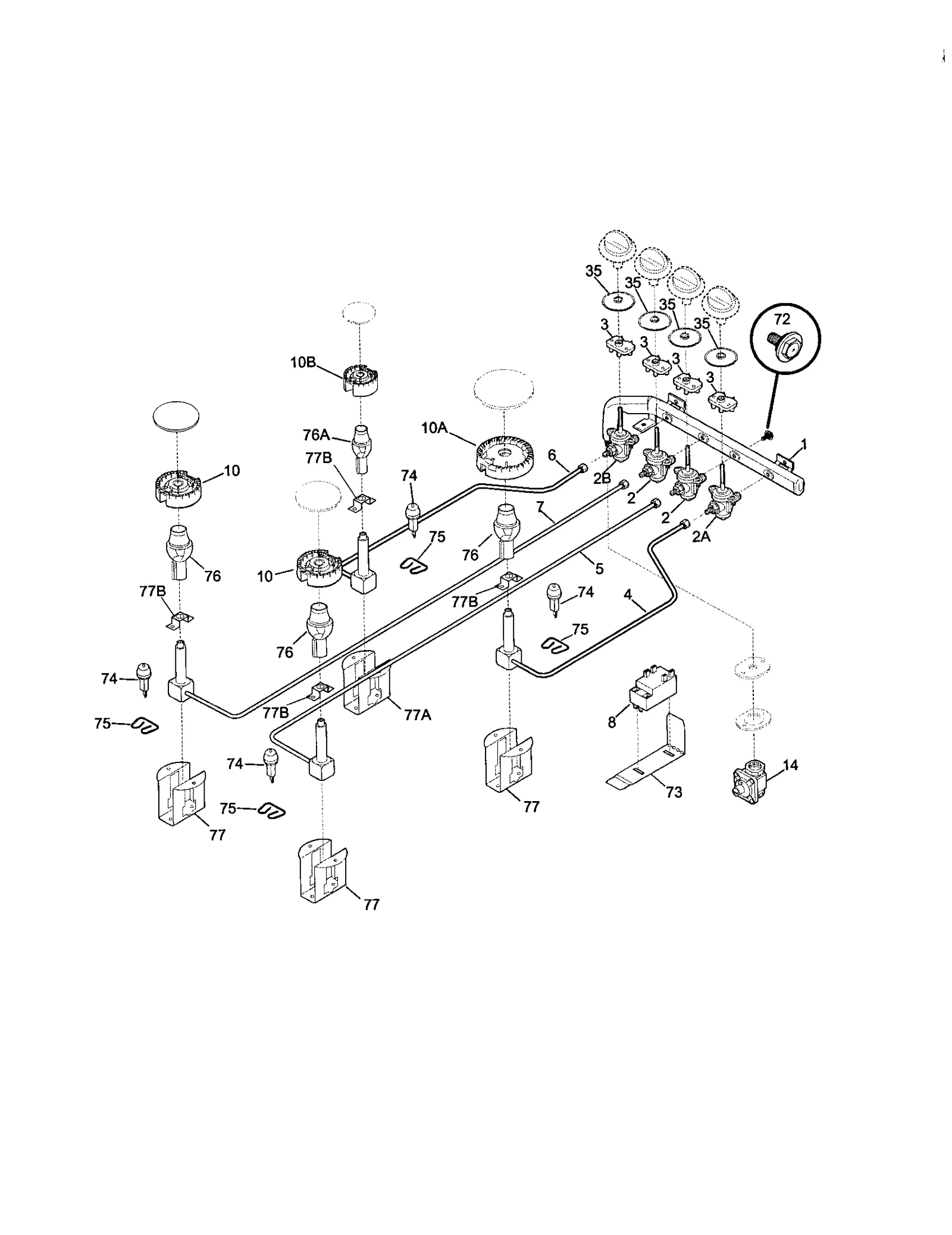

BURNER
All Parts
Common parts from model Electrolux 790.33002991 Gas Cooktop (Kenmore 79033002991)
1
Manifold WCI 318177005 Contact Us For Availability
2
Range Surface Burner Valve WCI 318087314 Contact Us For Availability
2A
Range Surface Burner Valve WCI 318087315 Contact Us For Availability
2B
Range Surface Burner Valve WCI 318087313 Contact Us For Availability
4
Burner Tube WCI 318167703 Contact Us For Availability
5
Cooktop Burner Supply Tube, Left Front WCI 318167700 Contact Us For Availability
6
Cooktop Burner Tube and Orifice, Right Rear WCI 318167702 Contact Us For Availability
7
Burner Tube WCI 318167701 Contact Us For Availability
10
Cooktop Burner WCI 318148001 Contact Us For Availability
10A
Cooktop Burner Head WCI 318148002 Contact Us For Availability
10B
Cooktop Burner WCI 318148000 Contact Us For Availability
14
Range Pressure Regulator WCI 5308007974 Contact Us For Availability
19
Range Drip Pan WCI 318168116 Contact Us For Availability
19A
Range Drip Pan WCI 318168126 Contact Us For Availability
19AA
Range Drip Pan WCI 318168124 Contact Us For Availability
19BA
Range Drip Pan WCI 318168104 Contact Us For Availability
35
Bushing WCI 318146300 Contact Us For Availability
36A
Cooktop Burner Knob WCI 316121804 Contact Us For Availability
36C
Range Burner Control Knob WCI 316121821 Contact Us For Availability
45
Glass Bushing WCI 318146220 Contact Us For Availability
46
Burner Box WCI 5303307897 Contact Us For Availability
47
Cord WCI 5303303991 Contact Us For Availability
51
Bracket WCI 318024201 Contact Us For Availability
64
Cooktop Cover WCI 5303304033 Contact Us For Availability
75
Cooktop Burner Igniter Spring Clip WCI 318148800 Contact Us For Availability
76A
Cooktop Burner Air Mixing Tube WCI 318167800 Contact Us For Availability
77
Cooktop Burner Mounting Bracket, Medium and L WCI 318112010 Contact Us For Availability
77A
Cooktop Burner Mounting Bracket, Small WCI 318112000 Contact Us For Availability
77B
Cooktop Burner Supply Tube Bracket WCI 318180900 Contact Us For Availability
130
Insulation Shield WCI 318160302 Contact Us For Availability
136
Cooktop Installation Bracket Kit WCI 5303935029 Contact Us For Availability
137
Cooktop Screw WCI 5303323138 Contact Us For Availability
164
Wok WCI 316121900 Contact Us For Availability
NI
Wiring Diagram WCI 318047105 Contact Us For Availability
NI
Wire Harness WCI 318052107 Contact Us For Availability
NI
L.p. Kit WCI 318127407 Contact Us For Availability
NI
Cooktop Nameplate WCI 318181000 Contact Us For Availability
NI
Range Screw WCI 318195000 Contact Us For Availability
NI
Literature WCI 318200653 Contact Us For Availability
NI
Instructions WCI 318201405 Contact Us For Availability
× ![]()
