Model Kenmore 790.32632319 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

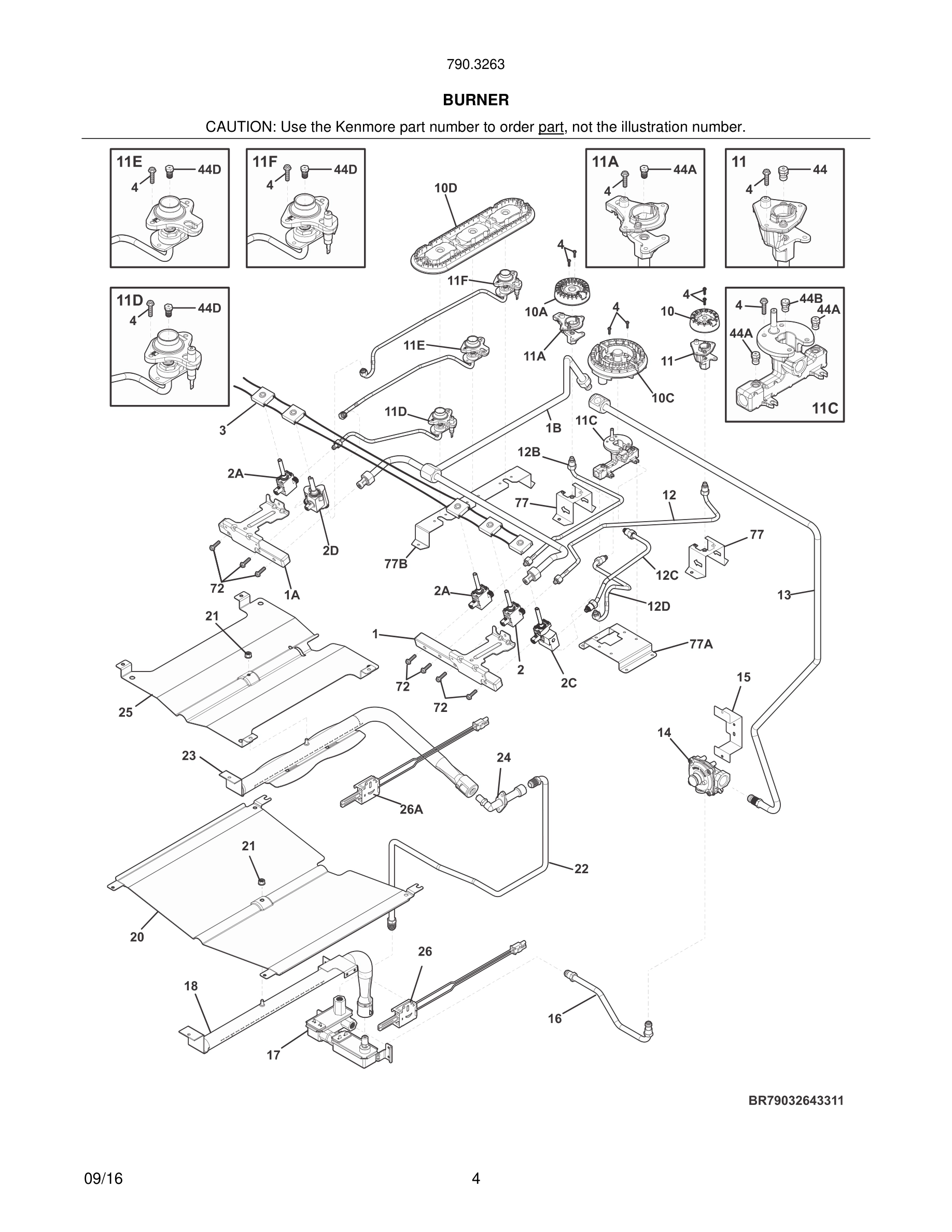

05 - BURNER

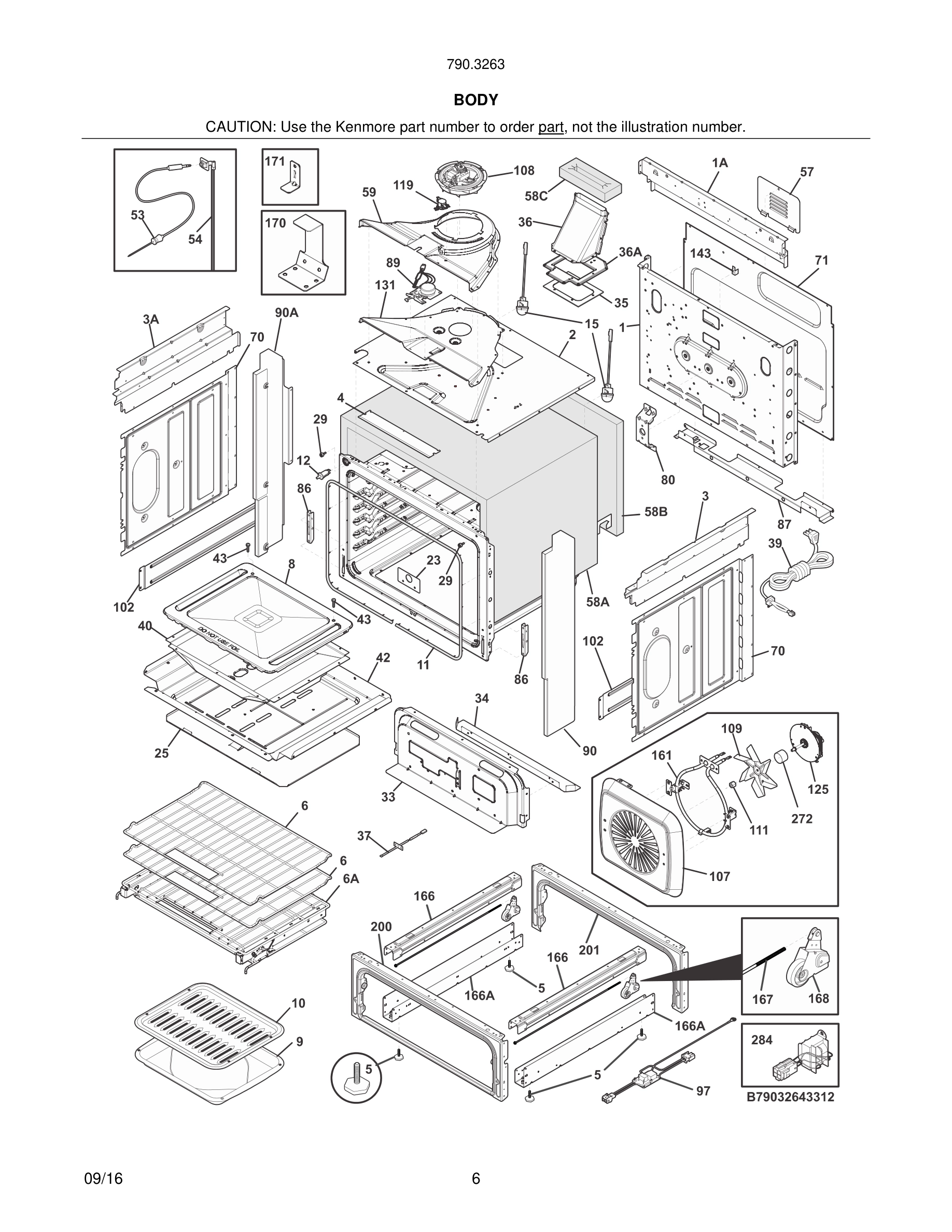

07 - BODY
09 - BODY

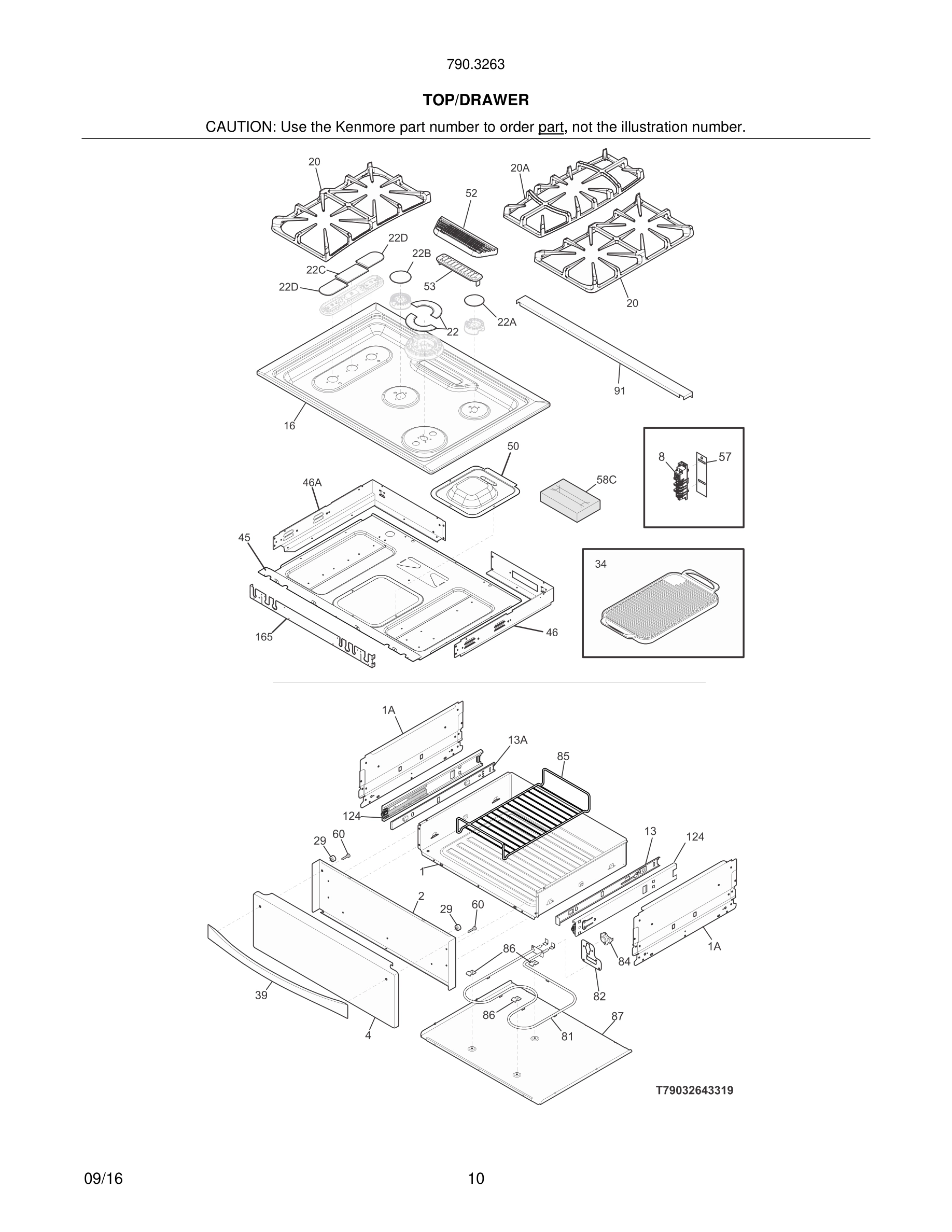

11 - TOP/DRAWER

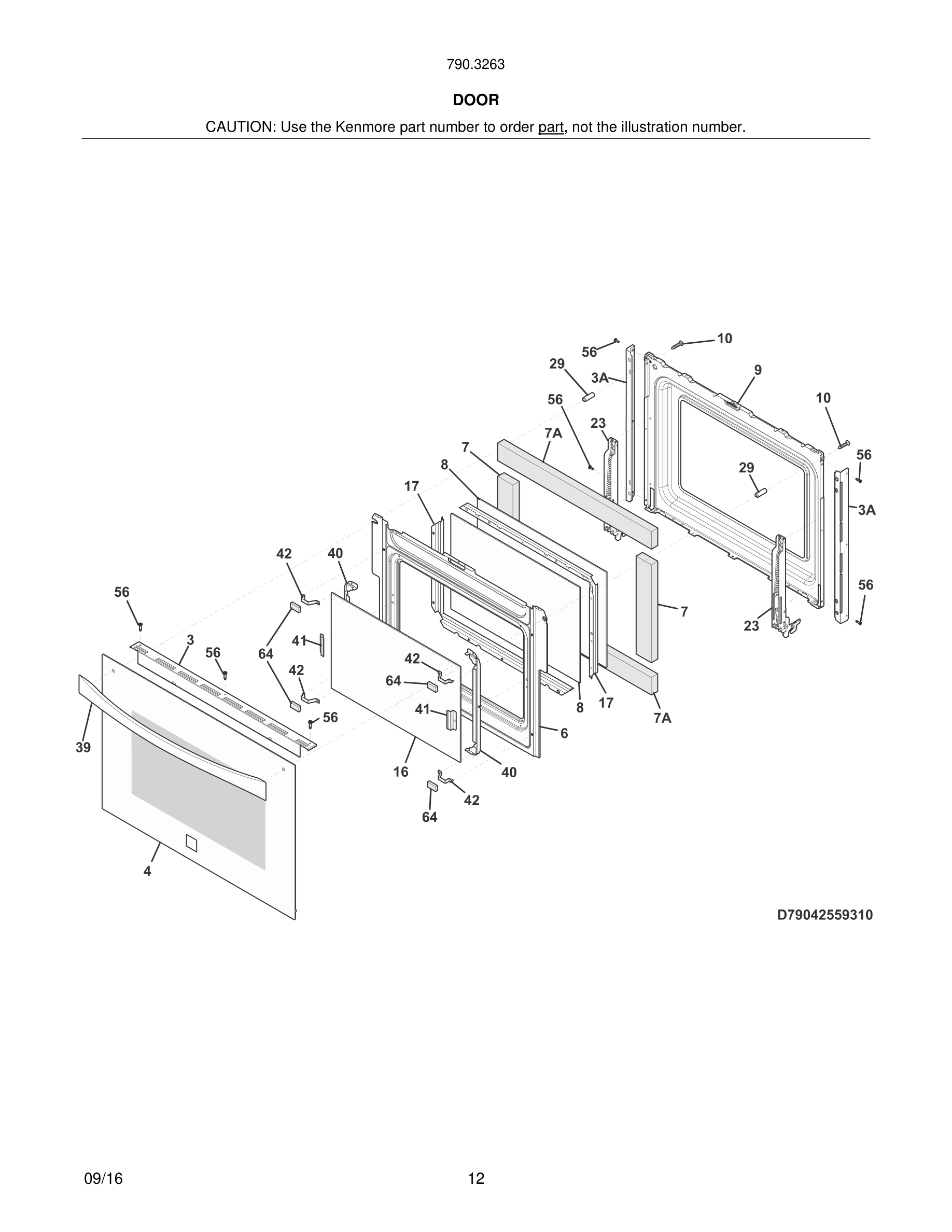

13 - DOOR

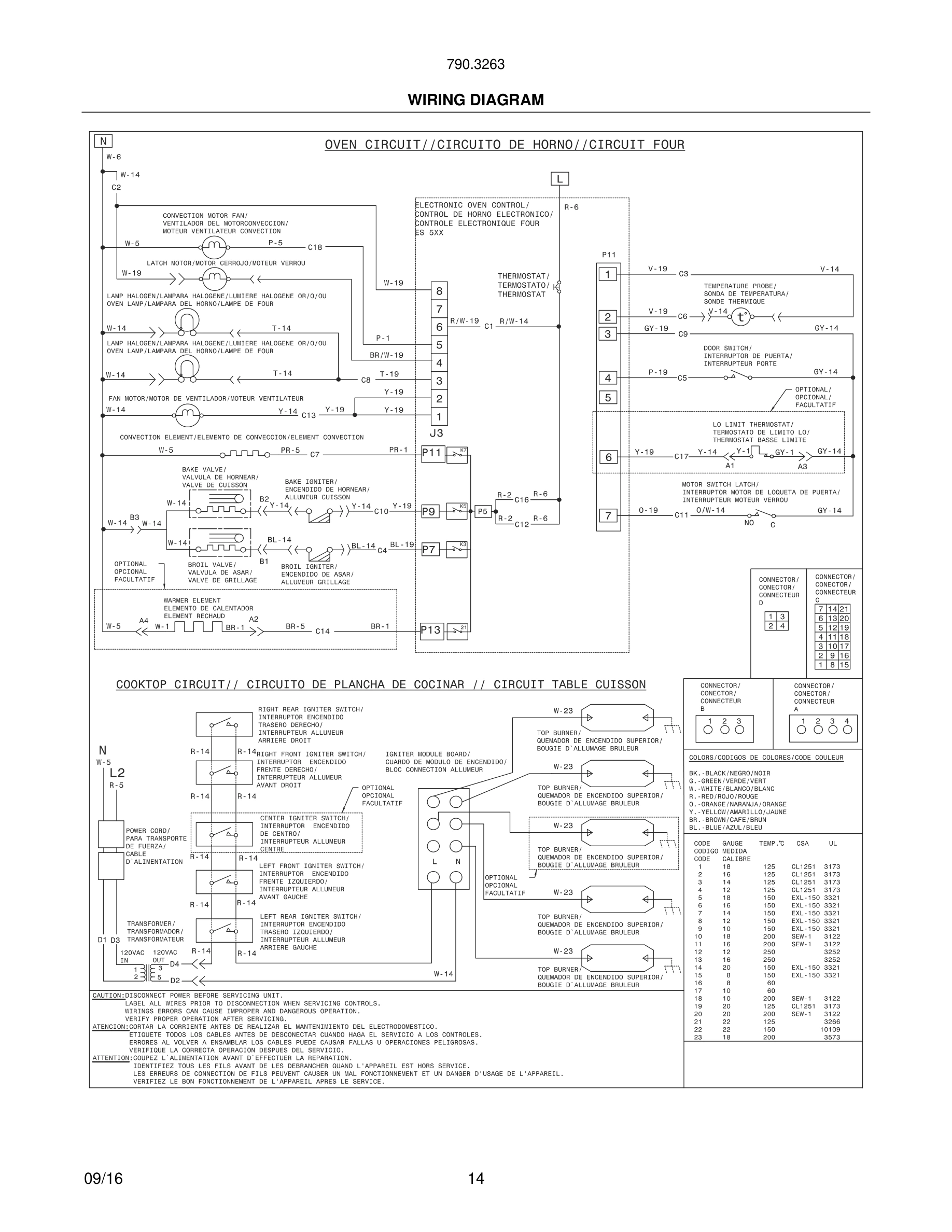

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.32632319 RANGE
*#
Conversion Kit, LP WCI 318565417 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303907 Contact Us For Availability
2#
Valve, top burner, 5K WCI 316271305 Contact Us For Availability
3#
Switch Assembly, ignitor, 5 valve, w/harness WCI 5304491104 Contact Us For Availability
4
Door Assembly, outer, black, w/trim & badge WCI 808950016 Contact Us For Availability
4
Door Assembly, outer, white, w/trim & badge WCI 808950018 Contact Us For Availability
5
Screw, leveling WCI 318175503 Contact Us For Availability
10C#
Burner Assembly, twin WCI 318567000 Contact Us For Availability
11D#
Ignitor/orifice assy., bridge burner, front, WCI 318924704 Contact Us For Availability
16
Tube, regulator valve WCI 318289500 Contact Us For Availability
20#
Controller, electronic, ES575T1 WCI 5304503498 Contact Us For Availability
20A
Grate, burner, black, center WCI 807008001 Contact Us For Availability
22C
Cap, bridge burner, black, center WCI 316458603 Contact Us For Availability
22D
Cap, bridge burner, black, end WCI 316458703 Contact Us For Availability
24#
Elbow, mixer WCI 316409703 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
50
Panel, service, fan WCI 318578803 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
90
Gasket, silicone, black WCI 318930117 Contact Us For Availability
90
Panel, filler, white, RH WCI 318296902 Contact Us For Availability
90A
Panel, filler, white, LH WCI 318296903 Contact Us For Availability
91
Trim, filler, white, rear WCI 318304301 Contact Us For Availability
97#
Board, EMI filter, w/harness WCI 808743401 Contact Us For Availability
200
Frame, drawer, black, front WCI 318298232 Contact Us For Availability
× ![]()
