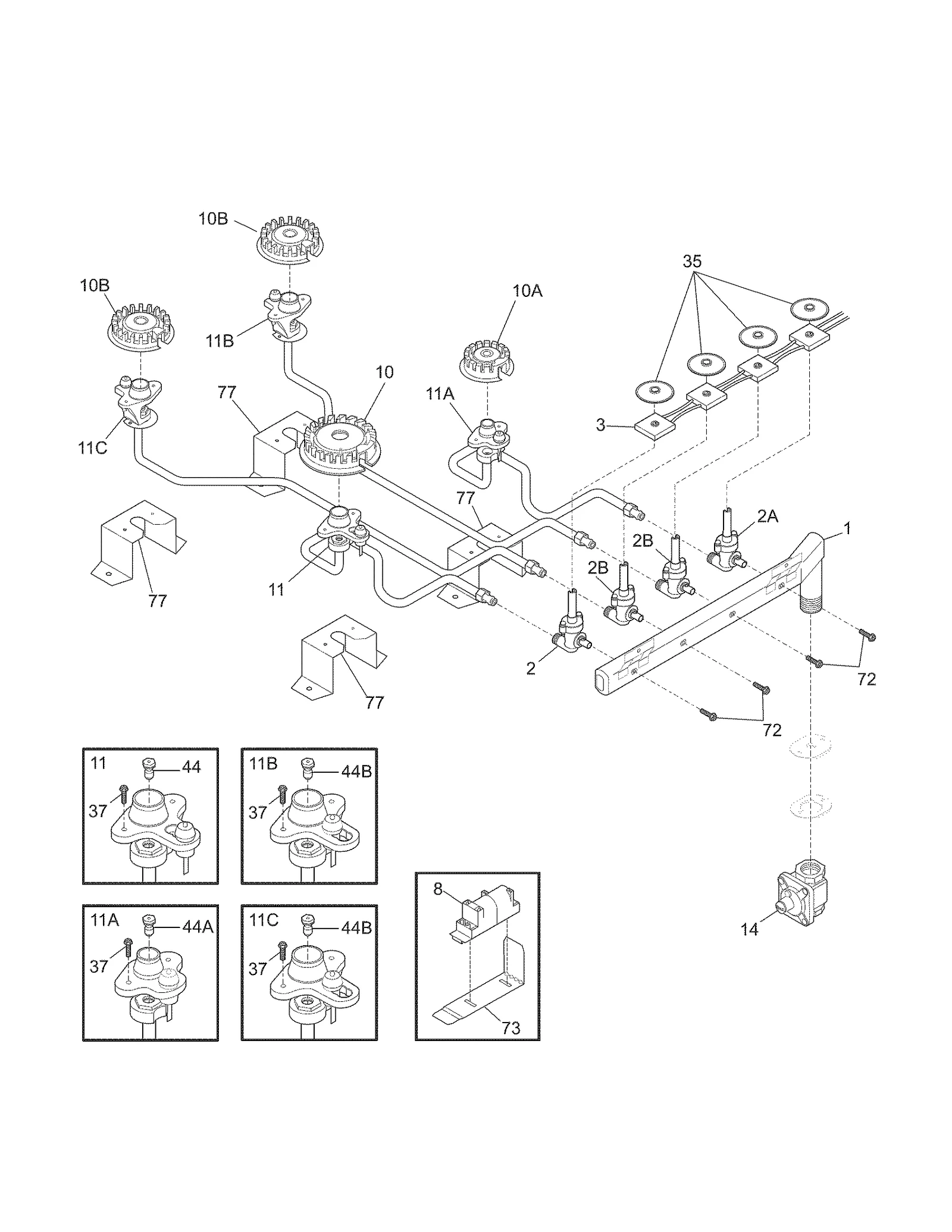

Model Electrolux 790.32424901 Cooktop (Kenmore 79032424901) – Common Parts & Diagrams

2
Valve
Valve WCI 318233930 Contact Us For Availability
View on Model
2B
Cooktop Burner Valve
Cooktop Burner Valve WCI 318233910 Contact Us For Availability
View on Model
10
Frigidaire Range Surface Burner Head
Frigidaire Range Surface Burner Head WCI 316223400 Contact Us For Availability
View on Model
10A
Electrolux Range Sealed Surface Burner
Electrolux Range Sealed Surface Burner WCI 316206401 Contact Us For Availability
View on Model
11
Cooktop Burner Igniter and Orifice Holder
Cooktop Burner Igniter and Orifice Holder WCI 318221333 Contact Us For Availability
View on Model
11A
Cooktop Burner Igniter and Orifice Holder, 5,
Cooktop Burner Igniter and Orifice Holder, 5, WCI 318221332 Contact Us For Availability
View on Model
11B
Range Surface Burner Igniter and Orifice Hold
Range Surface Burner Igniter and Orifice Hold WCI 318221334 Contact Us For Availability
View on Model
22
Range Surface Burner Cap, 14,000-BTU (Black)
Range Surface Burner Cap, 14,000-BTU (Black) WCI 316219900 Contact Us For Availability
View on Model
22
Range Burner Cap
Range Burner Cap WCI 316219903 Contact Us For Availability
View on Model
22A
Range Surface Burner Cap
Range Surface Burner Cap WCI 316206600 Contact Us For Availability
View on Model
22A
Range Surface Burner Cap (Gray)
Range Surface Burner Cap (Gray) WCI 316206603 Contact Us For Availability
View on Model
22B
Range Surface Burner Cap, 9,500-BTU (Gray)
Range Surface Burner Cap, 9,500-BTU (Gray) WCI 316213504 Contact Us For Availability
View on Model
22B
Range Surface Burner Cap, 9,500-BTU (Brown)
Range Surface Burner Cap, 9,500-BTU (Brown) WCI 316213503 Contact Us For Availability
View on Model
35
Range Bushing
Range Bushing WCI 318146301 Contact Us For Availability
View on Model
39
Cooktop Power Cord
Cooktop Power Cord WCI 318144006 Contact Us For Availability
View on Model
44
Range Surface Burner Orifice
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
View on Model
44A
Range Surface Burner Orifice Assembly
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
View on Model
77
Range Surface Burner Support
Range Surface Burner Support WCI 318192606 Contact Us For Availability
View on Model
137
Range Screw
Range Screw WCI 5303285443 Contact Us For Availability
View on Model
NI
Cooktop Igniter Wire Harness
Cooktop Igniter Wire Harness WCI 318199779 Contact Us For Availability
View on Model
