Model Kenmore 790.32422901 COOKTOP – Common Parts & Diagrams
01 - COVER
03 - COOKTOP

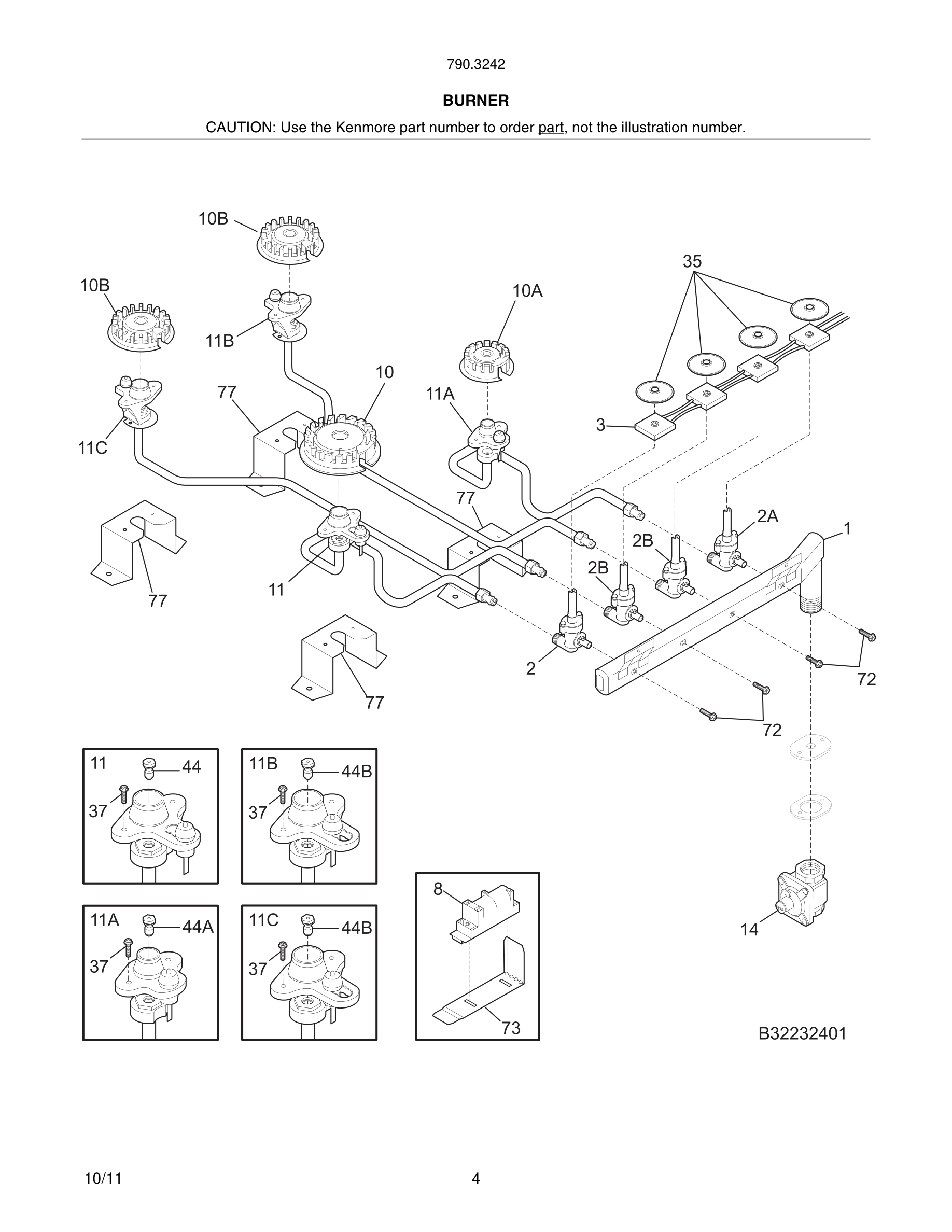

05 - BURNER

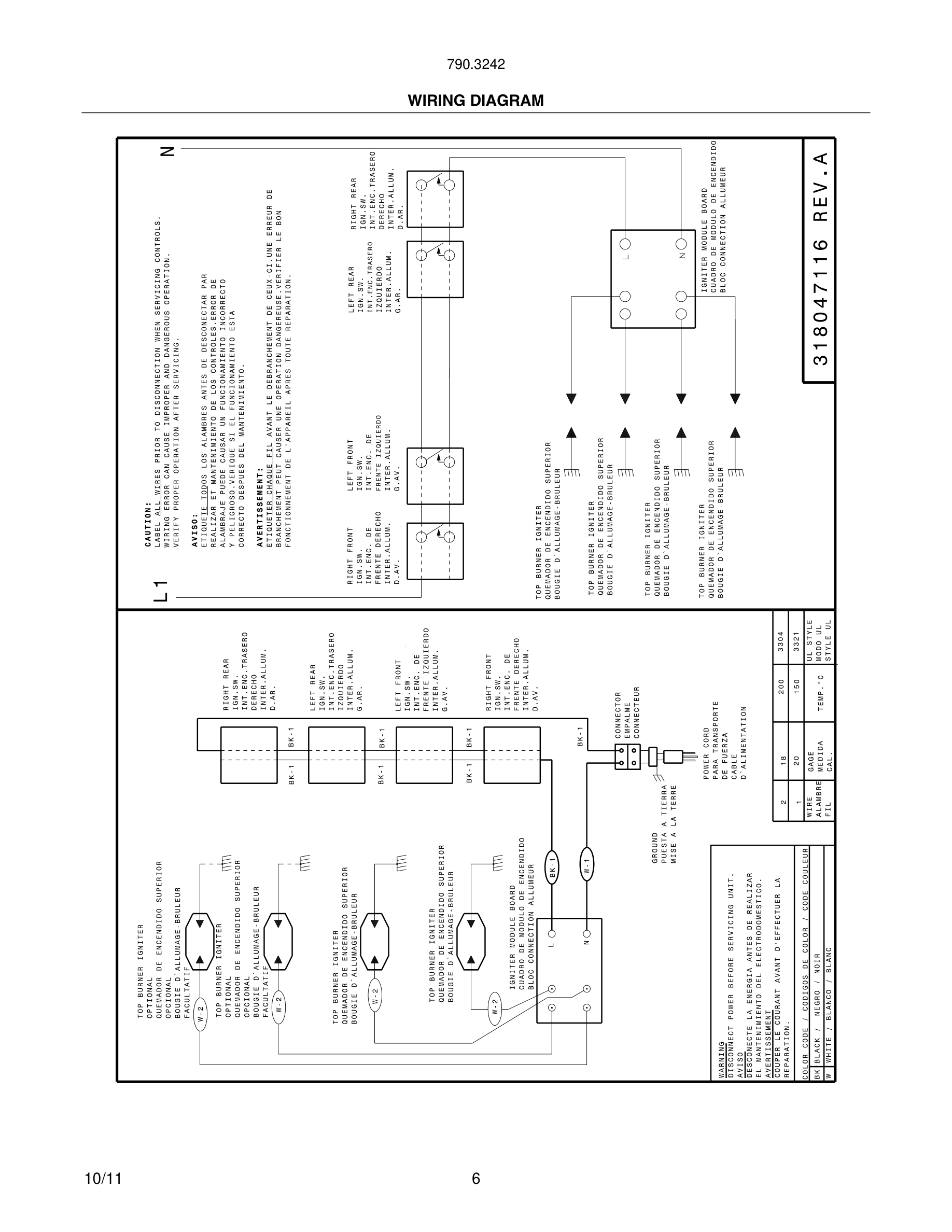

06 - WIRING DIAGRAM
Common parts from model Kenmore 790.32422901 COOKTOP
*#
Wiring Harness, ignitor WCI 318199779 Contact Us For Availability
2#
Valve, top burner, 14000 BTU WCI 318233930 Contact Us For Availability
2B#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
10#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
10A#
Burner, sealed, 5K WCI 316206401 Contact Us For Availability
11#
Ignitor/orifice assy., top burner, right fron WCI 318221333 Contact Us For Availability
11A#
Ignitor/orifice assy., top burner, right rear WCI 318221332 Contact Us For Availability
11B#
Ignitor/orifice assy., top burner, left rear, WCI 318221334 Contact Us For Availability
22
Cap, 14K burner, black WCI 316219900 Contact Us For Availability
22
Cap, 14K burner, gray WCI 316219903 Contact Us For Availability
22A
Cap, 5K burner, black WCI 316206600 Contact Us For Availability
22A
Cap, 5K burner, gray, small WCI 316206603 Contact Us For Availability
22B
Cap, 9.5K burner, gray, medium WCI 316213504 Contact Us For Availability
22B
Cap, 9.5K burner, brown WCI 316213503 Contact Us For Availability
35
Bushing WCI 318146301 Contact Us For Availability
39
Cord, service WCI 318144006 Contact Us For Availability
44#
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
44A#
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
77
Bracket, burner mtg, (4) WCI 318192606 Contact Us For Availability
137
Screw, lock bracket, 10-24 x 2.00 WCI 5303285443 Contact Us For Availability
× ![]()
