Model Kenmore 790.32402902 COOKTOP – Common Parts & Diagrams

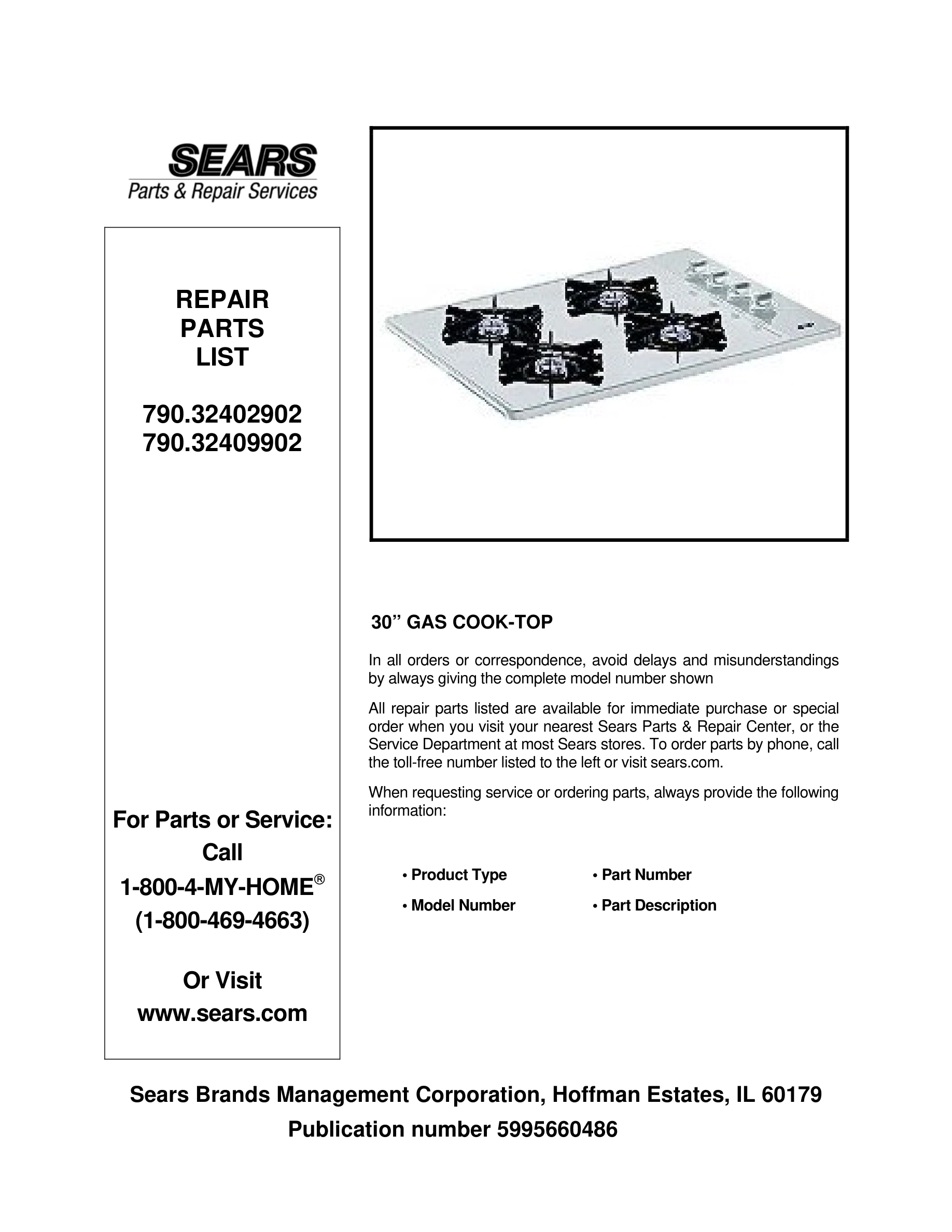

01 - COVER

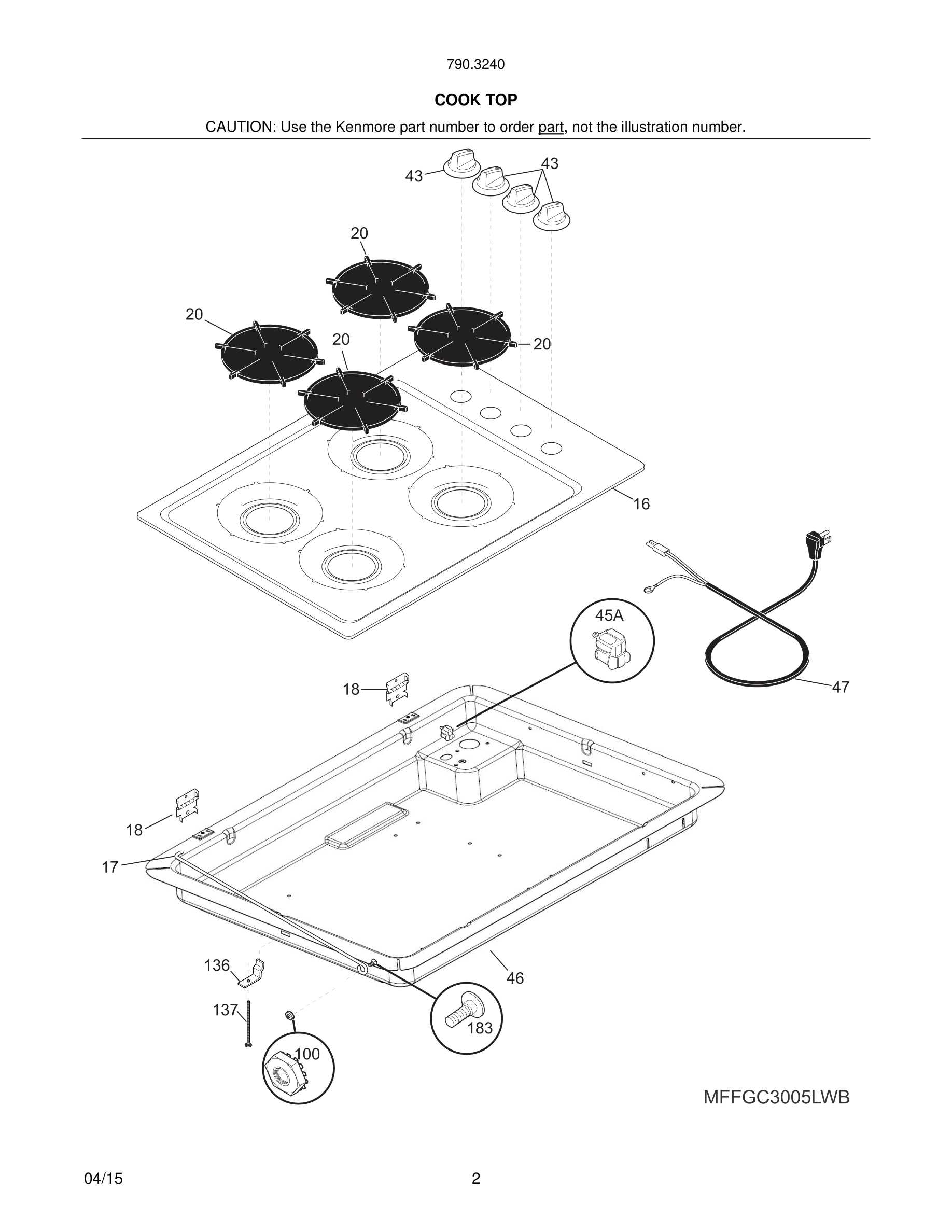

03 - COOKTOP

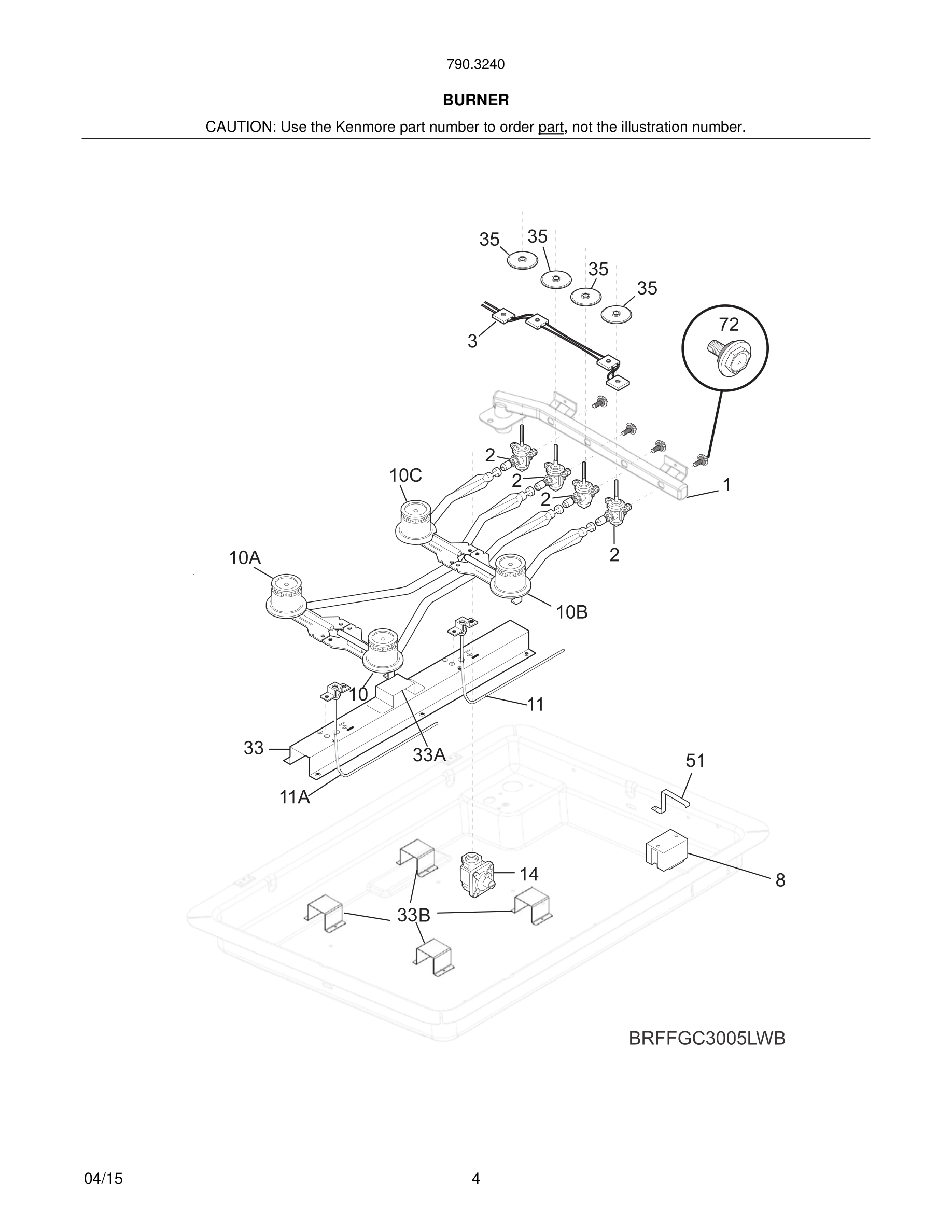

05 - BURNER

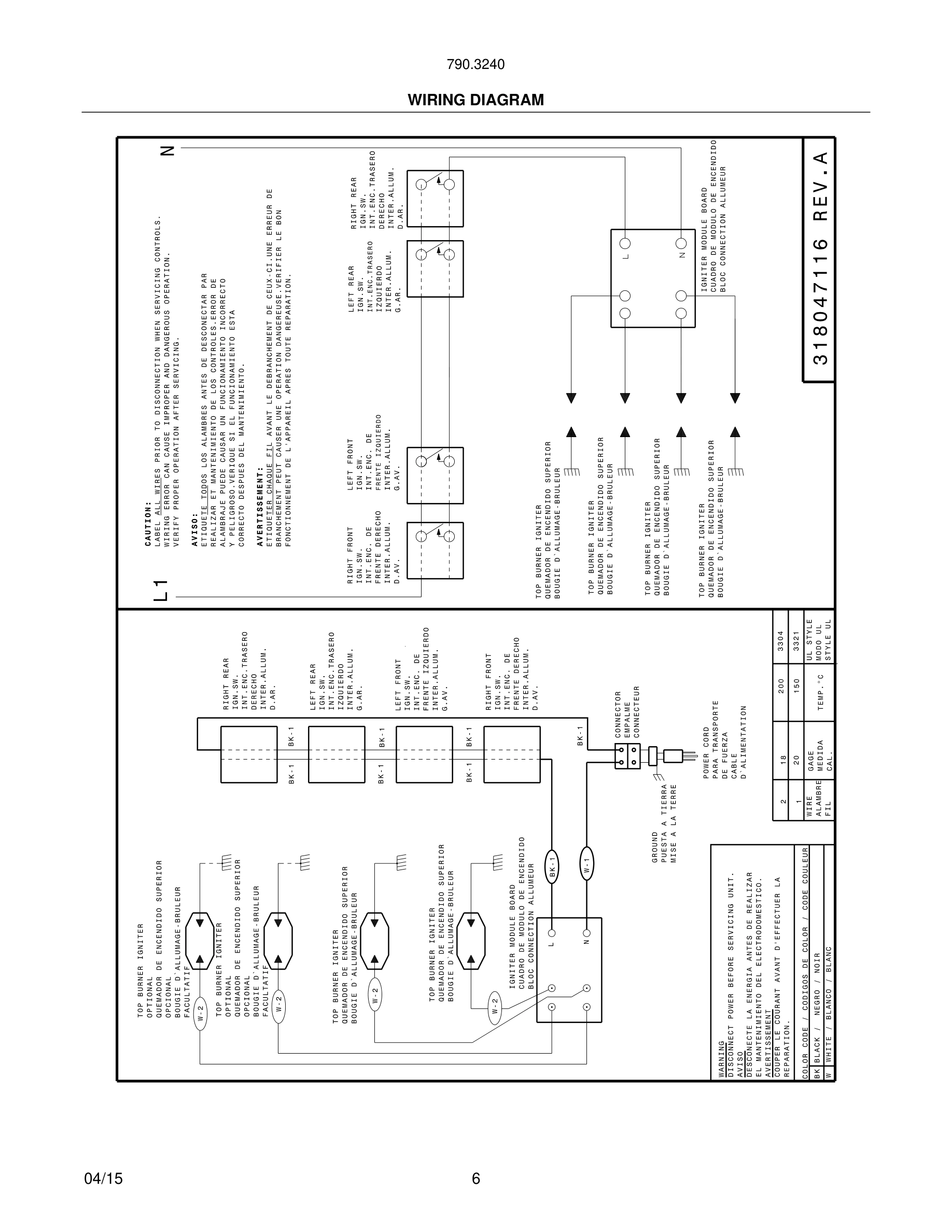

06 - WIRING DIAGRAM
Common parts from model Kenmore 790.32402902 COOKTOP
1
Manifold Pipe WCI 305596300 Contact Us For Availability
2#
Valve, top burner WCI 318087010 Contact Us For Availability
10#
Burner-top, left front WCI 5303320654 Contact Us For Availability
10A#
Burner-top, left rear WCI 5303320655 Contact Us For Availability
10B#
Burner-top, right front WCI 5303320656 Contact Us For Availability
10C#
Burner-top, right rear WCI 5303320657 Contact Us For Availability
11#
Ignitor, top burner, 17.5" lead WCI 318148604 Contact Us For Availability
11A#
Ignitor, top burner, 28.5" lead WCI 318148605 Contact Us For Availability
14#
Regulator, pressure WCI 318122712 Contact Us For Availability
18
Hinge, maintop, (2) WCI 318074310 Contact Us For Availability
33
Bracket, support WCI 305487700 Contact Us For Availability
33A
Bracket WCI 305593000 Contact Us For Availability
33B
Bracket, (4) WCI 305593001 Contact Us For Availability
35
Bushing WCI 318146301 Contact Us For Availability
43
Knob, control, white, (4) WCI 318537700 Contact Us For Availability
43
Knob, control, black, (4) WCI 318537702 Contact Us For Availability
46
Box, burner WCI 305385920 Contact Us For Availability
51
Bracket, spark module WCI 318024201 Contact Us For Availability
72
Screw, valve mtg, 1/4-20 x 5/16 WCI 5303323141 Contact Us For Availability
100
Nut, Keps WCI 305517600 Contact Us For Availability
183
Screw WCI 305456500 Contact Us For Availability
× ![]()
