Model Electrolux 790.32399401 Gas Cooktop (Kenmore 79032399401) – Common Parts & Diagrams

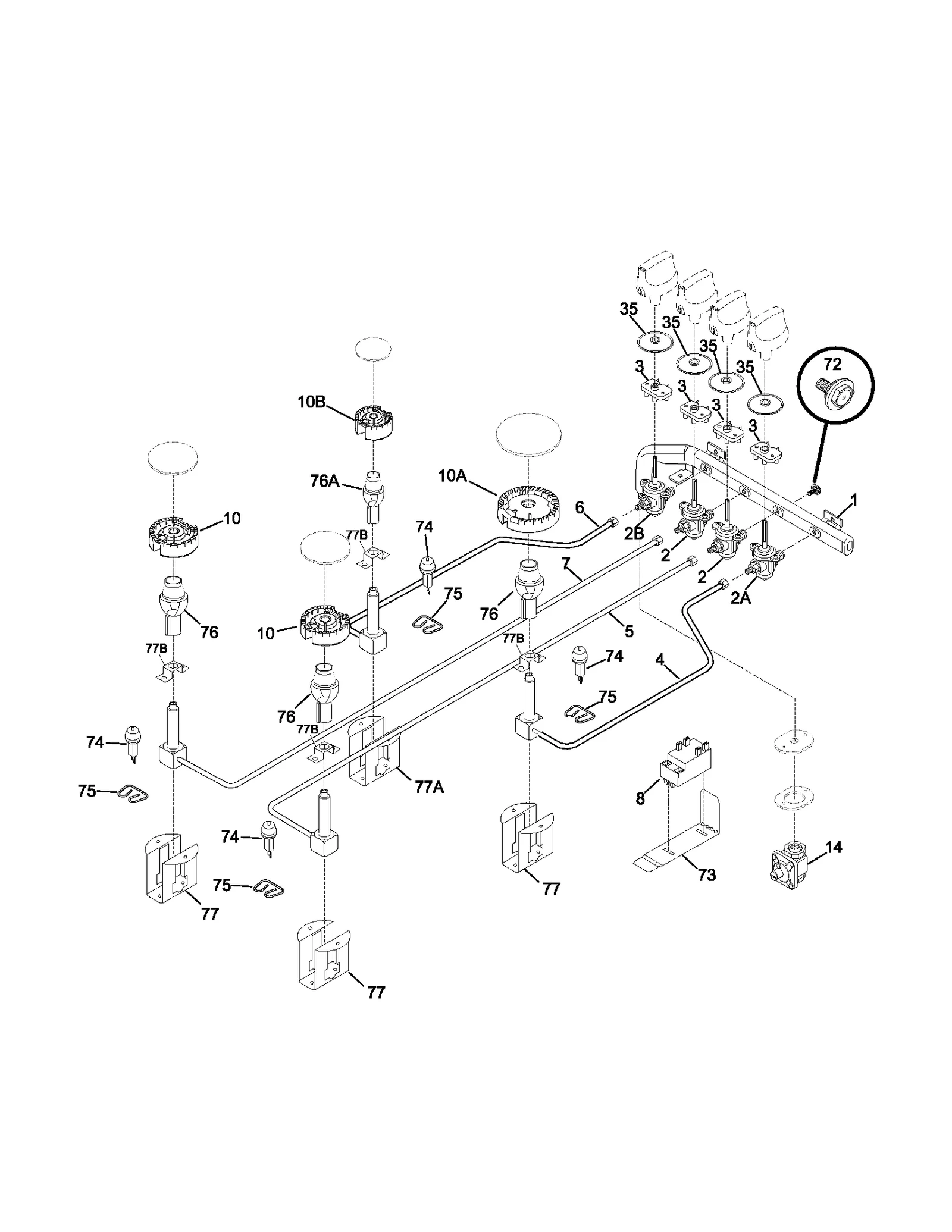

BURNER
BURNER
MAINTOP
MAINTOP
Common parts from model Electrolux 790.32399401 Gas Cooktop (Kenmore 79032399401)
2
Range Surface Burner Valve WCI 318087314 Contact Us For Availability
2A
Range Surface Burner Valve WCI 318087315 Contact Us For Availability
2B
Range Surface Burner Valve WCI 318087313 Contact Us For Availability
6
Cooktop Burner Tube and Orifice, Right Rear WCI 318167702 Contact Us For Availability
10
Cooktop Burner WCI 318148001 Contact Us For Availability
10A
Cooktop Burner Head WCI 318148002 Contact Us For Availability
10B
Cooktop Burner WCI 318148000 Contact Us For Availability
14
Range Pressure Regulator WCI 5308007974 Contact Us For Availability
16
Main WCI 318018537 Contact Us For Availability
16
Cooktop Main Top WCI 318018538 Contact Us For Availability
19
Range Drip Pan WCI 318168116 Contact Us For Availability
19
Pan-burner M WCI 318168117 Contact Us For Availability
19A
Range Drip Pan WCI 318168124 Contact Us For Availability
19A
Range Drip Pan WCI 318168126 Contact Us For Availability
19A
Lge Drip Pan WCI 318168127 Contact Us For Availability
19B
Range Drip Pan WCI 318168104 Contact Us For Availability
19B
Range Burner Drip Pan WCI 318168106 Contact Us For Availability
19B
Drip Pan Small WCI 318168107 Contact Us For Availability
20
Cooktop Burner Grate WCI 316119201 Contact Us For Availability
20
Grate WCI 318256300 Contact Us For Availability
20
Grate WCI 318256301 Contact Us For Availability
22
Range Surface Burner Cap, 9,500-BTU (Gray) WCI 316213504 Contact Us For Availability
22
Burner Cap WCI 318076414 Contact Us For Availability
22A
Cap 14k WCI 316213704 Contact Us For Availability
22A
Lge Brnr Cap WCI 318076420 Contact Us For Availability
22A
Lg Bnr Cap WCI 318076424 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316206603 Contact Us For Availability
22B
Sim Brnr Cap WCI 318076400 Contact Us For Availability
22B
Pan Burner WCI 318076404 Contact Us For Availability
36
Cooktop Burner Knob WCI 318271800 Contact Us For Availability
36
Cooktop Burner Knob WCI 318271801 Contact Us For Availability
39
Cord WCI 318144002 Contact Us For Availability
45
Bushing WCI 318146200 Contact Us For Availability
46
Burner Box WCI 318077480 Contact Us For Availability
64
Cooktop Cover WCI 5303304033 Contact Us For Availability
76A
Cooktop Burner Air Mixing Tube WCI 318167800 Contact Us For Availability
77
Cooktop Burner Mounting Bracket, Medium and L WCI 318112010 Contact Us For Availability
137
Range Screw WCI 5303285443 Contact Us For Availability
191
Bracket WCI 318278400 Contact Us For Availability
NI
Cooktop LP Conversion Kit WCI 318127417 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Wiring Diagram WCI 318047111 Contact Us For Availability
NI
Use and Care Guide WCI 318200667 Contact Us For Availability
NI
Installation WCI 318201458 Contact Us For Availability
NI
Parts List WCI 5995416483 Contact Us For Availability
× ![]()
