Model Kenmore 790.32232400 COOKTOP – Common Parts & Diagrams

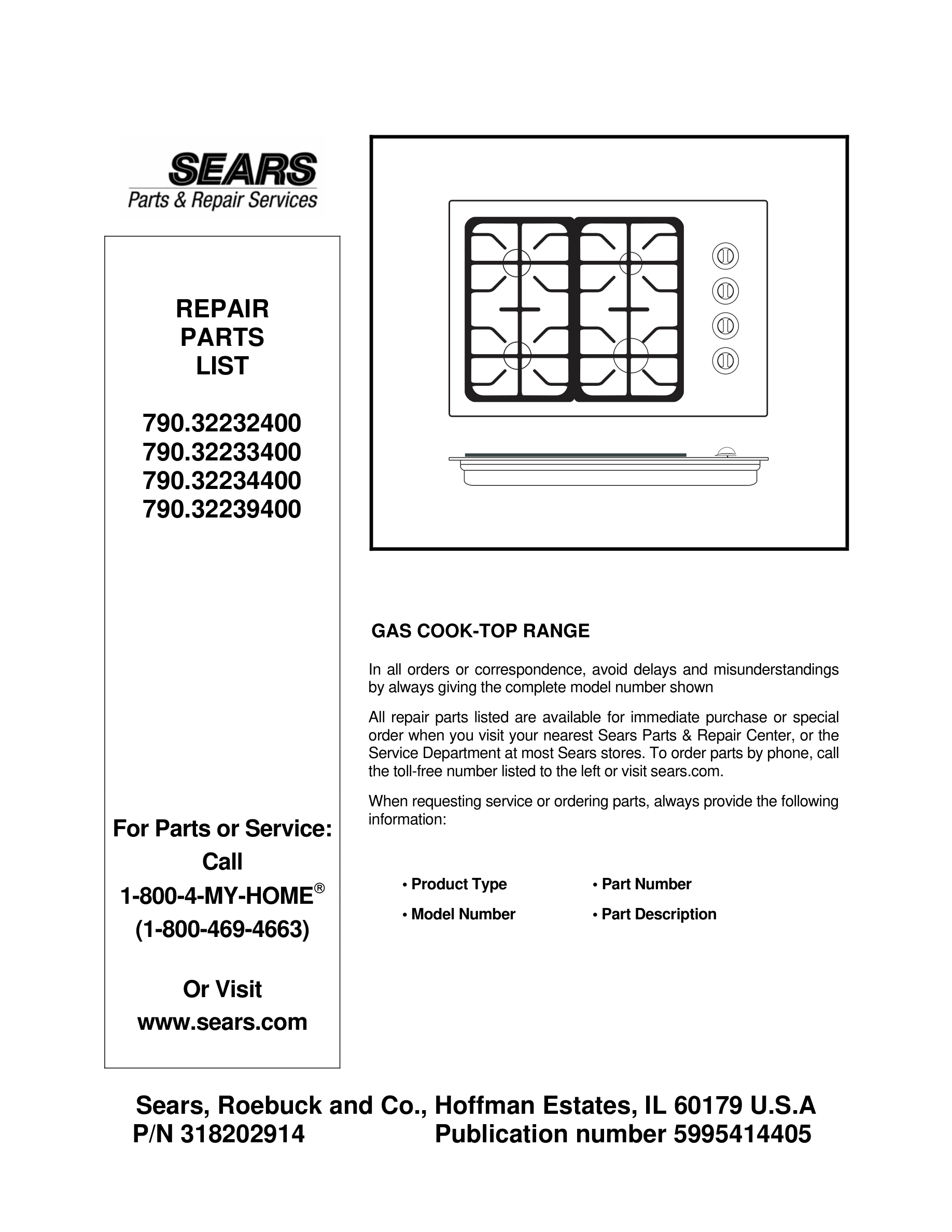

01 - COVER

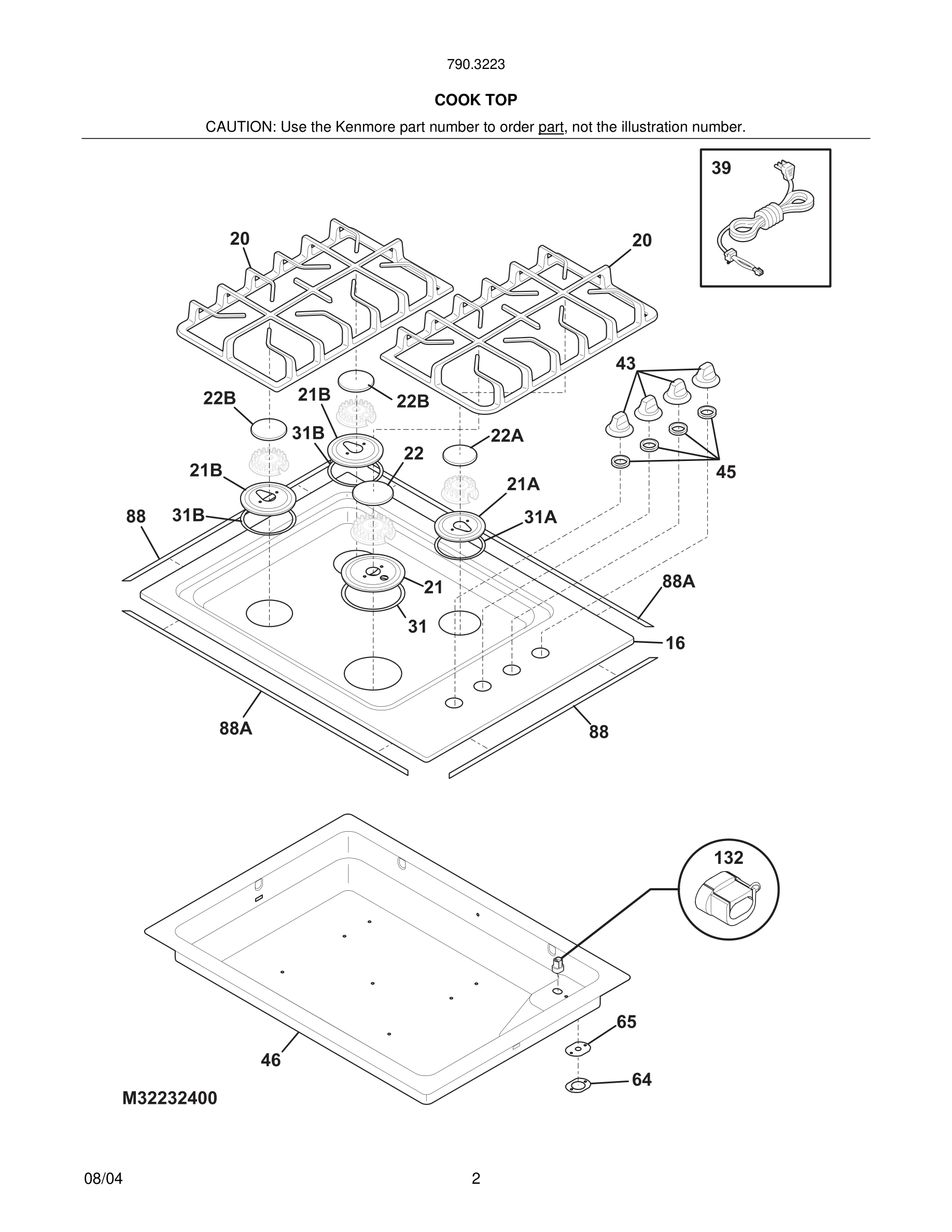

03 - COOKTOP
05 - BURNER
06 - WIRING DIAGRAM
Common parts from model Kenmore 790.32232400 COOKTOP
*#
LP Conversion Kit WCI 318127421 Contact Us For Availability
2#
Valve, burner, 14K WCI 318087315 Contact Us For Availability
2A#
Valve, burner, 5K WCI 318087313 Contact Us For Availability
2B#
Valve, burner, 9.5K WCI 318087314 Contact Us For Availability
10#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
10A#
Burner, sealed, 5K WCI 316206400 Contact Us For Availability
11#
Ignitor/orifice assy., top burner, right fron WCI 318221333 Contact Us For Availability
11A#
Ignitor/orifice assy., top burner, right rear WCI 318221332 Contact Us For Availability
11B#
Ignitor/orifice assy., top burner, left rear, WCI 318221334 Contact Us For Availability
11C#
Ignitor/orifice assy., top burner, left front WCI 318221335 Contact Us For Availability
21
Skirt, 14K burner, black WCI 316264901 Contact Us For Availability
21A
Skirt, 5K burner, black WCI 316241901 Contact Us For Availability
21B
Skirt, 9.5K burner, black WCI 316241801 Contact Us For Availability
22
Cap, 14K burner, black WCI 316219900 Contact Us For Availability
22
Cap, 14K burner, gray WCI 316219903 Contact Us For Availability
22A
Cap, 5K burner, black WCI 316206600 Contact Us For Availability
22A
Cap, 5K burner, gray WCI 316206603 Contact Us For Availability
22B
Cap, 9.5K burner, gray WCI 316213504 Contact Us For Availability
22B
Cap, 9.5K burner, brown WCI 316213503 Contact Us For Availability
35
Bushing WCI 318146300 Contact Us For Availability
43
Knob, top valve, white WCI 318271800 Contact Us For Availability
44
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
44A
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
77
Bracket, burner mtg WCI 318192600 Contact Us For Availability
× ![]()
