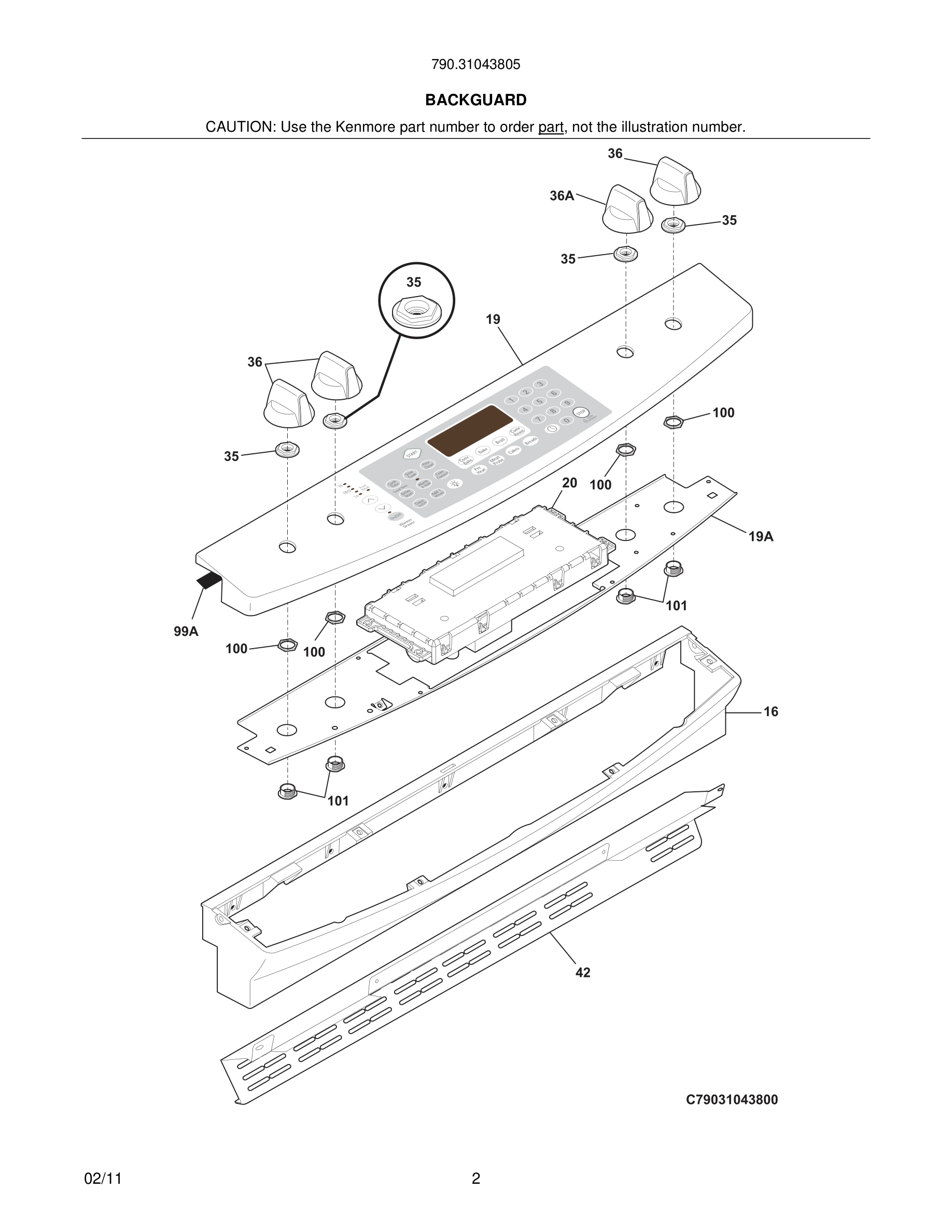

03 - BACKGUARD

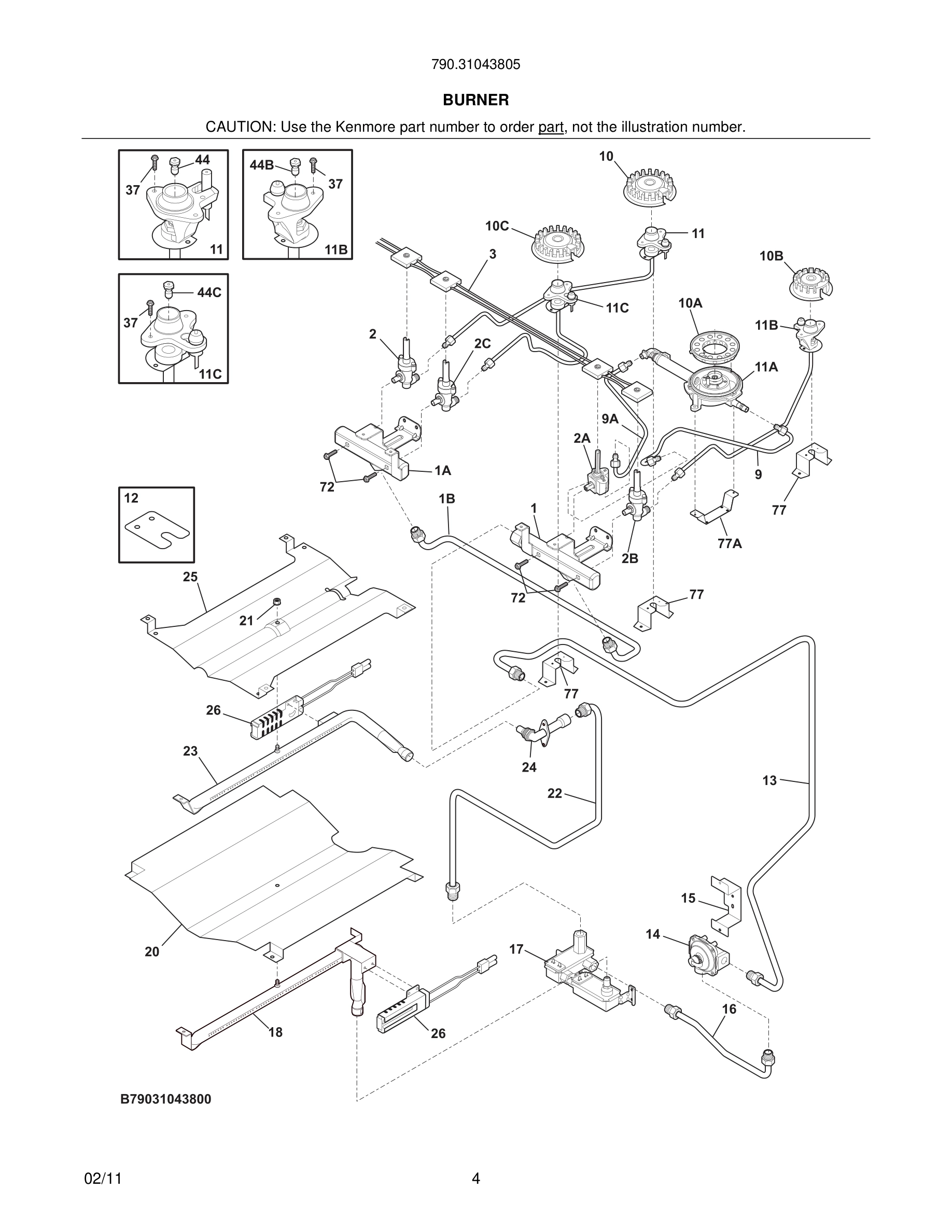

05 - BURNER

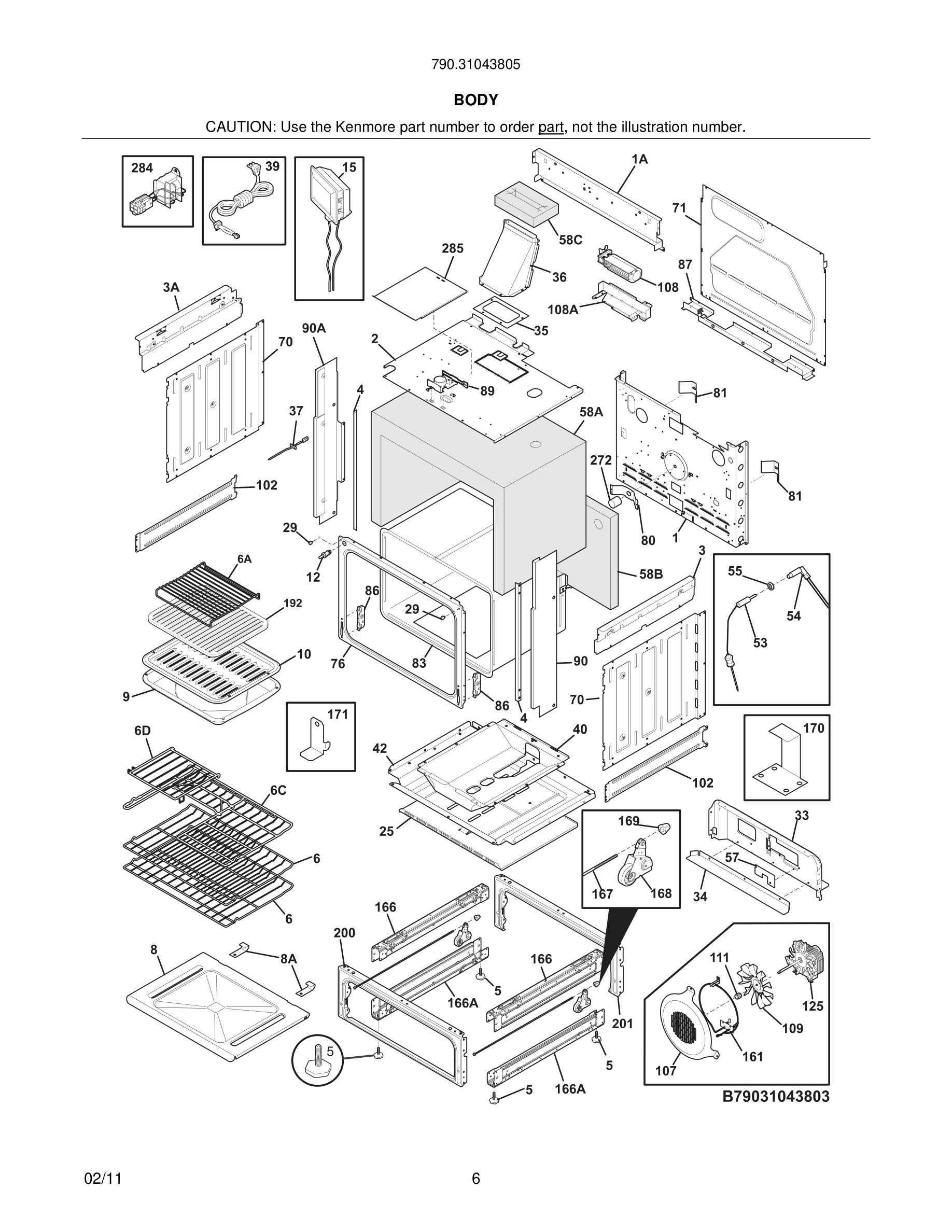

07 - BODY
09 - BODY

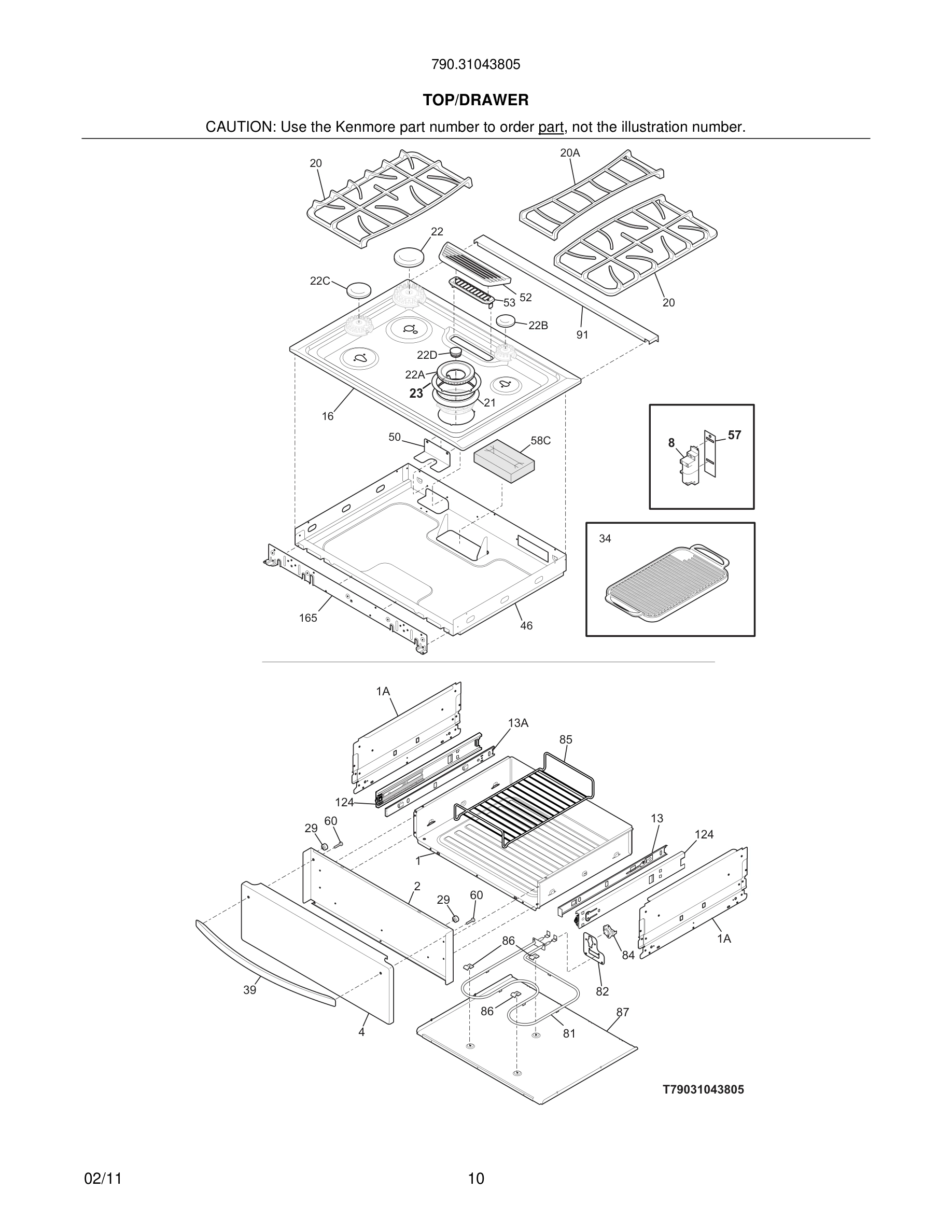

11 - TOP/DRAWER

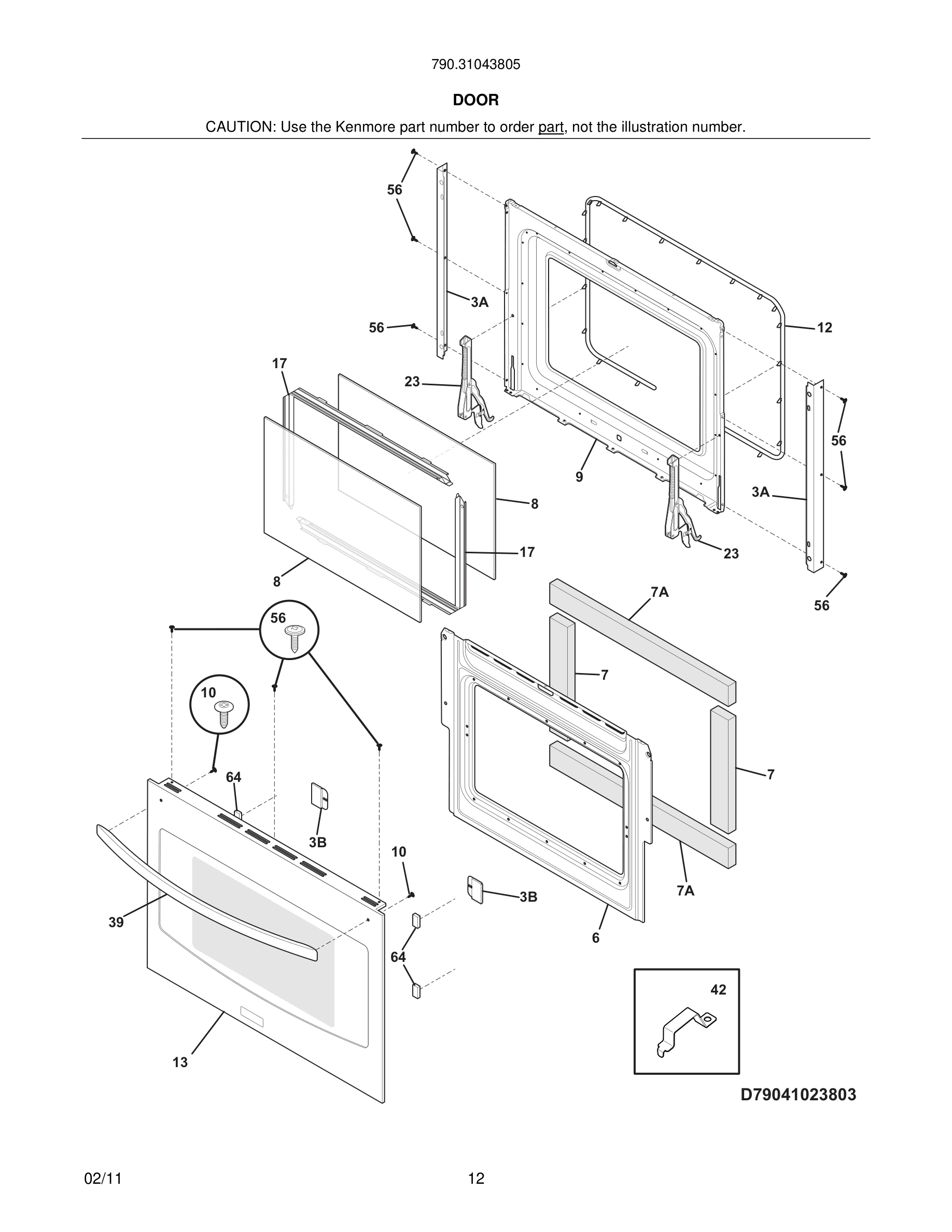

13 - DOOR

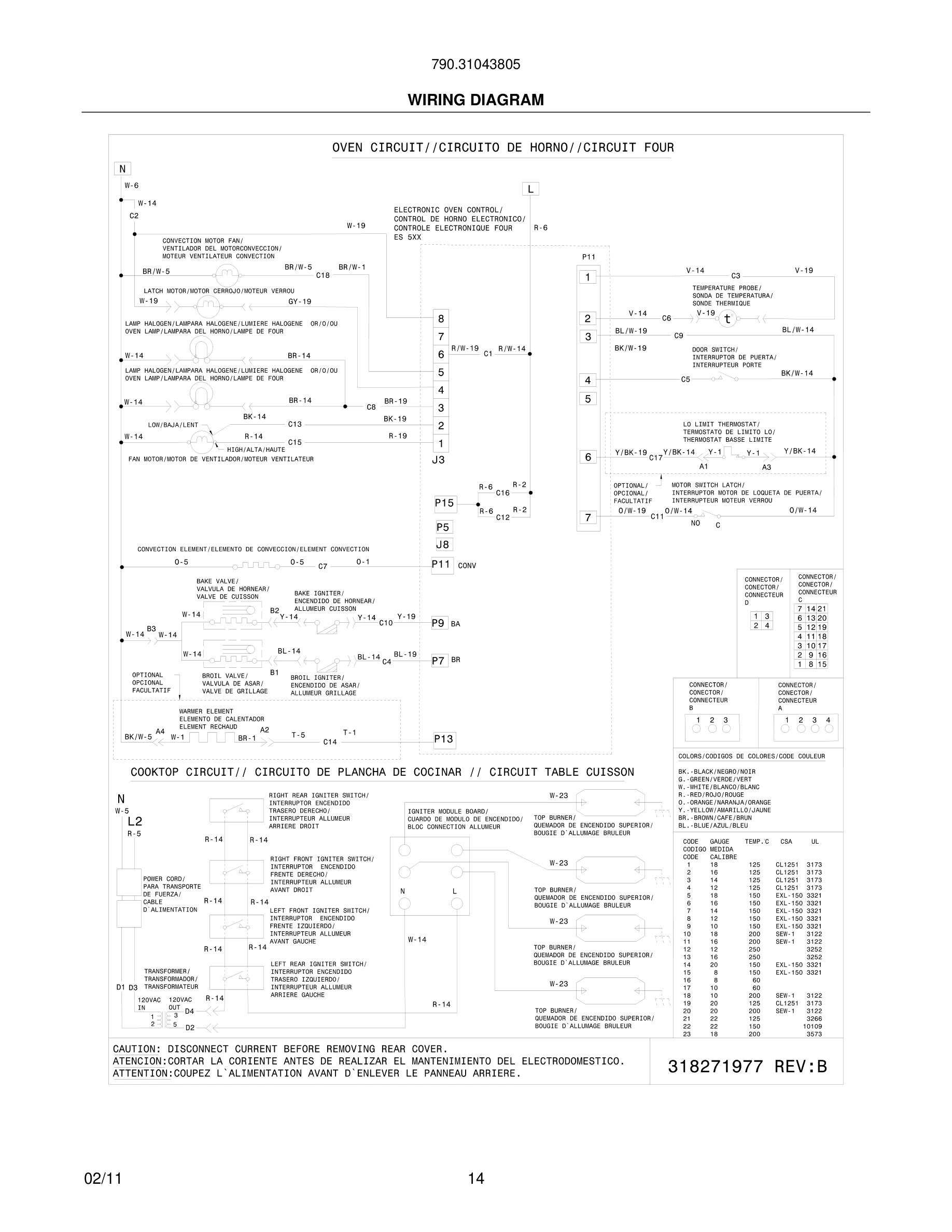

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.31043805 RANGE
*
Wiring Harness, drawer WCI 318199748 Contact Us For Availability
*
Screw, shoulder, 8-18 X 1/2, (4) WCI 5304417153 Contact Us For Availability
1
Drawer, body assembly WCI 318304404 Contact Us For Availability
2
Panel, drawer, black, inner WCI 318303907 Contact Us For Availability
2#
Valve, top burner, 14000 BTU WCI 318233930 Contact Us For Availability
2C#
Valve, top burner, 9500 BTU WCI 318233910 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 318232618 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6A
Rack, broiler pan WCI 318365800 Contact Us For Availability
8
Panel, oven, bottom WCI 318290501 Contact Us For Availability
9
Liner, door, upper oven WCI 318360108 Contact Us For Availability
10#
Burner, sealed, 14K WCI 316223400 Contact Us For Availability
10A
Burner Ring, crossover, 18K, brass WCI 316258500 Contact Us For Availability
10B#
Burner, sealed, 5K WCI 316206401 Contact Us For Availability
11#
Ignitor Assembly, 14K, left rear, w/tube & ho WCI 318306006 Contact Us For Availability
11A#
Ignitor Assembly, 18K, Isphording, right fron WCI 316258400 Contact Us For Availability
11C#
Ignitor Assembly, 9.5K, left front, w/tube & WCI 318306004 Contact Us For Availability
13
Glide, warmer, inner RH WCI 318259509 Contact Us For Availability
13
Door Assembly, outer, stainless/black, w/namp WCI 318919105 Contact Us For Availability
13A
Glide, warmer, inner LH WCI 318259508 Contact Us For Availability
14#
Regulator-pressure WCI 316082902 Contact Us For Availability
18#
Burner, oven, 18000 WCI 318292200 Contact Us For Availability
19#
Control Panel, assembly, blk/stnls WCI 318918028 Contact Us For Availability
19A
Panel, control mtg. WCI 318289709 Contact Us For Availability
20#
Controller, electronic, ES585 WCI 316577019 Contact Us For Availability
22
Cap, 14K burner, black WCI 316219905 Contact Us For Availability
22B
Cap, 5K burner, black WCI 316206604 Contact Us For Availability
22C
Cap, 9.5K burner, black WCI 316213505 Contact Us For Availability
22D
Cap, burner, 18K, black, inner WCI 316258800 Contact Us For Availability
23
Burner, broil, 14000 WCI 318292300 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
24#
Elbow, mixer WCI 316409703 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
29
Bumper, (2) WCI 318921000 Contact Us For Availability
35
Retainer, control panel, black WCI 318233720 Contact Us For Availability
36
Knob, top valve, stainless WCI 318921121 Contact Us For Availability
37*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
44
Orifice, top burner, 14K WCI 316237900 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
56A
Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
90
Panel, filler, black, RH WCI 318296904 Contact Us For Availability
99A
Gasket, black WCI 318313201 Contact Us For Availability
101
Bushing, retainer WCI 318233401 Contact Us For Availability
107
Cover, fan WCI 318219405 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
170
Anti-tip & accessories WCI 318335700 Contact Us For Availability
× ![]()
