Model Kenmore 790.31023701 COOKTOP – Common Parts & Diagrams

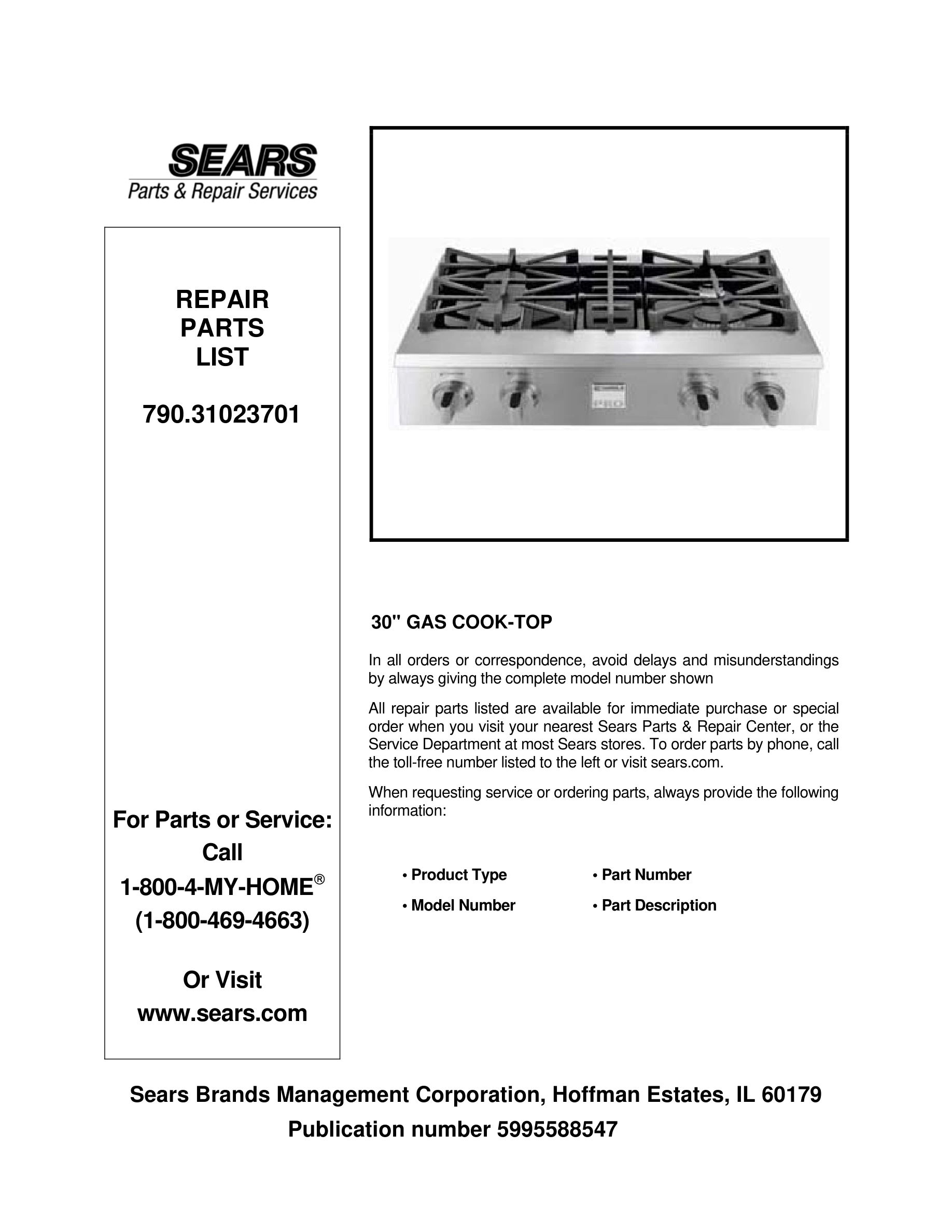

01 - COVER

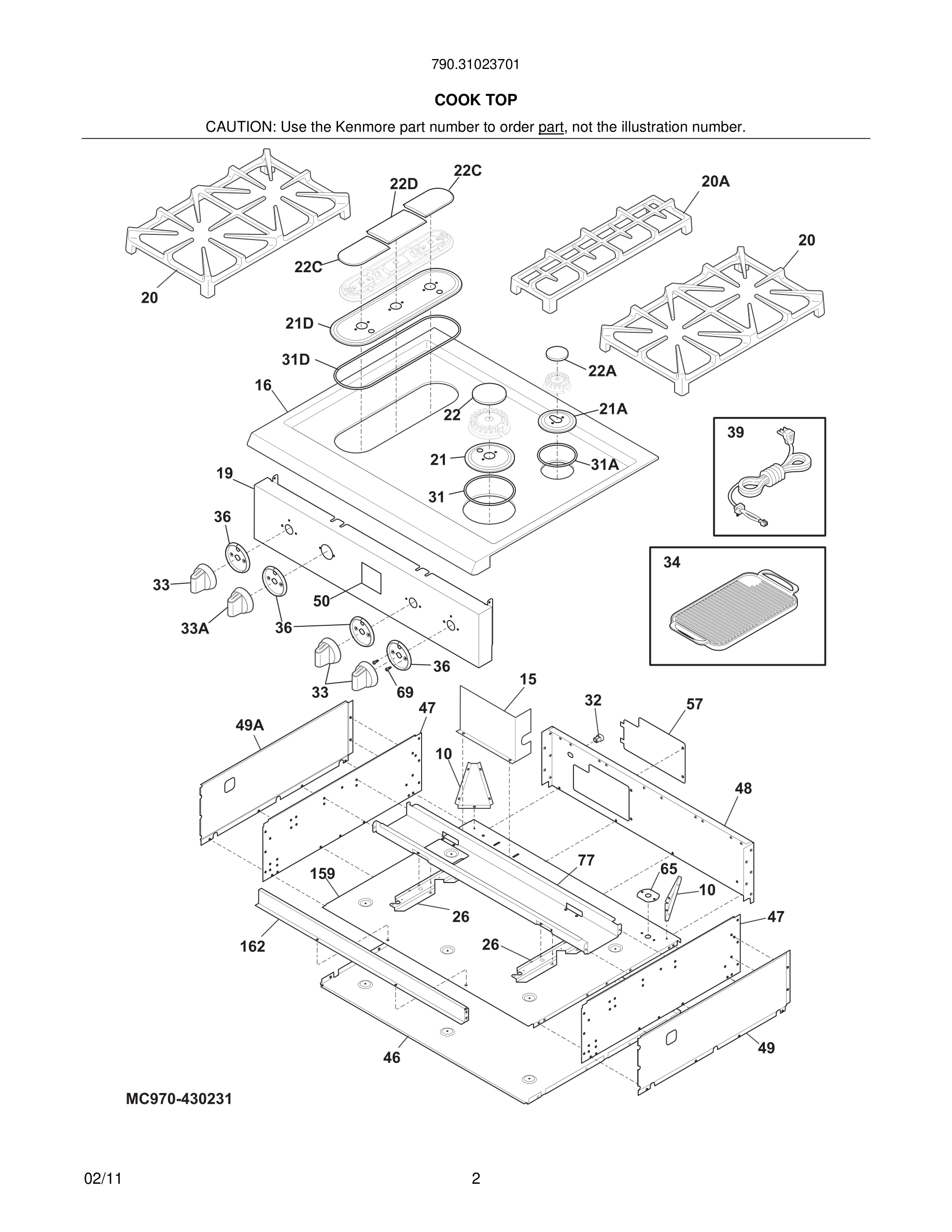

03 - COOKTOP

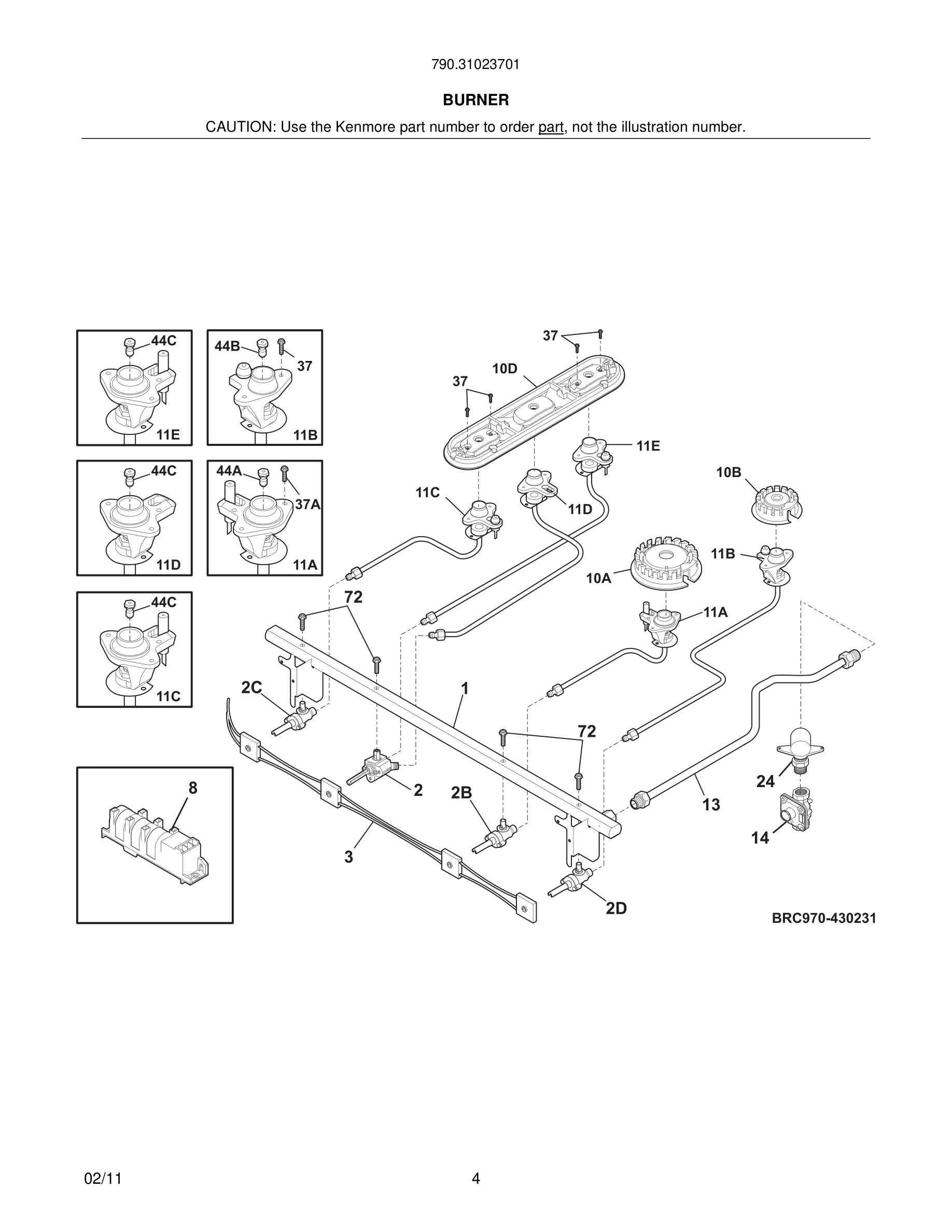

05 - BURNER

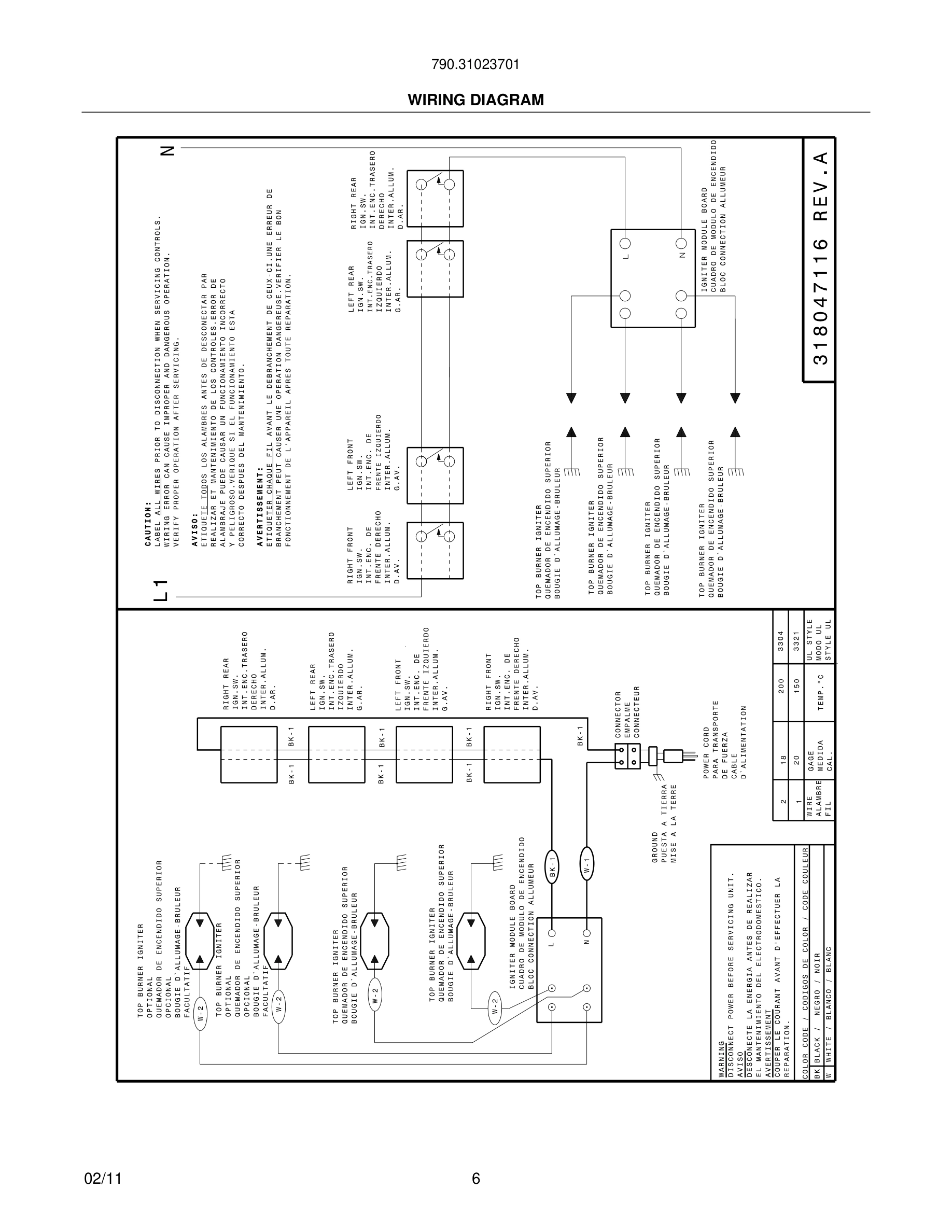

06 - WIRING DIAGRAM
Common parts from model Kenmore 790.31023701 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Screw, 8 x 5/8 WCI 3131048 Contact Us For Availability
*#
LP Conversion Kit WCI 318127432 Contact Us For Availability
*#
Wiring Harness, ignitor WCI 318199778 Contact Us For Availability
1#
Manifold Pipe WCI 318234315 Contact Us For Availability
2#
Valve, bridge burner, dual port WCI 316496603 Contact Us For Availability
2B#
Valve, burner, 17K WCI 316520704 Contact Us For Availability
2C#
Valve, burner, 9.5K WCI 316520701 Contact Us For Availability
2D#
Valve, burner, 5K WCI 316520700 Contact Us For Availability
3#
Wiring Harness, w/igntr switch WCI 318232637 Contact Us For Availability
10A#
Burner, sealed, 16/17K WCI 316223300 Contact Us For Availability
10B#
Burner, sealed, 5K WCI 316206401 Contact Us For Availability
10D#
Burner, sealed, bridge WCI 316411800 Contact Us For Availability
11A
Ignitor Assembly, 17K, right front, w/tube & WCI 318306293 Contact Us For Availability
11B
Ignitor Assembly, 5K, right rear, w/tube & ho WCI 318306294 Contact Us For Availability
11C
Ignitor Assembly, 9K, left front, w/tube & ho WCI 318306290 Contact Us For Availability
11D
Ignitor Assembly, 9K, left center, w/tube & h WCI 318306291 Contact Us For Availability
11E
Ignitor Assembly, 9K, left rear, w/tube & hol WCI 318306292 Contact Us For Availability
13
Connector, manifold tube WCI 318054513 Contact Us For Availability
14#
Regulator, pressure WCI 318122707 Contact Us For Availability
20
Grate, top burner, black, (2), double WCI 318361401 Contact Us For Availability
21
Skirt, 16/17K burner, black WCI 316264803 Contact Us For Availability
21A
Skirt, 5K burner, black WCI 316241904 Contact Us For Availability
21D
Skirt, bridge burner, black WCI 316411703 Contact Us For Availability
22A
Cap, 5K burner, black WCI 316206604 Contact Us For Availability
22D
Cap, 9.5K burner, black, black, center WCI 316462103 Contact Us For Availability
24
Elbow, fitting WCI 318054010 Contact Us For Availability
31D
Seal, bridge burner WCI 316428300 Contact Us For Availability
37A
Screw, 8-32 x 3/4, (2) WCI 5304457931 Contact Us For Availability
39
Cord, service WCI 318144006 Contact Us For Availability
44A
Orifice, top burner, 17K WCI 318362300 Contact Us For Availability
44B
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
44C
Orifice, top burner, 9K WCI 318362301 Contact Us For Availability
49
Panel, interior side, RH WCI 318241904 Contact Us For Availability
× ![]()
