Model Electrolux 790.30554803 Gas Wall Oven (Kenmore 79030554803) – Common Parts & Diagrams

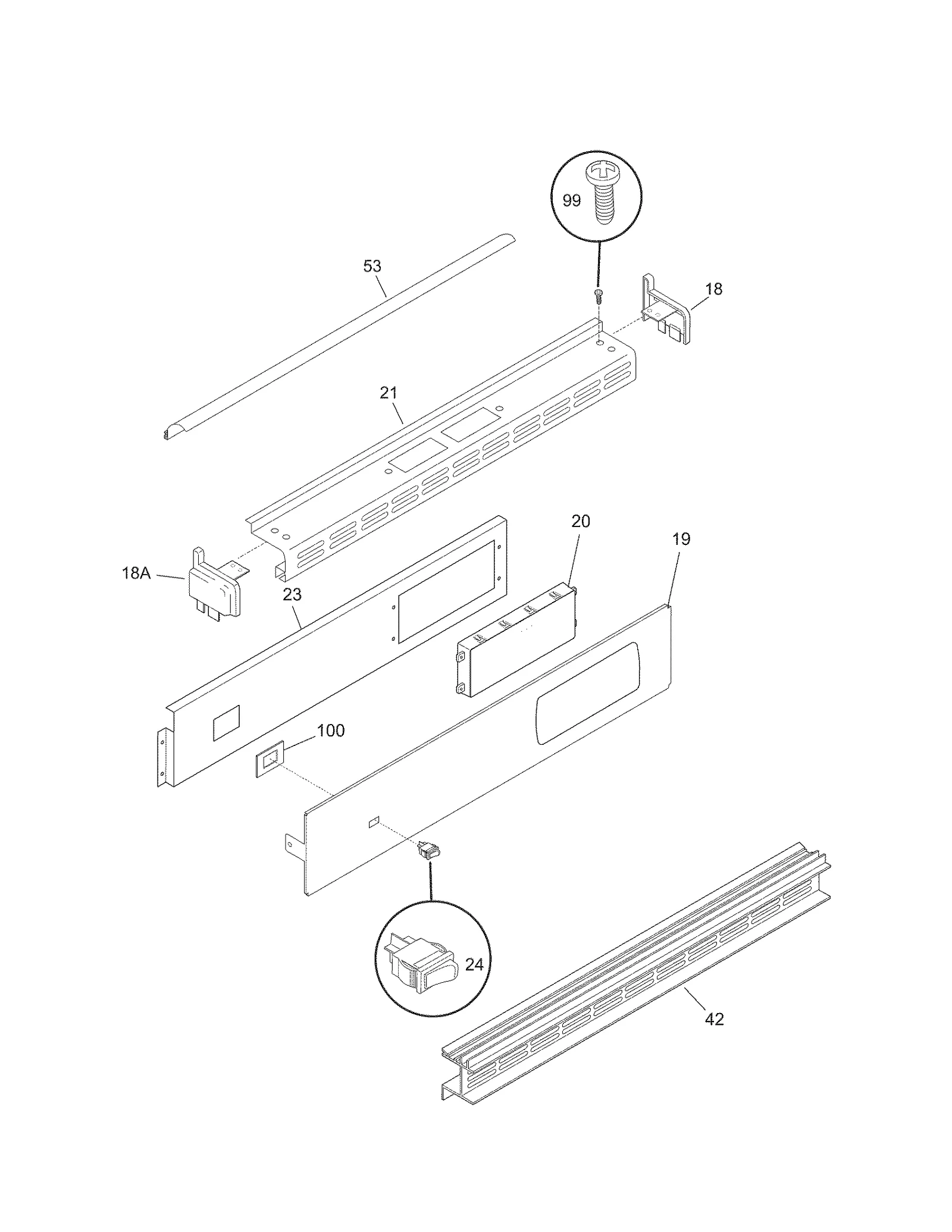

CONTROL PANEL

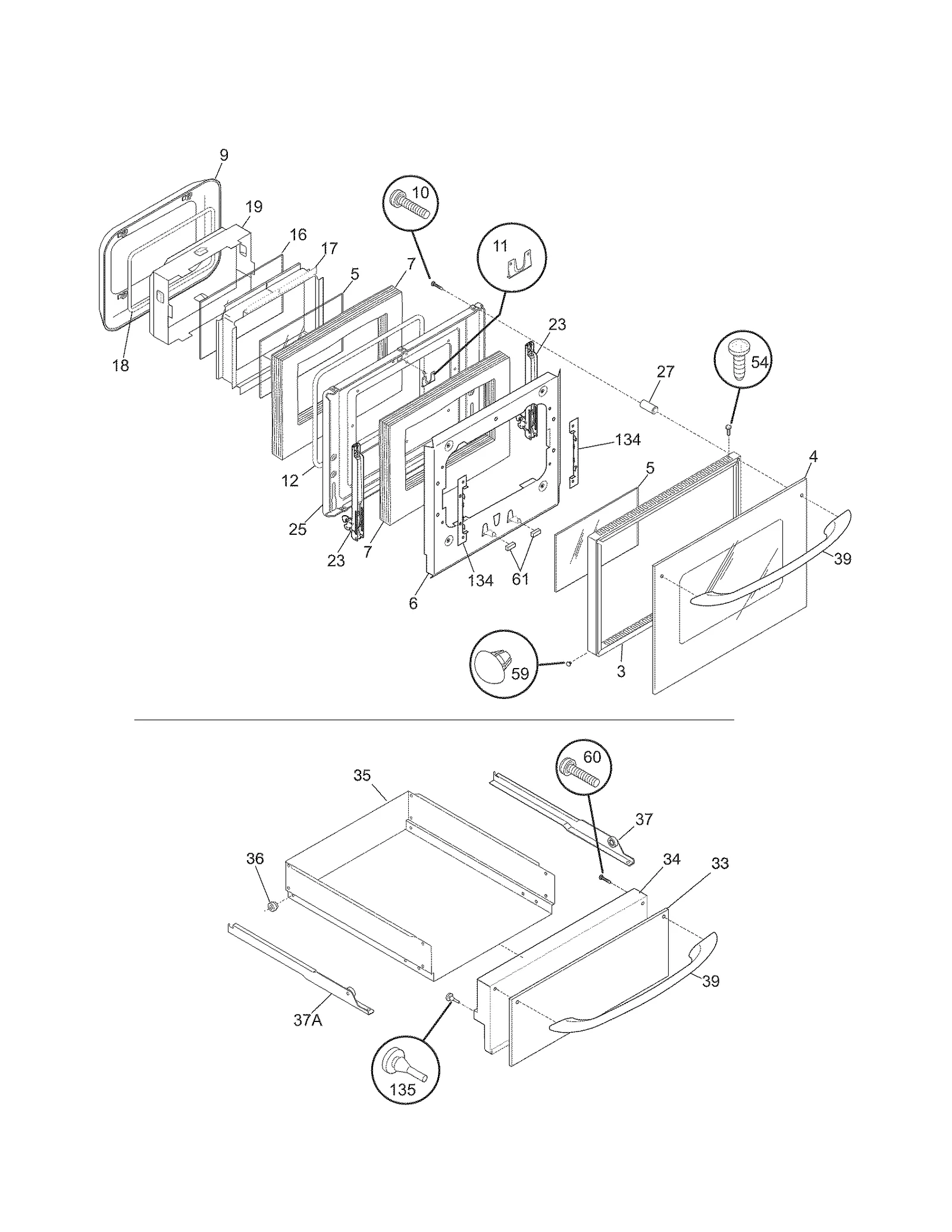

DOOR/DRAWER
BURNER
BODY
Common parts from model Electrolux 790.30554803 Gas Wall Oven (Kenmore 79030554803)
2
WRAPPER,BASE WCI 318145003 Contact Us For Availability
2A
Cover WCI 318102402 Contact Us For Availability
3
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
4
Frigidaire Wall Oven Door Outer Panel (Black) WCI 318051525 Contact Us For Availability
4
Wall Oven Burner Box WCI 318161500 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 318212410 Contact Us For Availability
6
Range Oven Rack WCI 318345305 Contact Us For Availability
8
Wall Oven Bottom Panel WCI 318121400 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Wall Oven Door Handle Screw, #10-24 x 2-3/16- WCI 5303311217 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
11
Wall Oven Door Catch WCI 318065102 Contact Us For Availability
12
Wall Oven Door Inner Heat Seal WCI 318178801 Contact Us For Availability
14
Wall Oven Gas Pressure Regulator WCI 5303210167 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
20
Wall Oven Control Board (Bisque) WCI 318414209 Contact Us For Availability
20
Range Bake Burner Flame Spreader WCI 3203676 Contact Us For Availability
23
Wall Oven Broil Burner WCI 5303283132 Contact Us For Availability
24
Range Bake Burner Elbow Tube and Orifice WCI 5303210786 Contact Us For Availability
24A
Pin WCI 5303210807 Contact Us For Availability
25
Baffle WCI 318370110 Contact Us For Availability
25
Shield WCI 318179000 Contact Us For Availability
28
Valve WCI 5303295305 Contact Us For Availability
30
Wall Oven Regulator Elbow Fitting WCI 5303305657 Contact Us For Availability
33
Wall Oven Broil Drawer Outer Panel WCI 318213601 Contact Us For Availability
33
Shield-housi WCI 318187301 Contact Us For Availability
36
Tubing-safet WCI 318177801 Contact Us For Availability
36
Vent WCI 3203725 Contact Us For Availability
39
Range Power Cord WCI 318144007 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
55
Shield WCI 5303326219 Contact Us For Availability
56
Trim WCI 318145508 Contact Us For Availability
56
Trim WCI 318145517 Contact Us For Availability
56
Trim Body WCI 5303308459 Contact Us For Availability
57
Rear Shield WCI 318071130 Contact Us For Availability
58
Insulation Shield WCI 318123600 Contact Us For Availability
58
Insulation WCI 318285010 Contact Us For Availability
58A
Insulation WCI 318285011 Contact Us For Availability
58B
Oven Insulation WCI 318285015 Contact Us For Availability
58C
Insulation WCI 318285090 Contact Us For Availability
58D
Insulation WCI 318285033 Contact Us For Availability
58E
Insulation WCI 318285034 Contact Us For Availability
58F
Insulation WCI 318285067 Contact Us For Availability
58G
Insulation WCI 318285035 Contact Us For Availability
70A
Shield WCI 5303210843 Contact Us For Availability
72
Wrapper WCI 318327900 Contact Us For Availability
76
Front WCI 318056145 Contact Us For Availability
80
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
81
Bracket WCI 5303323710 Contact Us For Availability
83
Liner WCI 318089411 Contact Us For Availability
87
Bracket WCI 318387500 Contact Us For Availability
88
Rod WCI 5303311222 Contact Us For Availability
89
Wall Oven Door Lock Motor WCI 318095953 Contact Us For Availability
97
Wrapper WCI 318066804 Contact Us For Availability
98
Oven Trim WCI 318029404 Contact Us For Availability
98A
Oven Trim WCI 318029405 Contact Us For Availability
100
Shield WCI 5303302715 Contact Us For Availability
102
Support WCI 318192100 Contact Us For Availability
103
Wall Oven Base Trim WCI 5303316735 Contact Us For Availability
103
Wall Oven Base Trim (White) WCI 5303316734 Contact Us For Availability
103
Oven Trim WCI 318538400 Contact Us For Availability
104
Flue WCI 318170211 Contact Us For Availability
108
Wall Oven Cooling Fan Assembly WCI 318073036 Contact Us For Availability
117
Bracket WCI 5303302718 Contact Us For Availability
119
Wall Oven Safety Thermostat WCI 5303326252 Contact Us For Availability
121
Wrapper WCI 318145005 Contact Us For Availability
122
Shield WCI 5303210844 Contact Us For Availability
123
Shield WCI 318071422 Contact Us For Availability
128
Range Latch Rod Bushing WCI 318563000 Contact Us For Availability
187
Tube WCI 318013503 Contact Us For Availability
227
Oven Retainer WCI 5303323958 Contact Us For Availability
234
SHIELD W/A BURNER BOX (NON-ILLUSTRATED) WCI 5303210851 Contact Us For Availability
235
BRACKET <072 1091001 > WCI 5303326207 Contact Us For Availability
236
Insulation Shield WCI 318108900 Contact Us For Availability
239
Burner Angle WCI 5303326183 Contact Us For Availability
240
Shield WCI 318119301 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Thermostat WCI 318003623 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318232523 Contact Us For Availability
NI
Bracket WCI 5303271097 Contact Us For Availability
NI
Screw WCI 5303302745 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 0.625-in WCI 5303311528 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 5/16-in WCI 5303320422 Contact Us For Availability
× ![]()
