Model Kenmore 790.30553800 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

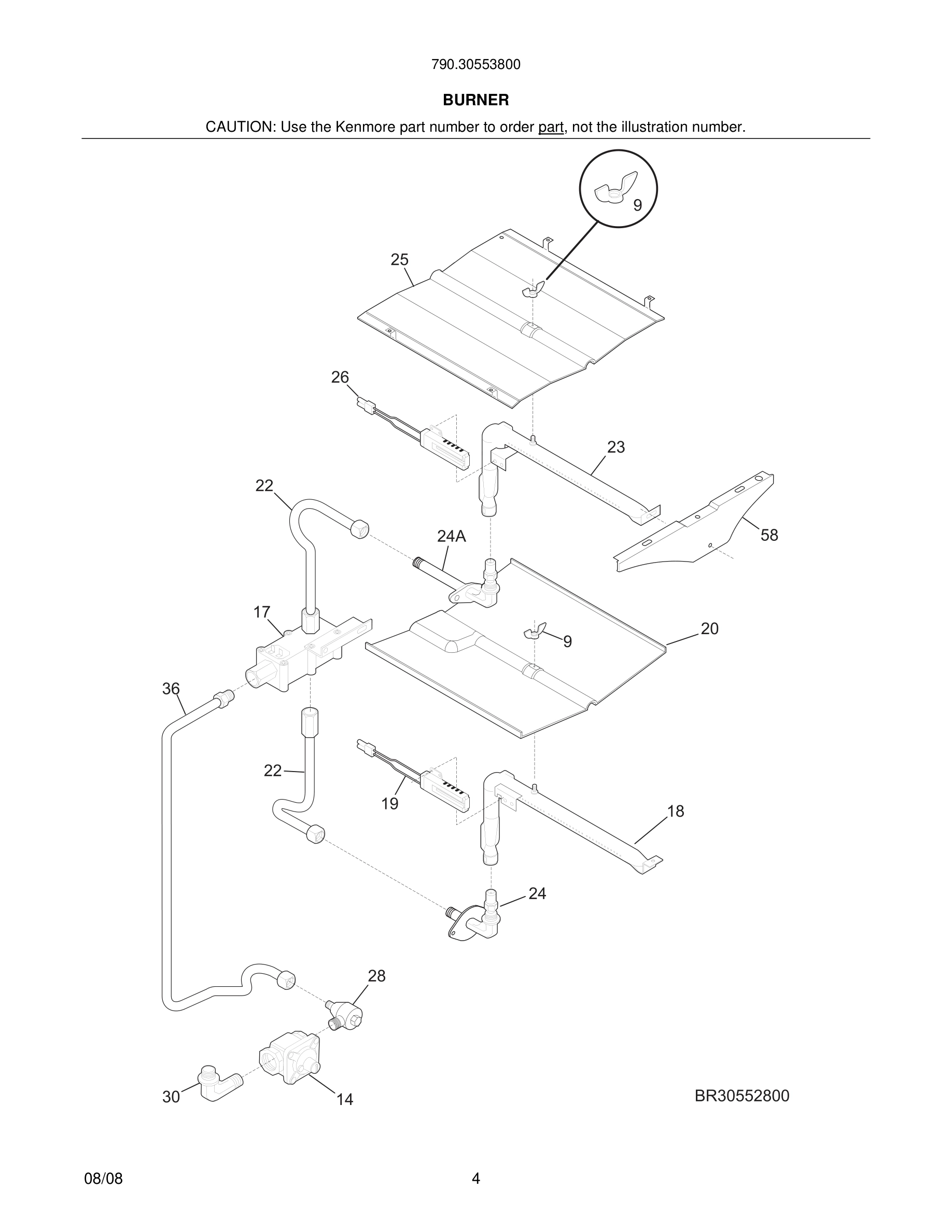

05 - BURNER

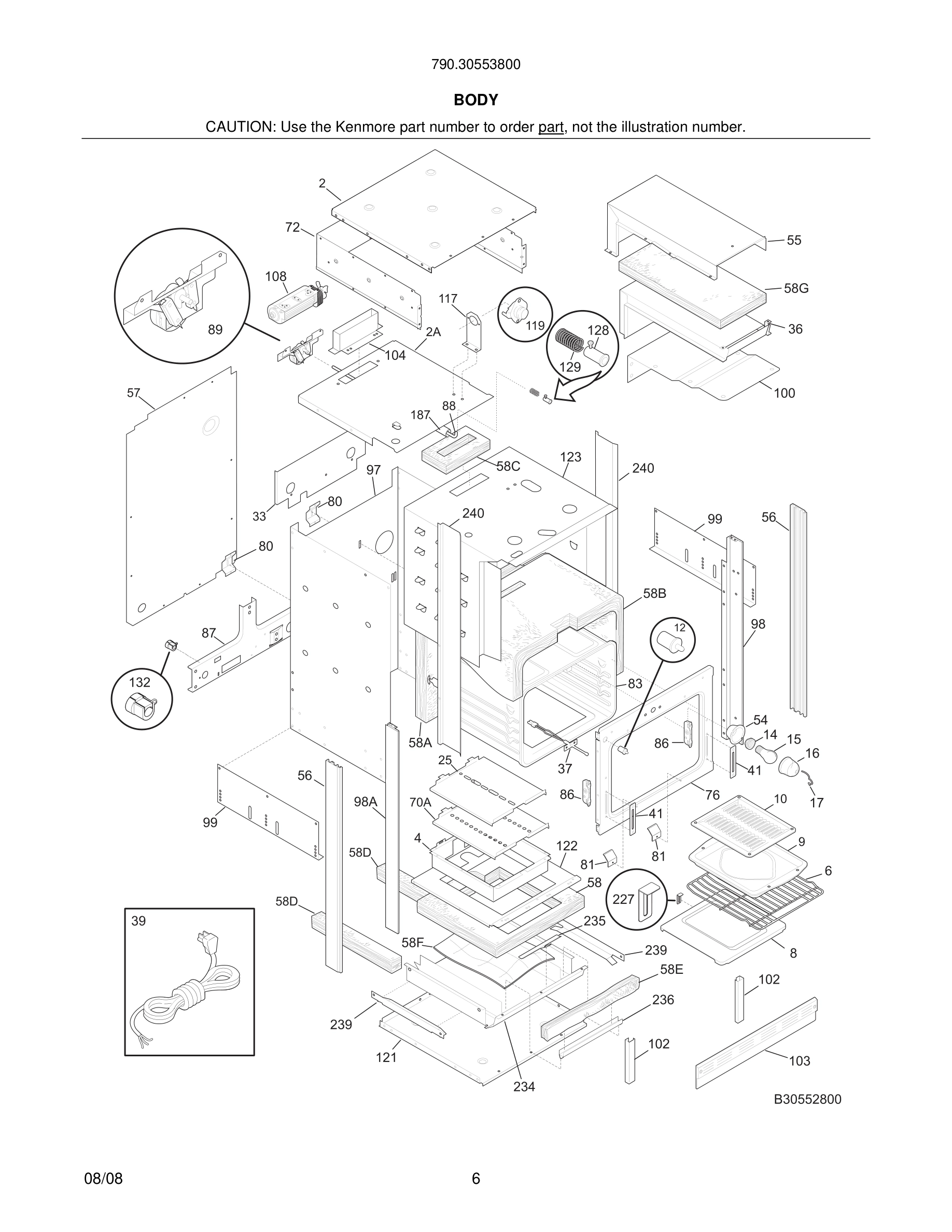

07 - BODY
09 - BODY

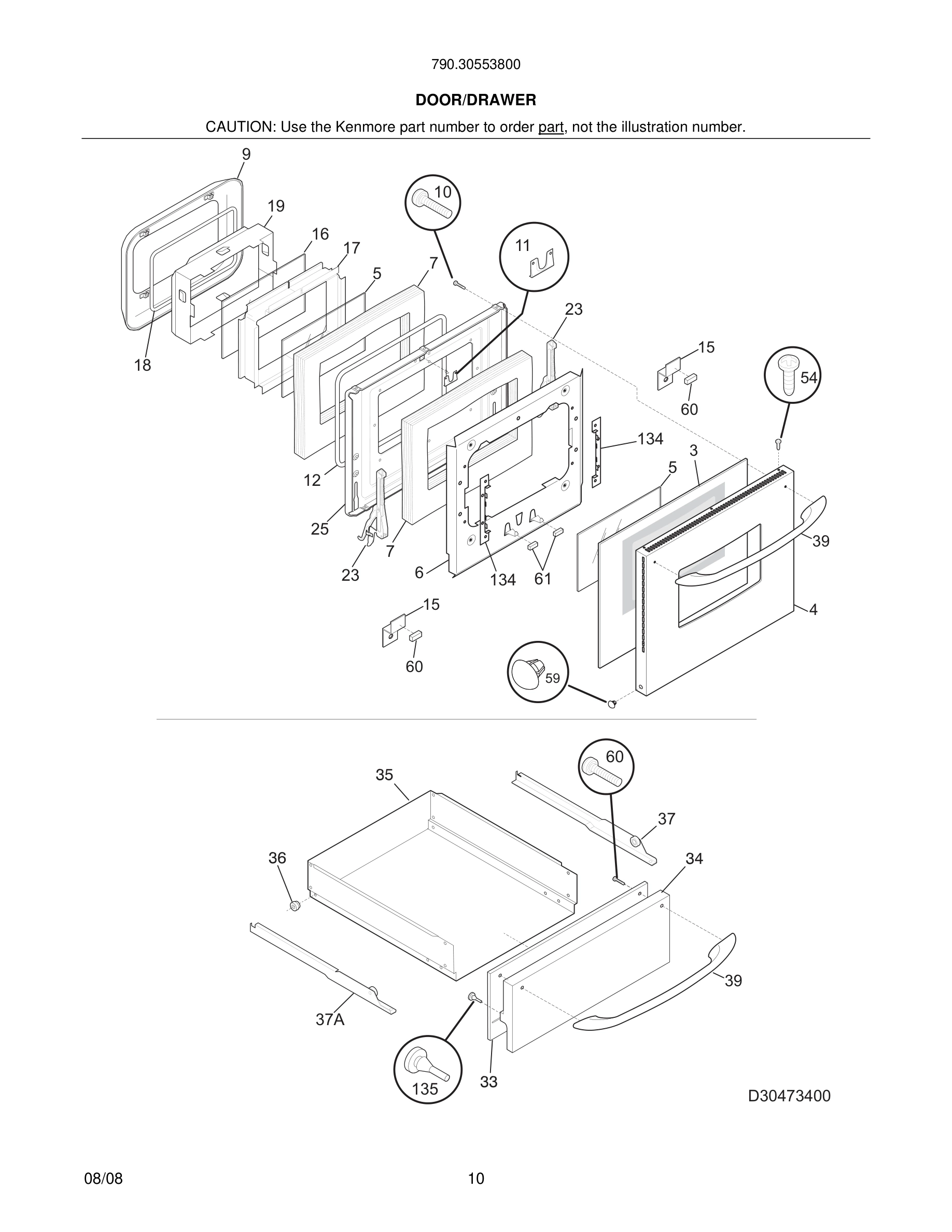

11 - DOOR/DRAWER

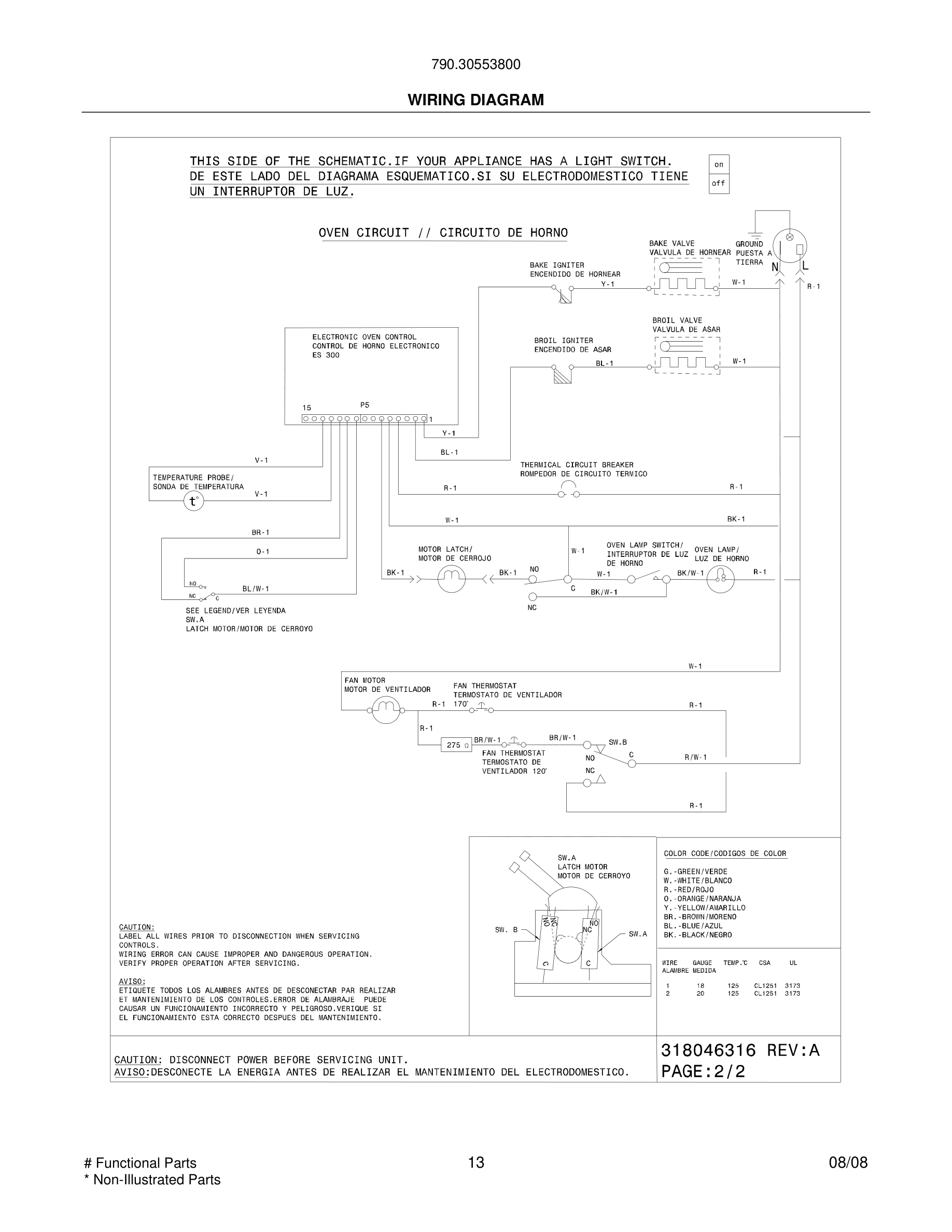

12 - WIRING DIAGRAM
13 - WIRING DIAGRAM
Common parts from model Kenmore 790.30553800 OVEN
*
Wiring Harness, main WCI 318232523 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Screw, 10-16x1-1/8, square drive WCI 5303302745 Contact Us For Availability
*
Screw, oval hd sq dr, 6-20AB x 0.625, black WCI 5303311528 Contact Us For Availability
*
Screw, 6-20 x 5/16, black, (6) WCI 5303320422 Contact Us For Availability
*
Foam seal, (2) WCI 5303316982 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, 10-16 x 1 1/2 WCI 5303325981 Contact Us For Availability
*#
Thermostat, safety, .945" mtg., 140/170 WCI 318003606 Contact Us For Availability
3
Glass, oven door, black, outer WCI 318051527 Contact Us For Availability
4
Panel, exterior door, stainless WCI 318280006 Contact Us For Availability
5
Glass, door, inner, (2) WCI 318212410 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 318285086 Contact Us For Availability
8
Panel, oven bottom WCI 318121400 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
Deflector, upper oven WCI 318160503 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
14#
Regulator, pressure WCI 5303210167 Contact Us For Availability
15
Bracket, glass, (3) WCI 318091102 Contact Us For Availability
16
Glass, door, inner WCI 318212400 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, upper oven WCI 318139102 Contact Us For Availability
18
Seal, window, upper oven WCI 318293400 Contact Us For Availability
19
Collar, glass mtg WCI 318139203 Contact Us For Availability
20
Baffle, oven burner WCI 3203676 Contact Us For Availability
20#
Clock/Timer, electronic, black, w/overlay, ES WCI 318185467 Contact Us For Availability
23
Hinge, oven door, upper oven WCI 5303310506 Contact Us For Availability
25
Liner, oven door WCI 318048311 Contact Us For Availability
33
Liner, storage drawer, black WCI 318285407 Contact Us For Availability
34
Panel, drawer, stainless, front WCI 318283403 Contact Us For Availability
35
Drawer WCI 5303326215 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
58F
Insulation, deflector WCI 318285067 Contact Us For Availability
58G
Insulation, flue WCI 318285035 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
61
Spacer, cork & rubber WCI 5303300414 Contact Us For Availability
70A
Shield, insulation WCI 5303210843 Contact Us For Availability
72
Wrapper, shield WCI 318327900 Contact Us For Availability
76
Front, oven WCI 318056139 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
83
Liner, oven assy WCI 318089411 Contact Us For Availability
86
Receptacle, hinge WCI 318328010 Contact Us For Availability
87
Bracket, regulator, & safety WCI 318387500 Contact Us For Availability
88
Rod, latch WCI 5303311222 Contact Us For Availability
89#
Motor, latch assy, w/brkt & switch WCI 318095953 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
97
Wrapper, back & sides WCI 318066804 Contact Us For Availability
98
Trim, side, inner, RH WCI 318029400 Contact Us For Availability
98A
Trim, side, inner, LH WCI 318029401 Contact Us For Availability
100
Shield, flue, bottom WCI 5303302715 Contact Us For Availability
102
Support, oven front WCI 3203688 Contact Us For Availability
103
Trim, base, black, lower WCI 5303316735 Contact Us For Availability
104
Flue WCI 318170210 Contact Us For Availability
108#
Motor, blower WCI 318073025 Contact Us For Availability
117
Bracket, thermo protect WCI 5303302718 Contact Us For Availability
119#
Switch, thermal WCI 5303326252 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
122
Shield, heat, lower WCI 5303210844 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071422 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
134
Bracket, glass mtg WCI 318122105 Contact Us For Availability
187
Tube, latch rod WCI 318013503 Contact Us For Availability
227
Retainer, oven bottom WCI 5303323958 Contact Us For Availability
234
Shield, burner box WCI 5303210851 Contact Us For Availability
235
Bracket WCI 5303326207 Contact Us For Availability
236
Shield, insulation, 1.25x1.0x12.9 WCI 318108900 Contact Us For Availability
239
Angle, burner box WCI 5303326183 Contact Us For Availability
240
Shield, bodyside WCI 318119301 Contact Us For Availability
× ![]()
