Model Kenmore 790.30552802 OVEN – Common Parts & Diagrams

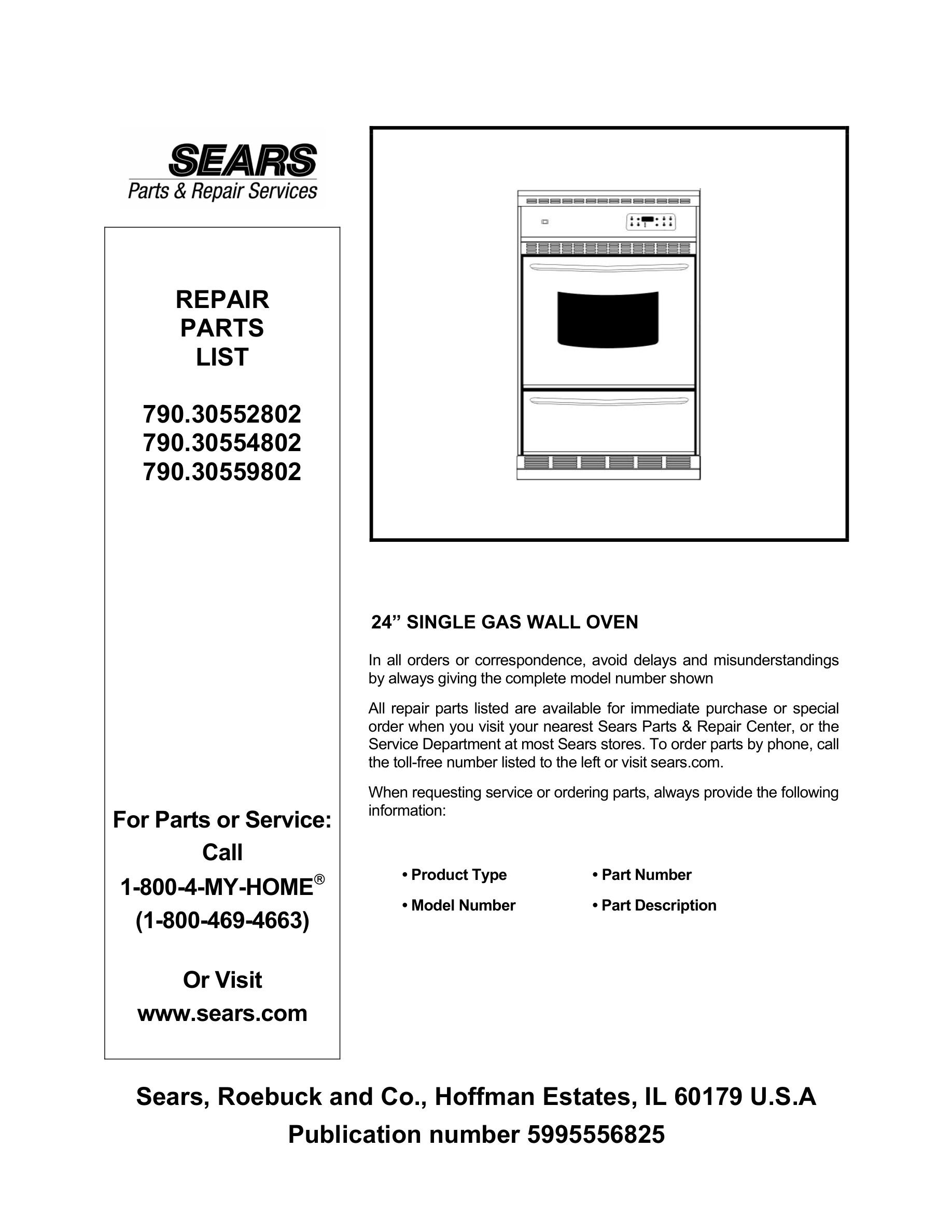

01 - COVER

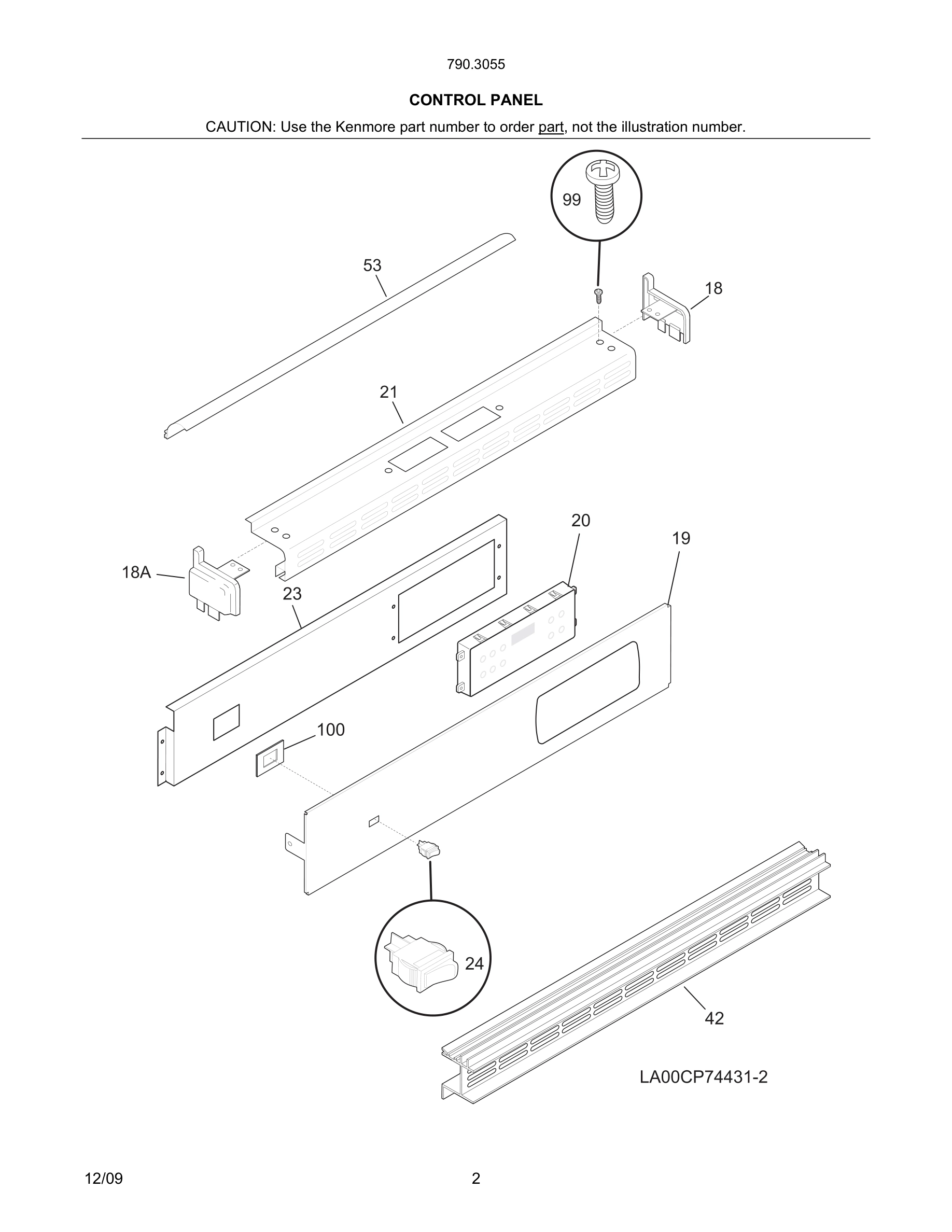

03 - CONTROL PANEL

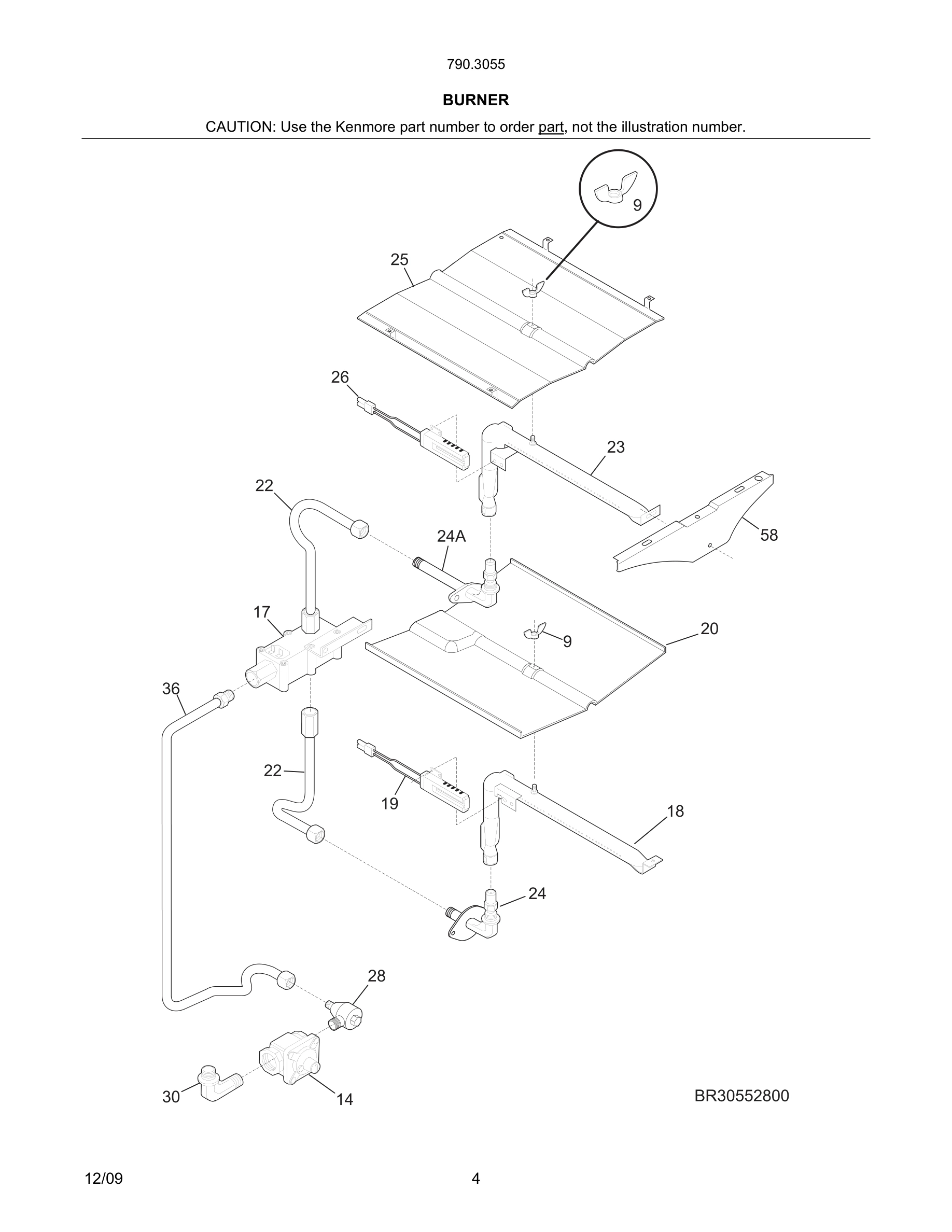

05 - BURNER
07 - BODY

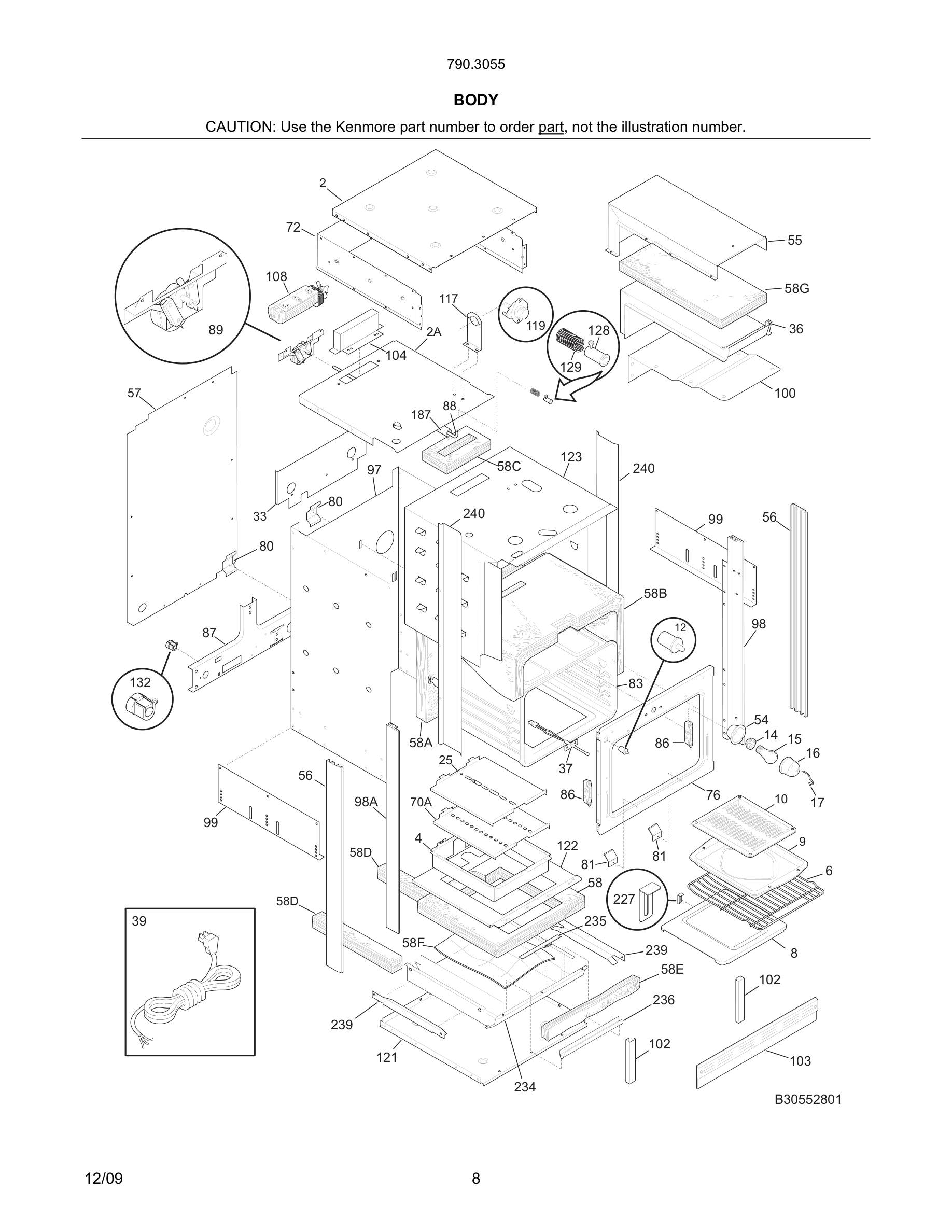

09 - BODY

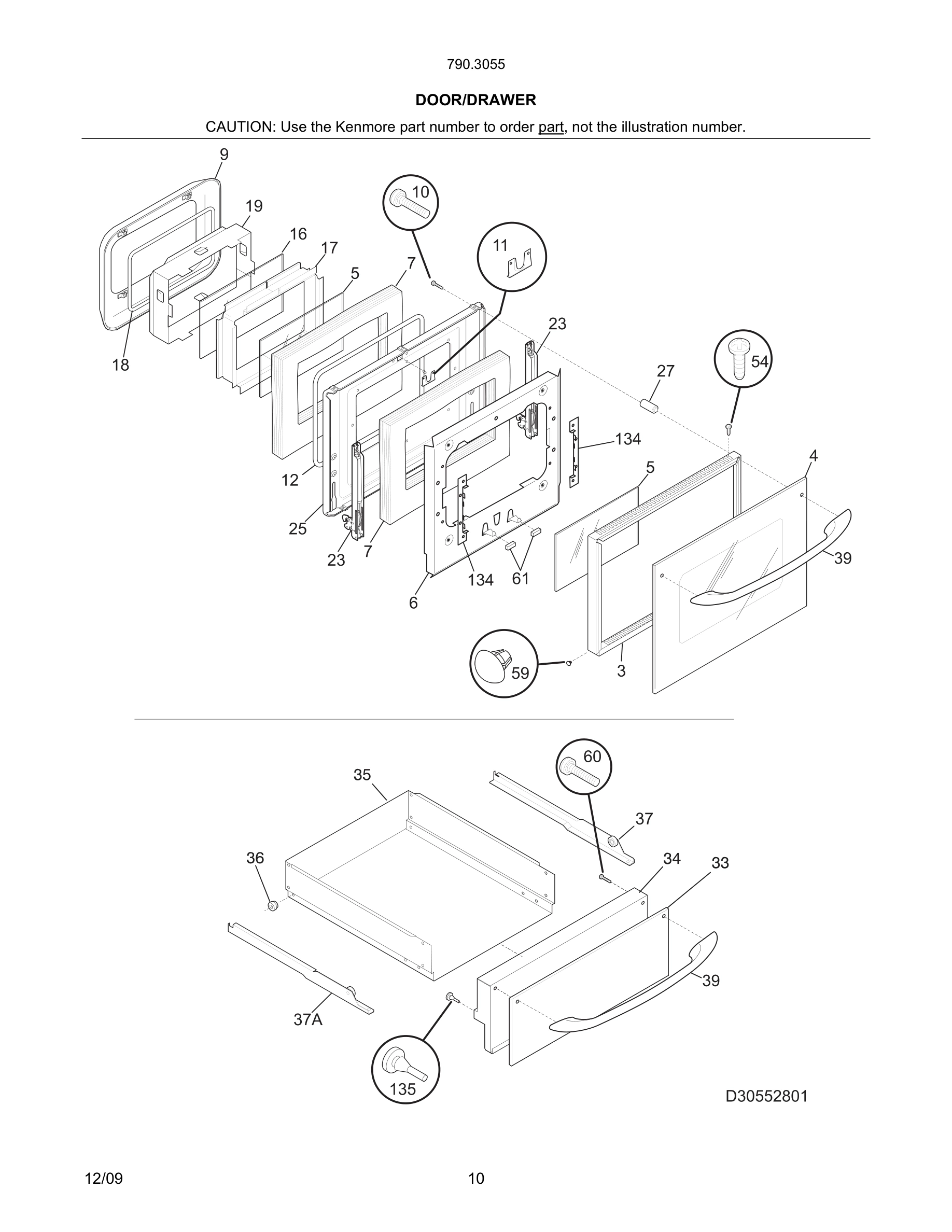

11 - DOOR/DRAWER

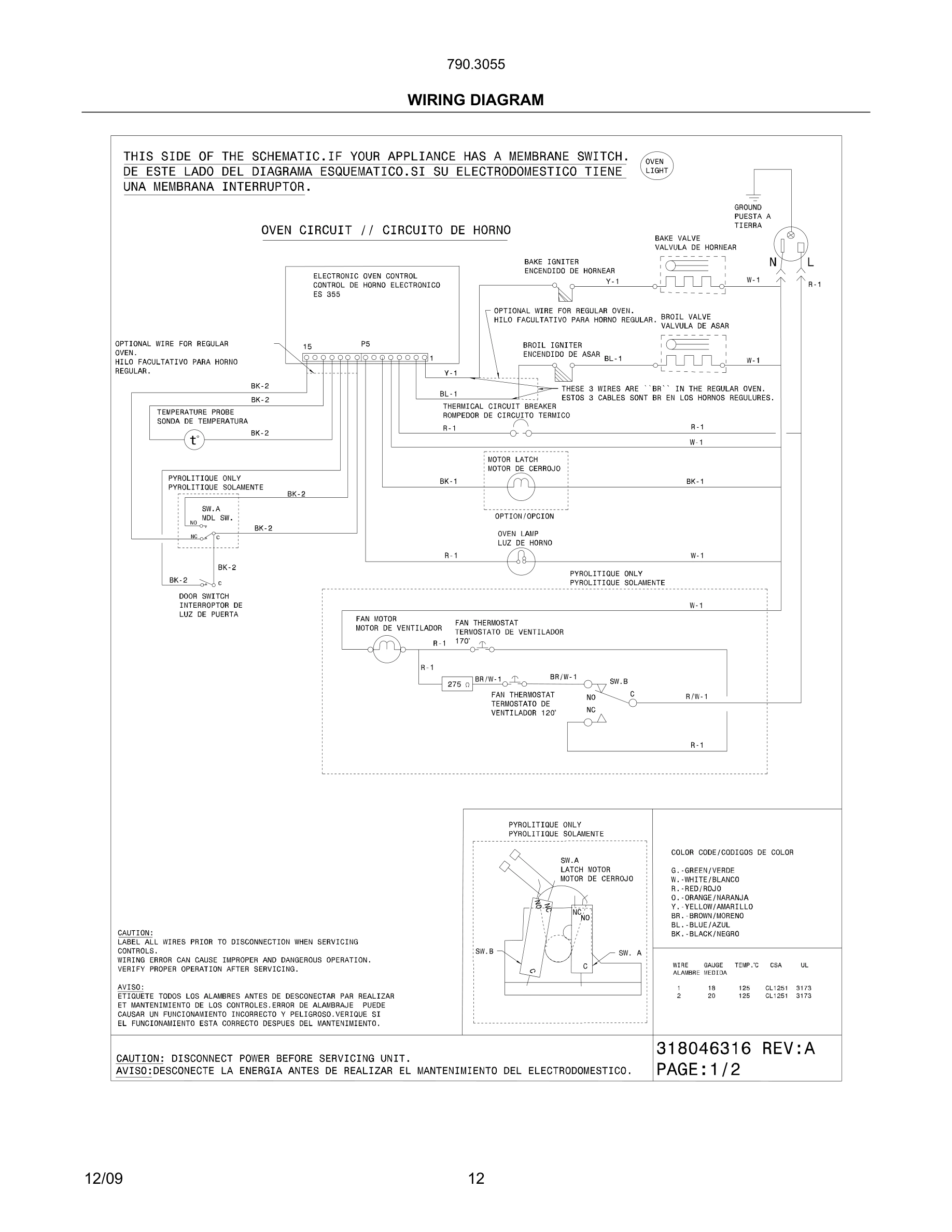

12 - WIRING DIAGRAM

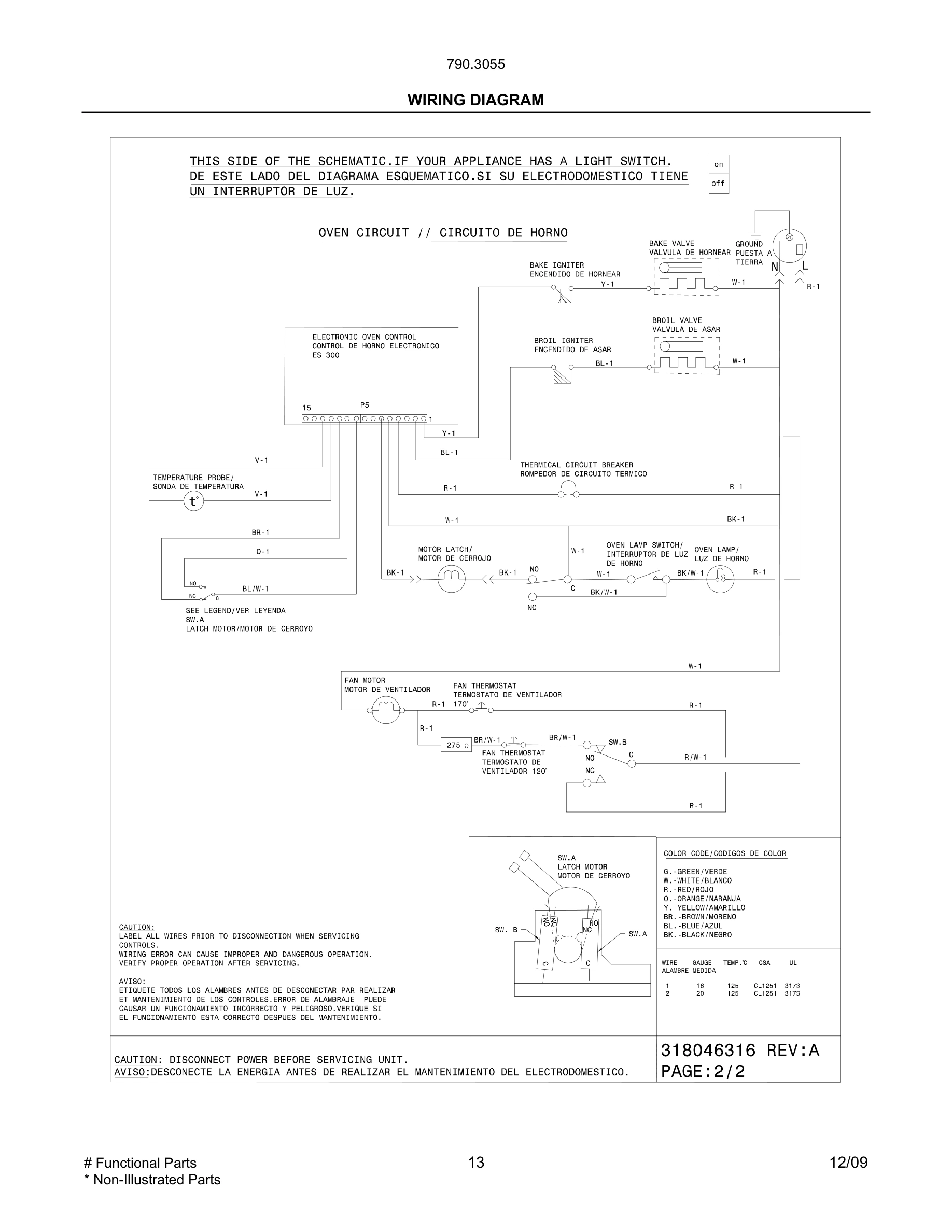

13 - WIRING DIAGRAM
Common parts from model Kenmore 790.30552802 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Wiring Harness, main WCI 318232523 Contact Us For Availability
*
Screw, 6-20 x 5/16, black, (6) WCI 5303320422 Contact Us For Availability
*
Screw, 10-16X1-1/4, square drive WCI 5303302745 Contact Us For Availability
*
Foam seal, (2) WCI 5303316982 Contact Us For Availability
*
Screw, 10-16 x 1 1/2 WCI 5303325981 Contact Us For Availability
*#
Thermostat, safety, .945" mtg., 140/170 WCI 318003606 Contact Us For Availability
3
Trim, frame, black WCI 318287400 Contact Us For Availability
3
Trim, oven door, black WCI 318026520 Contact Us For Availability
4
Glass, oven door, black, outer WCI 318051525 Contact Us For Availability
4
Glass, oven door, white, outer WCI 318051555 Contact Us For Availability
4
Glass, oven door, bisque, outer WCI 318051526 Contact Us For Availability
5
Glass, door, inner, (2) WCI 318212410 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 318285086 Contact Us For Availability
8
Panel, oven bottom WCI 318121400 Contact Us For Availability
9
Deflector, upper oven WCI 318160503 Contact Us For Availability
10
Screw, 10-24 x 2 3/16 WCI 5303311217 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
14#
Regulator, pressure WCI 5303210167 Contact Us For Availability
16
Glass, door, inner WCI 318212400 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, upper oven WCI 318139102 Contact Us For Availability
18
Seal, window, upper oven WCI 318293400 Contact Us For Availability
19
Collar, glass mtg WCI 318139207 Contact Us For Availability
20
Baffle, oven burner WCI 3203676 Contact Us For Availability
20#

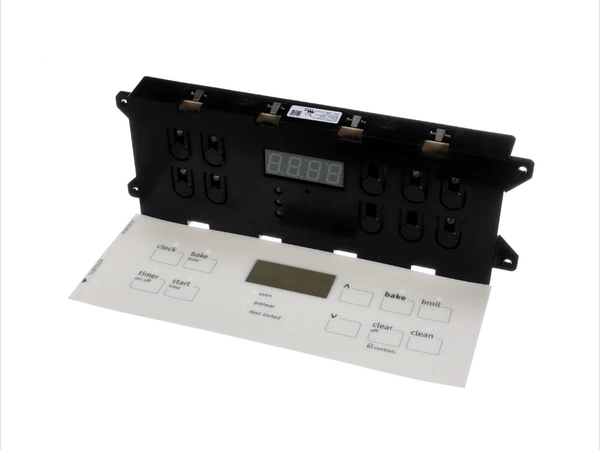

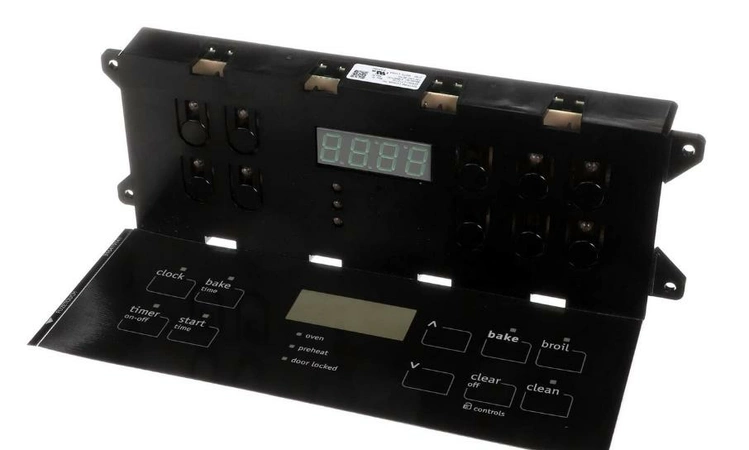

Clock/Timer, electronic, bisque, ES300 WCI 318414209 Contact Us For Availability
23
Hinge, door, lower oven, (2) WCI 318567112 Contact Us For Availability
25
Liner, oven door WCI 318048321 Contact Us For Availability
27
Spacer, door WCI 318014403 Contact Us For Availability
33
Glass, drawer, black, front WCI 318213601 Contact Us For Availability
33
Glass, drawer, white, front WCI 318213600 Contact Us For Availability
33
Glass, drawer, bisque, front WCI 318213602 Contact Us For Availability
34
Liner, drawer WCI 318272801 Contact Us For Availability
35
Drawer WCI 5303326215 Contact Us For Availability
39
Handle, door, white, oven WCI 318264411 Contact Us For Availability
39
Handle, door, bisque, oven WCI 318264412 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56
Trim, bodyside, bisque WCI 318145517 Contact Us For Availability
56
Trim, bodyside WCI 318145508 Contact Us For Availability
57
Shield, rear wall WCI 318071130 Contact Us For Availability
58
Insulation, oven bottom WCI 318285010 Contact Us For Availability
58A
Insulation, oven back WCI 318285011 Contact Us For Availability
58B
Insulation, top & sides, oven wrapper WCI 318285015 Contact Us For Availability
58C
Insulation, flue WCI 318285090 Contact Us For Availability
58D
Insulation, 3"x4"x17", (2) WCI 318285033 Contact Us For Availability
58E
Insulation, 1"x1.75"x18" WCI 318285034 Contact Us For Availability
58F
Insulation, deflector WCI 318285067 Contact Us For Availability
58G
Insulation, flue WCI 318285035 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
61
Spacer, cork & rubber WCI 5303300414 Contact Us For Availability
70A
Shield, insulation WCI 5303210843 Contact Us For Availability
72
Wrapper, shield WCI 318327900 Contact Us For Availability
76
Front, oven WCI 318056145 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
83
Liner, oven assy WCI 318089411 Contact Us For Availability
87
Bracket, regulator, & safety WCI 318387500 Contact Us For Availability
88
Rod, latch WCI 5303311222 Contact Us For Availability
89#
Motor, latch assy, w/brkt & switch WCI 318095953 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
97
Wrapper, back & sides WCI 318066804 Contact Us For Availability
98
Trim, side, inner, RH WCI 318029404 Contact Us For Availability
98A
Trim, side, inner, LH WCI 318029405 Contact Us For Availability
100
Shield, flue, bottom WCI 5303302715 Contact Us For Availability
102
Support, oven front WCI 3203688 Contact Us For Availability
103
Trim, base, black, lower WCI 5303316735 Contact Us For Availability
103
Trim, base, white, lower WCI 5303316734 Contact Us For Availability
103
Trim, base, bisque, lower WCI 318538400 Contact Us For Availability
104
Flue WCI 318170211 Contact Us For Availability
108#
Motor, blower WCI 318073036 Contact Us For Availability
117
Bracket, thermo protect WCI 5303302718 Contact Us For Availability
119#
Switch, thermal WCI 5303326252 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
122
Shield, heat, lower WCI 5303210844 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071422 Contact Us For Availability
128
Bushing, latch rod WCI 318563000 Contact Us For Availability
134
Bracket, glass mtg WCI 318122105 Contact Us For Availability
187
Tube, latch rod WCI 318013503 Contact Us For Availability
227
Retainer, oven bottom WCI 5303323958 Contact Us For Availability
234
Shield, burner box WCI 5303210851 Contact Us For Availability
235
Bracket WCI 5303326207 Contact Us For Availability
236
Shield, insulation, 1.25x1.0x12.9 WCI 318108900 Contact Us For Availability
239
Angle, burner box WCI 5303326183 Contact Us For Availability
240
Shield, bodyside WCI 318119301 Contact Us For Availability
× ![]()
