Model Electrolux 790.30529802 Wall Oven (Kenmore 79030529802) – Common Parts & Diagrams

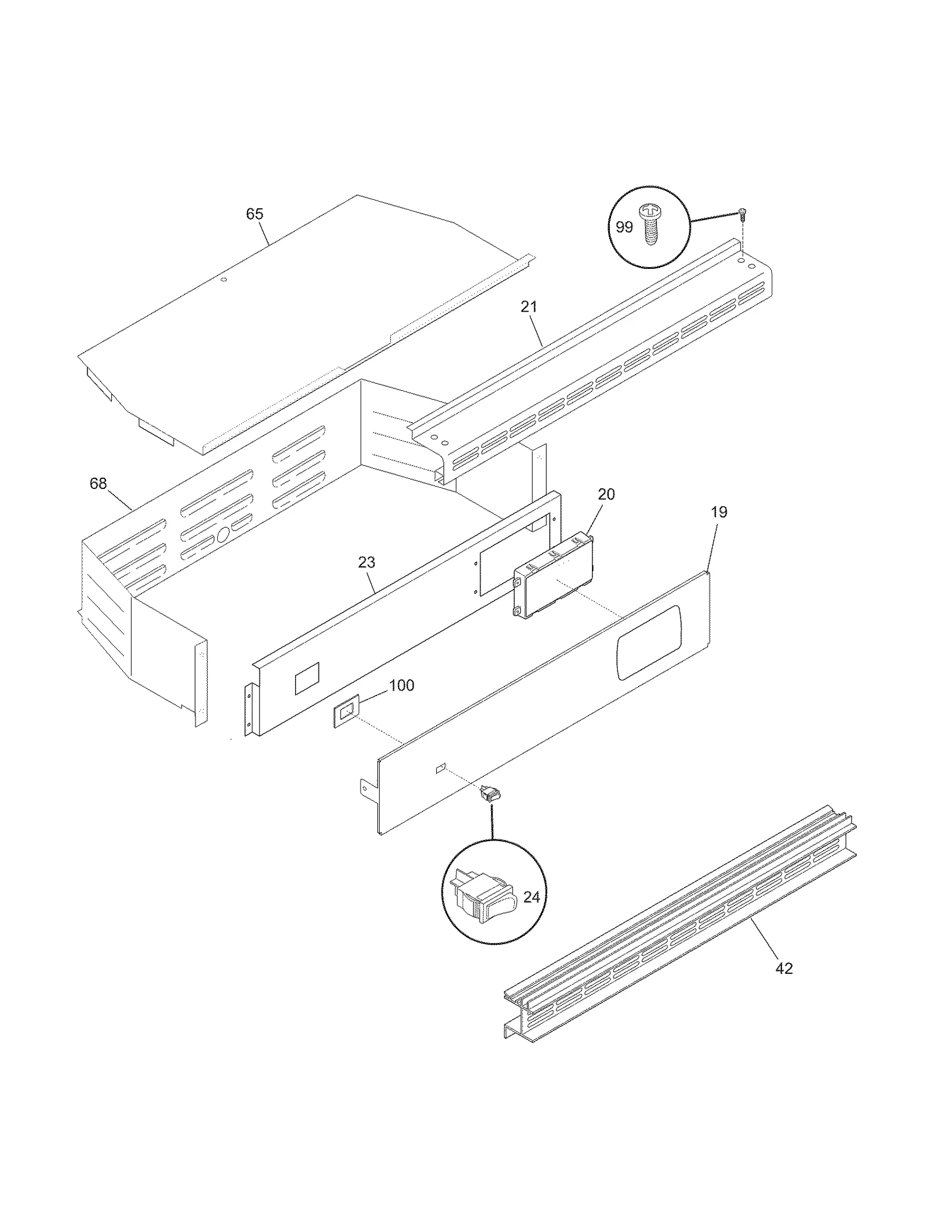

CONTROL PANEL

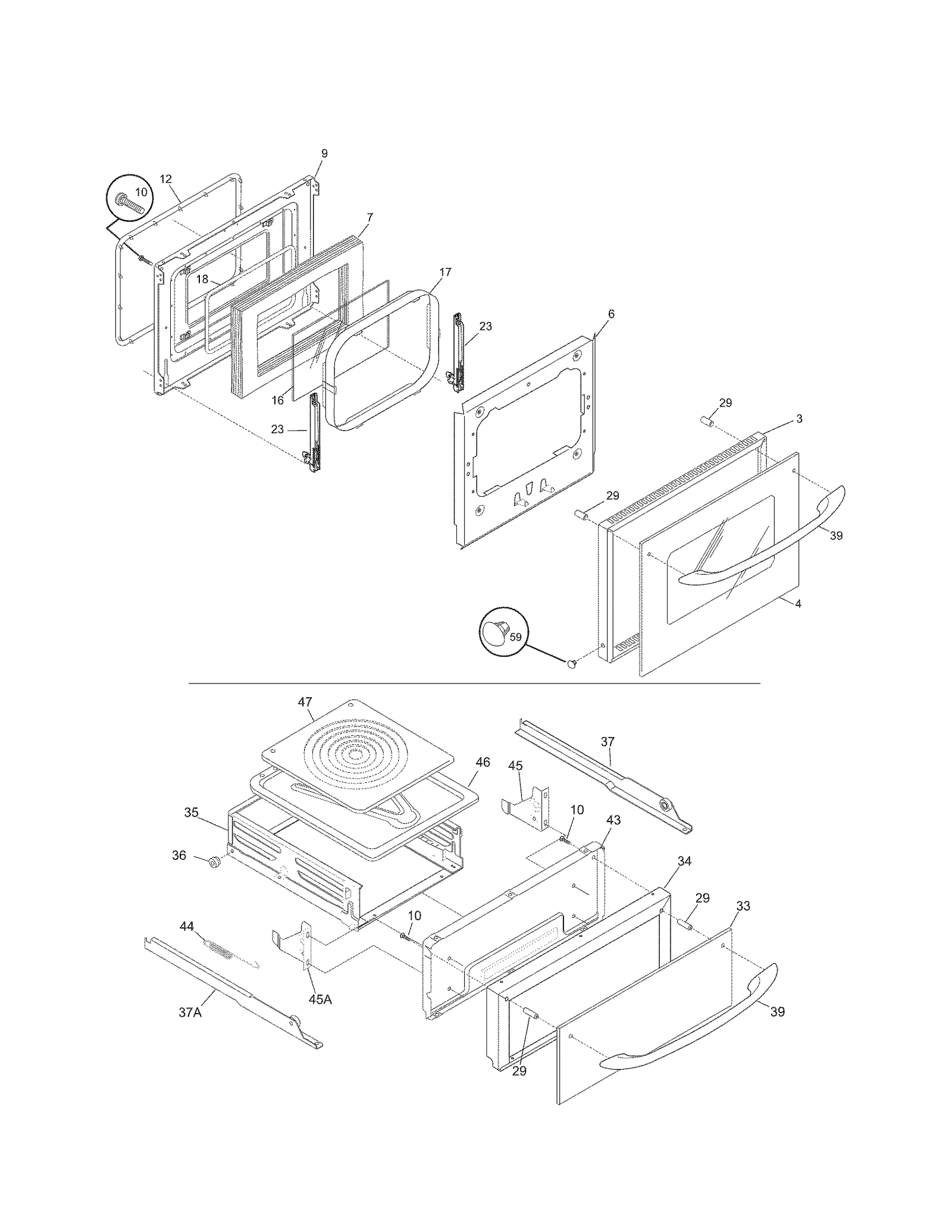

DOOR/DRAWER
BODY
BURNER
Common parts from model Electrolux 790.30529802 Wall Oven (Kenmore 79030529802)
3
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
4
Frigidaire Wall Oven Door Outer Panel (Black) WCI 318051525 Contact Us For Availability
6
Range Oven Rack WCI 318345304 Contact Us For Availability
8
Wall Oven Bottom Panel WCI 318121400 Contact Us For Availability
10
Wall Oven Door Handle Screw, #10-24 x 2-3/16- WCI 5303311217 Contact Us For Availability
12
Range Oven Door Seal WCI 5303316768 Contact Us For Availability
14
Wall Oven Gas Pressure Regulator WCI 5303210167 Contact Us For Availability
17
White-Westinghouse Wall Oven Gas Valve WCI 3203702 No Longer Available
20
Range Bake Burner Flame Spreader WCI 3203676 Contact Us For Availability
21
Blk Trim Kit WCI 318176500 Contact Us For Availability
21
Oven Trim WCI 318176501 Contact Us For Availability
23
Wall Oven Door Hinge WCI 318567104 Contact Us For Availability
28
Valve WCI 5303295305 Contact Us For Availability
33
Wall Oven Broil Drawer Outer Panel WCI 318213601 Contact Us For Availability
34
Oven Panel WCI 318287000 Contact Us For Availability
44
Wall Oven Broil Drawer Front Panel Spring WCI 318088300 Contact Us For Availability
46
Range Broil Pan WCI 318126200 Contact Us For Availability
47
Range Broil Pan Insert WCI 318126300 Contact Us For Availability
49
Bracket WCI 5303308469 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
58C
Oven Insulation WCI 318285015 Contact Us For Availability
76
Oven WCI 318056141 Contact Us For Availability
80
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
81
Bracket WCI 5303323710 Contact Us For Availability
83
Parts-cook WCI 318089403 Contact Us For Availability
87
Bracket WCI 5303308475 Contact Us For Availability
97
Wrapper WCI 318066804 Contact Us For Availability
98
Oven Trim WCI 318176802 Contact Us For Availability
98
Oven Trim WCI 318176812 Contact Us For Availability
98A
Oven Trim WCI 318176803 Contact Us For Availability
98A
Oven Trim WCI 318176813 Contact Us For Availability
99
Cooking Appliance Screw, #6-32 x 3/8-in WCI 5303131766 Contact Us For Availability
101
Shield WCI 5303308474 Contact Us For Availability
102
Support WCI 318192100 Contact Us For Availability
103
Wall Oven Base Trim WCI 5303316735 Contact Us For Availability
103
Wall Oven Base Trim (White) WCI 5303316734 Contact Us For Availability
104
Flue WCI 318170200 Contact Us For Availability
121
Wrapper WCI 318145005 Contact Us For Availability
227
Oven Retainer WCI 5303323958 Contact Us For Availability
232
Oven Bumper WCI 318147412 Contact Us For Availability
233
Plug WCI 318166800 Contact Us For Availability
233
Oven Plug WCI 318166801 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Wall Oven Wire Harness WCI 318232517 Contact Us For Availability
× ![]()
