Model Kenmore 790.30503600 COOKTOP – Common Parts & Diagrams

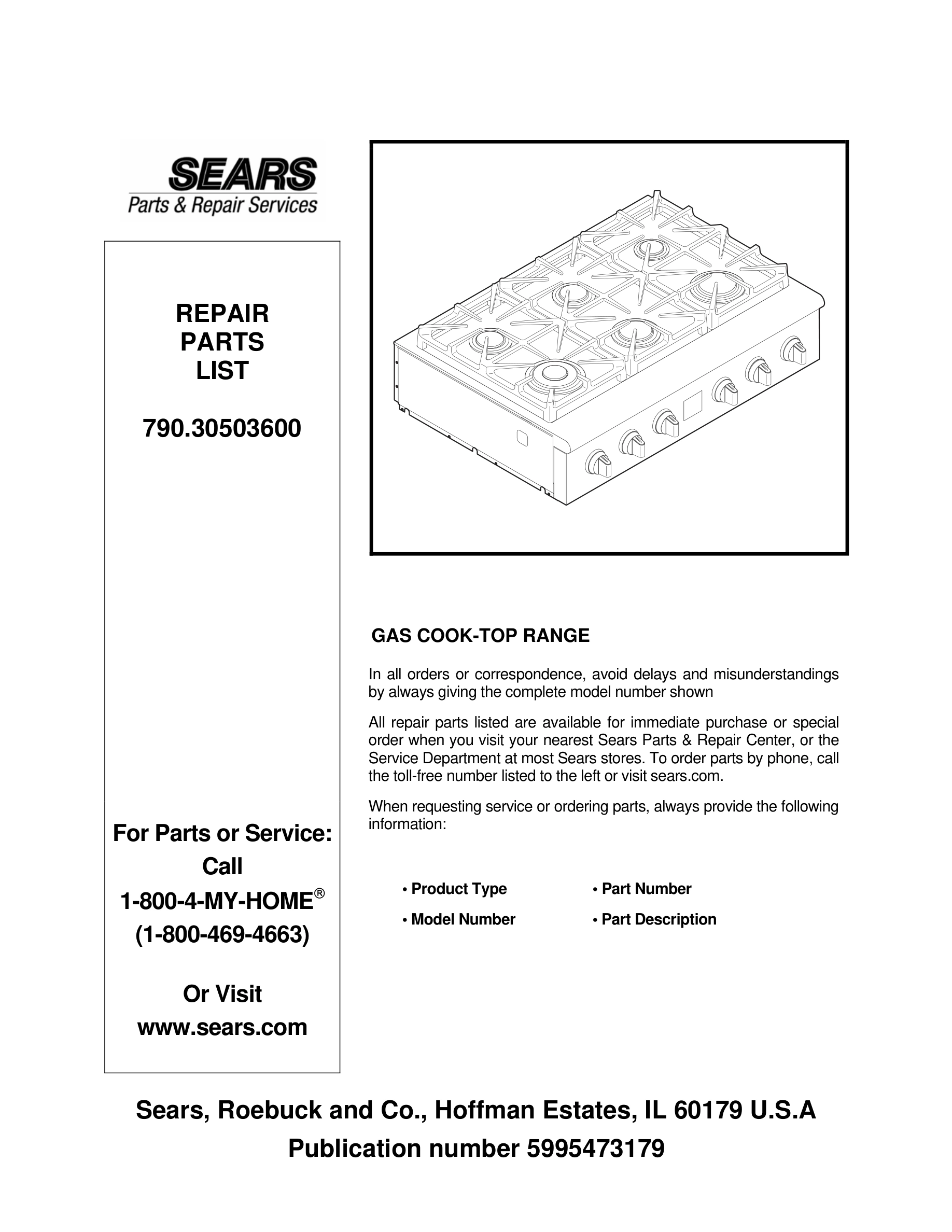

01 - COVER

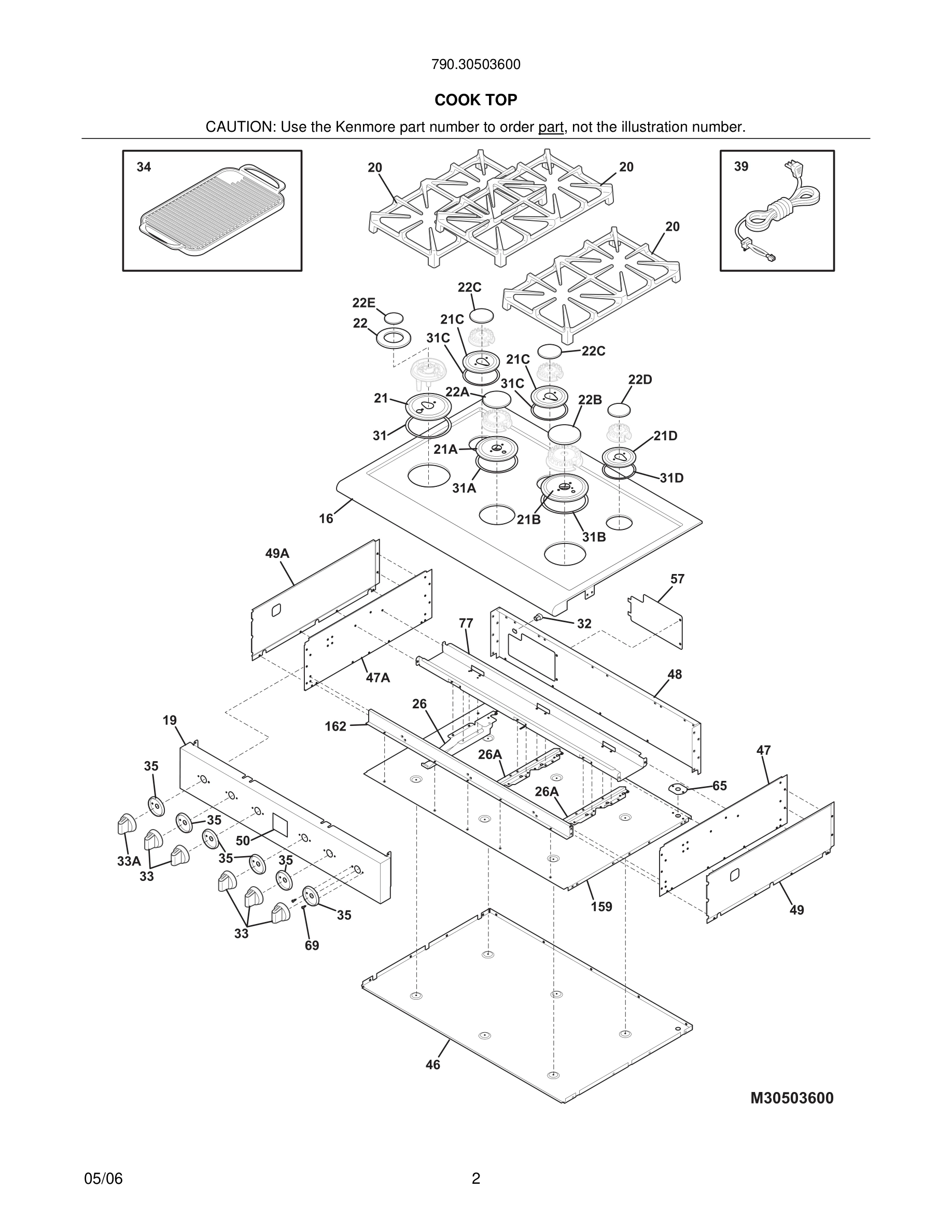

03 - COOKTOP
05 - BURNER
06 - WIRING DIAGRAM
Common parts from model Kenmore 790.30503600 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*#
LP Conversion Kit WCI 318127433 Contact Us For Availability
2#
Valve, top burner, dual port WCI 318321802 Contact Us For Availability
2B#
Valve, top burner, 17K WCI 316464704 Contact Us For Availability
2C#
Valve, top burner, (2), 9.5K WCI 316464701 Contact Us For Availability
2D#
Valve, top burner, 5K WCI 316464700 Contact Us For Availability
3
Switch, ignitor, (6) WCI 318163402 Contact Us For Availability
3*#
Wiring Harness, ignitor switch WCI 318232614 Contact Us For Availability
10#
Burner, sealed, 3K/13K, w/ignitor WCI 316495600 Contact Us For Availability
10A#
Burner, sealed, 12K WCI 316212300 Contact Us For Availability
10B#
Burner, sealed, 17K WCI 316223300 Contact Us For Availability
10D#
Burner, sealed, 5K WCI 316206400 Contact Us For Availability
11#
Ignitor/orifice assy., top burner, 9.5K, w/ho WCI 318221364 Contact Us For Availability
11A#
Ignitor/orifice assy., top burner, 12K, w/hol WCI 318221365 Contact Us For Availability
11B#
Ignitor/orifice assy., top burner, front WCI 318221350 Contact Us For Availability
11C#
Ignitor/orifice assy., top burner, rear, 9.5K WCI 318221346 Contact Us For Availability
11D#
Ignitor/orifice assy., top burner, rear, 5K, WCI 318221347 Contact Us For Availability
11E#
Extrusion/orifice Assy., double burner, 3K/13 WCI 316459501 Contact Us For Availability
12#
Tube, burner, LH front WCI 318366700 Contact Us For Availability
12A#
Tube, burner, LH front WCI 318366701 Contact Us For Availability
13
Connection, manifold tube WCI 318054510 Contact Us For Availability
21
Skirt, 3K/13K, black WCI 316460603 Contact Us For Availability
21A
Skirt, 12K burner, black WCI 316241704 Contact Us For Availability
21B
Skirt, 17K burner, black WCI 316264803 Contact Us For Availability
21C
Skirt, 9.5K burner, black, (2) WCI 316241804 Contact Us For Availability
21D
Skirt, 5K burner, black WCI 316241904 Contact Us For Availability
22A
Cap, 12K burner, black WCI 316213605 Contact Us For Availability
22C
Cap, 9.5K burner, black, (2) WCI 316213505 Contact Us For Availability
22D
Cap, 5K burner, black WCI 316206604 Contact Us For Availability
24
Elbow, fitting WCI 318054000 Contact Us For Availability
31
Seal, 3K/13K burner WCI 316242005 Contact Us For Availability
39
Cord, service WCI 318144006 Contact Us For Availability
44B
Orifice, top burner, 17.2K WCI 316237909 Contact Us For Availability
44D
Orifice, top burner, 5K WCI 316237903 Contact Us For Availability
44E
Orifice, double burner, 3K WCI 316467400 No Longer Available
44F
Orifice, double burner, 13K WCI 316467401 No Longer Available
× ![]()
