Model Electrolux 790.30479401 Gas Wall Oven (Kenmore 79030479401) – Common Parts & Diagrams
DOOR/DRAWER
BODY

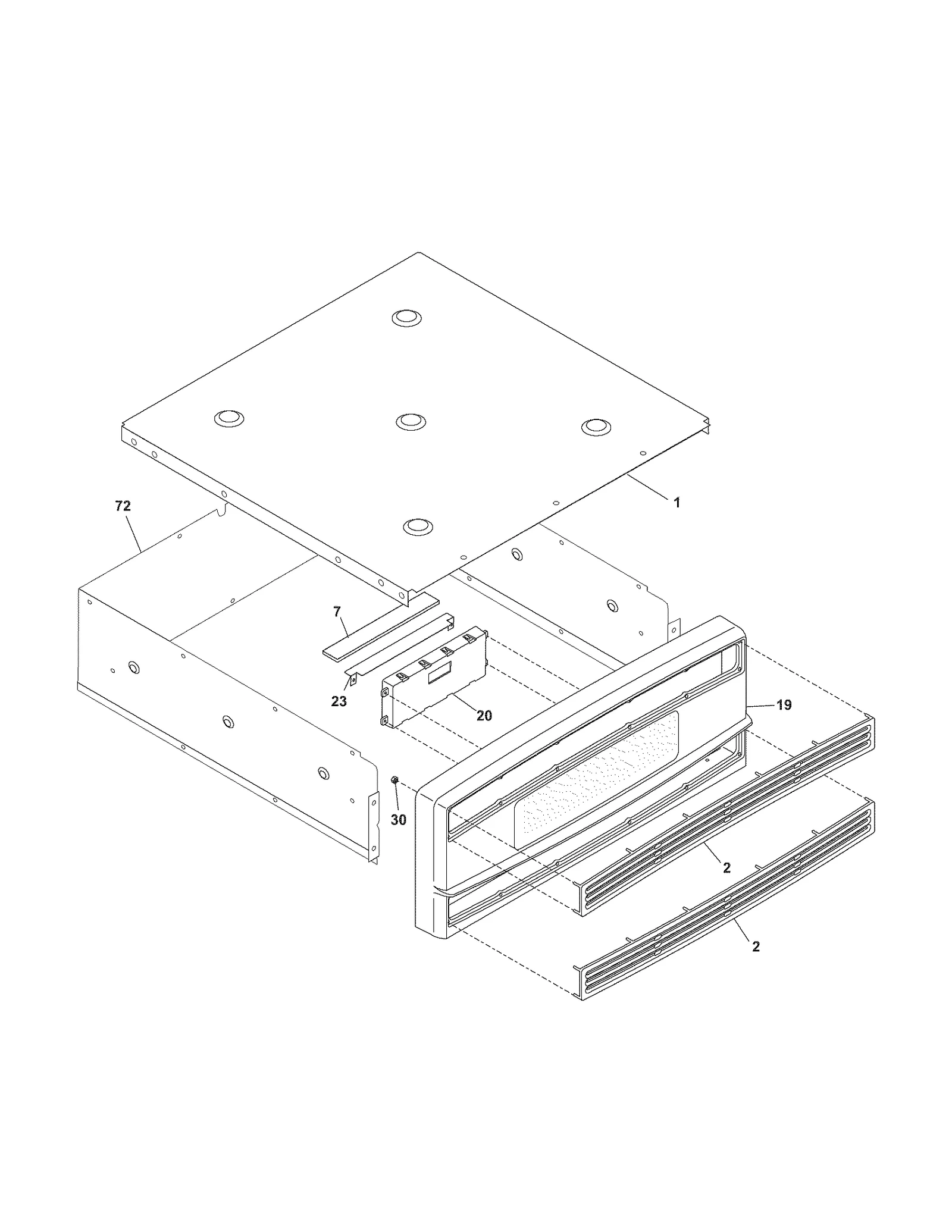

CONTROL PANEL

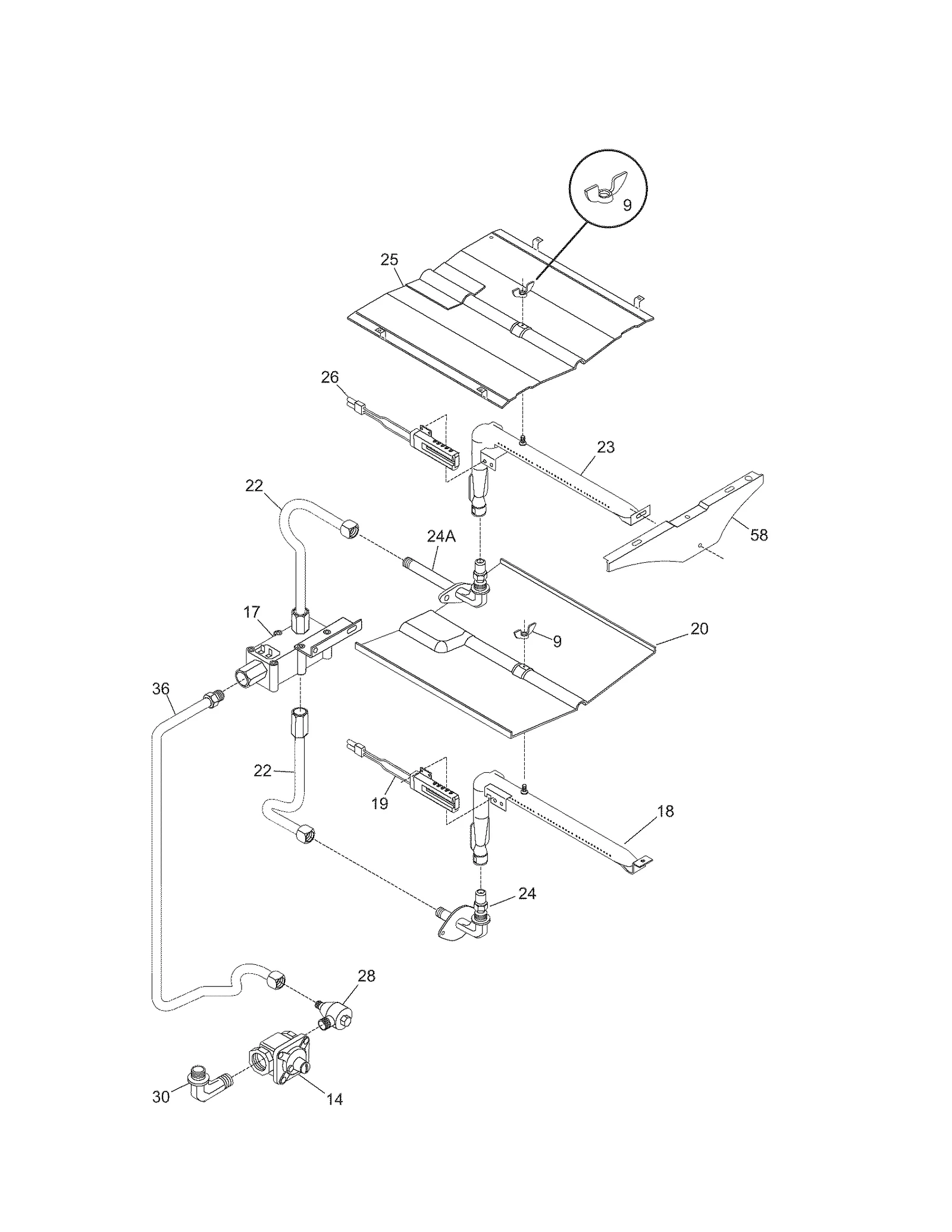

BURNER
Common parts from model Electrolux 790.30479401 Gas Wall Oven (Kenmore 79030479401)
1
WRAPPER,BASE WCI 318145003 Contact Us For Availability
2
Trim WCI 318279900 Contact Us For Availability
2
Trim WCI 318279901 Contact Us For Availability
2
Trim WCI 318279902 Contact Us For Availability
3
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
4
Wall Oven Door Outer Panel (White) WCI 318051528 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 318212410 Contact Us For Availability
7
Insulation WCI 318106056 Contact Us For Availability
8
Wall Oven Bottom Panel WCI 318121400 Contact Us For Availability
10
Wall Oven Door Handle Screw, #10-24 x 2-3/16- WCI 5303311217 Contact Us For Availability
11
Wall Oven Door Catch WCI 318065102 Contact Us For Availability
12
Wall Oven Door Inner Heat Seal WCI 318178801 Contact Us For Availability
14
Wall Oven Gas Pressure Regulator WCI 5303210167 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
19
Wall Oven Control Panel Assembly (Black) WCI 318284922 Contact Us For Availability
19
Range Control Panel WCI 318284923 Contact Us For Availability
19
Oven Control Panel WCI 318284924 Contact Us For Availability
20
Wall Oven Control Board WCI 316418551 Contact Us For Availability
20
Range Bake Burner Flame Spreader WCI 3203676 Contact Us For Availability
22
Wall Oven Burner Supply Tube WCI 5303271092 Contact Us For Availability
23
Support WCI 318294800 Contact Us For Availability
23
Wall Oven Broil Burner WCI 5303283132 Contact Us For Availability
24
Range Bake Burner Elbow Tube and Orifice WCI 5303210786 Contact Us For Availability
24A
Pin WCI 5303210807 Contact Us For Availability
25
Oven Baffle WCI 5303326220 Contact Us For Availability
28
Wall Oven Gas Shut-Off Valve WCI 318087410 Contact Us For Availability
30
Nut WCI 5304453499 Contact Us For Availability
30
Wall Oven Regulator Elbow Fitting WCI 5303305657 Contact Us For Availability
33
Wall Oven Broil Drawer Outer Panel WCI 318213601 Contact Us For Availability
36
Tubing-safet WCI 318177801 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
58
Insulation WCI 318285010 Contact Us For Availability
58
Insulation Shield WCI 318123600 Contact Us For Availability
58A
Insulation WCI 318285011 Contact Us For Availability
58B
Oven Insulation WCI 318285015 Contact Us For Availability
58C
Insulation WCI 318285090 Contact Us For Availability
58D
Insulation WCI 318285033 Contact Us For Availability
58E
Insulation WCI 318285034 Contact Us For Availability
58F
Insulation WCI 318285067 Contact Us For Availability
58G
Insulation WCI 318294911 Contact Us For Availability
58H
Insulation WCI 318294907 Contact Us For Availability
58J
Insulation WCI 318106055 Contact Us For Availability
58K
Insulation WCI 318294905 Contact Us For Availability
70A
Shield WCI 5303210843 Contact Us For Availability
72
Wrapper WCI 318327900 Contact Us For Availability
76
Oven WCI 318056139 Contact Us For Availability
80
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
81
Bracket WCI 5303323710 Contact Us For Availability
83
Liner WCI 318089411 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Bracket-safe WCI 5303308443 Contact Us For Availability
88
Rod WCI 5303311222 Contact Us For Availability
89
Wall Oven Door Lock Motor WCI 318095953 Contact Us For Availability
97
Wrapper WCI 318066804 Contact Us For Availability
98
Trim WCI 318029362 Contact Us For Availability
98A
Trim WCI 318029363 Contact Us For Availability
100
Shield WCI 5303302715 Contact Us For Availability
102
Support WCI 3203688 Contact Us For Availability
103
Base Trim WCI 318283201 Contact Us For Availability
103
Wall Oven Vent, Lower (Black) WCI 318283200 Contact Us For Availability
103
Oven Trim WCI 318283202 Contact Us For Availability
104
Flue WCI 318170210 Contact Us For Availability
105
Bracket WCI 318282000 Contact Us For Availability
108
Motor WCI 318073025 Contact Us For Availability
117
Bracket WCI 318295901 Contact Us For Availability
119
Wall Oven Safety Thermostat WCI 5303326252 Contact Us For Availability
121
Wrapper WCI 318145005 Contact Us For Availability
122
Shield WCI 5303210844 Contact Us For Availability
123
Shield WCI 318071422 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
187
Tube WCI 318013501 Contact Us For Availability
227
Oven Retainer WCI 5303323958 Contact Us For Availability
234
SHIELD W/A BURNER BOX (NON-ILLUSTRATED) WCI 5303210851 Contact Us For Availability
235
BRACKET <072 1091001 > WCI 5303326207 Contact Us For Availability
236
Insulation Shield WCI 318108900 Contact Us For Availability
239
Burner Angle WCI 5303326183 Contact Us For Availability
240
Shield WCI 318119301 Contact Us For Availability
NI
Wall Oven Safety Thermostat WCI 318003606 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Harness WCI 318231759 Contact Us For Availability
NI
Bracket WCI 5303271097 Contact Us For Availability
NI
Screw WCI 5303302745 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 0.625-in WCI 5303311528 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 5/16-in WCI 5303320422 Contact Us For Availability
NI
Wiring Diagram WCI 318046315 Contact Us For Availability
NI
Service Data Sheet WCI 318047416 Contact Us For Availability
NI
Oven Use and Care Guide WCI 318200954 Contact Us For Availability
NI
Wall Oven Owner's Manual WCI 318201552 Contact Us For Availability
NI
Repair Parts List WCI 5995463329 Contact Us For Availability
× ![]()
