Model Kenmore 790.30472400 OVEN – Common Parts & Diagrams

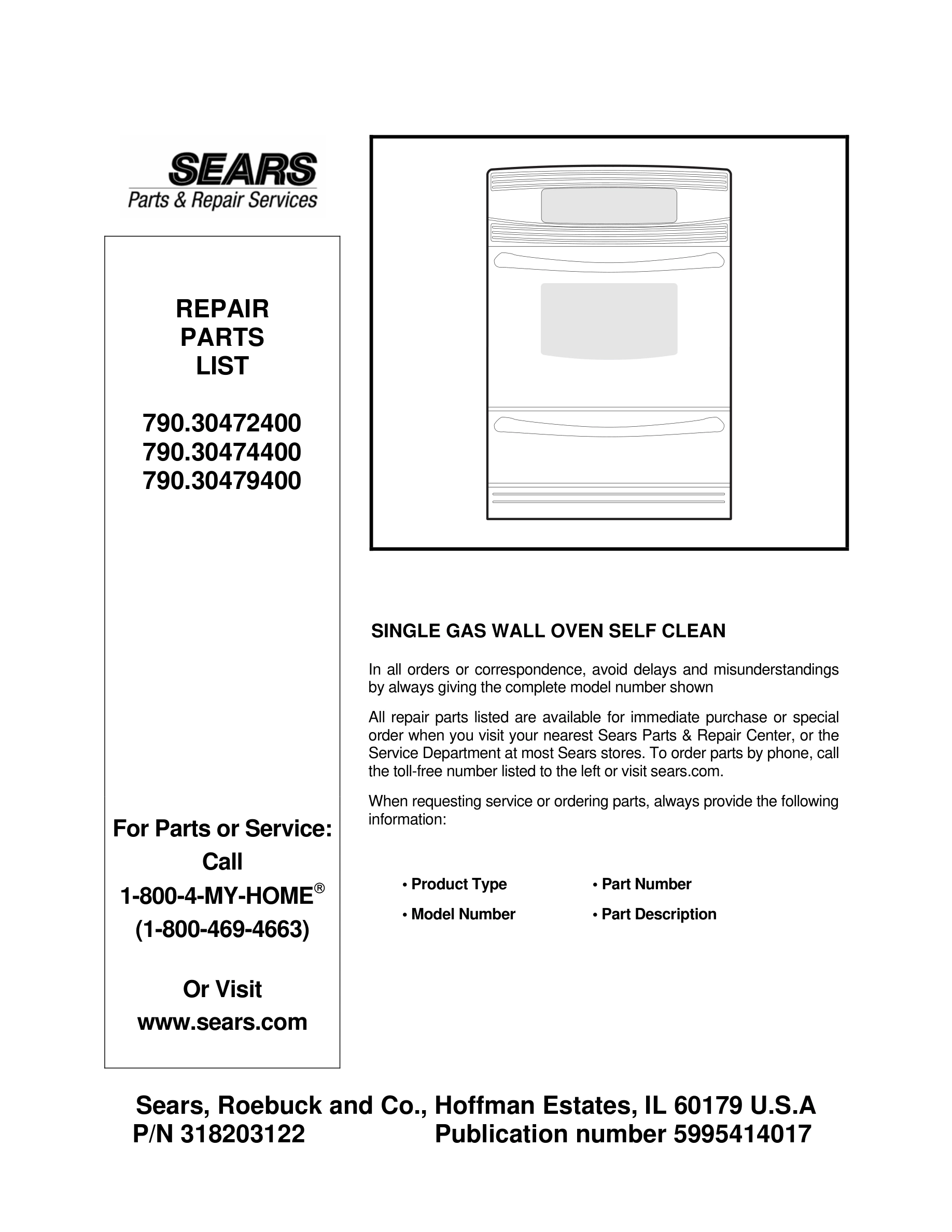

01 - COVER

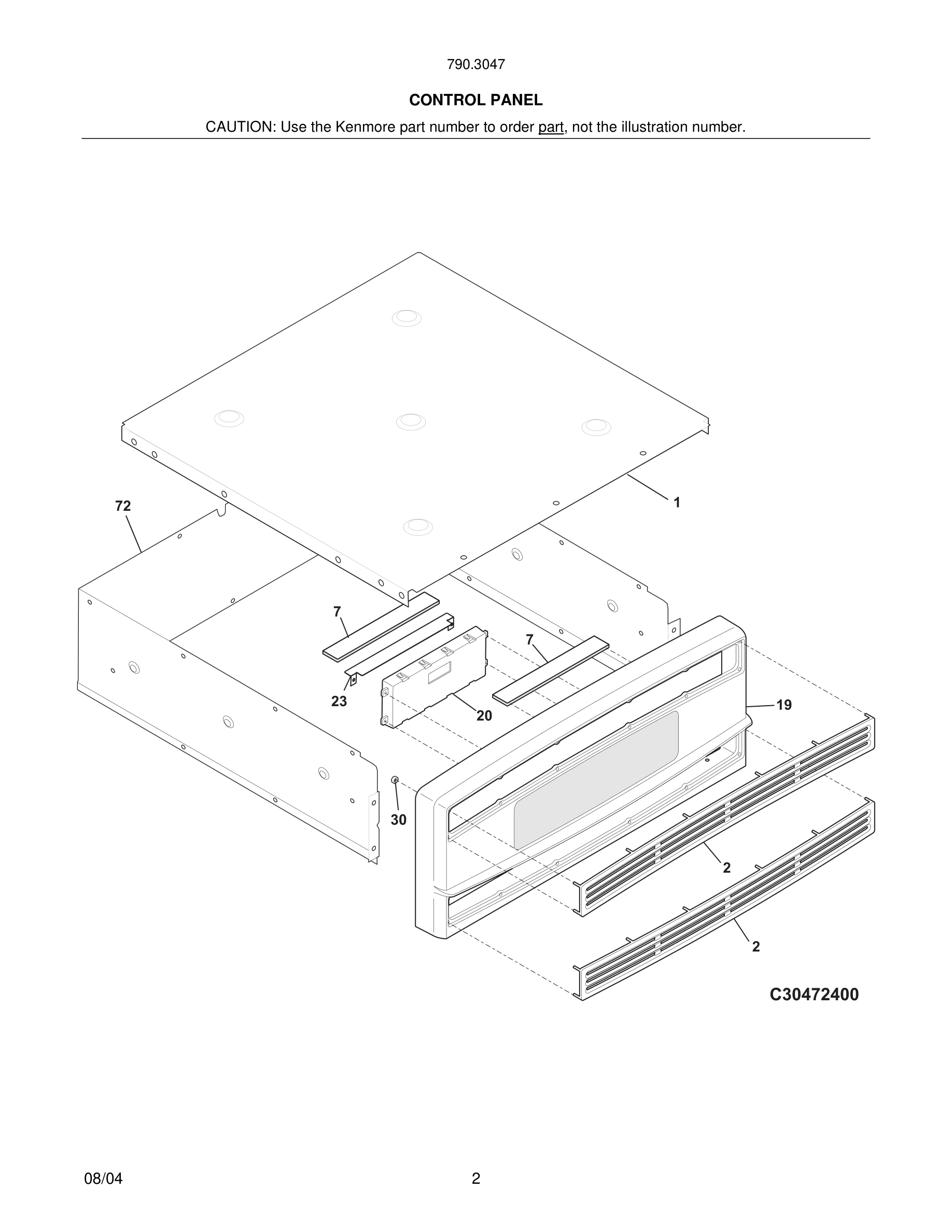

03 - CONTROL PANEL

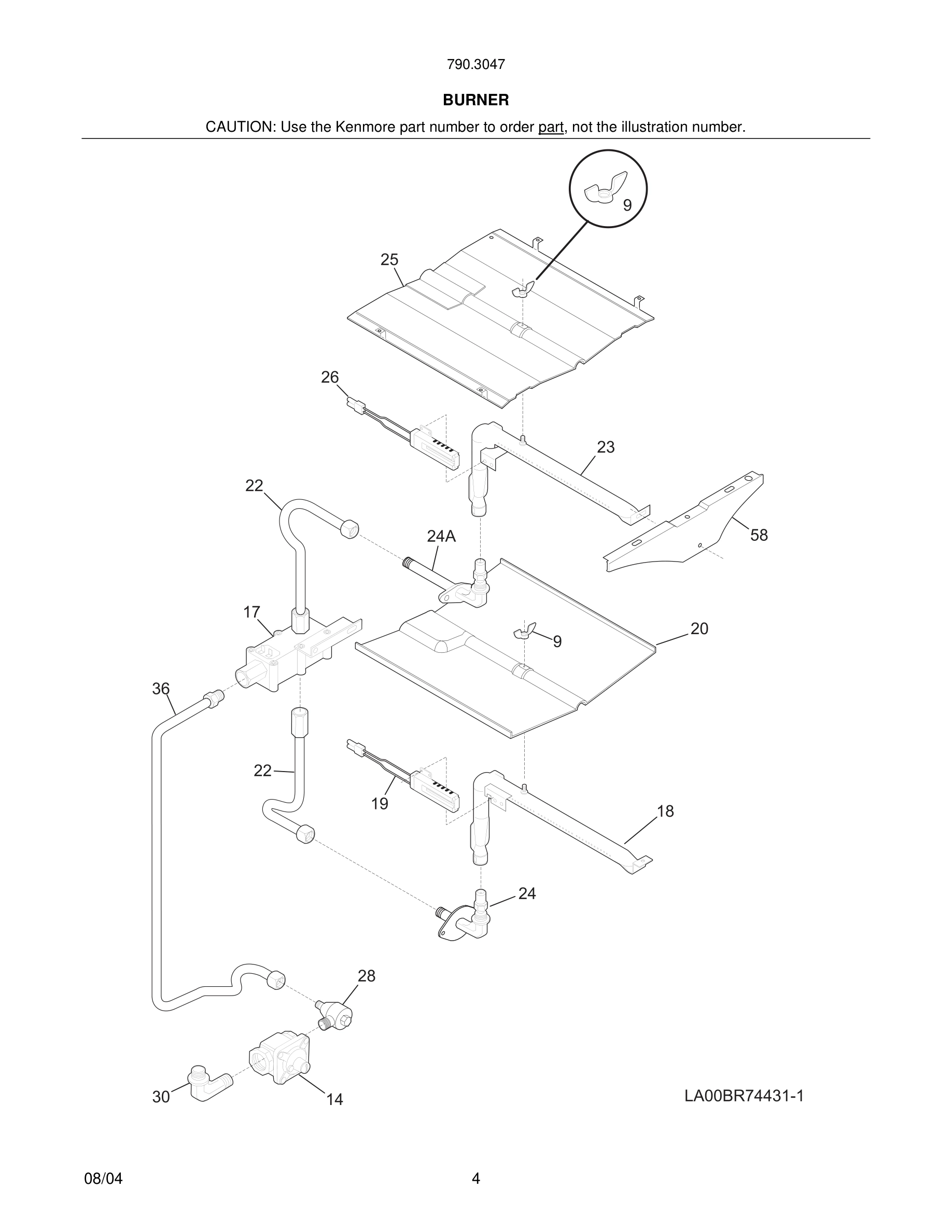

05 - BURNER

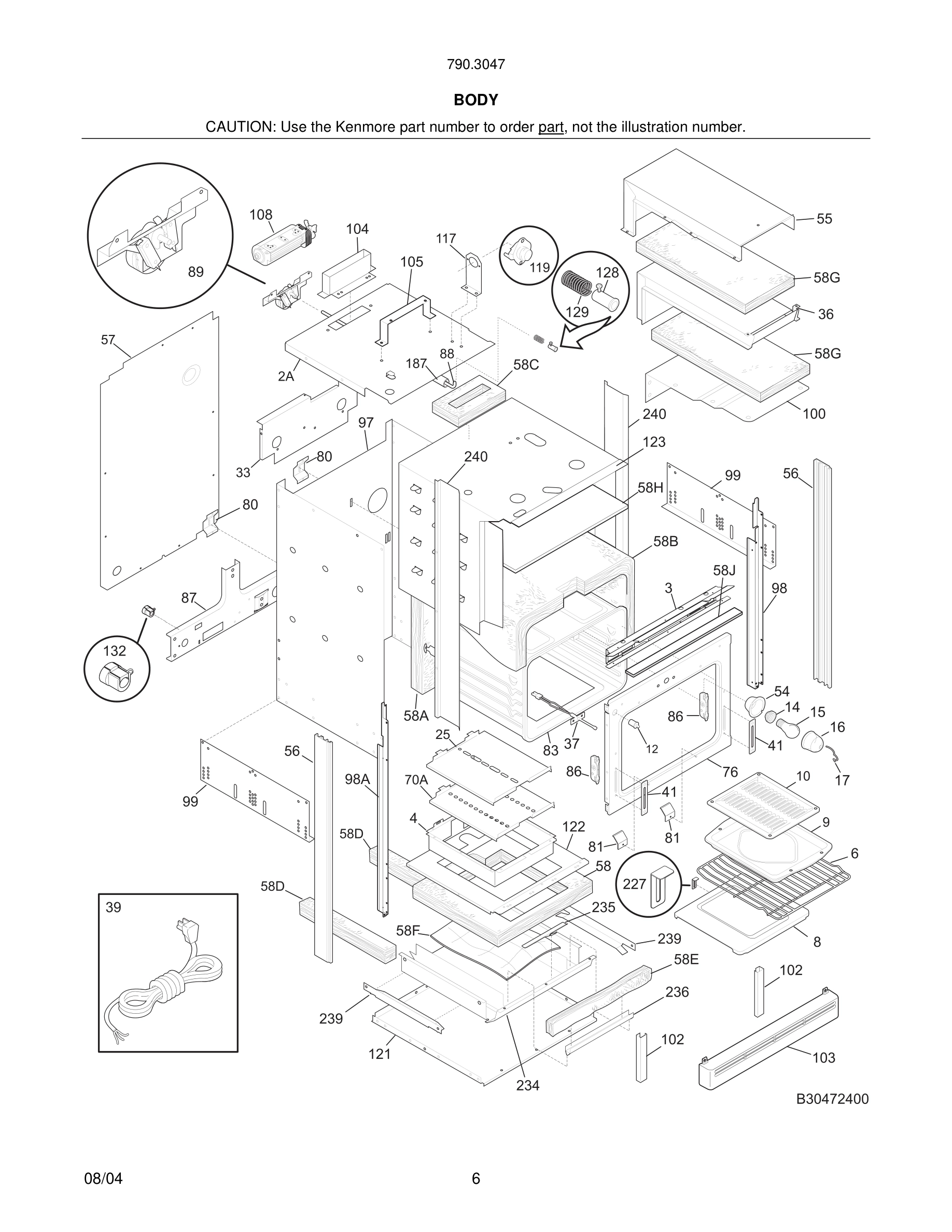

07 - BODY
09 - BODY

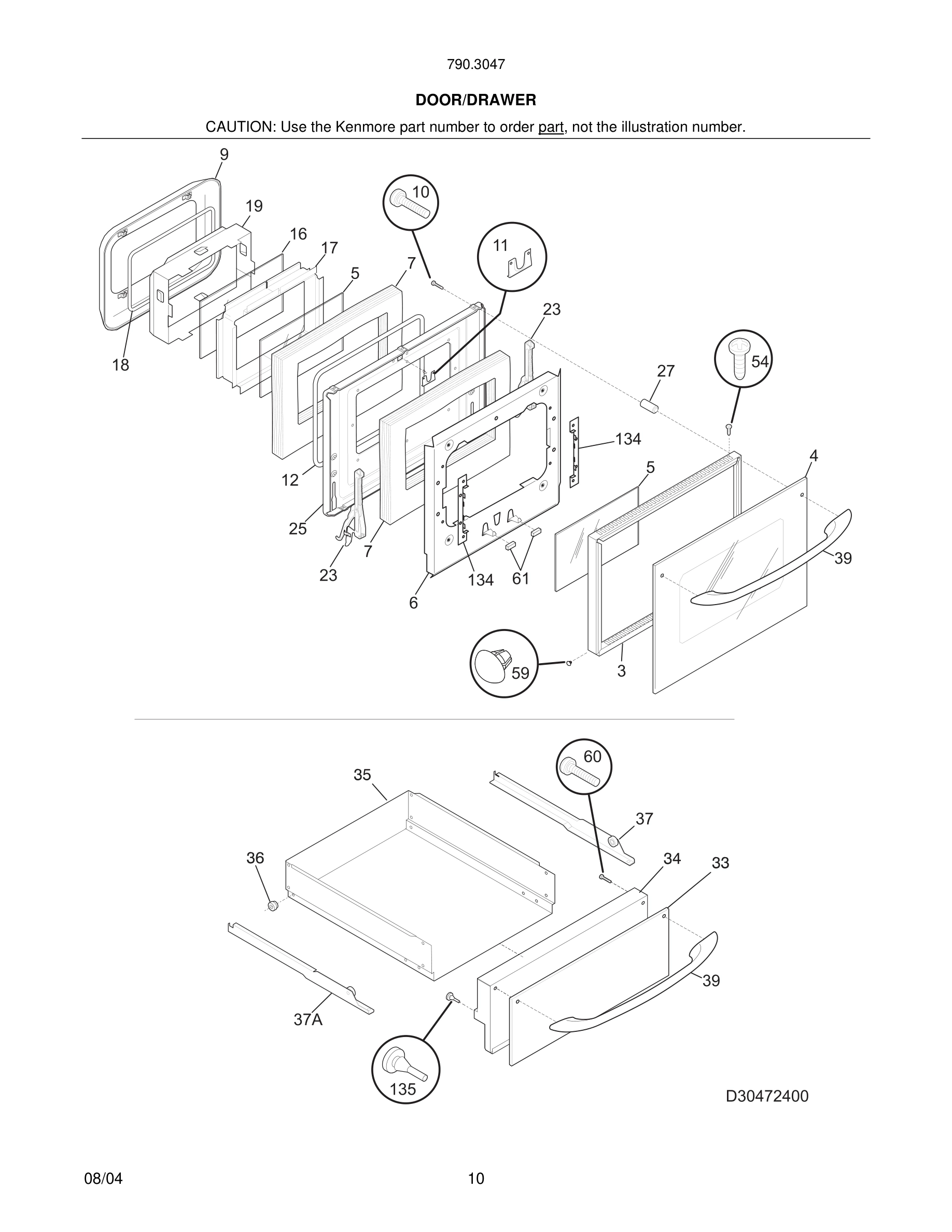

11 - DOOR/DRAWER

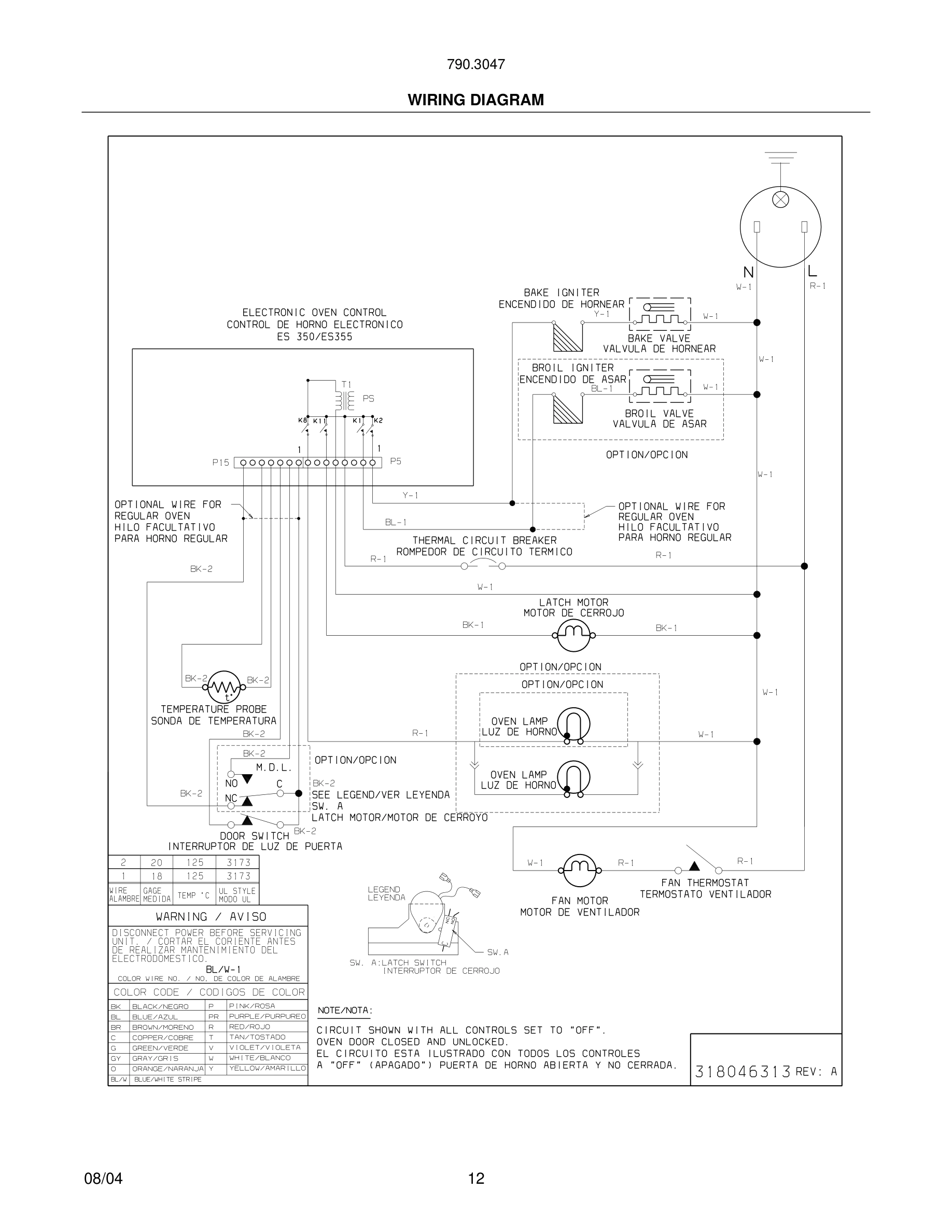

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.30472400 OVEN
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Harness, wiring, main WCI 318231723 Contact Us For Availability
*
Insulation, flue, 7.875 x 5.94, .25 thick WCI 318106041 Contact Us For Availability
*
Insulation, 7.875 x 1.702, .25 thick WCI 318106042 Contact Us For Availability
*
Insulation, 7.875 x 1.452, .125 thick WCI 318106043 Contact Us For Availability
*
Screw, 10-16x1-1/8, square drive WCI 5303302745 Contact Us For Availability
*
Foam seal, (2) WCI 5303316982 Contact Us For Availability
*
Screw, 10-16 x 1 1/2 WCI 5303325981 Contact Us For Availability
*#
Thermostat, safety WCI 318003606 Contact Us For Availability
3
Trim, frame, black WCI 318287400 Contact Us For Availability
3
Trim, frame, white WCI 318287300 Contact Us For Availability
3
Trim, frame, bisque WCI 318287301 Contact Us For Availability
4
Glass, oven door, bisque, outer WCI 318051525 Contact Us For Availability
4
Glass, oven door, white, outer WCI 318051524 Contact Us For Availability
4
Glass, oven door, black, outer WCI 318051526 Contact Us For Availability
5
Glass, door, inner, (2) WCI 318212410 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 318133799 Contact Us For Availability
8
Panel, oven bottom WCI 318121400 Contact Us For Availability
9
Deflector, upper oven WCI 318160503 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
14#
Regulator, pressure WCI 5303210167 Contact Us For Availability
16
Glass, door, inner WCI 318212400 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, upper oven WCI 318139102 Contact Us For Availability
18
Seal, door, upper oven WCI 318286300 Contact Us For Availability
19
Collar, glass mtg WCI 318139203 Contact Us For Availability
20
Baffle, oven burner WCI 3203676 Contact Us For Availability
20#
Clock/Timer, electronic, ES355W2 WCI 316418551 Contact Us For Availability
23
Hinge, oven door, upper oven WCI 5303310506 Contact Us For Availability
25
Liner, oven door WCI 318048311 Contact Us For Availability
27
Spacer, door WCI 318014400 Contact Us For Availability
33
Glass, drawer, black, front WCI 318213601 Contact Us For Availability
33
Glass, drawer, white, front WCI 318213600 Contact Us For Availability
33
Glass, drawer, bisque, front WCI 318213602 Contact Us For Availability
34
Liner, drawer WCI 318272801 Contact Us For Availability
35
Drawer WCI 5303326215 Contact Us For Availability
36
Roller WCI 5303935079 Contact Us For Availability
39
Handle, door, white, oven WCI 318264411 Contact Us For Availability
39
Handle, door, bisque, oven WCI 318264412 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
55
Shield, flue WCI 5303326219 Contact Us For Availability
56
Trim, bodyside, white WCI 318176905 Contact Us For Availability
56
Trim, bodyside, bisque WCI 318176906 Contact Us For Availability
56
Trim, bodyside, black WCI 318176904 Contact Us For Availability
57
Shield, rear wall WCI 318071130 Contact Us For Availability
58
Insulation, oven bottom WCI 318133735 Contact Us For Availability
58A
Insulation, oven back WCI 318133736 Contact Us For Availability
58B
Insulation, top & sides WCI 318133760 Contact Us For Availability
58C
Insulation WCI 318133739 Contact Us For Availability
58D
Insulation WCI 318133732 Contact Us For Availability
58E
Insulation WCI 318133733 Contact Us For Availability
58F
Insulation deflector WCI 5303326122 Contact Us For Availability
58G
Insullation, flue WCI 318294902 Contact Us For Availability
58H
Insullation WCI 318294900 Contact Us For Availability
58J
Insulation WCI 318106037 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
61
Spacer, cork & rubber WCI 5303300414 Contact Us For Availability
70A
Shield, insulation WCI 5303210843 Contact Us For Availability
76
Front, oven WCI 318056139 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
83
Liner, oven assy WCI 318089411 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, safety valve WCI 5303308443 Contact Us For Availability
88
Rod, latch WCI 5303311222 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
97
Wrapper, back & sides WCI 318066803 Contact Us For Availability
98
Trim, side, black, inner, RH WCI 318029362 Contact Us For Availability
98A
Trim, side, black, inner, LH WCI 318029363 Contact Us For Availability
99
Panel, adjustable, side, (2) WCI 318284200 Contact Us For Availability
100
Shield, flue, bottom WCI 5303302715 Contact Us For Availability
102
Support, oven front WCI 3203688 Contact Us For Availability
103
Trim, base, white WCI 318283201 Contact Us For Availability
103
Trim, base, bisque WCI 318283202 Contact Us For Availability
103
Trim, base, black WCI 318283200 Contact Us For Availability
104
Flue WCI 318170210 Contact Us For Availability
105
Bracket, flue mtg. WCI 318282000 Contact Us For Availability
108#
Motor, fan WCI 318073001 Contact Us For Availability
117
Bracket, thermo protect WCI 5303302718 Contact Us For Availability
119#
Switch, thermal WCI 5303326252 Contact Us For Availability
121
Wrapper, bottom WCI 318145004 Contact Us For Availability
122
Shield, heat, lower WCI 5303210844 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071421 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
134
Bracket, glass mtg WCI 318122102 Contact Us For Availability
187
Tube, latch rod WCI 318013501 Contact Us For Availability
227
Retainer, oven bottom WCI 5303323958 Contact Us For Availability
234
Shield, burner box WCI 5303210851 Contact Us For Availability
235
Bracket WCI 5303326207 Contact Us For Availability
236
Shield, insulation, 1.25x1.0x12.9 WCI 318108900 Contact Us For Availability
239
Angle, burner box WCI 5303326183 Contact Us For Availability
240
Shield, bodyside WCI 318119300 Contact Us For Availability
× ![]()
