Model Electrolux 790.30179401 Gas Wall Oven (Kenmore 79030179401) – Common Parts & Diagrams

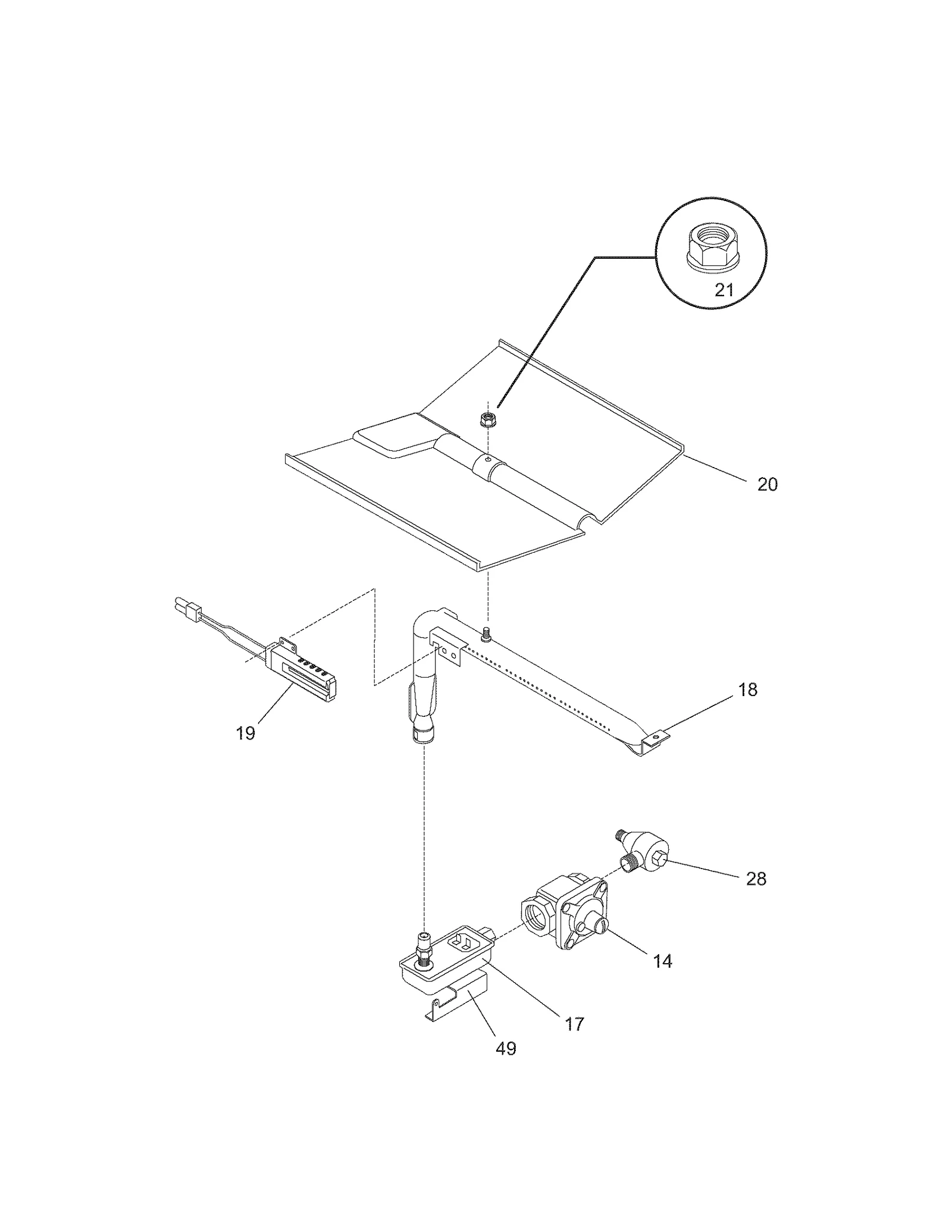

BURNER

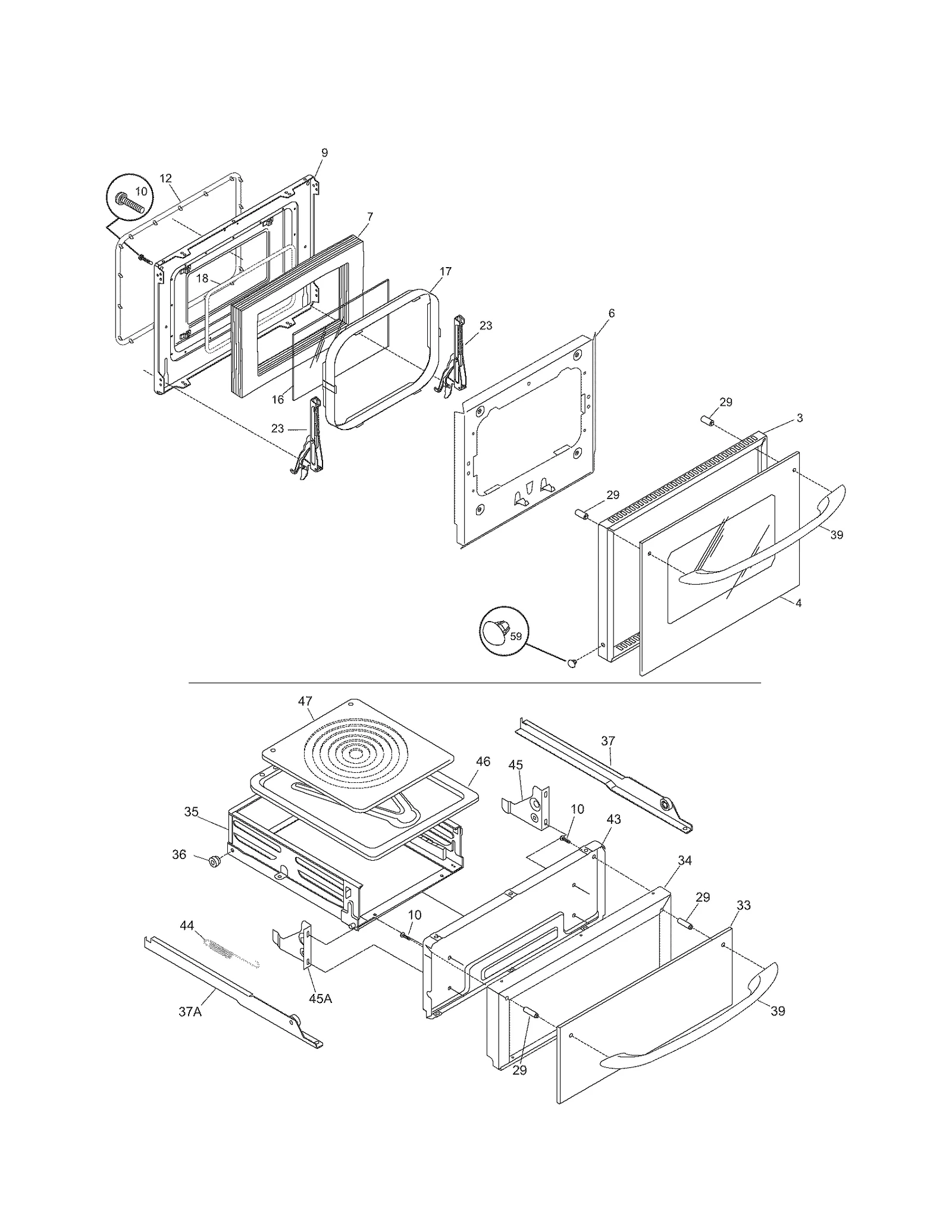

DOOR/DRAWER
CONTROLS
BODY
Common parts from model Electrolux 790.30179401 Gas Wall Oven (Kenmore 79030179401)
3
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
3
Bracket,control panel ,black ,mounting WCI 318293600 Contact Us For Availability
3A
Plate WCI 318300703 Contact Us For Availability
4
Wall Oven Door Outer Panel (White) WCI 318051528 Contact Us For Availability
4
Wall Oven Burner Box WCI 318161500 Contact Us For Availability
6
Rack WCI 318262700 Contact Us For Availability
8
Wall Oven Bottom Panel WCI 318121400 Contact Us For Availability
10
Wall Oven Door Handle Screw, #10-24 x 2-3/16- WCI 5303311217 Contact Us For Availability
12
Range Oven Door Seal WCI 5303316768 Contact Us For Availability
14
Wall Oven Gas Pressure Regulator WCI 5303210167 Contact Us For Availability
17
White-Westinghouse Wall Oven Gas Valve WCI 3203702 No Longer Available
19
Range Control Panel WCI 318284920 Contact Us For Availability
19
Range Control Panel WCI 318284921 Contact Us For Availability
20
Range Bake Burner Flame Spreader WCI 3203676 Contact Us For Availability
25
Shield WCI 318179000 Contact Us For Availability
28
Wall Oven Gas Shut-Off Valve WCI 318087410 Contact Us For Availability
33
Wall Oven Broil Drawer Outer Panel WCI 318213601 Contact Us For Availability
34
Oven Panel WCI 318287000 Contact Us For Availability
36
Flue WCI 318176003 Contact Us For Availability
39
Range Power Cord WCI 318144007 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
44
Wall Oven Broil Drawer Front Panel Spring WCI 318088300 Contact Us For Availability
46
Range Broil Pan WCI 318126200 Contact Us For Availability
47
Range Broil Pan Insert WCI 318126300 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim Body WCI 318176914 Contact Us For Availability
56
Trim WCI 318176915 Contact Us For Availability
57
Rear Shield WCI 318071130 Contact Us For Availability
58
Oven Insulation WCI 318285032 Contact Us For Availability
58B
Oven Insulation WCI 318285003 Contact Us For Availability
58C
Oven Insulation WCI 318285015 Contact Us For Availability
58J
Insulation WCI 318106055 Contact Us For Availability
76
Oven WCI 318056122 Contact Us For Availability
80
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
81
Bracket WCI 5303323710 Contact Us For Availability
83
Parts-cook WCI 318089403 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Bracket WCI 5303308475 Contact Us For Availability
97
Wrapper WCI 318066804 Contact Us For Availability
98
Trim WCI 318029362 Contact Us For Availability
98A
Trim WCI 318029363 Contact Us For Availability
101
Shield WCI 5303308474 Contact Us For Availability
102
Support WCI 3203688 Contact Us For Availability
103
Wall Oven Base Trim WCI 5303316735 Contact Us For Availability
103
Wall Oven Base Trim (White) WCI 5303316734 Contact Us For Availability
104
Flue WCI 318170200 Contact Us For Availability
121
Wrapper WCI 318145005 Contact Us For Availability
227
Oven Retainer WCI 5303323958 Contact Us For Availability
232
Oven Bumper WCI 318147412 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Oven Harness WCI 318231733 Contact Us For Availability
× ![]()
