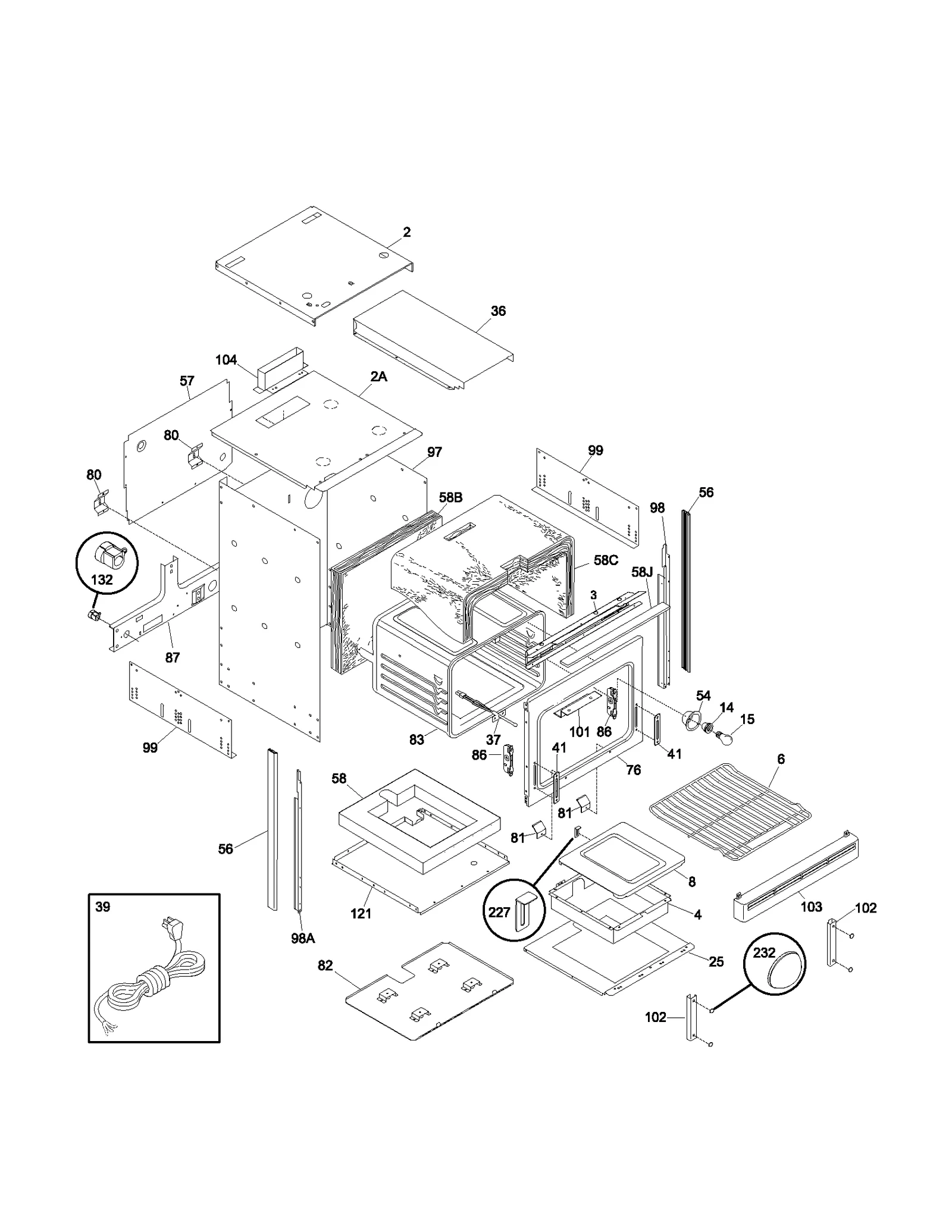

Model Electrolux 790.30179400 Gas Wall Oven (Kenmore 79030179400) – Common Parts & Diagrams

2
Trim
Trim WCI 318279900 Contact Us For Availability
View on Model
2
Trim
Trim WCI 318279901 Contact Us For Availability
View on Model
3
Wall Oven Door Frame Trim Assembly (Black)
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
View on Model
4
Frigidaire Wall Oven Door Outer Panel (Black)
Frigidaire Wall Oven Door Outer Panel (Black) WCI 318051525 Contact Us For Availability
View on Model
4
Glass
Glass WCI 318051524 Contact Us For Availability
View on Model
6
Shield
Shield WCI 318073610 Contact Us For Availability
View on Model
7
Insulation
Insulation WCI 318133799 Contact Us For Availability
View on Model
8
Wall Oven Bottom Panel
Wall Oven Bottom Panel WCI 318121400 Contact Us For Availability
View on Model
9
Liner
Liner WCI 318156611 Contact Us For Availability
View on Model
12
Range Oven Door Seal
Range Oven Door Seal WCI 5303316768 Contact Us For Availability
View on Model
14
Wall Oven Gas Pressure Regulator
Wall Oven Gas Pressure Regulator WCI 5303210167 Contact Us For Availability
View on Model
16
Oven Door Glass
Oven Door Glass WCI 318212400 Contact Us For Availability
View on Model
17
White-Westinghouse Wall Oven Gas Valve
White-Westinghouse Wall Oven Gas Valve WCI 3203702 No Longer Available
View on Model
17
Support
Support WCI 318162611 Contact Us For Availability
View on Model
18
Wall Oven Door Inner Glass Gasket
Wall Oven Door Inner Glass Gasket WCI 318053206 Contact Us For Availability
View on Model
19
Range Control Panel
Range Control Panel WCI 318284920 Contact Us For Availability
View on Model
19
Range Control Panel
Range Control Panel WCI 318284921 Contact Us For Availability
View on Model
20
Range Handle Spacer (Black)
Range Handle Spacer (Black) WCI 318014300 Contact Us For Availability
View on Model
20
Range Bake Burner Flame Spreader
Range Bake Burner Flame Spreader WCI 3203676 Contact Us For Availability
View on Model
20
Range Oven Door Handle Spacer (White)
Range Oven Door Handle Spacer (White) WCI 318014301 Contact Us For Availability
View on Model
21
Deflector
Deflector WCI 318189302 Contact Us For Availability
View on Model
23
Hinge
Hinge WCI 318024702 Contact Us For Availability
View on Model
28
Wall Oven Gas Shut-Off Valve
Wall Oven Gas Shut-Off Valve WCI 318087410 Contact Us For Availability
View on Model
29
Wall Oven Door Handle Spacer
Wall Oven Door Handle Spacer WCI 318014400 Contact Us For Availability
View on Model
30
Range Push Nut
Range Push Nut WCI 5304453933 Contact Us For Availability
View on Model
30
Nut
Nut WCI 5304442432 Contact Us For Availability
View on Model
33
Wall Oven Broil Drawer Outer Panel
Wall Oven Broil Drawer Outer Panel WCI 318213601 Contact Us For Availability
View on Model
33
Wall Oven Broil Drawer Outer Glass (White)
Wall Oven Broil Drawer Outer Glass (White) WCI 318213600 Contact Us For Availability
View on Model
34
Oven Panel
Oven Panel WCI 318287000 Contact Us For Availability
View on Model
36
Roller
Roller WCI 5303935079 Contact Us For Availability
View on Model
39
Wall Oven Door Handle
Wall Oven Door Handle WCI 318264410 Contact Us For Availability
View on Model
39
Wall Oven Door Handle (White)
Wall Oven Door Handle (White) WCI 318264411 Contact Us For Availability
View on Model
41
Range Oven Door Hinge Cut-Out Trim
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
View on Model
43
Liner
Liner WCI 318107801 Contact Us For Availability
View on Model
44
Wall Oven Broil Drawer Front Panel Spring
Wall Oven Broil Drawer Front Panel Spring WCI 318088300 Contact Us For Availability
View on Model
45
Range Broil Drawer Hinge
Range Broil Drawer Hinge WCI 318024400 Contact Us For Availability
View on Model
45A
Range Broil Drawer Hinge, Left
Range Broil Drawer Hinge, Left WCI 318024401 Contact Us For Availability
View on Model
46
Range Broil Pan
Range Broil Pan WCI 318126200 Contact Us For Availability
View on Model
47
Range Broil Pan Insert
Range Broil Pan Insert WCI 318126300 Contact Us For Availability
View on Model
49
Bracket
Bracket WCI 5303308469 Contact Us For Availability
View on Model
54
Range Oven Light Housing
Range Oven Light Housing WCI 318222400 Contact Us For Availability
View on Model
59
Oven Spacer
Oven Spacer WCI 3202113 Contact Us For Availability
View on Model
60
Range Oven Door Trim Double-Sided Tape
Range Oven Door Trim Double-Sided Tape WCI 5303316982 Contact Us For Availability
View on Model
65
Cover
Cover WCI 318038806 Contact Us For Availability
View on Model
68
Panel
Panel WCI 318283900 Contact Us For Availability
View on Model
80
Wall Oven Rear Shield Spring Clip
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
View on Model
103
Base Trim
Base Trim WCI 318283201 Contact Us For Availability
View on Model
NI
Range Screw, #10-24 x 1/2-in
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
View on Model
NI
Range Spacer
Range Spacer WCI 5303300414 Contact Us For Availability
View on Model
NI
Wiring Diagram
Wiring Diagram WCI 318046313 Contact Us For Availability
View on Model
NI
Service Data Sheet
Service Data Sheet WCI 318047416 Contact Us For Availability
View on Model
NI
Oven Use and Care Guide
Oven Use and Care Guide WCI 318200954 Contact Us For Availability
View on Model
NI
Wall Oven Owner's Manual
Wall Oven Owner's Manual WCI 318201552 Contact Us For Availability
View on Model
NI
Parts List
Parts List WCI 5995413506 Contact Us For Availability
View on Model
NI
Decorative Trim
Decorative Trim WCI 903063-9101 Contact Us For Availability
View on Model
