Model Kenmore 790.30172401 OVEN – Common Parts & Diagrams

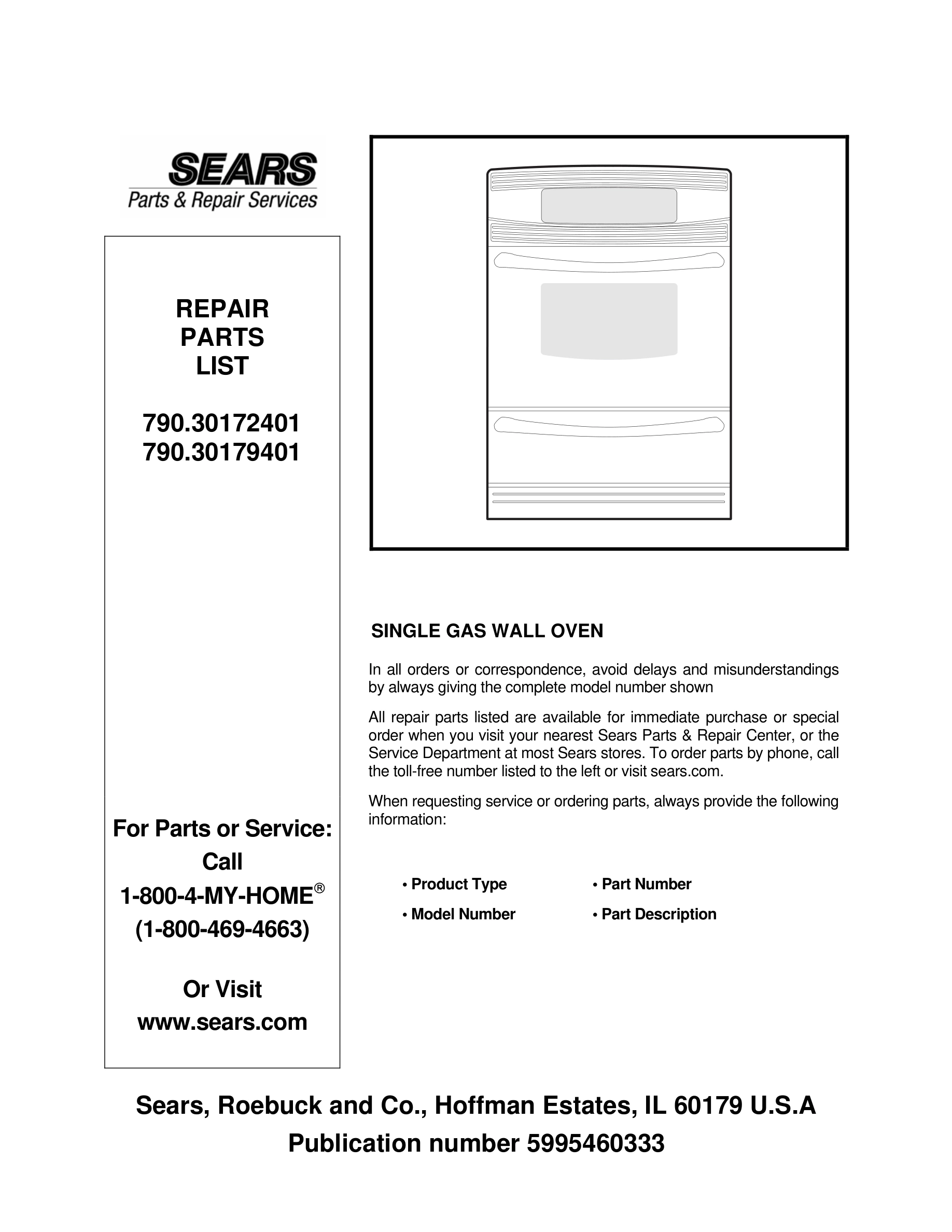

01 - COVER

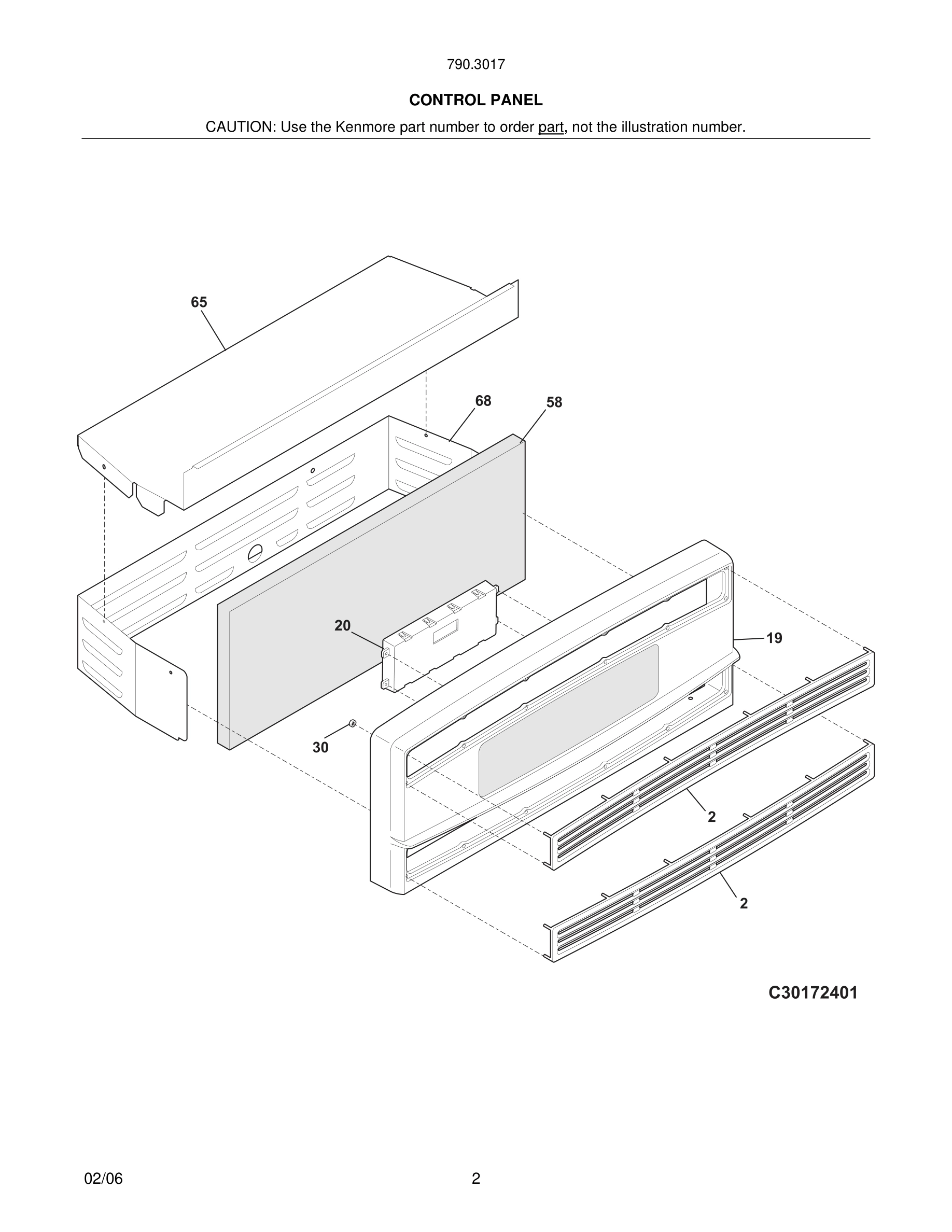

03 - CONTROL PANEL

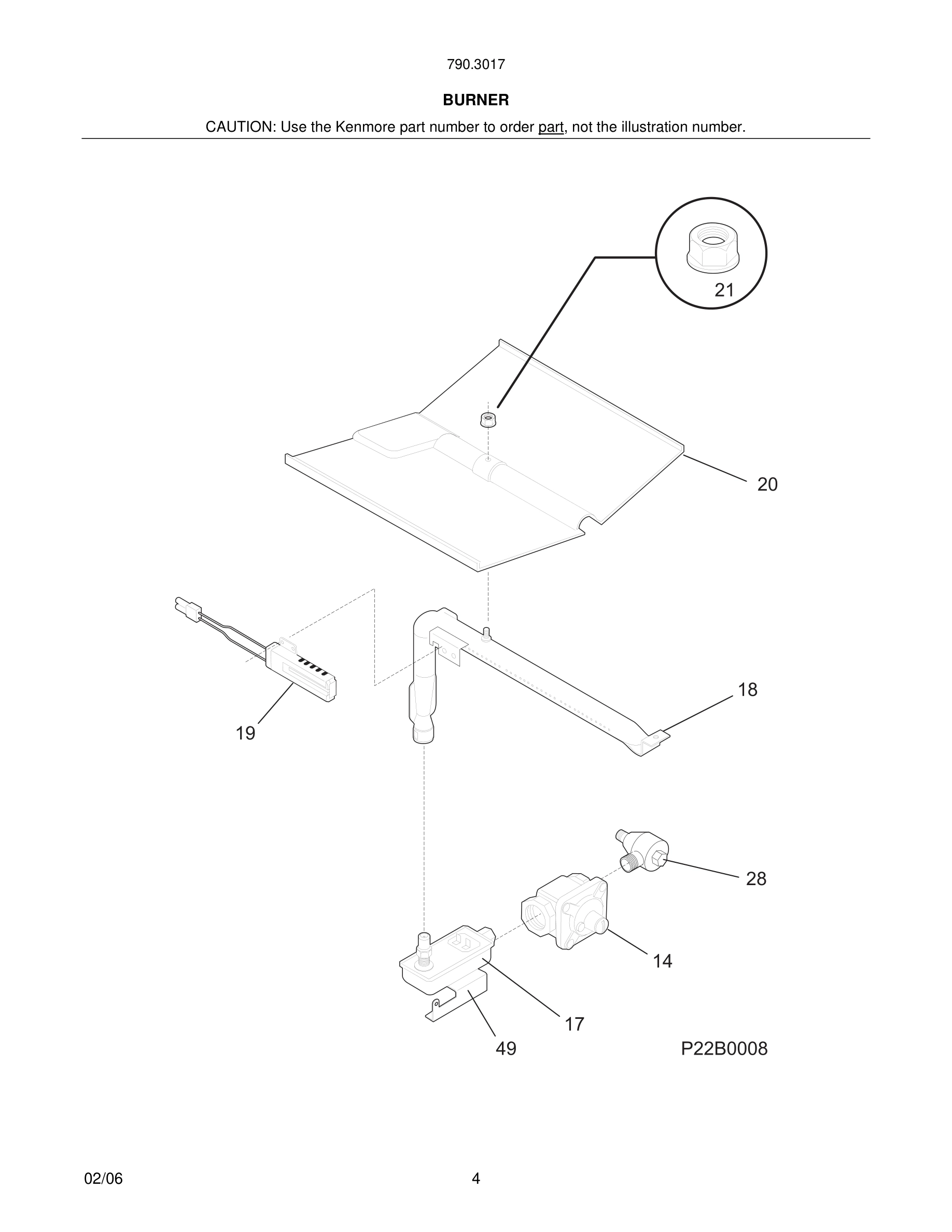

05 - BURNER

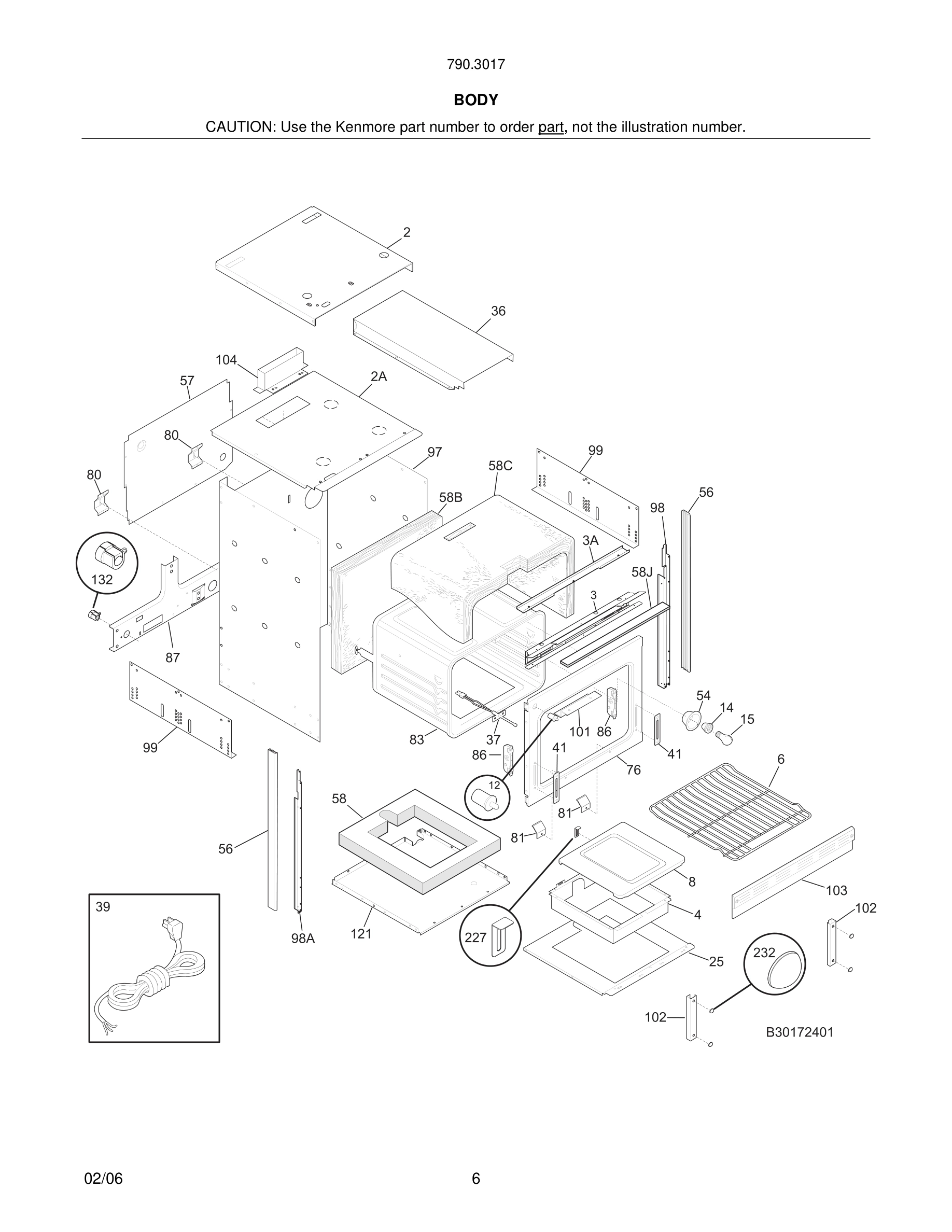

07 - BODY

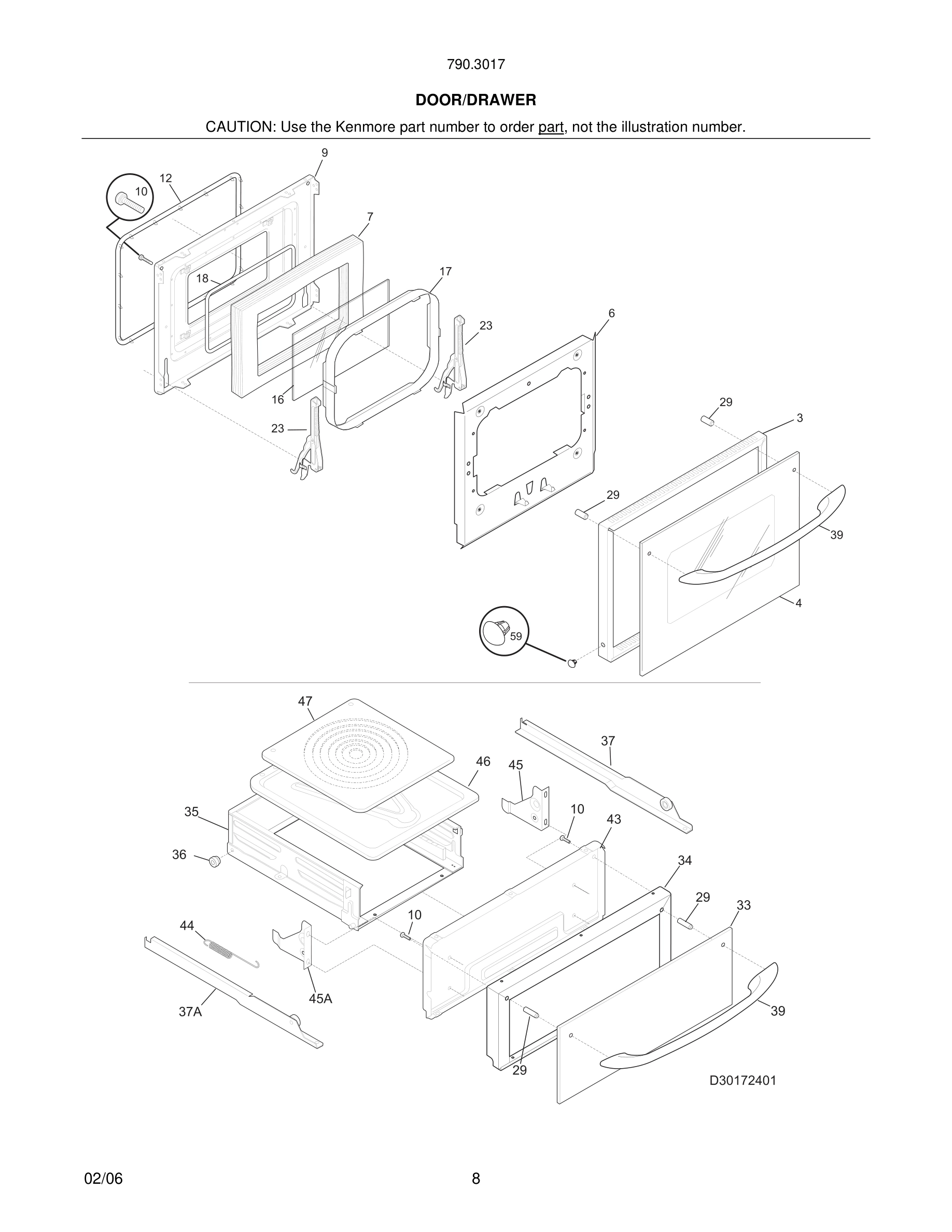

09 - DOOR/DRAWER

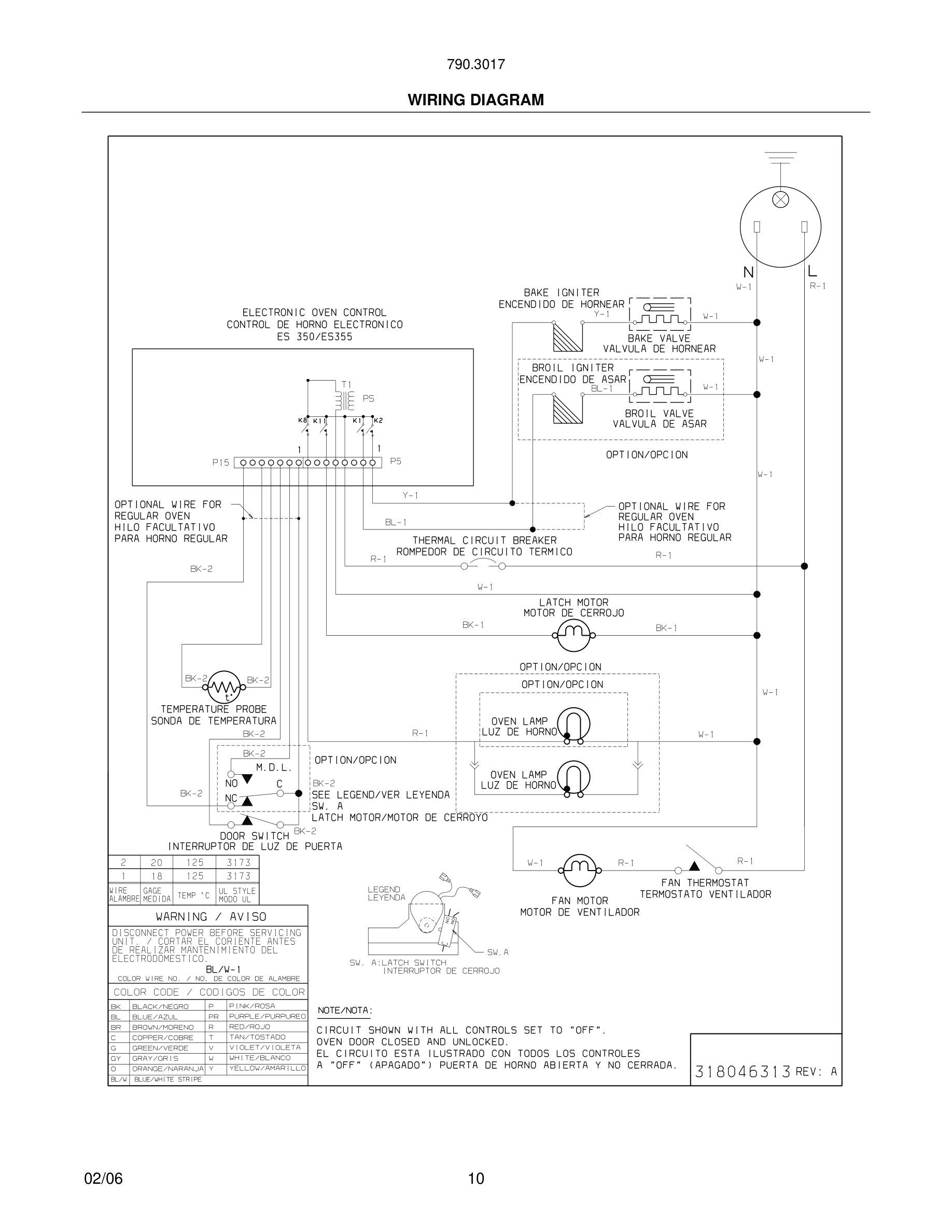

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.30172401 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Spacer, cork & rubber WCI 5303300414 Contact Us For Availability
3
Trim, frame, black WCI 318287400 Contact Us For Availability
4
Glass, oven door, white, outer WCI 318051528 Contact Us For Availability
4
Glass, oven door, black, outer WCI 318051530 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 318285086 Contact Us For Availability
8
Panel, oven bottom WCI 318121400 Contact Us For Availability
9
Liner, oven door, lower oven WCI 318156611 Contact Us For Availability
10
Screw, handle, door WCI 5303311217 Contact Us For Availability
12#
Seal, oven door, lower oven WCI 5303316768 Contact Us For Availability
14#
Regulator, pressure WCI 5303210167 Contact Us For Availability
16
Glass, door, inner WCI 318212400 Contact Us For Availability
17
Support, glass, lower oven WCI 318162611 Contact Us For Availability
17#
Valve, safety WCI 3203702 Contact Us For Availability
18
Gasket, door glass seal, inner, lower oven WCI 318053206 Contact Us For Availability
19
Control Panel Assy., w/membrane, white, & ove WCI 318284921 Contact Us For Availability
19
Control Panel Assy., w/membrane, black, & ove WCI 318284920 Contact Us For Availability
20
Baffle, oven burner WCI 3203676 Contact Us For Availability
23
Hinge, oven door, lower oven WCI 318024702 Contact Us For Availability
29
Spacer, door WCI 318014403 Contact Us For Availability
33
Glass, drawer, black, front WCI 318213601 Contact Us For Availability
33
Glass, drawer, white, front WCI 318213600 Contact Us For Availability
34
Panel, front frame WCI 318287000 Contact Us For Availability
39
Handle, door, white, oven WCI 318264411 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
43
Liner, broiler door WCI 318107802 Contact Us For Availability
44
Spring, broiler WCI 318088300 Contact Us For Availability
45
Hinge, broiler, RH WCI 318024400 Contact Us For Availability
45A
Hinge, broiler, LH WCI 318024401 Contact Us For Availability
46
Pan, broiler WCI 318126200 Contact Us For Availability
47
Insert, broiler pan WCI 318126300 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
83
Liner, oven assy WCI 318089403 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, safety valve WCI 5303308475 Contact Us For Availability
97
Wrapper, back & sides WCI 318066804 Contact Us For Availability
98
Trim, side, black, inner, RH WCI 318029362 Contact Us For Availability
98A
Trim, side, black, inner, LH WCI 318029363 Contact Us For Availability
101
Shield, vent WCI 5303308474 Contact Us For Availability
102
Support, oven front WCI 3203688 Contact Us For Availability
103
Trim, base, black, lower WCI 5303316735 Contact Us For Availability
103
Trim, base, white, lower WCI 5303316734 Contact Us For Availability
104
Flue WCI 318170200 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
227
Retainer, oven bottom WCI 5303323958 Contact Us For Availability
232
Bumper, base WCI 318147412 Contact Us For Availability
× ![]()
