Model Kenmore 790.15021401 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

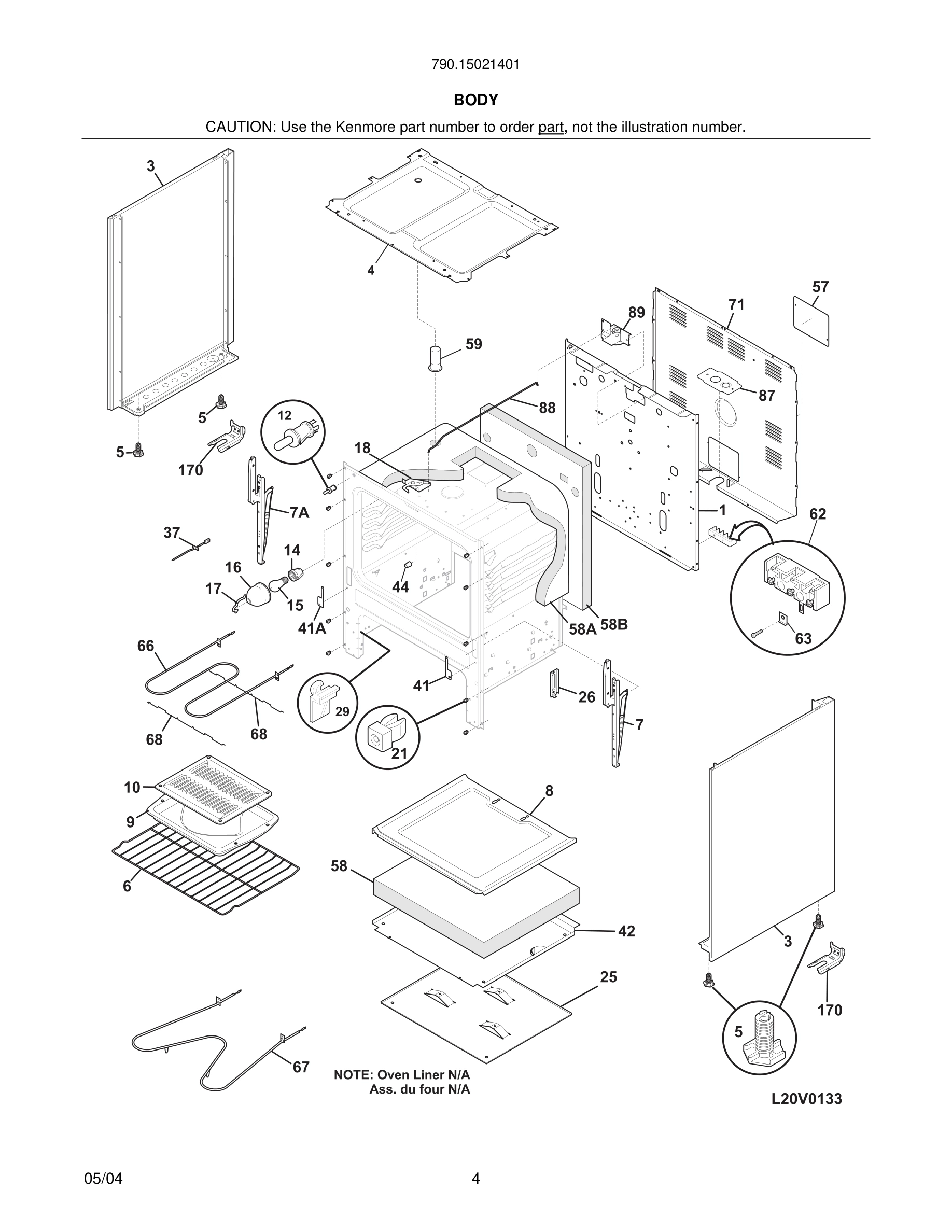

05 - BODY

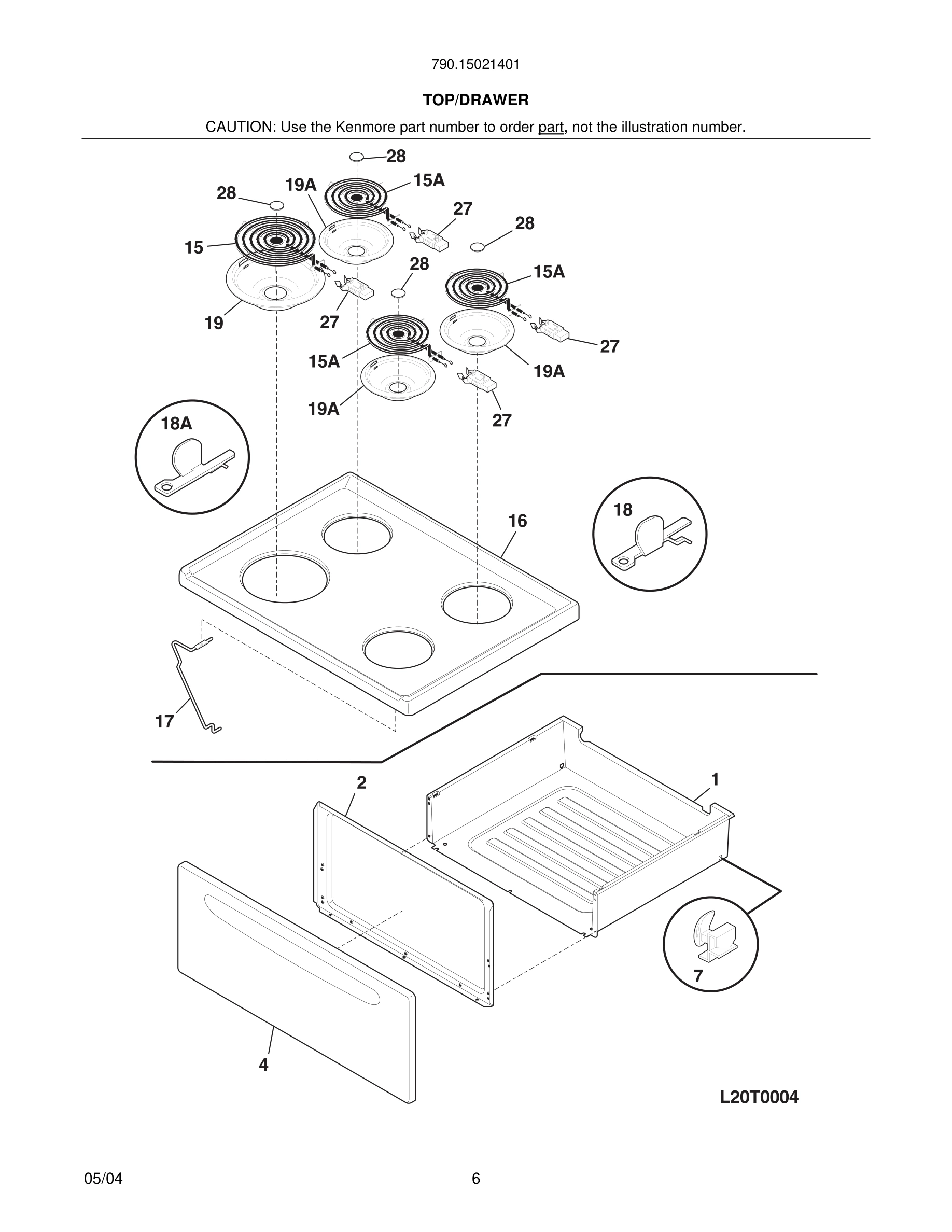

07 - TOP/DRAWER

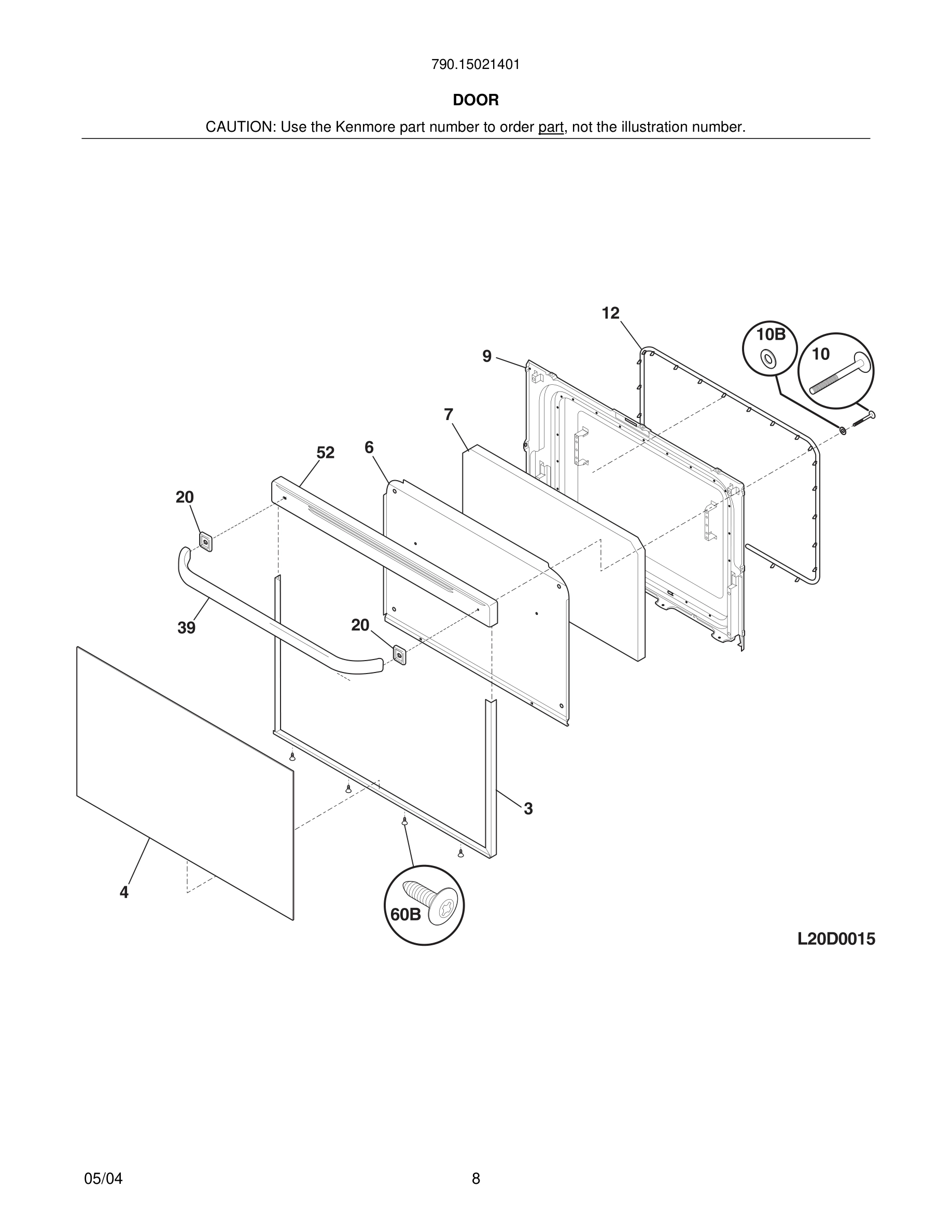

09 - DOOR

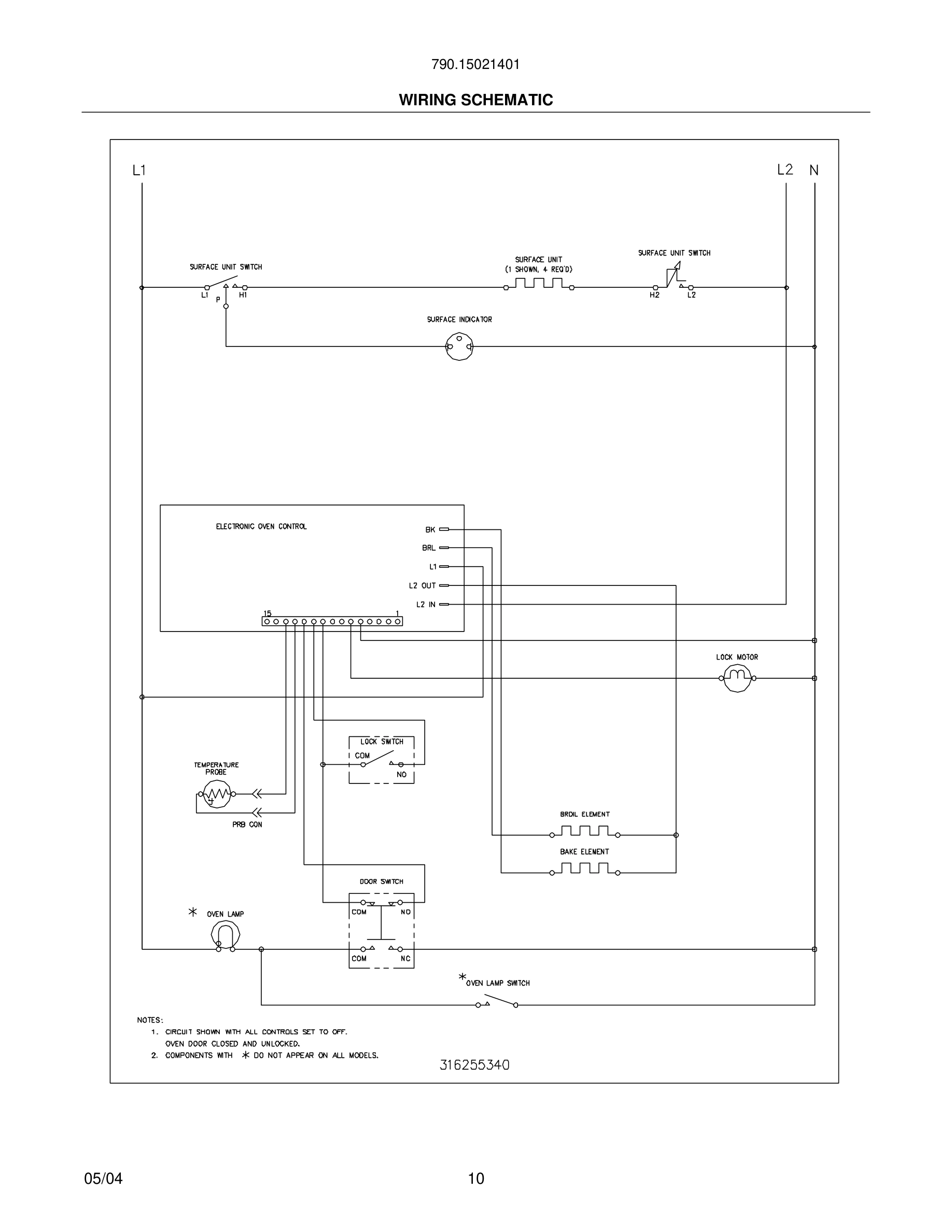

10 - WIRING SCHEMATIC

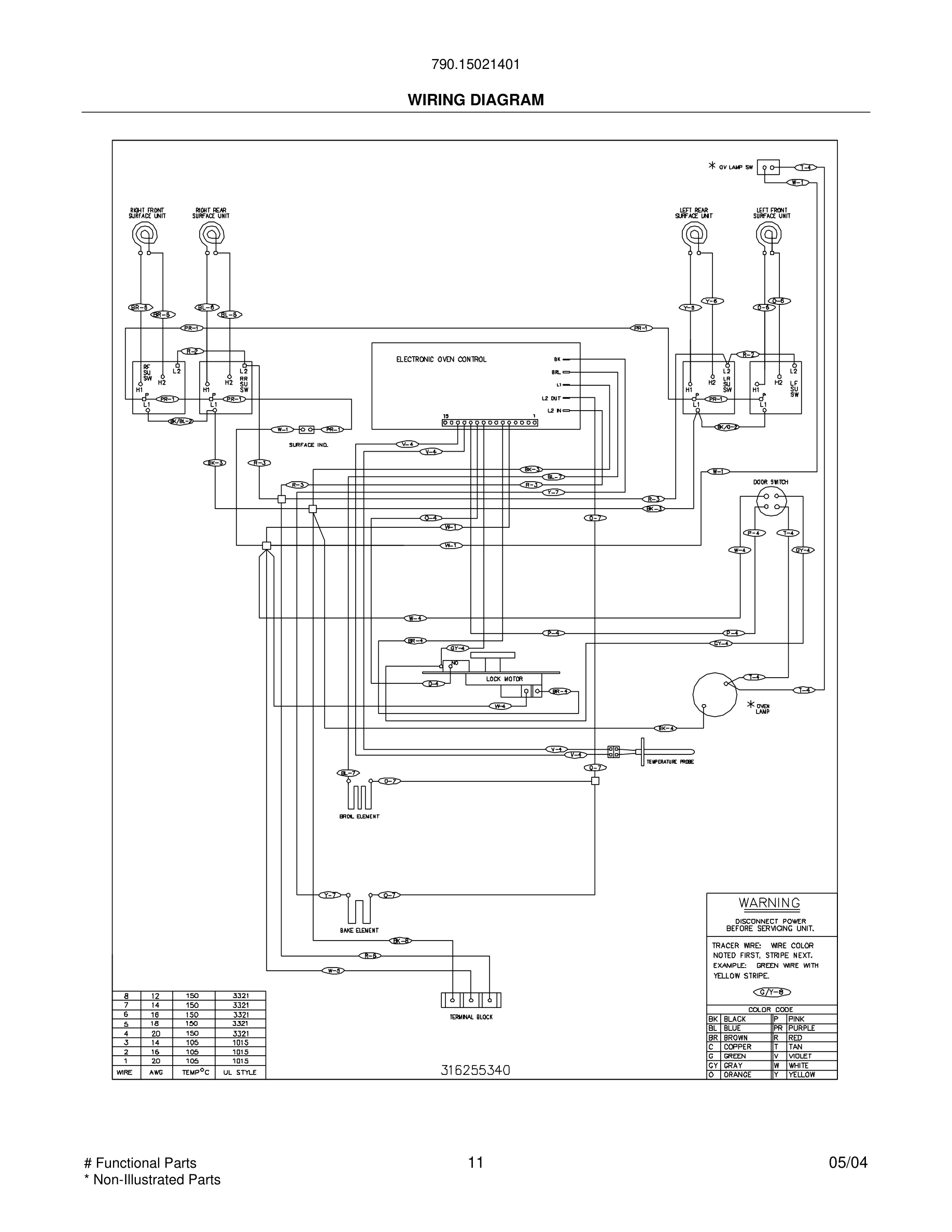

11 - WIRING DIAGRAM
Common parts from model Kenmore 790.15021401 RANGE
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
*
Screw, wafer hd sq dr, 10-32 x 0.312 WCI 5303280311 Contact Us For Availability
1
Drawer WCI 316011503 Contact Us For Availability
1
Shield, backguard, rear wall WCI 5303289640 Contact Us For Availability
2
Liner, drawer WCI 316231500 Contact Us For Availability
3
Trim kit-door, 3 sided, black, w/tape and foi WCI 5303935191 Contact Us For Availability
4
Panel, drawer, white WCI 316231305 Contact Us For Availability
4
Glass, oven door, black, outer WCI 316202801 Contact Us For Availability
5
Screw, leveling, plastic, with stop WCI 316129200 Contact Us For Availability
9
Pan, broiler WCI 316081900 Contact Us For Availability
10
Insert, broiler pan WCI 316082000 Contact Us For Availability
12#
Switch, oven light/door WCI 316209901 Contact Us For Availability
17
Rod, maintop support WCI 316066900 Contact Us For Availability
18#
Latch, oven door WCI 316213900 Contact Us For Availability
18A
Bracket, hinge, main top LH WCI 08067746 Contact Us For Availability
20
Spacer, handle, black, (2) WCI 316248400 Contact Us For Availability
20#
Clock/Timer, electronic, ES200 WCI 316207510 Contact Us For Availability
21
Spacer, bodyside WCI 3014099 Contact Us For Availability
41
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
44
Spacer, oven door WCI 316246500 Contact Us For Availability
58A
Insulation, 2", oven wrapper WCI 316047708 Contact Us For Availability
59
Tube, oven vent WCI 316073604 Contact Us For Availability
× ![]()
