Model Kenmore 790.15011401 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

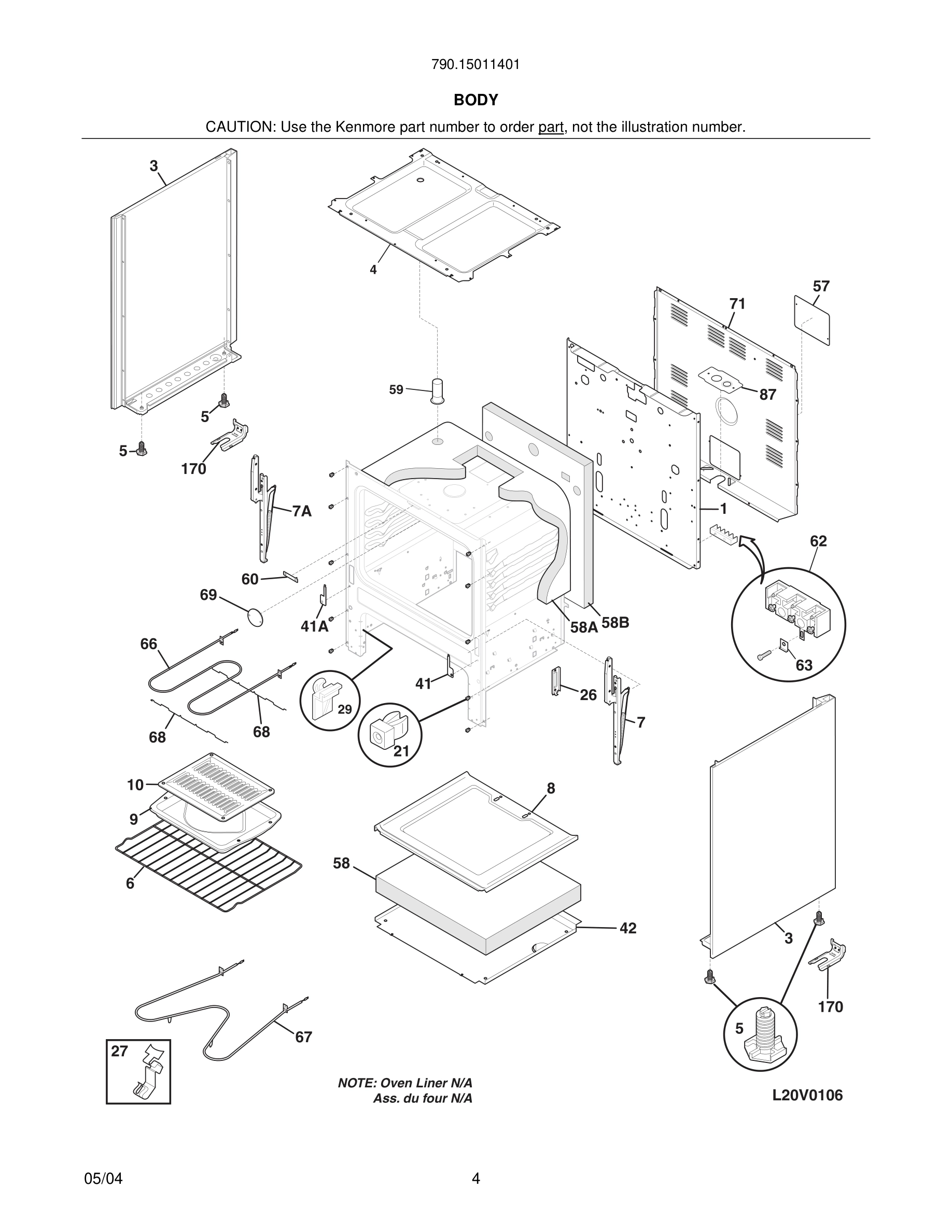

05 - BODY

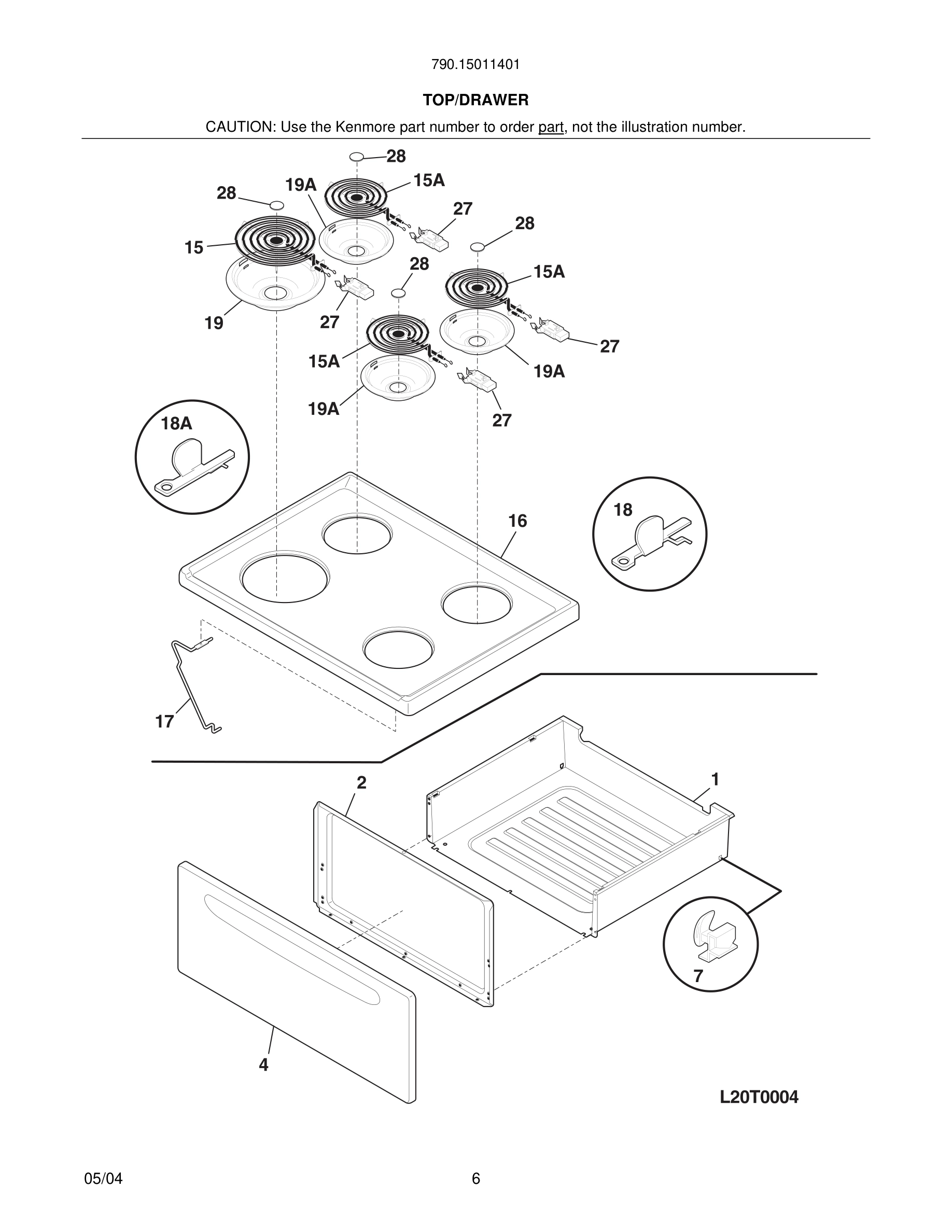

07 - TOP/DRAWER

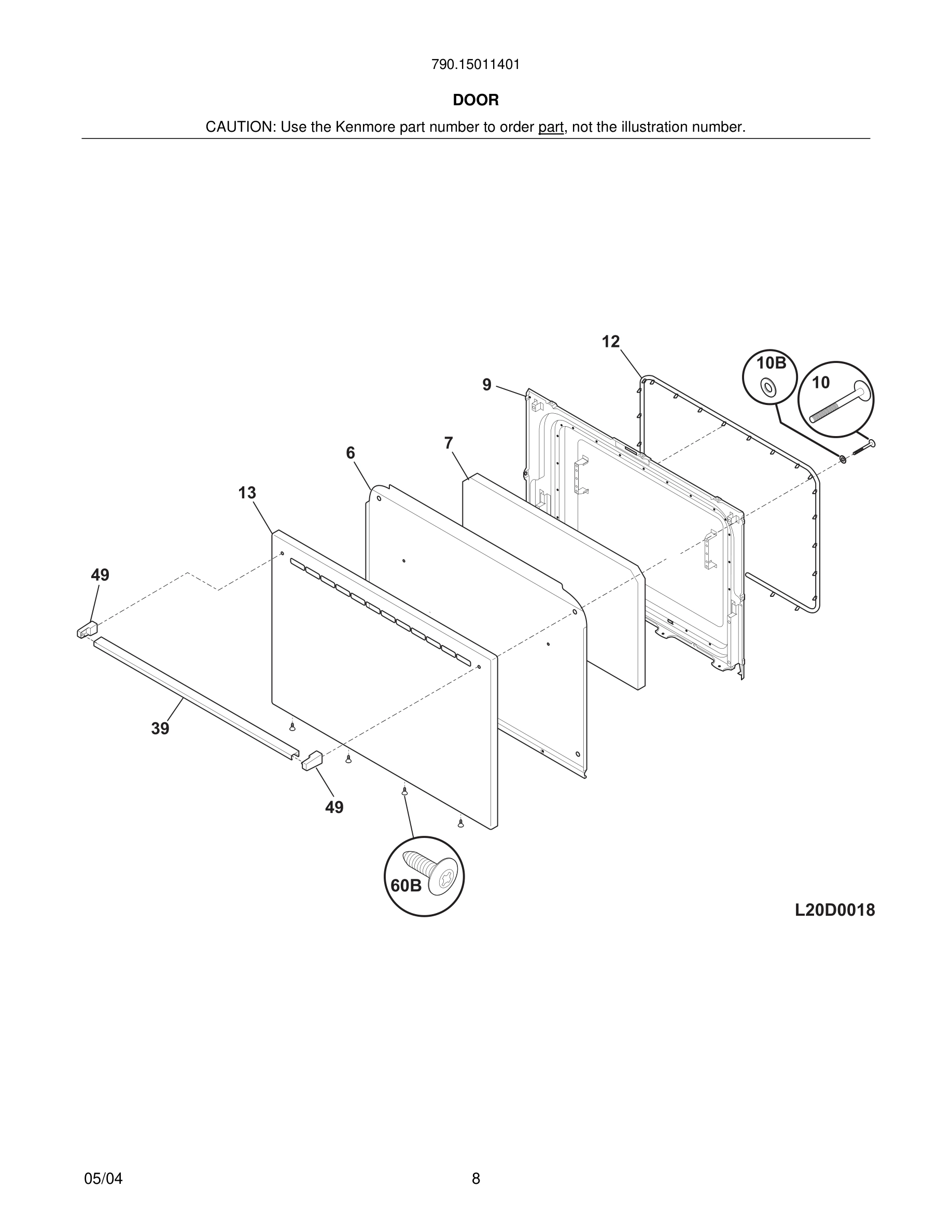

09 - DOOR

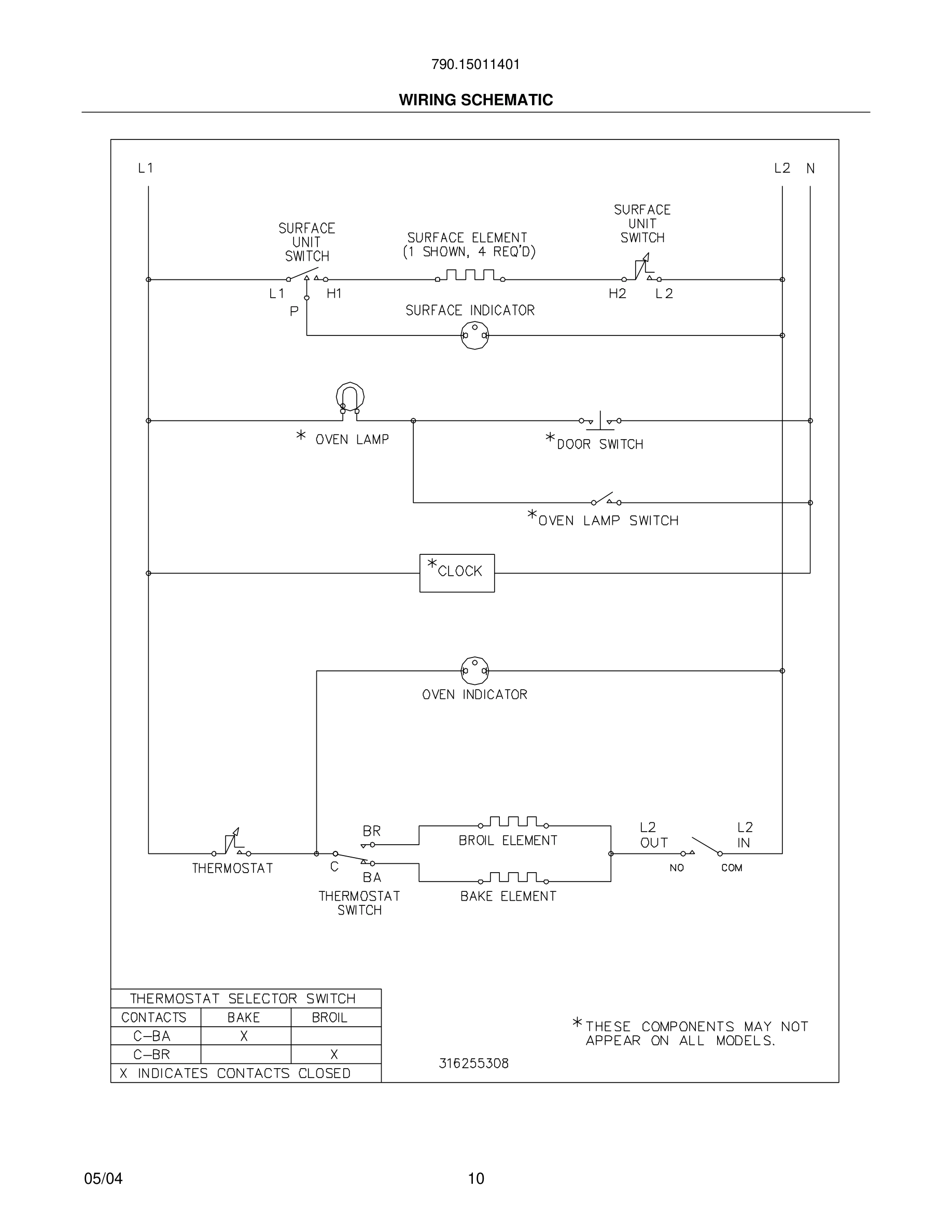

10 - WIRING SCHEMATIC

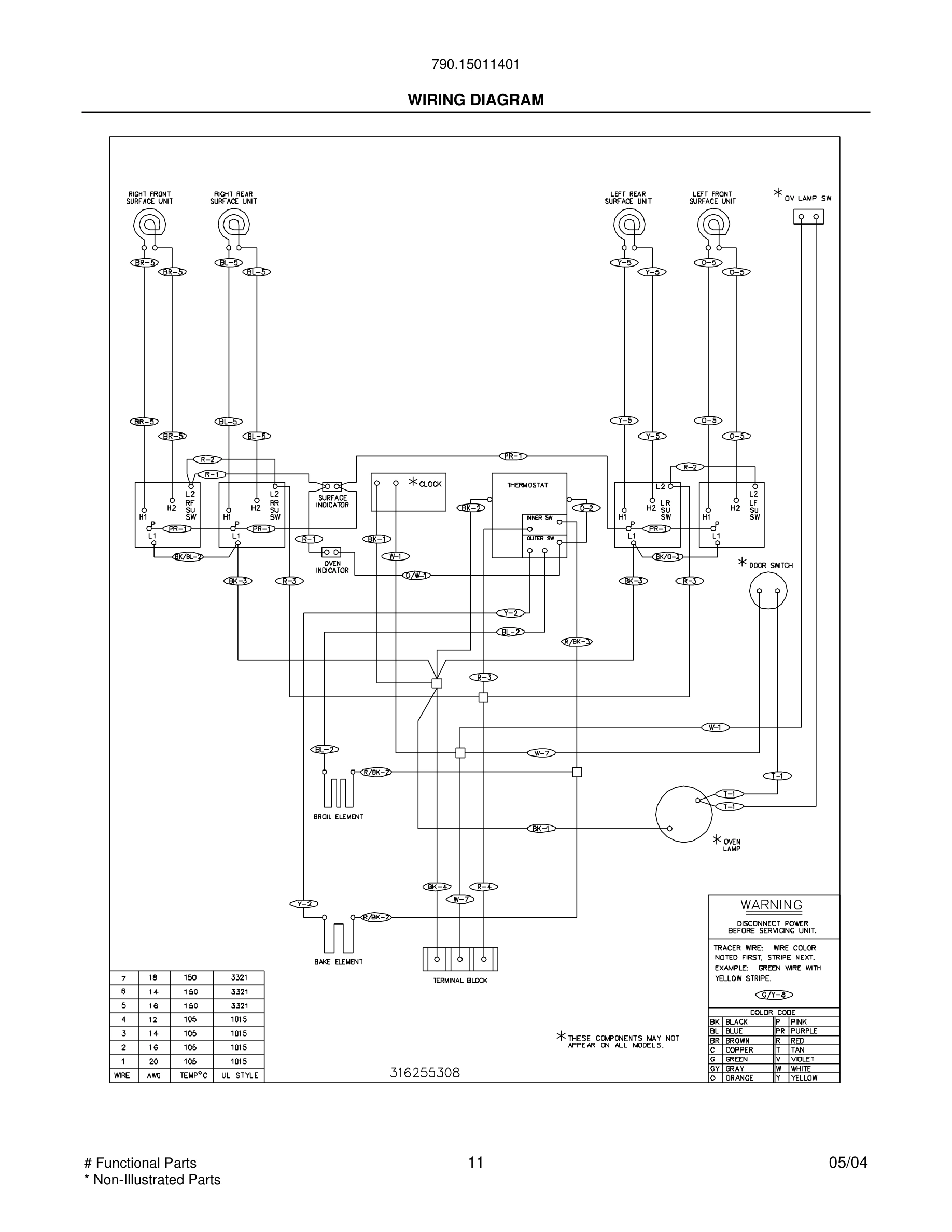

11 - WIRING DIAGRAM
Common parts from model Kenmore 790.15011401 RANGE
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
*
Plug, button, oven probe WCI 316246400 Contact Us For Availability
*
Screw, wafer hd sq dr, 10-32 x 0.312 WCI 5303280311 Contact Us For Availability
1
Drawer WCI 316011503 Contact Us For Availability
1
Shield, backguard, rear wall WCI 5303289640 Contact Us For Availability
2
Liner, drawer WCI 316231500 Contact Us For Availability
4
Panel, drawer, white WCI 316231305 Contact Us For Availability
5
Screw, leveling, plastic, with stop WCI 316129200 Contact Us For Availability
7
Insulation, oven door WCI 316236801 Contact Us For Availability
9
Pan, broiler WCI 316081900 Contact Us For Availability
10
Insert, broiler pan WCI 316082000 Contact Us For Availability
17
Rod, maintop support WCI 316066900 Contact Us For Availability
18A
Bracket, hinge, main top LH WCI 08067746 Contact Us For Availability
21
Spacer, bodyside WCI 3014099 Contact Us For Availability
23
Bracket, clock mtg, RH WCI 316263500 Contact Us For Availability
23A
Bracket, clock mtg, LH WCI 316263501 Contact Us For Availability
39
Handle, door, black, oven WCI 316020204 Contact Us For Availability
41
Cover, hinge cutout, RH WCI 316233400 Contact Us For Availability
× ![]()
