Model Maytag 7898VRV ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY (LOWER)
02 - BODY (UPPER)

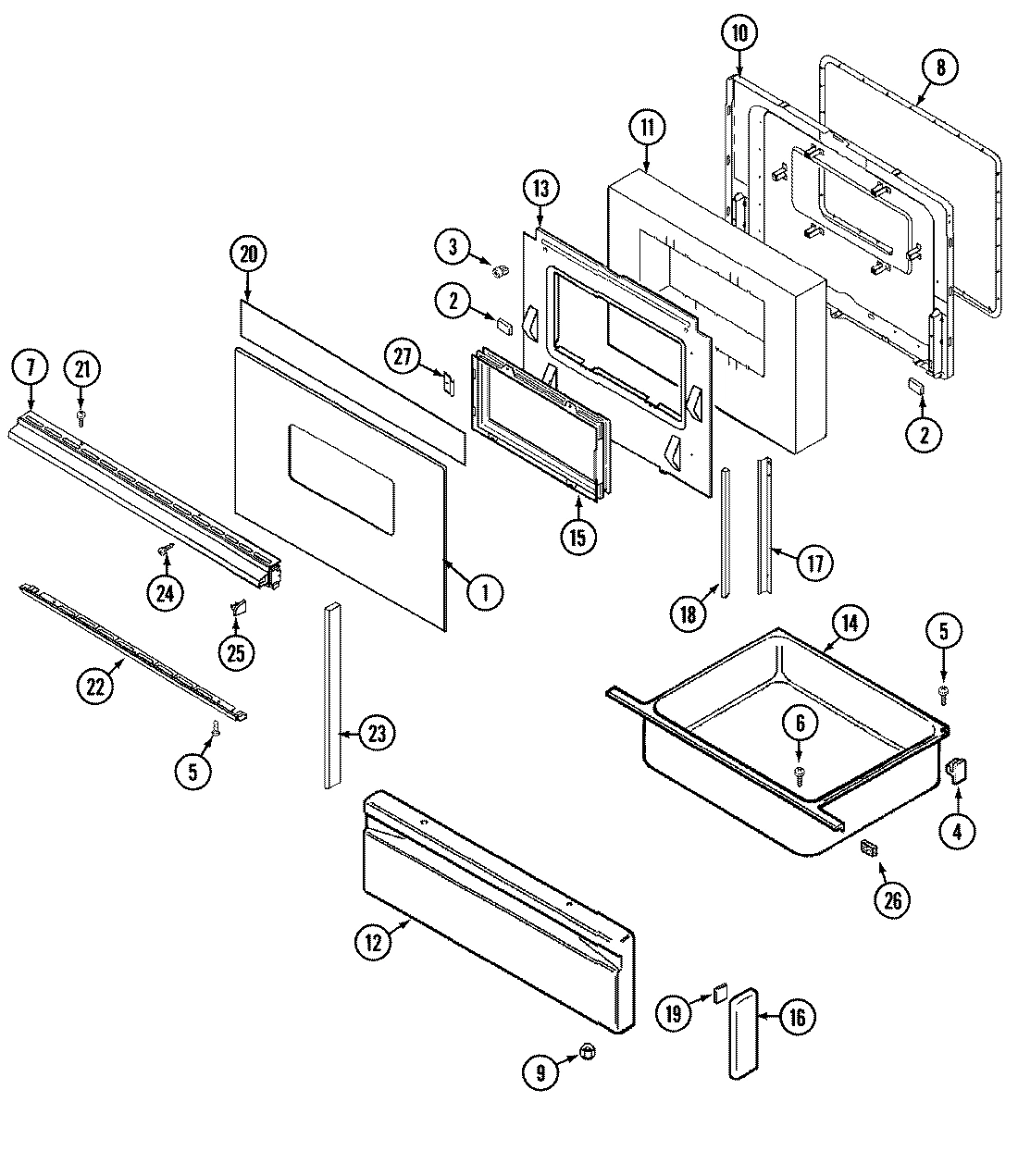

03 - DOOR/DRAWER

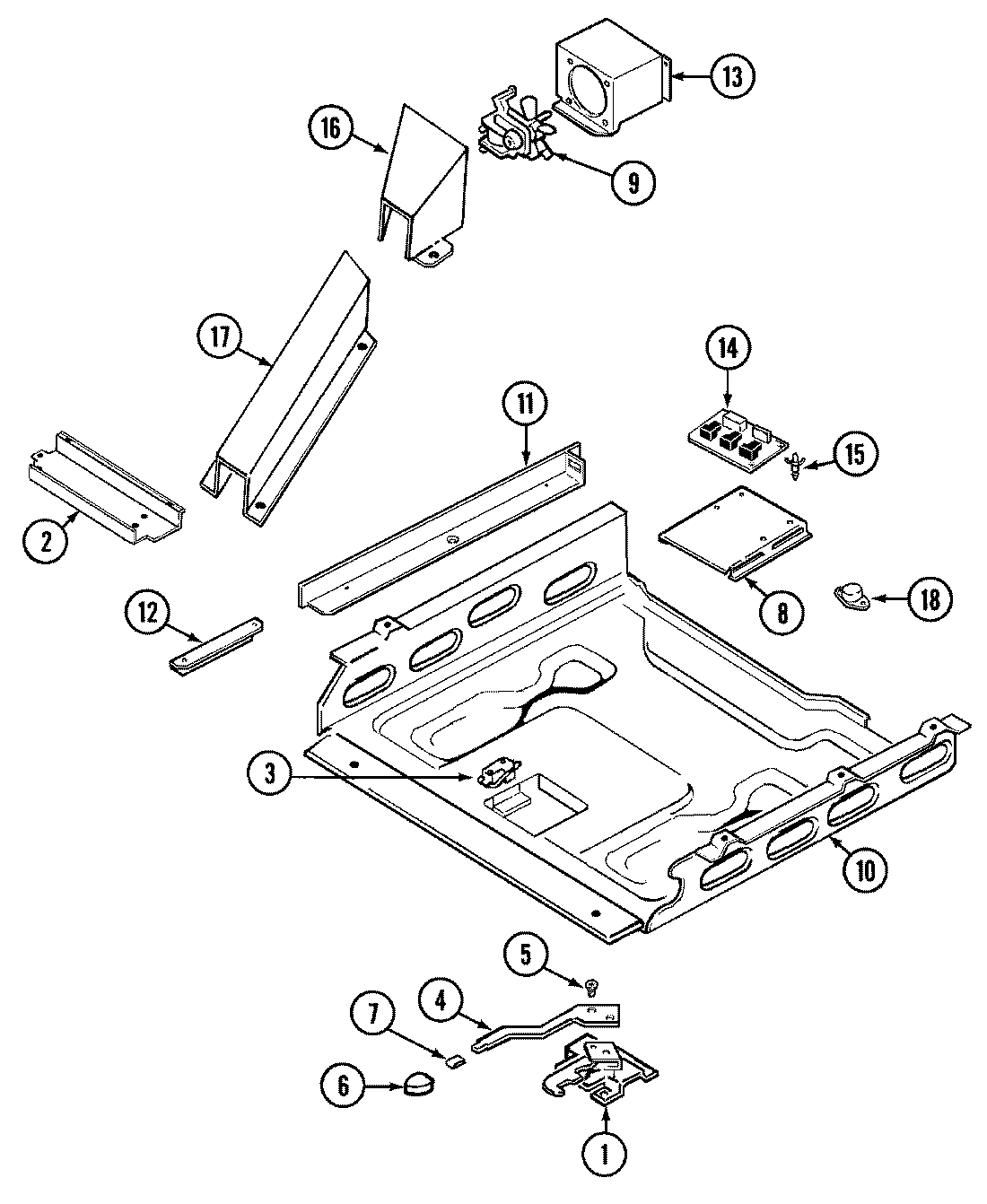

04 - INTERNAL CONTROLS
05 - MICROWAVE
06 - OVEN (LOWER)

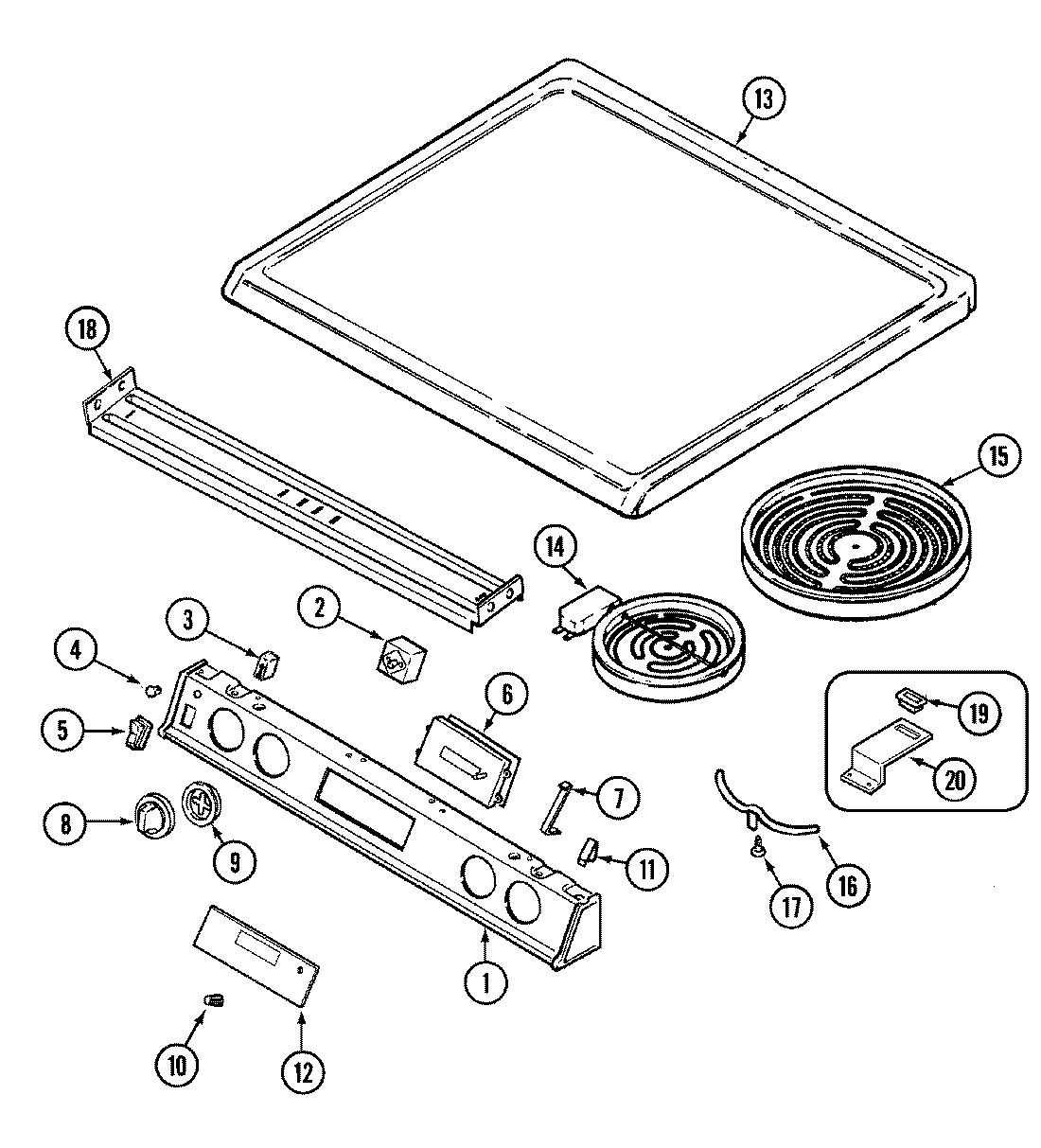

07 - TOP ASSEMBLY

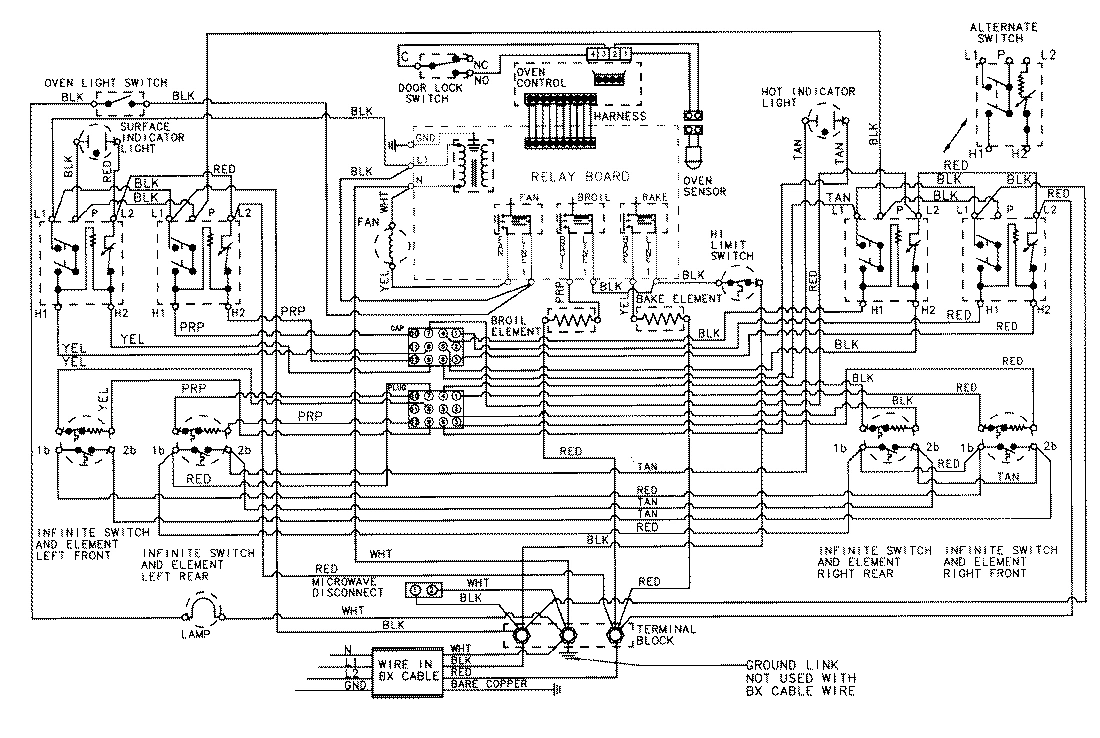

08 - WIRING INFORMATION
Common parts from model Maytag 7898VRV ELECTRIC RANGE
1
MAY 4002F183-80 MAY 4002F183-80 Contact Us For Availability
1
MAY 7902P328-60 MAY 7902P328-60 Contact Us For Availability
1
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
1
MAY 7101P209-60 MAY 7101P209-60 Contact Us For Availability
1
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
1
MAY 7722P120-60 MAY 7722P120-60 Contact Us For Availability
2
MAY 3801F103-51 MAY 3801F103-51 Contact Us For Availability
2
MAY 7408P038-60 MAY 7408P038-60 Contact Us For Availability
2
MAY 7416P002-60 MAY 7416P002-60 Contact Us For Availability
2
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
2
MAY 3818F055-51 MAY 3818F055-51 Contact Us For Availability
2
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
2
MAY 7406P065-60 MAY 7406P065-60 Contact Us For Availability
3
MAY 3818F057-51 MAY 3818F057-51 Contact Us For Availability
3
MAY 7105P003-60 MAY 7105P003-60 Contact Us For Availability
3
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
3
MAY 7101P031-60 MAY 7101P031-60 Contact Us For Availability
3
MAY 7403P228-60 MAY 7403P228-60 Contact Us For Availability
3
MAY 7406P064-60 MAY 7406P064-60 Contact Us For Availability
3
MAY W10127320 MAY W10127320 Contact Us For Availability
4
MAY 7756P089-60 MAY 7756P089-60 Contact Us For Availability
4
MAY 8009P023-60 MAY 8009P023-60 Contact Us For Availability
4
NOT REQUIRED PART OR SEE NOTE FOR M/W PARTS S MAY W10124350 Contact Us For Availability
4
MAY 7801P046-60 MAY 7801P046-60 Contact Us For Availability
5
MAY 7706P165-60 MAY 7706P165-60 Contact Us For Availability
5
MAY 7706P290-60 MAY 7706P290-60 Contact Us For Availability
5
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
5
MAY 7116P003-60 MAY 7116P003-60 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
6
MAY 4005F420-80 MAY 4005F420-80 Contact Us For Availability
6
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
6
MAY 7902P382-60 MAY 7902P382-60 Contact Us For Availability
6
MAY 7701P133-60 MAY 7701P133-60 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 7601P207-60 MAY 7601P207-60 Contact Us For Availability
7
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
7
MAY 2620W057-81 MAY 2620W057-81 Contact Us For Availability
7
MAY 2620W057-84 MAY 2620W057-84 Contact Us For Availability
7
MAY 7701P105-60 MAY 7701P105-60 Contact Us For Availability
7
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
7
MAY 3801F222-45 MAY 3801F222-45 Contact Us For Availability
8
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
8
MAY 2618F092-32 MAY 2618F092-32 Contact Us For Availability
8
MAY 2618F093-32 MAY 2618F093-32 Contact Us For Availability
8
MAY 4005F401-51 MAY 4005F401-51 Contact Us For Availability
8
MAY 7407P095-60 MAY 7407P095-60 Contact Us For Availability
8
MAY 7731P081-60 MAY 7731P081-60 Contact Us For Availability
9
MAY 4804F029-60 MAY 4804F029-60 Contact Us For Availability
9
MAY 4804F030-60 MAY 4804F030-60 Contact Us For Availability
9
MAY 3804F043-45 MAY 3804F043-45 Contact Us For Availability
9
MAY 3804F044-45 MAY 3804F044-45 Contact Us For Availability
9
MAY 7427P012-60 MAY 7427P012-60 Contact Us For Availability
9
MAY 3601F202-45 MAY 3601F202-45 Contact Us For Availability
9
MAY 7740P023-60 MAY 7740P023-60 Contact Us For Availability
10
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
10
MAY 2618F043-30 MAY 2618F043-30 Contact Us For Availability
10
MAY 2618F044-30 MAY 2618F044-30 Contact Us For Availability
10
MAY 74001058 MAY 74001058 Contact Us For Availability
10
MAY 4011F204-80 MAY 4011F204-80 Contact Us For Availability
10
MAY 7711P432-60 MAY 7711P432-60 Contact Us For Availability
11
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
11
MAY 7720P166-60 MAY 7720P166-60 Contact Us For Availability
11
MAY 7720P167-60 MAY 7720P167-60 Contact Us For Availability
11
MAY 74001842 MAY 74001842 Contact Us For Availability
11
MAY 3604F173-51 MAY 3604F173-51 Contact Us For Availability
11
MAY 3604F174-51 MAY 3604F174-51 Contact Us For Availability
11
MAY 3826W015-45 MAY 3826W015-45 Contact Us For Availability
11
MAY 4005F403-51 MAY 4005F403-51 Contact Us For Availability
11
MAY 4006W112-45 MAY 4006W112-45 Contact Us For Availability
11
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
11
MAY 7112P102-60 MAY 7112P102-60 Contact Us For Availability
12
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
12
MAY 7720P083-60 MAY 7720P083-60 Contact Us For Availability
12
MAY 2416F038-62 MAY 2416F038-62 Contact Us For Availability
12
MAY 3801F327-51 MAY 3801F327-51 Contact Us For Availability
12
MAY 7201P055-60 MAY 7201P055-60 Contact Us For Availability
13
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
13
MAY 3601F236-45 MAY 3601F236-45 Contact Us For Availability
13
MAY 4001F080-51 MAY 4001F080-51 Contact Us For Availability
13
MAY 5706M105-81 MAY 5706M105-81 Contact Us For Availability
14
MAY 7428P009-60 MAY 7428P009-60 Contact Us For Availability
14
MAY 12500041 MAY 12500041 Contact Us For Availability
14
MAY 4005F422-51 MAY 4005F422-51 Contact Us For Availability
14
MAY 3405F014-80 MAY 3405F014-80 Contact Us For Availability
14
MAY 7406P074-60 MAY 7406P074-60 Contact Us For Availability
15
MAY 4020W011-80 MAY 4020W011-80 Contact Us For Availability
15
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
15
MAY 8004P032-60 MAY 8004P032-60 Contact Us For Availability
15
MAY 12500040 MAY 12500040 Contact Us For Availability
15
MAY 7406P073-60 MAY 7406P073-60 Contact Us For Availability
16
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
16
MAY 7744P067-60 MAY 7744P067-60 Contact Us For Availability
16
MAY 3818F056-51 MAY 3818F056-51 Contact Us For Availability
16
MAY 8004P015-60 MAY 8004P015-60 Contact Us For Availability
17
MAY 8004P025-60 MAY 8004P025-60 Contact Us For Availability
17
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
17
MAY 3818F053-51 MAY 3818F053-51 Contact Us For Availability
17
MAY 3818F054-51 MAY 3818F054-51 Contact Us For Availability
18
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
18
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
18
MAY 7403P307-60 MAY 7403P307-60 Contact Us For Availability
18
MAY 3807F390-45 MAY 3807F390-45 Contact Us For Availability
19
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
19
TAPE MAY 8270P098-60 Contact Us For Availability
19
MAY 7407P074-60 MAY 7407P074-60 Contact Us For Availability
20
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
20
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
21
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
21
MAY 7101P308-60 MAY 7101P308-60 Contact Us For Availability
21
MAY 3801F312-45 MAY 3801F312-45 Contact Us For Availability
21
MAY 5170P138-60 MAY 5170P138-60 Contact Us For Availability
21
MAY 5170P147-60 MAY 5170P147-60 Contact Us For Availability
21
MAY 5175D076-60 MAY 5175D076-60 Contact Us For Availability
21
MAY 5195D099-60 MAY 5195D099-60 Contact Us For Availability
22
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
22
MAY 7744P103-60 MAY 7744P103-60 Contact Us For Availability
22
MAY 8112P105-60 MAY 8112P105-60 Contact Us For Availability
22
MAY 8113P029-60 MAY 8113P029-60 Contact Us For Availability
22
MAY 8113P041-60 MAY 8113P041-60 Contact Us For Availability
23
MAY 7744P065-60 MAY 7744P065-60 Contact Us For Availability
23
MAY 16000329 MAY 16000329 Contact Us For Availability
25
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
25
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
25
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
26
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
27
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
NI
MAY 15002061 MAY 15002061 Contact Us For Availability
× ![]()
