Model Maytag 7858XVW ELECTRIC WALL OVEN – Common Parts & Diagrams
01 - BODY (UPPER)
02 - BODY-LOWER

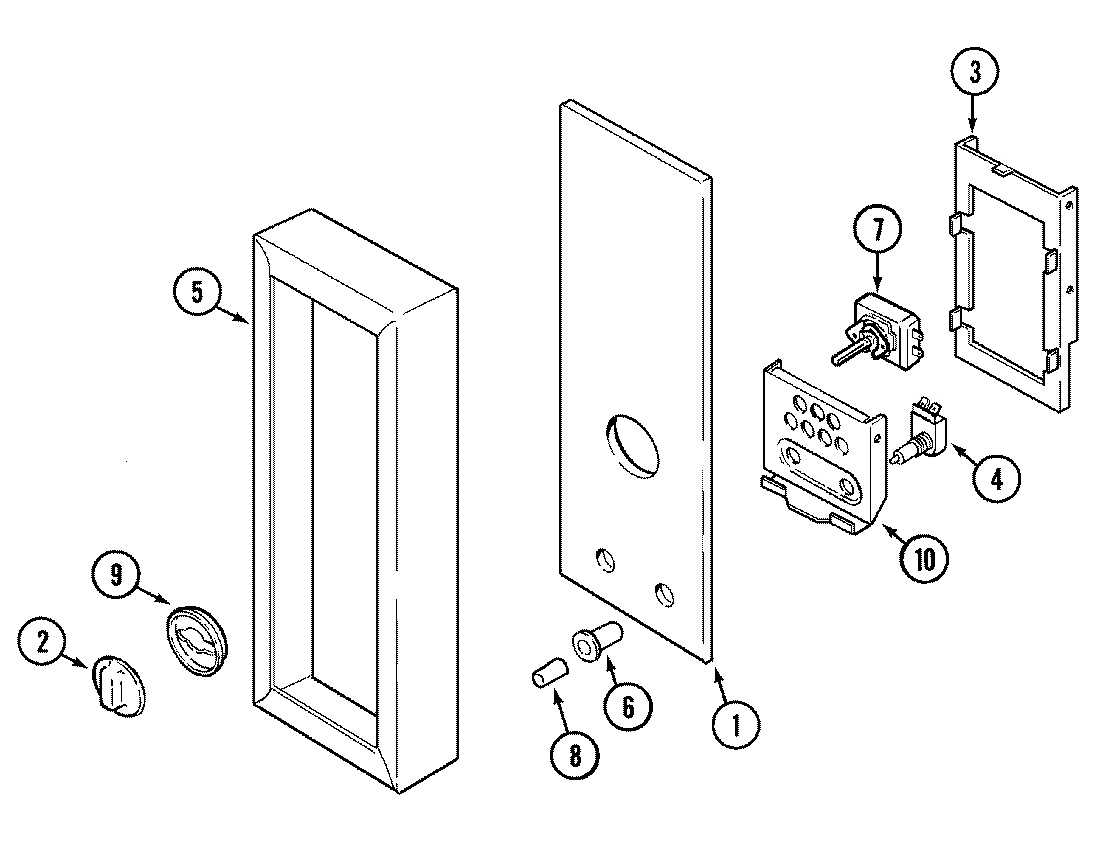

03 - CONTROLS (UPPER)

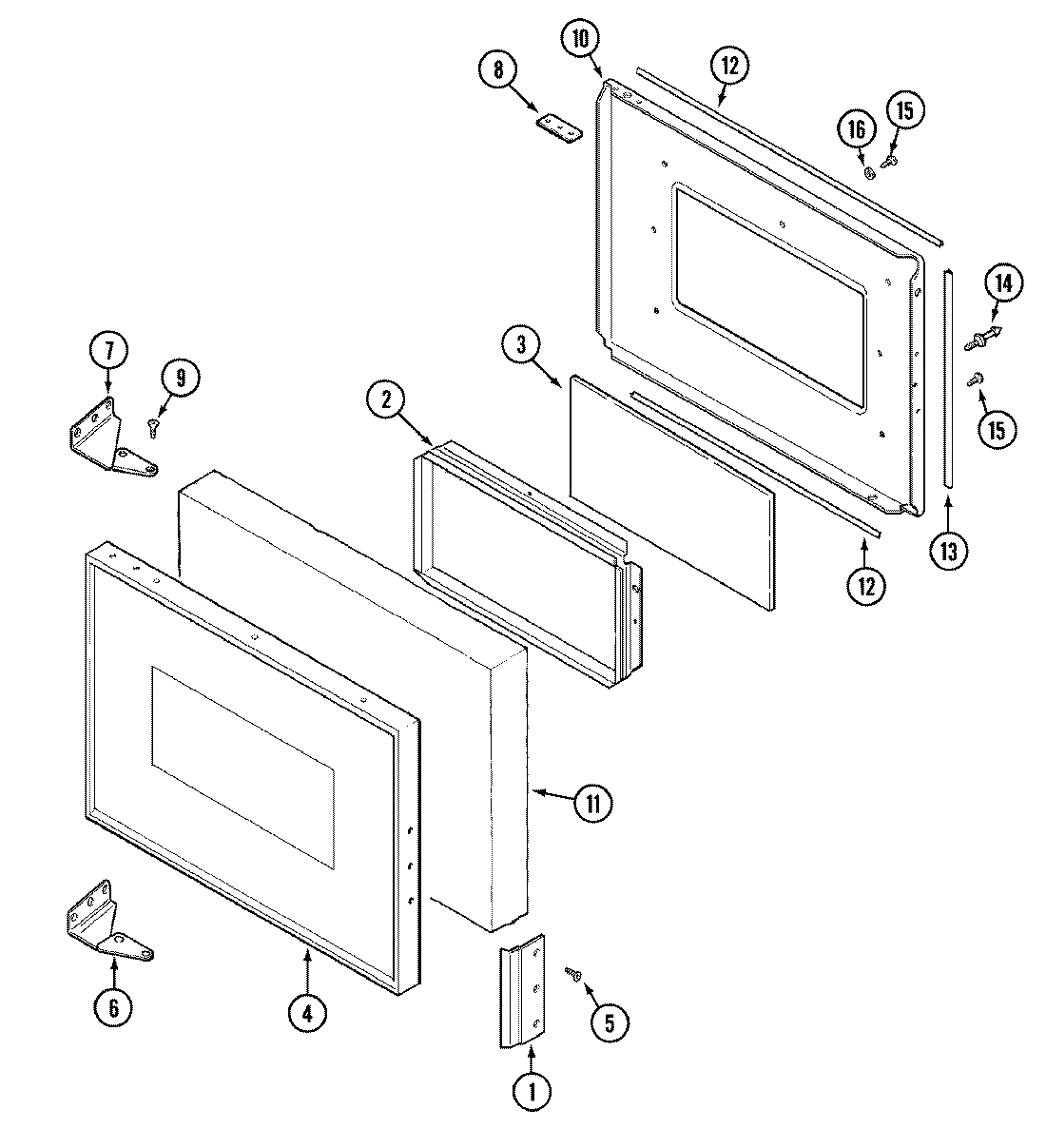

04 - DOOR (UPPER)

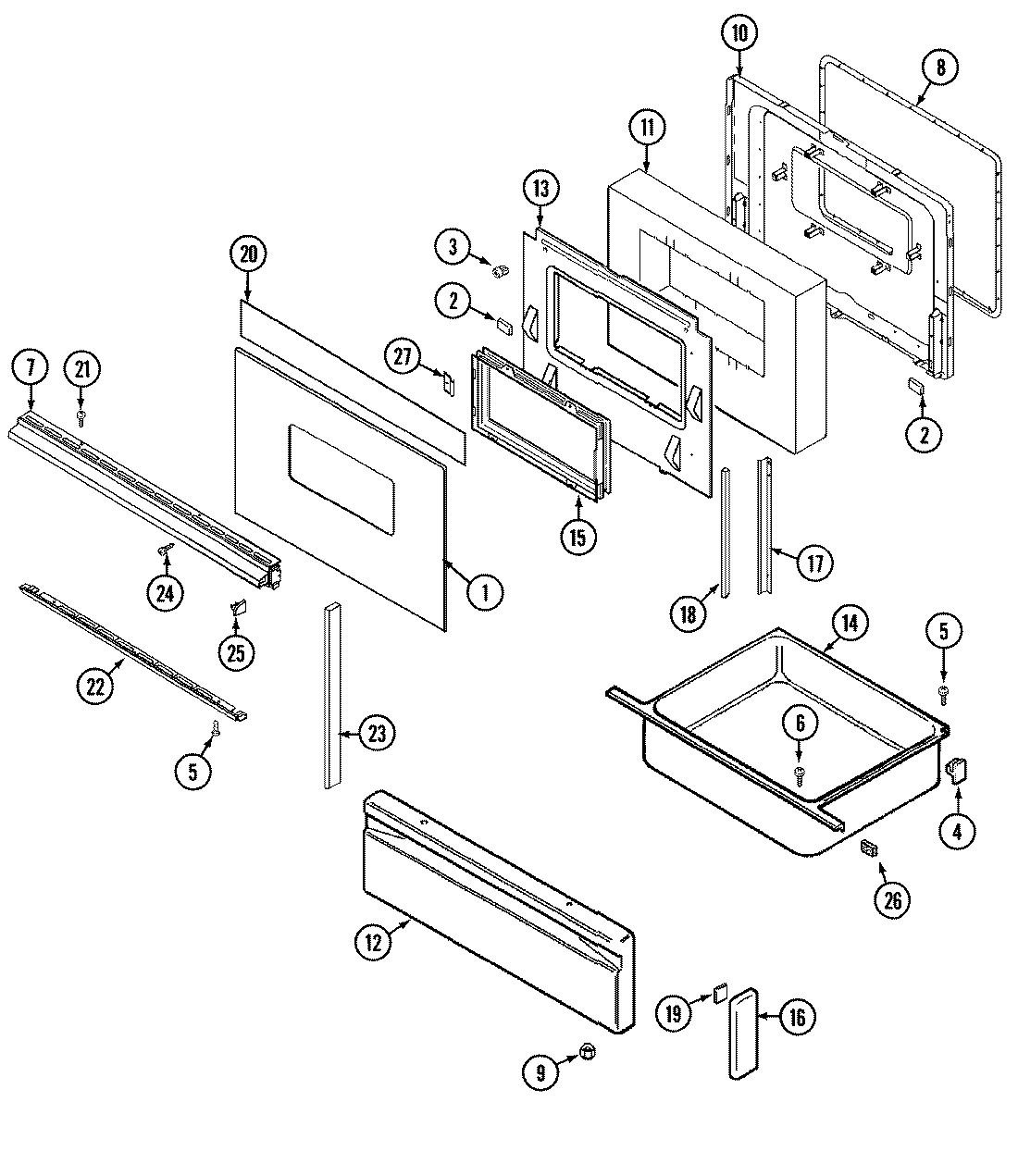

05 - DOOR/DRAWER

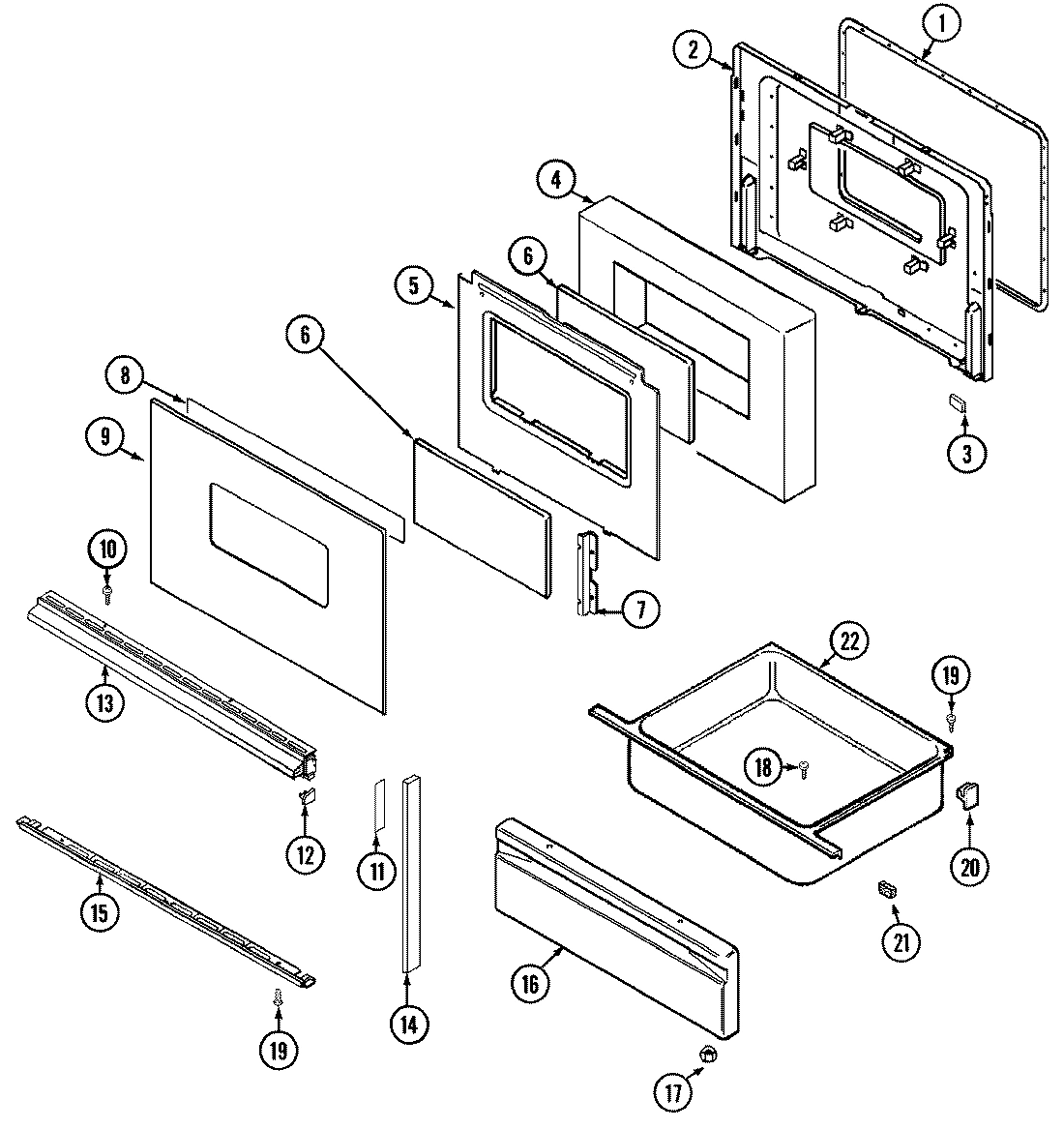

06 - DOOR/DRAWER (SER. PRE. 11)

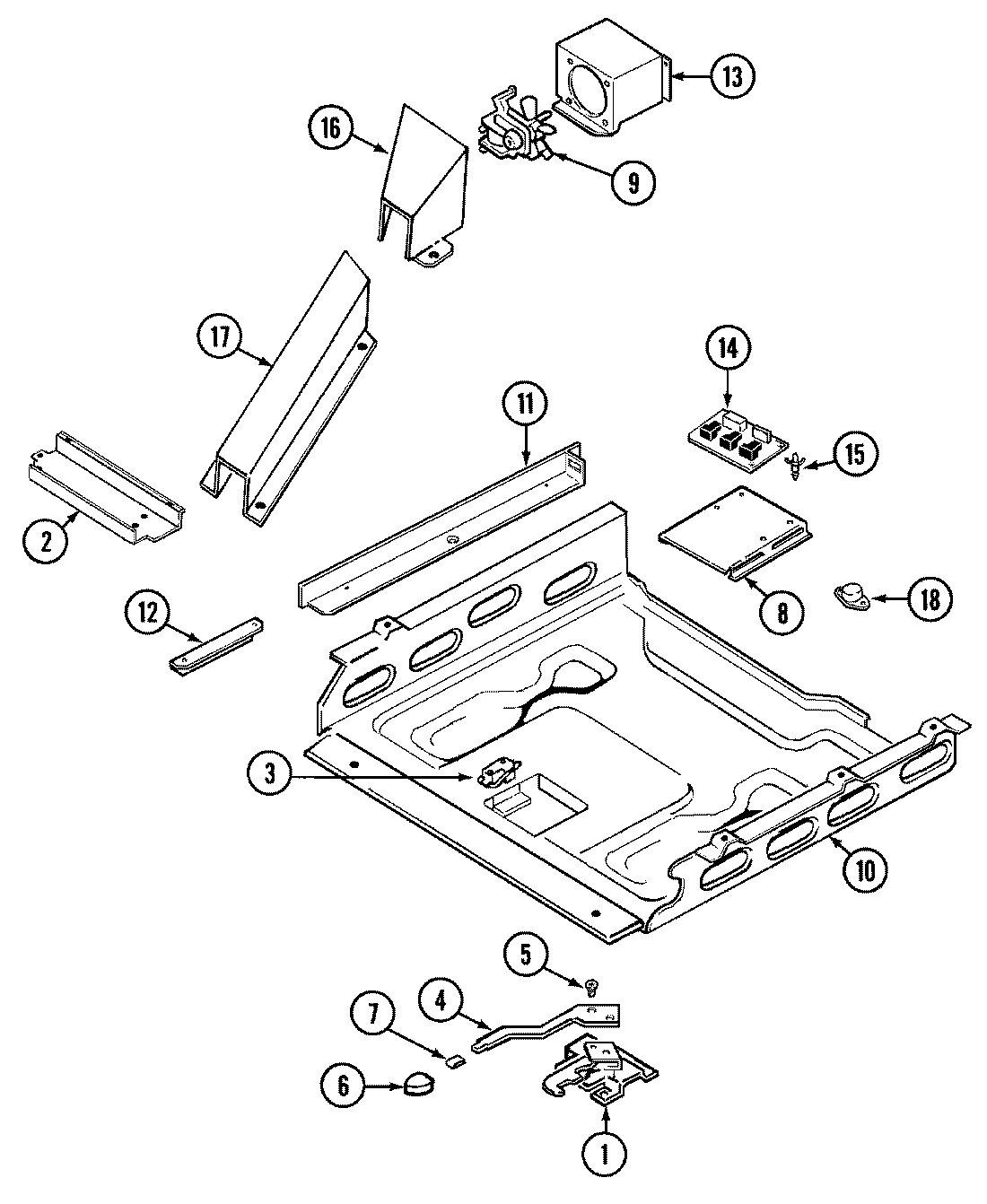

07 - INTERNAL CONTROLS

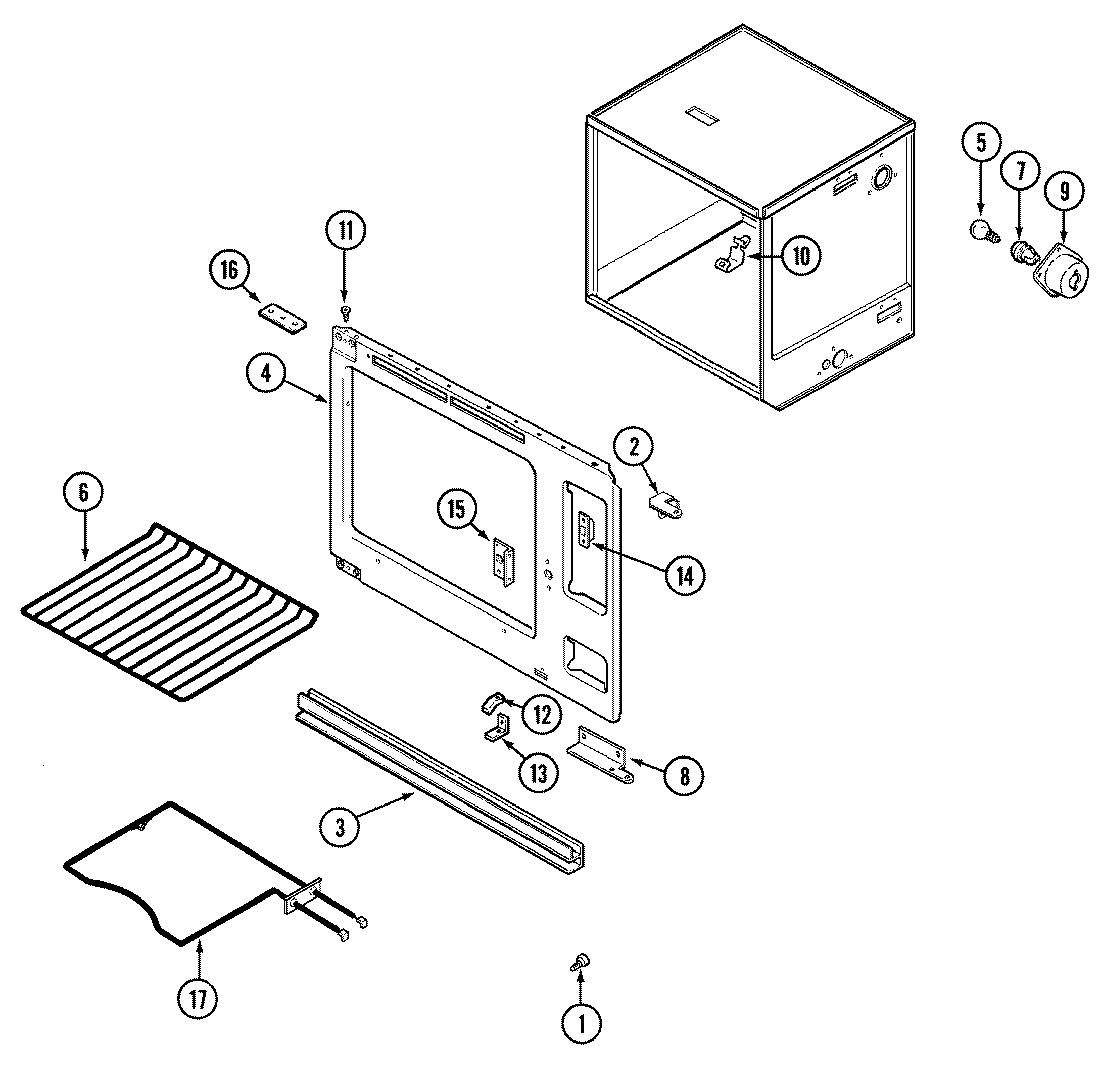

08 - OVEN (UPPER)

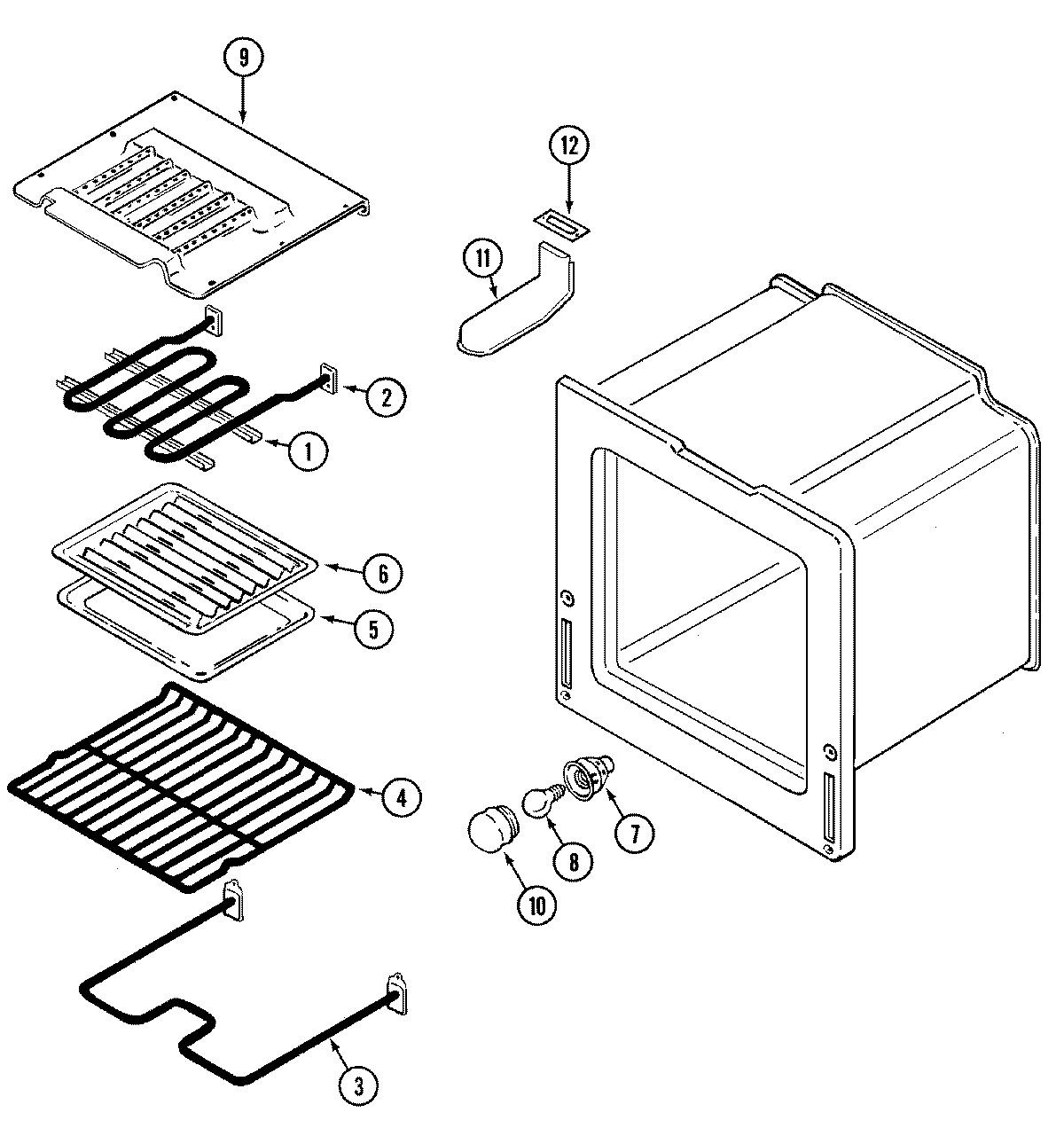

09 - OVEN-LOWER

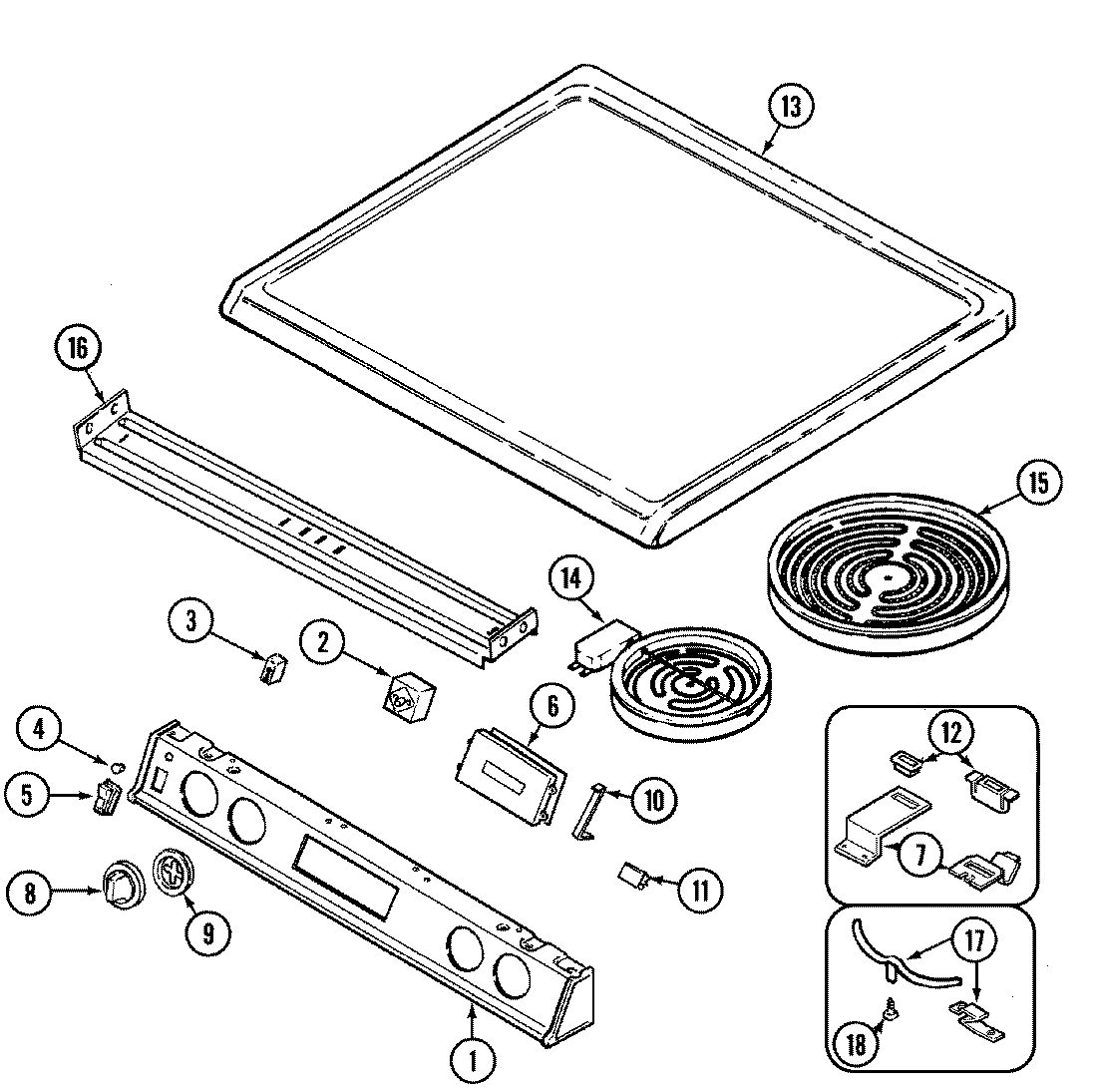

10 - TOP ASSEMBLY

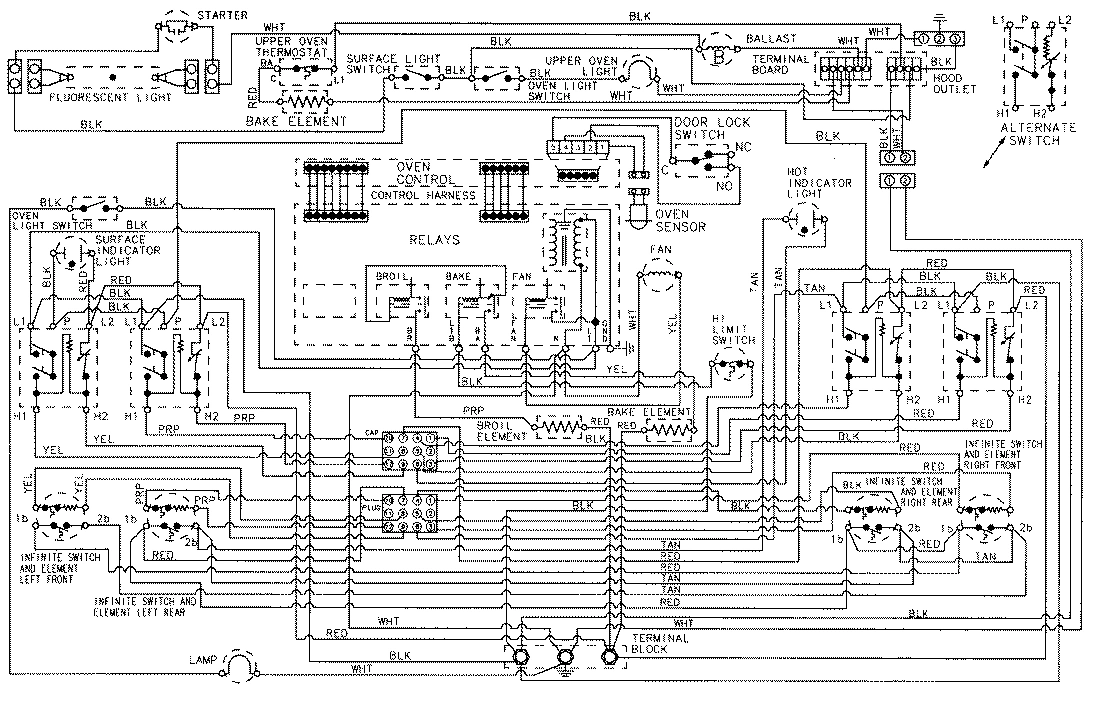

11 - WIRING INFORMATION
Common parts from model Maytag 7858XVW ELECTRIC WALL OVEN
1
SPACER, HINGE (MAIN TOP) MAY 8010P069-60 Contact Us For Availability
1
MAY 74001873 MAY 74001873 Contact Us For Availability
1
MAY 7902P379-60 MAY 7902P379-60 Contact Us For Availability
1
MAY 7701P010-60 MAY 7701P010-60 Contact Us For Availability
1
MAY 3604F159-45 MAY 3604F159-45 Contact Us For Availability
1
MAY 74003032 MAY 74003032 Contact Us For Availability
1
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 7101P334-60 MAY 7101P334-60 Contact Us For Availability
1
MAY 74001537 MAY 74001537 Contact Us For Availability
1
MAY 74003013 MAY 74003013 Contact Us For Availability
2
MAY 2618F111-71 MAY 2618F111-71 Contact Us For Availability
2
MAY 2618F112-71 MAY 2618F112-71 Contact Us For Availability
2
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
2
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
2
MAY 3603W015-80 MAY 3603W015-80 Contact Us For Availability
2
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
2
MAY 74003244 MAY 74003244 Contact Us For Availability
2
MAY 3818F059-51 MAY 3818F059-51 Contact Us For Availability
2
MAY 3807F039-34 MAY 3807F039-34 Contact Us For Availability
2
MAY 7406P065-60 MAY 7406P065-60 Contact Us For Availability
3
SUPPORT,OVEN REAR MAY 3807F400-51 Contact Us For Availability
3
MAY 3605F187-80 MAY 3605F187-80 Contact Us For Availability
3
MAY 7101P076-60 MAY 7101P076-60 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 7902P037-60 MAY 7902P037-60 Contact Us For Availability
3
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
3
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
3
MAY 74001708 MAY 74001708 Contact Us For Availability
3
MAY 7706P035-60 MAY 7706P035-60 Contact Us For Availability
3
MAY 7406P092-60 MAY 7406P092-60 Contact Us For Availability
4
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
4
MAY 7403P019-60 MAY 7403P019-60 Contact Us For Availability
4
MAY 5711S082-60 MAY 5711S082-60 Contact Us For Availability
4
MAY 74003331 MAY 74003331 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 8009P028-60 MAY 8009P028-60 Contact Us For Availability
4
MAY 2201F064-19 MAY 2201F064-19 Contact Us For Availability
4
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
5
MAY 74001449 MAY 74001449 Contact Us For Availability
5
MAY 7101P158-60 MAY 7101P158-60 Contact Us For Availability
5
MAY 7720P165-60 MAY 7720P165-60 Contact Us For Availability
5
MAY 7101P045-60 MAY 7101P045-60 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
5
MAY 7116P003-60 MAY 7116P003-60 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
6
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
6
MAY 7214P001-60 MAY 7214P001-60 Contact Us For Availability
6
MAY 7106P004-60 MAY 7106P004-60 Contact Us For Availability
6
MAY 74001841 MAY 74001841 Contact Us For Availability
6
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
6
MAY 7801P008-60 MAY 7801P008-60 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 74002271 MAY 74002271 Contact Us For Availability
6
MAY 7601P278-60 MAY 7601P278-60 Contact Us For Availability
7
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
7
MAY 7101P279-60 MAY 7101P279-60 Contact Us For Availability
7
MAY 7404P103-60 MAY 7404P103-60 Contact Us For Availability
7
MAY 7106P009-60 MAY 7106P009-60 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
7
MAY 7408P034-60 MAY 7408P034-60 Contact Us For Availability
7
MAY 74003125 MAY 74003125 Contact Us For Availability
7
MAY 3801F312-45 MAY 3801F312-45 Contact Us For Availability
7
MAY 74002978 MAY 74002978 Contact Us For Availability
8
MAY 7731P082-60 MAY 7731P082-60 Contact Us For Availability
8
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
8
MAY 7711P008-60 MAY 7711P008-60 Contact Us For Availability
8
MAY 8010P013-60 MAY 8010P013-60 Contact Us For Availability
8
MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability
8
MAY 4005F443-51 MAY 4005F443-51 Contact Us For Availability
8
MAY 3807F133-34 MAY 3807F133-34 Contact Us For Availability
9
MAY 7740P020-60 MAY 7740P020-60 Contact Us For Availability
9
MAY 4804F030-60 MAY 4804F030-60 Contact Us For Availability
9
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
9
MAY 7740P018-60 MAY 7740P018-60 Contact Us For Availability
9
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
9
MAY 74003431 MAY 74003431 Contact Us For Availability
9
MAY 7427P012-60 MAY 7427P012-60 Contact Us For Availability
9
MAY 4001F016-19 MAY 4001F016-19 Contact Us For Availability
9
MAY 3601F237-45 MAY 3601F237-45 Contact Us For Availability
9
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
10
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
10
MAY 3801F111-51 MAY 3801F111-51 Contact Us For Availability
10
MAY 74001761 MAY 74001761 Contact Us For Availability
10
MAY 74004163 MAY 74004163 Contact Us For Availability
10
MAY 74004164 MAY 74004164 Contact Us For Availability
10
MAY 74004165 MAY 74004165 Contact Us For Availability
10
MAY 2402W202-19 MAY 2402W202-19 Contact Us For Availability
10
MAY 4011F250-80 MAY 4011F250-80 Contact Us For Availability
10
MAY 3801F349-51 MAY 3801F349-51 Contact Us For Availability
11
MAY 74002599 MAY 74002599 Contact Us For Availability
11
MAY 7002P014-60 MAY 7002P014-60 Contact Us For Availability
11
MAY 7101P058-60 MAY 7101P058-60 Contact Us For Availability
11
MAY 4804F012-60 MAY 4804F012-60 Contact Us For Availability
11
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
11
MAY 3604F213-51 MAY 3604F213-51 Contact Us For Availability
11
MAY 3604F214-51 MAY 3604F214-51 Contact Us For Availability
11
MAY 4005F403-51 MAY 4005F403-51 Contact Us For Availability
11
MAY 4006W112-45 MAY 4006W112-45 Contact Us For Availability
11
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
11
MAY 7112P102-60 MAY 7112P102-60 Contact Us For Availability
12
MAY 7212P003-60 MAY 7212P003-60 Contact Us For Availability
12
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
12
MAY 7744P075-60 MAY 7744P075-60 Contact Us For Availability
12
MAY 7744P076-60 MAY 7744P076-60 Contact Us For Availability
12
MAY 74002539 MAY 74002539 Contact Us For Availability
12
MAY 74002540 MAY 74002540 Contact Us For Availability
12
MAY 3801F327-51 MAY 3801F327-51 Contact Us For Availability
12
MAY 7101P019-60 MAY 7101P019-60 Contact Us For Availability
12
MAY 8016P001-60 MAY 8016P001-60 Contact Us For Availability
12
MAY 7201P060-60 MAY 7201P060-60 Contact Us For Availability
12
MAY 74003043 MAY 74003043 Contact Us For Availability
12
MAY 7407P098-60 MAY 7407P098-60 Contact Us For Availability
13
MAY 74003429 MAY 74003429 Contact Us For Availability
13
MAY 4005F427-51 MAY 4005F427-51 Contact Us For Availability
13
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
13
MAY 3601F232-45 MAY 3601F232-45 Contact Us For Availability
13
MAY 7701P144-60 MAY 7701P144-60 Contact Us For Availability
13
MAY 4001F080-51 MAY 4001F080-51 Contact Us For Availability
13
MAY 8004P002-60 MAY 8004P002-60 Contact Us For Availability
13
MAY 5706M105-81 MAY 5706M105-81 Contact Us For Availability
13
MAY 74001055 MAY 74001055 Contact Us For Availability
14
MAY 74003430 MAY 74003430 Contact Us For Availability
14
MAY 12500041 MAY 12500041 Contact Us For Availability
14
MAY 4005F422-51 MAY 4005F422-51 Contact Us For Availability
14
MAY 8024P001-60 MAY 8024P001-60 Contact Us For Availability
14
MAY 3405F014-80 MAY 3405F014-80 Contact Us For Availability
14
MAY 7744P055-60 MAY 7744P055-60 Contact Us For Availability
14
MAY 74002084 MAY 74002084 Contact Us For Availability
14
MAY 7428P021-60 MAY 7428P021-60 Contact Us For Availability
14
MAY 8002P006-60 MAY 8002P006-60 Contact Us For Availability
14
MAY 7406P074-60 MAY 7406P074-60 Contact Us For Availability
15
MAY 4020W011-80 MAY 4020W011-80 Contact Us For Availability
15
MAY 74003003 MAY 74003003 Contact Us For Availability
15
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
15
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
15
MAY 74003432 MAY 74003432 Contact Us For Availability
15
MAY 8004P020-60 MAY 8004P020-60 Contact Us For Availability
15
MAY 3605F001-32 MAY 3605F001-32 Contact Us For Availability
15
MAY 12500040 MAY 12500040 Contact Us For Availability
15
MAY 74002652 MAY 74002652 Contact Us For Availability
15
MAY 7406P073-60 MAY 7406P073-60 Contact Us For Availability
16
MAY 7408P036-60 MAY 7408P036-60 Contact Us For Availability
16
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
16
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
16
MAY W10124350 MAY W10124350 Contact Us For Availability
16
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
16
MAY 2416F038-62 MAY 2416F038-62 Contact Us For Availability
16
MAY 7744P067-60 MAY 7744P067-60 Contact Us For Availability
16
PANEL, DRAWER (WHT) MAY 74003407 Contact Us For Availability
16
MAY 3818F056-51 MAY 3818F056-51 Contact Us For Availability
16
MAY 8010P014-60 MAY 8010P014-60 Contact Us For Availability
16
MAY 3807F390-45 MAY 3807F390-45 Contact Us For Availability
17
MAY 74002312 MAY 74002312 Contact Us For Availability
17
MAY 7415P001-60 MAY 7415P001-60 Contact Us For Availability
17
MAY 7101P105-60 MAY 7101P105-60 Contact Us For Availability
17
MAY 3818F052-51 MAY 3818F052-51 Contact Us For Availability
17
MAY 3818F053-51 MAY 3818F053-51 Contact Us For Availability
17
MAY 3818F054-51 MAY 3818F054-51 Contact Us For Availability
17
MAY 7406P089-60 MAY 7406P089-60 Contact Us For Availability
17
MAY 74002976 MAY 74002976 Contact Us For Availability
17
MAY 8004P015-60 MAY 8004P015-60 Contact Us For Availability
18
MAY 3818F057-51 MAY 3818F057-51 Contact Us For Availability
18
MAY 74001280 MAY 74001280 Contact Us For Availability
18
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
18
MAY 7403P307-60 MAY 7403P307-60 Contact Us For Availability
19
MAY 2007W001-80 MAY 2007W001-80 Contact Us For Availability
19
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
19
TAPE MAY 8270P098-60 Contact Us For Availability
19
MAY 5170P228-60 MAY 5170P228-60 Contact Us For Availability
19
MAY 5175D076-60 MAY 5175D076-60 Contact Us For Availability
19
MAY 5195D122-60 MAY 5195D122-60 Contact Us For Availability
19
MAY 74001583 MAY 74001583 Contact Us For Availability
20
MAY 7101P081-60 MAY 7101P081-60 Contact Us For Availability
20
MAY 7720P101-60 MAY 7720P101-60 Contact Us For Availability
20
MAY 7720P102-60 MAY 7720P102-60 Contact Us For Availability
20
MAY 74003566 MAY 74003566 Contact Us For Availability
20
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
20
MAY 16007454 MAY 16007454 Contact Us For Availability
21
MAY 3804F003-51 MAY 3804F003-51 Contact Us For Availability
21
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
21
MAY 16000329 MAY 16000329 Contact Us For Availability
22
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
22
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
22
MAY 3405F018-80 MAY 3405F018-80 Contact Us For Availability
22
MAY 71003042 MAY 71003042 Contact Us For Availability
23
MAY 7002P030-60 MAY 7002P030-60 Contact Us For Availability
23
MAY 7002P042-60 MAY 7002P042-60 Contact Us For Availability
24
MAY 3609F002-80 MAY 3609F002-80 Contact Us For Availability
27
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
NI
MAY 15001407 MAY 15001407 Contact Us For Availability
× ![]()
