Model LG 767.8701000 – Common Parts & Diagrams

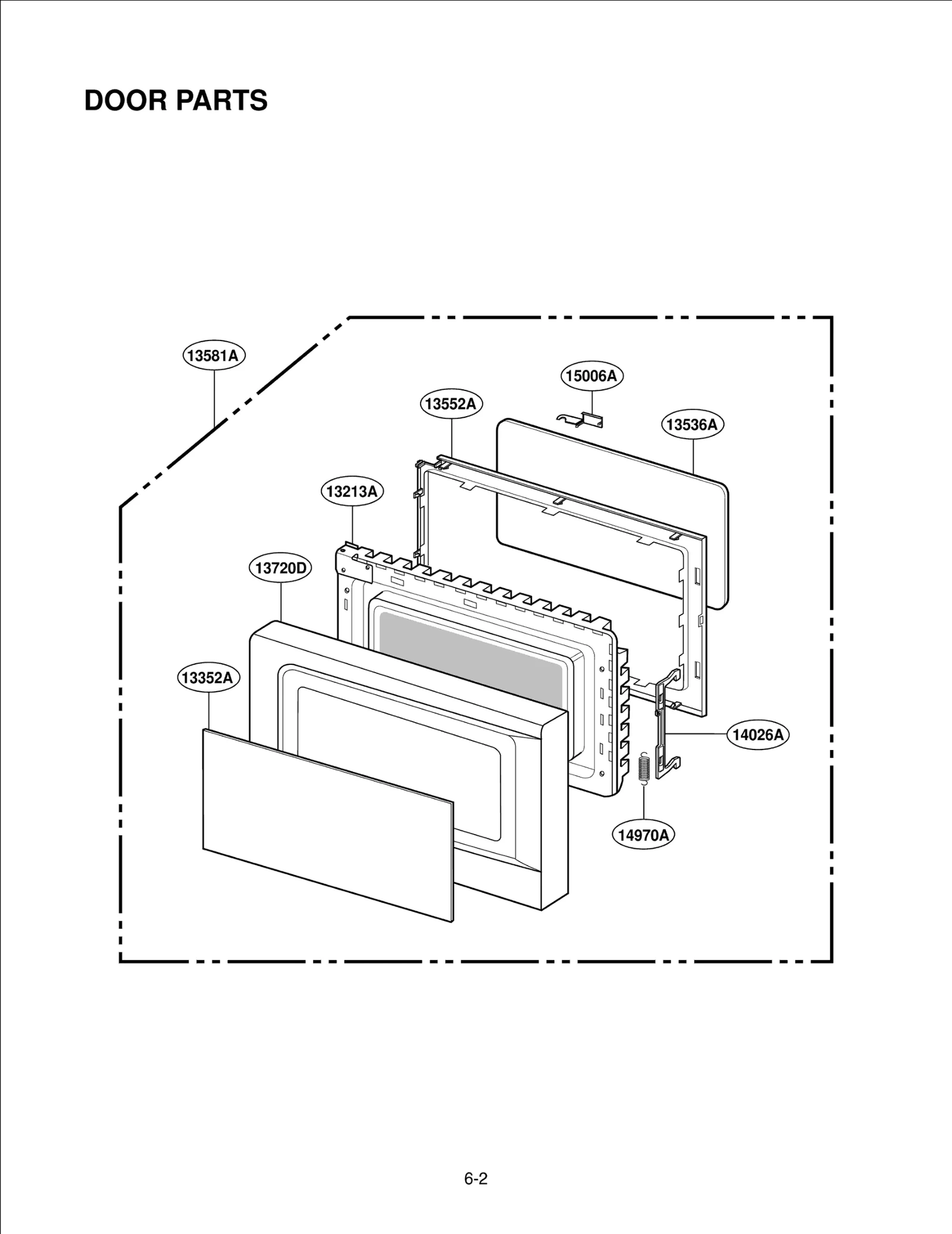

Diagram 0

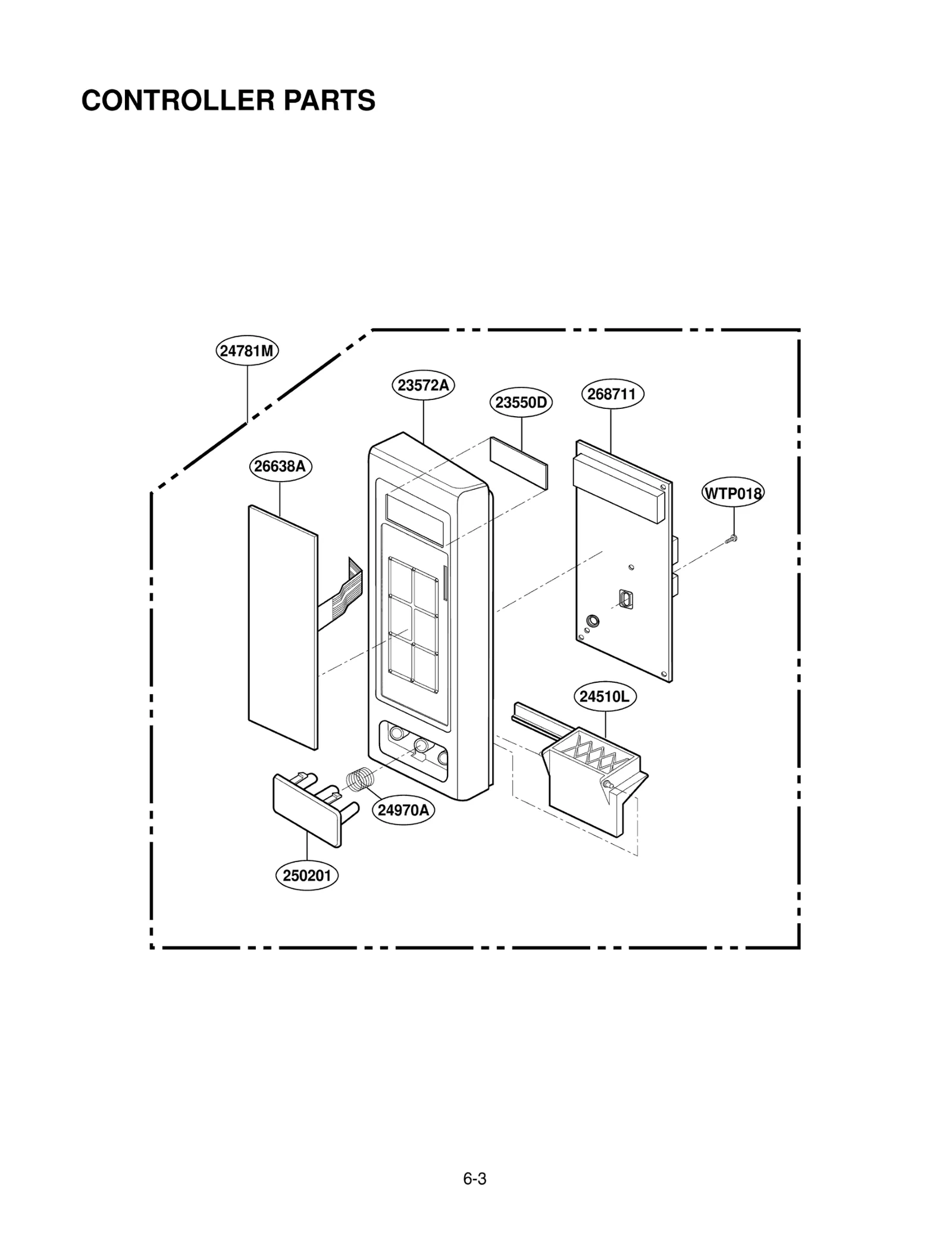

Diagram 1

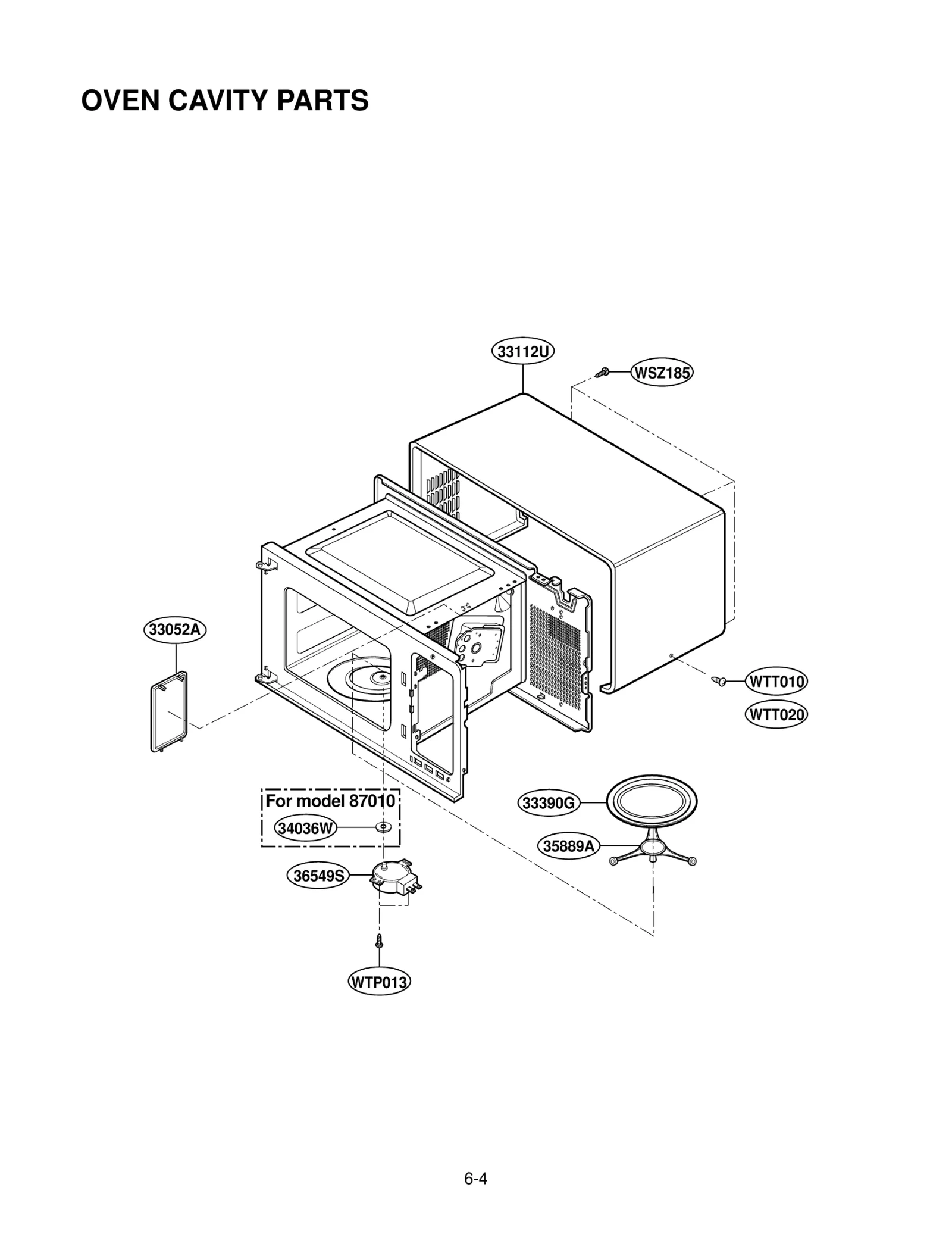

Diagram 2

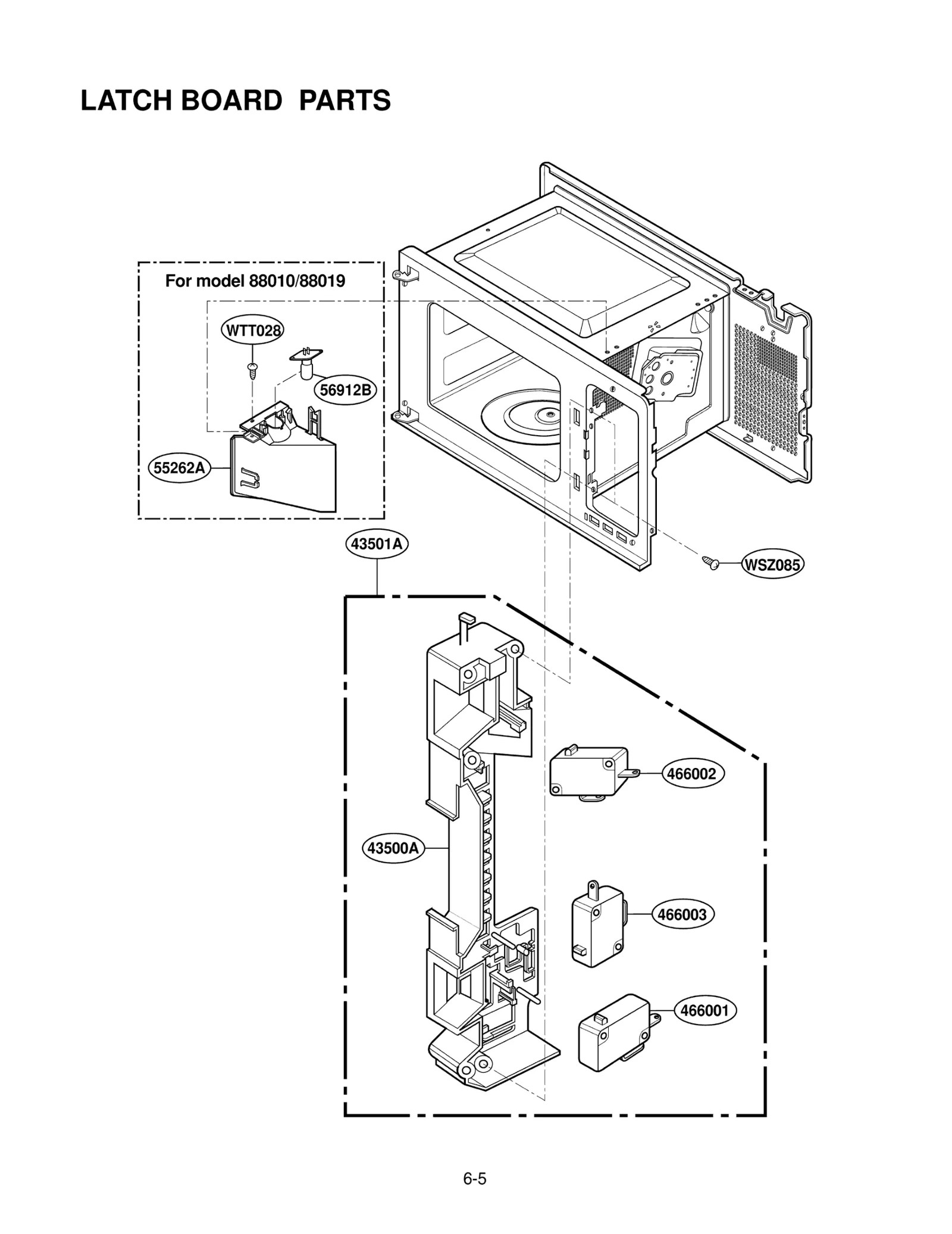

Diagram 3

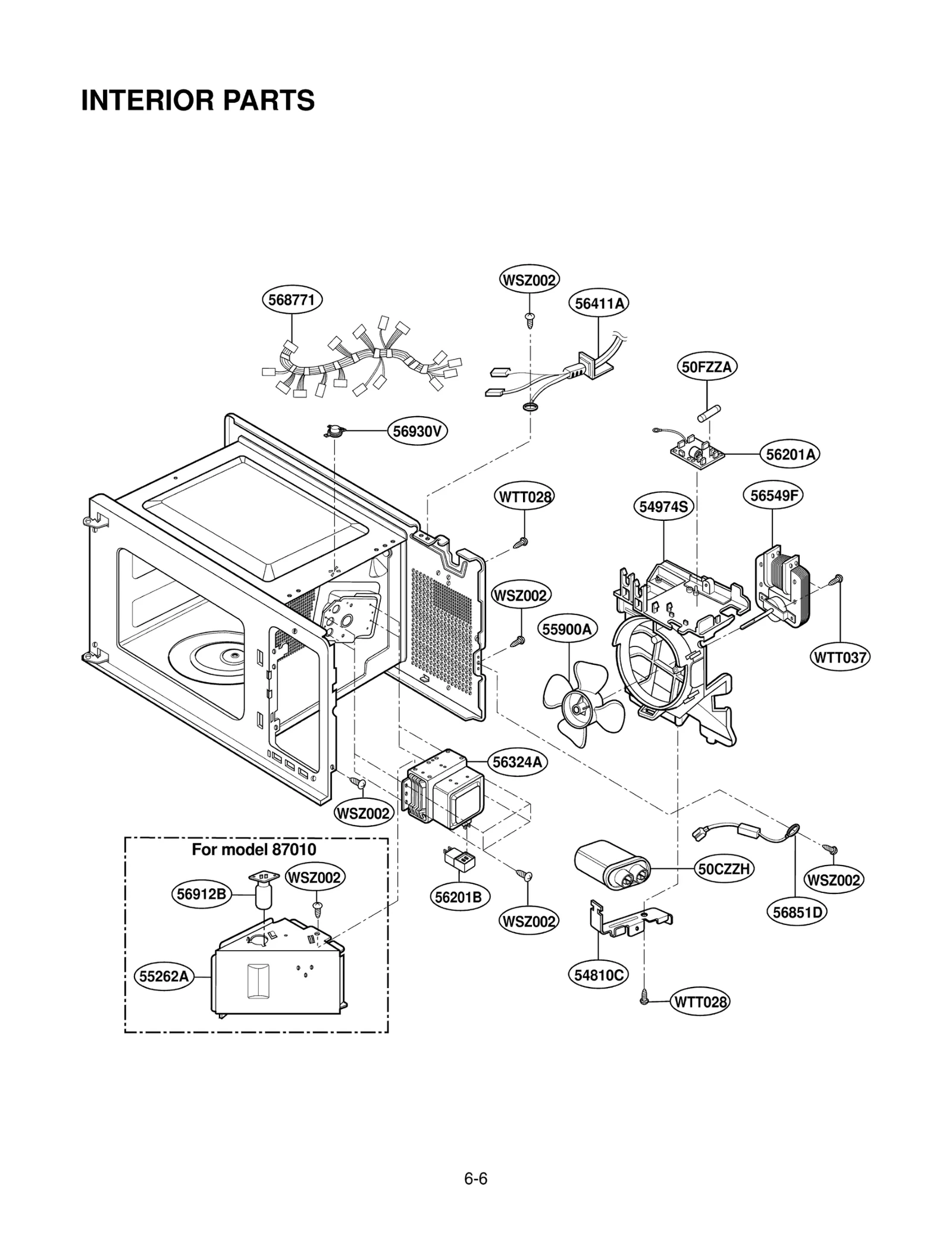

Diagram 4

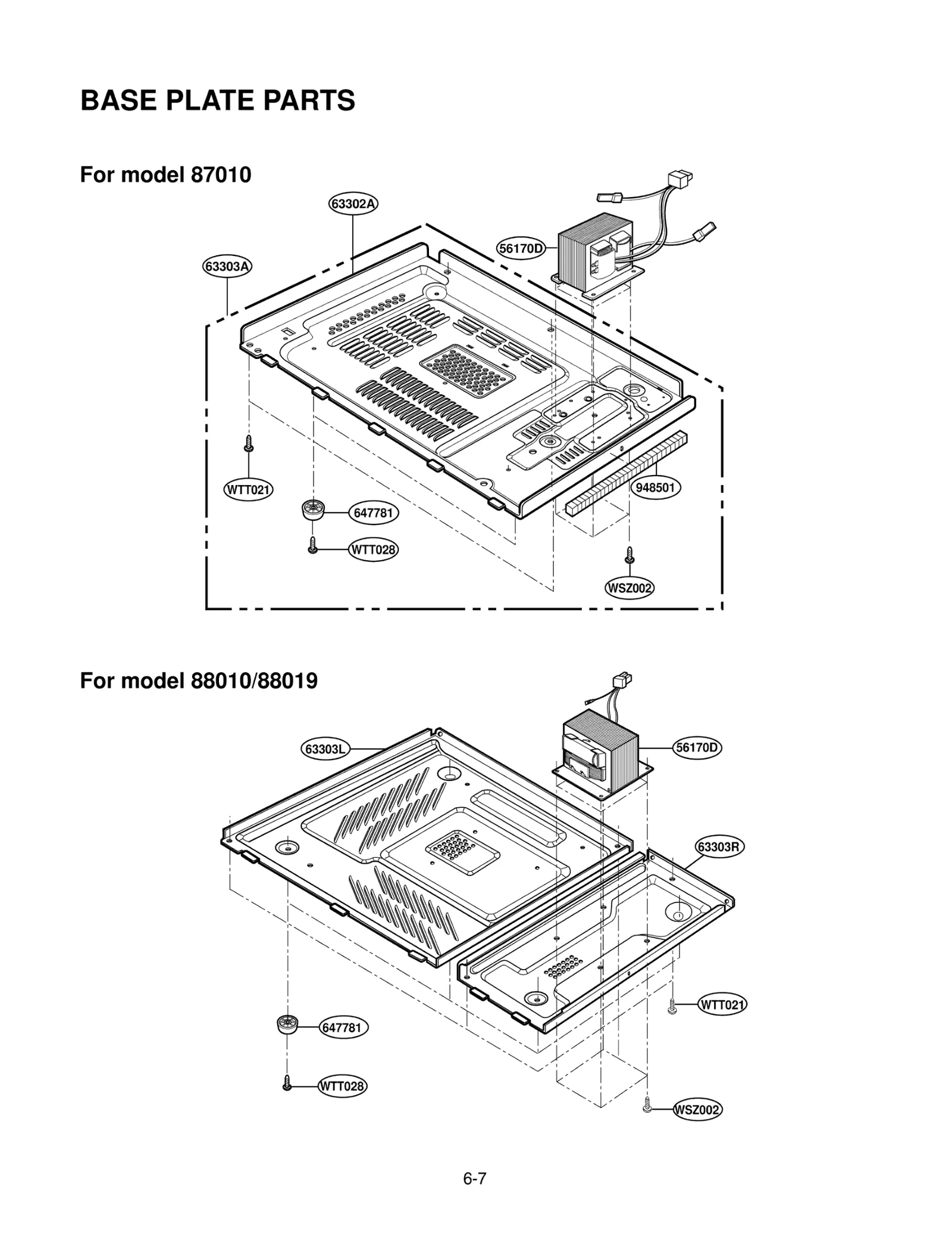

Diagram 5
Diagram 6
Common parts from model LG 767.8701000
*01
LGE 3828W5A1505 LGE 3828W5A1505 Contact Us For Availability
*02
LGE 3828W5S1533 LGE 3828W5S1533 Contact Us For Availability
*10
BOX,[LABEL] LGE 3890W2L004W Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
LGE 3572W1A122C LGE 3572W1A122C Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
LGE 4781W1M144D LGE 4781W1M144D Contact Us For Availability
26638A
LGE 6638W2A370A LGE 6638W2A370A Contact Us For Availability
33112U
OUT CASE U-BENDING LGE 3112W0U026A Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G003A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
55262A
AIR DUCT 0.9 CU.FT SECC/SBH MS LGE 5262W2A037A Contact Us For Availability
55900A
PROPELLER LGE 2B72125A Contact Us For Availability
56170D
LGE 6170W1D012L LGE 6170W1D012L Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A019G Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302A
1.0CU.FT SINGLE LGE 3302W0A025A Contact Us For Availability
63303A
LGE 3303W0A013A LGE 3303W0A013A Contact Us For Availability
250201
BUTTON MWO LGE 5020W3G102D Contact Us For Availability
268711
LGE 6871W2S162G LGE 6871W2S162G Contact Us For Availability
568771
LGE 6877W1A270A LGE 6877W1A270A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
AR1
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE2276K618 Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C04
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C81
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN3
LGE 6630W5V017C LGE 6630W5V017C Contact Us For Availability
D01
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
LGE 6304W5A009A LGE 6304W5A009A Contact Us For Availability
HD1
LGE 4930W3A015A LGE 4930W3A015A Contact Us For Availability
LED2
LGE 0DLZW5A010A LGE 0DLZW5A010A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ(12 LGE 6010W2P044A Contact Us For Availability
Q20
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q30
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q32
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
R06
RESISTOR FIXED CARBON FILM 15 LGE 0RD1500F608 Contact Us For Availability
R25
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R32
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R51
RESISTOR FIXED CARBON FILM /R LGE 0RD1000G608 Contact Us For Availability
R100
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R102
LGE 0RD4700G608 LGE 0RD4700G608 Contact Us For Availability
R105
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R108
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
R109
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R113
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
RY1
RELAY LGE 6920W5A008A Contact Us For Availability
RY2
RELAY LGE 6920W5A009A Contact Us For Availability
SH1
LGE 6091W3A002A LGE 6091W3A002A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
× ![]()
