LG 76092 Parts List | Part Advantage

103E

5218JJ3001A LG Refrigerator Slide Rail Backorder LGE 5218JJ3001A $6.62

View on Model

105A

5251JA3003B LG Drain Tube Assembly Backorder LGE 5251JA3003B $19.31

View on Model

106B

4J00382C LG Washer Common Backorder LGE 4J00382C $6.62

View on Model

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $24.91

View on Model

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $24.91

View on Model

131A

5074JJ1055A LG Refrigerator Freezer Ice Bucke Backorder LGE 5074JJ1055A $103.57

View on Model

145C

GUIDE ASSEMBLY,RAIL--RIGHT LGE 4975JJ2028C Contact Us For Availability

View on Model

145F

GUIDE ASSEMBLY,RAIL---LEFT SIDE LGE 4975JJ2028D Contact Us For Availability

View on Model

151A

TRAY ASSEMBLY,VEGETABLE LGE 3391JJ1018J Contact Us For Availability

View on Model

151C

KNOB,SHUTTER LGE 4940JJ2003D Contact Us For Availability

View on Model

154A

3551JJ1069A LG Refrigerator Cover Assembly Backorder LGE 3551JJ1069A $177.09

View on Model

158A

3550JJ1040A LG Refrigerator Lamp Lens Cover Backorder LGE 3550JJ1040A $39.18

View on Model

158E

MCK30060901 LG Refrigerator Lamp Cover Backorder LGE MCK30060901 $31.90

View on Model

167B

4890JL1002M LG Refrigerator Crisper Cover Gla Backorder LGE 4890JL1002M $103.57

View on Model

203A

ADX52752604 LG Door Gasket Assembly Backorder LGE ADX52752604 $34.20

View on Model

205B

CAP,COVER LGE 5006JJ2014B Contact Us For Availability

View on Model

205C

CAP,COVER LGE 5006JJ2014A Contact Us For Availability

View on Model

212A

Handle,Freezer LGE 3650JJ1052C Contact Us For Availability

View on Model

212G

Name Plate LGE 3846JD1019B Contact Us For Availability

View on Model

212J

MJB63190001 LG Refrigerator Handle Stopper Sc In Stock LGE MJB63190001 $6.62

View on Model

230A

Door Assembly,Refrigerator LGE 3581JJ8719E Contact Us For Availability

View on Model

231A

DOOR FOAM ASSEMBLY,R LGE 5433JJ0016C Contact Us For Availability

View on Model

233A

GASKET ASS"Y, REFRIG DOOR LGE 4987JJ1004D Contact Us For Availability

View on Model

237A

GUIDE,BOTTLE LGE 4974JJ2012A Contact Us For Availability

View on Model

241C

BASKET ASSEMBLY,DOOR LGE 5005JJ2017B Contact Us For Availability

View on Model

241D

BASKET ASSEMBLY,DOOR LGE 5005JJ2020B Contact Us For Availability

View on Model

241E

BASKET ASSEMBLY,DOOR LGE 5005JJ2018B Contact Us For Availability

View on Model

241F

5005JJ2009E LG Door Basket Assembly Backorder LGE 5005JJ2009E $114.35

View on Model

243A

4620JJ3006A LG Door Stopper In Stock LGE 4620JJ3006A $19.31

View on Model

244A

Handle,Refrigerator LGE 3650JJ1053C Contact Us For Availability

View on Model

244E

5006JJ3016A LG Refrigerator Door Handle Cap Backorder LGE 5006JJ3016A $6.62

View on Model

249A

5098JJ1002B LG Connector Assembly Backorder LGE 5098JJ1002B $216.87

View on Model

249B

5098JJ1002A LG Refrigerator Connector Assembl Backorder LGE 5098JJ1002A $249.52

View on Model

249E

5218JA1010E LG Refrigerator Right Side Drawer In Stock LGE 5218JA1010E $133.22

View on Model

249F

5218JA1010F LG Refrigerator Left Side Drawer In Stock LGE 5218JA1010F $152.39

View on Model

249J

COVER,CONNECTOR LGE 3550JJ1111A Contact Us For Availability

View on Model

249K

COVER,CONNECTOR LGE 3550JJ1111B Contact Us For Availability

View on Model

250A

4270JJ3001F LG Bar Backorder LGE 4270JJ3001F $60.38

View on Model

250B

4403JJ3001A LG Refrigerator Drawer Glide Gear Backorder LGE 4403JJ3001A $19.31

View on Model

262D

4004JA3002A LG Refrigerator Ice Maker Water S Backorder LGE 4004JA3002A $15.77

View on Model

262E

4350JA3005B LG Refrigerator Snap Retaining Ri In Stock LGE 4350JA3005B $6.62

View on Model

281B

HINGE ASSEMBLY,U LGE 4775JJ2003B Contact Us For Availability

View on Model

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $6.62

View on Model

301A

5421JJ1001A LG Evaporator Assembly Backorder LGE 5421JJ1001A $336.07

View on Model

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $19.31

View on Model

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $6.62

View on Model

309A

6750C-0005P LG Refrigerator Compressor Overlo Backorder LGE 6750C-0005P $24.91

View on Model

309A

6750CR0004S LG Overload Protector Backorder LGE 6750CR0004S $101.16

View on Model

310A

3550JA2042C LG Refrigerator PTC Cover Backorder LGE 3550JA2042C $10.52

View on Model

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $72.46

View on Model

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $6.62

View on Model

319D

AEC72997402 LG Fan Guide Assembly Backorder LGE AEC72997402 $67.64

View on Model

327A

5006JA3034A LG Refrigerator Drain Tube Cap Backorder LGE 5006JA3034A $5.75

View on Model

328A

4J03020A LG Refrigerator Damper Pipe Backorder LGE 4J03020A $6.62

View on Model

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $19.31

View on Model

329C

5901JJ1004B LG Refrigerator Compressor Conden Backorder LGE 5901JJ1004B $19.31

View on Model

332A

3531JJ1004T LG Fan Grille Assembly Backorder LGE 3531JJ1004T $133.22

View on Model

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $39.18

View on Model

404A

MOTOR(MECH),FAN LGE 4680JK1002B Contact Us For Availability

View on Model

405B

4810JA3007A LG Motor Bracket Backorder LGE 4810JA3007A $6.62

View on Model

405C

J756-00008B LG Refrigerator Damper Motor Supp Backorder LGE J756-00008B $6.62

View on Model

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.36

View on Model

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $60.67

View on Model

410A

HARNESS LGE 6621JK2003B Contact Us For Availability

View on Model

410A

Socket,Lamp LGE EAG62831801 Contact Us For Availability

View on Model

420A

4680JK1001B LG AC Motor Backorder LGE 4680JK1001B $114.35

View on Model

501A

6871JB1215J LG Refrigerator Main Printed Wiri Backorder LGE 6871JB1215J $224.72

View on Model

501F

Cover Assembly,PCB LGE 3551JJ1020D Contact Us For Availability

View on Model

503C

PWB(PCB) ASSEMBLY,DISPLAY LGE 6871JB2047A Contact Us For Availability

View on Model

503E

3550JJ2031A LG Display Cover Backorder LGE 3550JJ2031A $24.91

View on Model

600A

ICE MAKER ASSEMBLY,KIT LGE 5989JA0002Q Contact Us For Availability

View on Model

600C

MEA32865501 LG Tube Guide Backorder LGE MEA32865501 $15.77

View on Model

602A

4931JA3005B LG Refrigerator Bracket Holder As Backorder LGE 4931JA3005B $6.62

View on Model

610A

COVER,SENSOR LGE 3550JJ2020A Contact Us For Availability

View on Model

616E

5210JA3005W LG Refrigerator Plastic Water Lin Backorder LGE 5210JA3005W $10.52

View on Model

618A

5210JJ3005B LG Refrigerator Ice Maker Injecti Backorder LGE 5210JJ3005B $39.18

View on Model

619C

5220JA2009D LG Refrigerator Water Inlet Fill Backorder LGE 5220JA2009D $86.64

View on Model

621B

Connector Assembly LGE ACJ30147004 Contact Us For Availability

View on Model

621C

Connector Assembly LGE ACJ30147003 Contact Us For Availability

View on Model

622A

5040JA2015A LG Refrigerator Rubber Injector S Backorder LGE 5040JA2015A $19.31

View on Model

622B

BRACKET LGE 4810JA3036A Contact Us For Availability

View on Model

623C

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $6.62

View on Model

627A

4930JA3054A LG Pipe Holder Backorder LGE 4930JA3054A $6.62

View on Model

903A

COVER,LOWER LGE 3550JJ0005A Contact Us For Availability

View on Model

903B

HOLDER,COVER LOWER LGE 4930JJ2021A No Longer Available

View on Model

B01

1STZJA3004F LG Customized Screw In Stock LGE 1STZJA3004F $6.62

View on Model

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $6.62

View on Model

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $6.62

View on Model

S28

1SZZJJ3005E LG Screw Customized Backorder LGE 1SZZJJ3005E $6.62

View on Model

S31

4000W4A003A LG Refrigerator Customized Screw Backorder LGE 4000W4A003A $6.11

View on Model

S38

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $6.62

View on Model

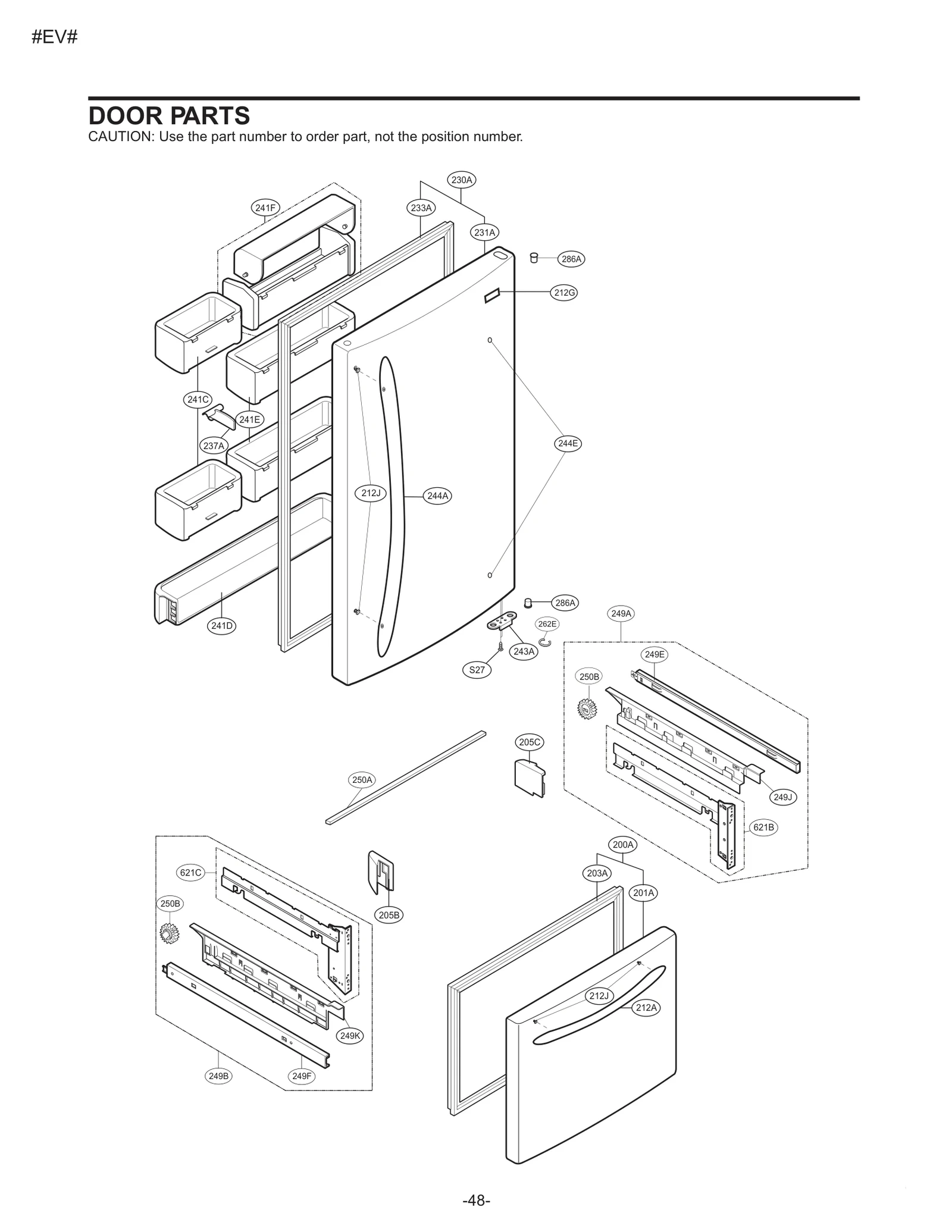

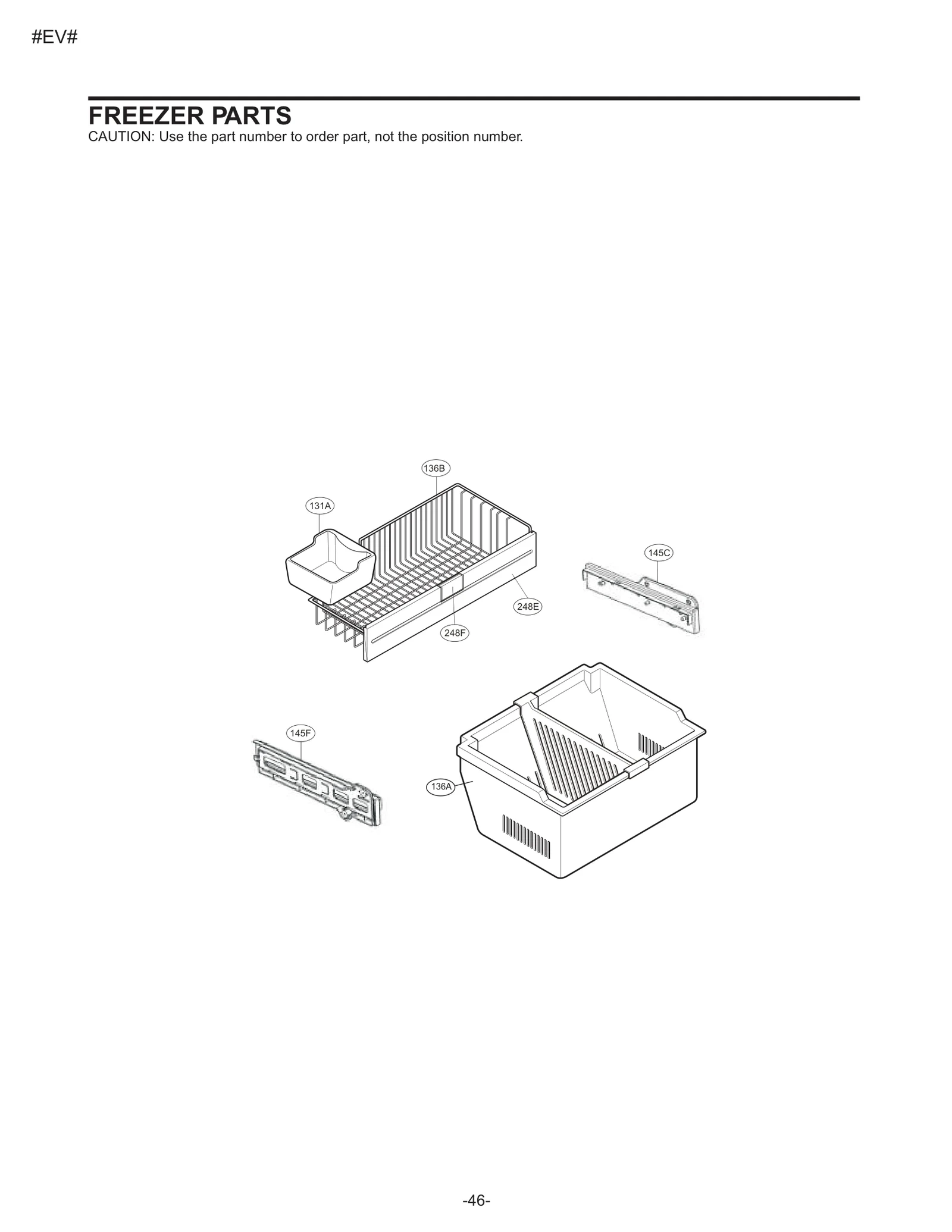

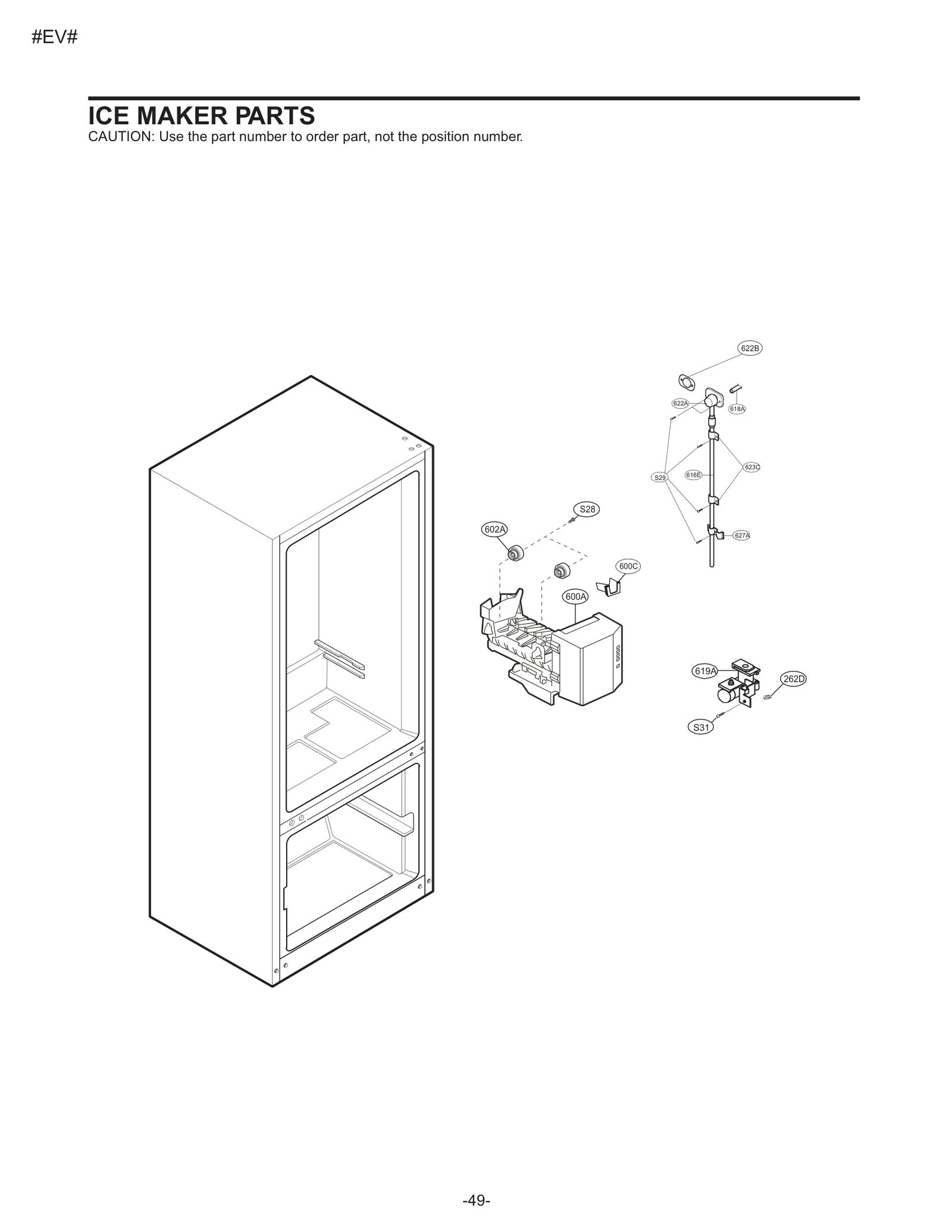

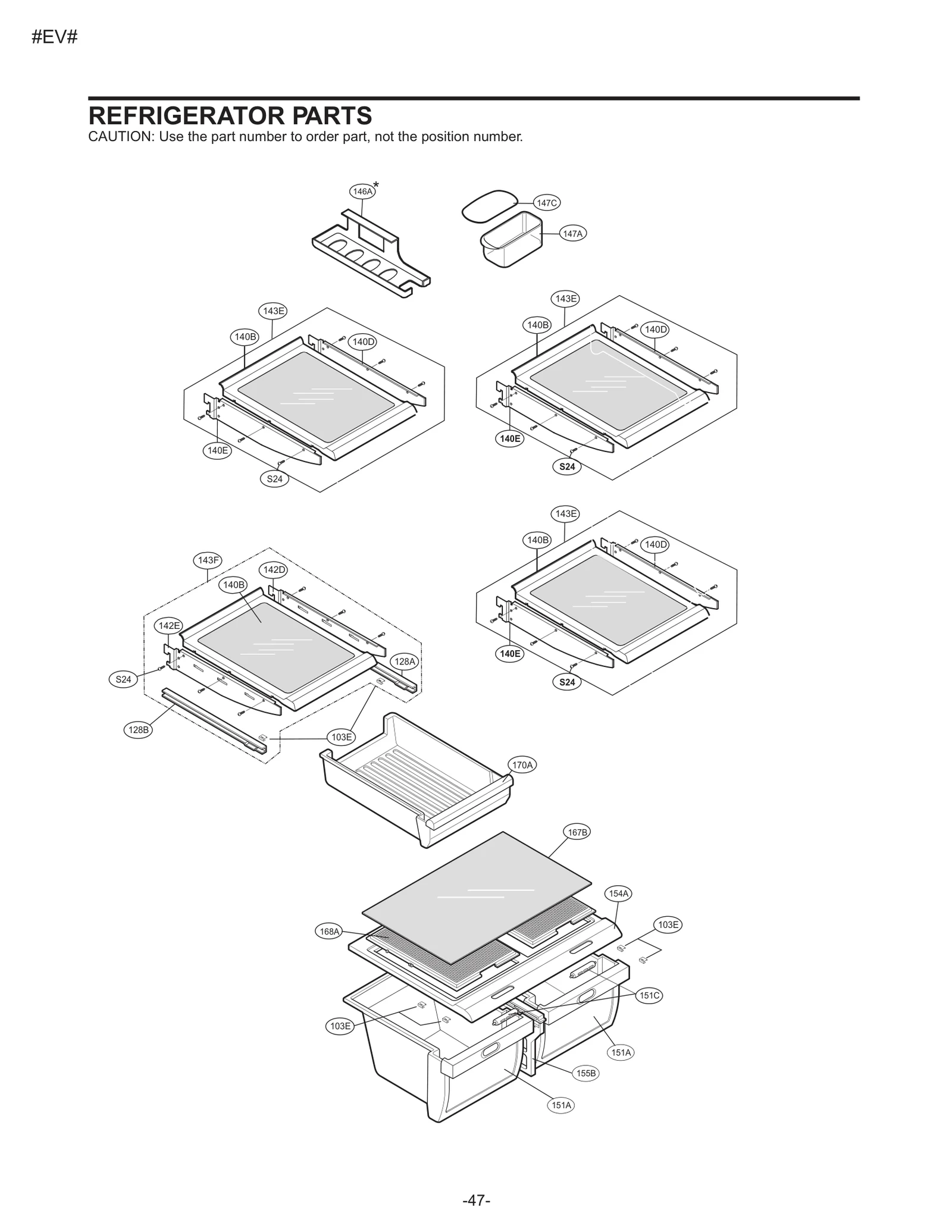

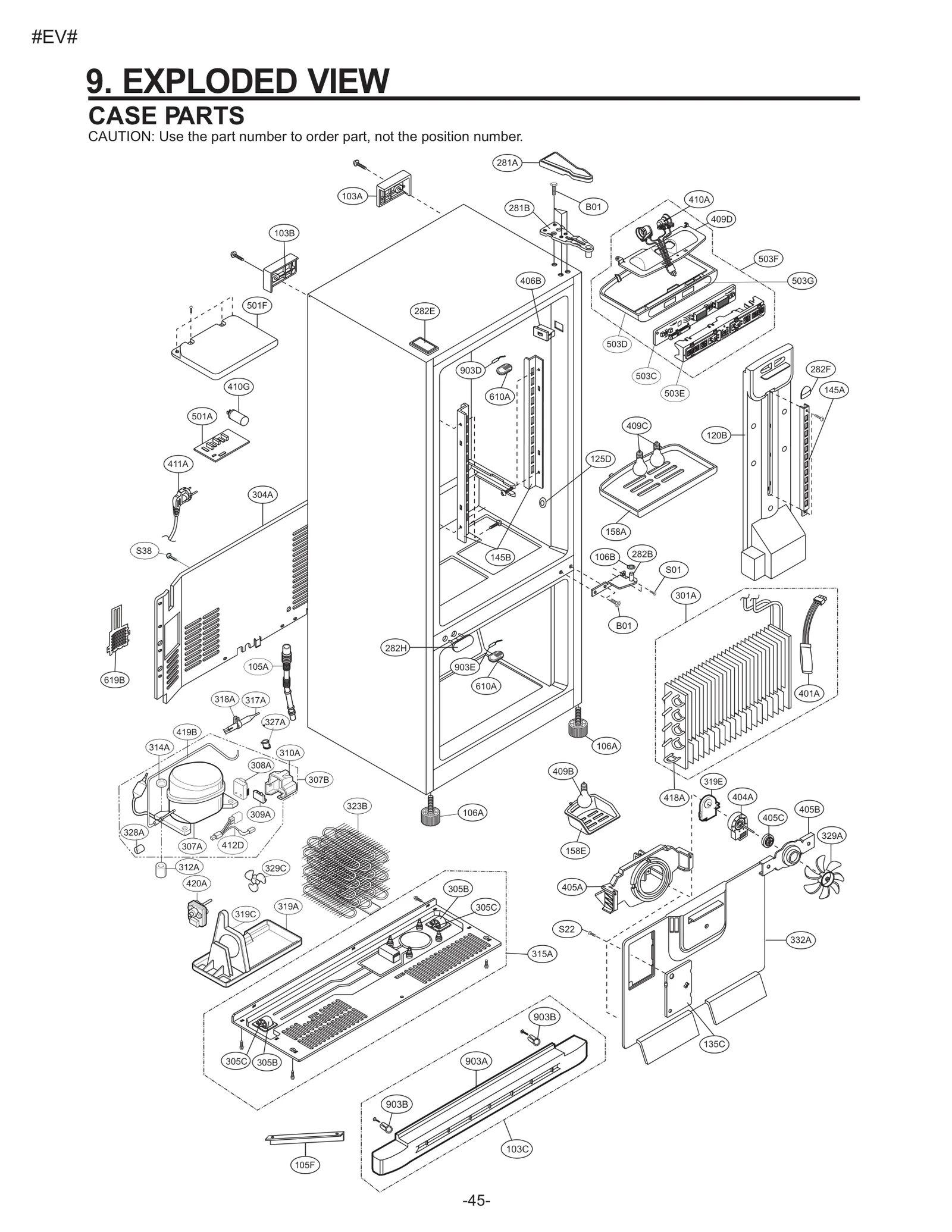

Model LG 76092 – Common Parts & Diagrams
