Model Electrolux 76-8667-23-02 RANGE – Common Parts & Diagrams

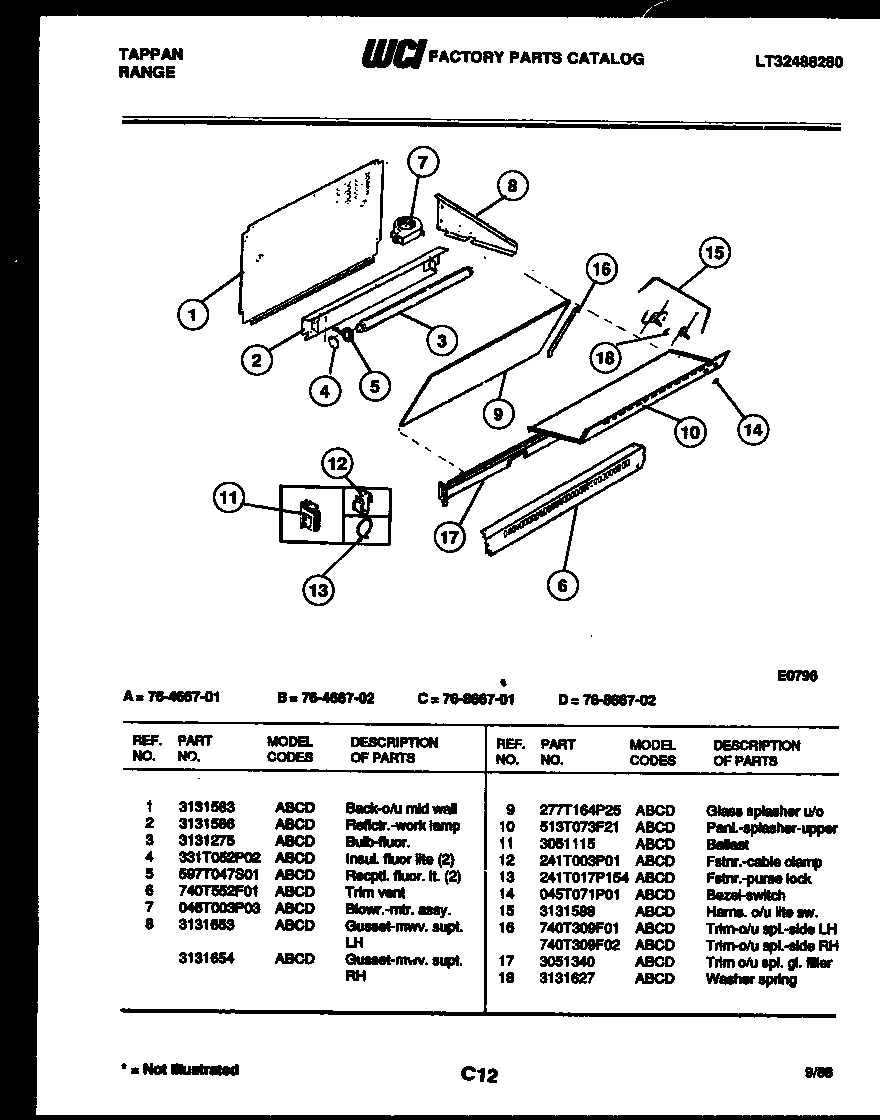

02 - BACKGUARD PARTS

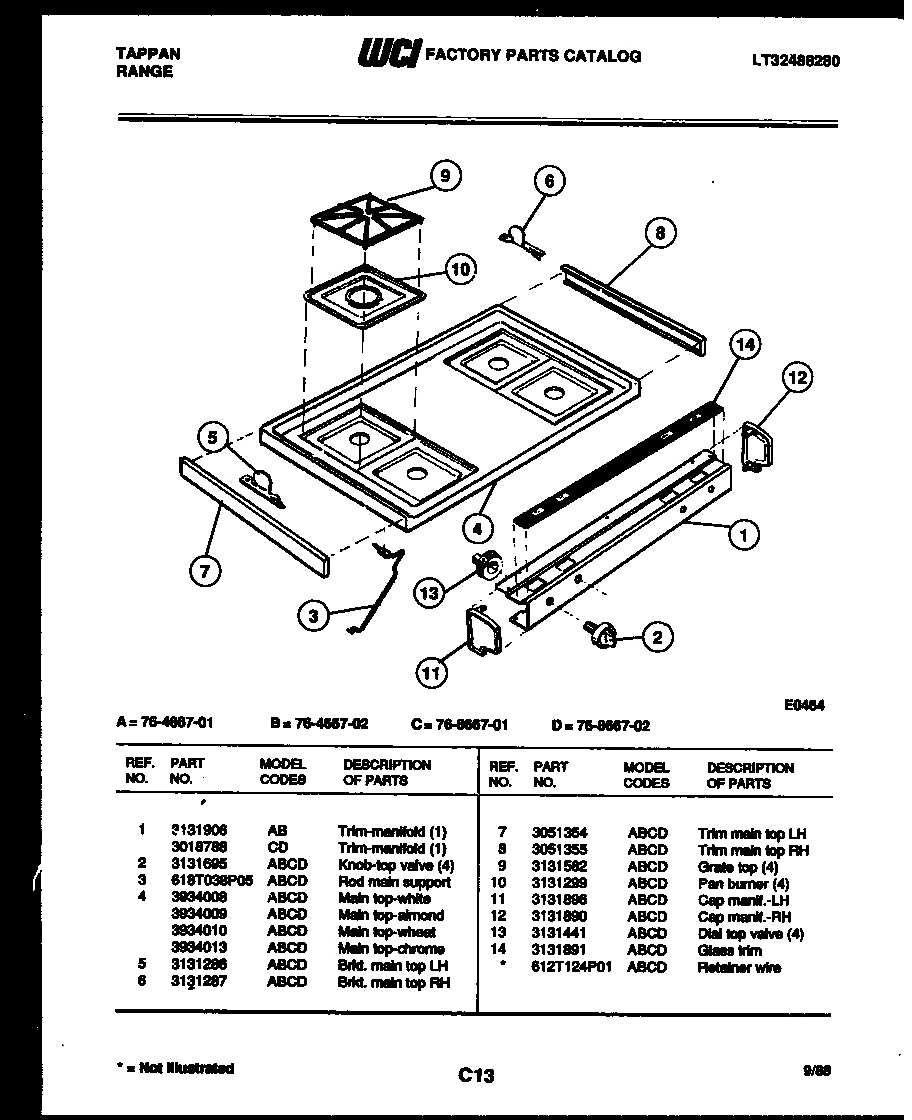

03 - COOKTOP PARTS

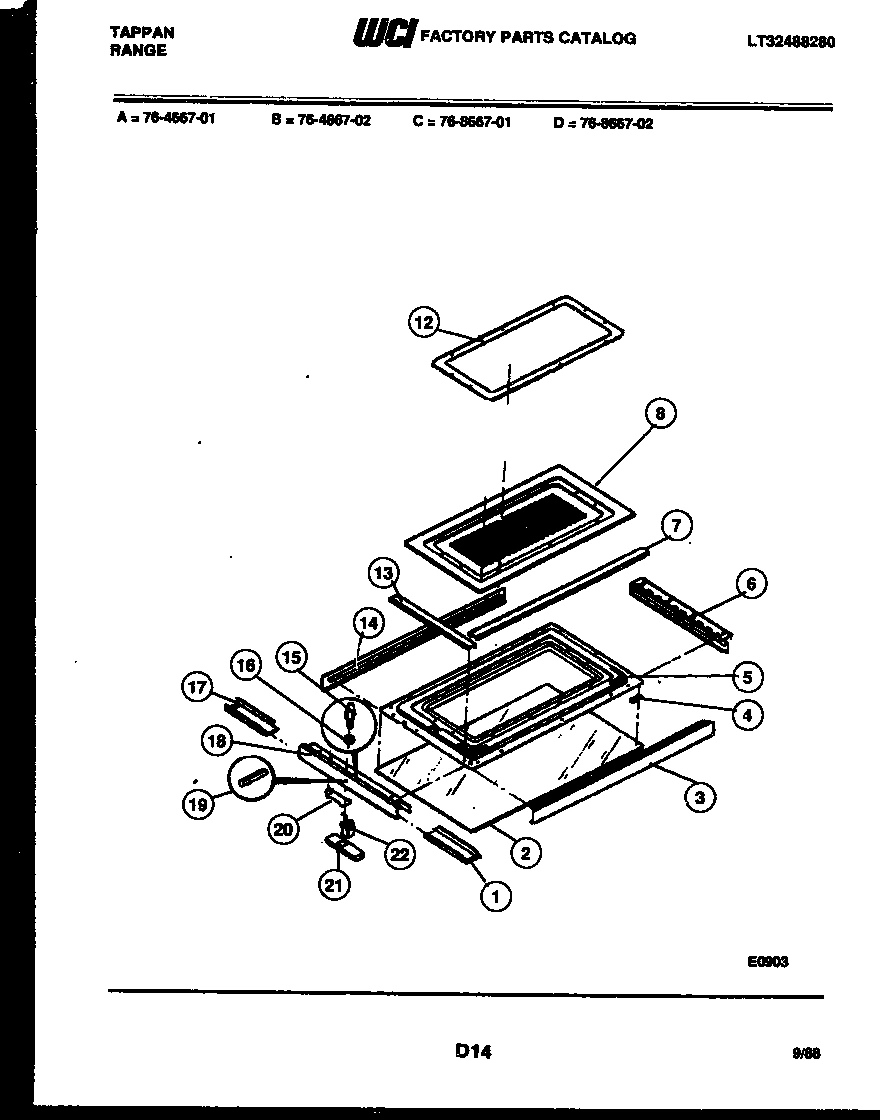

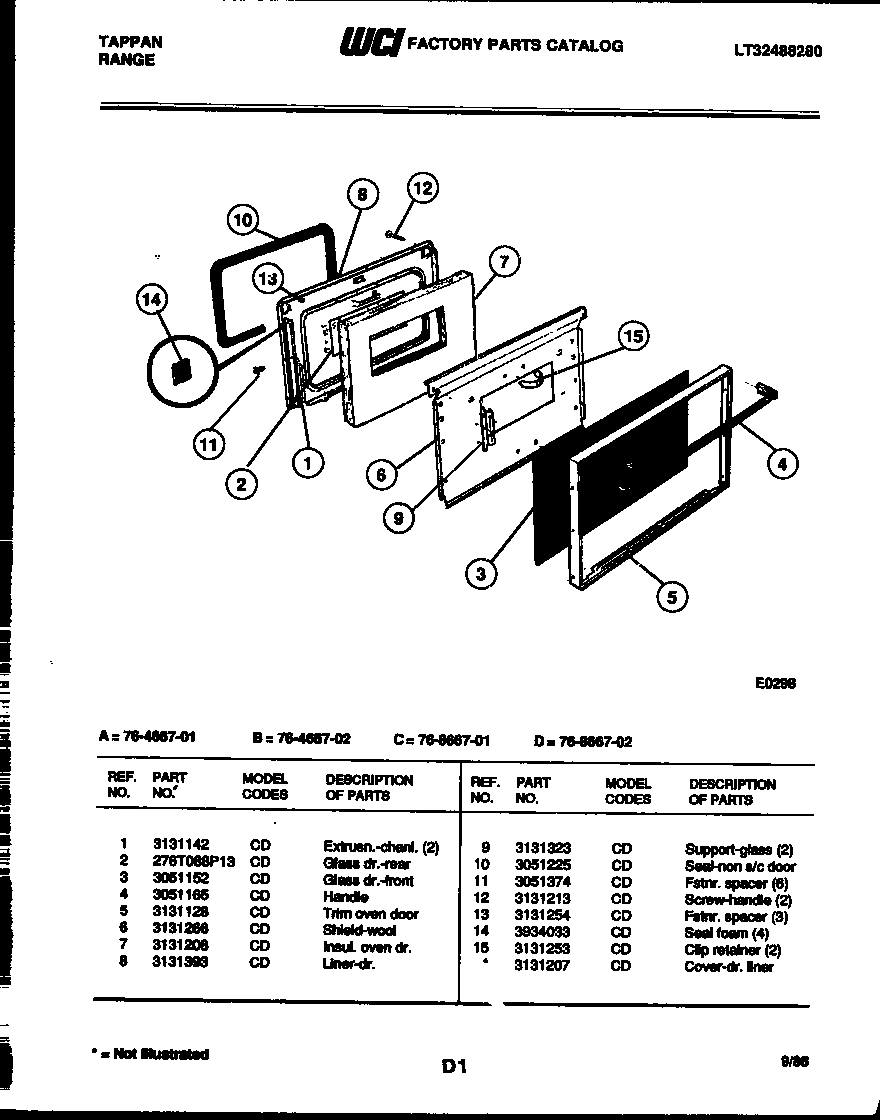

05 - DOOR PARTS

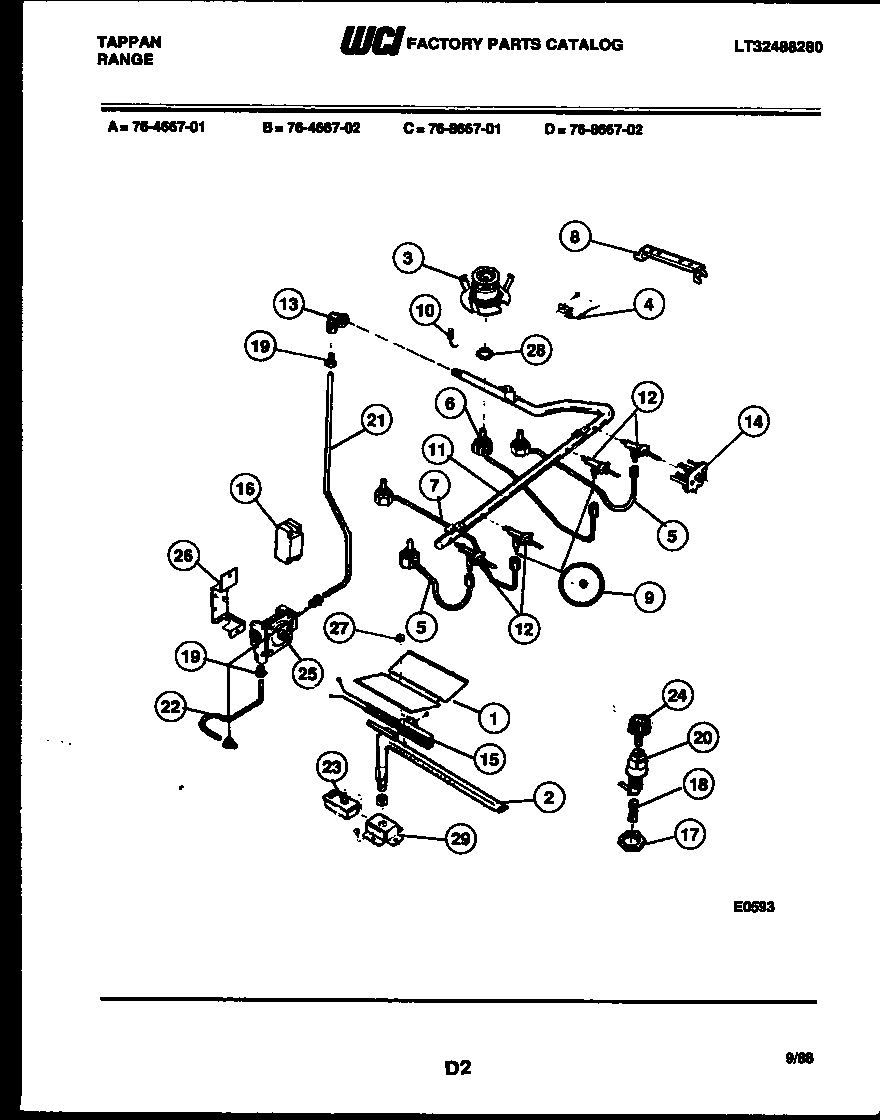

06 - BURNER PARTS

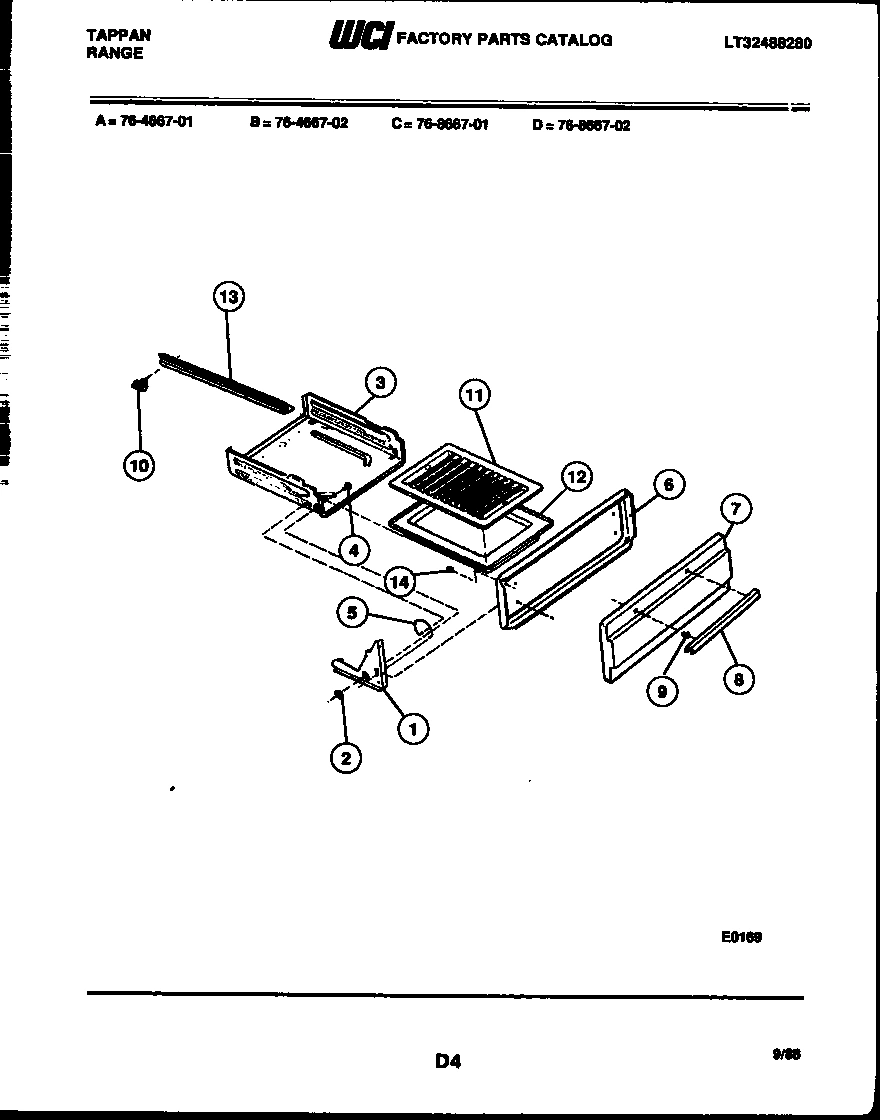

07 - BROILER DRAWER PARTS

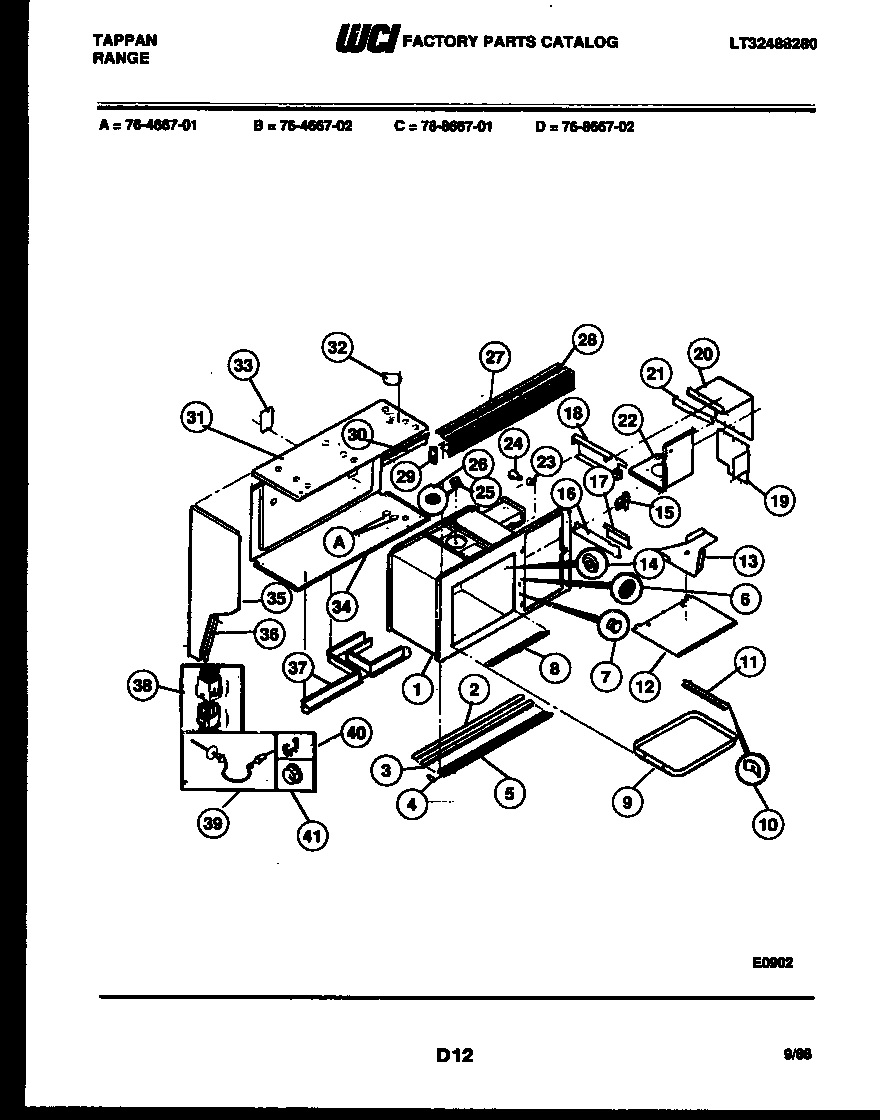

08 - BODY PARTS

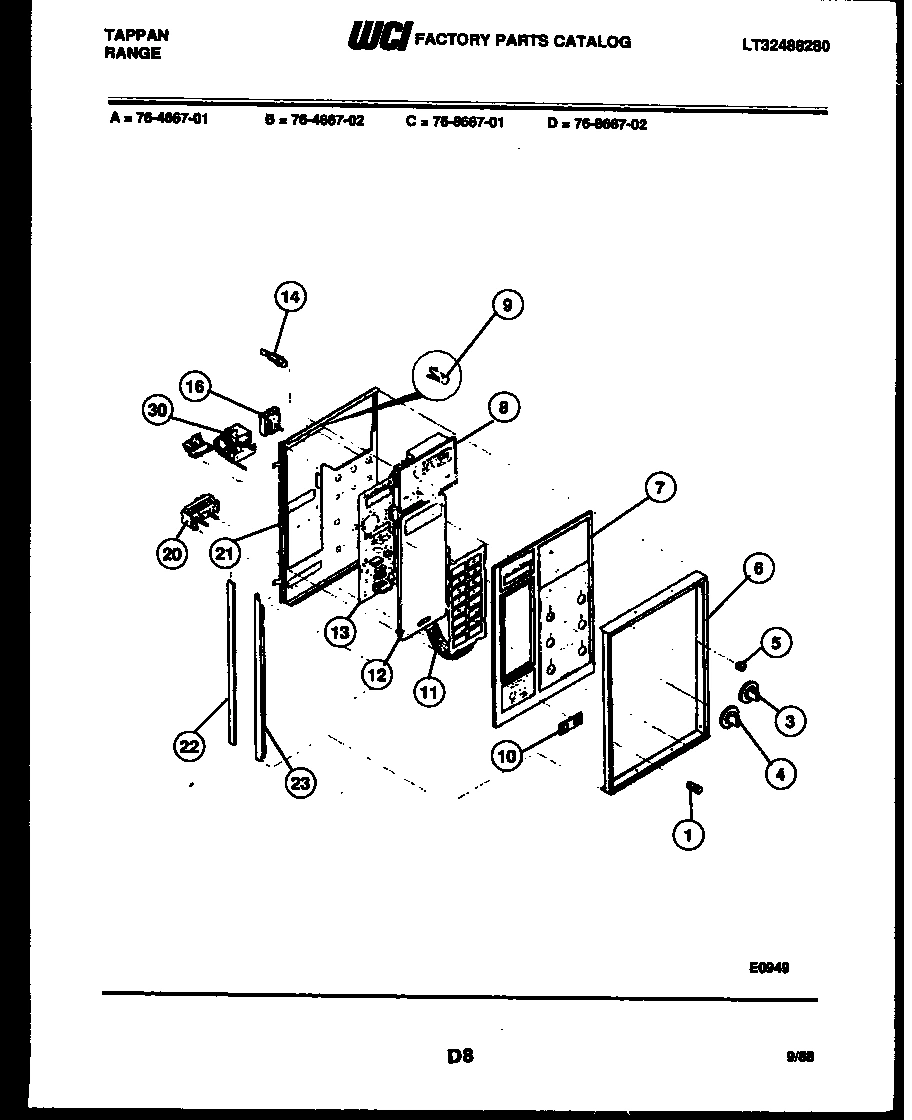

09 - CONTROL PANEL

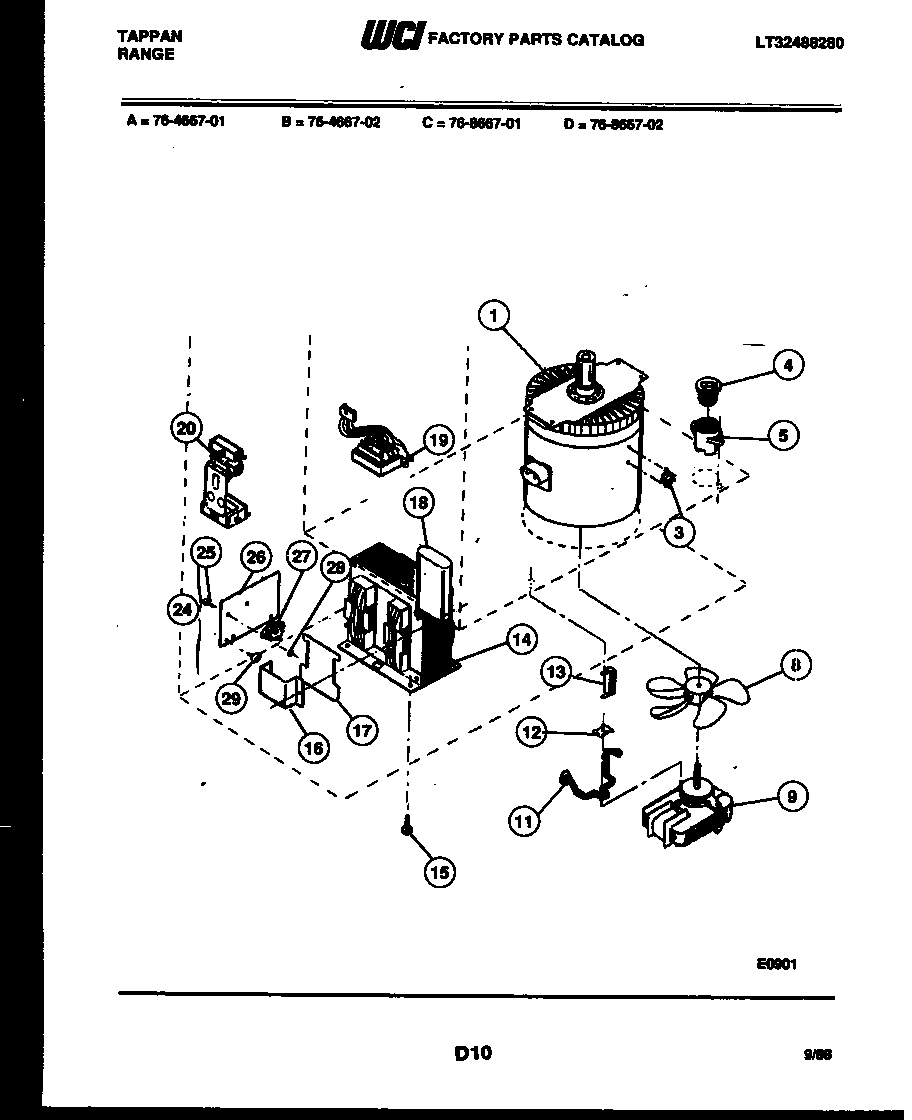

10 - UTILITY PARTS

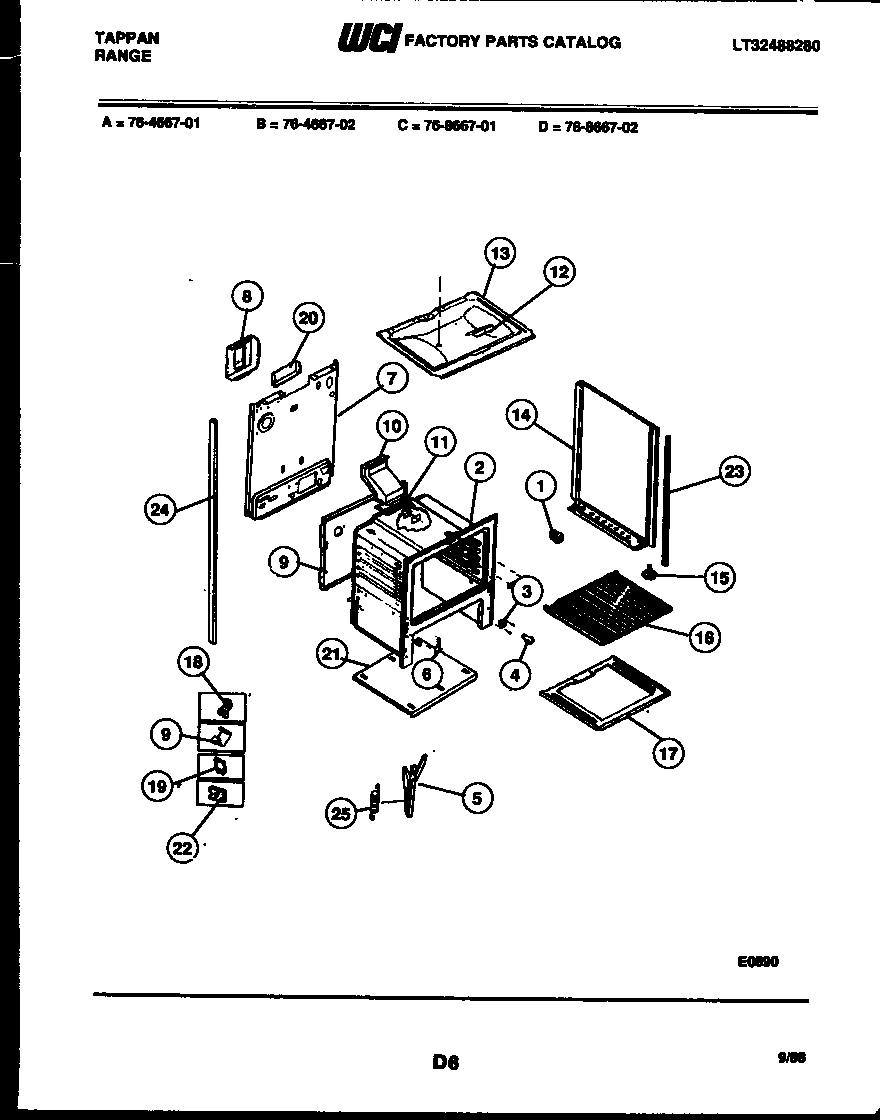

11 - BASIC BODY PARTS
12 - TOP AND RELATED PARTS
Common parts from model Electrolux 76-8667-23-02 RANGE
*19708
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*19710
WCI 3131207 WCI 3131207 Contact Us For Availability
*19712
WCI 3051420 WCI 3051420 Contact Us For Availability
*19712
WASHER (4) WCI 3131737 Contact Us For Availability
*19714
INSUL. BRL. DRAWER WCI 3131258 Contact Us For Availability
*19714
SCREW (2) WCI 636T162P01 Contact Us For Availability
*19717
COVER PLATE WCI 174T297F01 Contact Us For Availability
*19717
WCI 3015372 WCI 3015372 Contact Us For Availability
*19722
WCI 3091364 WCI 3091364 Contact Us For Availability
1
WCI 3018788 WCI 3018788 Contact Us For Availability
1
EXTRUSN-CHANL (2) WCI 3131142 Contact Us For Availability
1
WCI 3131327 WCI 3131327 Contact Us For Availability
1
WCI 072T805F01-08 WCI 072T805F01-08 Contact Us For Availability
1
SPACER, BODYSIDE (8) WCI 665T188P02 Contact Us For Availability
1
WCI 106T024P06 WCI 106T024P06 Contact Us For Availability
1
WCI 423T016P02 WCI 423T016P02 Contact Us For Availability
1
WCI 322T013P01 WCI 322T013P01 Contact Us For Availability
1A
WCI 072T805F02-08 WCI 072T805F02-08 Contact Us For Availability
1A
NUT (NON-ILLUSTRATED) WCI 479T069P31 Contact Us For Availability
2
WCI 3131695 No Longer Available
2
WCI 3131439 WCI 3131439 Contact Us For Availability
2
GLASS DR.-REAR WCI 276T088P13 Contact Us For Availability
2
FSTNR, PUSH NUT (2) WCI 3131386 Contact Us For Availability
2
SEAL WCI 643T013P03 Contact Us For Availability
2
WCI 3091382 WCI 3091382 Contact Us For Availability
3
BULB-FLUOR WCI 3131275 Contact Us For Availability
3
ROD MAIN SUPPORT WCI 618T038P05 Contact Us For Availability
3
GLASS DR.-FRONT WCI 3051152 Contact Us For Availability
3
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
3
BODY, BROILER WCI 205T004W01-86 Contact Us For Availability
3
WCI 3091401 WCI 3091401 Contact Us For Availability
3
SWITCH THRM. CT. OT. WCI 115T695P08 Contact Us For Availability
3
COVER, SEAL WCI 174T188P02 Contact Us For Availability
3
EXTRUSN TRIM BTM WCI 233T027P02 Contact Us For Availability
4
WCI 3934009 WCI 3934009 Contact Us For Availability
4
WCI 3051165 WCI 3051165 Contact Us For Availability
4
RETAINR.-IGNITER WCI 612T119F01 Contact Us For Availability
4
PIN, HINGE (2) WCI 550T041P01 Contact Us For Availability
4
KNOB, OVEN TEMPO WCI 3091400 Contact Us For Availability
4
FUSE 20A WCI 262T010P01 Contact Us For Availability
4
WCI 123T082P01 WCI 123T082P01 Contact Us For Availability
4
SPACER GLASS (4) WCI 665T165P01 Contact Us For Availability
5
BRKT MAIN TOP LH WCI 3131286 Contact Us For Availability
5
WCI 3131128 WCI 3131128 Contact Us For Availability
5
BURNER-TUBE (LF RF) WCI 3131970 Contact Us For Availability
5
SPRING, BROILER, LH (C TYPE) WCI 675T079P01 Contact Us For Availability
5
CHANNEL DR HNG (2) WCI 3131569 Contact Us For Availability
5
KNOB, CLOCK (3) WCI 358T201P01 Contact Us For Availability
5
WCI 664T003P01 WCI 664T003P01 Contact Us For Availability
5
TRIM VENT BTM WCI 740T408P03 Contact Us For Availability
5
FRAME WCI 260T002P01-18 Contact Us For Availability
5A
SPRING, BROILER, RH (C TYPE) WCI 675T079P02 Contact Us For Availability
5B
WCI 636T074P10 WCI 636T074P10 Contact Us For Availability
6
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
6
BRKT MAIN TOP RH WCI 3131287 Contact Us For Availability
6
WCI 3131266 WCI 3131266 Contact Us For Availability
6
WCI 079T033H02 WCI 079T033H02 Contact Us For Availability
6
LINER-BROILER DRWR WCI 381T087F02-86 Contact Us For Availability
6
TRIM WCI 740T406P04 Contact Us For Availability
6
MEDALLION WCI 445T004P01 Contact Us For Availability
6
EXTRUSION HINGE WCI 233T026S13 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7
INSUL. OVEN DR WCI 3131208 Contact Us For Availability
7
WCI 079T033H03 WCI 079T033H03 Contact Us For Availability
7
PNL. BROILER-BLACK WCI 3131673 Contact Us For Availability
7
PNL BROILER (ALMOND) WCI 3131717 Contact Us For Availability
7
WCI 3131567 WCI 3131567 Contact Us For Availability
7
WCI 3091398 WCI 3091398 Contact Us For Availability
7
GROMMET DOOR WCI 287T003P08 Contact Us For Availability
7
SEAL WCI 643T014P01 Contact Us For Availability
8
GUSSET MWV SUPT LH WCI 3131653 Contact Us For Availability
8
WCI 3051355 WCI 3051355 Contact Us For Availability
8
LINER-DR. WCI 3131393 Contact Us For Availability
8
WCI 072T839F02 WCI 072T839F02 Contact Us For Availability
8
WCI 3131125 WCI 3131125 Contact Us For Availability
8
WCI 3131660 WCI 3131660 Contact Us For Availability
8
WCI 3091385 WCI 3091385 Contact Us For Availability
8
WCI 115T239P01 WCI 115T239P01 Contact Us For Availability
8
WCI 740T479P01 WCI 740T479P01 Contact Us For Availability
8
WCI 511T038F06-99 WCI 511T038F06-99 Contact Us For Availability
8A
GUSSET MWV SUPT RH WCI 3131654 Contact Us For Availability
9
GLASS-SPLASHER U/O WCI 277T164P25 Contact Us For Availability
9
GRATE TOP (4) WCI 3131582 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
9
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
9
WCI 145T130P01 WCI 145T130P01 Contact Us For Availability
9
FASTENER, CLOCK WCI 241T017P228 Contact Us For Availability
9
FAN MOTOR WCI 115T463P03 Contact Us For Availability
9
TRAY GLASS WCI 736T005P01 Contact Us For Availability
9A
SCREW (8) (NON-ILLUSTRATED) WCI 636T090P54 Contact Us For Availability
10
WCI 513T073F21 WCI 513T073F21 Contact Us For Availability
10
WCI 3131299 WCI 3131299 Contact Us For Availability
10
IGNITER-TOP BURNR (4) WCI 316T034P02 Contact Us For Availability
10
GLIDE, BROILER (6) WCI 280T061P01 Contact Us For Availability
10
WCI 3131904 WCI 3131904 Contact Us For Availability
10
WCI 3091375 WCI 3091375 Contact Us For Availability
10
CLIP TRAY (4) WCI 241T017P219 Contact Us For Availability
11
WCI 3051115 WCI 3051115 Contact Us For Availability
11
CAP MANIF.-LH WCI 3131896 Contact Us For Availability
11
FSTNR. SPACER (6) WCI 3051374 Contact Us For Availability
11
WCI 3131440 WCI 3131440 Contact Us For Availability
11
WCI 3131356 WCI 3131356 Contact Us For Availability
11
WCI 3091395 WCI 3091395 Contact Us For Availability
11
ROD MOTOR (2) WCI 618T048P01 Contact Us For Availability
11
GLIDE, TRAY (2) WCI 280T053P01 Contact Us For Availability
12
FSTNR CABLE CLAMP WCI 241T003P01 Contact Us For Availability
12
CAP MANIF.-RH WCI 3131890 Contact Us For Availability
12
WCI 3131213 WCI 3131213 Contact Us For Availability
12
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
12
WCI 3131101 WCI 3131101 Contact Us For Availability
12
PANEL SWITCH WCI 511T048P01 Contact Us For Availability
12
CHANNEL GUIDE WCI 136T309F01 Contact Us For Availability
12
WCI 174T242P01 WCI 174T242P01 Contact Us For Availability
12
WCI 380T022P01 WCI 380T022P01 Contact Us For Availability
12A
VALVE 3 POS. WCI 3017846 Contact Us For Availability
13
FSTNR PURSE LOCK WCI 241T017P154 Contact Us For Availability
13
WCI 3131441 WCI 3131441 Contact Us For Availability
13
FSTNR.-SPACER (3) WCI 3131254 Contact Us For Availability
13
ELBOW (1/2 NP TOP 9/16-24) WCI 215T013P01 Contact Us For Availability
13
WCI 3131153 WCI 3131153 Contact Us For Availability
13
WCI 095T030F02-86 WCI 095T030F02-86 Contact Us For Availability
13
WCI 115T139P01 WCI 115T139P01 Contact Us For Availability
13
DIODE HV WCI 115T198P02 Contact Us For Availability
13
WCI 239T043S02 WCI 239T043S02 Contact Us For Availability
13
SEAL WCI 643T014P02 Contact Us For Availability
13A
NUT COMPRESSION (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
14
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
14
WCI 3131891 WCI 3131891 Contact Us For Availability
14
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
14
PLUG BROIL DRAWR. (4) WCI 557T035P01 Contact Us For Availability
14
PNL. B/S-BLACK-RH WCI 3131217 Contact Us For Availability
14
PNL B/S ALMOND RH WCI 3131454 Contact Us For Availability
14
LIGHT-INDICATOR (2) WCI 318T023P11 Contact Us For Availability
14
TRANSFORMER HV WCI 737T061P01 Contact Us For Availability
14
WCI 479T084P01 WCI 479T084P01 Contact Us For Availability
14
WCI 233T016P04 WCI 233T016P04 Contact Us For Availability
14A
PNL. B/S-BLACK-LH WCI 3131221 Contact Us For Availability
14A
PNL B/S ALMOND LH WCI 3131453 Contact Us For Availability
14A
WCI 636T090P51 WCI 636T090P51 Contact Us For Availability
15
WCI 3131588 WCI 3131588 Contact Us For Availability
15
CLIP, RETAINER (2) WCI 3131253 Contact Us For Availability
15
SCREW - LEVELING (4) WCI 636M004P01 Contact Us For Availability
15
SCREW, TRANS (4) WCI 636T101P14 Contact Us For Availability
15
WCI 597T035P01 WCI 597T035P01 Contact Us For Availability
15
SCREW WCI 636T111P03 Contact Us For Availability
16
WCI 740T309F01 WCI 740T309F01 Contact Us For Availability
16
WCI 697T075P01 WCI 697T075P01 Contact Us For Availability
16
RETAINER CAPAC. WCI 612T104F01 Contact Us For Availability
16
WCI 479T069P30 WCI 479T069P30 Contact Us For Availability
16
WCI 008T480P01 WCI 008T480P01 Contact Us For Availability
16A
WCI 740T309F02 WCI 740T309F02 Contact Us For Availability
17
TRIM O/U SPL GL FILLER WCI 3051340 Contact Us For Availability
17
HEX NUT FUSE WCI 479T085P03 Contact Us For Availability
17
WCI 058T036F02-86 WCI 058T036F02-86 Contact Us For Availability
17
SHIELD WCI 655T378P01 Contact Us For Availability
17
WCI 008T378F11 WCI 008T378F11 Contact Us For Availability
17
WCI 322T015P04 WCI 322T015P04 Contact Us For Availability
17A
WCI 3131201 WCI 3131201 Contact Us For Availability
17B
WCI 3131246 WCI 3131246 Contact Us For Availability
18
WASHER SPRING WCI 3131627 Contact Us For Availability
18
FUSE WCI 262T007P02 Contact Us For Availability
18
CAPACITOR HV WCI 115T157P01 Contact Us For Availability
18
WCI 136T321F02-18 WCI 136T321F02-18 Contact Us For Availability
18
EXTRUSN. TRIM RH WCI 233T012P06 Contact Us For Availability
18A
WCI 3131585 WCI 3131585 Contact Us For Availability
19
WCI 3131261 WCI 3131261 Contact Us For Availability
19
TRANSFORMER LV WCI 737T055P02 Contact Us For Availability
19
COVER WCI 174T267P01 Contact Us For Availability
19
ROLL PIN WCI 550T037P02 Contact Us For Availability
20
RECEPTACLE FUSE WCI 597T034P03 Contact Us For Availability
20
SHIELD FLUE WCI 3131251 Contact Us For Availability
20
SWITCH ON-OFF WCI 697T047P04 Contact Us For Availability
20
SWITCH KIT (T) WCI 355T448S01 Contact Us For Availability
20
COVER, DUCT BTM. WCI 174T253S02 Contact Us For Availability
20
WCI 675T072P02 WCI 675T072P02 Contact Us For Availability
20A
WCI 3091336 WCI 3091336 Contact Us For Availability
20B
WCI 636T095P16 WCI 636T095P16 Contact Us For Availability
20C
WCI 612T090F01 WCI 612T090F01 Contact Us For Availability
21
WCI 750T085H09 WCI 750T085H09 Contact Us For Availability
21
WCI 3131180 WCI 3131180 Contact Us For Availability
21
WCI 3091343 WCI 3091343 Contact Us For Availability
21
BRKT., MAGNETRON WCI 072T731F01 Contact Us For Availability
21
WCI 296T095S05 WCI 296T095S05 Contact Us For Availability
21A
WCI 554T388F02 WCI 554T388F02 Contact Us For Availability
21B
COVER-POWER CORD, (NON-ILLUSTRATED) WCI 3131244 Contact Us For Availability
22
TUBE - ALUM 3/8 WCI 3131448 Contact Us For Availability
22
SEAL WCI 643T013P01 Contact Us For Availability
22
DUCT BTM WCI 211T044F04 Contact Us For Availability
22
WCI 306T008P01 WCI 306T008P01 Contact Us For Availability
23
TRIM-VERT B/S (2) WCI 3051326 Contact Us For Availability
23
WCI 174T264P03 WCI 174T264P03 Contact Us For Availability
23
SCREW DOOR (22) WCI 636T046P02 Contact Us For Availability
23
WCI 662T027P02 WCI 662T027P02 Contact Us For Availability
23A
BUSHING GLASS (2) (NON-ILLUSTRATED) WCI 102T019P01 Contact Us For Availability
24
CAP-FUSE RECEPT. WCI 123T126P01 Contact Us For Availability
24
WCI 3051723 WCI 3051723 Contact Us For Availability
24
TRIAC, HEAT SINK WCI 355T515S04 Contact Us For Availability
24
BULB WCI 374T024P01 Contact Us For Availability
24
WCI 622T023P02 WCI 622T023P02 Contact Us For Availability
24A
WCI 3051724 WCI 3051724 Contact Us For Availability
25
WCI 665T175P01 WCI 665T175P01 Contact Us For Availability
25
WCI 636T095P47 WCI 636T095P47 Contact Us For Availability
25
WCI 115T463P01 WCI 115T463P01 Contact Us For Availability
26
WCI 657T010F01 WCI 657T010F01 Contact Us For Availability
26
WCI 554T338F02 WCI 554T338F02 Contact Us For Availability
26
WASHER WCI 789T061P01 Contact Us For Availability
27
WCI 612T101F01 WCI 612T101F01 Contact Us For Availability
28
WCI 479T069P40 WCI 479T069P40 Contact Us For Availability
28
WCI 742T005P01 WCI 742T005P01 Contact Us For Availability
28
WCI 3091402 WCI 3091402 Contact Us For Availability
29
BRKT.-VALVE WCI 3131438 Contact Us For Availability
29
WCI 636T069P54 WCI 636T069P54 Contact Us For Availability
29
CAP END LH WCI 123T081P05 Contact Us For Availability
29A
WCI 3091202 WCI 3091202 Contact Us For Availability
29A
CAP END RH WCI 123T081P06 Contact Us For Availability
30
THERMOSTAT WCI 3051320 Contact Us For Availability
30
WCI 655T307F02 WCI 655T307F02 Contact Us For Availability
30A
WCI 655T307F03-18 WCI 655T307F03-18 Contact Us For Availability
31
WCI 299T405S203 WCI 299T405S203 Contact Us For Availability
31
WCI 529T079F05-18 WCI 529T079F05-18 Contact Us For Availability
32
WCI 174T204F01 WCI 174T204F01 Contact Us For Availability
33
COVER LIGHT WCI 3091338 Contact Us For Availability
34
WRAPPER WCI 3091346 Contact Us For Availability
35
PANEL LH (ALMOND) WCI 3051261 Contact Us For Availability
35A
PANEL RH (ALMOND) WCI 3051264 Contact Us For Availability
37
WCI 3131584 WCI 3131584 Contact Us For Availability
38
PLUG KIT WCI 355T442S02 Contact Us For Availability
39
WCI 115T563P03 WCI 115T563P03 Contact Us For Availability
40
WCI 241T017P153 WCI 241T017P153 Contact Us For Availability
41
BUSHING WCI 102T028P01 Contact Us For Availability
42
LABEL COOK GUIDE WCI 560T786P01 Contact Us For Availability
× ![]()
