Model Electrolux 76-4967-00-13 RANGE – Common Parts & Diagrams

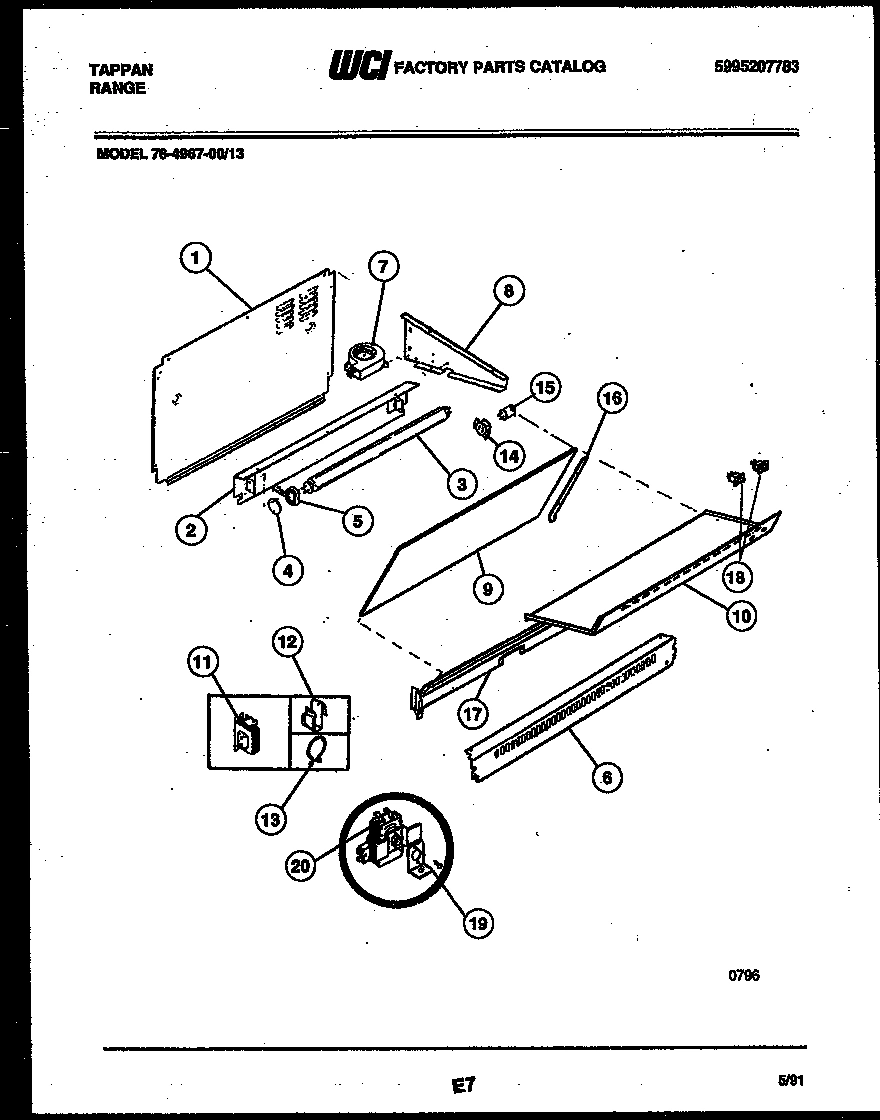

02 - SPLASHER CONTROL

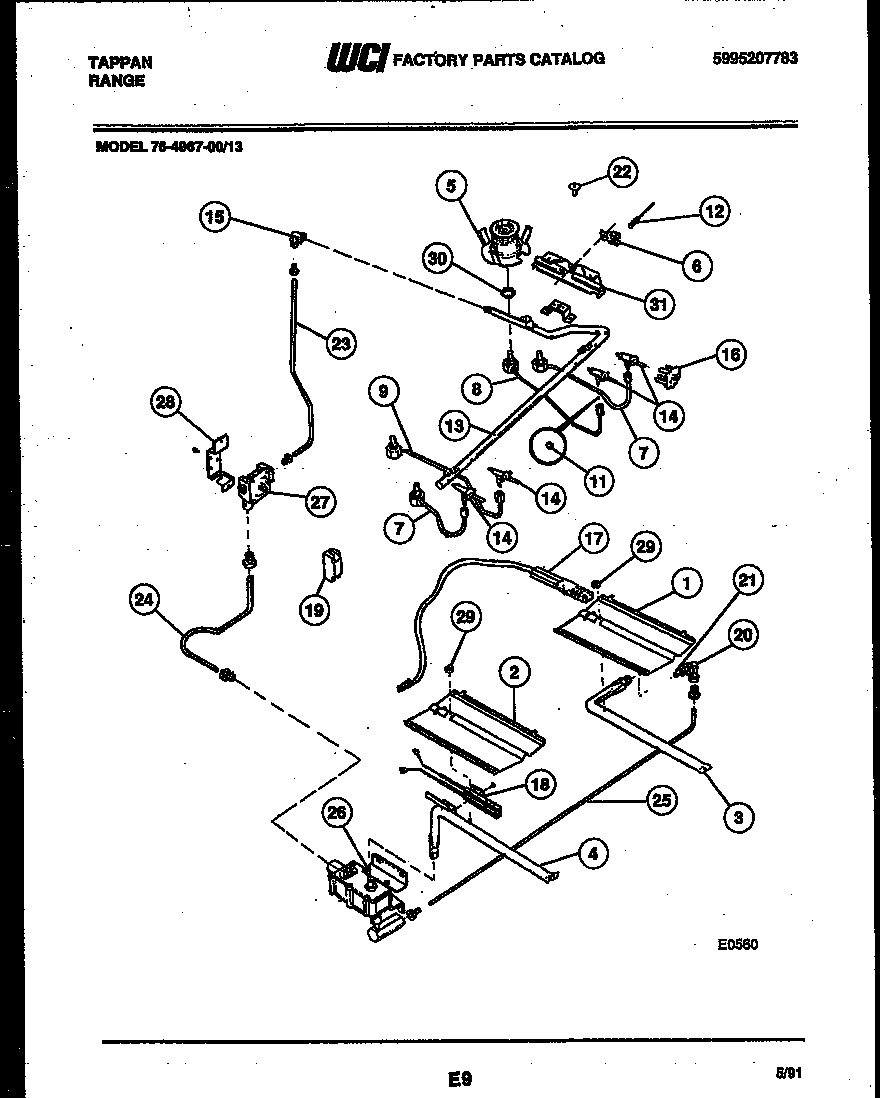

03 - BURNER, MANIFOLD AND GAS CONTROL

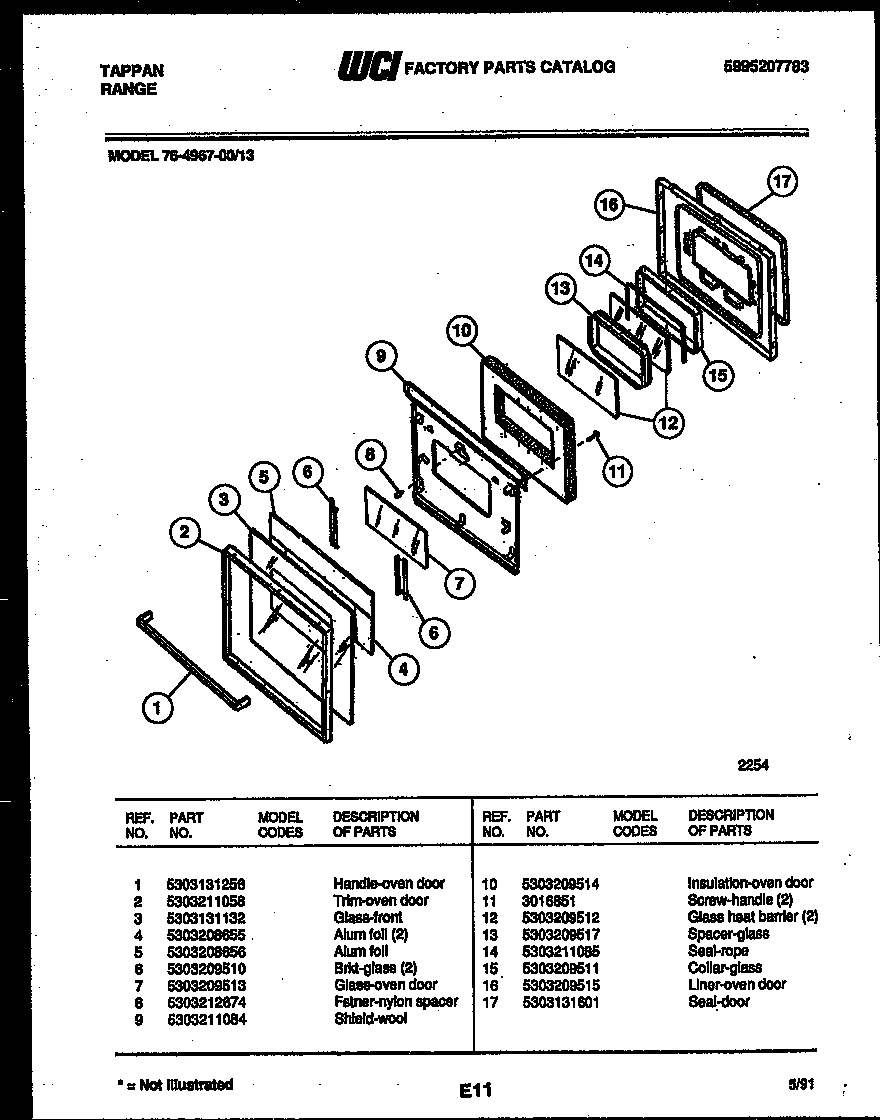

04 - LOWER OVEN DOOR PARTS

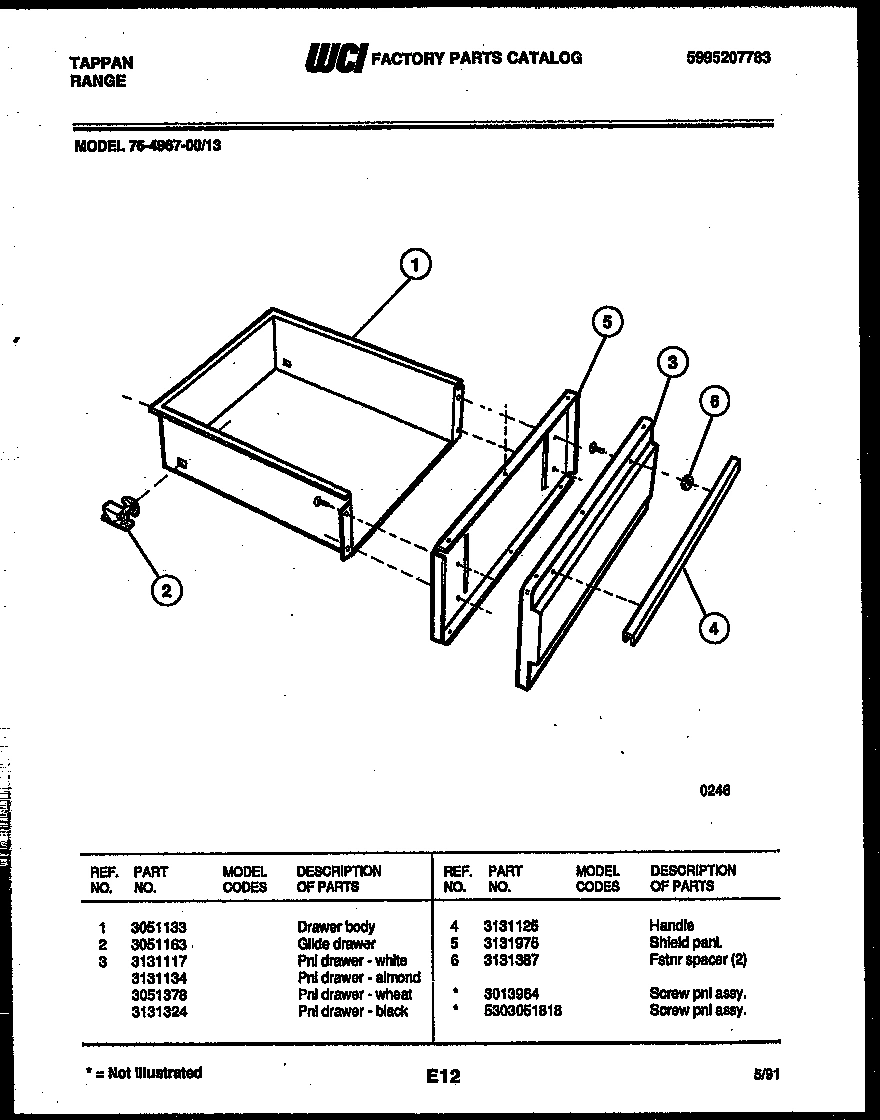

05 - DRAWER PARTS

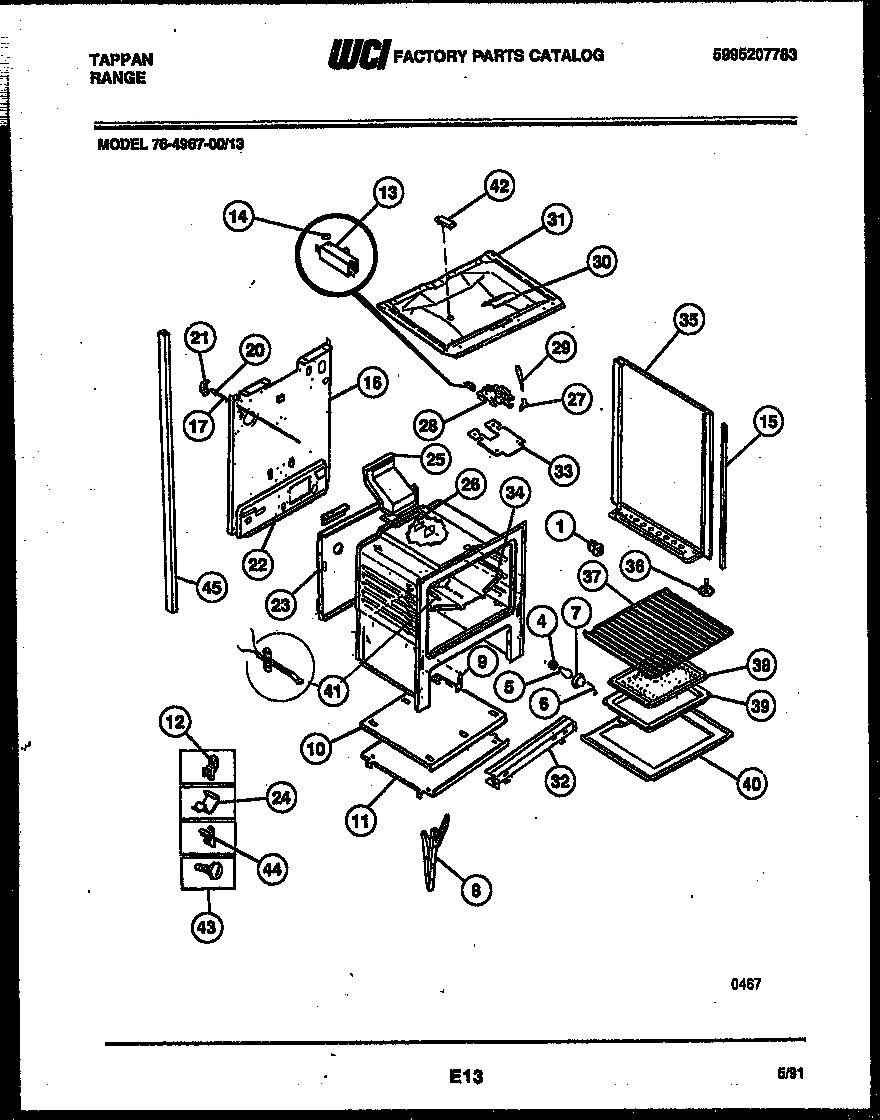

06 - LOWER BODY PARTS

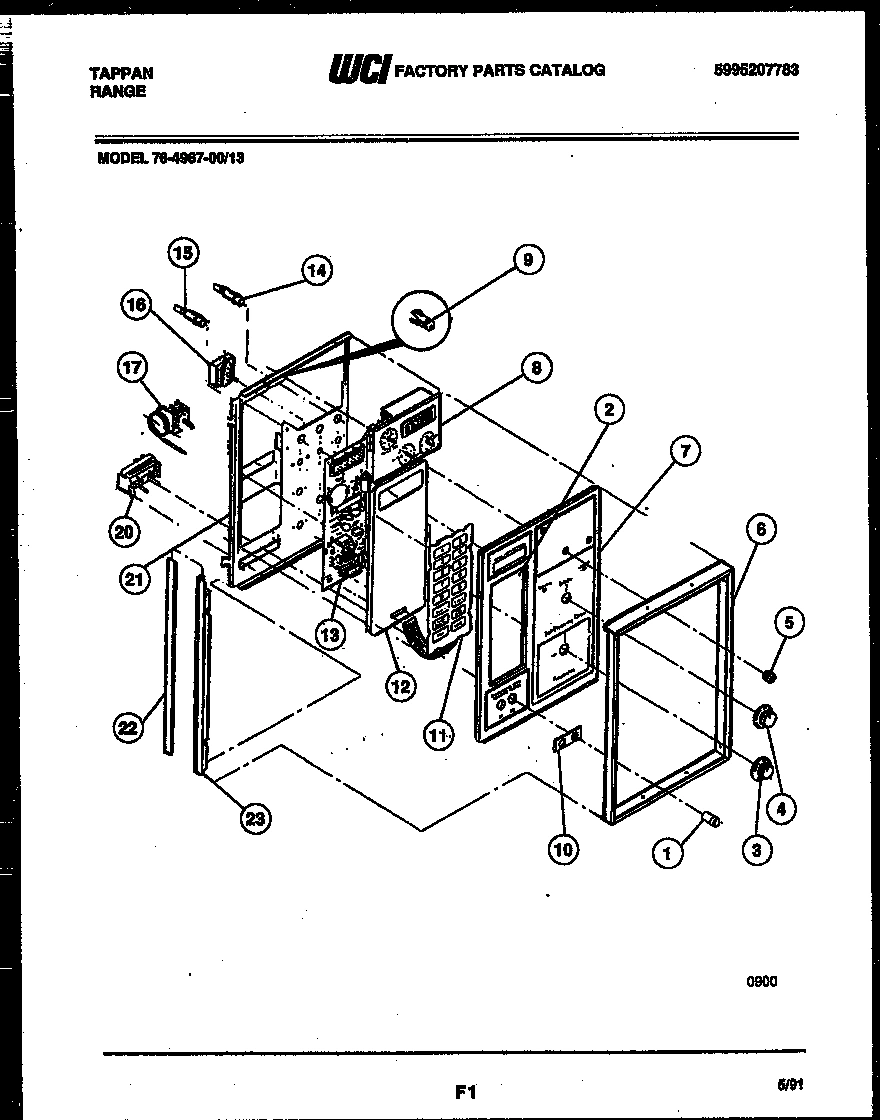

07 - CONTROL PANEL

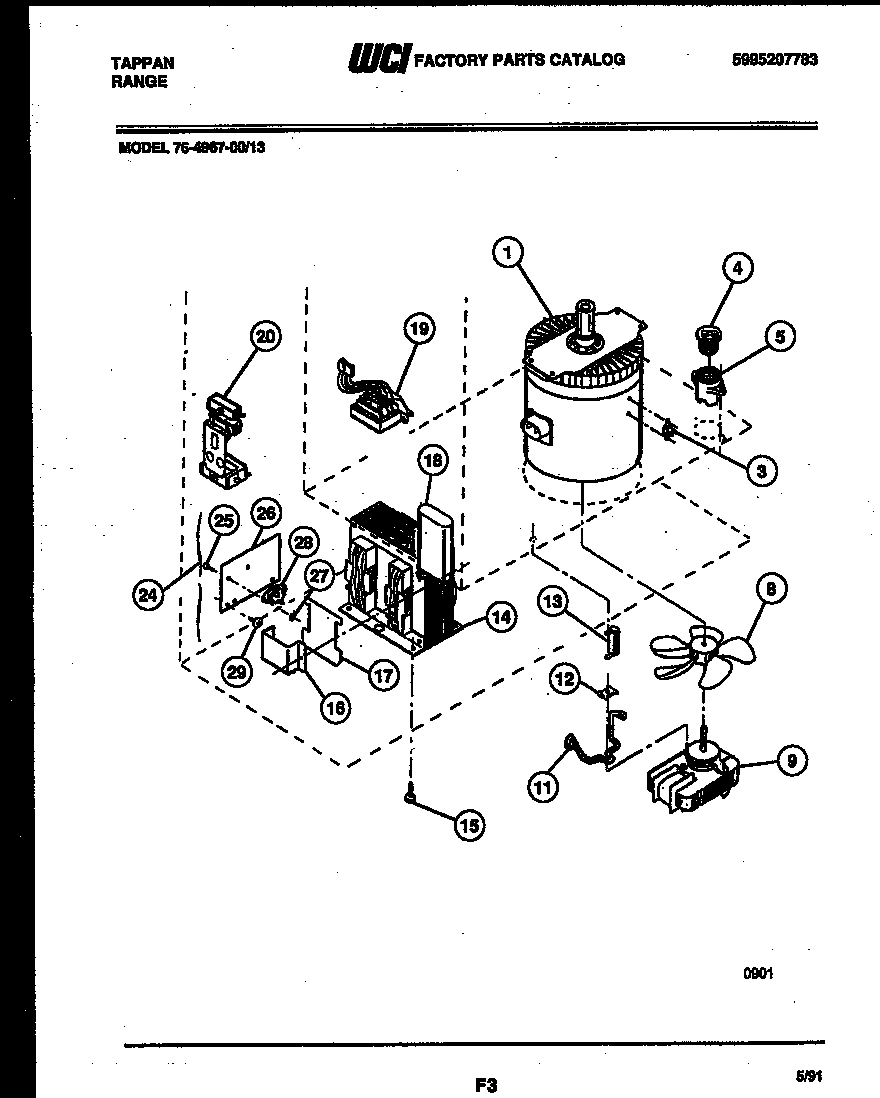

08 - POWER CONTROL

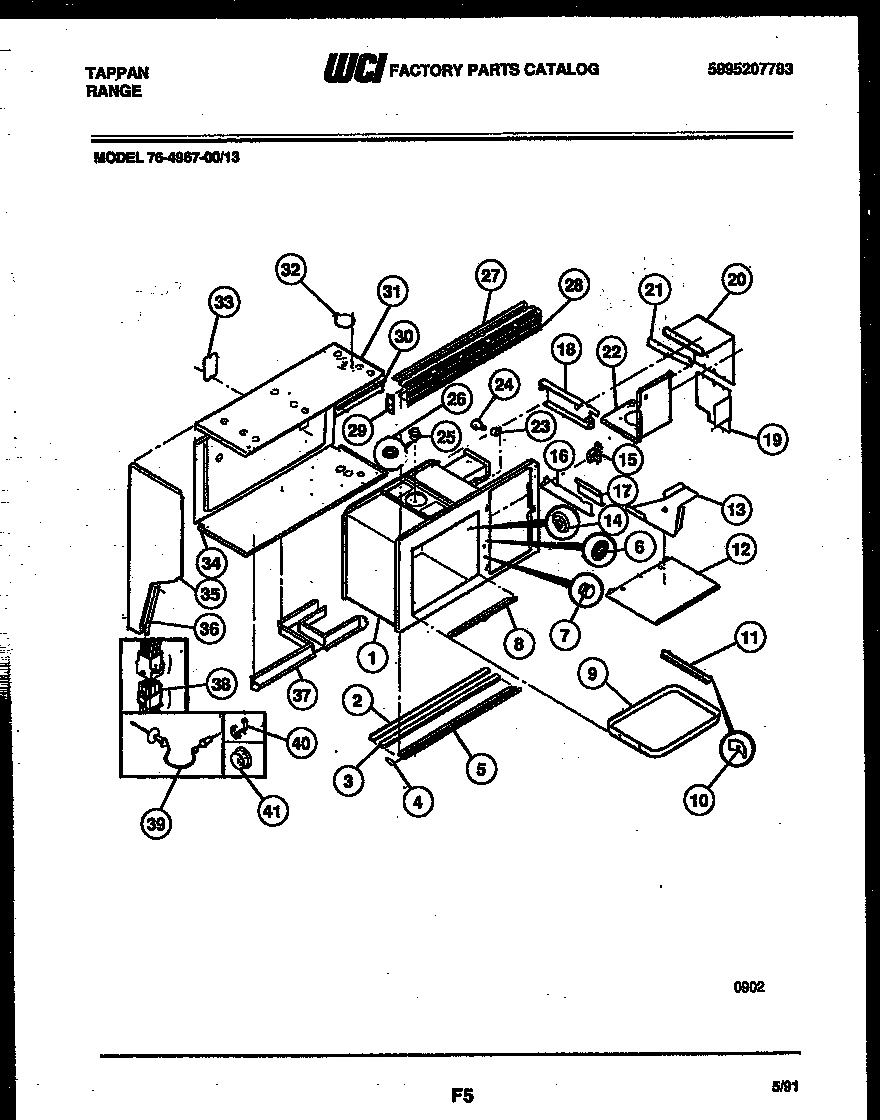

09 - UPPER BODY PARTS

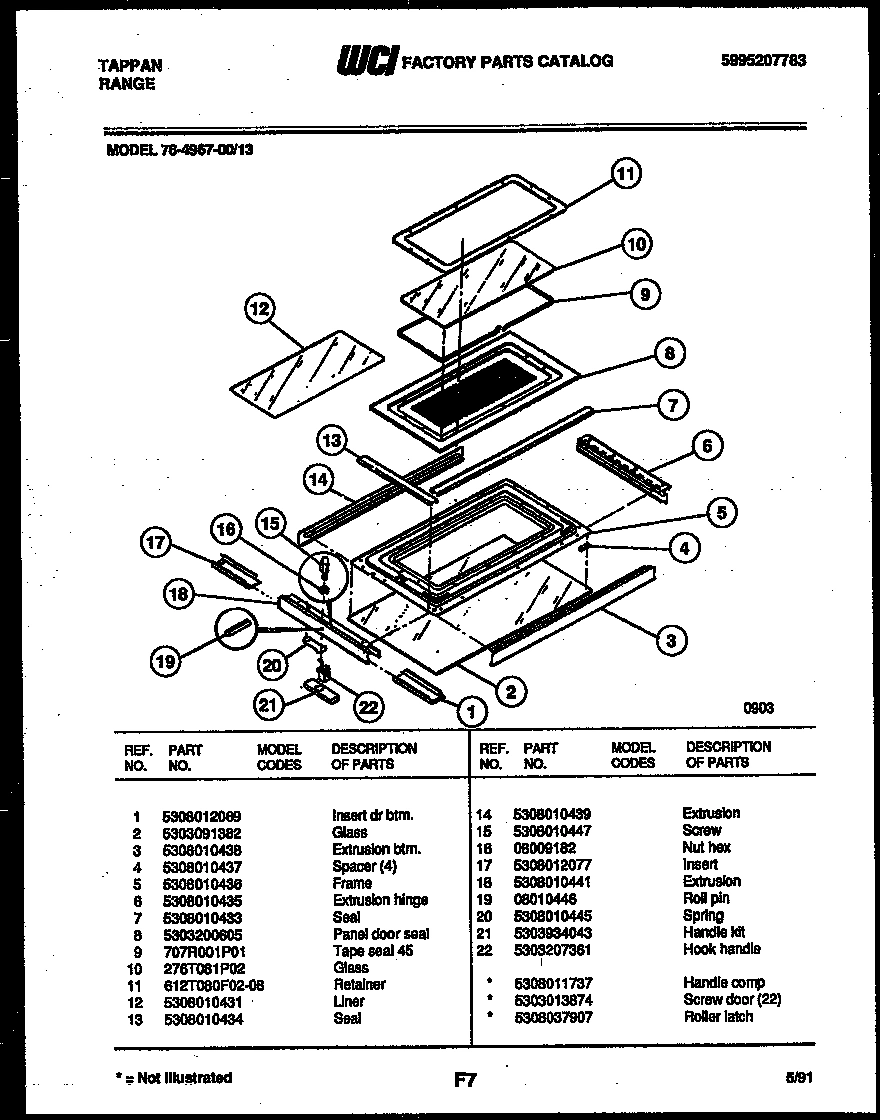

10 - TOP DOOR PARTS

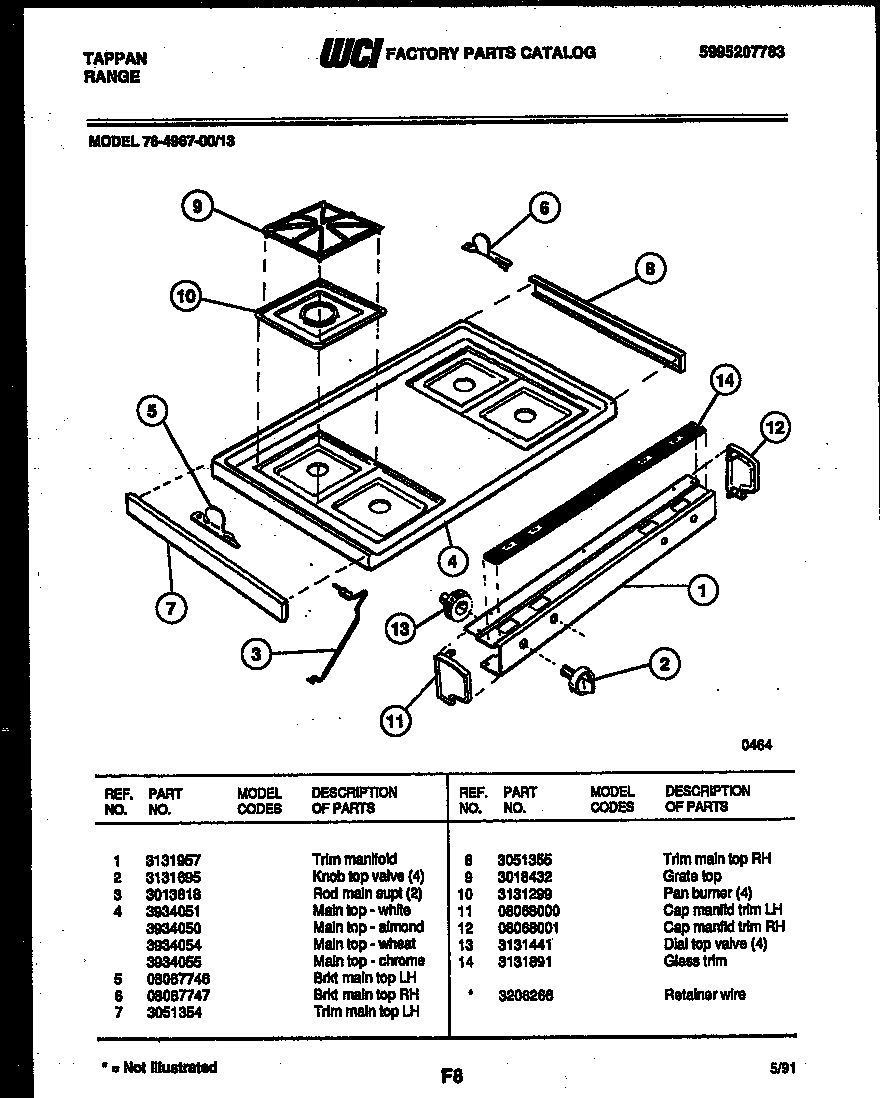

11 - COOKTOP PARTS
Common parts from model Electrolux 76-4967-00-13 RANGE
*50835
SCREW PNL ASSY. WCI 3013964 Contact Us For Availability
*50842
WCI 19100240002 WCI 19100240002 Contact Us For Availability
*50842
SHIELD-BI METAL WCI 3051413 Contact Us For Availability
*50842
SHIELD-LATCH WCI 3131593 Contact Us For Availability
*50842
INSULATION-WRAPPER WCI 3200833 Contact Us For Availability
*50842
SHIELD - BODYSIDE WCI 3200834 Contact Us For Availability
*50842
ANTI-TIP BRKT WCI 3934056 Contact Us For Availability
*50842
TUBE-POST RH WCI 5303208643 Contact Us For Availability
*50842
PLATE-RECEPTACLE WCI 554T353P01 Contact Us For Availability
*50842
WCI 597T040P01 WCI 597T040P01 Contact Us For Availability
*50845
BUSHING GLASS (2) WCI 5308010401 Contact Us For Availability
*50845
SPACER CNTRL PNL (2) WCI 5308014510 Contact Us For Availability
*50846
WCI 5308037903 WCI 5308037903 Contact Us For Availability
*50850
WCI 5303091339 WCI 5303091339 Contact Us For Availability
*50850
WCI 5308010494 WCI 5308010494 Contact Us For Availability
*50851
WCI 3015404 WCI 3015404 Contact Us For Availability
*50851
RELAY WCI 5303017159 Contact Us For Availability
*50856
LABEL-COOK, GUIDE WCI 5303018849 Contact Us For Availability
*50858
HANDLE COMP WCI 5308011737 Contact Us For Availability
*50859
SCREW - DOOR (22) WCI 5303013874 Contact Us For Availability
*50859
WCI 5308037907 WCI 5308037907 Contact Us For Availability
*50861
RETAINER WIRE WCI 3206266 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 5303131256 WCI 5303131256 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
BUTTON (2) WCI 5303091544 Contact Us For Availability
1
WCI 5303204035 WCI 5303204035 Contact Us For Availability
1
INSERT DR BTM. WCI 5308012069 Contact Us For Availability
1
WCI 3131957 WCI 3131957 Contact Us For Availability
1A
WCI 5308008918 WCI 5308008918 Contact Us For Availability
2
WCI 3131695 WCI 3131695 Contact Us For Availability
2
WCI 3131284 WCI 3131284 Contact Us For Availability
2
WCI 5303211058 WCI 5303211058 Contact Us For Availability
2
WCI 5308037890 WCI 5308037890 Contact Us For Availability
2
WCI 5303207965 WCI 5303207965 Contact Us For Availability
2
WCI 5303091382 WCI 5303091382 Contact Us For Availability
3
BULB FLUOR WRK LIT WCI 3131275 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
GLASS, FRONT WCI 5303131132 Contact Us For Availability
3
PNL DRAWER WHEAT WCI 3051378 Contact Us For Availability
3
PNL DRAWER (WHITE) WCI 3131117 Contact Us For Availability
3
PNL DRAWER (ALMOND) WCI 3131134 Contact Us For Availability
3
PNL DRAWER (BLACK) WCI 3131324 Contact Us For Availability
3
KNOB OVEN SET WCI 5303091408 Contact Us For Availability
3
SWITCH WCI 5308012862 Contact Us For Availability
3
COVER - SEAL WCI 5303200597 Contact Us For Availability
3
EXTRUSION-BTM WCI 5308010438 Contact Us For Availability
3
ROD MAIN SUPT (2) WCI 3013818 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
KNOB - OVEN TEMP WCI 5303091400 Contact Us For Availability
4
FUSE WCI 5303200606 Contact Us For Availability
4
WCI 5308010510 WCI 5308010510 Contact Us For Availability
4
SPACER (4) WCI 5308010437 Contact Us For Availability
4
WCI 3934050 WCI 3934050 Contact Us For Availability
4
WCI 3934051 WCI 3934051 Contact Us For Availability
4
WCI 3934054 WCI 3934054 Contact Us For Availability
4
WCI 3934055 WCI 3934055 Contact Us For Availability
5
BRKT, MAIN TOP (LH) WCI 08067746 Contact Us For Availability
5
BURNER TOP ASSY. WCI 5303011567 Contact Us For Availability
5
WCI 5303208656 WCI 5303208656 Contact Us For Availability
5
SHIELD PANL. WCI 3131975 Contact Us For Availability
5
WCI 5303208334 WCI 5303208334 Contact Us For Availability
5
SOCKET WCI 5308012055 Contact Us For Availability
5
TRIM BTM WCI 5303208200 Contact Us For Availability
5
WCI 5308010436 WCI 5308010436 Contact Us For Availability
5A
WCI 636T090P45 WCI 636T090P45 Contact Us For Availability
5B
SCREW - SWITCH (2) (NON-ILLUSTRATED) WCI 5308008925 Contact Us For Availability
6
WCI 3018617 WCI 3018617 Contact Us For Availability
6
BRKT-GLASS (2) WCI 5303209510 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
WIRE, GLASS RETAINER WCI 3204483 Contact Us For Availability
6
TRIM CONTROL PNL WCI 5308011886 Contact Us For Availability
6
MEDALLION-DR STRIKE WCI 5308010512 Contact Us For Availability
6
WCI 5308010435 WCI 5308010435 Contact Us For Availability
6
BRKT, MAIN TOP (RH) WCI 08067747 Contact Us For Availability
7
BURNER TUBE FRNT RF/LF WCI 5303131970 Contact Us For Availability
7
WCI 5303209513 WCI 5303209513 Contact Us For Availability
7
WCI 5303091409 WCI 5303091409 Contact Us For Availability
7
WCI 5308010513 WCI 5308010513 Contact Us For Availability
7
WCI 5308010433 WCI 5308010433 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7A
SCREW CHANL. MTG. WCI 3131143 Contact Us For Availability
8
CHNL DR. HNG. (2) WCI 316007002 No Longer Available
8
WCI 5303011569 WCI 5303011569 Contact Us For Availability
8
FSTNER-NYLON SPACER WCI 5303212674 Contact Us For Availability
8
WCI 5303091385 WCI 5303091385 Contact Us For Availability
8
WCI 5303011668 WCI 5303011668 Contact Us For Availability
8
TRIM, FRONT WCI 5303200630 Contact Us For Availability
8
WCI 5303200605 WCI 5303200605 Contact Us For Availability
8
WCI 3051355 WCI 3051355 Contact Us For Availability
9
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 5303011570 WCI 5303011570 Contact Us For Availability
9
WCI 5303211084 WCI 5303211084 Contact Us For Availability
9
FASTENER - CLOCK WCI 5308010409 Contact Us For Availability
9
WCI 5303011677 WCI 5303011677 Contact Us For Availability
9
WCI 5308010514 WCI 5308010514 Contact Us For Availability
9
WCI 707R001P01 WCI 707R001P01 Contact Us For Availability
9
GRATE TOP WCI 3018432 Contact Us For Availability
9A
SCREW (8) (NON-ILLUSTRATED) WCI 5303091100 Contact Us For Availability
10
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
10
WCI 3091375 WCI 3091375 Contact Us For Availability
10
WCI 5308010515 WCI 5308010515 Contact Us For Availability
10
WCI 276T081P02 WCI 276T081P02 Contact Us For Availability
10
WCI 3131299 WCI 3131299 Contact Us For Availability
11
FERRULE (4) WCI 08067945 Contact Us For Availability
11
SCREW, HANDLE (2) WCI 3016851 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11
SWITCH TOUCH MEMBRANE WCI 5303091395 Contact Us For Availability
11
ROD MOTOR (2) WCI 618T048P01 Contact Us For Availability
11
GLIDE, TRAY (2) WCI 5303200607 Contact Us For Availability
11
WCI 612T080F02-08 WCI 612T080F02-08 Contact Us For Availability
11
CAP MANFLD TRIM LH WCI 08068000 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 5303209512 WCI 5303209512 Contact Us For Availability
12
IGNITER-TOP BURNER (4) WCI 5303131105 Contact Us For Availability
12
CLIP-THERMO BULB (2) WCI 08067754 Contact Us For Availability
12
WCI 5303207857 WCI 5303207857 Contact Us For Availability
12
CHANNEL WCI 5303207945 Contact Us For Availability
12
WCI 5303200598 WCI 5303200598 Contact Us For Availability
12
LINER WCI 5308010431 Contact Us For Availability
12
CAP MANFLD TRIM RH WCI 08068001 Contact Us For Availability
13
WCI 3131440 WCI 3131440 Contact Us For Availability
13
WCI 5303209517 WCI 5303209517 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
13
WCI 5308012868 WCI 5308012868 Contact Us For Availability
13
DIODE - HV WCI 5303091303 Contact Us For Availability
13
WCI 5308010520 WCI 5308010520 Contact Us For Availability
13
WCI 5308010434 WCI 5308010434 Contact Us For Availability
13
WCI 3131441 WCI 3131441 Contact Us For Availability
14
VALVE 3 POS. WCI 5303017846 Contact Us For Availability
14
WCI 5303211085 WCI 5303211085 Contact Us For Availability
14
FSTNR., PUSH ON (3) WCI 08067776 Contact Us For Availability
14
WCI 5308037896 WCI 5308037896 Contact Us For Availability
14
TRANSFORMER H.V. WCI 5308014096 Contact Us For Availability
14
NUT WCI 5303013283 Contact Us For Availability
14
EXTRUSION WCI 5308010439 Contact Us For Availability
14
WCI 3131891 WCI 3131891 Contact Us For Availability
14A
STUD SPACER (2) (NON-ILLUSTRATED) WCI 08067978 Contact Us For Availability
14A
SCREW - TRANS (4) (NON-ILLUSTRATED) WCI 5303013944 Contact Us For Availability
15
STARTER - FLURO LITE WCI 3206218 Contact Us For Availability
15
ELBOW 1/2 NP 9/16-24 WCI 08067948 Contact Us For Availability
15
WCI 5303209511 WCI 5303209511 Contact Us For Availability
15
TRIM-BODYSIDE WCI 5303051326 Contact Us For Availability
15
WCI 5308008904 WCI 5308008904 Contact Us For Availability
15
WCI 5308008972 WCI 5308008972 Contact Us For Availability
15
WCI 5308010447 WCI 5308010447 Contact Us For Availability
15A
NUT COMPRESSOR (NON-ILLUSTRATED) WCI 3131148 Contact Us For Availability
15A
WCI 3200594 WCI 3200594 Contact Us For Availability
16
WCI 5303209515 WCI 5303209515 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
16
SWITCH 5 POL. WCI 5303091345 Contact Us For Availability
16
RETAINER WCI 08010483 Contact Us For Availability
16
WCI 08009182 WCI 08009182 Contact Us For Availability
16
WCI 08010521 WCI 08010521 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
17
THERMOSTAT OVEN WCI 3016756 Contact Us For Availability
17
SHIELD CAPACITOR WCI 08010484 Contact Us For Availability
17
WCI 5308010522 WCI 5308010522 Contact Us For Availability
17
INSERT WCI 5308012077 Contact Us For Availability
18
CAPACITOR - HV WCI 5308037624 Contact Us For Availability
18
WCI 08010523 WCI 08010523 Contact Us For Availability
18
EXTRUSION WCI 5308010441 Contact Us For Availability
19
WCI 5308010486 WCI 5308010486 Contact Us For Availability
19
COVER DUCT EXT. WCI 5308010617 Contact Us For Availability
19
WCI 08010446 WCI 08010446 Contact Us For Availability
20
THERMO.-OVEN S/C WCI 08067928 Contact Us For Availability
20
WCI 08067979 WCI 08067979 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
20
WCI 5308008910 WCI 5308008910 Contact Us For Availability
20
SWITCH KIT WCI 5303912591 Contact Us For Availability
20
COVER DUCT WCI 08010527 Contact Us For Availability
20
WCI 5308010445 WCI 5308010445 Contact Us For Availability
20A
BAFFLE TRANSFORMER (NON-ILLUSTRATED) WCI 3091336 Contact Us For Availability
20B
WCI 636T095P17 WCI 636T095P17 Contact Us For Availability
20C
WCI 5308012068 WCI 5308012068 Contact Us For Availability
21
HEX NUT WCI 3131358 Contact Us For Availability
21
WCI 5303131289 WCI 5303131289 Contact Us For Availability
21
WCI 5303091468 WCI 5303091468 Contact Us For Availability
21
BRACKET WCI 5308010526 Contact Us For Availability
21
WCI 5303934043 WCI 5303934043 Contact Us For Availability
22
WCI 3051420 WCI 3051420 Contact Us For Availability
22
WCI 3131590 WCI 3131590 Contact Us For Availability
22
WCI 5308010420 WCI 5308010420 Contact Us For Availability
22
DUCT BTM WCI 08010524 Contact Us For Availability
22
WCI 5303207361 WCI 5303207361 Contact Us For Availability
23
TUBE ALUM 3/8 REG/MANF WCI 5303208495 Contact Us For Availability
23
WCI 08067991 WCI 08067991 Contact Us For Availability
23
WCI 5303200599 WCI 5303200599 Contact Us For Availability
23
SOCKET WCI 5303014070 Contact Us For Availability
24
TUBE ALUM 3/8 VALVE/REGUL WCI 5303208494 Contact Us For Availability
24
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
BULB WCI 5308037902 Contact Us For Availability
25
TUBE ALUM 3/8 VALVE/MIX WCI 5303208493 Contact Us For Availability
25
WCI 3131931 WCI 3131931 Contact Us For Availability
25
SCREW - TRIAC WCI 3200767 Contact Us For Availability
25
WCI 5308008977 WCI 5308008977 Contact Us For Availability
26
WCI 08010489 WCI 08010489 Contact Us For Availability
26
WCI 5308008976 WCI 5308008976 Contact Us For Availability
26A
WCI 08013188 WCI 08013188 Contact Us For Availability
26B
WASHER, BLACK (NON-ILLUSTRATED) WCI 3131737 Contact Us For Availability
27
WCI 3203218 WCI 3203218 Contact Us For Availability
27
WCI 5303091366 WCI 5303091366 Contact Us For Availability
28
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
TRIAC WCI 5303912602 Contact Us For Availability
28
WCI 3091402 WCI 3091402 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 5308008971 WCI 5308008971 Contact Us For Availability
29
WCI 5303207940 WCI 5303207940 Contact Us For Availability
29A
WCI 5303207941 WCI 5303207941 Contact Us For Availability
30
NUT, SPECIAL WCI 3013279 Contact Us For Availability
30
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 5303091344 WCI 5303091344 Contact Us For Availability
30A
WCI 5303091212 WCI 5303091212 Contact Us For Availability
31
WCI 3206267 WCI 3206267 Contact Us For Availability
31
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 5303091373 WCI 5303091373 Contact Us For Availability
32
WCI 5303271047 WCI 5303271047 Contact Us For Availability
32
COVER-OUTLET WCI 08067732 Contact Us For Availability
33
WCI 3131314 WCI 3131314 Contact Us For Availability
33
COVER LIGHT WCI 3091338 Contact Us For Availability
34
WCI 3200836 WCI 3200836 Contact Us For Availability
34
WCI 5308037913 WCI 5308037913 Contact Us For Availability
35
PNL-BODYSIDE RH-WHITE WCI 5303269518 Contact Us For Availability
35
WCI 5303269543 WCI 5303269543 Contact Us For Availability
35
PNL BODYSIDE RH - BLACK WCI 5303269544 Contact Us For Availability
35
PNL BODYSIDE RH - WHEAT WCI 5303271917 Contact Us For Availability
35
PANEL LH (WHITE) WCI 3051260 Contact Us For Availability
35
PANEL LH (ALMOND) WCI 3051261 Contact Us For Availability
35
PANEL LH - HARVEST WHEAT WCI 3051262 Contact Us For Availability
35
WCI 3131907 WCI 3131907 Contact Us For Availability
35A
PNL-BODYSIDE LH-WHITE WCI 5303269519 Contact Us For Availability
35A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
35A
PNL BODYSIDE LH - BLACK WCI 5303269546 Contact Us For Availability
35A
PNL BODYSIDE LH - WHEAT WCI 5303271918 Contact Us For Availability
35A
PANEL RH (WHITE) WCI 3051263 Contact Us For Availability
35A
PANEL RH (ALMOND) WCI 3051264 Contact Us For Availability
35A
PANEL RH HARVEST WHEAT WCI 3051265 Contact Us For Availability
35A
WCI 3131908 WCI 3131908 Contact Us For Availability
36
SCREW-LEVELING (4) WCI 3206285 Contact Us For Availability
36
TRIM SPLASHER LH WCI 08010548 Contact Us For Availability
36A
TRIM-SPLASHER, RH WCI 08010549 Contact Us For Availability
36B
WCI 5303200603 WCI 5303200603 Contact Us For Availability
37
WCI 08067734 WCI 08067734 Contact Us For Availability
38
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
WCI 08010551 WCI 08010551 Contact Us For Availability
39
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 5303011684 WCI 5303011684 Contact Us For Availability
40
BTTM-OVEN WCI 5303212540 Contact Us For Availability
40
WCI 241T017P153 WCI 241T017P153 Contact Us For Availability
41
WCI 5303211414 WCI 5303211414 Contact Us For Availability
41
BUSHING WCI 102T028P01 Contact Us For Availability
42
WCI 3015371 WCI 3015371 Contact Us For Availability
43A
WCI 08067961 WCI 08067961 Contact Us For Availability
43B
INSUL.-WOOL (BACK) (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
43C
INSUL WOOL TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
43E
WCI 08068018 WCI 08068018 Contact Us For Availability
45
WCI 5303208642 WCI 5303208642 Contact Us For Availability
× ![]()
