Model Electrolux 76-4960-00-01 RANGE – Common Parts & Diagrams
02 - SPLASHER CONTROL
03 - COOKTOP PARTS

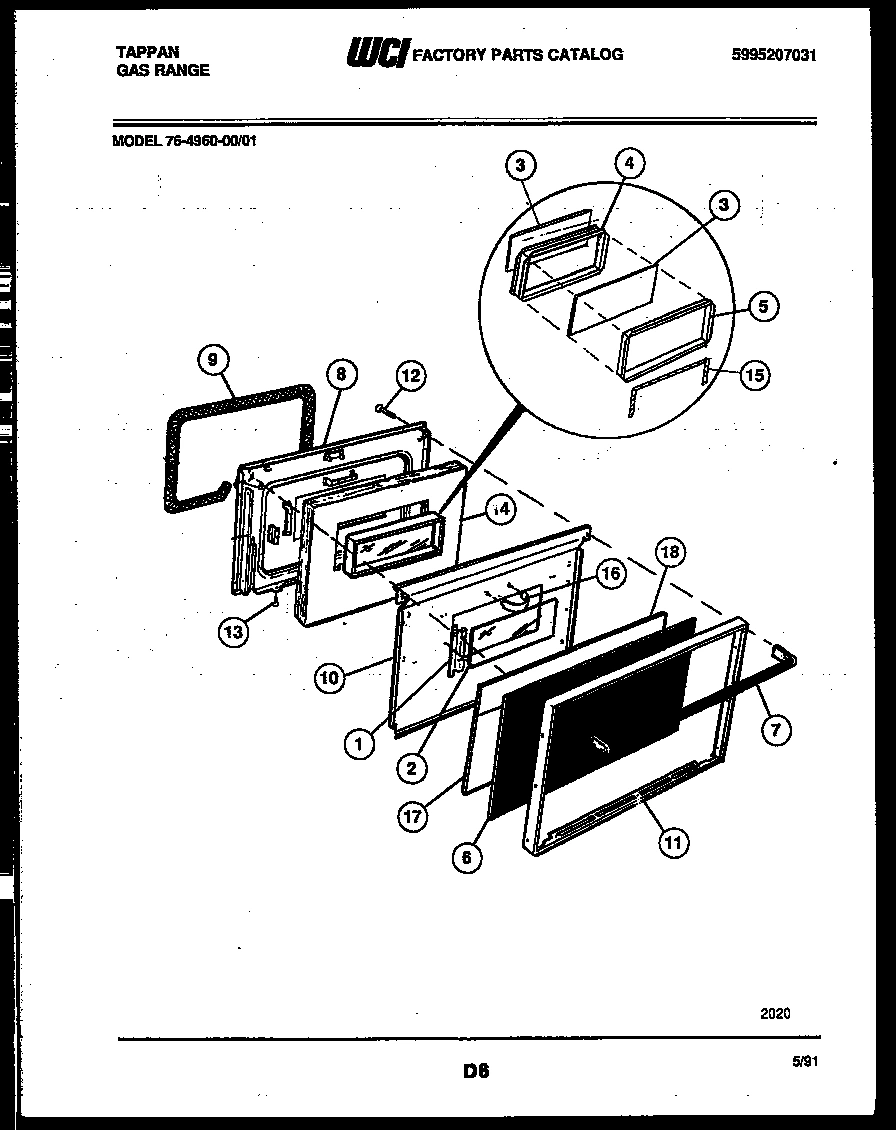

04 - LOWER OVEN DOOR PARTS

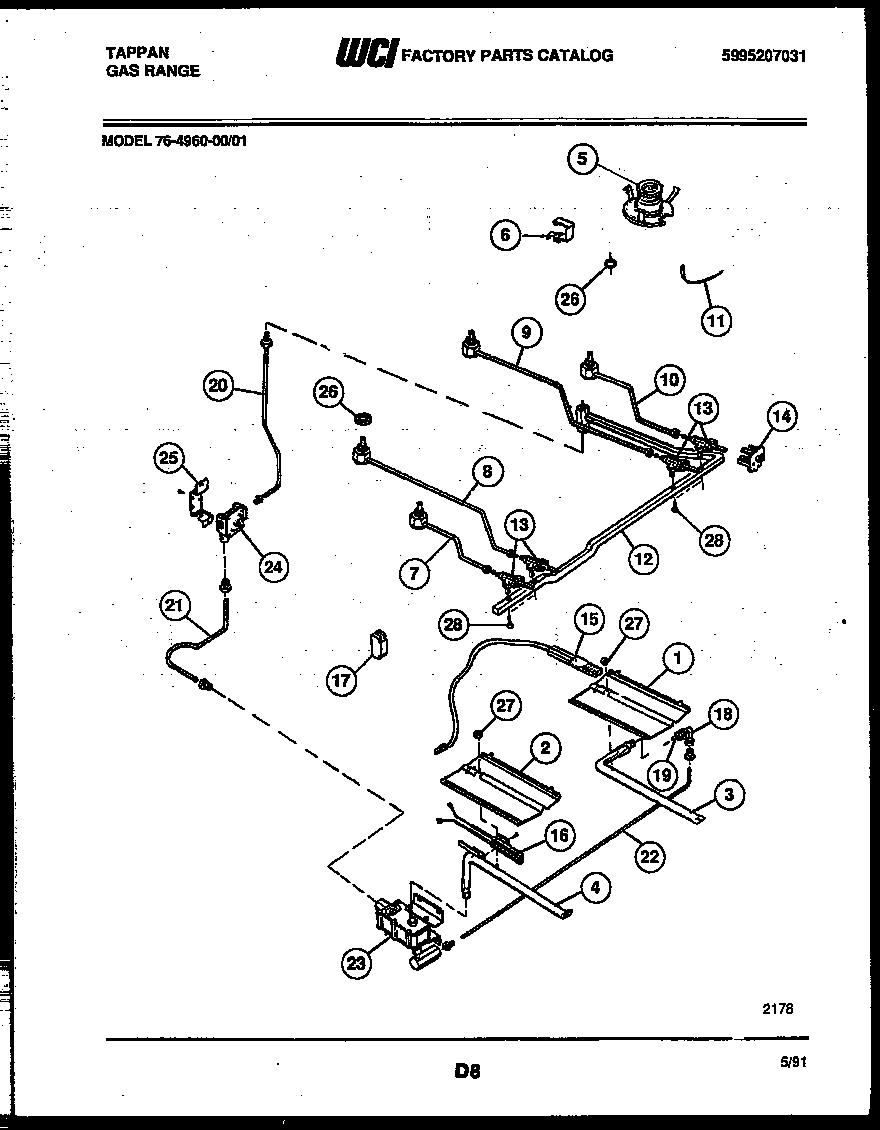

05 - BURNER, MANIFOLD AND GAS CONTROL

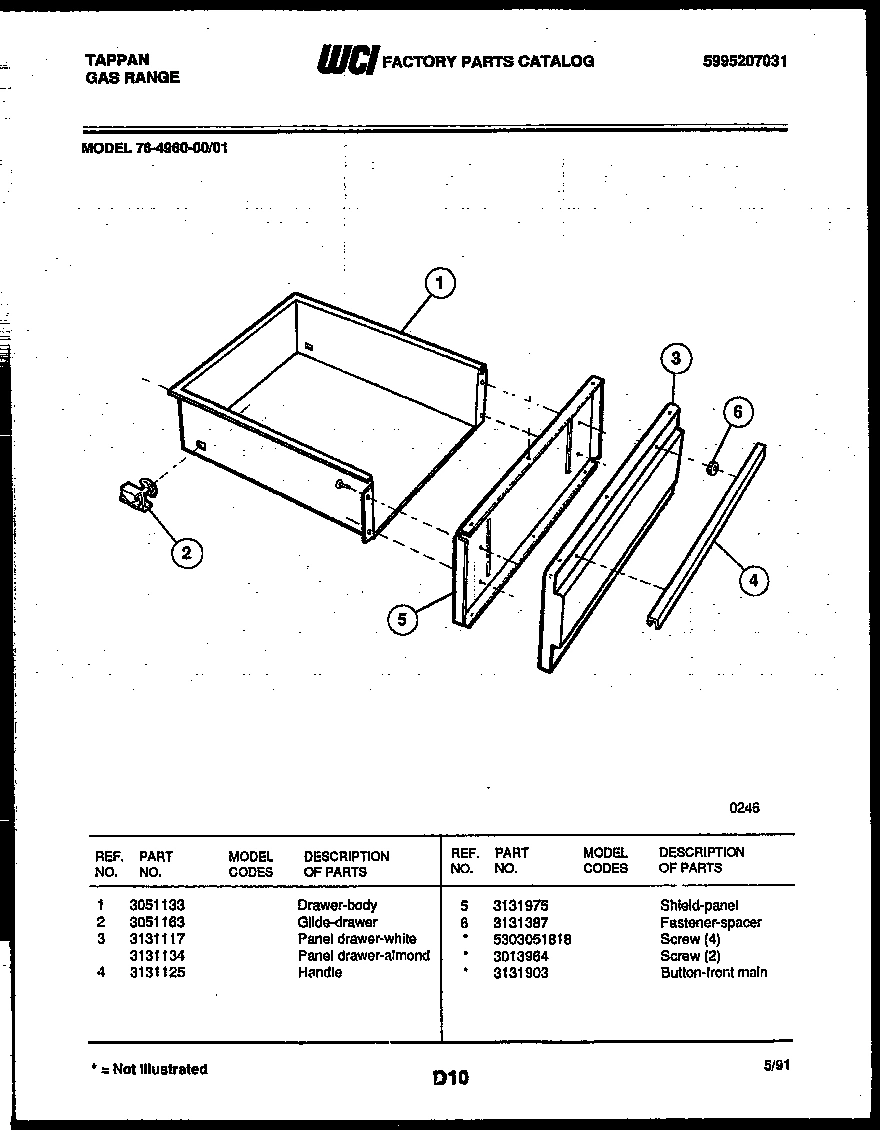

06 - DRAWER PARTS

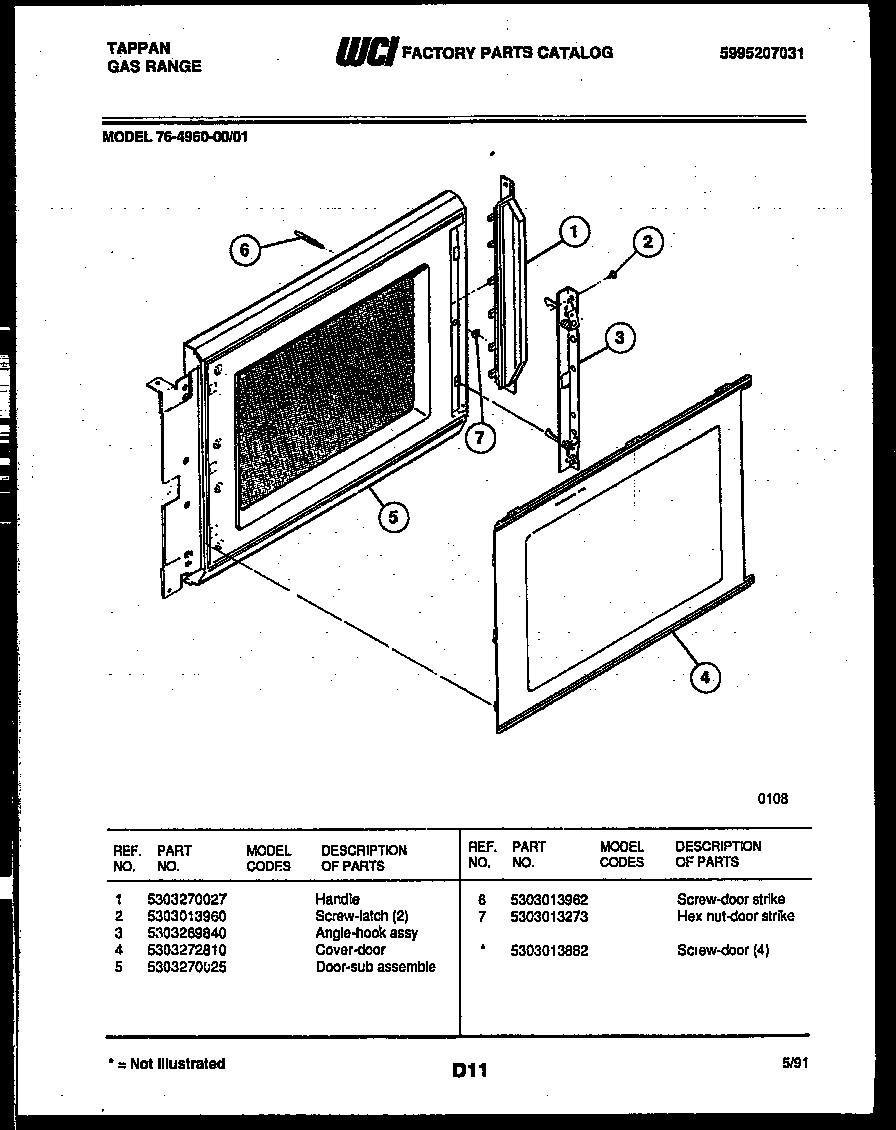

07 - UPPER OVEN DOOR PARTS

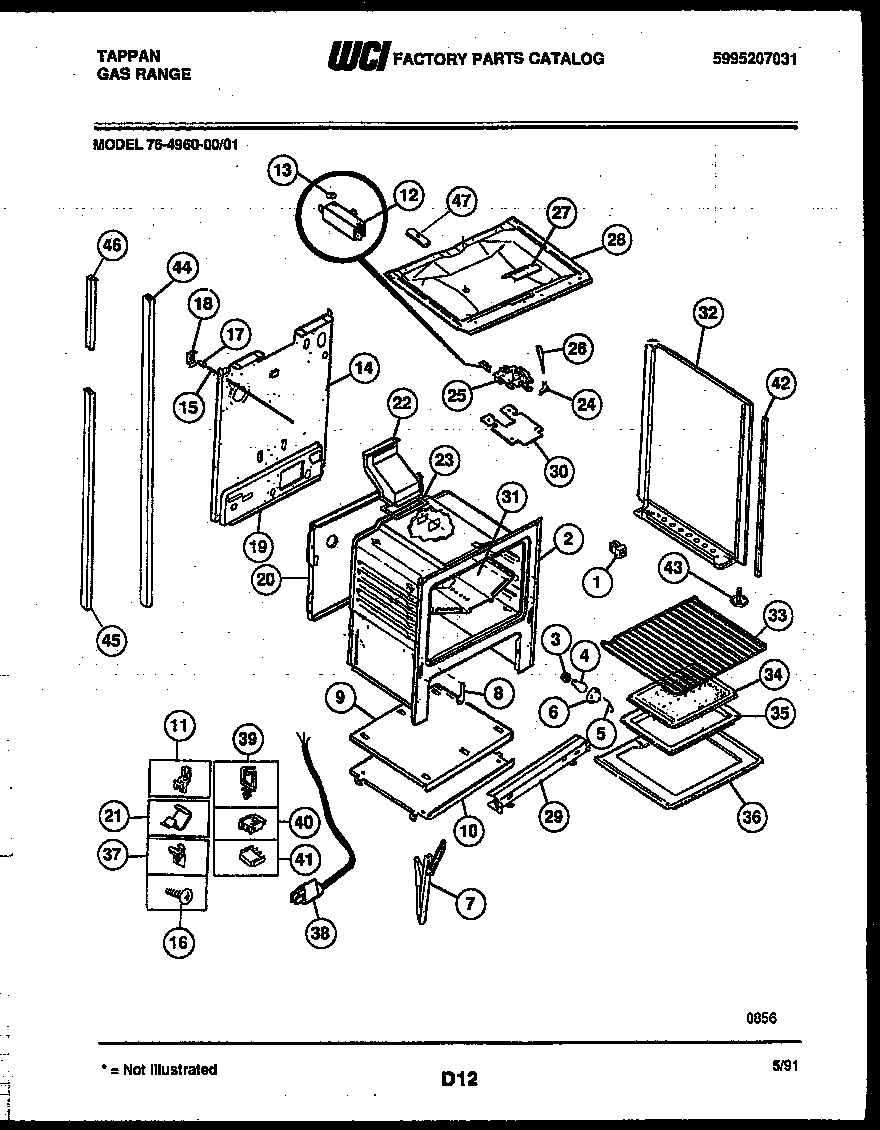

08 - LOWER BODY PARTS

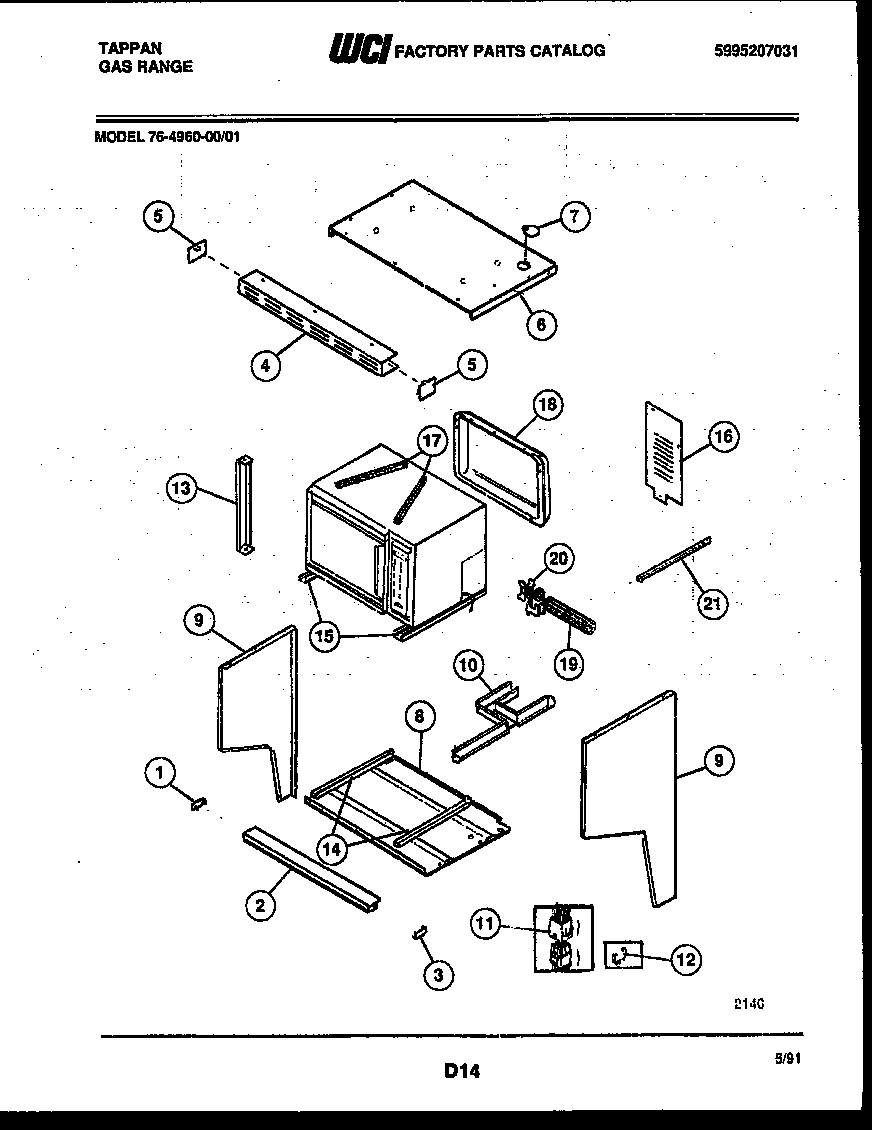

09 - UPPER BODY PARTS

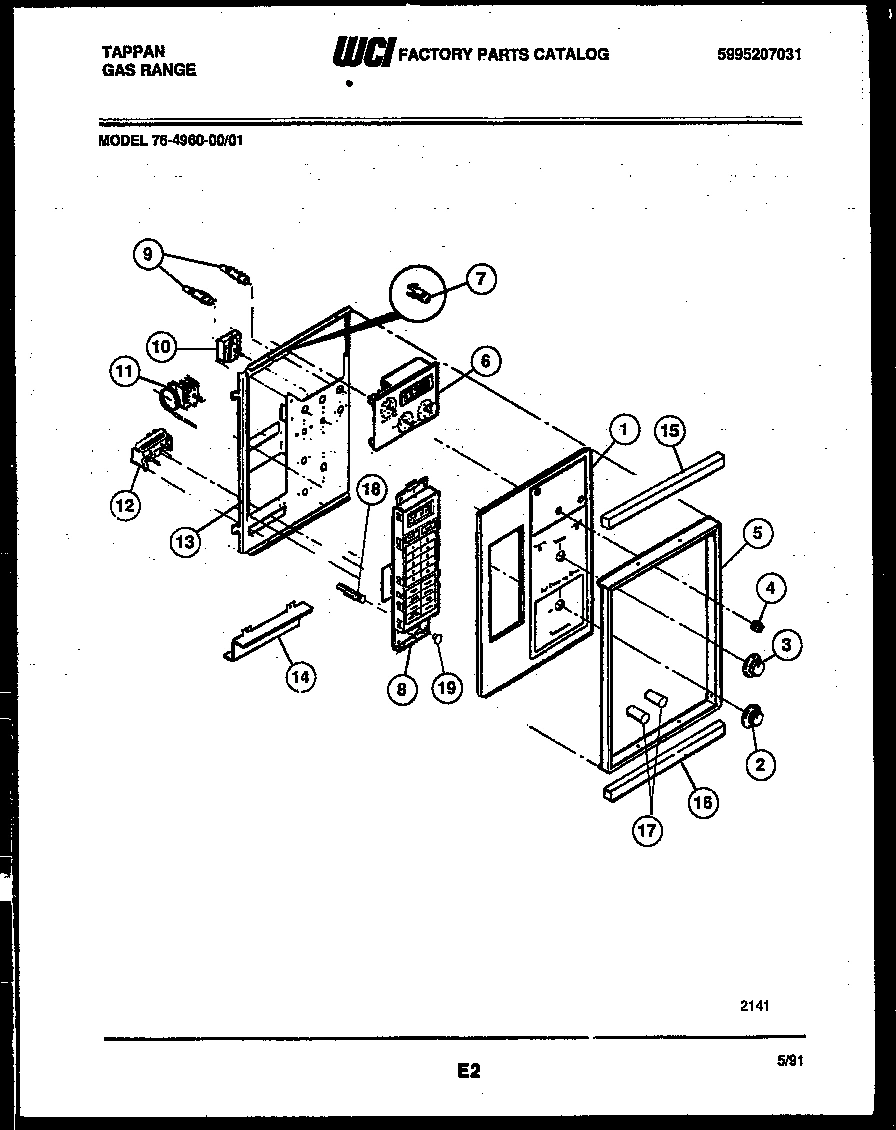

10 - CONTROL PANEL

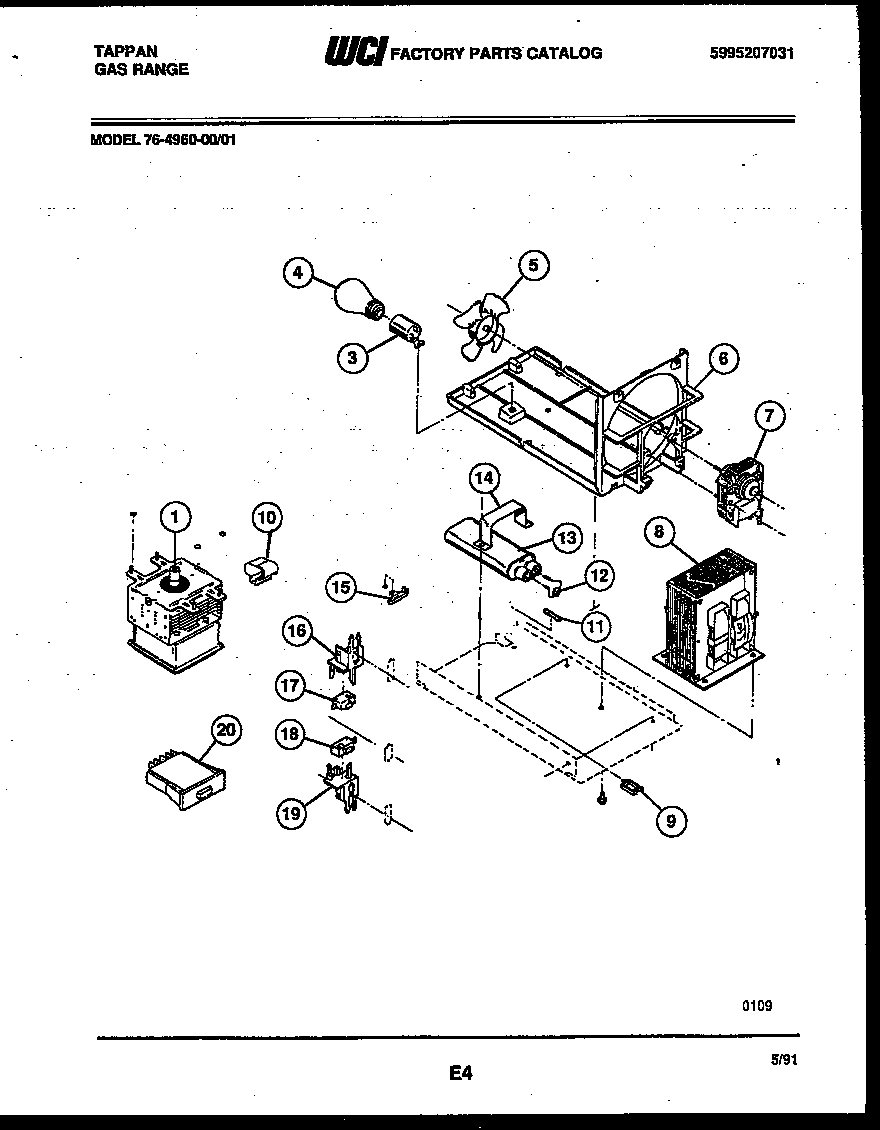

11 - POWER CONTROL

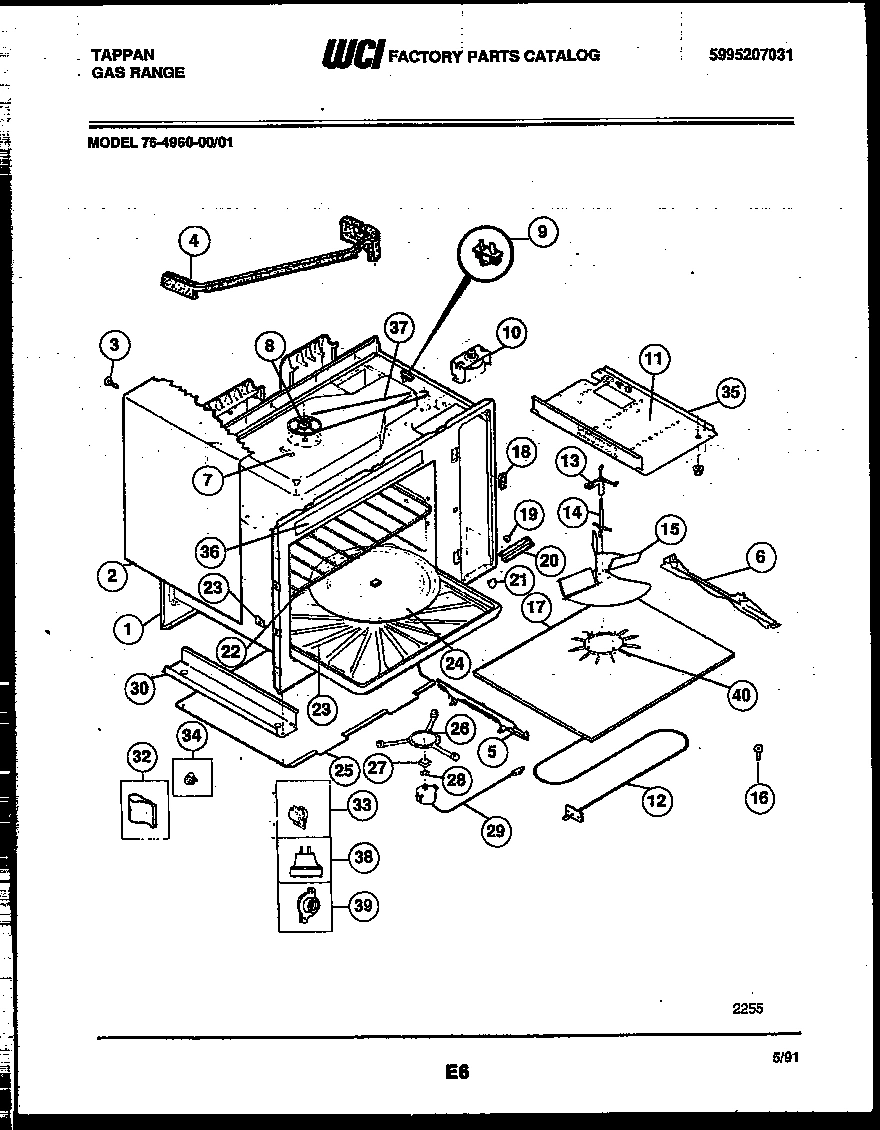

12 - WRAPPER AND BODY PARTS
Common parts from model Electrolux 76-4960-00-01 RANGE
*53388
SCREW 8-18 X 1/2 BLK WCI 5303269859 Contact Us For Availability
*53393
WCI 3013964 WCI 3013964 Contact Us For Availability
*53394
SCREW-DOOR (4) WCI 5303013882 Contact Us For Availability
*53400
WCI 08013188 WCI 08013188 Contact Us For Availability
*53400
STUD SPACER WCI 08067978 Contact Us For Availability
*53400
SHIELD-WOOL WCI 08067992 Contact Us For Availability
*53400
SHIELD-LATCH WCI 3131593 Contact Us For Availability
*53401
SHIELD-WIRE WCI 08068018 Contact Us For Availability
*53401
SHIELD-BI METAL LATCH WCI 3051413 Contact Us For Availability
*53401
INSULATION, OVEN TOP WCI 3131304 Contact Us For Availability
*53401
INSULATION-WRAPPER WCI 3200833 Contact Us For Availability
*53401
WCI 3200834 WCI 3200834 Contact Us For Availability
*53401
INSULATION WOOL BACK WCI 3204582 Contact Us For Availability
*53402
WCI 19111750197 WCI 19111750197 Contact Us For Availability
*53402
WCI 3934056 WCI 3934056 Contact Us For Availability
*53402
WCI 5303269971 WCI 5303269971 Contact Us For Availability
*53402
WCI 554T353P01 WCI 554T353P01 Contact Us For Availability
*53402
RECEPTACLE WCI 597T040P01 Contact Us For Availability
*53403
WCI 19100240004 WCI 19100240004 Contact Us For Availability
*53405
WCI 5303017159 WCI 5303017159 Contact Us For Availability
*53405
WCI 5303271601 WCI 5303271601 Contact Us For Availability
*53412
WCI 5303206757 WCI 5303206757 Contact Us For Availability
*53413
WCI 3091254 WCI 3091254 Contact Us For Availability
*53413
HARNESS-TURNTABLE WCI 5303018857 Contact Us For Availability
*53413
WCI 5303270050 WCI 5303270050 Contact Us For Availability
*53413
WCI 5303270051 WCI 5303270051 Contact Us For Availability
*53414
WCI 191T175F197 WCI 191T175F197 Contact Us For Availability
*53414
WCI 5303270053 WCI 5303270053 Contact Us For Availability
1
WCI 3131695 No Longer Available
1
WCI 3014099 WCI 3014099 Contact Us For Availability
1
BRACKET-GLASS (2) WCI 5303209510 Contact Us For Availability
1
BAFFLE-BROILER WCI 5303210379 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 5303270027 WCI 5303270027 Contact Us For Availability
1
WCI 5303269930 WCI 5303269930 Contact Us For Availability
1
WCI 5303273243 WCI 5303273243 Contact Us For Availability
1
WCI 5303206781 WCI 5303206781 Contact Us For Availability
2
WCI 5303209513 WCI 5303209513 Contact Us For Availability
2
BAFFLE BURNER WCI 3131284 Contact Us For Availability
2
SCREW-LATCH (2) WCI 5303013960 Contact Us For Availability
2
WCI 5303269927 WCI 5303269927 Contact Us For Availability
2
WCI 5303273239 WCI 5303273239 Contact Us For Availability
2
WCI 5303273250 WCI 5303273250 Contact Us For Availability
3
BULB, FLUOR (WORK LIGHT) WCI 3131275 Contact Us For Availability
3
WCI 5303209512 WCI 5303209512 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
WCI 3131117 WCI 3131117 Contact Us For Availability
3
WCI 3131134 WCI 3131134 Contact Us For Availability
3
WCI 5303269840 WCI 5303269840 Contact Us For Availability
3
WCI 5303269931 WCI 5303269931 Contact Us For Availability
3
WCI 5303273238 WCI 5303273238 Contact Us For Availability
3
SOCKET-LIGHT WCI 5303014070 Contact Us For Availability
3
SCREW-WRAPPER WCI 5303273263 Contact Us For Availability
4
WCI 5303209517 WCI 5303209517 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 5303272810 WCI 5303272810 Contact Us For Availability
4
WCI 5303269928 WCI 5303269928 Contact Us For Availability
4
KNOB CLOCK WCI 5303208334 Contact Us For Availability
4
WCI 5308037902 WCI 5308037902 Contact Us For Availability
4
SEAL - FOAM CUT TO SIZE WCI 5308037640 Contact Us For Availability
5
WCI 3205300 WCI 3205300 Contact Us For Availability
5
WCI 5303209511 WCI 5303209511 Contact Us For Availability
5
BURNER-TOP SNAP IN WCI 5303011567 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 5303270025 WCI 5303270025 Contact Us For Availability
5
WIRE, GLASS RETAINER WCI 3204483 Contact Us For Availability
5
WCI 5303269932 WCI 5303269932 Contact Us For Availability
5
WCI 5303269976 WCI 5303269976 Contact Us For Availability
5
WCI 5303203192 WCI 5303203192 Contact Us For Availability
5
SUPT-STIR GLASS LH WCI 5303272823 Contact Us For Availability
6
CAP-END MANIFOLD-RH WCI 3131492 Contact Us For Availability
6
GLASS-FRONT VISULITE WCI 5303131132 Contact Us For Availability
6
RETAINER-IGNITER (2) WCI 3018617 Contact Us For Availability
6
FASTENER, SPACER WCI 3131387 Contact Us For Availability
6
SCREW-DOOR STRIKE WCI 5303013962 Contact Us For Availability
6
WCI 5303269957 WCI 5303269957 Contact Us For Availability
6
WCI 5303272672 WCI 5303272672 Contact Us For Availability
6
DUCT-AIR (FAN) WCI 5303012194 Contact Us For Availability
6
SUPT-STIR GLASS RH WCI 5303272824 Contact Us For Availability
7
SUPPORT-MAIN TOP (2) WCI 5303271609 Contact Us For Availability
7
HANDLE WCI 5303131256 Contact Us For Availability
7
WCI 5303271041 WCI 5303271041 Contact Us For Availability
7
HEX NUT -DOOR STRIKE WCI 5303013273 Contact Us For Availability
7
COVER-OUTLET WCI 08067732 Contact Us For Availability
7
FASTENER-CLOCK WCI 08011713 Contact Us For Availability
7
MOTOR-FAN WCI 5308037636 Contact Us For Availability
7
SPACER - WRAPPER WCI 5308014510 Contact Us For Availability
8
WCI 3131570 WCI 3131570 Contact Us For Availability
8
WCI 3051354 WCI 3051354 Contact Us For Availability
8
LINER WCI 5303209515 Contact Us For Availability
8
BURNER-TUBE-RR WCI 5303271042 Contact Us For Availability
8
WCI 5303270071 WCI 5303270071 Contact Us For Availability
8
WCI 5303272811 WCI 5303272811 Contact Us For Availability
8
WCI 5308037626 WCI 5308037626 Contact Us For Availability
8
PULLEY W/BELT WCI 5303013647 Contact Us For Availability
9
WCI 3051355 WCI 3051355 Contact Us For Availability
9
WCI 5303271043 WCI 5303271043 Contact Us For Availability
9
SHIELD-UPPER WCI 5303270104 Contact Us For Availability
9
PANEL U/O BODYSIDE-LH-WHITE WCI 5303269987 Contact Us For Availability
9
PANEL U/O BODYSIDE-LH-ALMOND WCI 5303269989 Contact Us For Availability
9
WCI 530887896 WCI 530887896 Contact Us For Availability
9
FSTNR - WIRE CLIP (3) WCI 5308037677 Contact Us For Availability
9
FUSE-THERMAL-RED WCI 5303091280 Contact Us For Availability
9A
PANEL U/O BODYSIDE-RH-WHITE WCI 3051263 Contact Us For Availability
9A
PANEL U/O BODYSIDE-RH-ALMOND WCI 3051264 Contact Us For Availability
10
WCI 3934050 WCI 3934050 Contact Us For Availability
10
WCI 3934051 WCI 3934051 Contact Us For Availability
10
WCI 5303211084 WCI 5303211084 Contact Us For Availability
10
WCI 5303271044 WCI 5303271044 Contact Us For Availability
10
SHIELD-LOWER WCI 3131313 Contact Us For Availability
10
WCI 5303269948 WCI 5303269948 Contact Us For Availability
10
WCI 5303212678 WCI 5303212678 Contact Us For Availability
10
INSULATOR WCI 08037647 Contact Us For Availability
10
MOTOR - PULLEY WCI 5303091482 Contact Us For Availability
11
BRKT-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
11
WCI 5303209518 WCI 5303209518 Contact Us For Availability
11
IGNITER-TOP BURNER (2) WCI 5303131105 Contact Us For Availability
11
UPPER CONTROL PNL PLUG WCI 5303271454 Contact Us For Availability
11
WCI 5303269961 WCI 5303269961 Contact Us For Availability
11
WCI 5303200606 WCI 5303200606 Contact Us For Availability
11
WCI 5303270033 WCI 5303270033 Contact Us For Availability
11A
MICROWAVE FAN PLUG WCI 558T031P01 Contact Us For Availability
11B
WCI 597R028S01 WCI 597R028S01 Contact Us For Availability
12
BRKT-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
12
WCI 3016851 WCI 3016851 Contact Us For Availability
12
WCI 5303271924 WCI 5303271924 Contact Us For Availability
12
WCI 3131672 WCI 3131672 Contact Us For Availability
12
FASTENER WCI 5308008992 Contact Us For Availability
12
WCI 5303272803 WCI 5303272803 Contact Us For Availability
12
DIODE HIGH VOLTAGE WCI 5303091303 Contact Us For Availability
12
WCI 5303012207 WCI 5303012207 Contact Us For Availability
13
WCI 3131299 WCI 3131299 Contact Us For Availability
13
VALVE TOP-3 POS WCI 5303271046 Contact Us For Availability
13
WCI 08067776 WCI 08067776 Contact Us For Availability
13
WCI 5303269929 WCI 5303269929 Contact Us For Availability
13
WCI 5303269960 WCI 5303269960 Contact Us For Availability
13
WCI 5308037624 WCI 5308037624 Contact Us For Availability
13
WCI 5303011826 WCI 5303011826 Contact Us For Availability
14
GRATE (4) WCI 3018432 Contact Us For Availability
14
INSULATION-WOOL WCI 5303209514 Contact Us For Availability
14
WCI 3203082 WCI 3203082 Contact Us For Availability
14
WCI 5303269936 WCI 5303269936 Contact Us For Availability
14
WCI 5303269959 WCI 5303269959 Contact Us For Availability
14
WCI 5303013771 WCI 5303013771 Contact Us For Availability
14
WCI 5303202875 WCI 5303202875 Contact Us For Availability
15
STARTER WCI 3206218 Contact Us For Availability
15
WCI 5303211085 WCI 5303211085 Contact Us For Availability
15
ROD LIGHT WCI 5303209316 Contact Us For Availability
15
CHANNEL-MICRO SLIDE (2) WCI 5303269937 Contact Us For Availability
15
WCI 5303269974 WCI 5303269974 Contact Us For Availability
15
WCI 5303269835 WCI 5303269835 Contact Us For Availability
15A
SCREW-8-32 X 1.0 W/WASHER (NON-ILLUSTRATED) WCI 5303212671 Contact Us For Availability
16
FASTENER-SPACER (1) WCI 5303212674 Contact Us For Availability
16
WCI 5303269945 WCI 5303269945 Contact Us For Availability
16
WCI 5303269975 WCI 5303269975 Contact Us For Availability
16
RIVET (2) WCI 5303013807 Contact Us For Availability
17
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
17
DUCT-AIR FOAM (2) WCI 5303269947 Contact Us For Availability
17
WCI 5303091544 WCI 5303091544 Contact Us For Availability
17
COVER-STIRRER, GLASS WCI 5303012681 Contact Us For Availability
17A
BRACKET-STEM SUPPORT (NON-ILLUSTRATED) WCI 5303269994 Contact Us For Availability
17B
WCI 5303269962 WCI 5303269962 Contact Us For Availability
17C
BUSHING-GLASS (NON-ILLUSTRATED) WCI 3204745 Contact Us For Availability
18
FOIL-ALUM BLK WCI 5303208656 Contact Us For Availability
18
WCI 08067979 WCI 08067979 Contact Us For Availability
18
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
18
WCI 5303269986 WCI 5303269986 Contact Us For Availability
18
INDICATOR LAMP WCI 5303201800 Contact Us For Availability
18
WCI 5303203636 WCI 5303203636 Contact Us For Availability
18
WCI 5303212767 WCI 5303212767 Contact Us For Availability
19
NUT WCI 3131358 Contact Us For Availability
19
WCI 5303269502 WCI 5303269502 Contact Us For Availability
19
WCI 5303269993 WCI 5303269993 Contact Us For Availability
19
JEWEL IND LENS WCI 5308037703 Contact Us For Availability
19
BRKT - SWITCH LWR WCI 5303011556 Contact Us For Availability
19
WCI 5308037644 WCI 5308037644 Contact Us For Availability
20
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
20
TUBE ALUM REGUL/MANIF PIPE W/ FITTING WCI 5303208495 Contact Us For Availability
20
WCI 08067991 WCI 08067991 Contact Us For Availability
20
WCI 5303270080 WCI 5303270080 Contact Us For Availability
20
BRACKET-CONTROL PANEL WCI 5303011555 Contact Us For Availability
21
TUBE ALUM VALVE/REGUL W/ FITTING WCI 5303208494 Contact Us For Availability
21
CLIP-WIRE WCI 3011813 Contact Us For Availability
21
WCI 5303270097 WCI 5303270097 Contact Us For Availability
21
PLUG-BUTTON (1) WCI 5303201365 Contact Us For Availability
22
TUBE ALUM VALVE-MIXER-W/FITTINGS WCI 5303208493 Contact Us For Availability
22
WCI 3131931 WCI 3131931 Contact Us For Availability
22
WCI 5303206085 WCI 5303206085 Contact Us For Availability
23
GLASS TRAY WCI 5303011698 Contact Us For Availability
23A
ANGLE-FUSE MTG (NON-ILLUSTRATED) WCI 5308008973 Contact Us For Availability
23B
WCI 5303270100 WCI 5303270100 Contact Us For Availability
23C
WCI 5303270099 WCI 5303270099 Contact Us For Availability
23D
WCI 5303202458 WCI 5303202458 Contact Us For Availability
24
WCI 3203218 WCI 3203218 Contact Us For Availability
24
TRAY-ROUND WCI 5308037674 Contact Us For Availability
25
LATCH-DOOR BI METAL WCI 5303015453 Contact Us For Availability
25
SHIELD - BOTTOM WCI 3014060 Contact Us For Availability
26
SUPPORT-ROLLERS WCI 5303091004 Contact Us For Availability
26
WCI 3013279 WCI 3013279 Contact Us For Availability
26
WCI 5303131357 WCI 5303131357 Contact Us For Availability
27
WCI 08067757 WCI 08067757 Contact Us For Availability
27
BUSHING-MOTOR WCI 5303212919 Contact Us For Availability
28
WCI 3011597 WCI 3011597 Contact Us For Availability
28
WASHER (PLACE UNDERNEATH - BETWEEN MOTOR & OV WCI 5303203152 Contact Us For Availability
29
WCI 5303271047 WCI 5303271047 Contact Us For Availability
29
WCI 5303212920 WCI 5303212920 Contact Us For Availability
30
WCI 3131314 WCI 3131314 Contact Us For Availability
30
WCI 5303011773 WCI 5303011773 Contact Us For Availability
31
WCI 3200836 WCI 3200836 Contact Us For Availability
32
WCI 5303269518 WCI 5303269518 Contact Us For Availability
32
WCI 5303269543 WCI 5303269543 Contact Us For Availability
32
WCI 5303012322 WCI 5303012322 Contact Us For Availability
32A
WCI 5303269519 WCI 5303269519 Contact Us For Availability
32A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
33
SUPPORT RACK (8) WCI 5303014221 Contact Us For Availability
34
WCI 5303131356 WCI 5303131356 Contact Us For Availability
34
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
34A
SHIELD-LIGHT (NON-ILLUSTRATED) WCI 5303269841 Contact Us For Availability
35
PAN-BROILER WCI 5303013568 Contact Us For Availability
35
SEAL-FOAM CUT TO SIZE WCI 5303017864 Contact Us For Availability
36
WCI 5303212540 WCI 5303212540 Contact Us For Availability
36
LABEL-COOKING GUIDE WCI 5303271795 Contact Us For Availability
37
WCI 5303011495 WCI 5303011495 Contact Us For Availability
37A
WASHER-PULLEY (NON-ILLUSTRATED) WCI 5303014620 Contact Us For Availability
38
CORD-POWER WCI 3200594 Contact Us For Availability
38
SWTH-THERMO CUTOUT WCI 5303202107 Contact Us For Availability
39
WCI 08067961 WCI 08067961 Contact Us For Availability
39
WCI 5308012055 WCI 5308012055 Contact Us For Availability
40
WCI 5303271660 WCI 5303271660 Contact Us For Availability
40
WCI 5303269836 WCI 5303269836 Contact Us For Availability
42
WCI 5303051326 WCI 5303051326 Contact Us For Availability
43
SCREW-LEVELING WCI 3206285 Contact Us For Availability
44
WCI 5303269934 WCI 5303269934 Contact Us For Availability
45
WCI 5303269933 WCI 5303269933 Contact Us For Availability
46
WCI 5303269935 WCI 5303269935 Contact Us For Availability
47
WCI 3015371 WCI 3015371 Contact Us For Availability
× ![]()
