Model Electrolux 76-4232-45-14 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

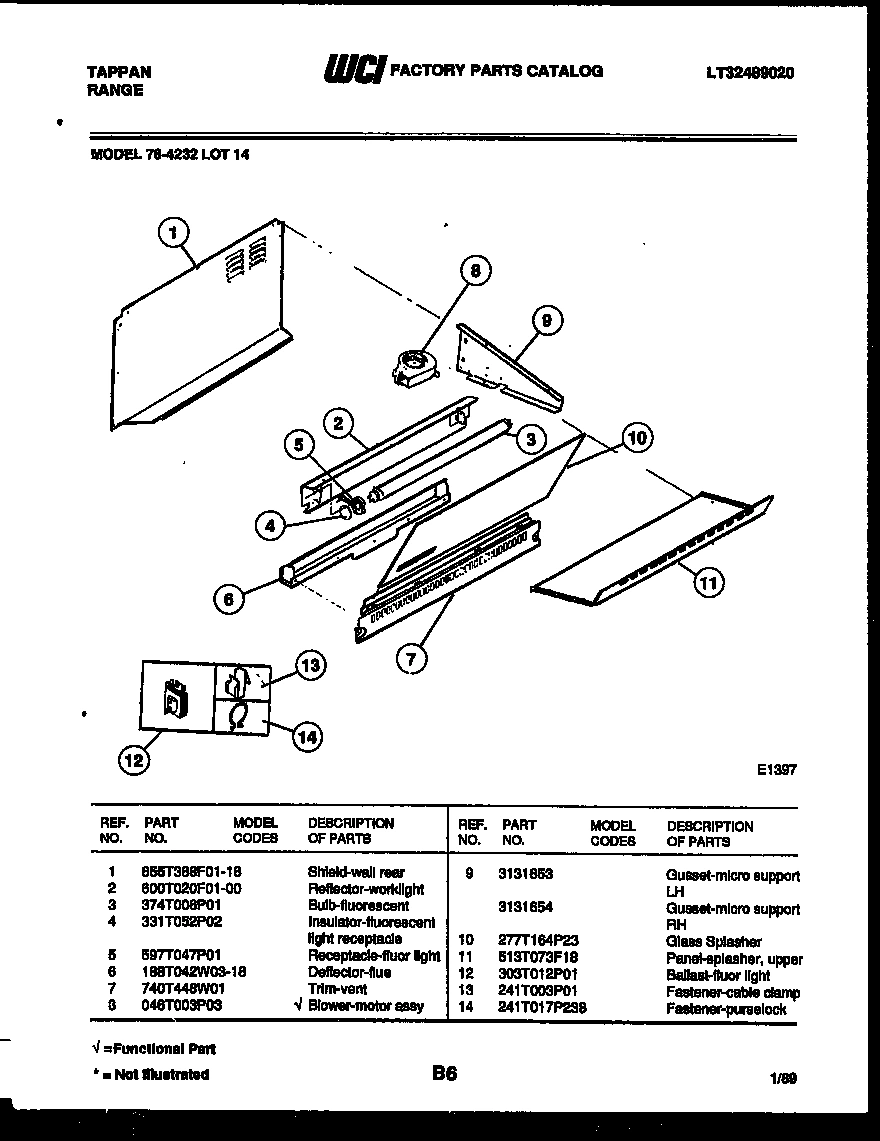

03 - SPLASHER CONTROL

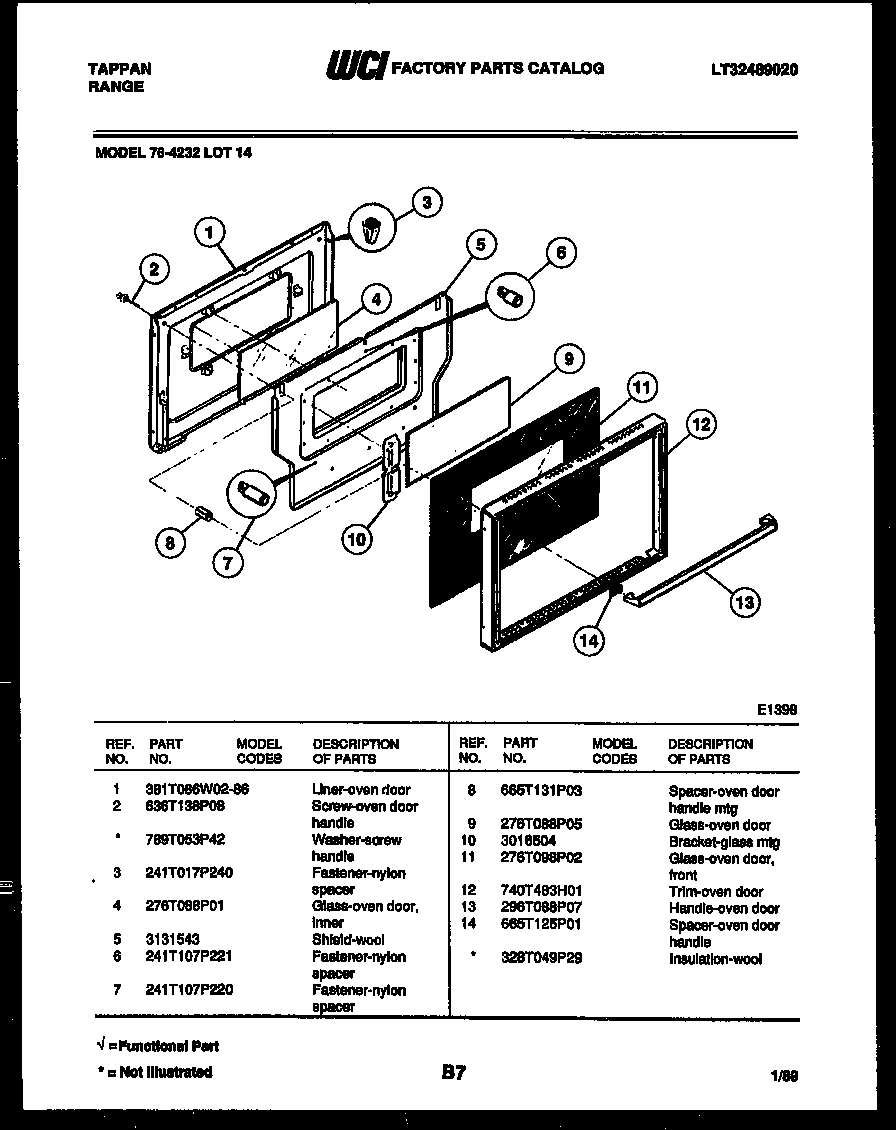

04 - DOOR PARTS

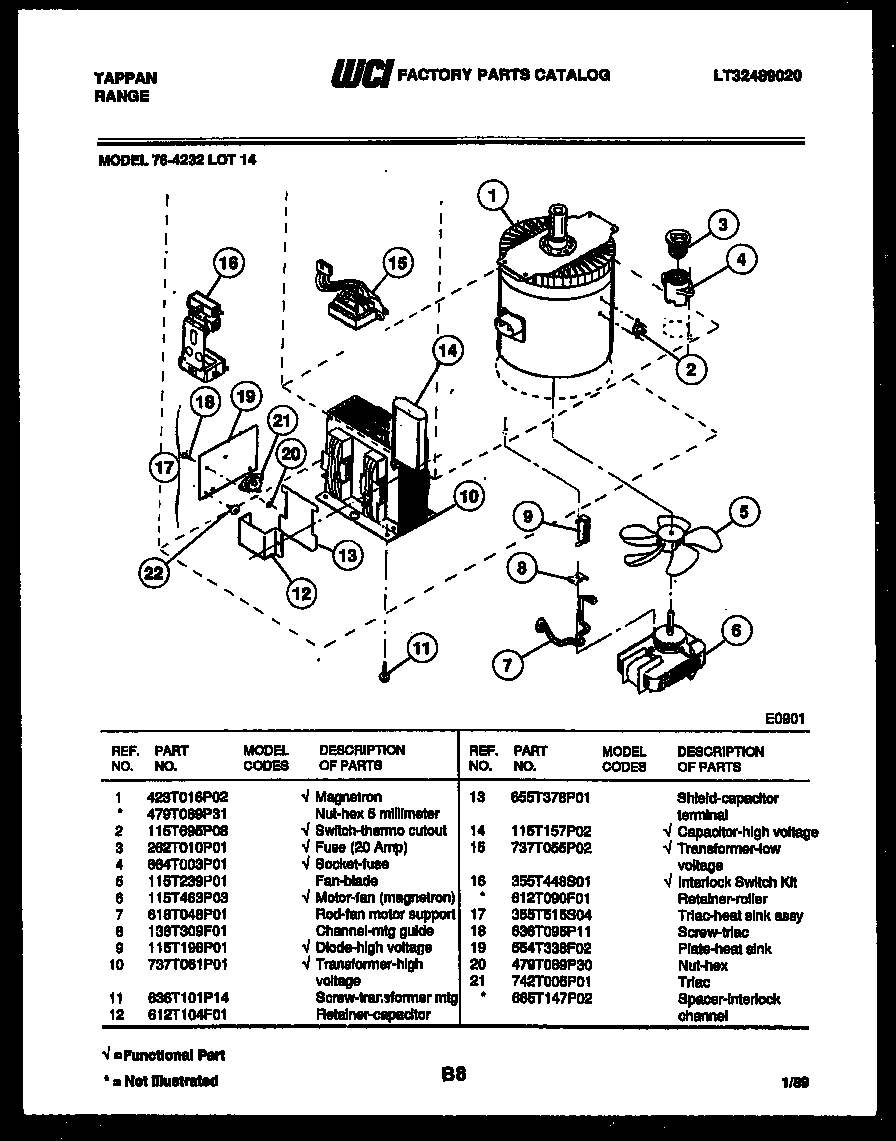

05 - POWER CONTROL

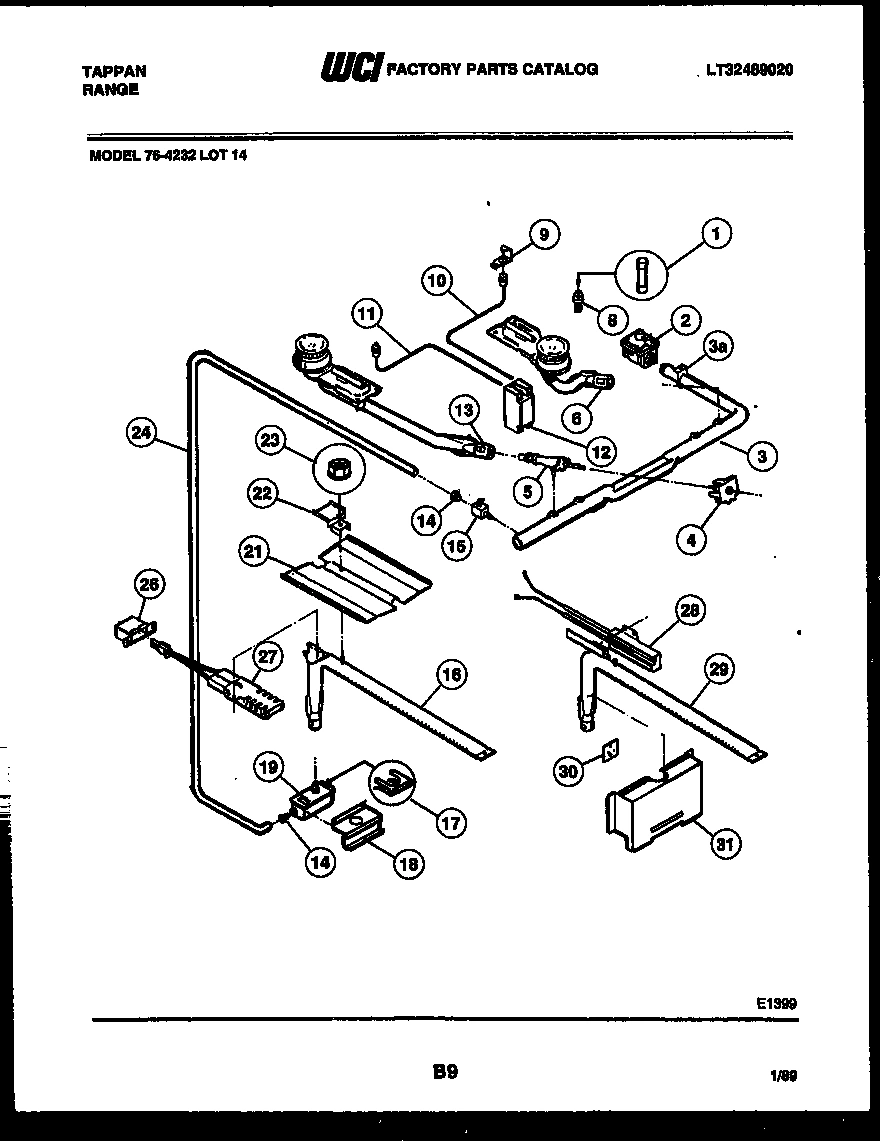

06 - BURNER PARTS
07 - OVEN BODY PARTS

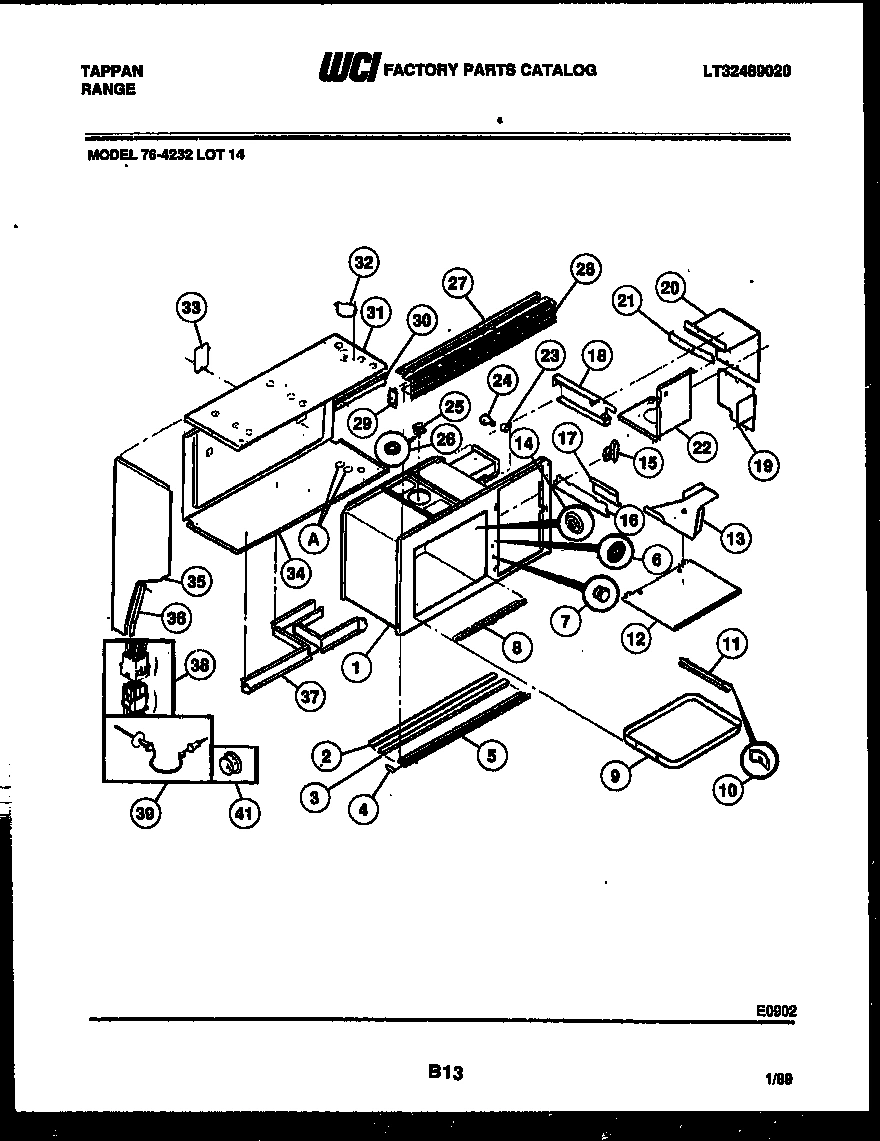

08 - MICROWAVE BODY PARTS

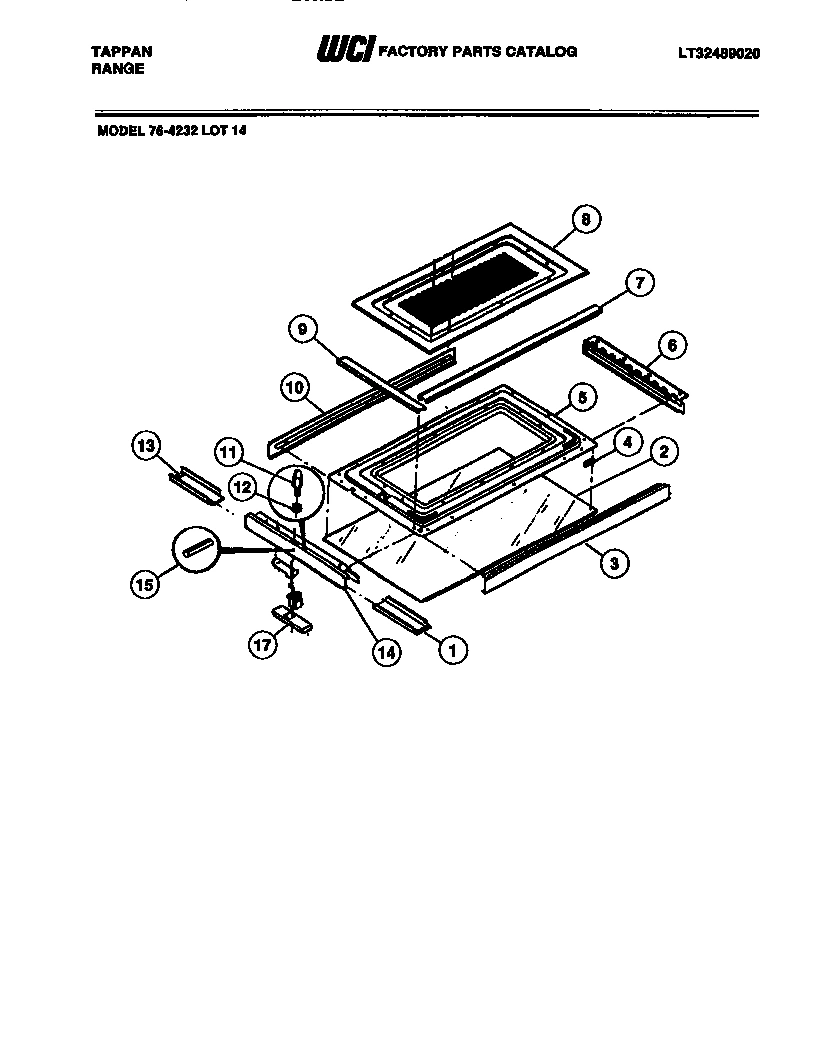

09 - DOOR PARTS

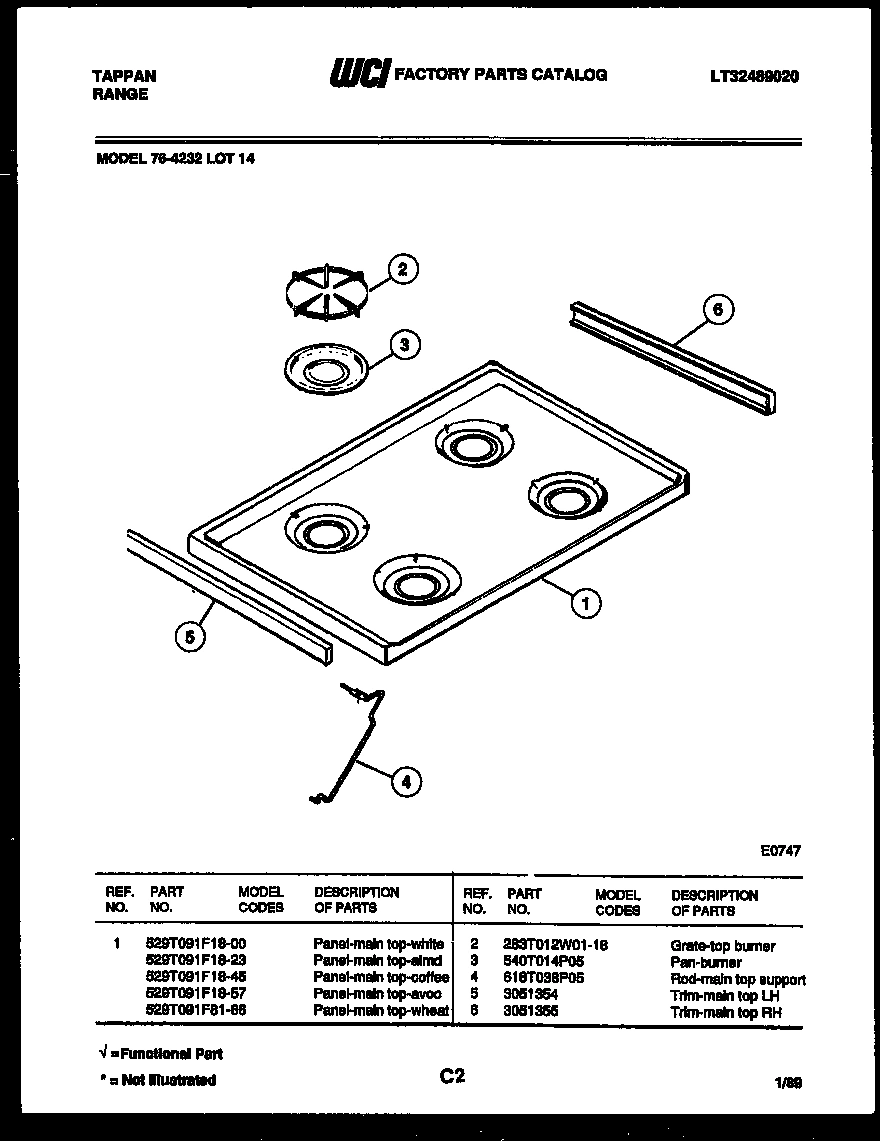

10 - COOKTOP PARTS

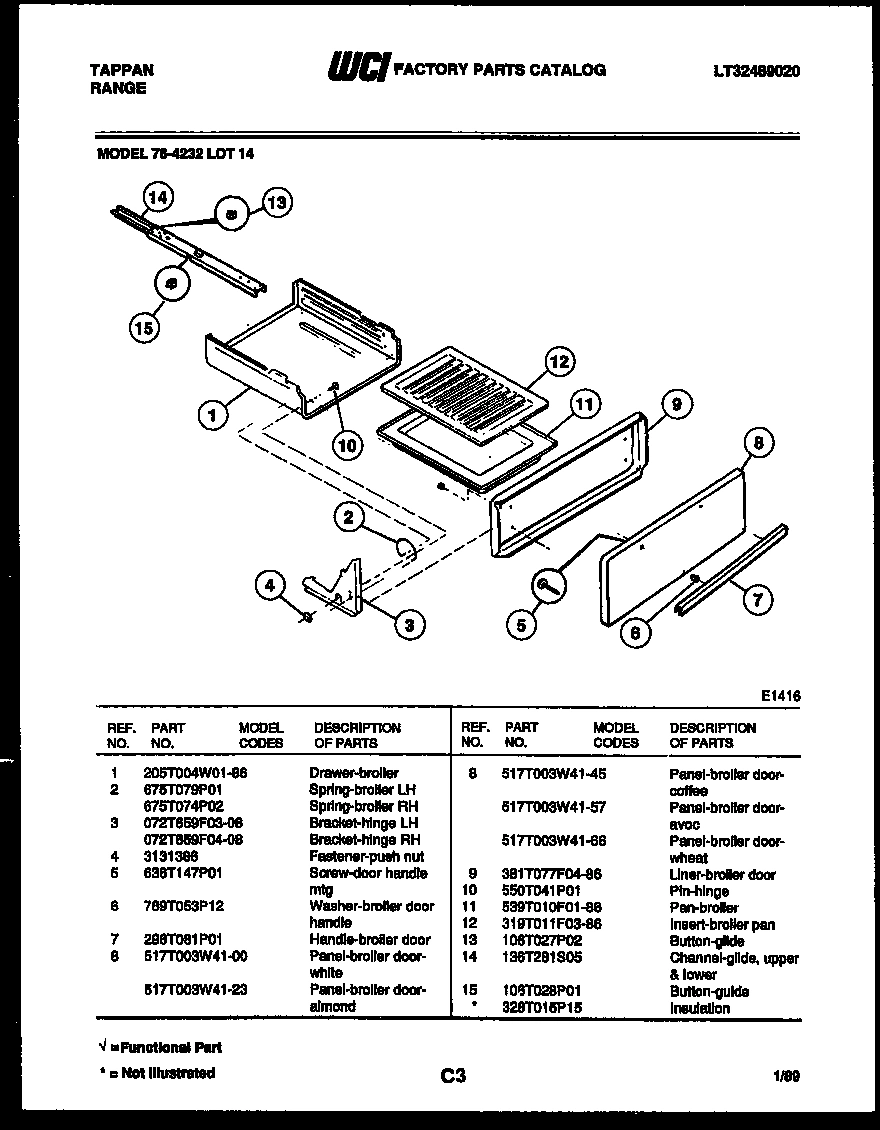

11 - BROILER DRAWER PARTS

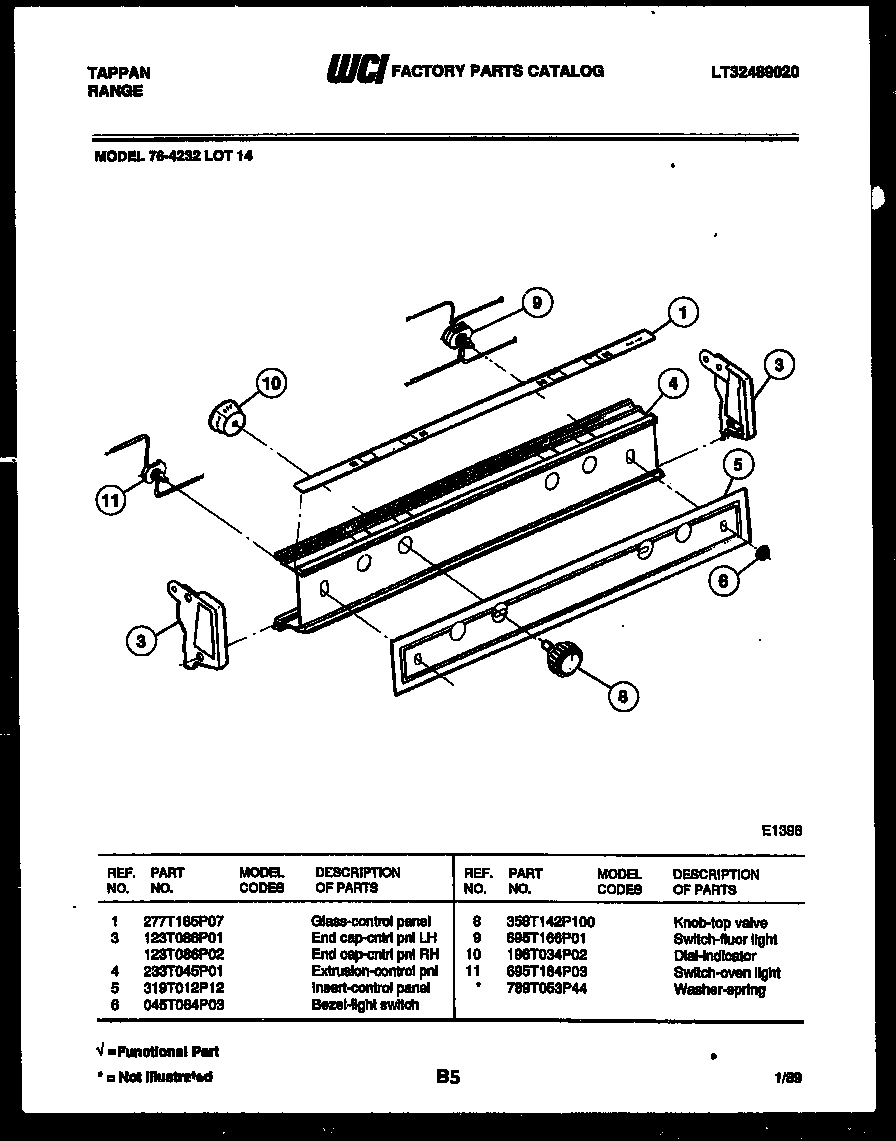

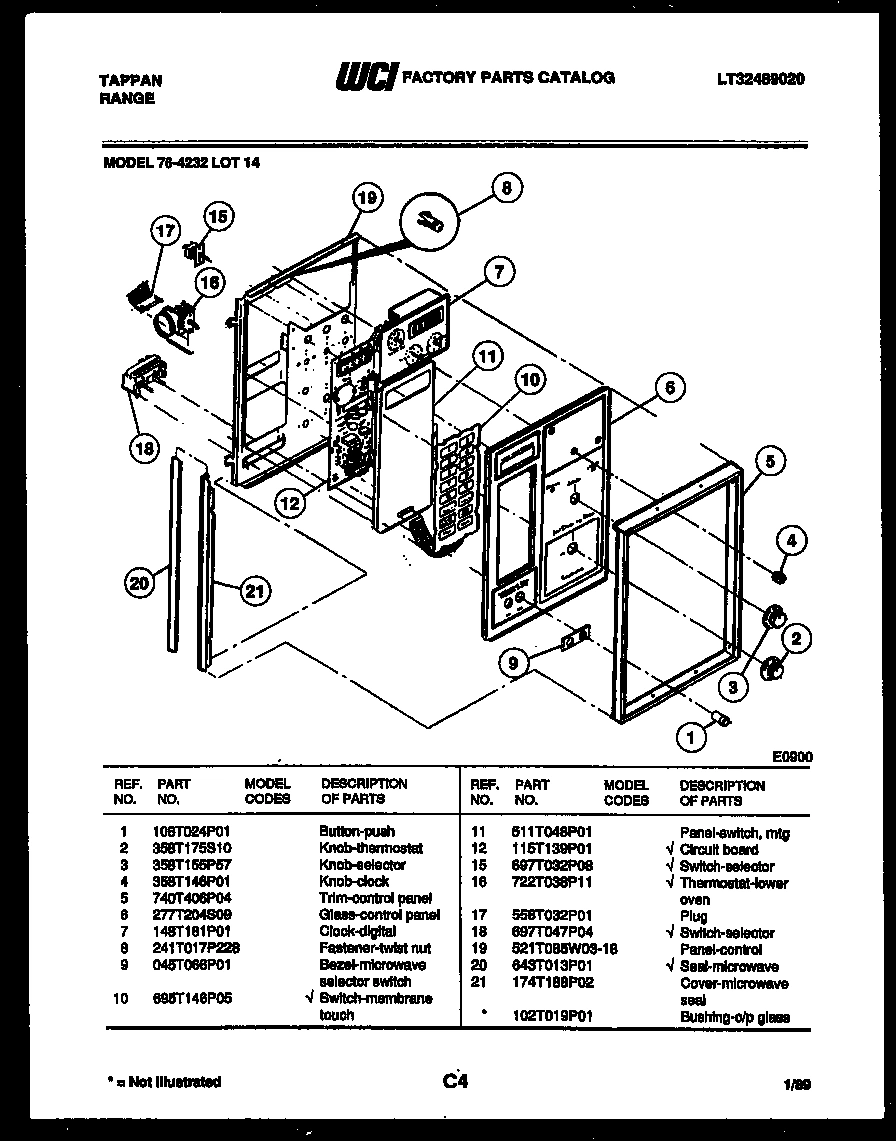

12 - CONTROL PANEL
Common parts from model Electrolux 76-4232-45-14 RANGE
*20381
WCI 328T049P29 WCI 328T049P29 Contact Us For Availability
*20384
WCI 665T147P02 WCI 665T147P02 Contact Us For Availability
*20392
INSULATION-WOOL (BACK) WCI 328T015P37 Contact Us For Availability
*20392
INSULATION-WOOL (TOP & SIDES) WCI 328T015P47 Contact Us For Availability
*20392
WCI 554T353P01 WCI 554T353P01 Contact Us For Availability
*20392
WCI 597T040P01 WCI 597T040P01 Contact Us For Availability
*20392
RETAINER-OVEN BRNR WCI 612T094P01 Contact Us For Availability
*20397
FASTENER-PURSELOCK WCI 241T017P154 Contact Us For Availability
*20401
INSULATION WCI 328T015P15 Contact Us For Availability
*20403
BUSHING C/P GLASS WCI 102T019P01 Contact Us For Availability
1
WCI 655T388F01-18 WCI 655T388F01-18 Contact Us For Availability
1
LINER-OVEN DOOR WCI 381T086W02-86 Contact Us For Availability
1
WCI 423T016P02 WCI 423T016P02 Contact Us For Availability
1
FUSE WCI 3131297 Contact Us For Availability
1
WCI 322T016P03 WCI 322T016P03 Contact Us For Availability
1
WCI 529T091F18-45 WCI 529T091F18-45 Contact Us For Availability
1
DRAWER-BROILER WCI 205T004W01-86 Contact Us For Availability
1
WCI 106T024P01 WCI 106T024P01 Contact Us For Availability
1A
NUT-HEX 5 MILLIMETER (NON-ILLUSTRATED) WCI 479T069P31 Contact Us For Availability
2
REFLECTOR-WORKLIGHT WCI 600T020F01-00 Contact Us For Availability
2
WCI 636T138P08 WCI 636T138P08 Contact Us For Availability
2
WCI 115T695P08 WCI 115T695P08 Contact Us For Availability
2
WCI 166T008P11 WCI 166T008P11 Contact Us For Availability
2
SPRING-OVEN DOOR WCI 675T041P01 Contact Us For Availability
2
WCI 643T013P03 WCI 643T013P03 Contact Us For Availability
2
WCI 276T086P40 WCI 276T086P40 Contact Us For Availability
2
WCI 283T012W01-18 WCI 283T012W01-18 Contact Us For Availability
2
SPRING-BROILER LH WCI 675T079P01 Contact Us For Availability
2
WCI 358T175S10 WCI 358T175S10 Contact Us For Availability
2A
WASHER-SCREW HANDLE (NON-ILLUSTRATED) WCI 789T053P42 Contact Us For Availability
2A
WCI 675T074P02 WCI 675T074P02 Contact Us For Availability
3
END CAP-CNTRL PNL LH WCI 123T086P01 Contact Us For Availability
3
BULB-FLUORESCENT WCI 374T006P01 Contact Us For Availability
3
FASTENER-NYLON SPACER WCI 241T017P240 Contact Us For Availability
3
WCI 262T010P01 WCI 262T010P01 Contact Us For Availability
3
WCI 439T046P07 WCI 439T046P07 Contact Us For Availability
3
SCREW-SHOULDER WCI 636T066P06 Contact Us For Availability
3
WCI 233T027P02 WCI 233T027P02 Contact Us For Availability
3
WCI 072T659F03-08 WCI 072T659F03-08 Contact Us For Availability
3
WCI 358T155P57 WCI 358T155P57 Contact Us For Availability
3A
END CAP-CNTRL PNL RH WCI 123T086P02 Contact Us For Availability
3A
WCI 008T276F05-18 WCI 008T276F05-18 Contact Us For Availability
3A
WCI 072T659F04-08 WCI 072T659F04-08 Contact Us For Availability
4
WCI 233T045P01 WCI 233T045P01 Contact Us For Availability
4
INSULATOR-FLUORESCENT LIGHT RECEPTACLE WCI 331T052P02 Contact Us For Availability
4
GLASS-OVEN DOOR, INNER WCI 276T088P01 Contact Us For Availability
4
WCI 664T003P01 WCI 664T003P01 Contact Us For Availability
4
PLUG, BUTTON WCI 557T021P31 Contact Us For Availability
4
WCI 123T082P01 WCI 123T082P01 Contact Us For Availability
4
WCI 665T165P01 WCI 665T165P01 Contact Us For Availability
4
WCI 618T038P05 WCI 618T038P05 Contact Us For Availability
4
FASTENER, PUSH NUT WCI 3131386 Contact Us For Availability
4
KNOB-CLOCK WCI 358T146P01 Contact Us For Availability
5
WCI 319T012P12 WCI 319T012P12 Contact Us For Availability
5
RECEPTACLE-FLUOR LIGHT WCI 597T047P01 Contact Us For Availability
5
WCI 3131543 WCI 3131543 Contact Us For Availability
5
WCI 115T239P01 WCI 115T239P01 Contact Us For Availability
5
VALVE TOP-BURNER WCI 774T099P05 Contact Us For Availability
5
SHIELD, WOOL WCI 655T308F02 Contact Us For Availability
5
WCI 740T408P03 WCI 740T408P03 Contact Us For Availability
5
WCI 260T002P01-18 WCI 260T002P01-18 Contact Us For Availability
5
WCI 3051354 WCI 3051354 Contact Us For Availability
5
WCI 740T406P04 WCI 740T406P04 Contact Us For Availability
6
WCI 045T064P03 WCI 045T064P03 Contact Us For Availability
6
WCI 188T042W03-18 WCI 188T042W03-18 Contact Us For Availability
6
WCI 241T107P221 WCI 241T107P221 Contact Us For Availability
6
WCI 115T463P03 WCI 115T463P03 Contact Us For Availability
6
WCI 080T015P01 WCI 080T015P01 Contact Us For Availability
6
CAM-OVEN DOOR WCI 117T013S13 Contact Us For Availability
6
WCI 445T004P01 WCI 445T004P01 Contact Us For Availability
6
WCI 233T026S13 WCI 233T026S13 Contact Us For Availability
6
WCI 3051355 WCI 3051355 Contact Us For Availability
6
WASHER-BROILER DOOR HANDLE WCI 789T053P12 Contact Us For Availability
6
WCI 277T204S09 WCI 277T204S09 Contact Us For Availability
7
WCI 740T448W01 WCI 740T448W01 Contact Us For Availability
7
WCI 241T107P220 WCI 241T107P220 Contact Us For Availability
7
WCI 618T048P01 WCI 618T048P01 Contact Us For Availability
7
WCI 287T003P08 WCI 287T003P08 Contact Us For Availability
7
WCI 643T014P01 WCI 643T014P01 Contact Us For Availability
7
HANDLE-BROILER DOOR WCI 296T081P01 Contact Us For Availability
7
WCI 148T181P01 WCI 148T181P01 Contact Us For Availability
8
KNOB-TOP VALVE WCI 358T142P100 Contact Us For Availability
8
WCI 046T003P03 WCI 046T003P03 Contact Us For Availability
8
SPACER-OVEN DOOR HANDLE MTG WCI 665T131P03 Contact Us For Availability
8
WCI 136T309F01 WCI 136T309F01 Contact Us For Availability
8
RECEPTACLE, FUSE HOLDER WCI 597T034S01 Contact Us For Availability
8
SOCKET-OVEN LIGHT WCI 355T330S01 Contact Us For Availability
8
WCI 740T0479P01 WCI 740T0479P01 Contact Us For Availability
8
WCI 511T038F06-99 WCI 511T038F06-99 Contact Us For Availability
8
PANEL-BROILER DOOR-COFFEE WCI 517T003W41-45 Contact Us For Availability
8
WCI 241T017P228 WCI 241T017P228 Contact Us For Availability
8A
WCI 647T087P01 WCI 647T087P01 Contact Us For Availability
8B
HEX NUT-FUSE (NON-ILLUSTRATED) WCI 479T085P03 Contact Us For Availability
9
SWITCH-FLUOR LIGHT WCI 695T166P01 Contact Us For Availability
9
WCI 3131653 WCI 3131653 Contact Us For Availability
9
GLASS-OVEN DOOR WCI 276T088P05 Contact Us For Availability
9
WCI 115T198P01 WCI 115T198P01 Contact Us For Availability
9
WCI 612T103P02 WCI 612T103P02 Contact Us For Availability
9
WCI 736T005P01 WCI 736T005P01 Contact Us For Availability
9
WCI 643T014P02 WCI 643T014P02 Contact Us For Availability
9
WCI 381T077F04-86 WCI 381T077F04-86 Contact Us For Availability
9
WCI 045T066P01 WCI 045T066P01 Contact Us For Availability
9A
WCI 3131654 WCI 3131654 Contact Us For Availability
10
DIAL-INDICATOR WCI 196T034P02 Contact Us For Availability
10
WCI 277T164P23 WCI 277T164P23 Contact Us For Availability
10
BRACKET-GLASS MTG WCI 3016504 Contact Us For Availability
10
WCI 737T061P01 WCI 737T061P01 Contact Us For Availability
10
WCI 036T049S10 WCI 036T049S10 Contact Us For Availability
10
CAM, OVEN DOOR, RH WCI 117T013S14 Contact Us For Availability
10
WCI 241T017P219 WCI 241T017P219 Contact Us For Availability
10
WCI 233T016P04 WCI 233T016P04 Contact Us For Availability
10
PIN, HINGE WCI 550T041P01 Contact Us For Availability
10
WCI 695T146P05 WCI 695T146P05 Contact Us For Availability
10A
WCI 355T588P01 WCI 355T588P01 Contact Us For Availability
10A
PLUG-BUTTON (NON-ILLUSTRATED) WCI 557T028P01 Contact Us For Availability
11
SWITCH, OVEN LIGHT WCI 695T164P03 Contact Us For Availability
11
WCI 513T073F18 WCI 513T073F18 Contact Us For Availability
11
GLASS-OVEN DOOR, FRONT WCI 276T098P02 Contact Us For Availability
11
SCREW-TRANSFORMER MTG WCI 636T101P14 Contact Us For Availability
11
WCI 036T049S11 WCI 036T049S11 Contact Us For Availability
11
WCI 280T053P01 WCI 280T053P01 Contact Us For Availability
11
WCI 636T111P03 WCI 636T111P03 Contact Us For Availability
11
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
11
WCI 511T048P01 WCI 511T048P01 Contact Us For Availability
12
WCI 303T012P01 WCI 303T012P01 Contact Us For Availability
12
TRIM-OVEN DOOR WCI 740T483H01 Contact Us For Availability
12
WCI 612T104F01 WCI 612T104F01 Contact Us For Availability
12
WCI 479T069P30 WCI 479T069P30 Contact Us For Availability
12
WCI 058T035F01-86 WCI 058T035F01-86 Contact Us For Availability
12
WCI 174T242P01 WCI 174T242P01 Contact Us For Availability
12
WCI 319T011F03-86 WCI 319T011F03-86 Contact Us For Availability
12
WCI 115T139P01 WCI 115T139P01 Contact Us For Availability
13
FASTENER, CABLE CLAMP WCI 241T003P01 Contact Us For Availability
13
WCI 296T088P07 WCI 296T088P07 Contact Us For Availability
13
WCI 655T378P01 WCI 655T378P01 Contact Us For Availability
13
BURNER-TOP, REAR WCI 080T015P02 Contact Us For Availability
13
SEAL-DOOR BOTTOM WCI 647T068P02 Contact Us For Availability
13
WCI 239T043S02 WCI 239T043S02 Contact Us For Availability
13
WCI 322T015P03 WCI 322T015P03 Contact Us For Availability
13
WCI 106T027P02 WCI 106T027P02 Contact Us For Availability
14
FASTENER-PURSE LOCK WCI 241T017P238 Contact Us For Availability
14
SPACER-OVEN DOOR HANDLE WCI 665T125P01 Contact Us For Availability
14
CAPACITOR-HIGH VOLTAGE WCI 115T157P02 Contact Us For Availability
14
LOXIT NUT WCI 247T079P01 Contact Us For Availability
14
RACK-DOOR WCI 591T073P02 Contact Us For Availability
14
NUT-RECEPTACLE MTG WCI 479T084P01 Contact Us For Availability
14
WCI 233T012P06 WCI 233T012P06 Contact Us For Availability
14
CHANNEL-GLIDE, UPPER & LOWER WCI 136T281S05 Contact Us For Availability
15
WCI 737T055P02 WCI 737T055P02 Contact Us For Availability
15
VALVE, SHUT OFF WCI 774T121P01 Contact Us For Availability
15
WCI 115T647P03 WCI 115T647P03 Contact Us For Availability
15
WCI 597T035P01 WCI 597T035P01 Contact Us For Availability
15
WCI 550T037P02 WCI 550T037P02 Contact Us For Availability
15
BUTTON-GUIDE WCI 106T028P01 Contact Us For Availability
15
WCI 697T032P08 WCI 697T032P08 Contact Us For Availability
16
WCI 355T448S01 WCI 355T448S01 Contact Us For Availability
16
WCI 079T025P09 WCI 079T025P09 Contact Us For Availability
16
WCI 008T480P01 WCI 008T480P01 Contact Us For Availability
16
WCI 722T038P11 WCI 722T038P11 Contact Us For Availability
16A
WCI 612T090F01 WCI 612T090F01 Contact Us For Availability
17
WCI 355T515S04 WCI 355T515S04 Contact Us For Availability
17
FASTENER-VALVE MTG WCI 241T017P216 Contact Us For Availability
17
TRIM-BODY PANEL WCI 740T431F01 Contact Us For Availability
17
WCI 008T378F11 WCI 008T378F11 Contact Us For Availability
17
WCI 355T517S03 WCI 355T517S03 Contact Us For Availability
17
WCI 558T032P01 WCI 558T032P01 Contact Us For Availability
18
WCI 636T095P11 WCI 636T095P11 Contact Us For Availability
18
WCI 072T655F01 WCI 072T655F01 Contact Us For Availability
18
PANEL-BODYSIDE-COFFEE (2) WCI 515T047F16-45 Contact Us For Availability
18
WCI 136T321F02-18 WCI 136T321F02-18 Contact Us For Availability
18
WCI 697T047P04 WCI 697T047P04 Contact Us For Availability
19
WCI 554T338F02 WCI 554T338F02 Contact Us For Availability
19
WCI 774T117P04 WCI 774T117P04 Contact Us For Availability
19
WCI 280T028P02 WCI 280T028P02 Contact Us For Availability
19
WCI 174T267P01 WCI 174T267P01 Contact Us For Availability
19
WCI 521T085W03-18 WCI 521T085W03-18 Contact Us For Availability
20
PIN-BODY PANEL/BASE WCI 550T034P01 Contact Us For Availability
20
WCI 174T253S02 WCI 174T253S02 Contact Us For Availability
20
WCI 643T013P01 WCI 643T013P01 Contact Us For Availability
21
WCI 742T005P01 WCI 742T005P01 Contact Us For Availability
21
WCI 3131517 WCI 3131517 Contact Us For Availability
21
COVER-MICROWAVE SEAL WCI 174T188P02 Contact Us For Availability
21
WCI 072T731F01 WCI 072T731F01 Contact Us For Availability
22
SHIELD-OVEN BOTTOM WCI 655T359F01 Contact Us For Availability
22
CHANNEL-TOP BURNER SUPPORT WCI 136T310F03-18 Contact Us For Availability
22
WCI 211T044F04 WCI 211T044F04 Contact Us For Availability
23
SOCKET, LIGHT WCI 662T027P02 Contact Us For Availability
24
TUBE, OVEN SUPPLY WCI 750T095P12 Contact Us For Availability
24
WCI 250T009W03-18 WCI 250T009W03-18 Contact Us For Availability
24
WCI 374T024P01 WCI 374T024P01 Contact Us For Availability
25
WCI 250T013W01-18 WCI 250T013W01-18 Contact Us For Availability
25
WCI 115T463P01 WCI 115T463P01 Contact Us For Availability
26
TUBE-IGNITER MTG WCI 750T207F01 Contact Us For Availability
26
WCI 095T029W16-86 WCI 095T029W16-86 Contact Us For Availability
26
WCI 789T061P01 WCI 789T061P01 Contact Us For Availability
27
IGNITER-OVEN BURNER WCI 316T023P05 Contact Us For Availability
27
WCI 302T019P01 WCI 302T019P01 Contact Us For Availability
27
WCI 3091366 WCI 3091366 Contact Us For Availability
28
WCI 3131536 WCI 3131536 Contact Us For Availability
28
WCI 740T454P01 WCI 740T454P01 Contact Us For Availability
29
WCI 021T043F05-18 WCI 021T043F05-18 Contact Us For Availability
29
WCI 123T081P05 WCI 123T081P05 Contact Us For Availability
29A
WCI 123T081P06 WCI 123T081P06 Contact Us For Availability
30
TERMINAL BLOCK WCI 709T041P02 Contact Us For Availability
30
WCI 709T033P02 WCI 709T033P02 Contact Us For Availability
30
WCI 3091470 WCI 3091470 Contact Us For Availability
30A
WCI 3091212 WCI 3091212 Contact Us For Availability
31
COVER, SAFETY VALVE WCI 174T300F01 Contact Us For Availability
31
WCI 072T612F02 WCI 072T612F02 Contact Us For Availability
31
WCI 3091373 WCI 3091373 Contact Us For Availability
32
COVER-IGNITER WCI 174T220F01 Contact Us For Availability
32
WCI 174T204F01 WCI 174T204F01 Contact Us For Availability
33
CHANNEL-POST WCI 136T148W05 Contact Us For Availability
33
WCI 174T169F01 WCI 174T169F01 Contact Us For Availability
34
SUPPORT PLATE-UPPER OVEN WCI 694T088F01 Contact Us For Availability
34
WCI 3091346 WCI 3091346 Contact Us For Availability
35
WCI 036T054W05-18 WCI 036T054W05-18 Contact Us For Availability
35
WCI 515T043F01-45 WCI 515T043F01-45 Contact Us For Availability
35A
WCI 515T043F02-45 WCI 515T043F02-45 Contact Us For Availability
36
CHANNEL STIFFENER WCI 136T283F01 Contact Us For Availability
36
TRIM-SPLASHER SIDE LH WCI 740T309F01 Contact Us For Availability
36A
TRIM-SPLASHER SIDE RH WCI 740T309F02 Contact Us For Availability
37
WCI 241T017P10 WCI 241T017P10 Contact Us For Availability
37
WCI 211T046S01 WCI 211T046S01 Contact Us For Availability
38
WCI 636T004P01 WCI 636T004P01 Contact Us For Availability
38
WCI 355T442S02 WCI 355T442S02 Contact Us For Availability
39
WCI 171T030P01 WCI 171T030P01 Contact Us For Availability
39
PROBE-ROAST WCI 115T563P03 Contact Us For Availability
40
FASTENER-8 A U-TYPE WCI 241T017P67 Contact Us For Availability
41
WCI 102T028P01 WCI 102T028P01 Contact Us For Availability
42
SLEEVE, INSULATOR WCI 660T032P01 Contact Us For Availability
45
FASTENER, CLAMP WCI 241T017P128 Contact Us For Availability
× ![]()
