Model LG 75UK343H0UD – Common Parts & Diagrams

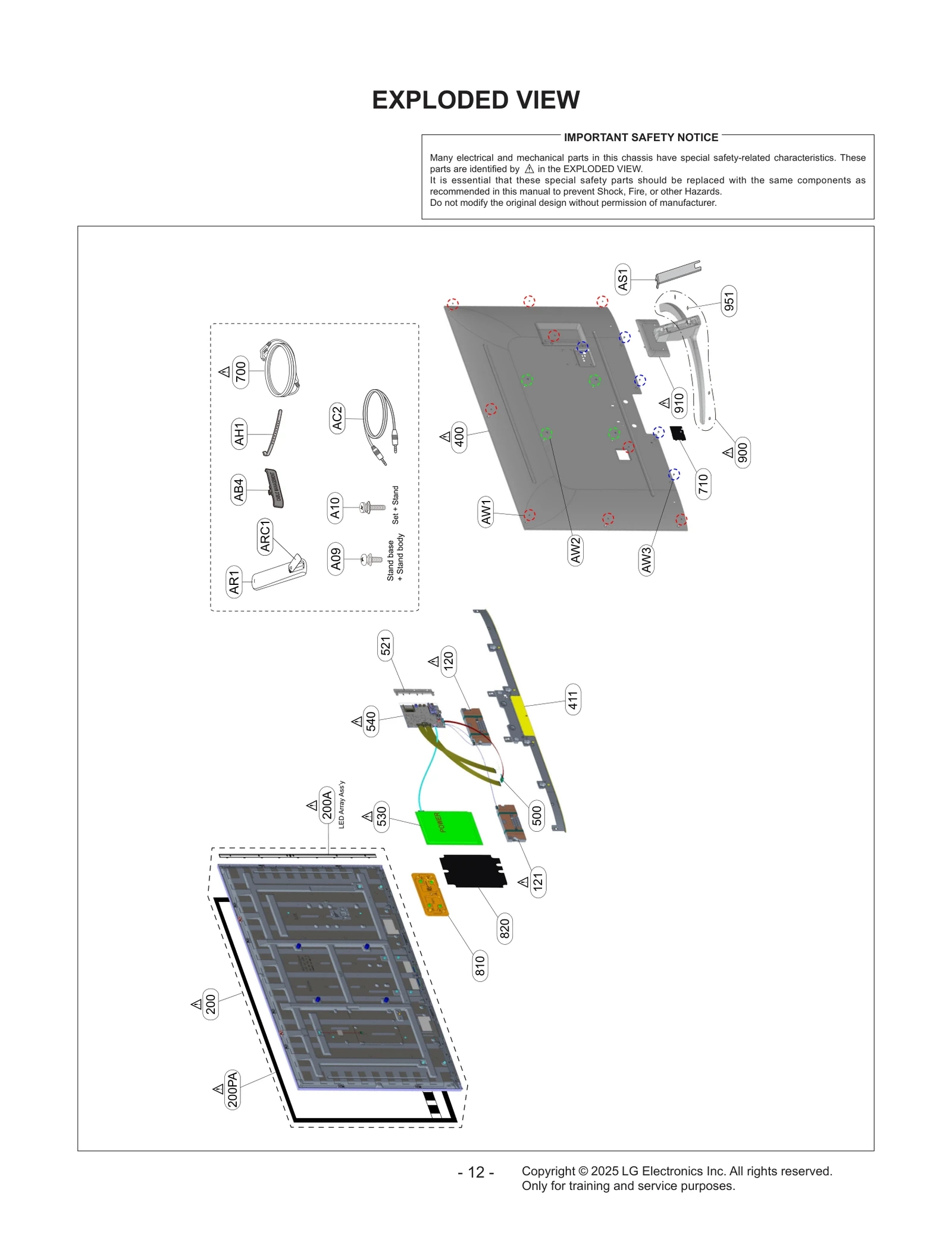

Diagram 0

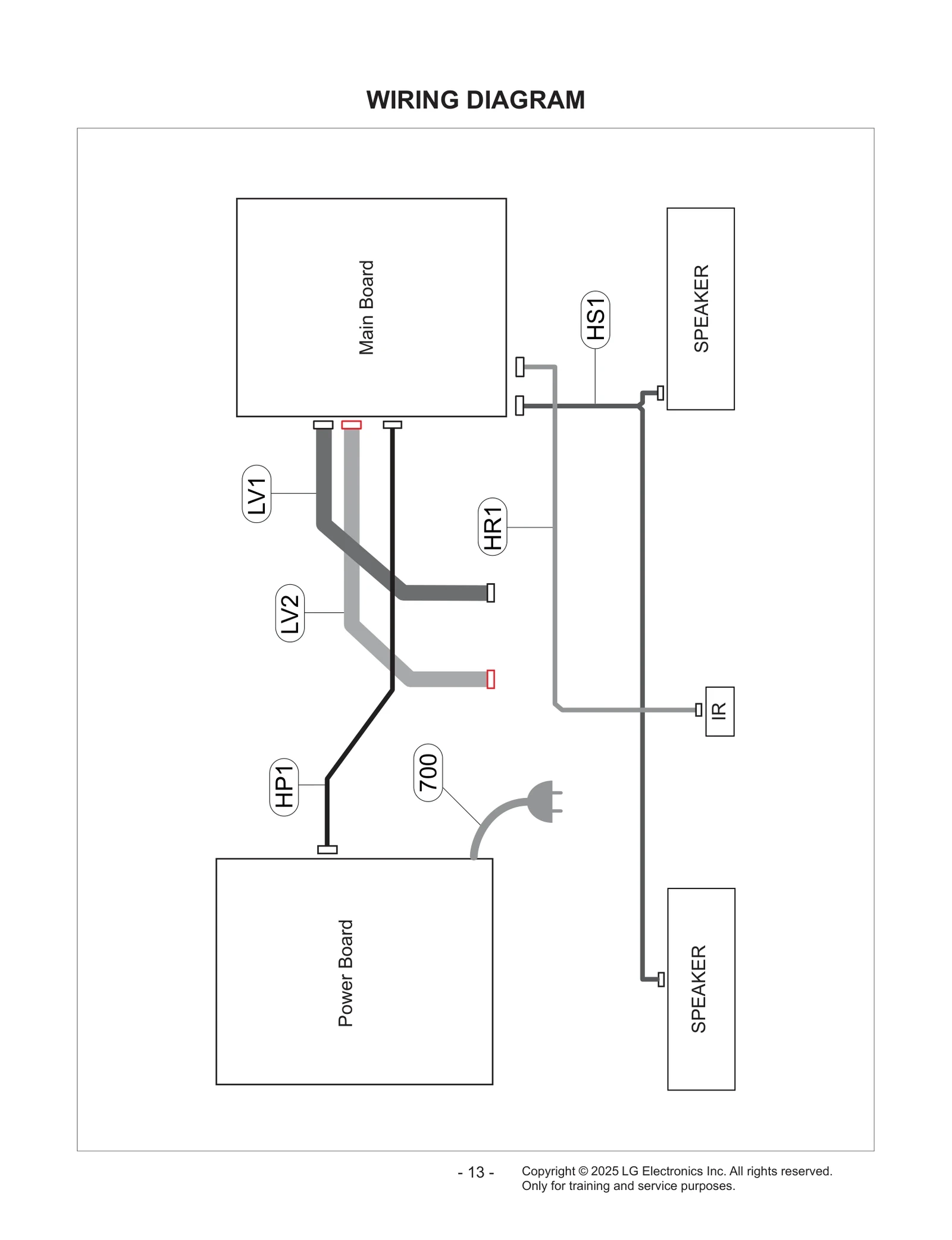

Diagram 1
Common parts from model LG 75UK343H0UD
200
LCD,Module-TFT LGE EAJ65950903 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF30125412 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ65826607 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30450380 Contact Us For Availability
521
Bracket LGE MAZ67779524 Contact Us For Availability
521
Bracket LGE MAZ67779525 Contact Us For Availability
521
Bracket LGE MAZ67779577 Contact Us For Availability
530
Power Supply Assembly LGE EAY65895581 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU30379001 Contact Us For Availability
710
Bracket LGE MAZ67457320 Contact Us For Availability
710
Bracket LGE MAZ67457321 Contact Us For Availability
810
Bracket LGE MAZ67463702 Contact Us For Availability
820
Insulator LGE MEV67702204 Contact Us For Availability
900
Base Assembly LGE AAN76888672 Contact Us For Availability
910
Bracket Assembly,Stand LGE ABA30022014 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095376 Contact Us For Availability
ARC1
Cover LGE MCK67552801 Contact Us For Availability
AS1
Bracket LGE MAZ66564704 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
AW3
Screw,Taptite LGE FAB31639801 Contact Us For Availability
HR1
Harness,Single LGE EAD64808701 Contact Us For Availability
LV1
Cable,FFC LGE EAD66038315 Contact Us For Availability
× ![]()
