  • LG 75UA7700PUA Parts List

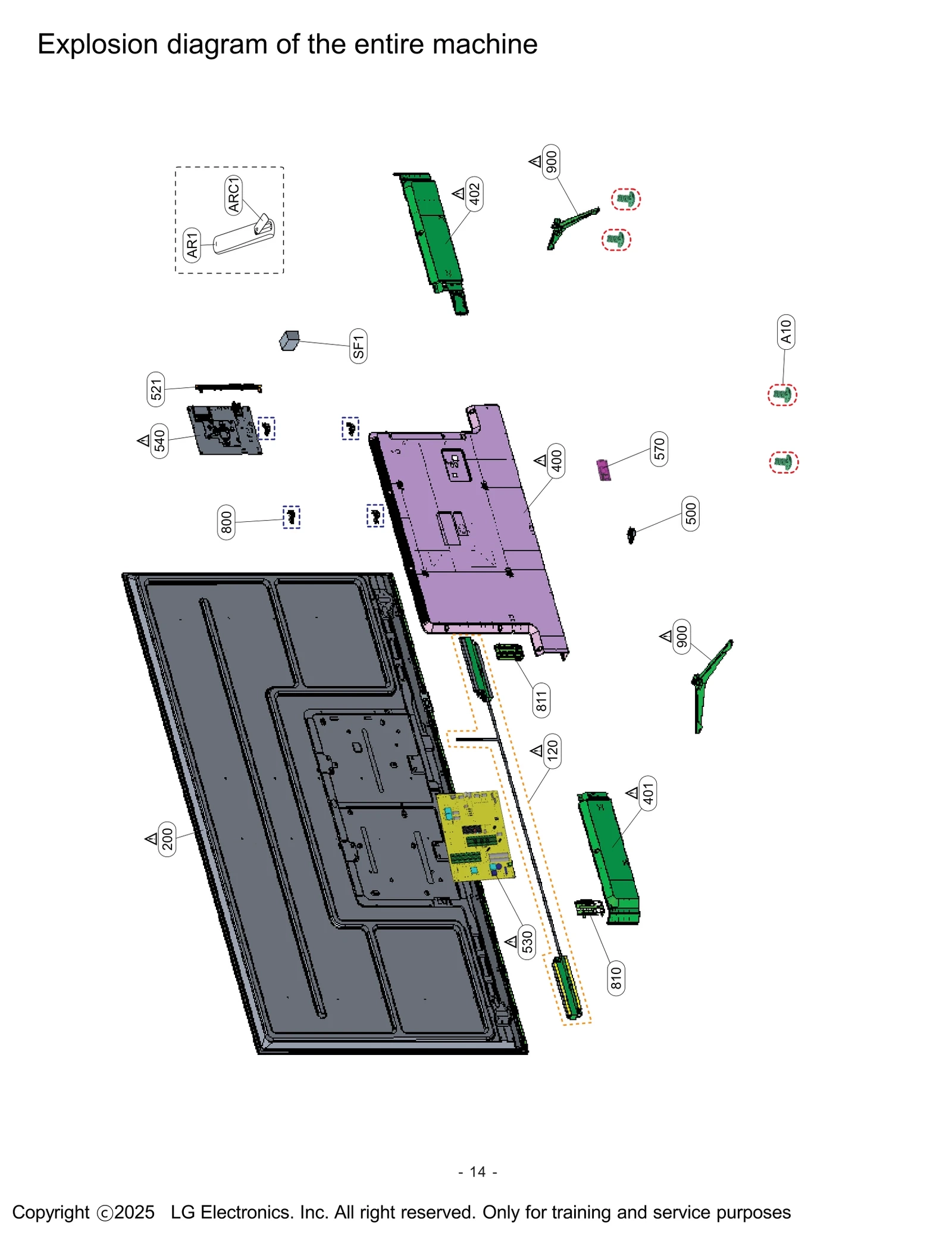

Model LG 75UA7700PUA – Common Parts & Diagrams

200
Display Module,Outsourcing
Display Module,Outsourcing LGE COV30093201 Contact Us For Availability
View on Model
400
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV30223501 Contact Us For Availability
View on Model
401
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV30227701 Contact Us For Availability
View on Model
402
Cover Assembly,Outsourcing
Cover Assembly,Outsourcing LGE COV30227702 Contact Us For Availability
View on Model
500
PCB Assembly,Sub,Outsourcing
PCB Assembly,Sub,Outsourcing LGE COV30231701 Contact Us For Availability
View on Model
521
Cover,Outsourcing
Cover,Outsourcing LGE COV37823307 Contact Us For Availability
View on Model
530
Power Supply Assembly,Outsourcing
Power Supply Assembly,Outsourcing LGE COV30218601 Contact Us For Availability
View on Model
540
Mainboard,ORP Total Assembly,SVC
Mainboard,ORP Total Assembly,SVC LGE EBU30285001 Contact Us For Availability
View on Model
700
Power Cord,Outsourcing
Power Cord,Outsourcing LGE COV30210901 Contact Us For Availability
View on Model
800
Bracket Assembly,Outsourcing
Bracket Assembly,Outsourcing LGE COV37823402 Contact Us For Availability
View on Model
810
Bracket Assembly,Outsourcing
Bracket Assembly,Outsourcing LGE COV30229201 Contact Us For Availability
View on Model
811
Bracket Assembly,Outsourcing
Bracket Assembly,Outsourcing LGE COV30229202 Contact Us For Availability
View on Model
900
Base Assembly,Outsourcing
Base Assembly,Outsourcing LGE COV30229001 Contact Us For Availability
View on Model
AR1
Remote Controller Assembly
Remote Controller Assembly LGE AKB30085202 Contact Us For Availability
View on Model
ARC1
Cover
Cover LGE MCK67552801 Contact Us For Availability
View on Model
HW1
FFC Cable,Outsourcing
FFC Cable,Outsourcing LGE COV30211601 Contact Us For Availability
View on Model
LV1
FFC Cable,Outsourcing
FFC Cable,Outsourcing LGE COV30211401 Contact Us For Availability
View on Model
LV2
FFC Cable,Outsourcing
FFC Cable,Outsourcing LGE COV30211501 Contact Us For Availability
View on Model
SF1
Gasket,Outsourcing
Gasket,Outsourcing LGE COV30248601 Contact Us For Availability
View on Model
