Model LG 75SJ857A – Common Parts & Diagrams

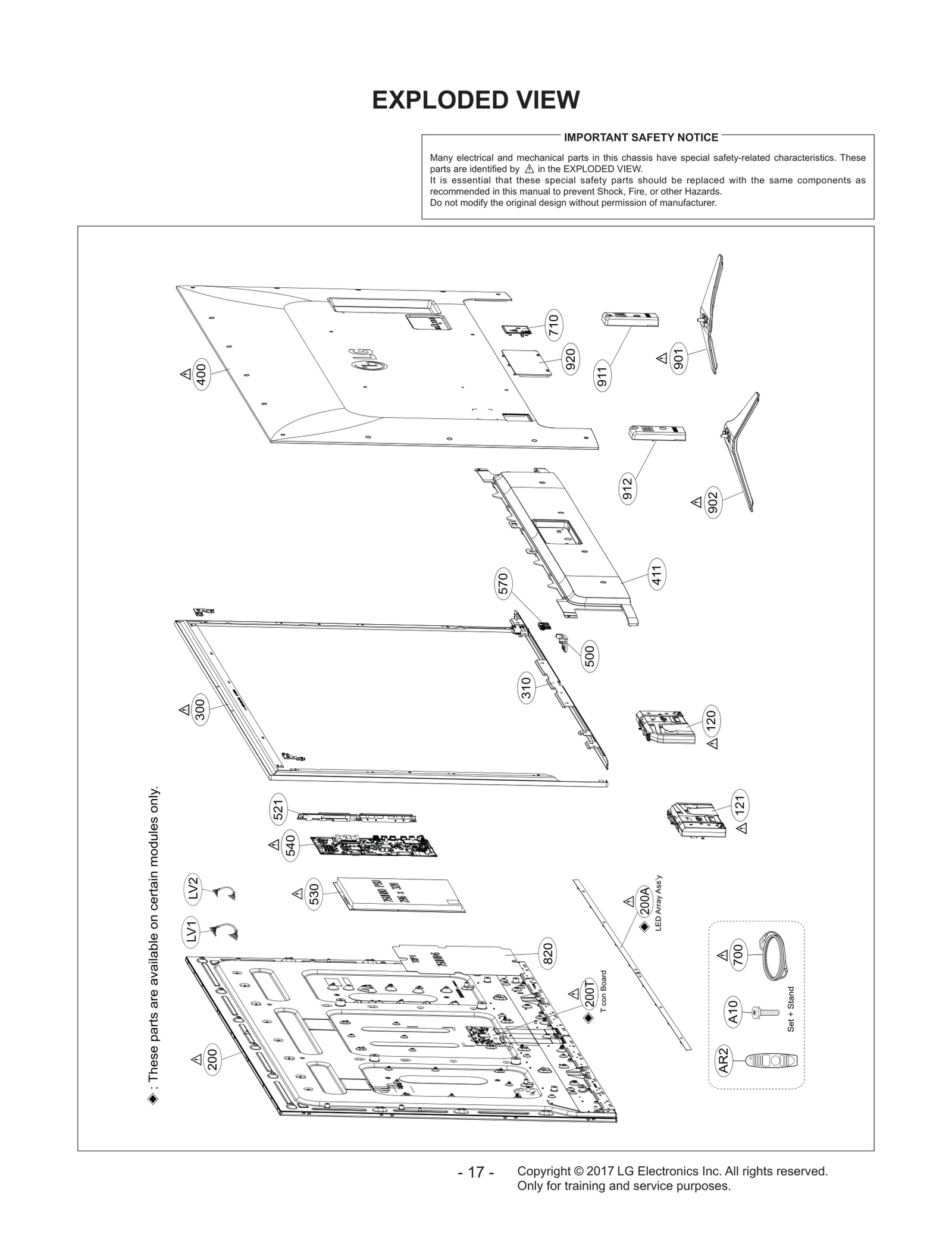

Diagram 0
Diagram 1
Common parts from model LG 75SJ857A
200
LCD,Module-TFT LGE EAJ63989001 Contact Us For Availability
200T
Time Control LGE EAT63357001 Contact Us For Availability
310
Cabinet LGE MBH64102503 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88533644 Contact Us For Availability
411
Cover,Rear LGE MCK69126812 Contact Us For Availability
521
Bracket LGE MAZ65205715 Contact Us For Availability
530
Power Supply Assembly LGE EAY64269142 Contact Us For Availability
540
Chassis Assembly LGE EBT64715403 Contact Us For Availability
710
Bracket LGE MAZ62827620 Contact Us For Availability
820
Insulator LGE MEV65771401 Contact Us For Availability
901
Base Assembly LGE AAN75689603 Contact Us For Availability
902
Base Assembly LGE AAN75689604 Contact Us For Availability
911
Bracket LGE MAZ65166103 Contact Us For Availability
B2
Box LGE MAY68087602 Contact Us For Availability
CA1
Harness,Single LGE EAD62732502 Contact Us For Availability
CA2
Harness,Multi LGE EAD63305604 Contact Us For Availability
CA4
Harness,Multi LGE EAD64009602 Contact Us For Availability
× ![]()
