Model LG 75QNED70AUC – Common Parts & Diagrams

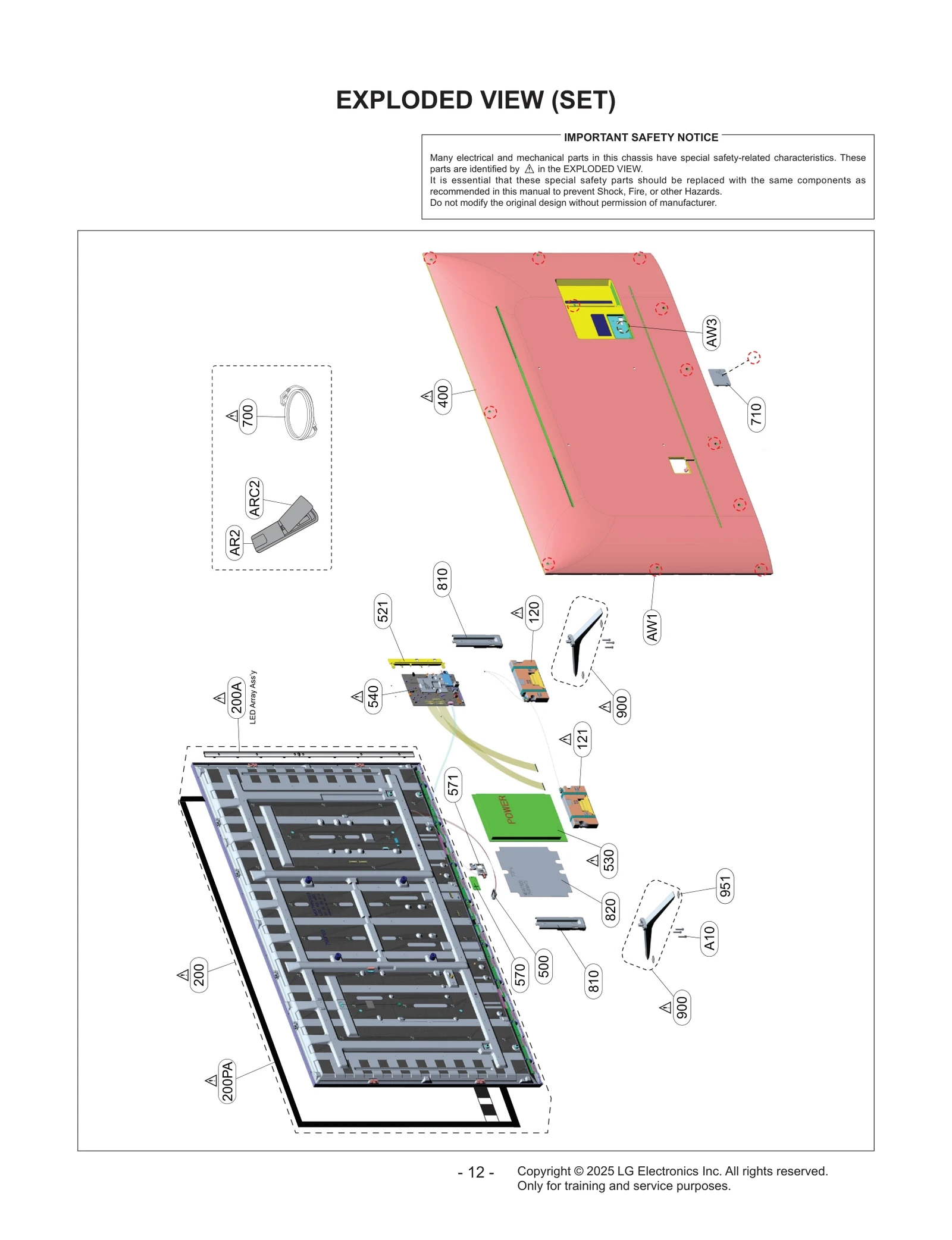

Diagram 0

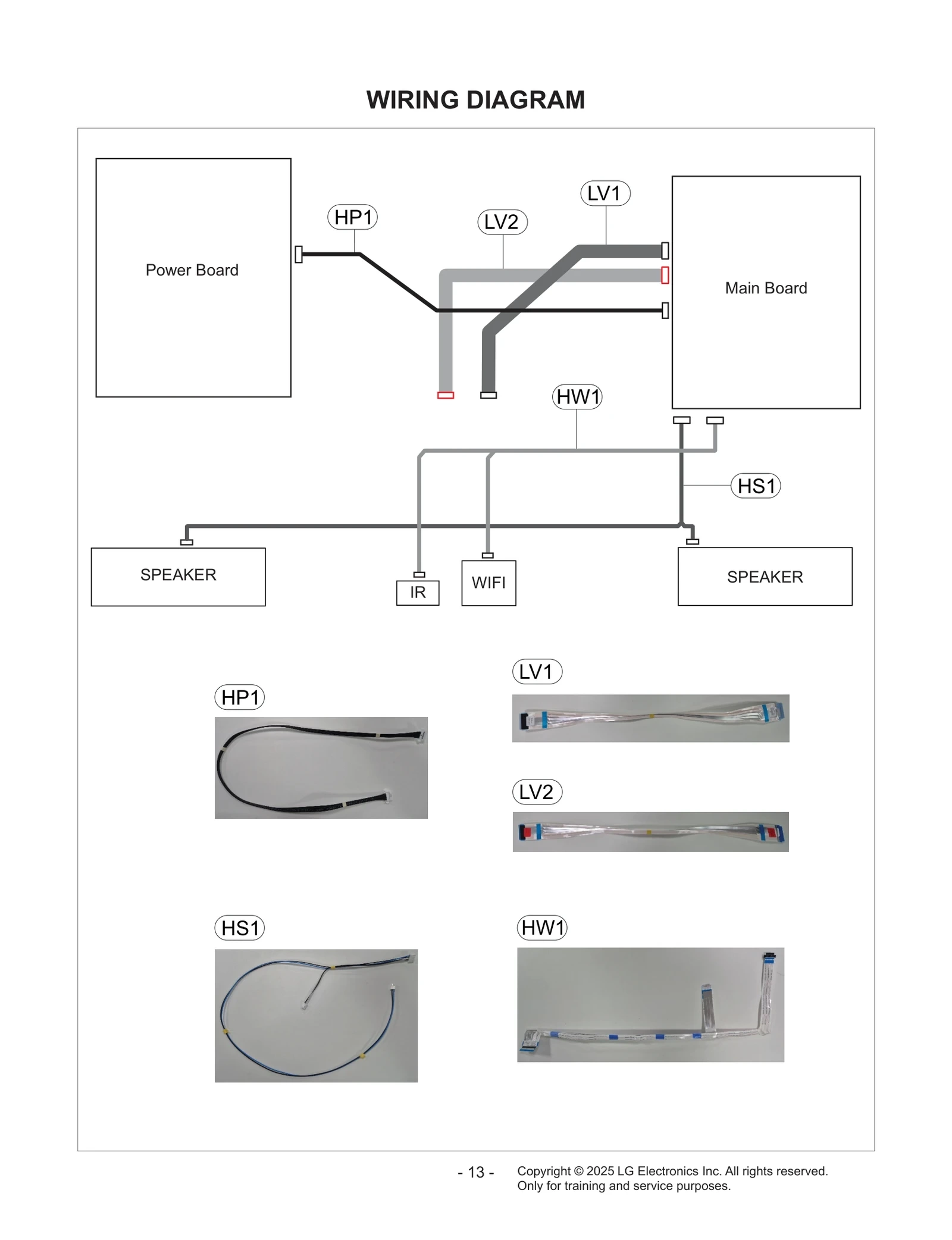

Diagram 1
Common parts from model LG 75QNED70AUC
200
LCD,Module-TFT LGE EAJ30041703 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF30125415 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ65826610 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30627003 Contact Us For Availability
540
Mainboard,ORP Total Assembly,SVC LGE EBU30294508 Contact Us For Availability
570
Module,Wifi Bluetooth Module LGE EAT65193302 Contact Us For Availability
571
Bracket LGE MAZ67664409 Contact Us For Availability
710
Bracket LGE MAZ67457323 Contact Us For Availability
810
Supporter LGE MJH30019402 Contact Us For Availability
820
Insulator LGE MEV67702204 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76046602 Contact Us For Availability
ARC2
Part LGE EBZ30385903 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
AW3
Screw,Taptite LGE FAB31639801 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727363 Contact Us For Availability
HW1
Cable,FFC LGE EAD00578501 Contact Us For Availability
LV1
Cable,FFC LGE EAD66038315 Contact Us For Availability
× ![]()
