  • LG 75NANO99UNA Parts List

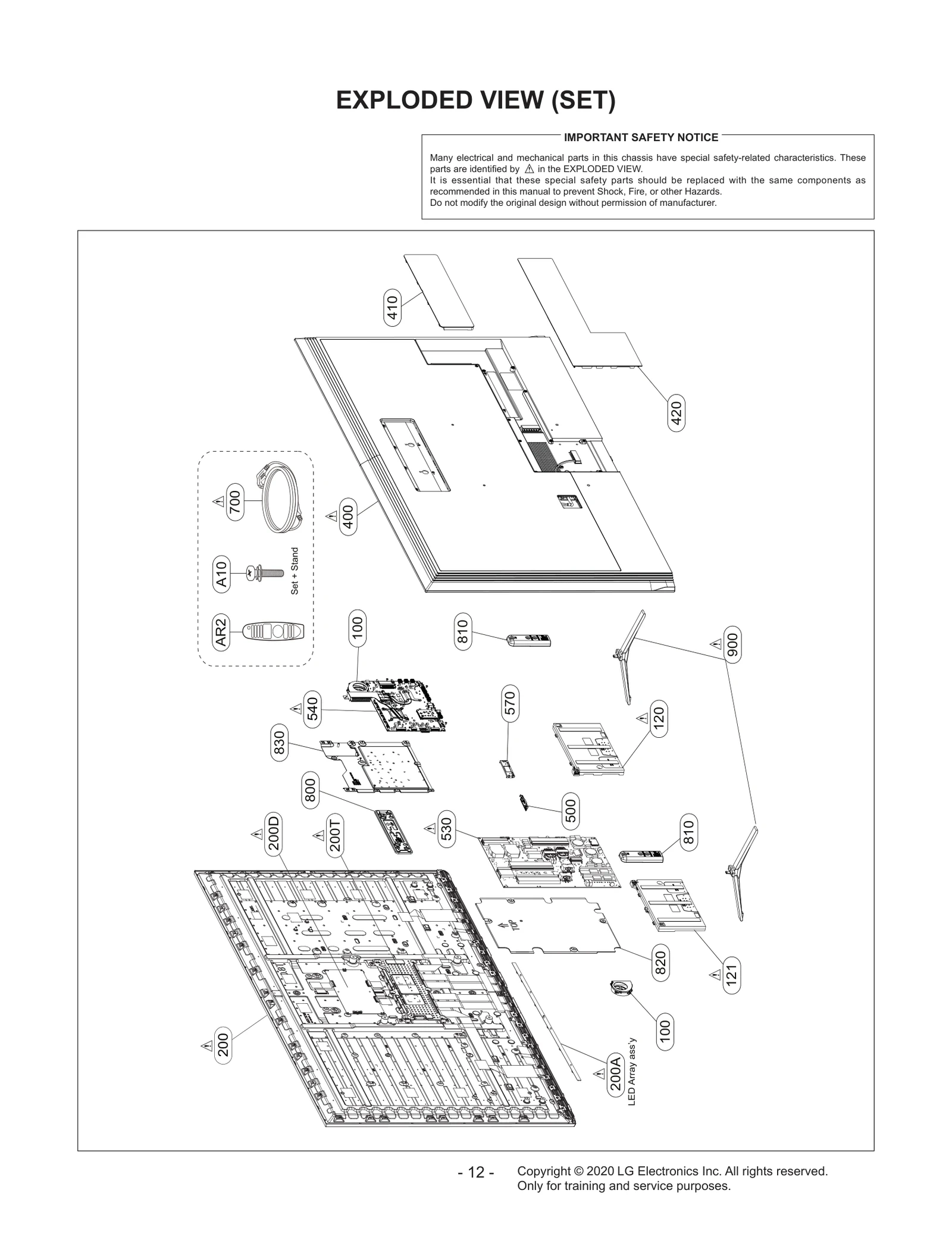

Model LG 75NANO99UNA – Common Parts & Diagrams

200D
PCB Assembly,LED Driver
PCB Assembly,LED Driver LGE EBR89829401 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ91562509 Contact Us For Availability
View on Model
410
Cover,Accessory
Cover,Accessory LGE MCK71149702 Contact Us For Availability
View on Model
420
Cover,Accessory
Cover,Accessory LGE MCK71149802 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY65729401 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU66066910 Contact Us For Availability
View on Model
570
Module,Wifi Bluetooth Module
Module,Wifi Bluetooth Module LGE EAT64897201 Contact Us For Availability
View on Model
700
Power Cord,Attach
Power Cord,Attach LGE EAD64026817 Contact Us For Availability
View on Model
810
Bracket
Bracket LGE MAZ67116702 Contact Us For Availability
View on Model
820
Plate Assembly
Plate Assembly LGE AGU30000503 Contact Us For Availability
View on Model
830
Plate,Shield
Plate,Shield LGE MGJ66908802 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN77370104 Contact Us For Availability
View on Model

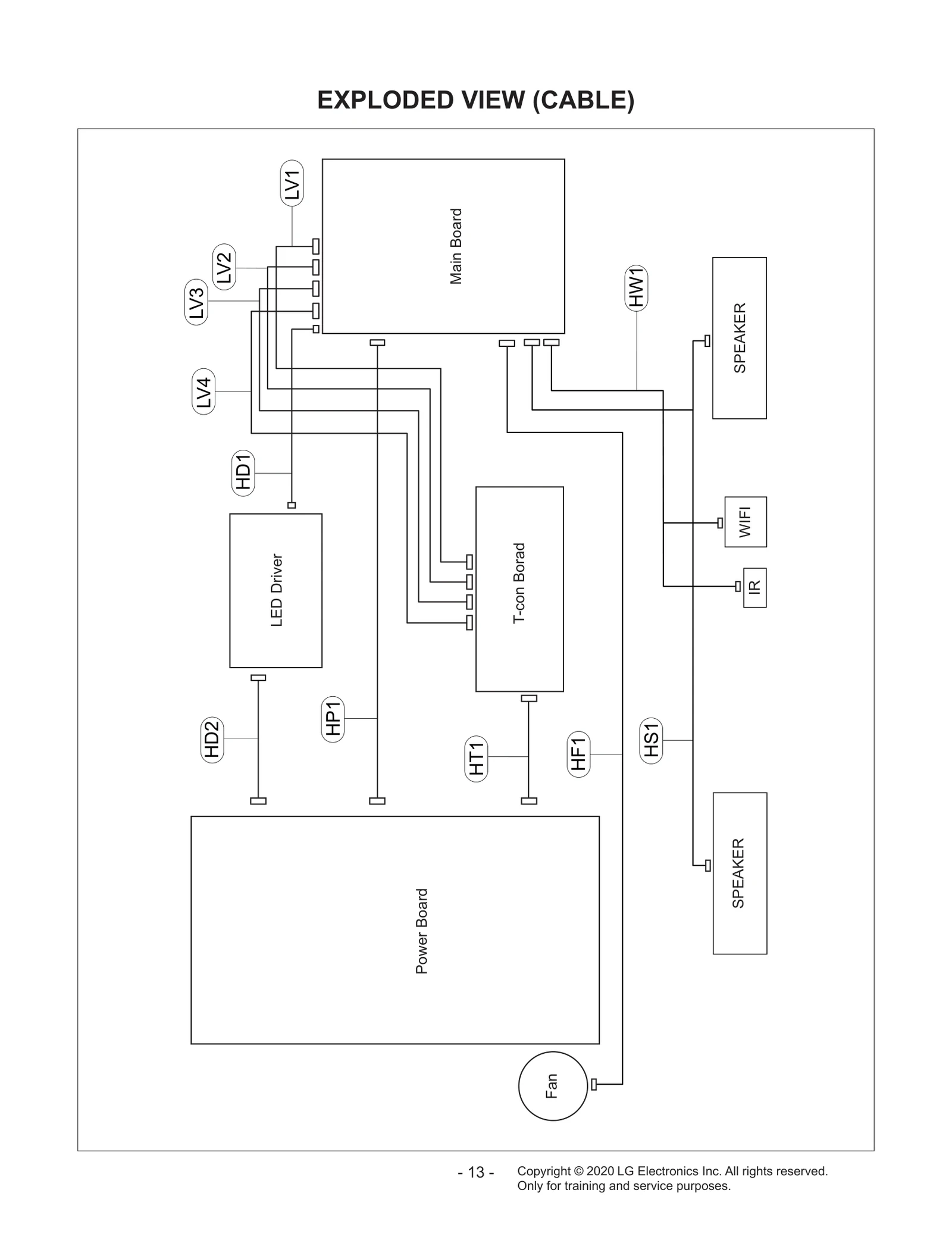

HF1
Harness,Single
Harness,Single LGE EAD65829702 Contact Us For Availability
View on Model
HP1
Harness,Single
Harness,Single LGE EAD63727112 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD64065408 Contact Us For Availability
View on Model
HT1
Harness,Multi
Harness,Multi LGE EAD65605103 Contact Us For Availability
View on Model
HW1
Harness,Single
Harness,Single LGE EAD63725103 Contact Us For Availability
View on Model
LV2
Cable,FFC
Cable,FFC LGE EAD63285723 Contact Us For Availability
View on Model
LV3
Cable,FFC
Cable,FFC LGE EAD63285724 Contact Us For Availability
View on Model
