Model Electrolux 73-3751-00-03 RANGE – Common Parts & Diagrams
01 - RANGE-ELECTRIC
02 - OVEN CONTROLS

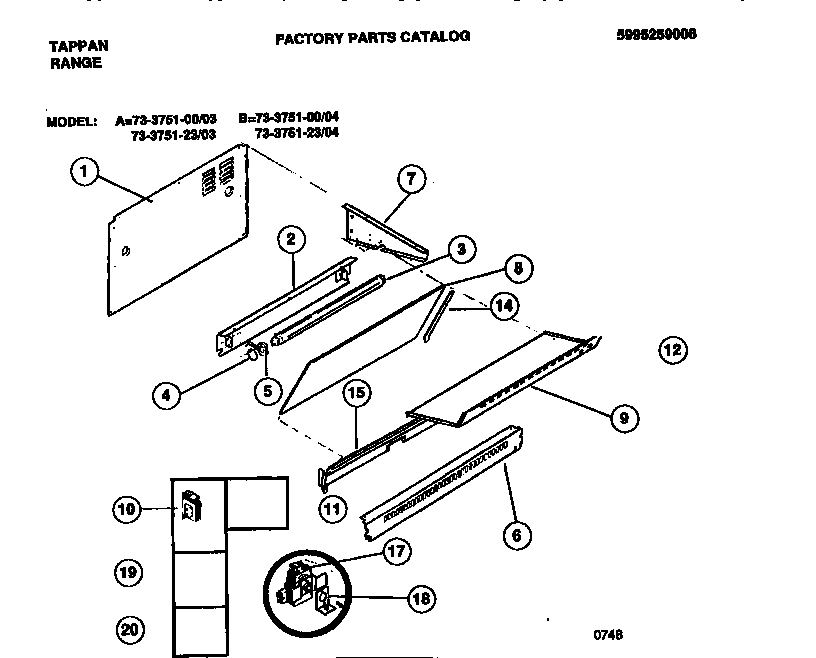

03 - CONTROL PANEL

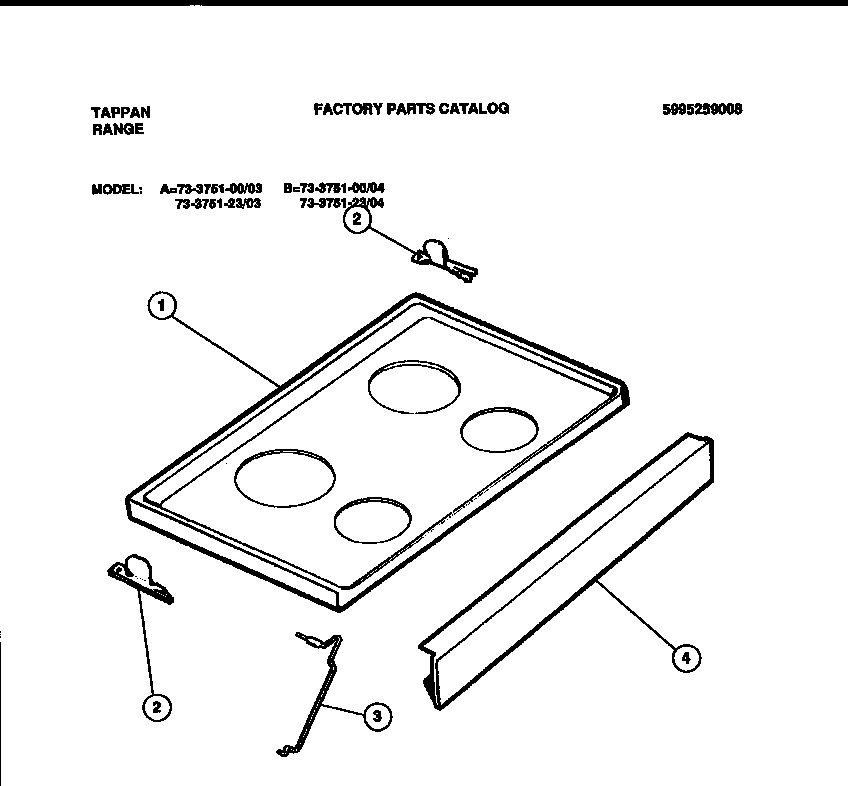

04 - ELECTRIC COOKTOP

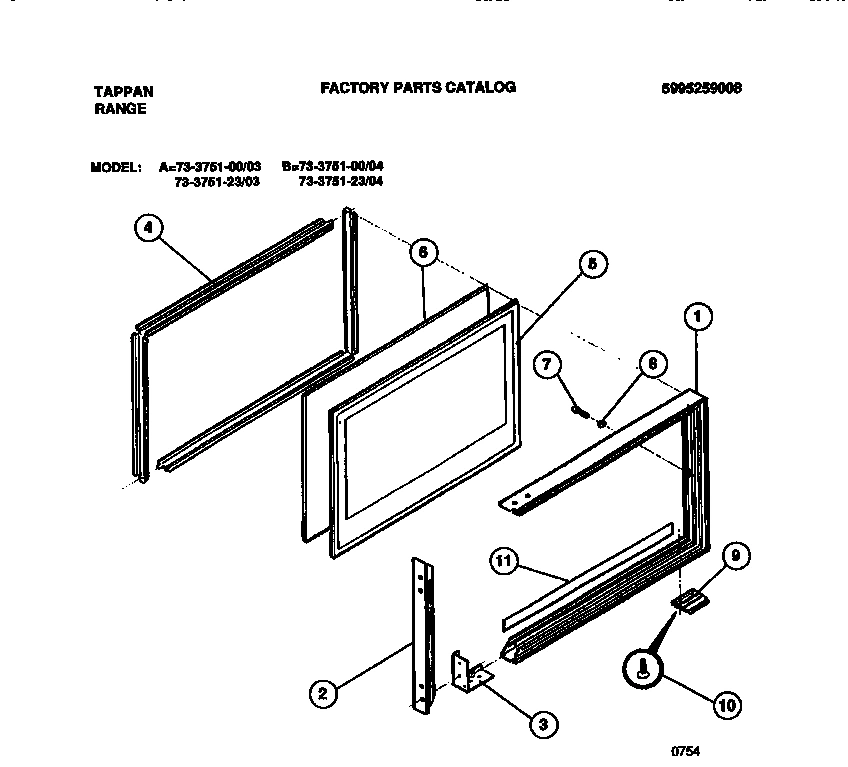

05 - DOOR

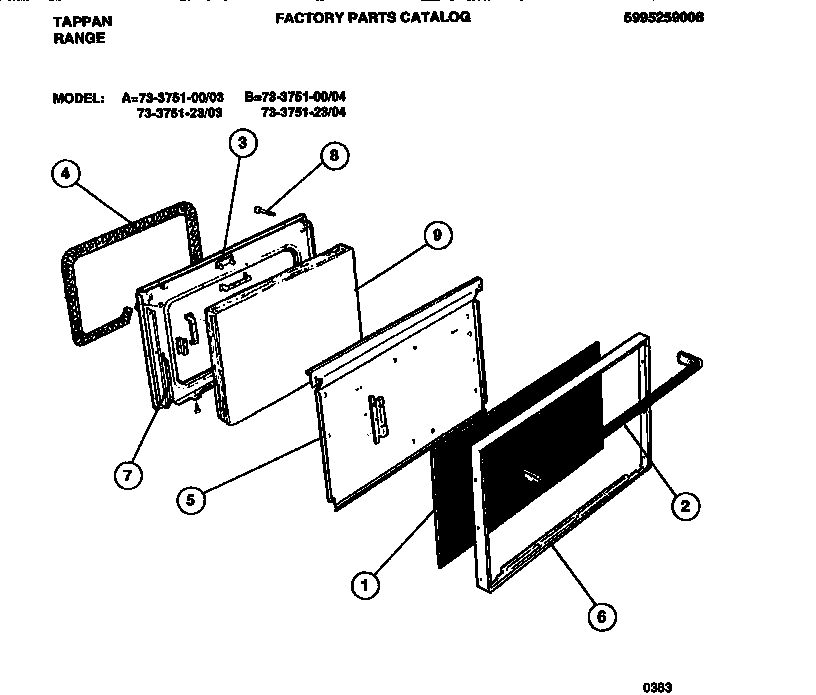

06 - DOOR

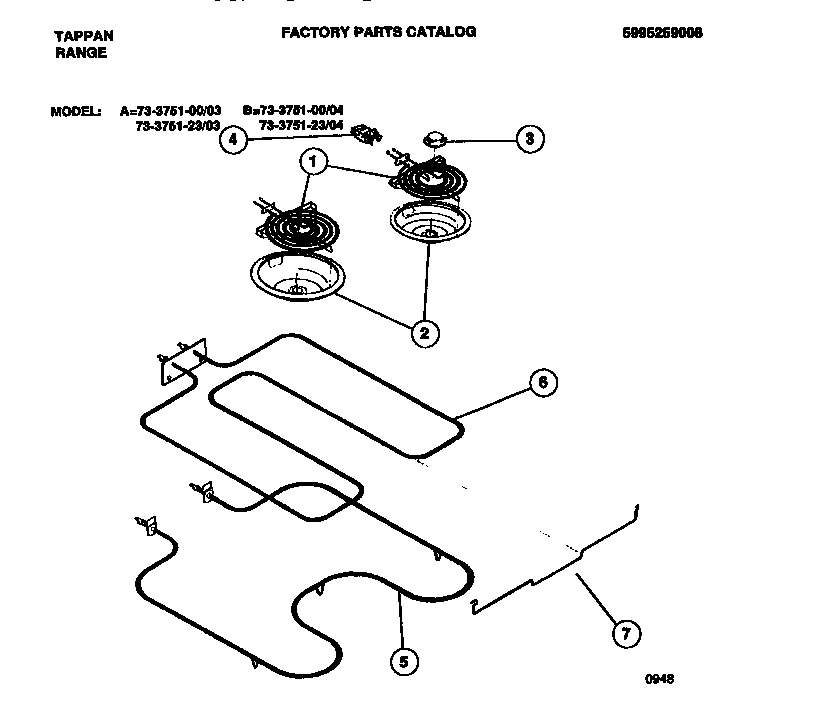

07 - ELEMENTS

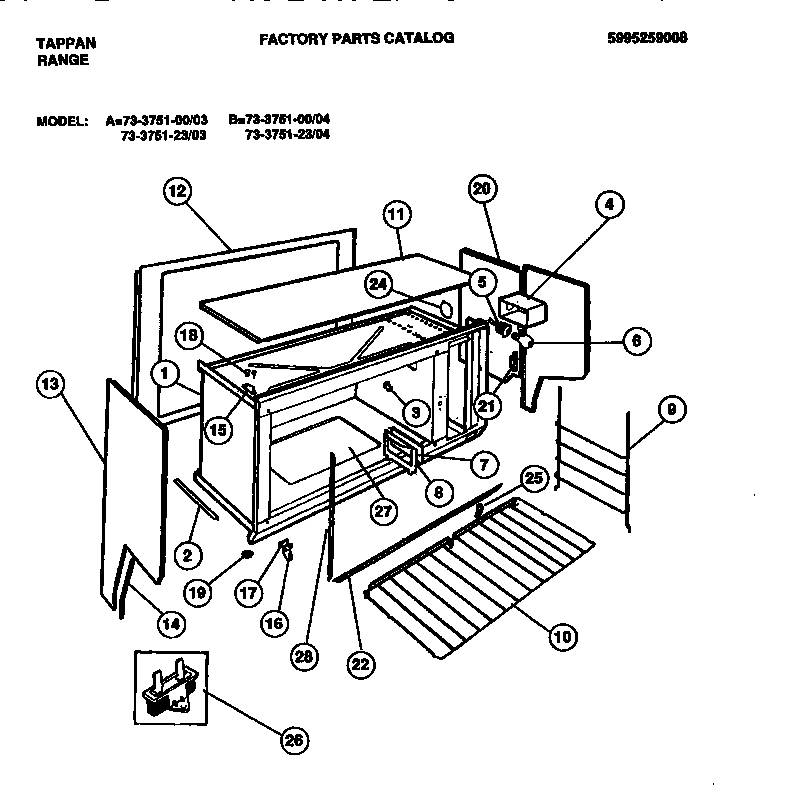

08 - BOODY

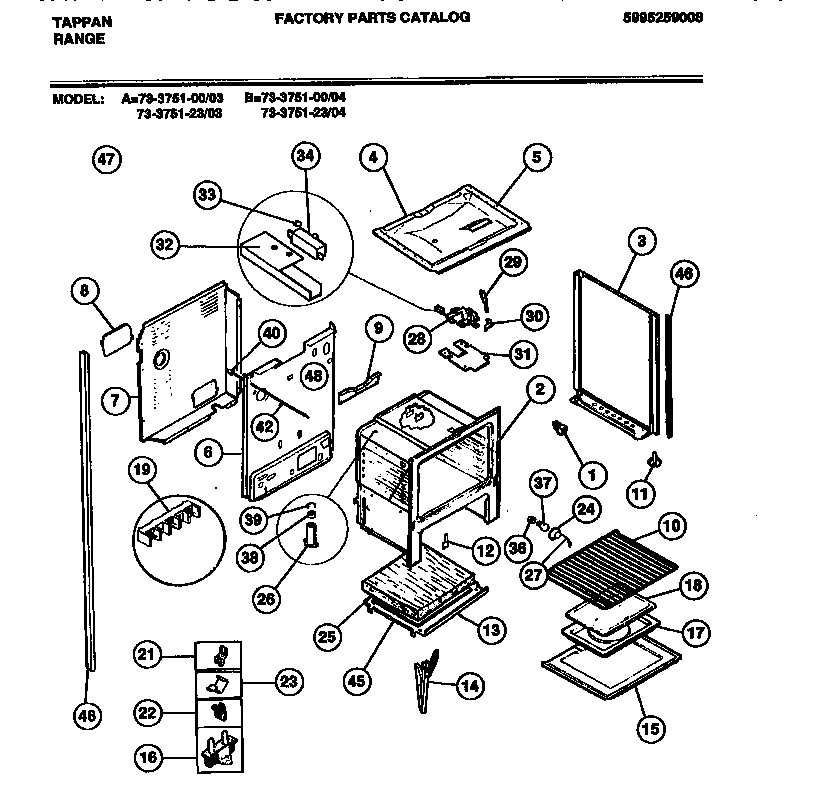

09 - CAVITY

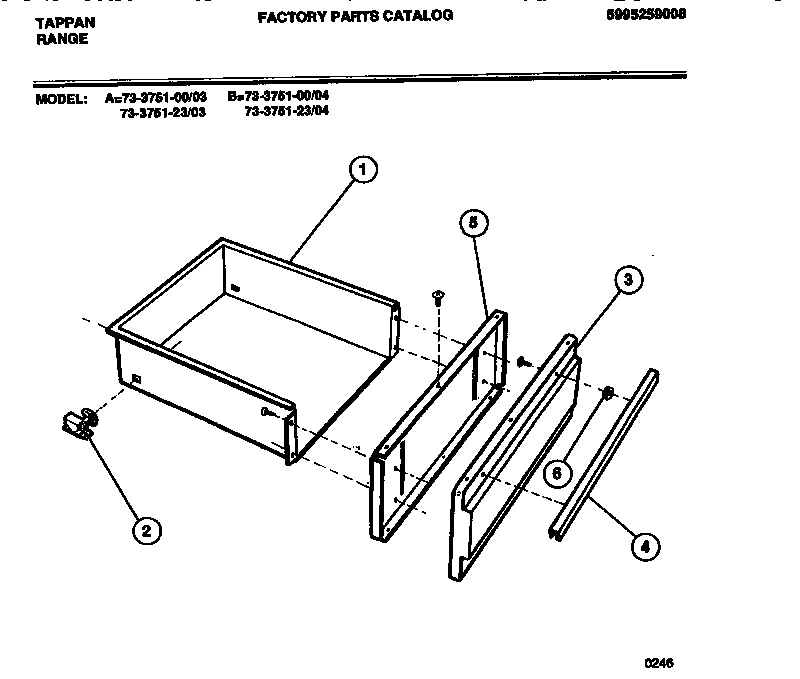

10 - DRAWER
Common parts from model Electrolux 73-3751-00-03 RANGE
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303013511 WCI 5303013511 Contact Us For Availability
1
FRAME-CHANNEL WCI 316013100 Contact Us For Availability
1
GLASS-FRONT-BLACK WCI 5303051153 Contact Us For Availability
1
WCI 31611501 WCI 31611501 Contact Us For Availability
1A
WCI 3013512 WCI 3013512 Contact Us For Availability
2
WCI 08067746 WCI 08067746 Contact Us For Availability
2
FRAME-CHANNEL END WCI 5303290772 Contact Us For Availability
2
HANDLE-OVEN DOOR WCI 5303285070 Contact Us For Availability
2
WCI N/A WCI N/A Contact Us For Availability
2
WCI 08011672 WCI 08011672 Contact Us For Availability
2A
WCI 08067747 WCI 08067747 Contact Us For Availability
2A
WCI 3015590 WCI 3015590 Contact Us For Availability
2B
WCI 3015588 WCI 3015588 Contact Us For Availability
2C
WCI 3015591 WCI 3015591 Contact Us For Availability
3
WCI 3131275 WCI 3131275 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 316066900 Contact Us For Availability
3
GUSSET-CORNER (2) WCI 08011727 Contact Us For Availability
3
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
3
PNL-BODYSIDE LH-WHITE WCI 5303269519 Contact Us For Availability
3
WCI 316056205 WCI 316056205 Contact Us For Availability
3A
WCI 5303269545 WCI 5303269545 Contact Us For Availability
3A
WCI 3131134 WCI 3131134 Contact Us For Availability
3B
PNL-BODYSIDE RH-WHITE WCI 5303269518 Contact Us For Availability
3C
WCI 5303269543 WCI 5303269543 Contact Us For Availability
4
WCI 316062343 WCI 316062343 Contact Us For Availability
4
SPACER-GLASS (2) WCI 08011721 Contact Us For Availability
4
BOX-LIGHT WCI 5303290773 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
5
GLASS-OUTER WCI 5303284806 Contact Us For Availability
5
WCI 5303209317 WCI 5303209317 Contact Us For Availability
5
WCI 08067757 WCI 08067757 Contact Us For Availability
5
SHIELD-PNL WCI 3131975 Contact Us For Availability
6
WCI 5303202782 WCI 5303202782 Contact Us For Availability
6
GLASS-INNER WCI 08011722 Contact Us For Availability
6
WCI 5303209518 WCI 5303209518 Contact Us For Availability
6
WCI 316029405 WCI 316029405 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6A
WCI 5303051320 WCI 5303051320 Contact Us For Availability
6B
SCREW 8-18 X 1/2`` HEX WSHR HANDLE (2) (NON-I WCI 08067785 Contact Us For Availability
7
STRIKE-DOOR WCI 5303935001 Contact Us For Availability
7
LENS-OVEN LIGHT WCI 08011668 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
8
SCREW-HANDLE (2) WCI 5303280308 Contact Us For Availability
8
COVER LENS WCI 08011669 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
8A
SCREW 8 X 18 X 1/2 (3) (NON-ILLUSTRATED) WCI 5303269859 Contact Us For Availability
9
HANDLE WCI 08011729 Contact Us For Availability
9
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
9
WCI 5303934091 WCI 5303934091 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
SCREW 8-32 X 1/2`` HANDLE MTG (2) WCI 5303212671 Contact Us For Availability
10
RACK-OVEN WCI 08011675 Contact Us For Availability
11
WCI 3051302 WCI 3051302 Contact Us For Availability
11
PANEL-TOP WCI 3131625 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 3206285 Contact Us For Availability
12
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
12
BACK-OVEN WALL UPPER WCI 3051236 Contact Us For Availability
13
PANEL-BODYSIDE LH-WHITE WCI 5303269987 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13A
PANEL-BODYSIDE LH-ALMOND WCI 5303269989 Contact Us For Availability
13B
PANEL-BODYSIDE RH-WHITE WCI 3051263 Contact Us For Availability
13C
PANEL-BODYSIDE RH-ALMOND WCI 3051264 Contact Us For Availability
14
CHAN-DOOR HINGE (2) WCI 316007001 Contact Us For Availability
14
TRIM-LH WCI 5303269815 Contact Us For Availability
14A
TRIM-RH WCI 08010549 Contact Us For Availability
15
TRIM-O/U SPLASHER GLASS FILLER WCI 5303209039 Contact Us For Availability
15
HINGE-TOP WCI 3131613 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
16
WCI 5303051385 WCI 5303051385 Contact Us For Availability
16
HINGE-BOTTOM WCI 5303051166 Contact Us For Availability
17
WCI 08067742 WCI 08067742 Contact Us For Availability
17
PLATE-HINGE WCI 08011665 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
ANGLE-SUPPORT S/C THERMOSTAT WCI 3051348 Contact Us For Availability
18
SCREW-10-32 (2) SHOULDER SPECIAL (2) WCI 5303285171 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
19
RECEPTACLE-STARTER WCI 5303282715 Contact Us For Availability
19
WASHER-HINGE (2) WCI 3131737 Contact Us For Availability
20
STARTER WCI 3206218 Contact Us For Availability
20
SHIELD-WOOL SIDE WCI 5303208706 Contact Us For Availability
21
WCI 08011680 WCI 08011680 Contact Us For Availability
21
CLIP-THERMO BULB (2) WCI 08067754 Contact Us For Availability
22
WCI 316024200 WCI 316024200 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
24
WCI 08067732 WCI 08067732 Contact Us For Availability
25
STRIKE-DOOR WCI 316012800 Contact Us For Availability
26
FUSE-THERMO CUTOUT WCI 5303203651 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
27
WCI 08016605 WCI 08016605 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
WCI 3204582 WCI 3204582 Contact Us For Availability
27D
SCREW-HINGE MTG (6) (NON-ILLUSTRATED) WCI 5303284147 Contact Us For Availability
28
WCI 316024201 WCI 316024201 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
28A
WIRING DIAGRAM (NOT FOR PURCHASE) (NON-ILLUST WCI 19100230002 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3131593 Contact Us For Availability
32
SHIELD-BI MTL LATCH WCI 3051413 Contact Us For Availability
33
FASTENER-PUSH ON (3) WCI 08067776 Contact Us For Availability
34
SWITCH-LATCHING WCI 3204592 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
40
SWITCH-DOOR WCI 316027702 Contact Us For Availability
42
ROD-LIGHT WCI 316026800 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
45A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
45B
SHIELD-HEAT BODYSIDE (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
45C
FASTENER-EDGE MOUNT (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
46
WCI 5303208642 WCI 5303208642 Contact Us For Availability
46A
TUBE-POST RH WCI 5303208643 Contact Us For Availability
46B
AUTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
47
WCI 3203582 WCI 3203582 Contact Us For Availability
48
COVER-ROD END WCI 5303285692 Contact Us For Availability
× ![]()
