Model LG 721.89652.590 – Common Parts & Diagrams
Diagram 0

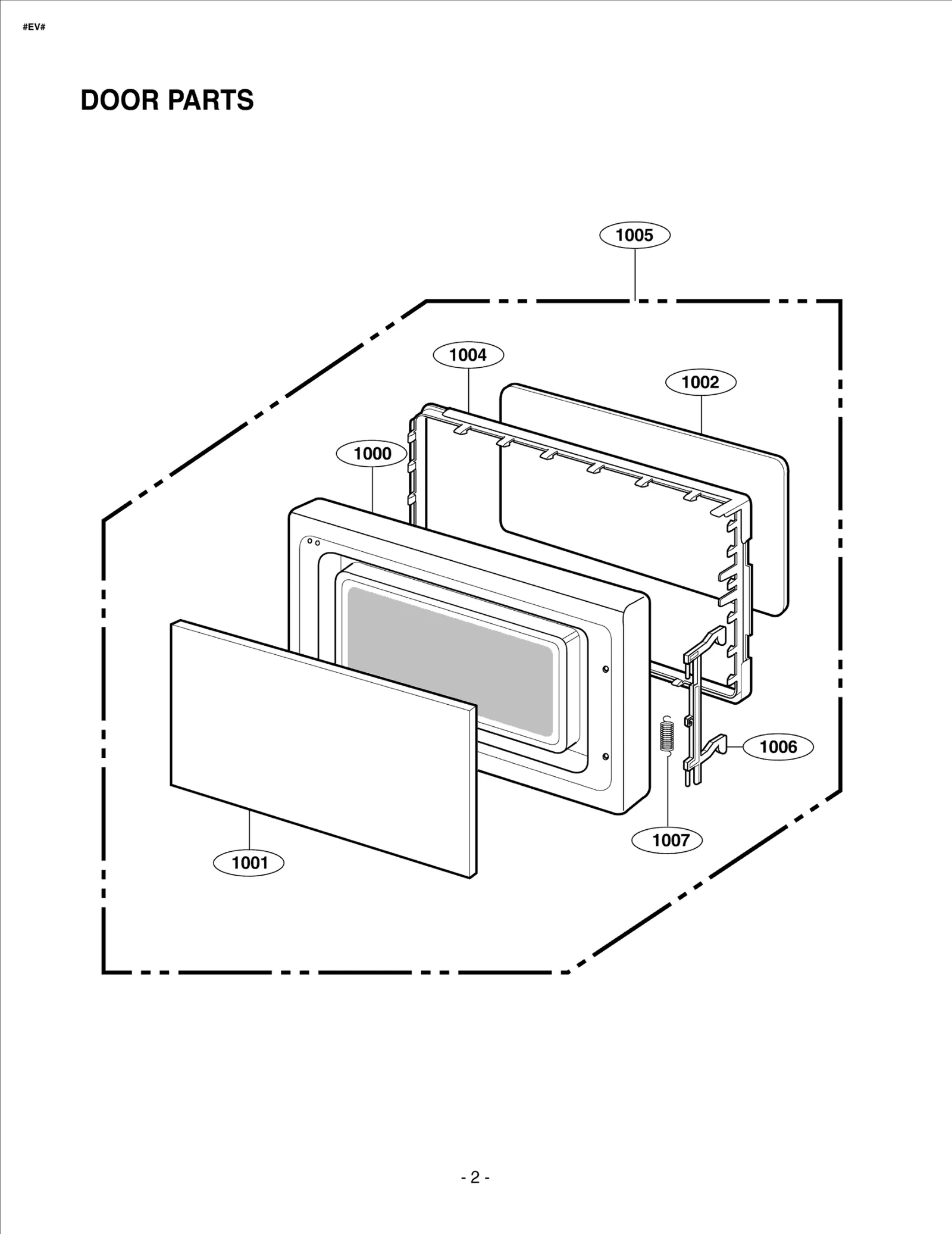

Diagram 1

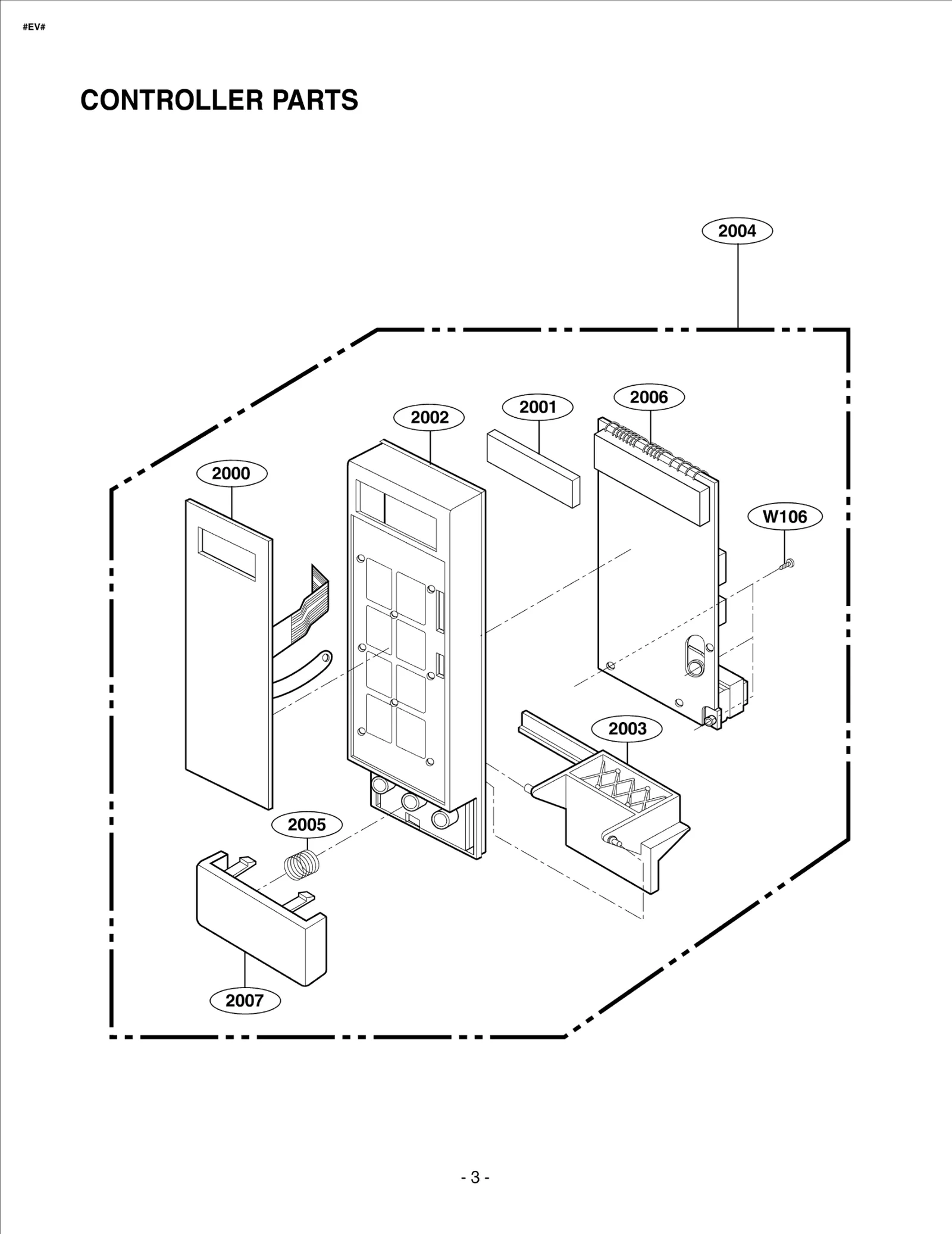

Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG 721.89652.590
*01
LGE 3874W500979 LGE 3874W500979 Contact Us For Availability
*02
LGE 3836W500851 LGE 3836W500851 Contact Us For Availability
*07
LGE 3858W3T006T LGE 3858W3T006T Contact Us For Availability
*10
LGE 3890W2ZC23C LGE 3890W2ZC23C Contact Us For Availability
3001
OUTCASE MA-151 S STONE GRAY LGE 3112W0U010J Contact Us For Availability
3002
GLASS TRAY DIA 360MM T7MM WT1 LGE 1B71725A Contact Us For Availability
3003
LGE 3461W0A016B LGE 3461W0A016B Contact Us For Availability
3006
WIRE HOLDER DONG MA-880M MWEGS LGE 4B72944A Contact Us For Availability
3008
ROTATING RING ASSY A 250,H 14, LGE 5889W2A005M Contact Us For Availability
3009
Motor, AC Synchronous LGE 6549WRS001G Contact Us For Availability
3012
TURN TABLE SHAFT MS-1715 TEFLO LGE 4370WRT001C Contact Us For Availability
3014
LEADWIRE ASSY-SECOND MS-101 S/ LGE 6877W3T080E Contact Us For Availability
3015
HINGE PLATE ASSY-L MS-151 S W/ LGE 4775W3P005B Contact Us For Availability
3034
LGE 3052W2A020A LGE 3052W2A020A Contact Us For Availability
3115
HINGE PLATE-U MS-151 S MS-153A LGE 4774W3P010A Contact Us For Availability
3134
CANOPY-L MS-151 S MS-153AM MS- LGE 3052W2A017A Contact Us For Availability
4000
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
4001
LGE 3501W1A003A LGE 3501W1A003A Contact Us For Availability
4009
Switch,Micro LGE 3B73362H Contact Us For Availability
5002
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
5003
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
5007
PROPELLER MA-1172M MS-155AM LGE 2B72125B Contact Us For Availability
5008
TRANSFORMER HIGH VOLTAGE MS-12 LGE 6010W2H068A Contact Us For Availability
5010
LGE 6411W2A001D LGE 6411W2A001D Contact Us For Availability
5012
MOTOR FAN 120V/60HZ LGE 2B73670B Contact Us For Availability
5014
LEAD WIRE ASSY MS-124/154 UL,1 LGE 6877W1T157B Contact Us For Availability
5016
THERMOSTAT HORIZONTAL 90/75,PA LGE 6930WRT001C Contact Us For Availability
5017
FUSE HOLDER 65FB(SAMJOO) MV-10 LGE 4930W3B005A Contact Us For Availability
5018
H.V. DIODE CABLE ASSY MA-680M LGE 6021W3B001E Contact Us For Availability
5033
H.V. CABLE ASSY MA-880M/MW 884 LGE 6861W3A001B Contact Us For Availability
6000
LGE 3302W0A010A LGE 3302W0A010A Contact Us For Availability
6001
BASE PLATE-R ASSY LGE 3303W1A010A Contact Us For Availability
6002
LEG LGE 4B73900A Contact Us For Availability
C04
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C05
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C09
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C12
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C22
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK2210K518 Contact Us For Availability
D08
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D13
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D22
DIODE SWIT, 1N4148, MA-654MQ LGE 0DD414809AA Contact Us For Availability
DP1
<NLA> LGE 3Q34034A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q01
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
Q04
TRANSISTOR MA-885M SGESEA MA-1 LGE 0TR107009AD Contact Us For Availability
Q05
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
R02
LGE 0RD1501G608 LGE 0RD1501G608 Contact Us For Availability
R24
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R30
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R34
RESISTOR FIXED CARBON FILM 1.0 LGE 0RD1001G608 Contact Us For Availability
R35
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R41
LGE 0RD5601G608 LGE 0RD5601G608 Contact Us For Availability
R42
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R57
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R64
LGE 0RD2700G608 LGE 0RD2700G608 Contact Us For Availability
R70
LGE 0RD5600G608 LGE 0RD5600G608 Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
LGE 6000W5YB41A LGE 6000W5YB41A Contact Us For Availability
ZD1
DIODE ZENER 4.3V/0.5W,TAP(5MM) LGE 0DZ430009CC Contact Us For Availability
ZD2
DIODE ZENER MA-885M SGESEA LGE 0DZ560009AB Contact Us For Availability
× ![]()
