Model LG 721.68101890 – Common Parts & Diagrams

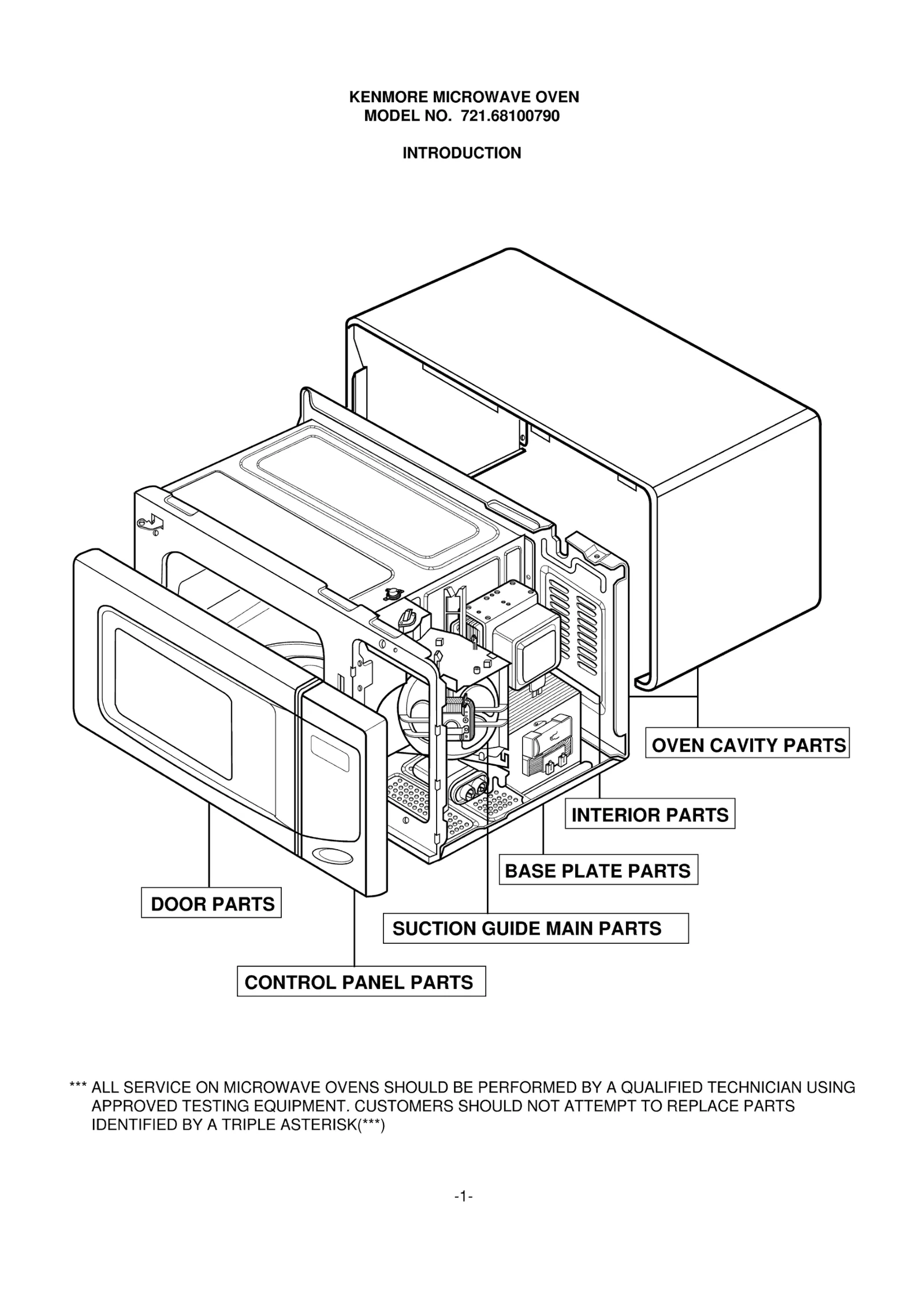

Diagram 0

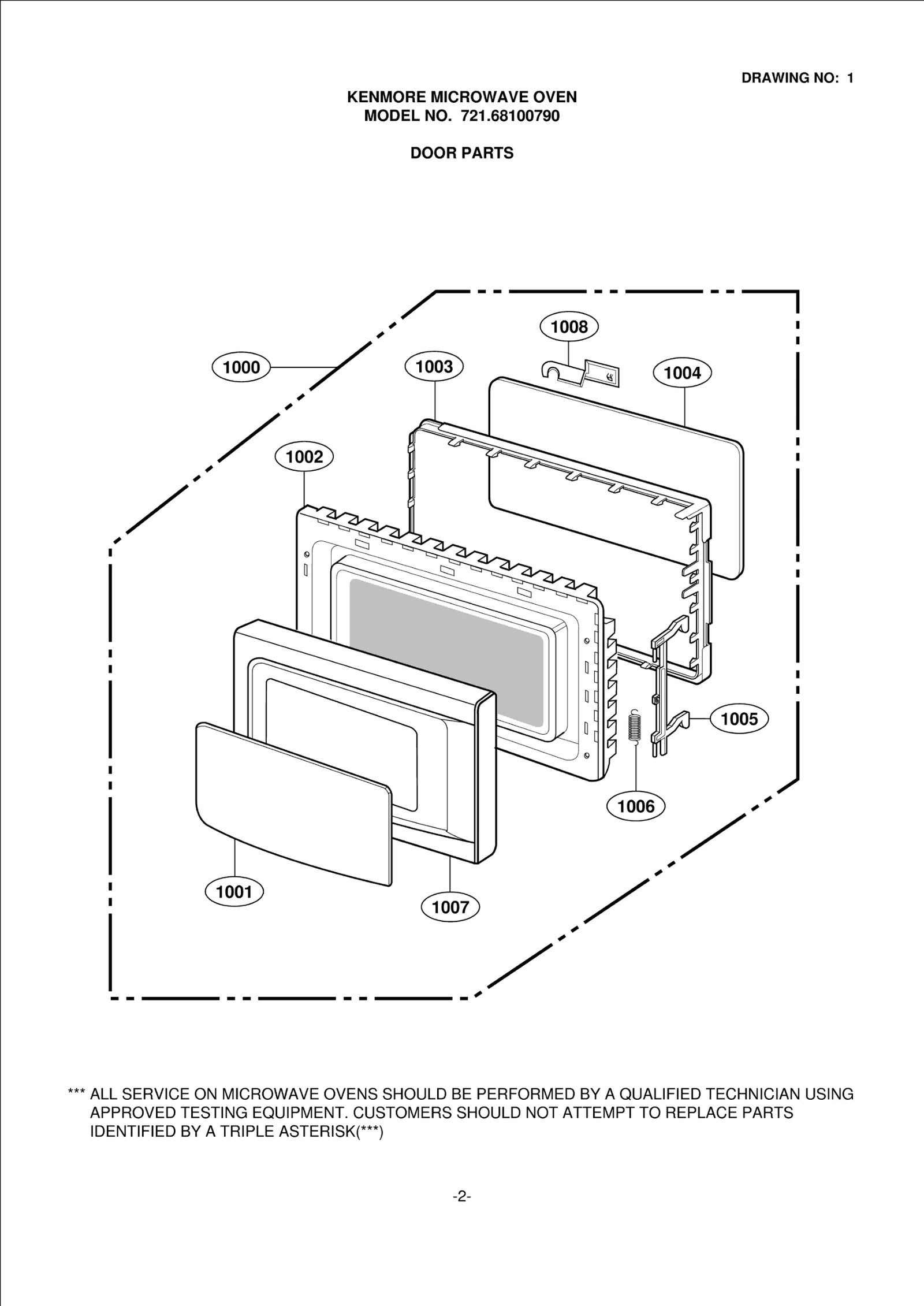

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG 721.68101890
*01
MS-74MCU SEARS-USA E LGE 3828W5A0949 Contact Us For Availability
*05
LABEL,COOKING GUIDE LGE 3850W3A393A Contact Us For Availability
*07
CARD,TECHNICAL LGE 3858W3T014Z Contact Us For Availability
50CZZH
H.V. CAPACITOR 0.76UF/2100V LGE 6120W3H003C Contact Us For Availability
50FZZA
FUSE LGE 3B70856G Contact Us For Availability
13213A
DOOR FRAME ASSY ALL MS-71CM,PA LGE 3213W1A027B Contact Us For Availability
13352A
LGE 3352W2A040N LGE 3352W2A040N Contact Us For Availability
13536A
SEAL TAPE ALL MA780M LGE 3536WRA001J Contact Us For Availability
13552A
CHOKE COVER ALL MS-71CM,PP MS- LGE 3552W1A023A Contact Us For Availability
13581A
DOOR ASSY GROSS LGE 3581W1A146A Contact Us For Availability
13720D
PANEL,[DOOR] LGE 3720W0D083S Contact Us For Availability
14026A
LATCH (ALL) LGE 4026W2A011A Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
CONTROL PANEL LGE 3572W0A106P Contact Us For Availability
24510L
LEVER,RELEASE LGE 4510W3L004A Contact Us For Availability
24781M
CONTROLLER ASSEMBLY,MICOM LGE 4781W1M156B Contact Us For Availability
33052M
CANOPY MICA MS-71MC MICA SHEET LGE 3052W3M005A Contact Us For Availability
33112U
LGE 3112W0U022P LGE 3112W0U022P Contact Us For Availability
33390G
GLASS TRAY LGE 3390W1G005A Contact Us For Availability
33461Z
CAVITY ASSY ALL LGE 3461W1A034B Contact Us For Availability
34810A
METAL BRACKET LGE 4810W2G044A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS 120V,60HZ,3R LGE 2B72754M Contact Us For Availability
43500A
BOARD LATCH MA-880M/680M/681M LGE 3500WRA001A Contact Us For Availability
43501A
BOARD ASSY LATCH MA-6802,MA-68 LGE 3501WRA001E Contact Us For Availability
54810C
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
54974S
GUIDE,SUCTION LGE 4974W0S009C Contact Us For Availability
55006F
CAP ALL FUSE CAP,NEUTRAL MS-71 LGE 5006W3A011A Contact Us For Availability
56324A
MAGNETRON LGE 2B71732B Contact Us For Availability
56411A
LGE 6411W2A002K LGE 6411W2A002K Contact Us For Availability
56549F
MOTOR FAN 120V/60HZ MS-71MD JC LGE 6549W2F017A Contact Us For Availability
56820A
FUSE HOLDER CLIP MS-152MC MS-7 LGE 6820W3A001A Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302A
BASE PLATE LGE 3302W1A043D Contact Us For Availability
63303A
BASE PLATE ASSEMBLY LGE 3303W1A035G Contact Us For Availability
250201
BUTTON,MWO LGE 5020W2G096M Contact Us For Availability
268711
PWB(PCB) ASSY,SUB LGE 6871W2S004N Contact Us For Availability
368771
LEAD WIRE ASSY TT MS-71CM(T/T LGE 6877WRT007D Contact Us For Availability
568772
LEAD WIRE ASSY TT 0.7,0.9,1.0, LGE 6877W1T242A Contact Us For Availability
647781
PLASTIC FOOT LEG MA-1260M WGE LGE 4B70770A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C06
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C08
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
CN1
Connector,Wafer LGE 6630W5V009A Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
CU4
CUSHION DIGITRON 5MM MS-91BRV LGE 4850W4C001B Contact Us For Availability
D05
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D17
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
DIGITRON 6-BT-199GN(NEW DEMO) LGE 6302W5YA02A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q02
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q03
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R02
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R05
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R09
Resistor,Carbon Film LGE 0RD7500F608 Contact Us For Availability
R10
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R11
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R12
RESISTOR FIXED CARBON FILM 3.9 LGE 0RD3901F608 Contact Us For Availability
R15
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R16
Resistor,Carbon Film LGE 0RD5600F608 Contact Us For Availability
R19
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R23
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R33
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R36
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R39
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
RELAY OZF-S-112LM1P DC12V MV-1 LGE 6920W2YD04A Contact Us For Availability
U01
LGE 0IHI404316J LGE 0IHI404316J Contact Us For Availability
× ![]()
