Model LG 721.37060700 Multi Cyclone(Upright) – Common Parts & Diagrams

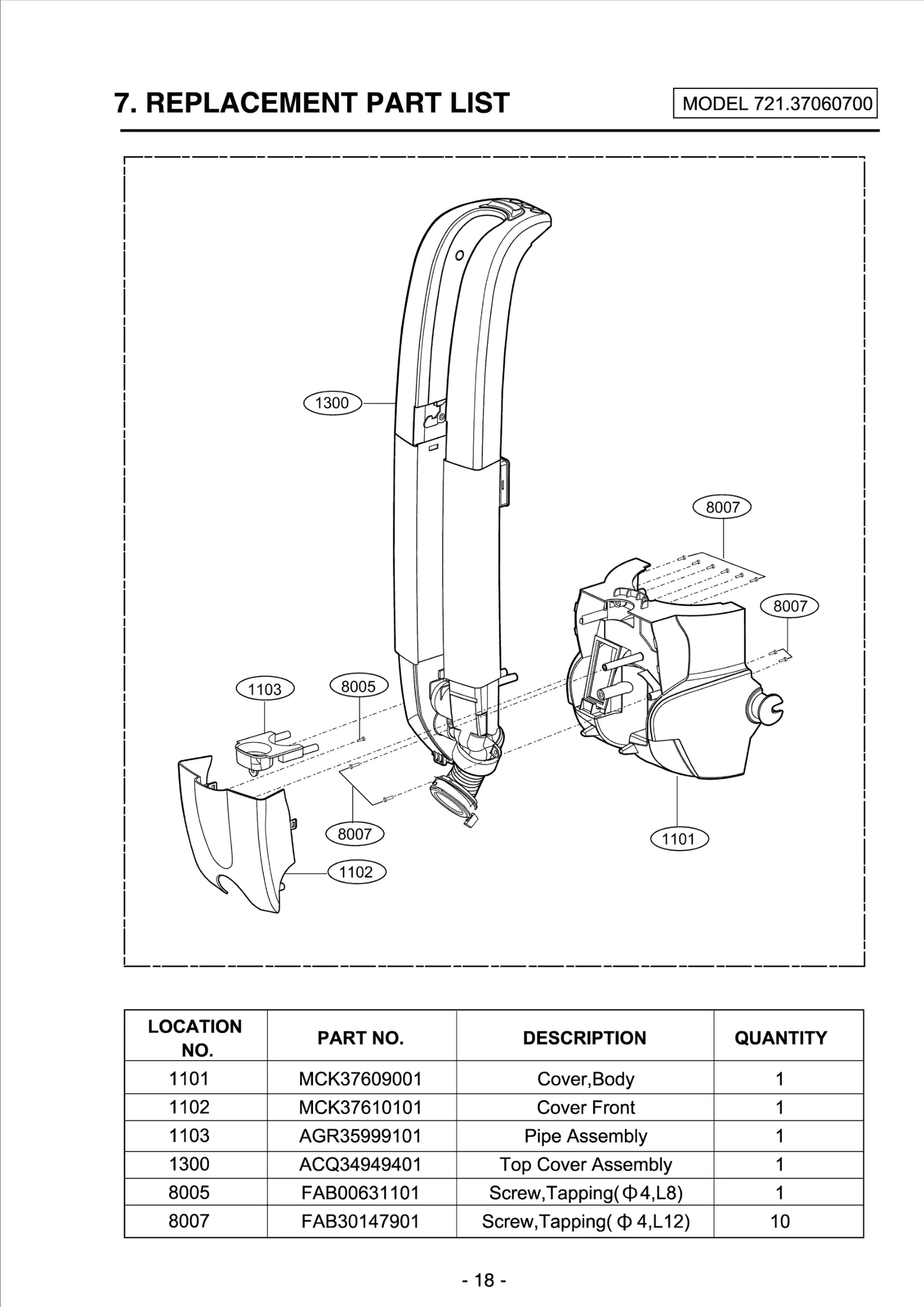

Diagram 0

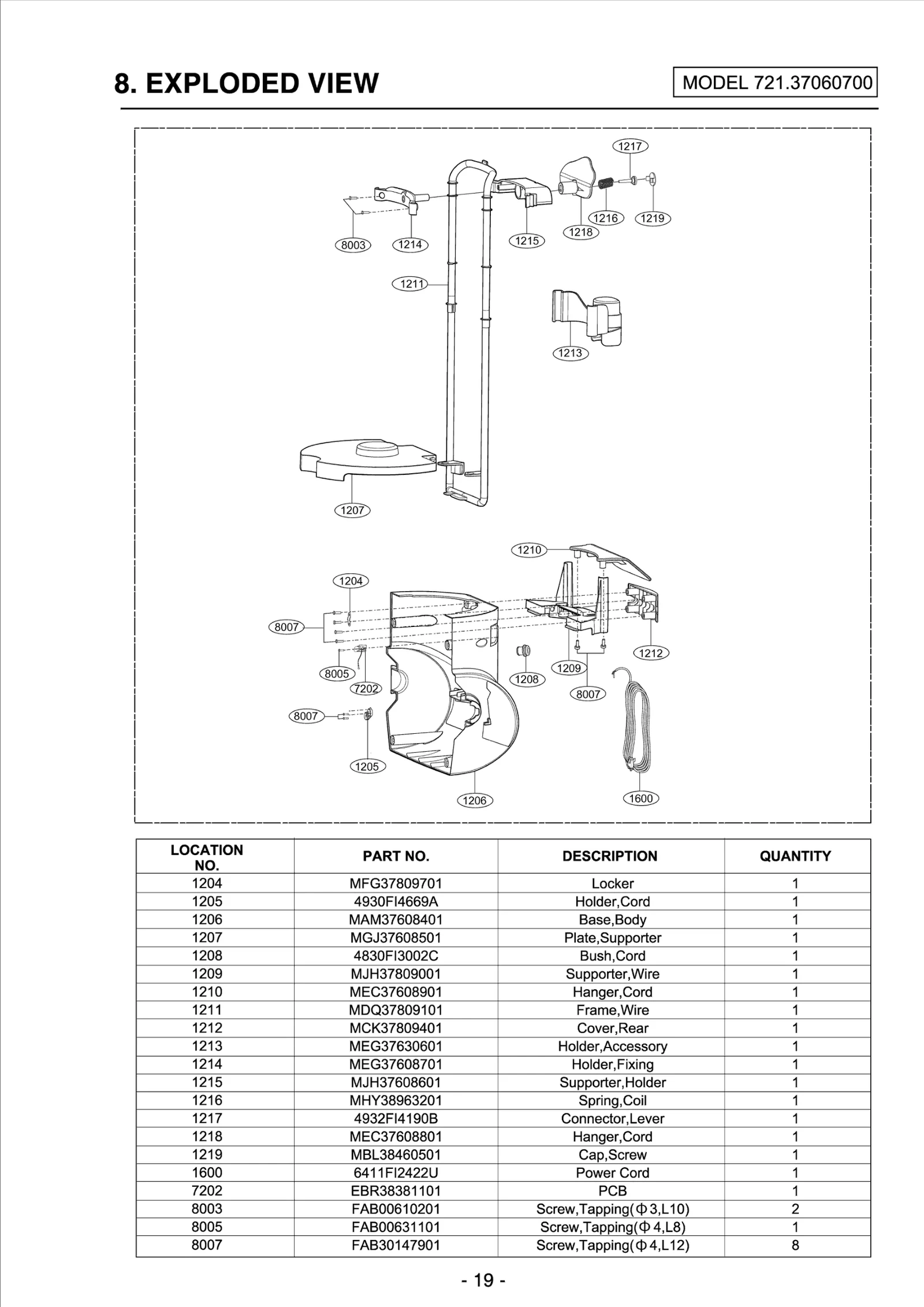

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7
Diagram 8
Diagram 9
Common parts from model LG 721.37060700 Multi Cyclone(Upright)
1101
Cover,Body LGE MCK37609001 Contact Us For Availability
1102
Cover,Front LGE MCK37610101 Contact Us For Availability
1103
Pipe Assembly LGE AGR35999101 Contact Us For Availability
1201
Damper,Motor Mount LGE MCQ37627601 Contact Us For Availability
1202
Packing LGE MFZ37627901 Contact Us For Availability
1205
HOLDER,CORD LGE 4930FI4669A Contact Us For Availability
1206
Base,Body LGE MAM37608401 Contact Us For Availability
1207
Plate,Supporter LGE MGJ37608501 Contact Us For Availability
1208
Bush,Cord LGE 4830FI3002C Contact Us For Availability
1209
Supporter,Wire LGE MJH37809001 Contact Us For Availability
1210
Hanger,Cord LGE MEC37608901 Contact Us For Availability
1211
Frame,Wire LGE MDQ37809101 Contact Us For Availability
1212
Cover,Rear LGE MCK37809401 Contact Us For Availability
1213
Holder,Accessory LGE MEG37630601 Contact Us For Availability
1214
Holder,Fixing LGE MEG37608701 Contact Us For Availability
1215
Supporter,Holder LGE MJH37608601 Contact Us For Availability
1216
Spring,Coil LGE MHY38963201 Contact Us For Availability
1217
CONNECTOR (MECH),LEVER LGE 4932FI4190B Contact Us For Availability
1218
Hanger,Cord LGE MEC37608801 Contact Us For Availability
1219
Cap,Screw LGE MBL38460501 Contact Us For Availability
1300
Cover Assembly,Top LGE ACQ34949401 Contact Us For Availability
1400
Motor Assembly,AC,Vacuum Cleaner LGE EAU36637101 Contact Us For Availability
1500
Filter Assembly,Exhaust LGE ADQ33064201 Contact Us For Availability
1600
POWER CORD ASSEMBLY LGE 6411FI2422U Contact Us For Availability
1700
Motor Assembly,AC,Vacuum Cleaner LGE EAU38048001 Contact Us For Availability
1800
Housing Assembly,Motor LGE AEN32945301 Contact Us For Availability
2107
Plate LGE MGJ38973401 Contact Us For Availability
2108
Window,Viewing LGE MKC37387601 Contact Us For Availability
2109
Cover,Display LGE MCK37387201 Contact Us For Availability
2110
Cover,Display LGE MCK37387401 Contact Us For Availability
2111
Button,Control LGE MBG37846401 Contact Us For Availability
2112
RING,E LGE 4350FI3787A Contact Us For Availability
2201
Base,Head LGE MAM37389701 Contact Us For Availability
2202
Bracket,Motor LGE MAZ37420001 Contact Us For Availability
2203
Lever,Selector LGE MFC37391501 Contact Us For Availability
2204
Lever Assembly LGE AFF34978201 Contact Us For Availability
2205
Sensor Assembly LGE EBD37969601 Contact Us For Availability
2206
Shaft LGE MHJ37792401 Contact Us For Availability
2207
Locker LGE MFG37419701 Contact Us For Availability
2208
Ratchet LGE MGU37788301 Contact Us For Availability
2209
Locker LGE MFG37390601 Contact Us For Availability
2210
Cover,Pipe LGE MCK37392401 Contact Us For Availability
2211
Lever,Bottom LGE MFC37419201 Contact Us For Availability
2212
Plate,Guide LGE MGJ37392301 Contact Us For Availability
2213
Bumper,Head LGE MBD37846301 Contact Us For Availability
2215
Holder,Fixing LGE MEG37391201 Contact Us For Availability
2216
Locker LGE MFG37390701 Contact Us For Availability
2219
Mop LGE MFQ37792701 Contact Us For Availability
2220
Shaft LGE MHJ38879601 Contact Us For Availability
2221
Connector,Shaft LGE MCD37392001 Contact Us For Availability
2222
Switch Assembly LGE EBF37971301 Contact Us For Availability
2223
Switch Assembly LGE EBF38034401 Contact Us For Availability
2224
Spring,Coil LGE MHY38908303 Contact Us For Availability
2225
Gasket LGE MDS37846501 Contact Us For Availability
2226
Belt LGE MAS37628301 Contact Us For Availability
2227
Spring,Coil LGE MHY38908304 Contact Us For Availability
2300
Shaft Assembly,Agitator LGE AHR33031001 Contact Us For Availability
2400
Plate Assembly,Bottom LGE AGU32945801 Contact Us For Availability
2500
Plate Assembly,Base LGE AGU33838501 Contact Us For Availability
2600
Plate Assembly,Base LGE AGU32945901 Contact Us For Availability
2700
Cover Assembly,Head LGE ACQ35075101 Contact Us For Availability
2800
Wheel Assembly LGE AJW33032501 Contact Us For Availability
2900
Roller Assembly LGE AHJ35075501 Contact Us For Availability
3100
Handle Assembly LGE AED32943301 Contact Us For Availability
3200
Pipe Assembly LGE AGR36867301 Contact Us For Availability
3300
Holder Assembly,Locker LGE AEJ36867001 Contact Us For Availability
4000
Hose Assembly,Flexible LGE AEM32943501 Contact Us For Availability
5007
Frame,Filter LGE MDQ37613701 Contact Us For Availability
5008
Filter,Motor Safety LGE MDJ37614401 Contact Us For Availability
5021
Strainer,Inner LGE MJC37612601 Contact Us For Availability
5100
Tank Assembly,Dust LGE AJL35084901 Contact Us For Availability
5200
Plate Assembly,Bottom LGE AGU35076801 Contact Us For Availability
5300
Cover Assembly,Dust LGE ACQ35100801 Contact Us For Availability
6100
Nozzle,Crevice LGE MFV37630801 Contact Us For Availability
6200
Brush Assembly,Dust LGE ABC32946201 Contact Us For Availability
6300
Nozzle Assembly,Turbine LGE AGB32946401 Contact Us For Availability
7201
PCB Assembly,Main LGE EBR37485101 Contact Us For Availability
7202
PCB Assembly,Sub LGE EBR38381101 Contact Us For Availability
7301
PCB Assembly,Display LGE EBR37490201 Contact Us For Availability
7302
PCB Assembly,Display LGE EBR37489901 Contact Us For Availability
7303
PCB Assembly,Display LGE EBR37490101 Contact Us For Availability
7401
PCB Assembly,Power LGE EBR37489701 Contact Us For Availability
7402
Harness,Single LGE EAD39326304 Contact Us For Availability
8002
PAN HEAD TAPPING SCREW + 2 CUT LGE 1TPL0302416 Contact Us For Availability
8004
Screw,Tapping LGE 1TPL0303016 Contact Us For Availability
8006
PAN HEAD TAPPING SCREW + 2 CUT LGE 1TPL0402616 Contact Us For Availability
8007
Screw,Tapping LGE FAB30147901 Contact Us For Availability
8008
Screw,Tapping LGE FAB30150401 Contact Us For Availability
8009
SCREW TAPPING,PAN HEAD LGE 1TPL0403337 Contact Us For Availability
MEJCF1
Hose,Flexible LGE MEJ38852701 Contact Us For Availability
× ![]()
