Model Electrolux 72-7977-00-09 RANGE – Common Parts & Diagrams

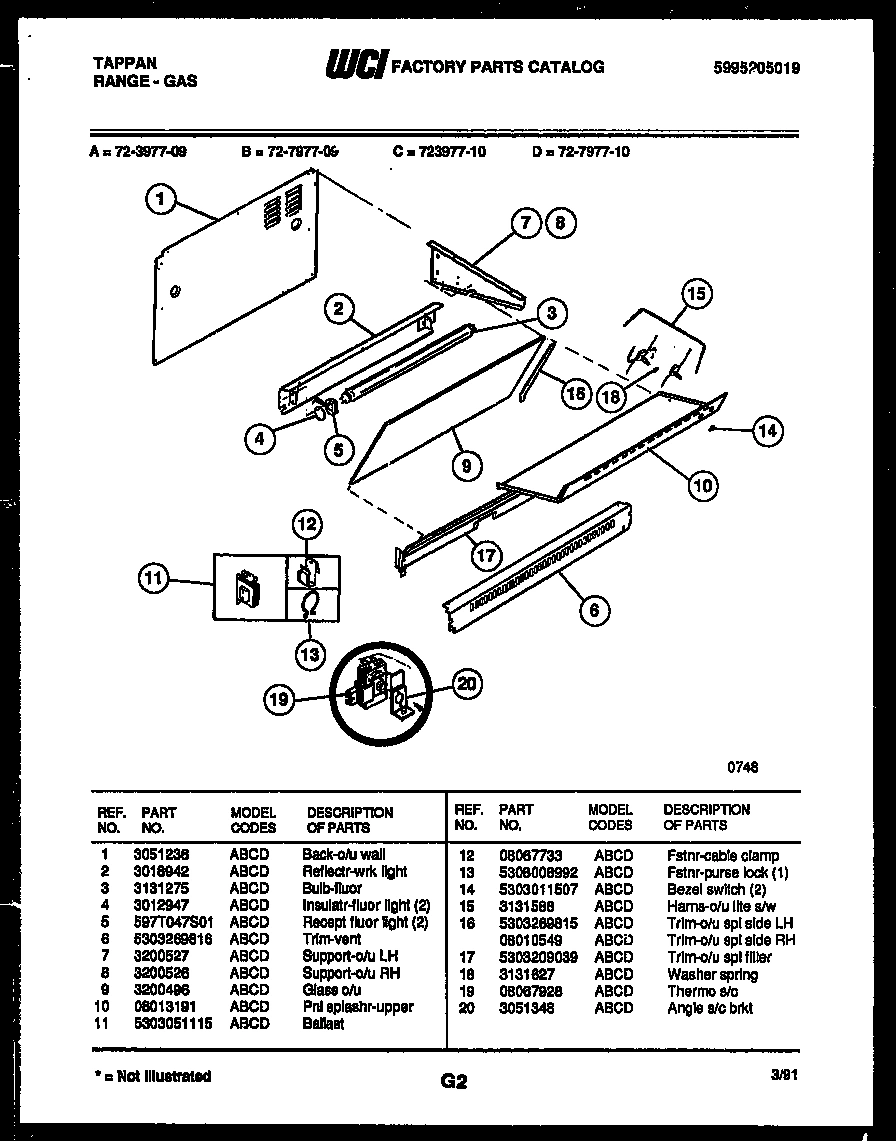

02 - SPLASHER CONTROL

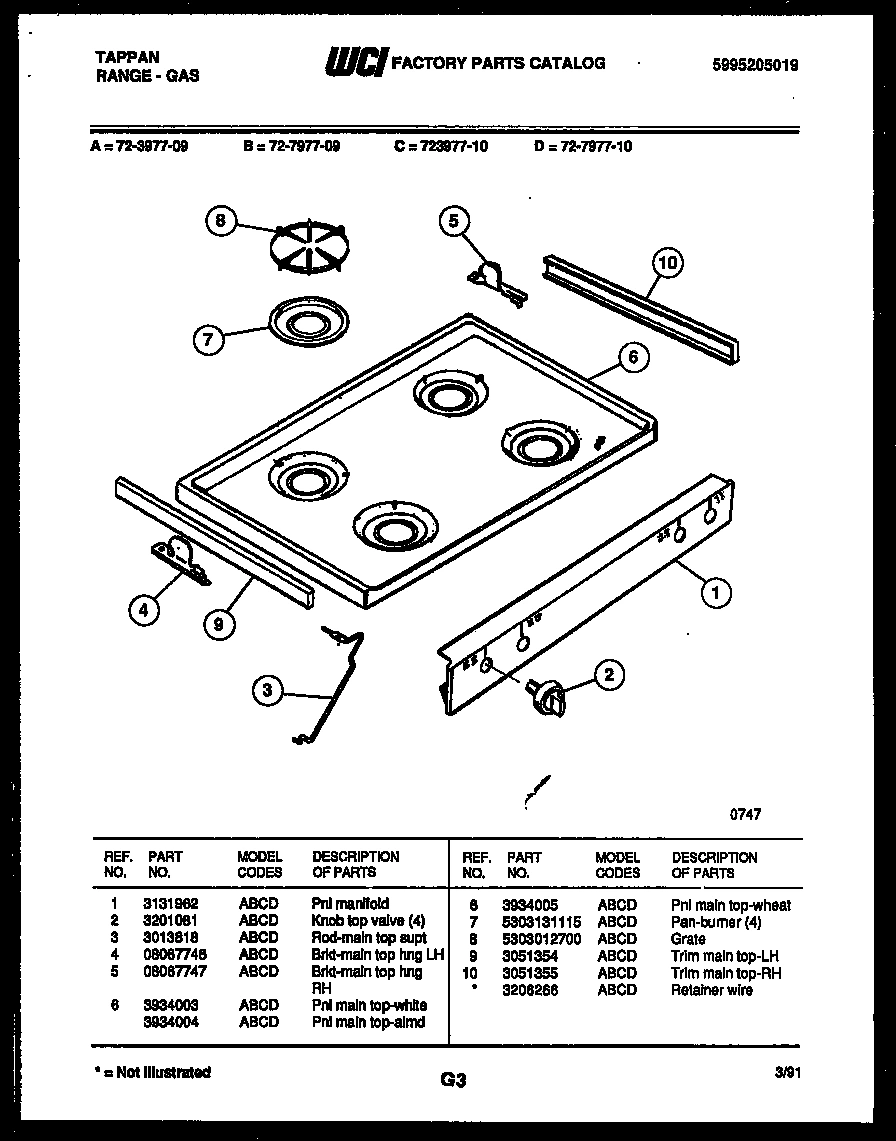

03 - COOKTOP PARTS
04 - DRAWER PARTS

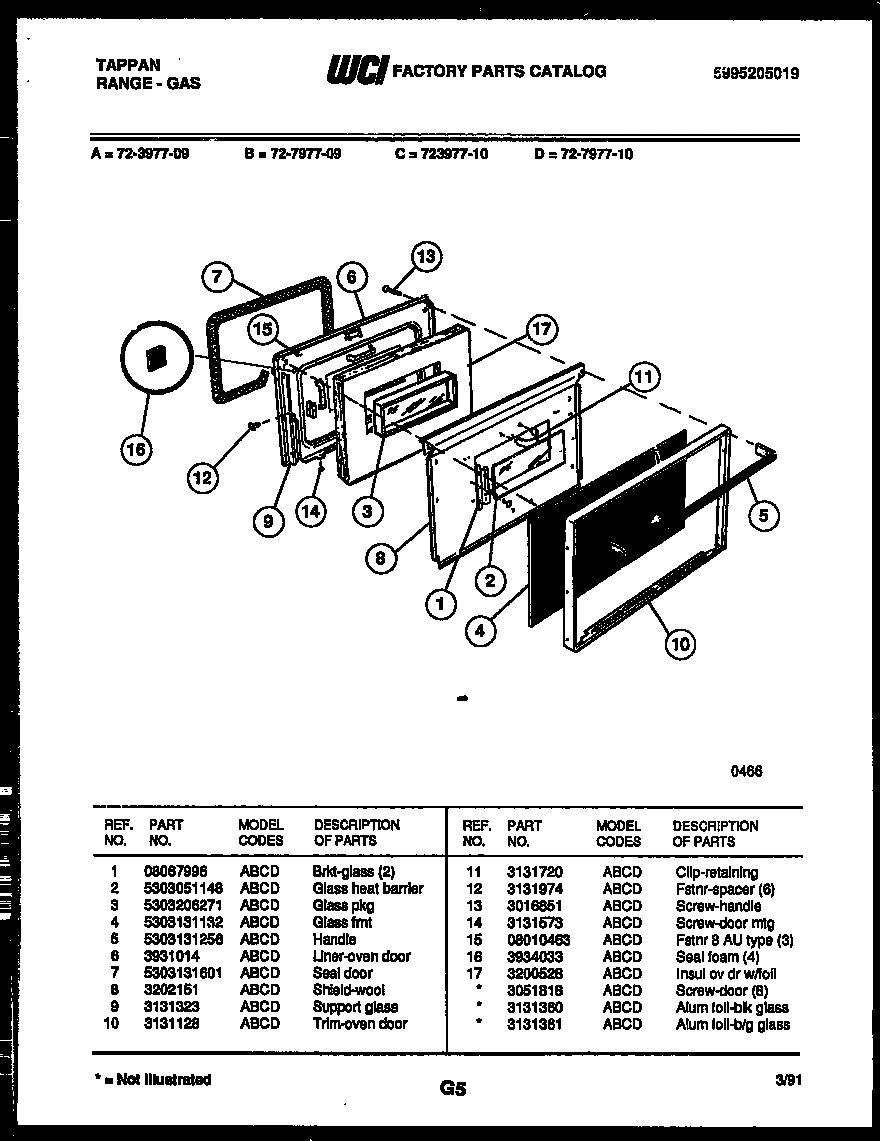

05 - LOWER OVEN DOOR PARTS

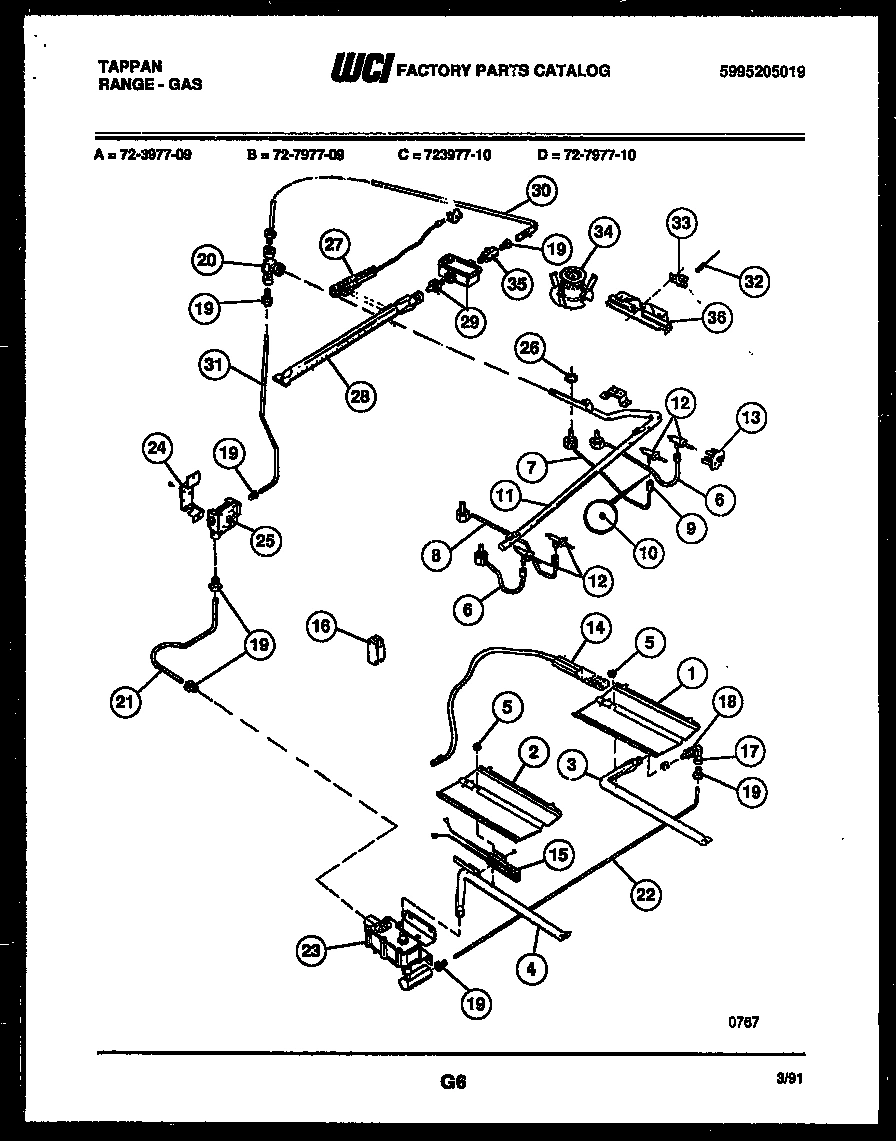

06 - BURNER, MANIFOLD AND GAS CONTROL

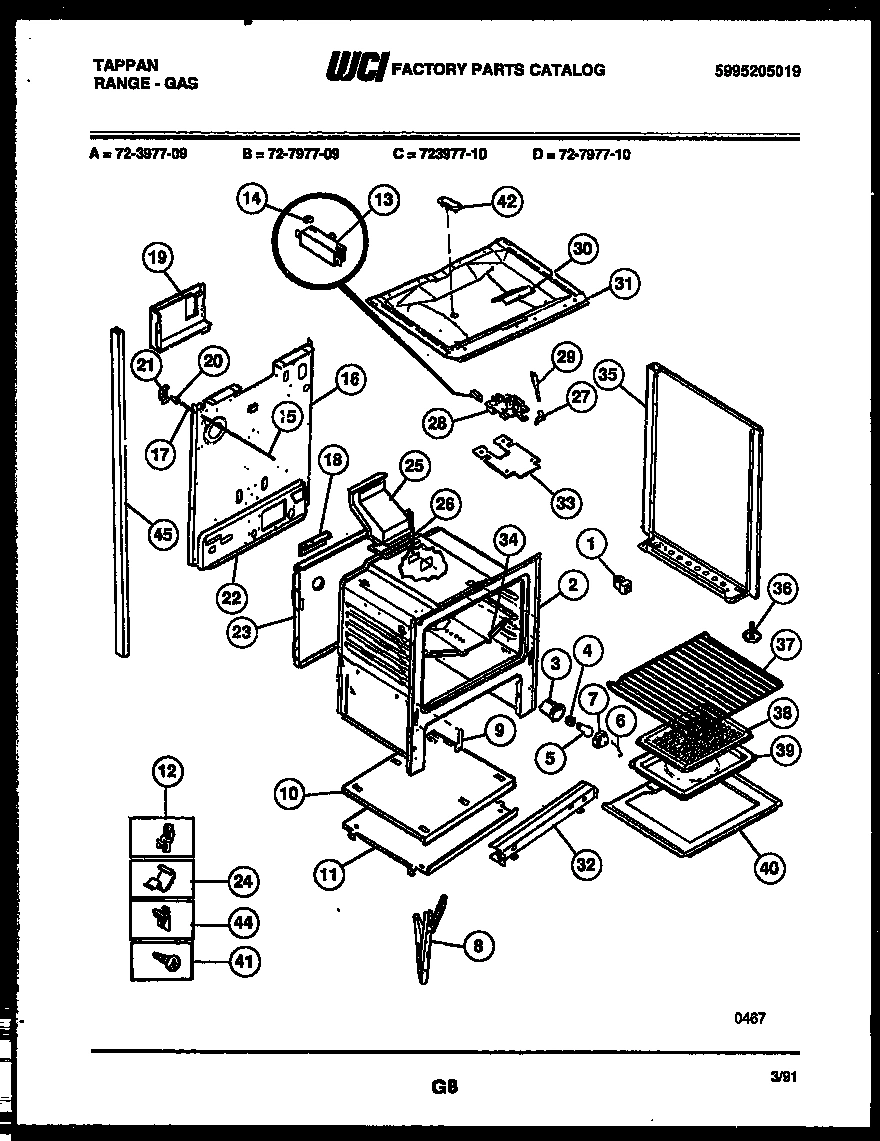

07 - LOWER BODY PARTS

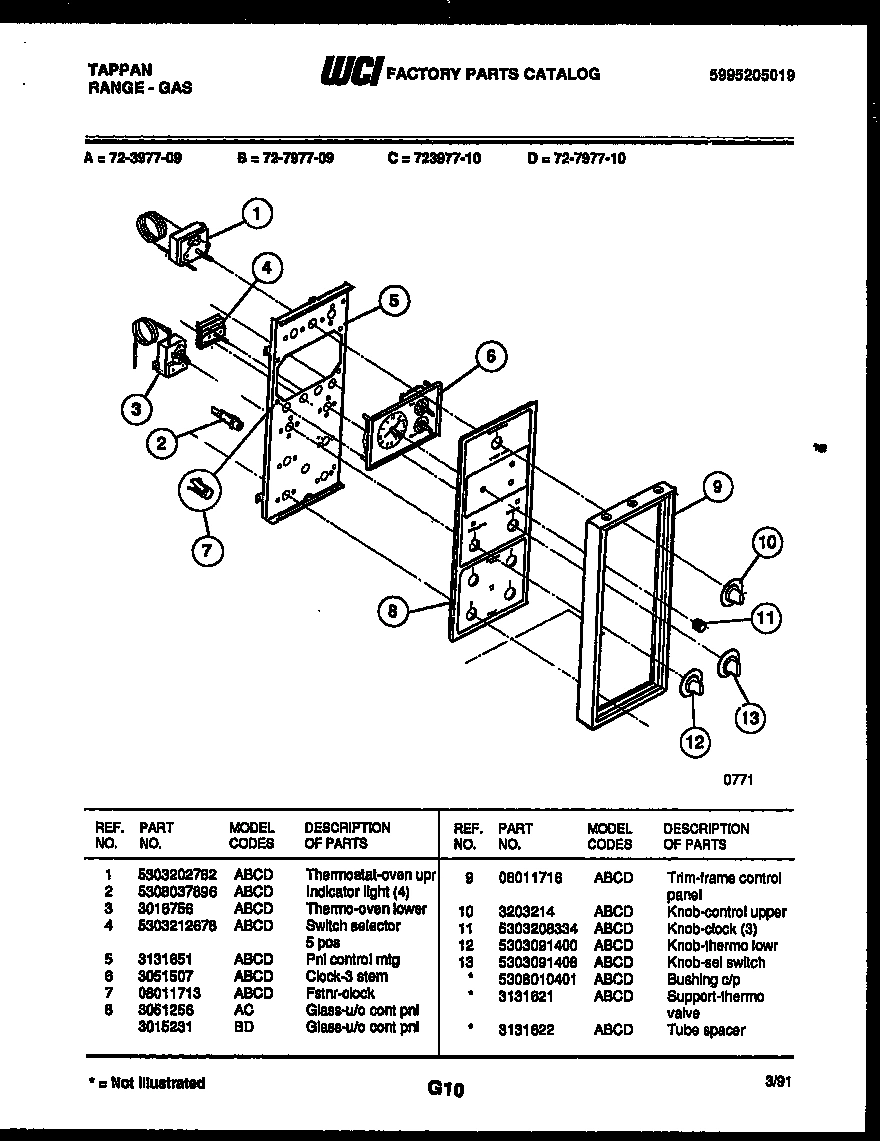

08 - CONTROL PANEL
09 - UPPER OVEN DOOR PARTS

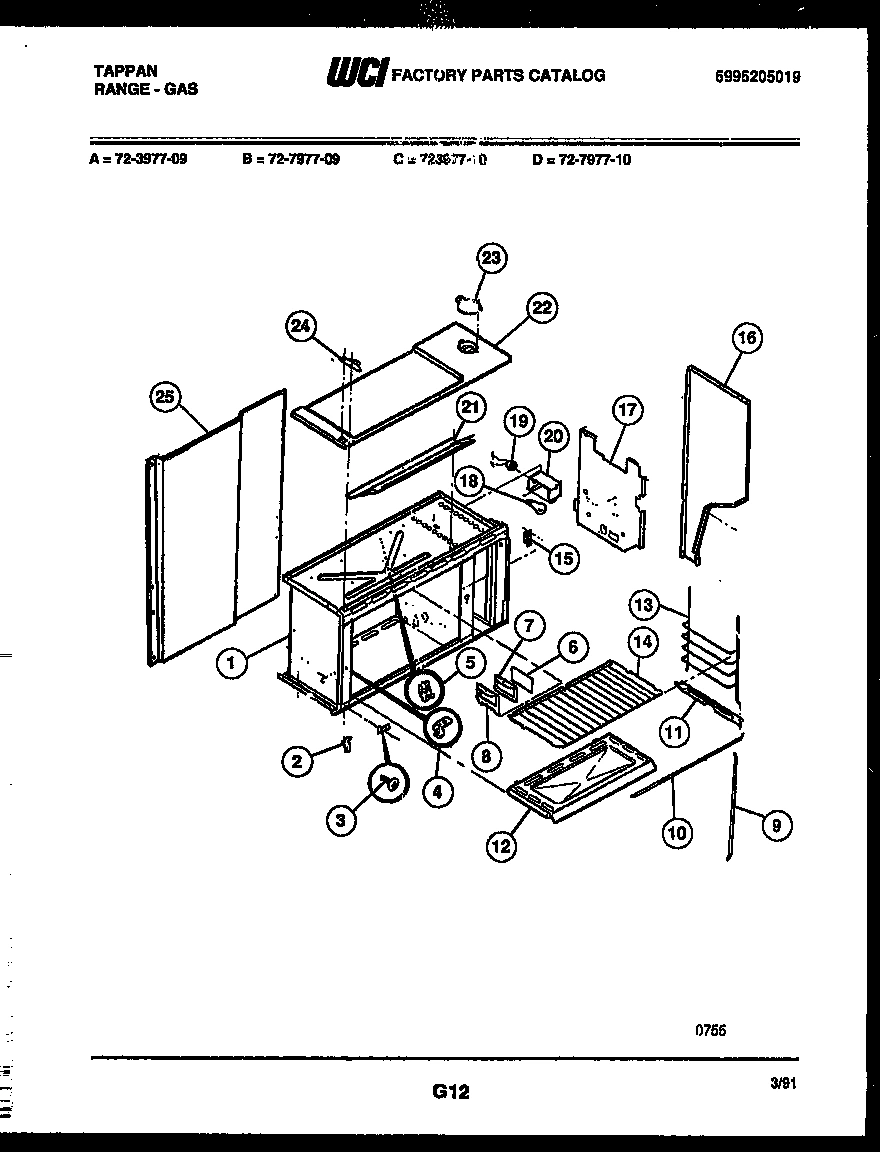

10 - UPPER BODY PARTS
Common parts from model Electrolux 72-7977-00-09 RANGE
*23662
SCREW-PNL ASSY (2) WCI 3013964 Contact Us For Availability
*23662
WCI 3131818 WCI 3131818 Contact Us For Availability
*23665
ALUM FOIL-B/G GLASS WCI 3131361 Contact Us For Availability
*23669
WCI 3051420 WCI 3051420 Contact Us For Availability
*23677
WCI 191S018F197 WCI 191S018F197 Contact Us For Availability
*23677
SHIELD-HEAT WCI 3131620 Contact Us For Availability
*23677
WCI 3200834 WCI 3200834 Contact Us For Availability
*23677
ANTI-TIP BRKT WCI 3934056 Contact Us For Availability
*23680
WCI 3131621 WCI 3131621 Contact Us For Availability
*23680
WCI 3131622 WCI 3131622 Contact Us For Availability
*23680
WCI 5308010401 WCI 5308010401 Contact Us For Availability
*23684
INSUL-WOOL SPLASHER WCI 3200497 Contact Us For Availability
*23684
INSUL-WOOL WCI 3200498 Contact Us For Availability
*23684
BRKT-CONNEC MTG WCI 3200500 Contact Us For Availability
*23684
INSUL O/U UPPER WCI 3200509 Contact Us For Availability
*23684
INSUL WOOL WCI 3200511 Contact Us For Availability
*23684
RETAINER OVEN BURN UPPER WCI 3200519 Contact Us For Availability
*23684
WCI 3204440 WCI 3204440 Contact Us For Availability
*23684
WCI 691T007P01 WCI 691T007P01 Contact Us For Availability
1
THERMOSTAT-OVEN UPR WCI 5303202782 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 08067996 WCI 08067996 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
WCI 08011722 WCI 08011722 Contact Us For Availability
2
WCI 5303051148 WCI 5303051148 Contact Us For Availability
2
BAFFLE-OVN BURNER WCI 3131284 Contact Us For Availability
2
WCI 5308037896 WCI 5308037896 Contact Us For Availability
2
HINGE-DOOR ASSY WCI 5303051166 Contact Us For Availability
3
BULB-FLUOR WCI 3131275 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
PNL DRAWER (WHITE) WCI 3131117 Contact Us For Availability
3
GLASS PKG WCI 5303206271 Contact Us For Availability
3
WCI 3131363 WCI 3131363 Contact Us For Availability
3
WCI 3016756 WCI 3016756 Contact Us For Availability
3
GLASS DOOR FRNT WCI 3051722 Contact Us For Availability
3
WCI 636T070P02 WCI 636T070P02 Contact Us For Availability
4
BRKT-MAIN TOP HNG LH WCI 08067746 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
GLASS FRNT WCI 5303131132 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
SWITCH SELECTOR 5 POS WCI 5303212678 Contact Us For Availability
4
STRIKE-U/O LATCH WCI 691T008S01 Contact Us For Availability
4
WCI 08011665 WCI 08011665 Contact Us For Availability
5
SHIELD-PNL WCI 3131975 Contact Us For Availability
5
HANDLE WCI 5303131256 Contact Us For Availability
5
WCI 3131651 WCI 3131651 Contact Us For Availability
6
PNL MAIN TOP-WHITE WCI 3934003 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3931014 WCI 3931014 Contact Us For Availability
6
BURNER TUBE-RF & LF WCI 5303131970 Contact Us For Availability
6
WCI 3131104 WCI 3131104 Contact Us For Availability
6
WCI 3051507 WCI 3051507 Contact Us For Availability
6
CHANNEL U/O DOOR END WCI 136T188P01 Contact Us For Availability
6
GLASS-OVN LITE LENS WCI 08011668 Contact Us For Availability
7
PAN-BURNER (4) WCI 5303131115 No Longer Available
7
WCI 5303011569 WCI 5303011569 Contact Us For Availability
7
WCI 08067765 WCI 08067765 Contact Us For Availability
7
FSTNR-CLOCK WCI 08011713 Contact Us For Availability
7
WCI 08011727 WCI 08011727 Contact Us For Availability
7
GSKT OVEN LIGHT WCI 3200506 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
WCI 5303011570 WCI 5303011570 Contact Us For Availability
8
WCI 3015231 WCI 3015231 Contact Us For Availability
8
CHANNEL U/O DR FRAME WCI 08011728 Contact Us For Availability
8
WCI 08011669 WCI 08011669 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 3051354 WCI 3051354 Contact Us For Availability
9
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
9
NUT COMPRESSN (4) WCI 3131148 Contact Us For Availability
9
TRIM-FRAME CONTROL PANEL WCI 08011716 Contact Us For Availability
9
WCI 3201722 WCI 3201722 Contact Us For Availability
10
WCI 3051355 WCI 3051355 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
10
FERRULE (4) WCI 08067945 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
10
WCI 3203214 WCI 3203214 Contact Us For Availability
10
WCI 08011730 WCI 08011730 Contact Us For Availability
10
WCI 3201721 WCI 3201721 Contact Us For Availability
11
CLIP-RETAINING WCI 3131720 Contact Us For Availability
11
WCI 3018861 WCI 3018861 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11
WCI 5303208334 WCI 5303208334 Contact Us For Availability
11
SPACER-U/O DOOR WCI 3051302 Contact Us For Availability
11
GLIDE-OVEN BTM WCI 3131616 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
VALVE 3 POS (4) WCI 5303017846 Contact Us For Availability
12
FSTNR. SPACER (6) WCI 3131974 Contact Us For Availability
12
WCI 08067754 WCI 08067754 Contact Us For Availability
12
WCI 5303091400 WCI 5303091400 Contact Us For Availability
12
WCI 3200488 WCI 3200488 Contact Us For Availability
13
WCI 3016851 WCI 3016851 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
13
WCI 5303091408 WCI 5303091408 Contact Us For Availability
13
WCI 08011674 WCI 08011674 Contact Us For Availability
14
SCREW DOOR MTG WCI 3131573 Contact Us For Availability
14
FSTNR-PUSH ON WCI 08067776 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
14A
STUD SPACER (2) (NON-ILLUSTRATED) WCI 08067978 Contact Us For Availability
15
WCI 08067758 WCI 08067758 Contact Us For Availability
15
WCI 08010463 WCI 08010463 Contact Us For Availability
15
WCI 08011680 WCI 08011680 Contact Us For Availability
16
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
16
PNL B/S RIGHT (WHITE) WCI 3051263 Contact Us For Availability
16A
PNL B/S LEFT (WHITE) WCI 3051260 Contact Us For Availability
17
INSUL OV DR W/ FOIL WCI 3200528 Contact Us For Availability
17
WCI 08067979 WCI 08067979 Contact Us For Availability
17
WCI 5303209316 WCI 5303209316 Contact Us For Availability
17
SHIELD-WOOL U/O SIDE WCI 3131679 Contact Us For Availability
18
NUT WCI 3131358 Contact Us For Availability
18
ANGLE LIGHT SWITCH WCI 3131278 Contact Us For Availability
19
FLTTING-LOXIT (8) WCI 3131261 Contact Us For Availability
19
CHANNEL-LIGHT SHLD WCI 3131294 Contact Us For Availability
20
FITTING-TEE WCI 3131657 Contact Us For Availability
20
SWITCH-OVEN LITE DOOR WCI 5303202622 Contact Us For Availability
20
WCI 08011684 WCI 08011684 Contact Us For Availability
21
TUBE-VALVE TO REGUL WCI 5303208494 Contact Us For Availability
21
WCI 5303131289 WCI 5303131289 Contact Us For Availability
21
FLUE BACK U/O WCI 3200505 Contact Us For Availability
22
TUBE-VALVE TO MIXER ELBOW WCI 5303208493 Contact Us For Availability
22
WCI 3131590 WCI 3131590 Contact Us For Availability
22
PNL-TOP U/O WCI 3131625 Contact Us For Availability
23
WCI 08067991 WCI 08067991 Contact Us For Availability
23
WCI 08067732 WCI 08067732 Contact Us For Availability
24
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
HINGE-DOOR-TOP WCI 3131613 Contact Us For Availability
25
WCI 3131567 WCI 3131567 Contact Us For Availability
25
WCI 3131931 WCI 3131931 Contact Us For Availability
25
WCI 3203082 WCI 3203082 Contact Us For Availability
26
NUT, SPECIAL WCI 3013279 Contact Us For Availability
26A
SHIELD-LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
26B
WCI 08013188 WCI 08013188 Contact Us For Availability
27
IGNITER-UPPER OVEN WCI 5303200508 Contact Us For Availability
27
WCI 3203218 WCI 3203218 Contact Us For Availability
28
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
BURNER-UPPER OVEN WCI 3200502 Contact Us For Availability
29
WCI 3131623 WCI 3131623 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
30
TUBE-UPPER OVEN VLV WCI 3131626 Contact Us For Availability
30
WCI 08067757 WCI 08067757 Contact Us For Availability
31
TUBE-REGUL TEE WCI 5303014477 Contact Us For Availability
31
WCI 3011597 WCI 3011597 Contact Us For Availability
32
IGNITER-TOP BURNER (4) WCI 5303131105 Contact Us For Availability
32
SHIELD-FRONT WCI 3200835 Contact Us For Availability
33
WCI 3018617 WCI 3018617 Contact Us For Availability
33
SHIELD-OVN TOP WCI 3131314 Contact Us For Availability
34
BURNER TOP (4) WCI 5303011567 Contact Us For Availability
34
WCI 3200836 WCI 3200836 Contact Us For Availability
35
WCI 3131624 WCI 3131624 Contact Us For Availability
35
PNL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
35A
PNL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
36
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
36
WCI 3206267 WCI 3206267 Contact Us For Availability
38
WCI 5303131356 WCI 5303131356 Contact Us For Availability
39
PAN-BROILER WCI 5303013568 Contact Us For Availability
40
BTTM-OVEN WCI 5303212540 Contact Us For Availability
42
WCI 3015371 WCI 3015371 Contact Us For Availability
42A
WCI 08067961 WCI 08067961 Contact Us For Availability
42B
INSUL OVEN BACK S/C (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
42E
INSUL WOOL TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
42H
WCI 08068018 WCI 08068018 Contact Us For Availability
45
TUBE-POST LH WCI 5303208643 Contact Us For Availability
45A
WCI 3051724 WCI 3051724 Contact Us For Availability
× ![]()
