Model Electrolux 72-3989-00-01 RANGE – Common Parts & Diagrams
02 - SPLASHER CONTROL
03 - COOKTOP PARTS

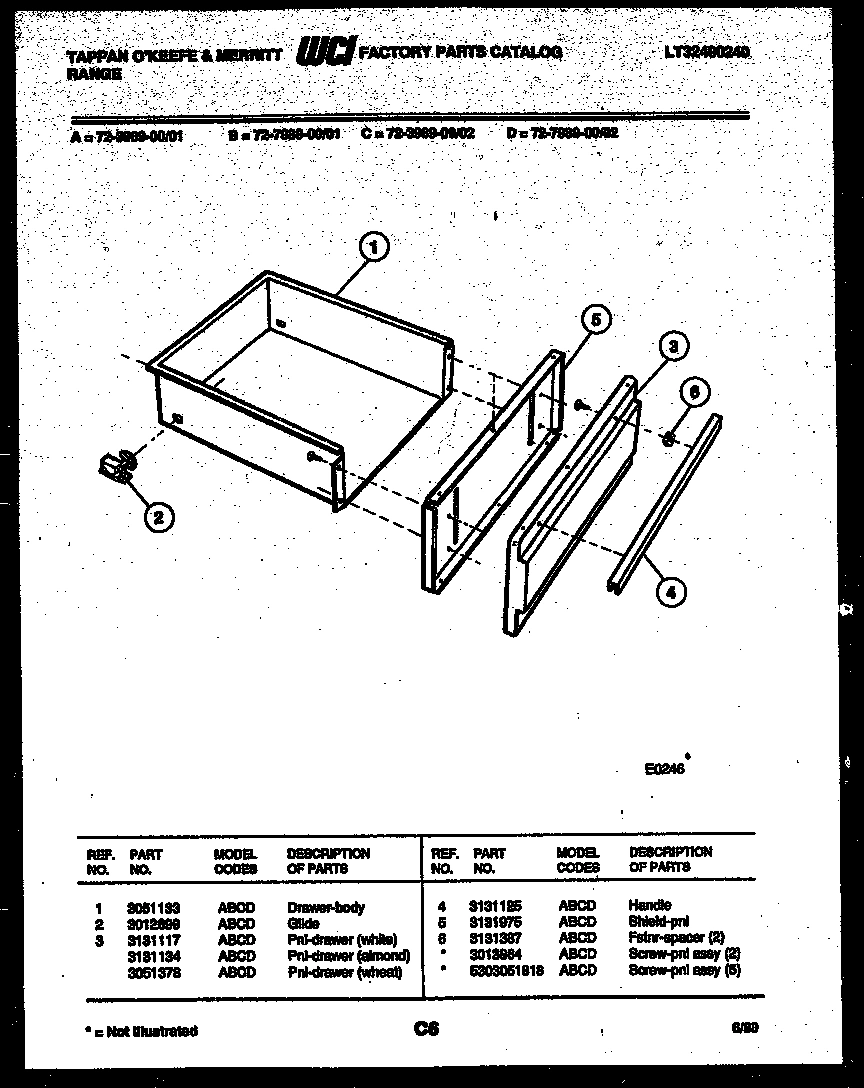

04 - DRAWER PARTS

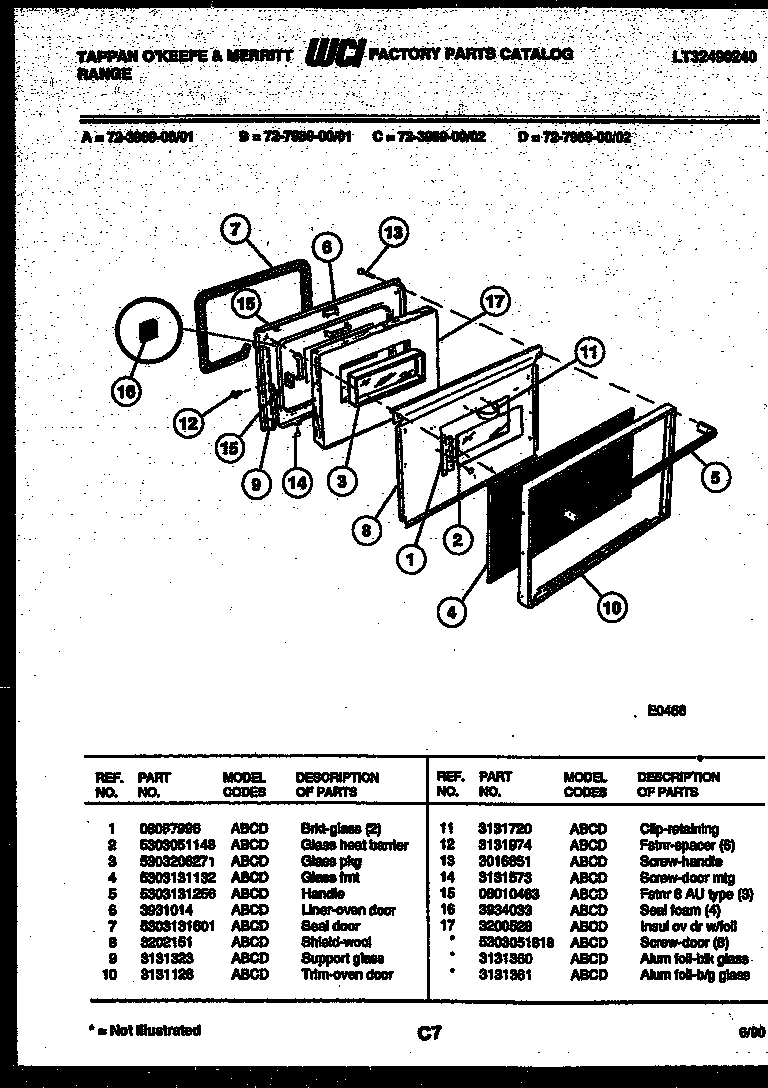

05 - LOWER OVEN DOOR PARTS

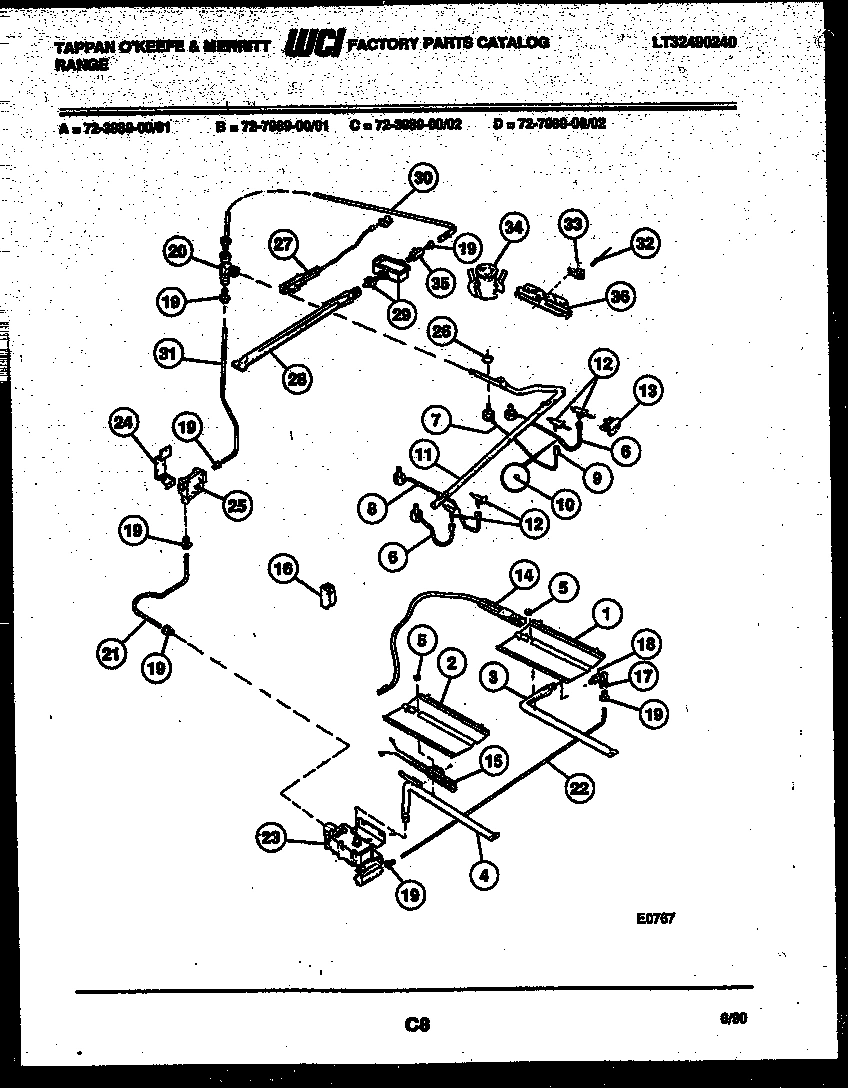

06 - BURNER, MANIFOLD AND GAS CONTROL

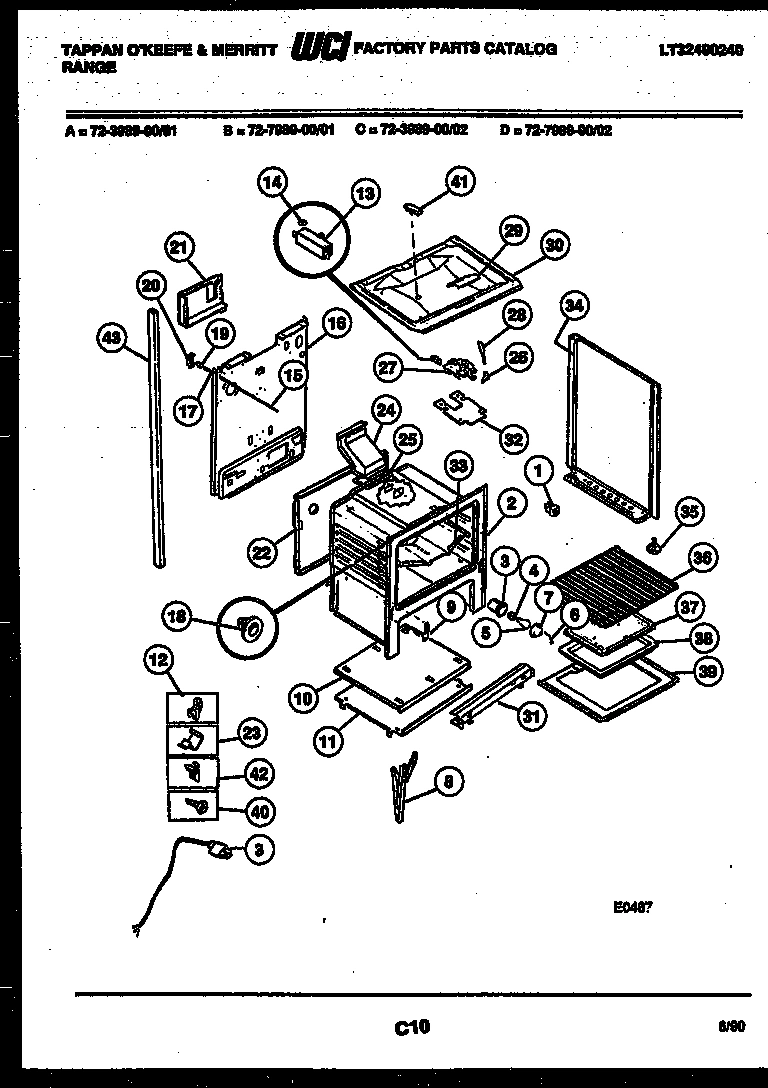

07 - LOWER BODY PARTS

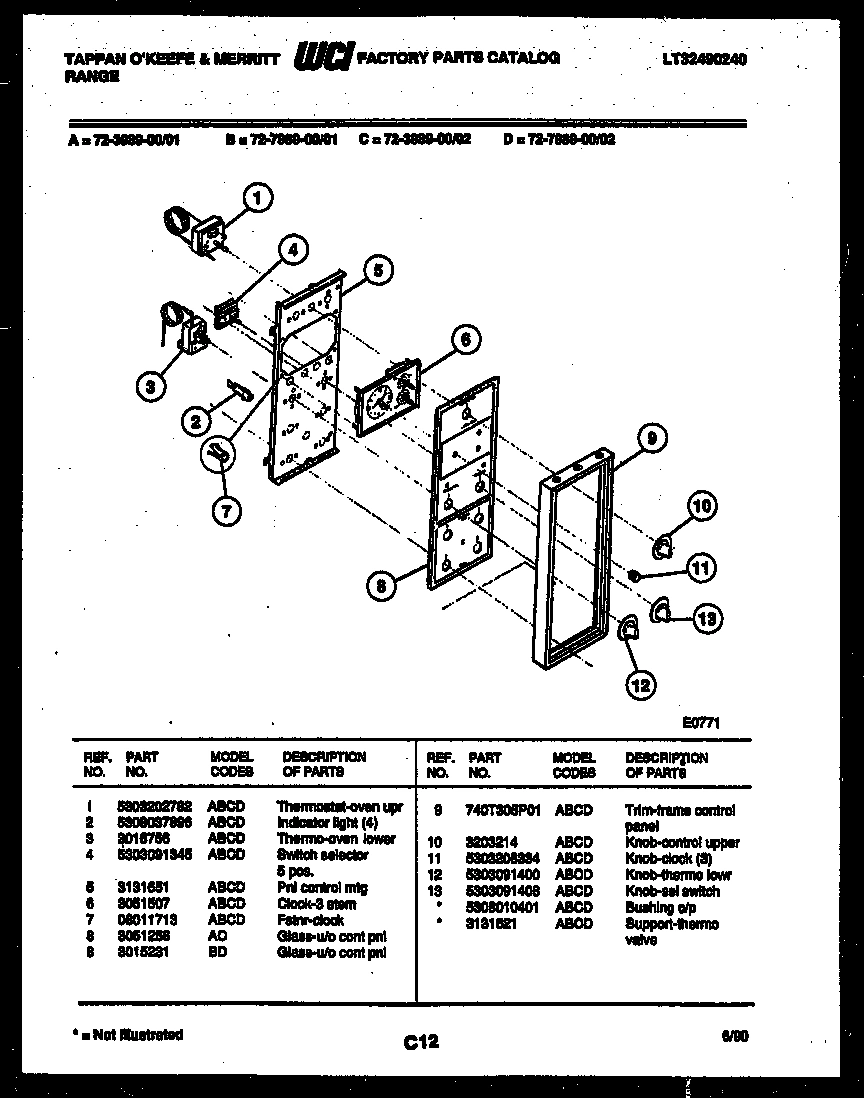

08 - CONTROL PANEL

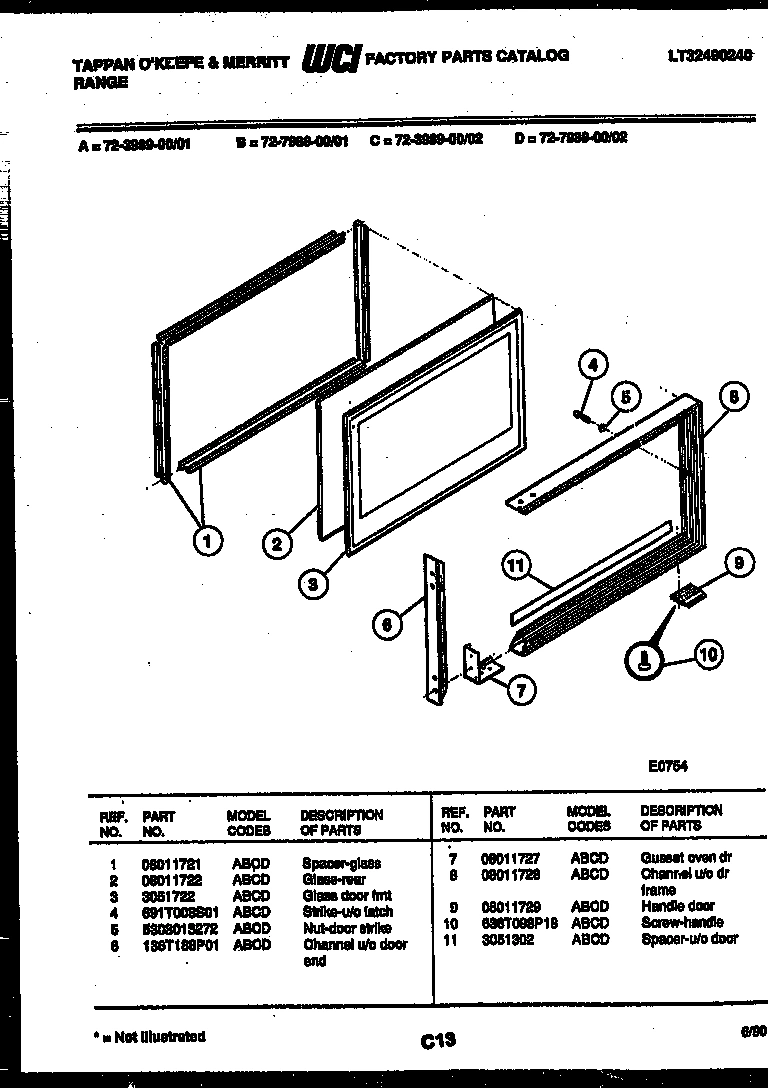

09 - UPPER OVEN DOOR PARTS

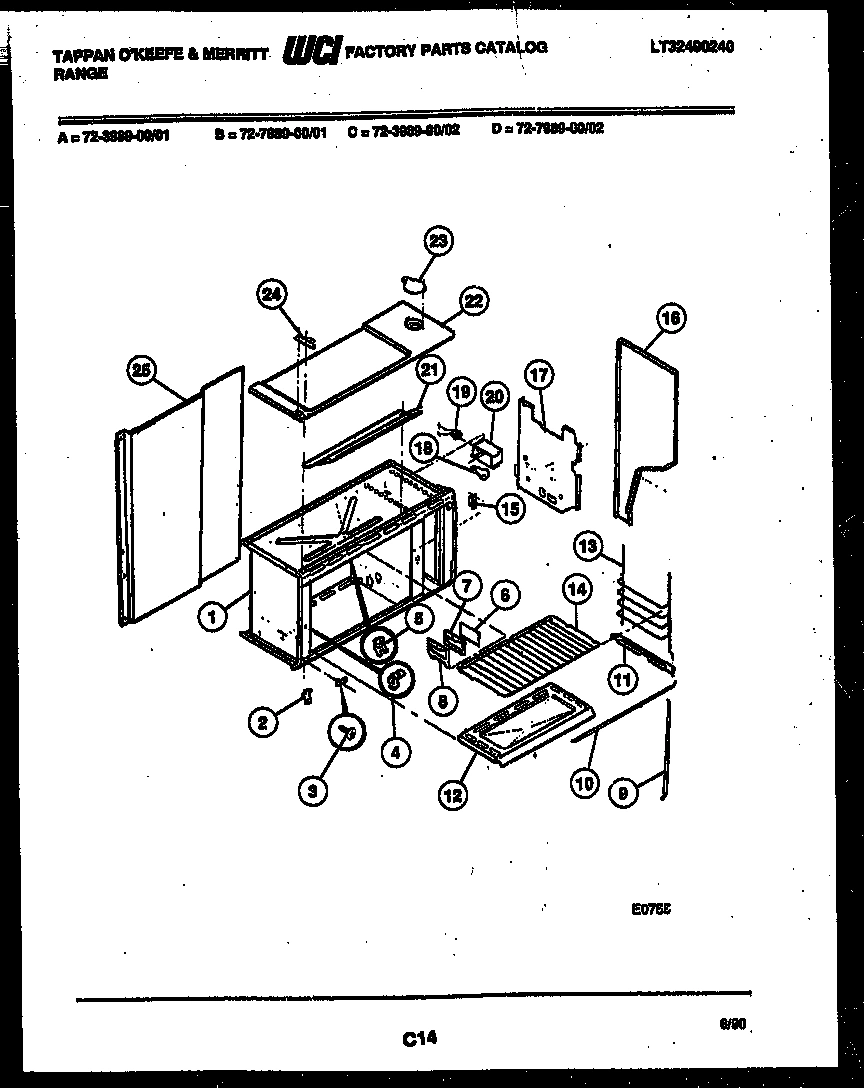

10 - UPPER BODY PARTS
Common parts from model Electrolux 72-3989-00-01 RANGE
*32349
RETAINER WIRE WCI 3206266 Contact Us For Availability
*32350
SCREW-PNL ASSY (2) WCI 3013964 Contact Us For Availability
*32353
ALUM FOIL-B/G GLASS WCI 3131361 Contact Us For Availability
*32359
WCI 3051420 WCI 3051420 Contact Us For Availability
*32359
RETAINER-OVEN SPUD WCI 3205396 Contact Us For Availability
*32368
SHIELD-HEAT WCI 3131620 Contact Us For Availability
*32369
WCI 3200834 WCI 3200834 Contact Us For Availability
*32369
ANTI-TIP BRK WCI 3934056 Contact Us For Availability
*32372
WCI 3131621 WCI 3131621 Contact Us For Availability
*32372
WCI 5308010401 WCI 5308010401 Contact Us For Availability
*32378
BRKT-CONNEC MTG WCI 3200500 Contact Us For Availability
*32378
INSUL O/U UPPER WCI 3200509 Contact Us For Availability
*32378
INSUL WOOL WCI 3200511 Contact Us For Availability
*32378
RETAINER OVEN BURNR UPPER WCI 3200519 Contact Us For Availability
*32378
WCI 691T007P01 WCI 691T007P01 Contact Us For Availability
*32379
WCI 008T482F02 WCI 008T482F02 Contact Us For Availability
*32379
INSUL-WOOL SPLASHER WCI 3200497 Contact Us For Availability
*32379
INSUL-WOOL WCI 3200498 Contact Us For Availability
*32379
WCI 3204440 WCI 3204440 Contact Us For Availability
1
THERMOSTAT-OVEN UPR WCI 5303202782 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
PNL MANIFOLD WCI 3131962 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 08067996 WCI 08067996 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
WCI 08011722 WCI 08011722 Contact Us For Availability
2
WCI 3201081 WCI 3201081 Contact Us For Availability
2
WCI 5303051148 WCI 5303051148 Contact Us For Availability
2
BAFFLE-OVN BURNER WCI 3131284 Contact Us For Availability
2
WCI 5308037896 WCI 5308037896 Contact Us For Availability
2
HINGE-DOOR ASSY WCI 3051166 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
WCI 3934050 WCI 3934050 Contact Us For Availability
3
WCI 3934051 WCI 3934051 Contact Us For Availability
3
WCI 3934054 WCI 3934054 Contact Us For Availability
3
PNL DRAWER WHEAT WCI 3051378 Contact Us For Availability
3
PNL DRAWER (WHITE) WCI 3131117 Contact Us For Availability
3
PNL DRAWER (ALMOND) WCI 3131134 Contact Us For Availability
3
GLASS PKG WCI 5303206271 Contact Us For Availability
3
WCI 3016756 WCI 3016756 Contact Us For Availability
3
GLASS DOOR FRNT WCI 3051722 Contact Us For Availability
3
WCI 636T070P02 WCI 636T070P02 Contact Us For Availability
4
ROD-MAIN SUPPORT (2) WCI 3013818 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
GLASS FRNT WCI 5303131132 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
SWITCH SELECTOR 5 POS. WCI 5303091345 Contact Us For Availability
4
STRIKE-U/O LATCH WCI 691T008S01 Contact Us For Availability
4
WCI 08011665 WCI 08011665 Contact Us For Availability
5
HINGE-TOP LH WCI 08067746 Contact Us For Availability
5
SHIELD-PNL WCI 3131975 Contact Us For Availability
5
HANDLE WCI 5303131256 Contact Us For Availability
5
WCI 3131651 WCI 3131651 Contact Us For Availability
6
HINGE-TOP RH WCI 08067747 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3931014 WCI 3931014 Contact Us For Availability
6
BURNER TUBE-RF & LF WCI 5303131970 Contact Us For Availability
6
WIRE, GLASS RETAINER WCI 3204483 Contact Us For Availability
6
WCI 3051507 WCI 3051507 Contact Us For Availability
6
CHANNEL U/O DOOR END WCI 136T188P01 Contact Us For Availability
6
GLASS-OVN LITE LENS WCI 08011668 Contact Us For Availability
7
WCI 3051354 WCI 3051354 Contact Us For Availability
7
WCI 5303011569 WCI 5303011569 Contact Us For Availability
7
FSTNR-CLOCK WCI 08011713 Contact Us For Availability
7
WCI 08011727 WCI 08011727 Contact Us For Availability
7
GSKT OVEN LIGHT WCI 3200506 Contact Us For Availability
8
CHANNEL-HNG (2) WCI 316007002 No Longer Available
8
WCI 3051355 WCI 3051355 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
WCI 5303011570 WCI 5303011570 Contact Us For Availability
8
WCI 3051256 WCI 3051256 Contact Us For Availability
8
CHANNEL U/O DR FRAME WCI 08011728 Contact Us For Availability
8
WCI 08011669 WCI 08011669 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
9
GRATE (4) WCI 3018432 Contact Us For Availability
9
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
9
NUT COMPRESSN (4) WCI 3131148 Contact Us For Availability
9
TRIM-FRAME CONTROL PANEL WCI 740T305P01 Contact Us For Availability
9
WCI 3201722 WCI 3201722 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
10
FERRULE (4) WCI 08067945 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
10
WCI 3203214 WCI 3203214 Contact Us For Availability
10
WCI 636T098P18 WCI 636T098P18 Contact Us For Availability
10
WCI 3201721 WCI 3201721 Contact Us For Availability
11
CLIP-RETAINING WCI 3131720 Contact Us For Availability
11
WCI 3018861 WCI 3018861 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11
WCI 5303208334 WCI 5303208334 Contact Us For Availability
11
SPACER-U/O DOOR WCI 3051302 Contact Us For Availability
11
GLIDE-OVEN BTM WCI 3131616 Contact Us For Availability
11A
WCI 655T437F01 WCI 655T437F01 Contact Us For Availability
12
VALVE 3 POS (4) WCI 5303017846 Contact Us For Availability
12
FSTNR. SPACER (6) WCI 3131974 Contact Us For Availability
12
WCI 08067754 WCI 08067754 Contact Us For Availability
12
WCI 5303091400 WCI 5303091400 Contact Us For Availability
12
WCI 3200488 WCI 3200488 Contact Us For Availability
13
WCI 3016851 WCI 3016851 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
13
WCI 5303091408 WCI 5303091408 Contact Us For Availability
13
GLIDE, OVEN RACK (2) WCI 280T021P05 Contact Us For Availability
14
SCREW DOOR MTG WCI 3131573 Contact Us For Availability
14
FSTNR-PUSH ON WCI 08067776 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
14A
STUD SPACER (2) (NON-ILLUSTRATED) WCI 08067978 Contact Us For Availability
15
WCI 08010463 WCI 08010463 Contact Us For Availability
15
WCI 3051251 WCI 3051251 Contact Us For Availability
15
WCI 08011680 WCI 08011680 Contact Us For Availability
16
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
16
PNL B/S RIGHT (WHITE) WCI 3051263 Contact Us For Availability
16
PNL B/S RIGHT (ALMOND) WCI 3051264 Contact Us For Availability
16
PNL B/S RIGHT (WHEAT) WCI 3051265 Contact Us For Availability
16A
PNL B/S LEFT (WHITE) WCI 3051260 Contact Us For Availability
16A
PNL B/S LEFT (ALMOND) WCI 3051261 Contact Us For Availability
16A
PNL B/S LEFT (WHEAT) WCI 3051262 Contact Us For Availability
17
WCI 3014435 WCI 3014435 Contact Us For Availability
17
INSUL OV DR W/ FOIL WCI 3200528 Contact Us For Availability
17
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
17
WCI 3013814 WCI 3013814 Contact Us For Availability
17
SHIELD-WOOL U/O SIDE WCI 3131679 Contact Us For Availability
18
WASHER SPRING WCI 3131737 Contact Us For Availability
18
NUT WCI 3131358 Contact Us For Availability
19
WCI 08067928 WCI 08067928 Contact Us For Availability
19
FITTING-LOXIT (8) WCI 3131261 Contact Us For Availability
19
SWITCH-OVEN LITE DOOR WCI 5303202622 Contact Us For Availability
20
ANGLE S/C BRKT WCI 3051348 Contact Us For Availability
20
FITTING-TEE WCI 3131657 Contact Us For Availability
20
WCI 5303131289 WCI 5303131289 Contact Us For Availability
20
WCI 069T046F01 WCI 069T046F01 Contact Us For Availability
21
TUBE-VALVE TO REGUL WCI 5303208494 Contact Us For Availability
21
WCI 3131590 WCI 3131590 Contact Us For Availability
21
FLUE BACK U/O WCI 3200505 Contact Us For Availability
22
TUBE-VALVE TO MIXER ELBOW WCI 3131364 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
22
PNL-TOP U/O WCI 3131625 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
23
WCI 3011890 WCI 3011890 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
24
HINGE-DOOR-TOP WCI 3131613 Contact Us For Availability
25
WCI 3203082 WCI 3203082 Contact Us For Availability
25A
SHIELD-LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
NUT, SPECIAL WCI 3013279 Contact Us For Availability
26
WCI 5308010597 WCI 5308010597 Contact Us For Availability
27
IGNITER-UPPER OVEN WCI 5303200508 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
BURNER-UPPER OVEN WCI 3200502 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 3131623 WCI 3131623 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
TUBE-UPPER OVEN VLV WCI 3131626 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
TUBE-REGUL TEE WCI 3014477 Contact Us For Availability
31
SHIELD-FRONT WCI 3200835 Contact Us For Availability
32
IGNITER-TOP BURNER (4) WCI 3131105 Contact Us For Availability
32
SHIELD-OVN TOP WCI 3131314 Contact Us For Availability
33
WCI 3018617 WCI 3018617 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
BURNER TOP (4) WCI 5303011567 Contact Us For Availability
34
PNL B/S-LH (WHITE) WCI 3205623 Contact Us For Availability
34
PNL B/S-LH (ALMOND) WCI 3205624 Contact Us For Availability
34
PNL B/S-LH (WHEAT) WCI 3205627 Contact Us For Availability
34A
PNL B/S-RH (WHITE) WCI 3205620 Contact Us For Availability
34A
PNL B/S-RH (ALMOND) WCI 3205621 Contact Us For Availability
34A
PNL B/S-RH (WHEAT) WCI 3205626 Contact Us For Availability
35
WCI 3131624 WCI 3131624 Contact Us For Availability
35
SCREW-LEVELING WCI 3203397 Contact Us For Availability
35A
TUBE-SPACER (NON-ILLUSTRATED) WCI 3131622 Contact Us For Availability
36
WCI 3206267 WCI 3206267 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
BTTM-OVEN WCI 3011519 Contact Us For Availability
41
WCI 3015371 WCI 3015371 Contact Us For Availability
41A
WCI 08067961 WCI 08067961 Contact Us For Availability
41B
INSUL OVEN BACK S/C (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
41D
WCI 3012943 WCI 3012943 Contact Us For Availability
41E
INSUL WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
41F
WCI 655T434F01 WCI 655T434F01 Contact Us For Availability
43
WCI 3051723 WCI 3051723 Contact Us For Availability
43A
WCI 3051724 WCI 3051724 Contact Us For Availability
× ![]()
