Model Electrolux 72-3981-23-04 RANGE – Common Parts & Diagrams
02 - SPLASHER CONTROL
03 - COOKTOP PARTS
04 - DRAWER PARTS

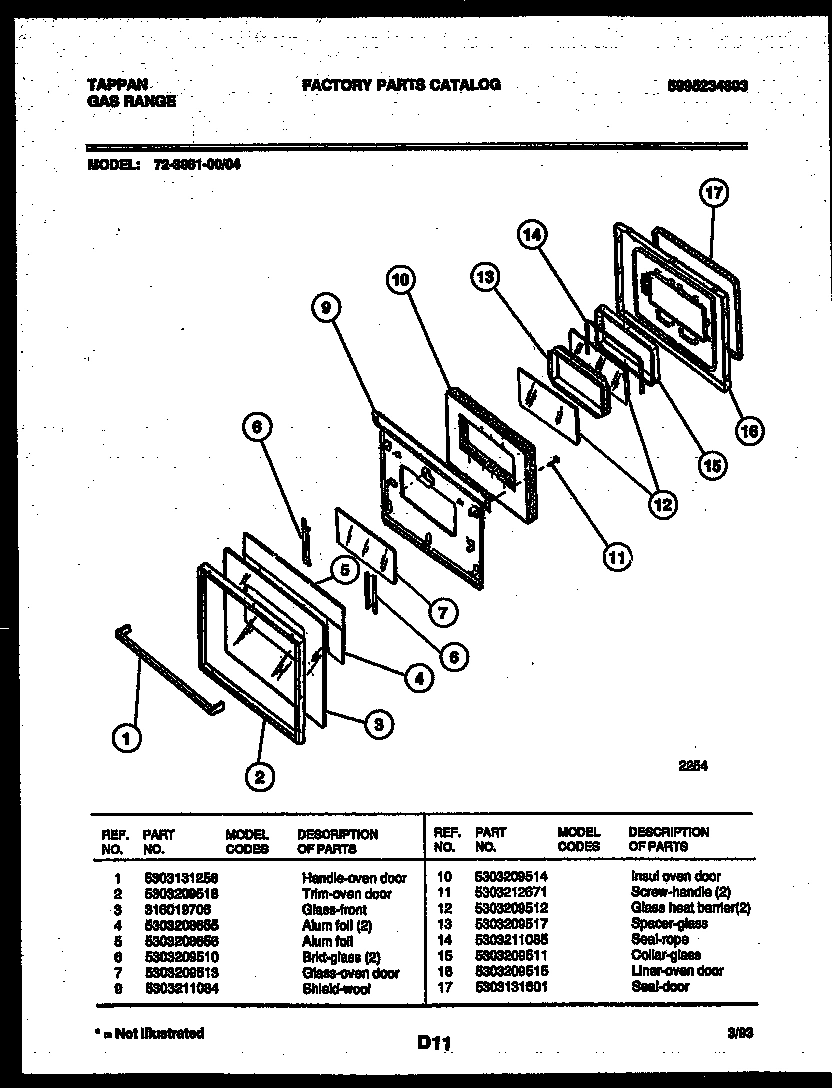

05 - LOWER OVEN DOOR PARTS

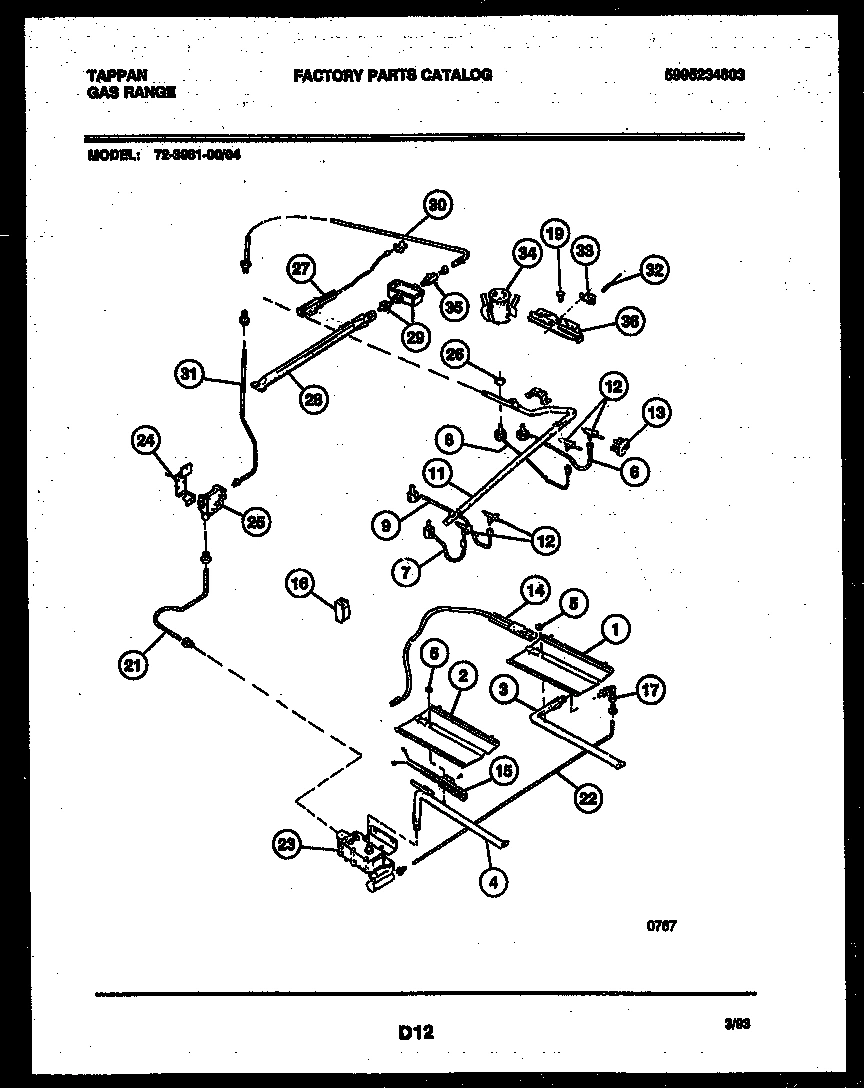

06 - BURNER, MANIFOLD AND GAS CONTROL
07 - LOWER BODY PARTS

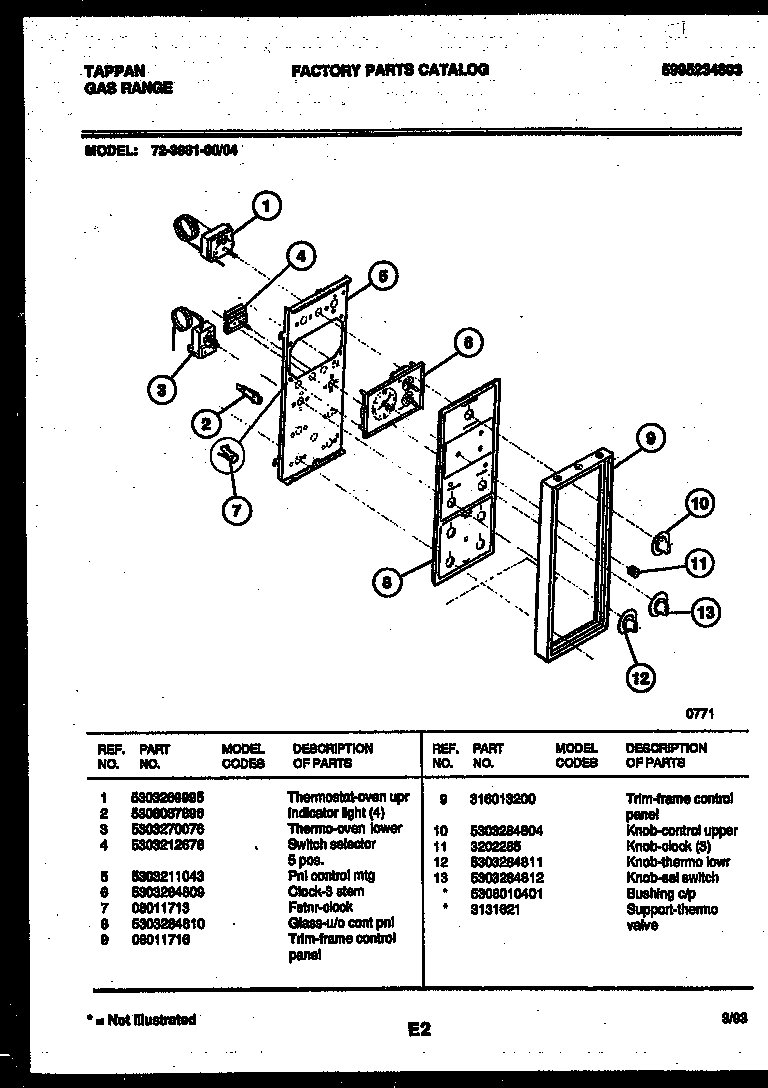

08 - CONTROL PANEL

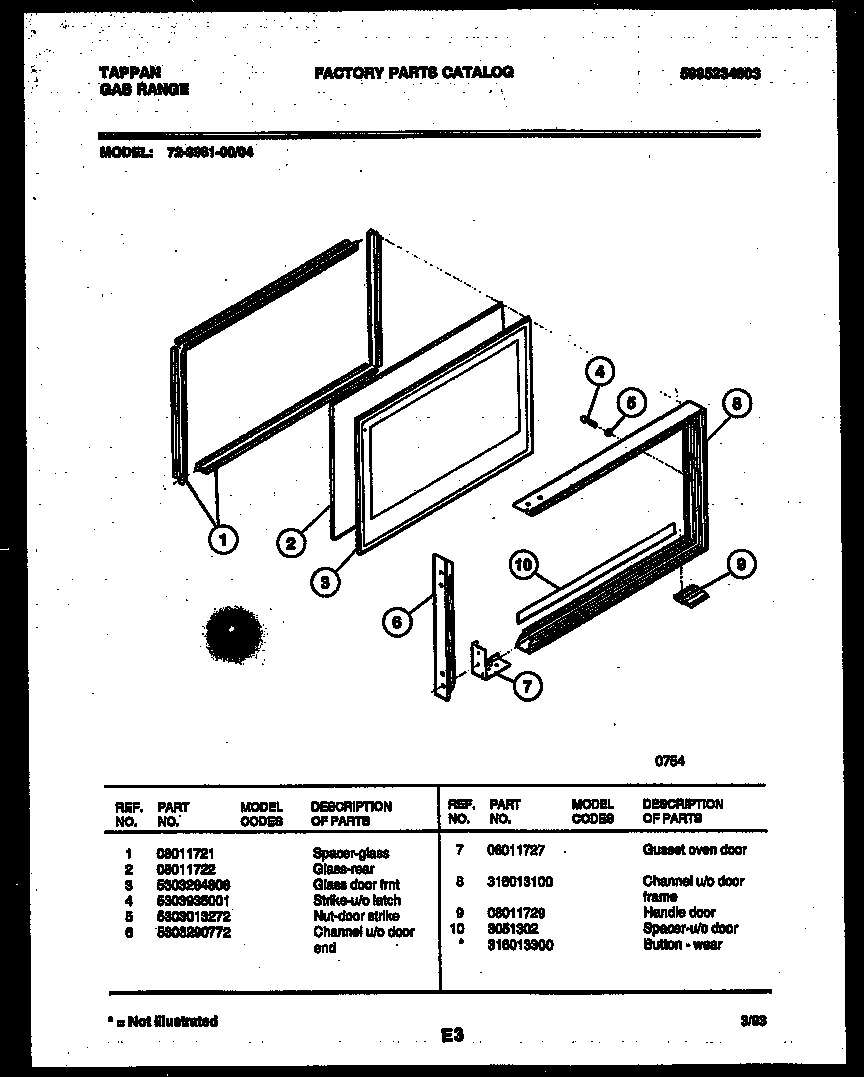

09 - UPPER OVEN DOOR PARTS

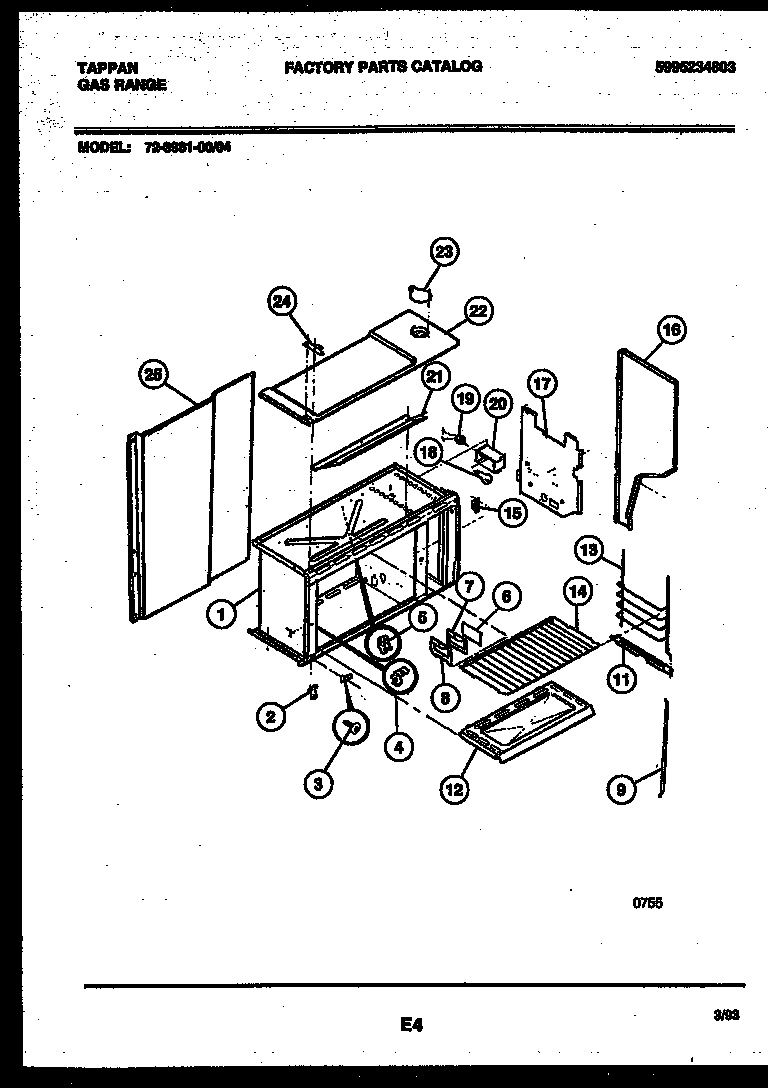

10 - UPPER BODY PARTS
Common parts from model Electrolux 72-3981-23-04 RANGE
*83709
SCREW-HANDLE WCI 5303281651 Contact Us For Availability
*83720
RETAINER-OVEN SPUD WCI 3205396 Contact Us For Availability
*83731
WCI 19100220009 WCI 19100220009 Contact Us For Availability
*83731
SHIELD-HEAT WCI 3131620 Contact Us For Availability
*83731
WCI 3200834 WCI 3200834 Contact Us For Availability
*83731
ANTI-TIP BRKT WCI 3934056 Contact Us For Availability
*83731
FSTNR-TEE NUT LEVELING LEG WCI 5303288460 Contact Us For Availability
*83734
WCI 3131621 WCI 3131621 Contact Us For Availability
*83734
WCI 5308010401 WCI 5308010401 Contact Us For Availability
*83736
WCI 316013300 WCI 316013300 Contact Us For Availability
*83740
STRIKE U/O DOOR ALIGN WCI 316012800 Contact Us For Availability
*83740
INSUL-WOOL SPLASHER WCI 3200497 Contact Us For Availability
*83740
INSUL-WOOL WCI 3200498 Contact Us For Availability
*83740
BRKT-CONNEC MTG WCI 3200500 Contact Us For Availability
*83740
INSUL O/U UPPER WCI 3200509 Contact Us For Availability
*83740
INSUL WOOL WCI 3200511 Contact Us For Availability
*83740
RETAINER OVEN WCI 3200519 Contact Us For Availability
*83740
WCI 3204440 WCI 3204440 Contact Us For Availability
*83741
WCI 5303291042 WCI 5303291042 Contact Us For Availability
1
THERMOSTAT-OVEN UPR WCI 5303269995 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
WCI 5303131256 WCI 5303131256 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 08011721 WCI 08011721 Contact Us For Availability
2
WCI 08011722 WCI 08011722 Contact Us For Availability
2
WCI 5303209518 WCI 5303209518 Contact Us For Availability
2
BAFFLE-OVN BURNER WCI 3131284 Contact Us For Availability
2
WCI 5308037896 WCI 5308037896 Contact Us For Availability
2
HINGE-DOOR ASSY WCI 3051166 Contact Us For Availability
3
BULB-FLUOR WCI 3131275 Contact Us For Availability
3
WCI 5303270076 WCI 5303270076 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
GLASS-FRONT WCI 316019706 Contact Us For Availability
3
GLASS DOOR FRNT WCI 5303284806 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
SWITCH SELECTOR 5 POS WCI 5303212678 Contact Us For Availability
4
WCI 5303935001 WCI 5303935001 Contact Us For Availability
4
WCI 08011665 WCI 08011665 Contact Us For Availability
5
HINGE-TOP LH WCI 08067746 Contact Us For Availability
5
SHIELD-PNL WCI 3131975 Contact Us For Availability
5
WCI 5303208656 WCI 5303208656 Contact Us For Availability
5
WCI 5303211043 WCI 5303211043 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
BRKT-GLASS (2) WCI 5303209510 Contact Us For Availability
6
WCI 5303283665 WCI 5303283665 Contact Us For Availability
6
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
6
WCI 5303284809 WCI 5303284809 Contact Us For Availability
6
WCI 5303290772 WCI 5303290772 Contact Us For Availability
6
GLASS-OVN LITE LENS WCI 08011668 Contact Us For Availability
7
WCI 5303209513 WCI 5303209513 Contact Us For Availability
7
WCI 5303283666 WCI 5303283666 Contact Us For Availability
7
FSTNR-CLOCK WCI 08011713 Contact Us For Availability
7
GUSSET-OVEN DOOR WCI 08011727 Contact Us For Availability
7
GSKT OVEN LIGHT WCI 3200506 Contact Us For Availability
8
CHANNEL-HNG WCI 316007002 No Longer Available
8
WCI 5303283667 WCI 5303283667 Contact Us For Availability
8
WCI 5303284810 WCI 5303284810 Contact Us For Availability
8
CHANNEL U/O DOOR FRAME WCI 316013100 Contact Us For Availability
8
WCI 08011669 WCI 08011669 Contact Us For Availability
9
WCI 5303272852 WCI 5303272852 Contact Us For Availability
9
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 08011729 WCI 08011729 Contact Us For Availability
9
WCI 5303211084 WCI 5303211084 Contact Us For Availability
9
WCI 5303283668 WCI 5303283668 Contact Us For Availability
9
TRIM-FRAME CONTROL PANEL WCI 08011716 Contact Us For Availability
9
TRIM-FRAME CONTROL PANEL WCI 316013200 Contact Us For Availability
9
SEAL DOOR (4) WCI 5303934092 Contact Us For Availability
10
WCI 316011403 WCI 316011403 Contact Us For Availability
10
INSUL OVEN DOOR WCI 5303209514 Contact Us For Availability
10
SHIELD-HEAT UPPER WCI 5303270104 Contact Us For Availability
10
WCI 5303284804 WCI 5303284804 Contact Us For Availability
10
SPACER-U/O DOOR WCI 3051302 Contact Us For Availability
11
SCREW-HANDLE (2) WCI 5303212671 Contact Us For Availability
11
WCI 5303271045 WCI 5303271045 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11
WCI 3202285 WCI 3202285 Contact Us For Availability
11
GLIDE-OVEN BTM WCI 3131616 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 5303209512 WCI 5303209512 Contact Us For Availability
12
VALVE, TOP, 3 POS, (4) WCI 316020401 Contact Us For Availability
12
WCI 08067754 WCI 08067754 Contact Us For Availability
12
WCI 5303284811 WCI 5303284811 Contact Us For Availability
12
WCI 3200488 WCI 3200488 Contact Us For Availability
13
SWITCH-IGNITER, (4) WCI 316032000 Contact Us For Availability
13
WCI 5303209517 WCI 5303209517 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
13
WCI 5303284812 WCI 5303284812 Contact Us For Availability
13
WCI 08011674 WCI 08011674 Contact Us For Availability
14
WCI 5303211085 WCI 5303211085 Contact Us For Availability
14
FSTNR-PUSH ON WCI 08067776 Contact Us For Availability
14
RACK-OVEN, FLAT WCI 08011675 Contact Us For Availability
14A
STUD-SPACER (2) WCI 08067978 Contact Us For Availability
15
WCI 5303209511 WCI 5303209511 Contact Us For Availability
15
WCI 08011680 WCI 08011680 Contact Us For Availability
16
WCI 5303209515 WCI 5303209515 Contact Us For Availability
16
PNL B/S RIGHT (ALMOND) WCI 3051264 Contact Us For Availability
16
WCI 5303269989 WCI 5303269989 Contact Us For Availability
17
WCI 5303209315 WCI 5303209315 Contact Us For Availability
17
WCI 5303209316 WCI 5303209316 Contact Us For Availability
17
SHIELD-WOOL U/O SIDE WCI 5303208706 Contact Us For Availability
19
WCI 3051420 WCI 3051420 Contact Us For Availability
19
SWITCH-OVEN LITE DOOR WCI 5303202622 Contact Us For Availability
20
WCI 5303131289 WCI 5303131289 Contact Us For Availability
20
WCI 08011684 WCI 08011684 Contact Us For Availability
21
TUBE-VALVE TO REGUL WCI 5303208494 Contact Us For Availability
21
SHIELD-WALL REAR WCI 316014401 Contact Us For Availability
21
FLUE BACK U/O WCI 3200505 Contact Us For Availability
22
TUBE-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
22
WCI 316014301 WCI 316014301 Contact Us For Availability
22
PNL-TOP U/O WCI 3131625 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
23
WCI 08067732 WCI 08067732 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
24
HINGE-DOOR-TOP WCI 3131613 Contact Us For Availability
25
WCI 3203082 WCI 3203082 Contact Us For Availability
25A
SHIELD-LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
NUT, SPECIAL WCI 3013279 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
IGNITER-UPPER OVEN WCI 5303200508 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
BURNER-UPPER OVEN WCI 3200502 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 3131623 WCI 3131623 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 5303208645 WCI 5303208645 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
TUBE-REGUL MANF WCI 5303208495 Contact Us For Availability
31
SHIELD-FRONT WCI 5303271047 Contact Us For Availability
32
IGNITER-TOP BURNER (4) WCI 5303283573 Contact Us For Availability
32
SHIELD-OVN TOP WCI 3131314 Contact Us For Availability
33
WCI 3018617 WCI 3018617 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
BURNER TOP (4) WCI 5303011567 Contact Us For Availability
34
WCI 5303269543 WCI 5303269543 Contact Us For Availability
34
WCI 5303269545 WCI 5303269545 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
35
WCI 5303208636 WCI 5303208636 Contact Us For Availability
35A
TUBE-SPACER (NON-ILLUSTRATED) WCI 3131622 Contact Us For Availability
36
CHANNEL FLUSH TUBE WCI 3206267 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
BTTM-OVEN WCI 5303212540 Contact Us For Availability
41
WCI 3015371 WCI 3015371 Contact Us For Availability
41A
WCI 08067961 WCI 08067961 Contact Us For Availability
41B
INSUL OVEN BACK S/C (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
41D
INSUL WOOL TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
41E
INSUL WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
41F
WCI 08068018 WCI 08068018 Contact Us For Availability
43
WCI 5303208642 WCI 5303208642 Contact Us For Availability
43
TUBE-POST RH WCI 5303208643 Contact Us For Availability
× ![]()
