Model Electrolux 72-3977-23-05 RANGE – Common Parts & Diagrams
02 - SPLASHER CONTROL

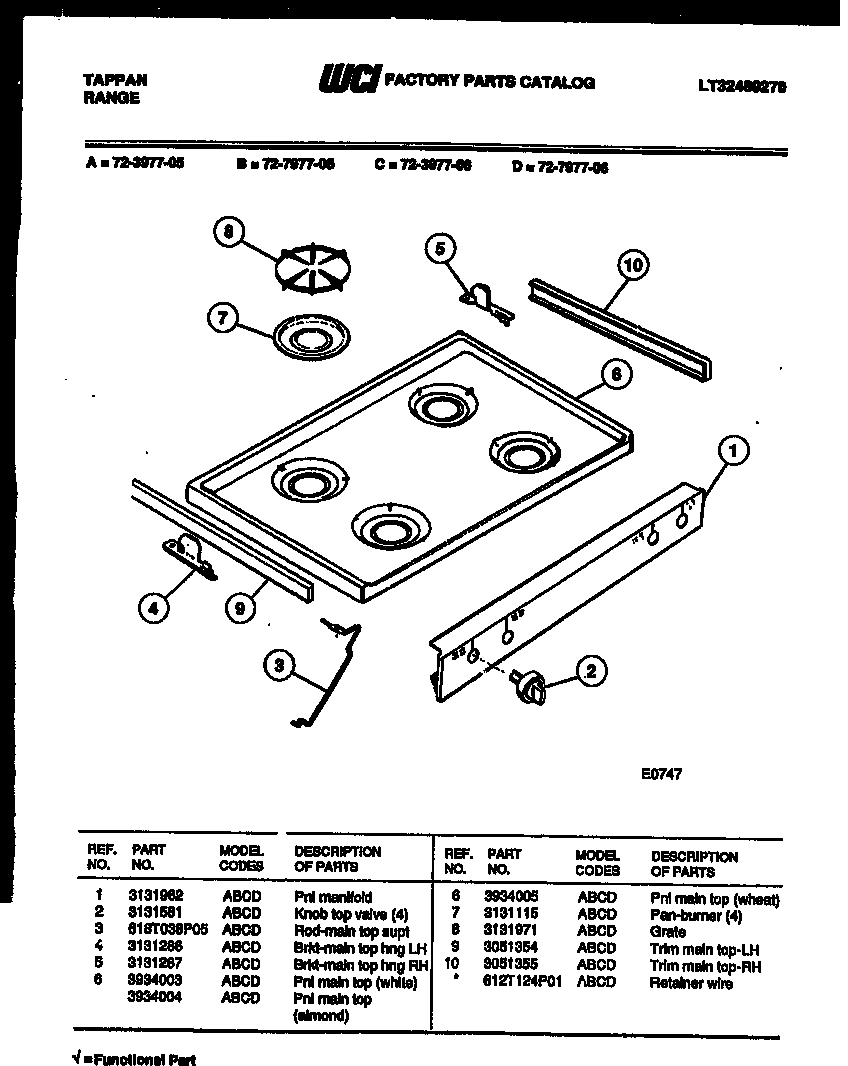

03 - COOKTOP PARTS

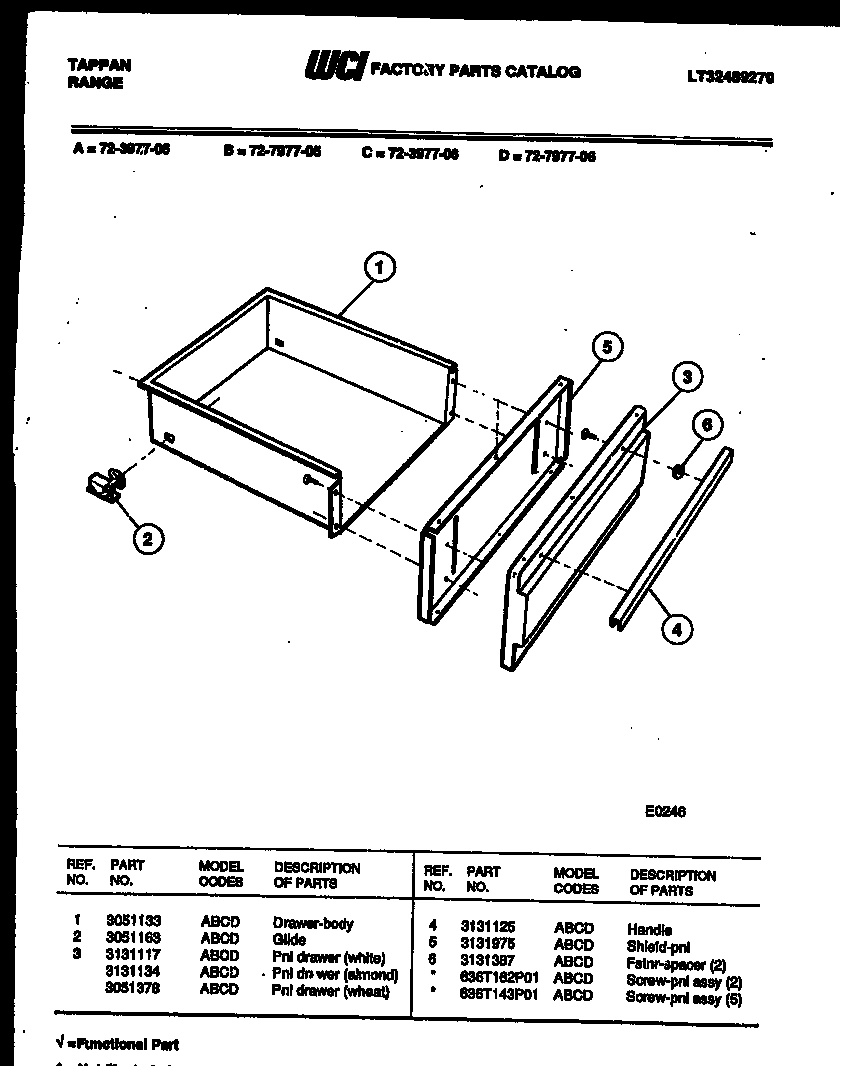

04 - DRAWER PARTS

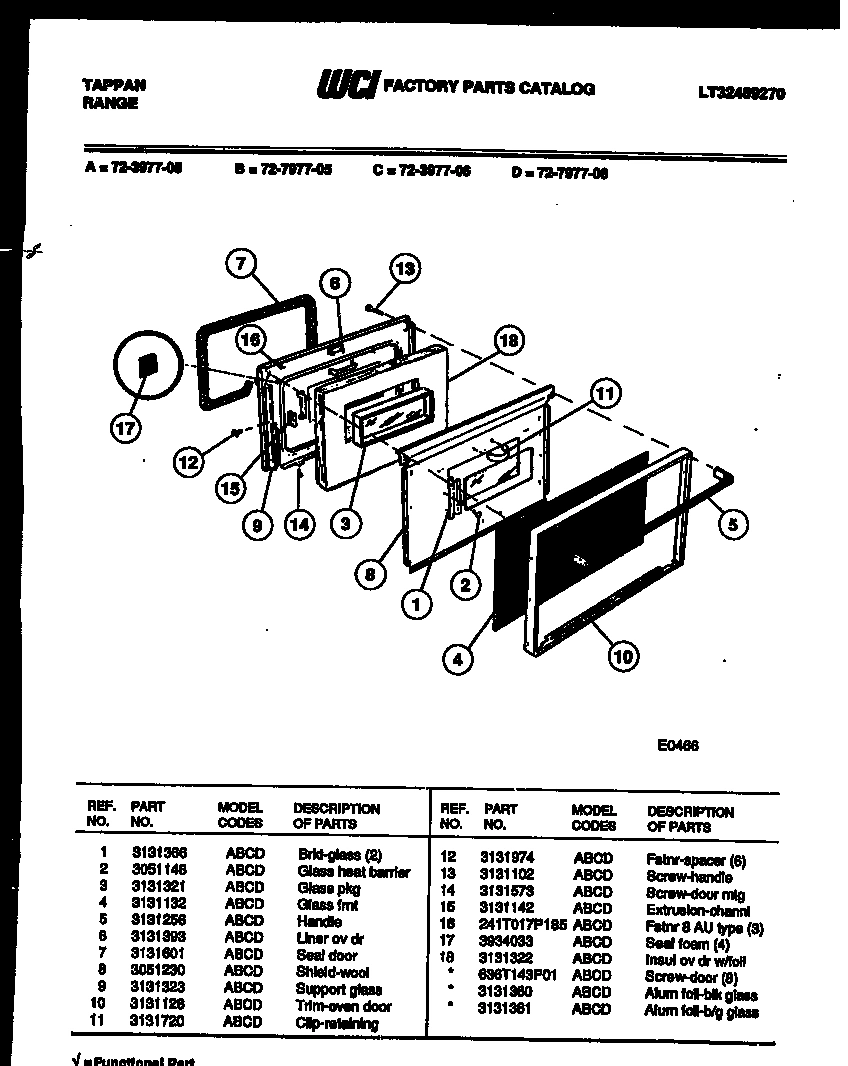

05 - LOWER OVEN DOOR PARTS

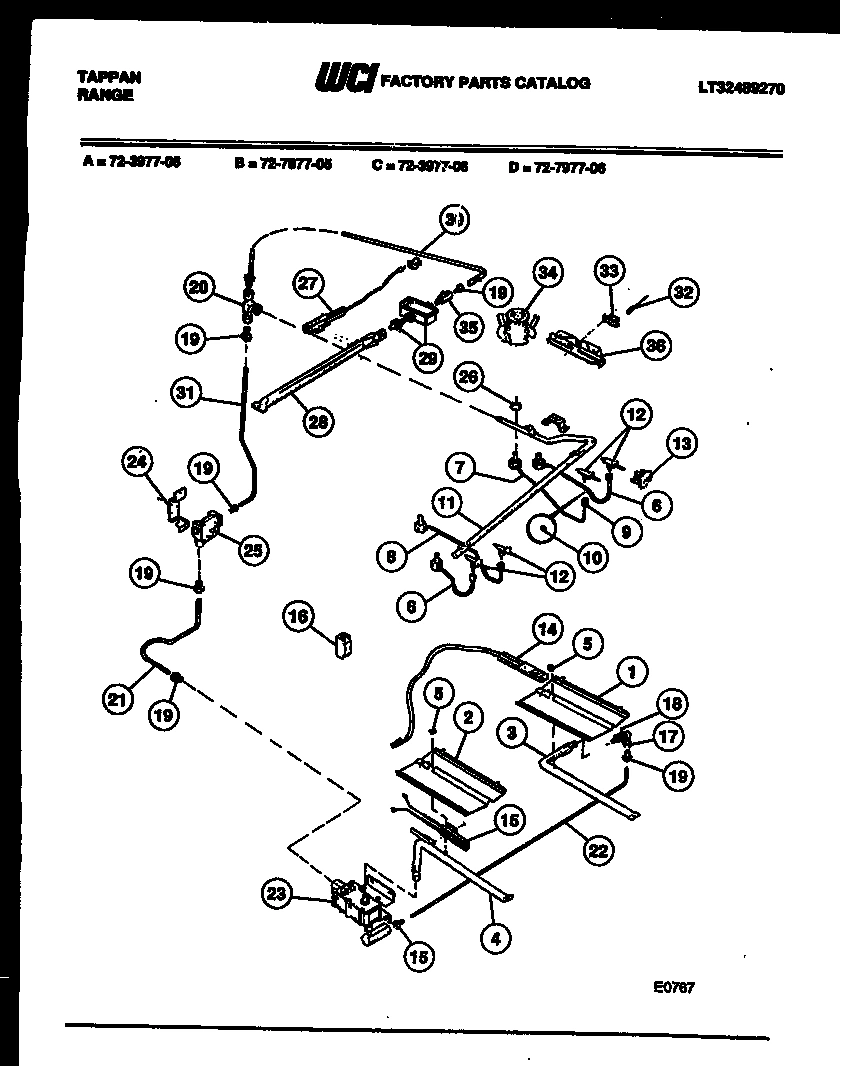

06 - BURNER, MANIFOLD AND GAS CONTROL

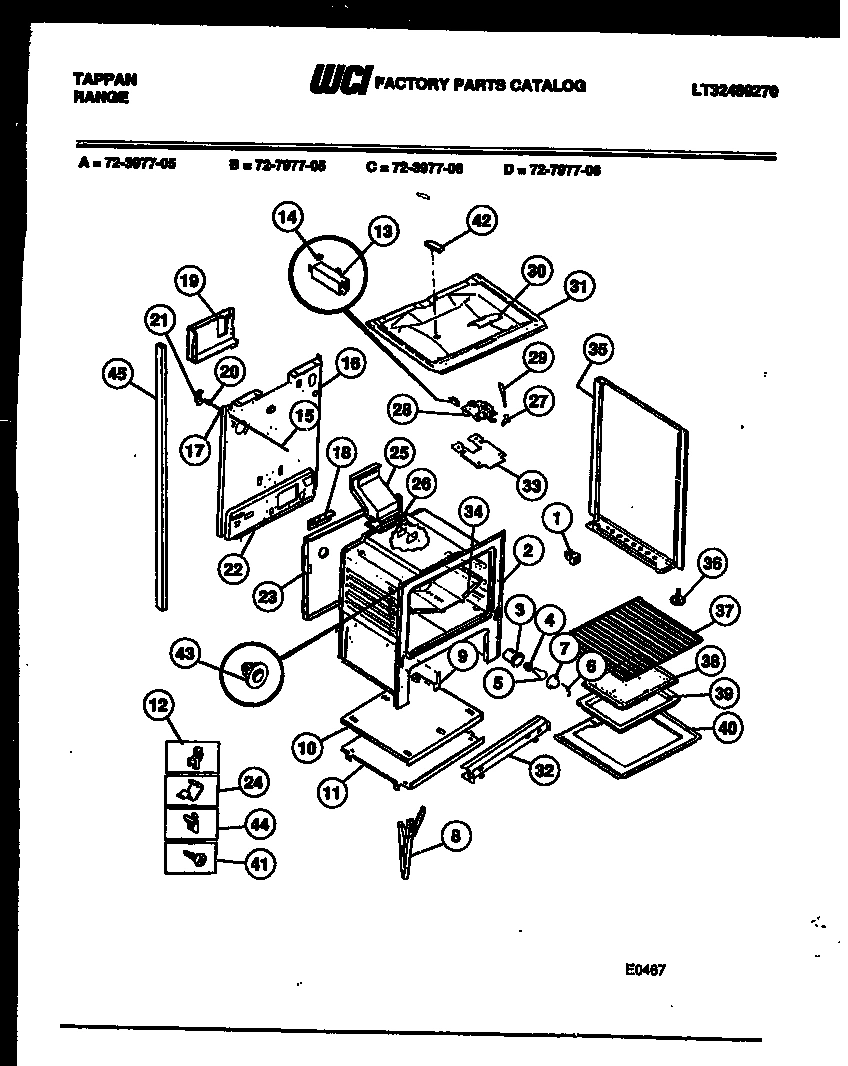

07 - LOWER BODY PARTS

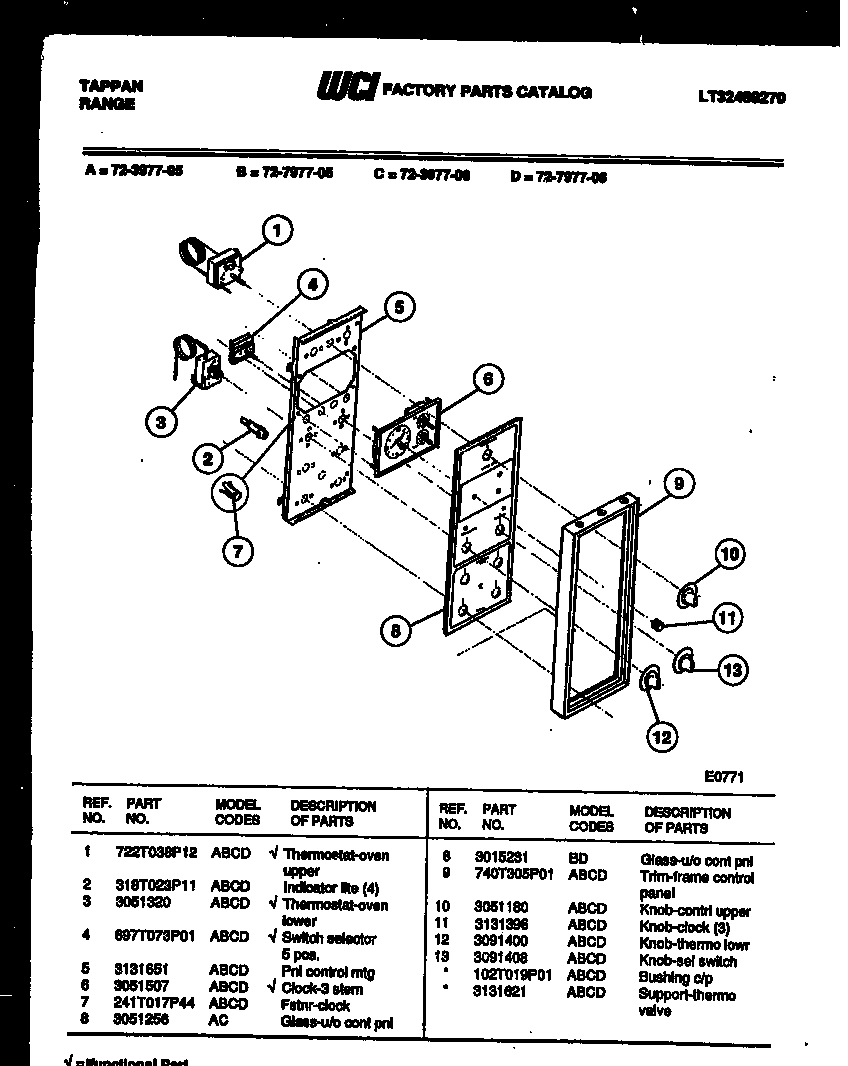

08 - CONTROL PANEL

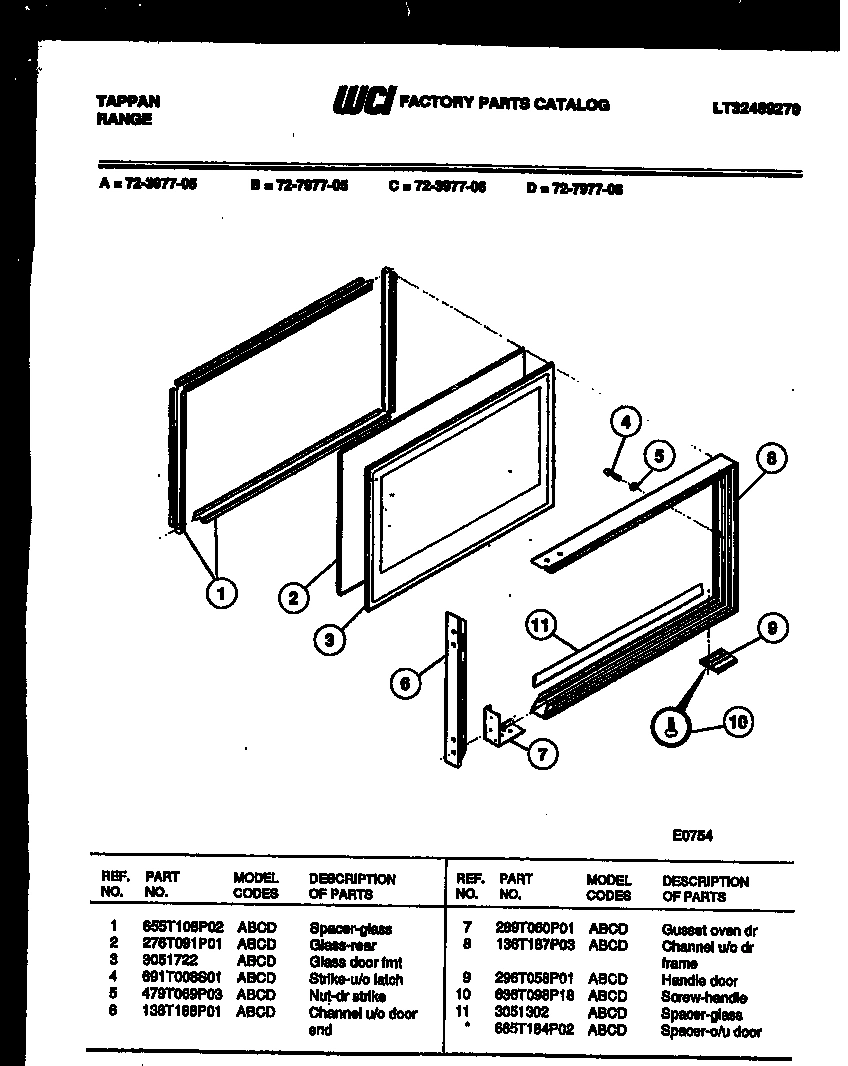

09 - UPPER OVEN DOOR PARTS

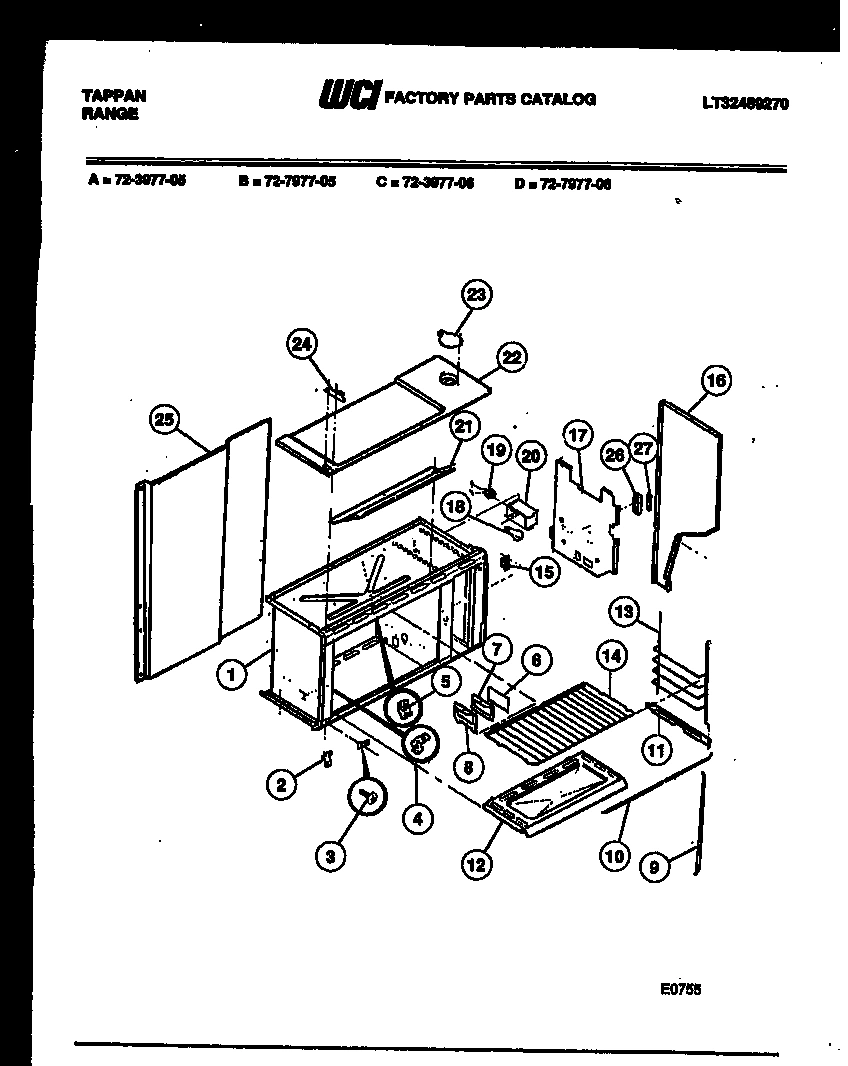

10 - UPPER BODY PARTS
Common parts from model Electrolux 72-3977-23-05 RANGE
*15128
WCI 612T124P01 WCI 612T124P01 Contact Us For Availability
*15129
SCREW PNL ASSY (2) WCI 636T162P01 Contact Us For Availability
*15131
ALUM FOIL-B/G GLASS WCI 3131361 Contact Us For Availability
*15133
WCI 3051420 WCI 3051420 Contact Us For Availability
*15138
ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSID WCI 3017527 Contact Us For Availability
*15138
WCI 3131630 WCI 3131630 Contact Us For Availability
*15138
WASHER-BLACK WCI 3131737 Contact Us For Availability
*15140
BUSHING C/P WCI 102T019P01 Contact Us For Availability
*15140
WCI 3131621 WCI 3131621 Contact Us For Availability
*15140
SPACER-O/U DOOR WCI 665T184P02 Contact Us For Availability
1
PNL MANIFOLD WCI 3131962 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
BRKT GLASS (2) WCI 3131366 Contact Us For Availability
1
WCI 3131283 WCI 3131283 Contact Us For Availability
1
WCI 665T188P02 WCI 665T188P02 Contact Us For Availability
1
THERMOSTAT-OVEN UPPER WCI 722T038P12 Contact Us For Availability
1
WCI 655T108P02 WCI 655T108P02 Contact Us For Availability
2
KNOB, TOP VALVE (4) WCI 3131581 Contact Us For Availability
2
WCI 3051148 WCI 3051148 Contact Us For Availability
2
BAFFLE-OVN BURNER WCI 3131284 Contact Us For Availability
2
INDICATOR LITE (4) WCI 318T023P11 Contact Us For Availability
2
WCI 276T091P01 WCI 276T091P01 Contact Us For Availability
2
HINGE-DOOR ASSY WCI 3051166 Contact Us For Availability
3
BULB-FLUOR WCI 3131275 Contact Us For Availability
3
ROD-MAIN TOP SUPT. WCI 618T038P05 Contact Us For Availability
3
PNL DRAWER (ALMOND) WCI 3131134 Contact Us For Availability
3
WCI 3131321 WCI 3131321 Contact Us For Availability
3
WCI 079T028P01 WCI 079T028P01 Contact Us For Availability
3
WCI 3131363 WCI 3131363 Contact Us For Availability
3
WCI 3051320 WCI 3051320 Contact Us For Availability
3
GLASS DOOR FRNT WCI 3051722 Contact Us For Availability
3
WCI 636T070P02 WCI 636T070P02 Contact Us For Availability
4
BRKT MAIN TOP HNG LH WCI 3131286 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
GLASS FRNT WCI 3131132 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
SWITCH SELECTOR 5 POS. WCI 697T073P01 Contact Us For Availability
4
STRIKE-U/O LATCH WCI 691T008S01 Contact Us For Availability
4
WCI 554T176F01 WCI 554T176F01 Contact Us For Availability
5
BRKT MAIN TOP HNG RH WCI 3131287 Contact Us For Availability
5
SHIELD-PNL WCI 3131975 Contact Us For Availability
5
WCI 3131256 WCI 3131256 Contact Us For Availability
5
WCI 3131651 WCI 3131651 Contact Us For Availability
6
PNL MAIN TOP-ALMOND WCI 3934004 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
LINER OV DR WCI 3131393 Contact Us For Availability
6
BURNER TUBE-RF & LF WCI 3131970 Contact Us For Availability
6
WCI 3131104 WCI 3131104 Contact Us For Availability
6
WCI 3051507 WCI 3051507 Contact Us For Availability
6
CHANNEL U/O DOOR END WCI 136T188P01 Contact Us For Availability
6
GLASS-OVN LITE LENS WCI 277T162P01 Contact Us For Availability
7
WCI 3011569 WCI 3011569 Contact Us For Availability
7
WCI 3131298 WCI 3131298 Contact Us For Availability
7
FSTNR-CLOCK WCI 241T017P44 Contact Us For Availability
7
WCI 289T060P01 WCI 289T060P01 Contact Us For Availability
7
GSKT OVEN LIGHT WCI 269T071P01 Contact Us For Availability
8
CHANNEL-HNG (2) WCI 316007002 No Longer Available
8
GRATE WCI 3131971 Contact Us For Availability
8
WCI 3051230 WCI 3051230 Contact Us For Availability
8
WCI 3011570 WCI 3011570 Contact Us For Availability
8
WCI 3051256 WCI 3051256 Contact Us For Availability
8
CHANNEL U/O DR FRAME WCI 136T187P03 Contact Us For Availability
8
WCI 174T112F01 WCI 174T112F01 Contact Us For Availability
9
COVER HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
9
GLASS O/U LT LENS WCI 277T164P25 Contact Us For Availability
9
WCI 3051354 WCI 3051354 Contact Us For Availability
9
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
9
NUT COMPRESSN (4) WCI 3131148 Contact Us For Availability
9
TRIM-FRAME CONTROL PANEL WCI 740T305P01 Contact Us For Availability
9
WCI 296T058P01 WCI 296T058P01 Contact Us For Availability
9
WCI 647T081P06 WCI 647T081P06 Contact Us For Availability
10
WCI 513T073F20 WCI 513T073F20 Contact Us For Availability
10
WCI 3051355 WCI 3051355 Contact Us For Availability
10
WCI 3131128 WCI 3131128 Contact Us For Availability
10
WCI 247T074P01 WCI 247T074P01 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
10
KNOB-CONTRL UPPER WCI 3051180 Contact Us For Availability
10
WCI 636T098P18 WCI 636T098P18 Contact Us For Availability
10
WCI 647T081P05 WCI 647T081P05 Contact Us For Availability
11
WCI 3051115 WCI 3051115 Contact Us For Availability
11
CLIP-RETAINING WCI 3131720 Contact Us For Availability
11
WCI 493T055P03 WCI 493T055P03 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11
WCI 3131396 WCI 3131396 Contact Us For Availability
11
WCI 3051302 WCI 3051302 Contact Us For Availability
11
GLIDE-OVEN BTM WCI 3131616 Contact Us For Availability
11A
WCI 655T437F01 WCI 655T437F01 Contact Us For Availability
12
FSTNR CABLE CLAMP WCI 241T003P01 Contact Us For Availability
12
FSTNR. SPACER (6) WCI 3131974 Contact Us For Availability
12
WCI 3017846 WCI 3017846 Contact Us For Availability
12
CLIP-TUBING (2) WCI 3131295 Contact Us For Availability
12
KNOB-THERMO LOWR WCI 3091400 Contact Us For Availability
12
WCI 058T021F04-86 WCI 058T021F04-86 Contact Us For Availability
13
WCI 241T017P154 WCI 241T017P154 Contact Us For Availability
13
SCREW-HANDLE WCI 3131102 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
13
WCI 3091408 WCI 3091408 Contact Us For Availability
13
GLIDE, OVEN RACK (2) WCI 280T021P05 Contact Us For Availability
14
WCI 045T071P01 WCI 045T071P01 Contact Us For Availability
14
SCREW DOOR MTG WCI 3131573 Contact Us For Availability
14
WCI 241T001P01 WCI 241T001P01 Contact Us For Availability
14
RACK OVEN-FLAT WCI 591T042P01 Contact Us For Availability
14A
STUD, SPACER (2) (NON-ILLUSTRATED) WCI 3051307 Contact Us For Availability
15
WCI 3131588 WCI 3131588 Contact Us For Availability
15
EXTRUSION-CHANNL WCI 3131142 Contact Us For Availability
15
IGNITER-OVEN WCI 3200508 Contact Us For Availability
15
WCI 174T329P01 WCI 174T329P01 Contact Us For Availability
15
WCI 131T009P03 WCI 131T009P03 Contact Us For Availability
16
WCI 740T309F01 WCI 740T309F01 Contact Us For Availability
16
FSTNR 8AU TYPE (3) WCI 241T017P185 Contact Us For Availability
16A
WCI 740T309F02 WCI 740T309F02 Contact Us For Availability
16A
PNL B/S LEFT (ALMOND) WCI 3051261 Contact Us For Availability
16A
PNL B/S RIGHT (ALMOND) WCI 3051264 Contact Us For Availability
17
WCI 3051340 WCI 3051340 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17
WCI 455T008P02 WCI 455T008P02 Contact Us For Availability
17
ROD-LIGHT SWITCH WCI 3051495 Contact Us For Availability
17
SHIELD-WOOL U/O SIDE WCI 3131679 Contact Us For Availability
18
WASHER SPRING WCI 3131627 Contact Us For Availability
18
WCI 3131322 WCI 3131322 Contact Us For Availability
18
NUT WCI 3131358 Contact Us For Availability
18
ANGLE LIGHT SWITCH WCI 3131278 Contact Us For Availability
19
WCI 722T071P01 WCI 722T071P01 Contact Us For Availability
19
FITTING-LOXIT (8) WCI 3131261 Contact Us For Availability
19
CHANNEL-LIGHT SHLD WCI 3131294 Contact Us For Availability
20
WCI 3051348 WCI 3051348 Contact Us For Availability
20
FITTING-TEE WCI 3131657 Contact Us For Availability
20
SWITCH-OVEN LITE DOOR WCI 695T128P04 Contact Us For Availability
20
WCI 069T046F01 WCI 069T046F01 Contact Us For Availability
21
TUBE-VALVE TO REGUL WCI 3131109 Contact Us For Availability
21
BRKT LIGHT SWITCH WCI 3131289 Contact Us For Availability
21
FLUE BACK U/O WCI 252T024F01 Contact Us For Availability
22
TUBE-VALVE TO MIXER ELBOW WCI 3131364 Contact Us For Availability
22
WCI 3131590 WCI 3131590 Contact Us For Availability
22
PNL-TOP U/O WCI 3131625 Contact Us For Availability
23
WCI 3131316 WCI 3131316 Contact Us For Availability
23
WCI 3131610 WCI 3131610 Contact Us For Availability
24
CLIP, WIRE WCI 145T130P01 Contact Us For Availability
24
HINGE-DOOR-TOP WCI 3131613 Contact Us For Availability
25
WCI 3131567 WCI 3131567 Contact Us For Availability
25
WCI 3131931 WCI 3131931 Contact Us For Availability
25A
WCI 072T697F01 WCI 072T697F01 Contact Us For Availability
25B
INSUL O/U UPPER (NON-ILLUSTRATED) WCI 328T061P02 Contact Us For Availability
25C
WCI 328T061P04 WCI 328T061P04 Contact Us For Availability
25D
RETAINER OVEN BURNR UPPER (NON-ILLUSTRATED) WCI 612T087F01 Contact Us For Availability
25E
STRIKE U/O DR ALIGN (NON-ILLUSTRATED) WCI 691T007P01 Contact Us For Availability
25F
INSUL-WOOL SPLASHER (NON-ILLUSTRATED) WCI 328T015P106 Contact Us For Availability
25G
WCI 328T061P09 WCI 328T061P09 Contact Us For Availability
26
NUT SPECIAL WCI 479T069P40 Contact Us For Availability
26
RECEPT-FUSE WCI 597T042P01 Contact Us For Availability
26A
SHIELD-LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
26B
SCREW-SET KNOB MTG (NON-ILLUSTRATED) WCI 636T144P01 Contact Us For Availability
27
IGNITER-UPPER OVEN WCI 316T023P06 Contact Us For Availability
27
WCI 358T158S02 WCI 358T158S02 Contact Us For Availability
27
FUSE WCI 3131297 Contact Us For Availability
28
WCI 079T026P01 WCI 079T026P01 Contact Us For Availability
28
WCI 3015453 WCI 3015453 Contact Us For Availability
29
WCI 3131623 WCI 3131623 Contact Us For Availability
29
WCI 3131357 WCI 3131357 Contact Us For Availability
30
WCI 3131626 WCI 3131626 Contact Us For Availability
30
WCI 3131101 WCI 3131101 Contact Us For Availability
30A
SHIELD-METAL WATCH (NON-ILLUSTRATED) WCI 3051413 Contact Us For Availability
31
TUBE-REGUL TEE WCI 750T085H09 Contact Us For Availability
31
WCI 095T030F02-95 WCI 095T030F02-95 Contact Us For Availability
32
IGNITER-TOP BURNER (4) WCI 3131105 Contact Us For Availability
32
SHIELD-FRONT WCI 3131311 Contact Us For Availability
33
WCI 3018617 WCI 3018617 Contact Us For Availability
33
SHIELD-OVN TOP WCI 3131314 Contact Us For Availability
34
WCI 079T032S02 WCI 079T032S02 Contact Us For Availability
34
WCI 3131315 WCI 3131315 Contact Us For Availability
34A
INSUL, WRAPPER (NON-ILLUSTRATED) WCI 3017133 Contact Us For Availability
35
WCI 3131624 WCI 3131624 Contact Us For Availability
35
PNL. B/S (LH ALMOND) WCI 3131453 Contact Us For Availability
35A
SPACER-BAFFLE (2) (NON-ILLUSTRATED) WCI 3131956 Contact Us For Availability
35A
PNL. B/S (RH WHITE) WCI 3131227 Contact Us For Availability
35A
PNL. B/S (RH ALMOND) WCI 3131454 Contact Us For Availability
35B
TUBE-SPACER (NON-ILLUSTRATED) WCI 3131622 Contact Us For Availability
35B
RH BODYSIDE ALMOND WCI 3200790 Contact Us For Availability
35C
LH BODYSIDE ALMOND WCI 3200793 Contact Us For Availability
36
WCI 136T355W03 WCI 136T355W03 Contact Us For Availability
36
WCI 636M004P01 WCI 636M004P01 Contact Us For Availability
38
WCI 3131356 WCI 3131356 Contact Us For Availability
39
PAN, BROILER WCI 539T010F01-86 Contact Us For Availability
40
WCI 058T036F03-86 WCI 058T036F03-86 Contact Us For Availability
42
COVER-BURNER BOX WCI 3015372 Contact Us For Availability
43
WCI 102T044P02 WCI 102T044P02 Contact Us For Availability
43A
FSTNR-POWER CORD (NON-ILLUSTRATED) WCI 241T017P255 Contact Us For Availability
43B
INSUL OVEN BACK (NON-ILLUSTRATED) WCI 3131303 Contact Us For Availability
43D
INSUL WOOL TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
43E
WCI 655T434F01 WCI 655T434F01 Contact Us For Availability
45
WCI 3051723 WCI 3051723 Contact Us For Availability
45A
WCI 3051724 WCI 3051724 Contact Us For Availability
× ![]()
